Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh

Export reference
From $26,639
MSRP ¥19.18M CNY
Rated payload:: 1.995ton
Wheelbase:: 2850mm
Cargo box width:: 1.765m
Model code (announced):: SH5047XLCPCEVNZ5
Cab length:: 5.44m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 180km
Motor 1 Brand: SAIC MAXUS
Curb Weight: 2.37ton

Overview

The Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh is a Electric Refrigerated Truck featuring 180km battery/range, SAIC MAXUS motor, 4X2 (6 wheels) drive and 1.995t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH5047XLCPCEVNZ5
Drive type: 4X2
Wheelbase: 2850mm
Cab length: 5.44m
Cab width: 1.935m
Cab height: 2.79m
CLTC range: 180km
Curb Weight: 2.37ton
Rated payload: 1.995ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Nanjing, Jiangsu
Energy Type: Electric
electric motor
Motor 1 Brand: SAIC MAXUS
Motor 1 Model: TZ180XSA10
Motor Type: Permanent magnet synchronous motor
total rated power: 50kW
Peak power: 100kW
total rated torque: 110N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 53.58kWh
Chassis Specs
Chassis Series: Dana T3
Chassis Model: SH1047PCEVNZY5
Leaf spring count: 3/4+5
Cargo box parameters
Cargo box width: 1.765m
Cargo box height: 1.78m
Safety features
Remote key:
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Electric
Reverse Radar:
Reverse Camera:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

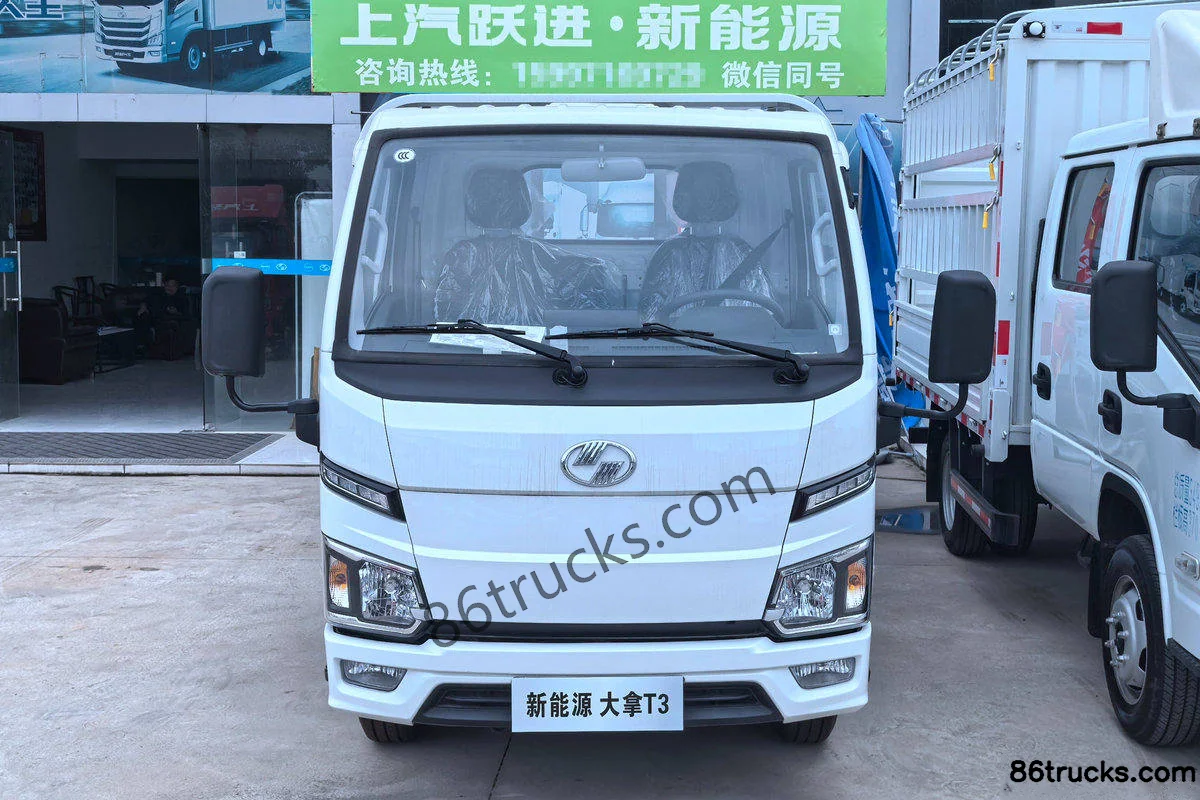

Exterior1

1 photos

FAQ

What is the export price of Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh, and what does it include?

Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh export reference is about From $26,639; MSRP is ¥19.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh?

Key specs of Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh suited for?

Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh differ from other variants in the same series?

Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh belongs to Yuejin Dana T3 Light Truck (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Dana T3 4X2(6 wheels) 3.535m Pure Electric Refrigerated Truck CATL 53.58kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
