Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 300
Emission: China V
Fuel: Diesel
Engine: Isuzu6HK1
Transmission: Fast Gear
Curb Weight:: 8.63ton
seating capacity: 3Personnel
Rated payload: 9.175ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Qingling Isuzu Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck is a Heavy-duty cargo trucks featuring 8.6m cargo length, Van body cargo body, 3Personnel volume and 9.175t payload. Its segment focus covers Express delivery, agricultural by-product transport and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Isuzu6HK1 engine, 300 hp, 4X2 (6 wheels) drive and China V emissions.

China V 300 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL5180XXYXSFRJ
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 6300mm
Box length class: 8.6m
engine: Qingling Isuzu6HK1-TCL
transmission: Fast Gear9JS119TA
Rear Axle Ratio: 4.555
Cab length: 11.1m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 1960mm
rear track: 1855mm
Curb Weight: 8.63ton
Rated payload: 9.175ton
GVWR: 18ton
Max. speed: 105km/h
Origin: Chongqing
tonnage class: Heavy-duty cargo trucks
Approach angle: 15°
departure angle:
market segment: Express delivery, agricultural by-product transport, LTL transport
Front/rear suspension: 1.335/3.465m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu6HK1-TCL
Engine info: Isuzu6HK1
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.79L
Emission standard: China V
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 980N·m
Transmission Parameters
Transmission Model: Fast Gear9JS119TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 8.6m
Cargo box width: 2.45m
Cargo box height: 2.55m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.555
Leaf spring count: 9/7+7
Tire
Tire Size: 11.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

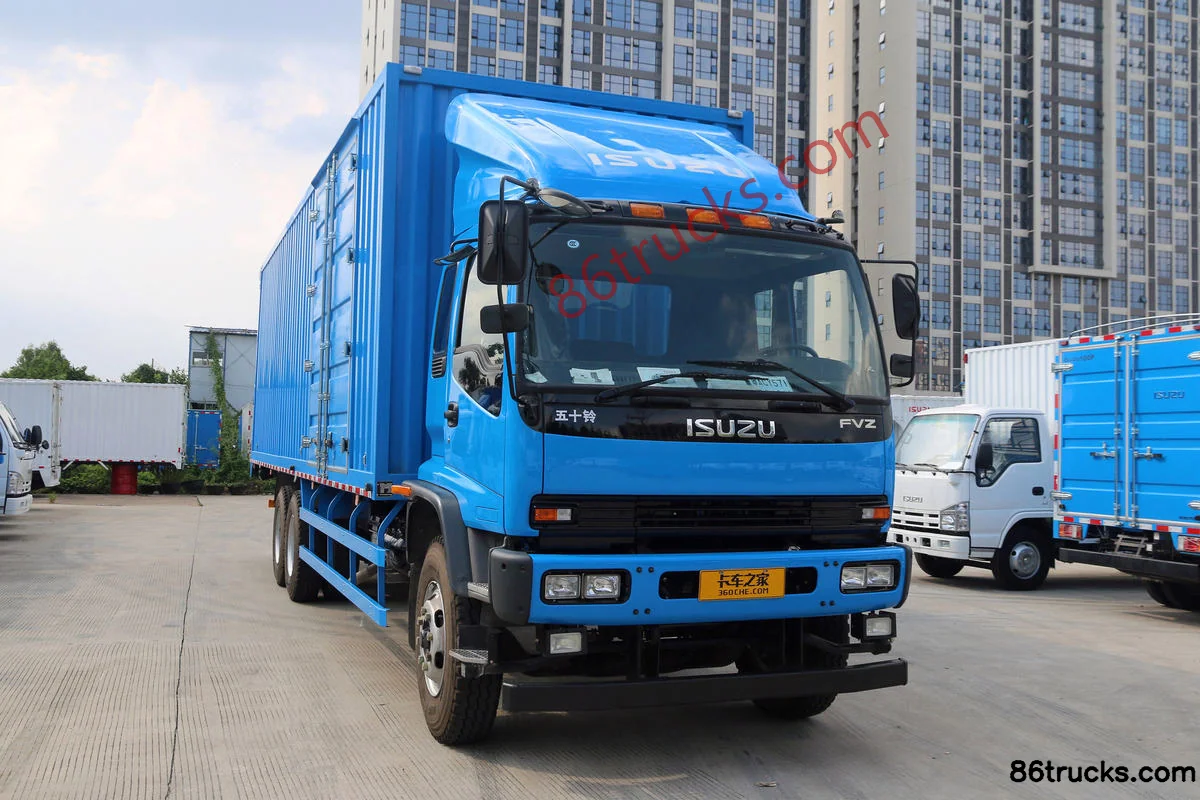

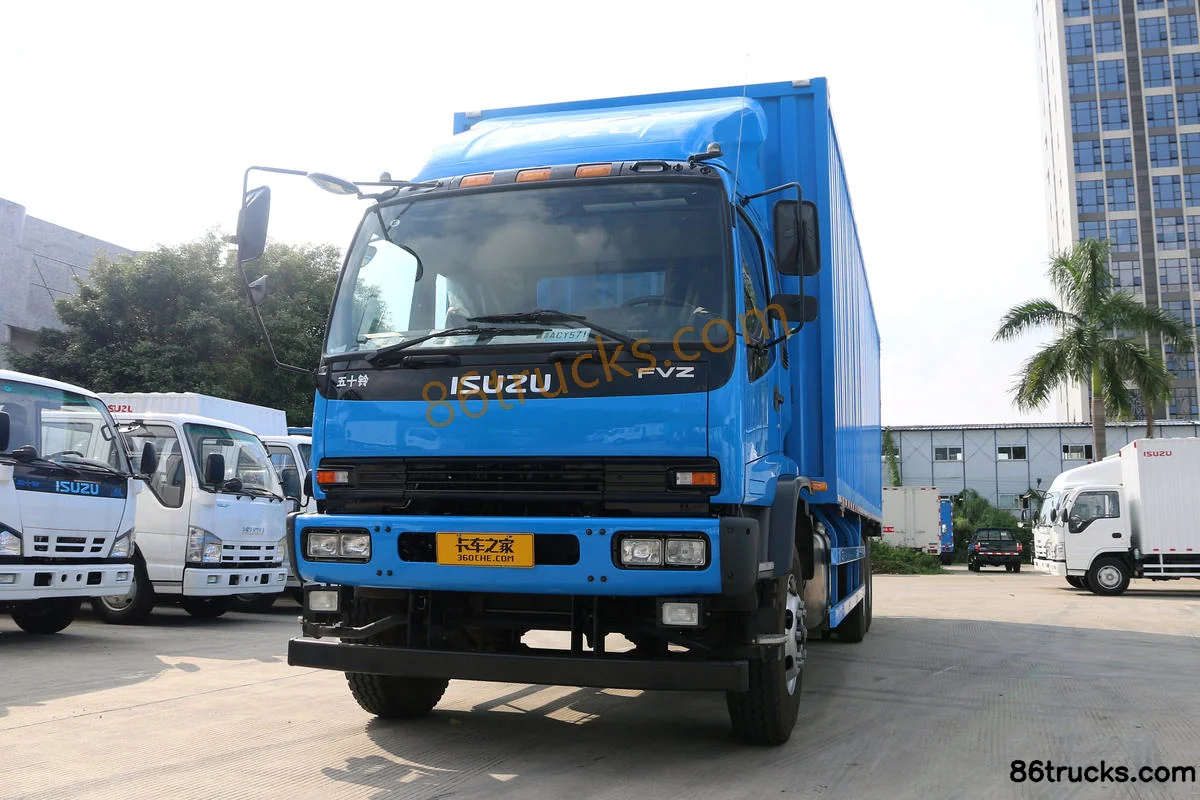

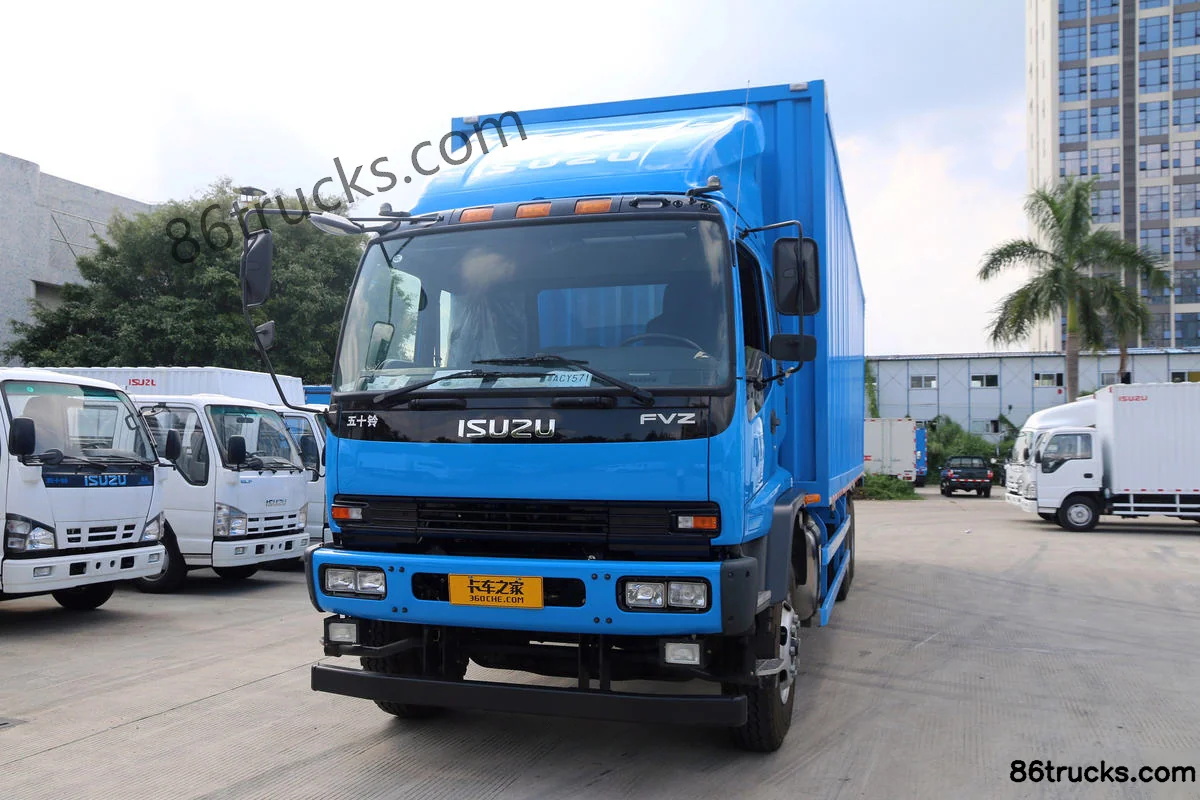

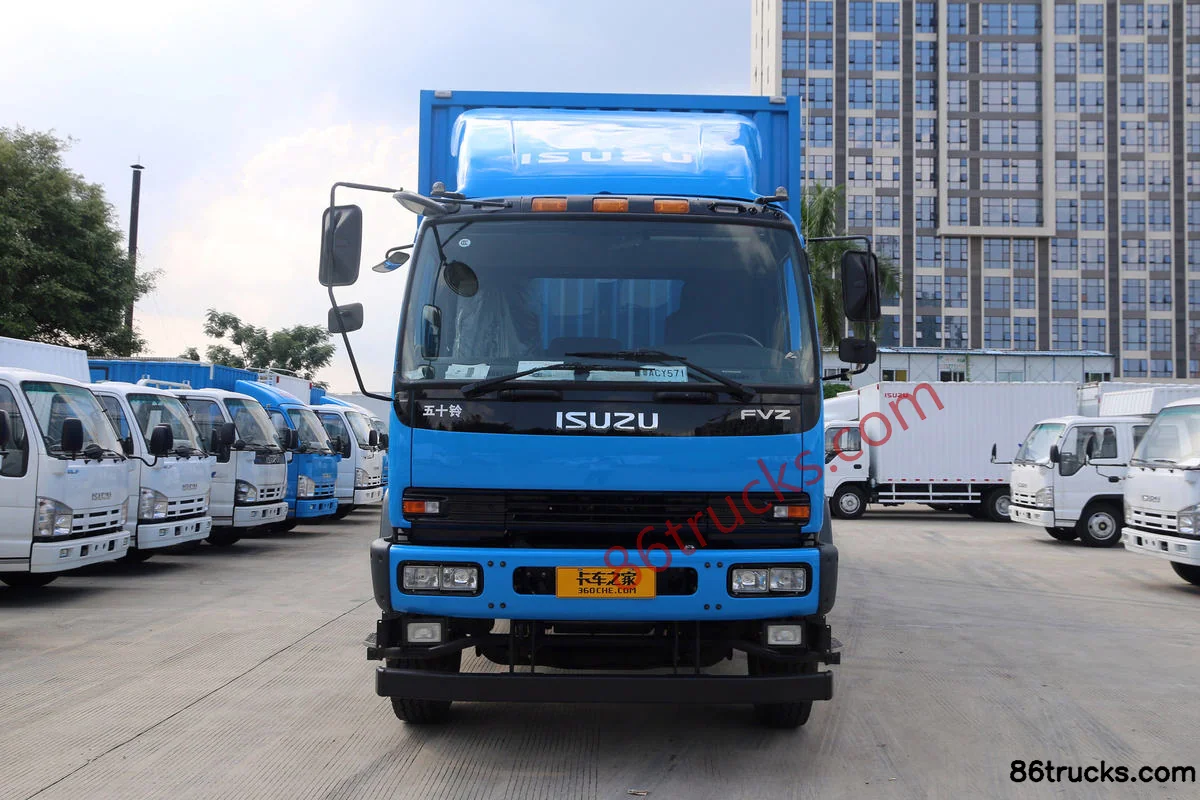

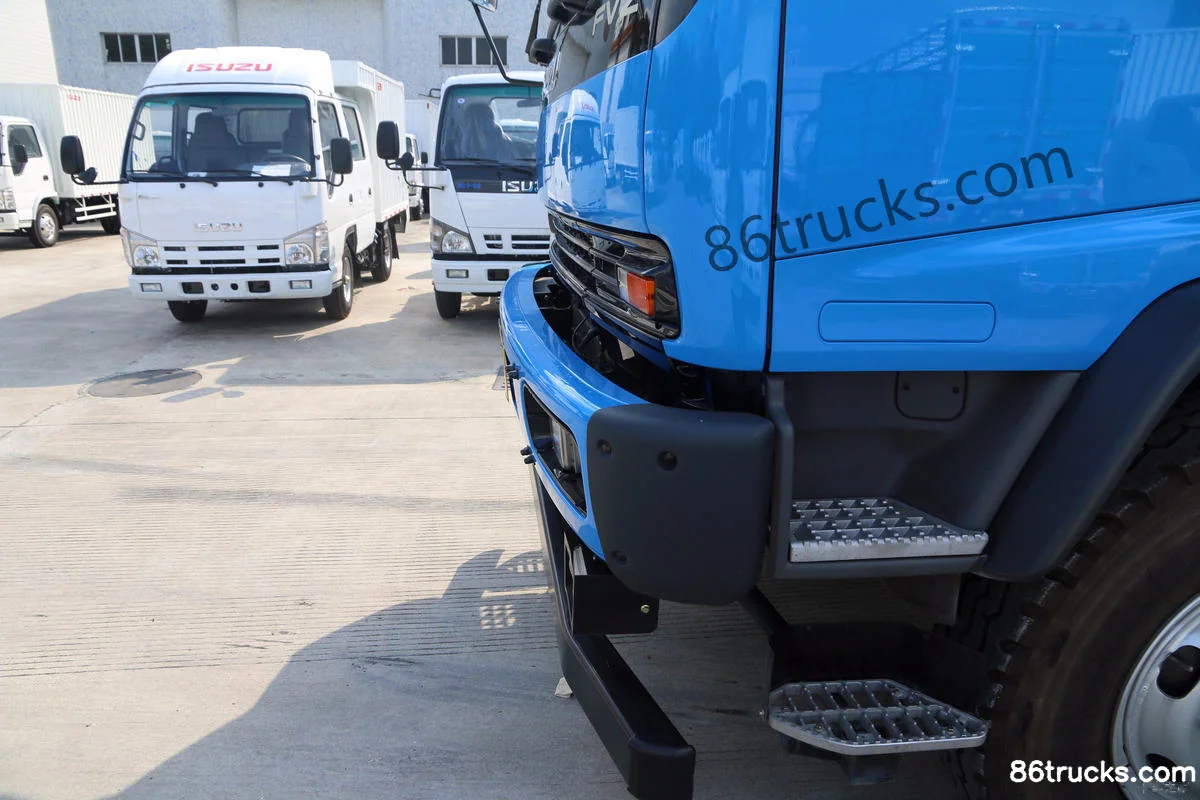

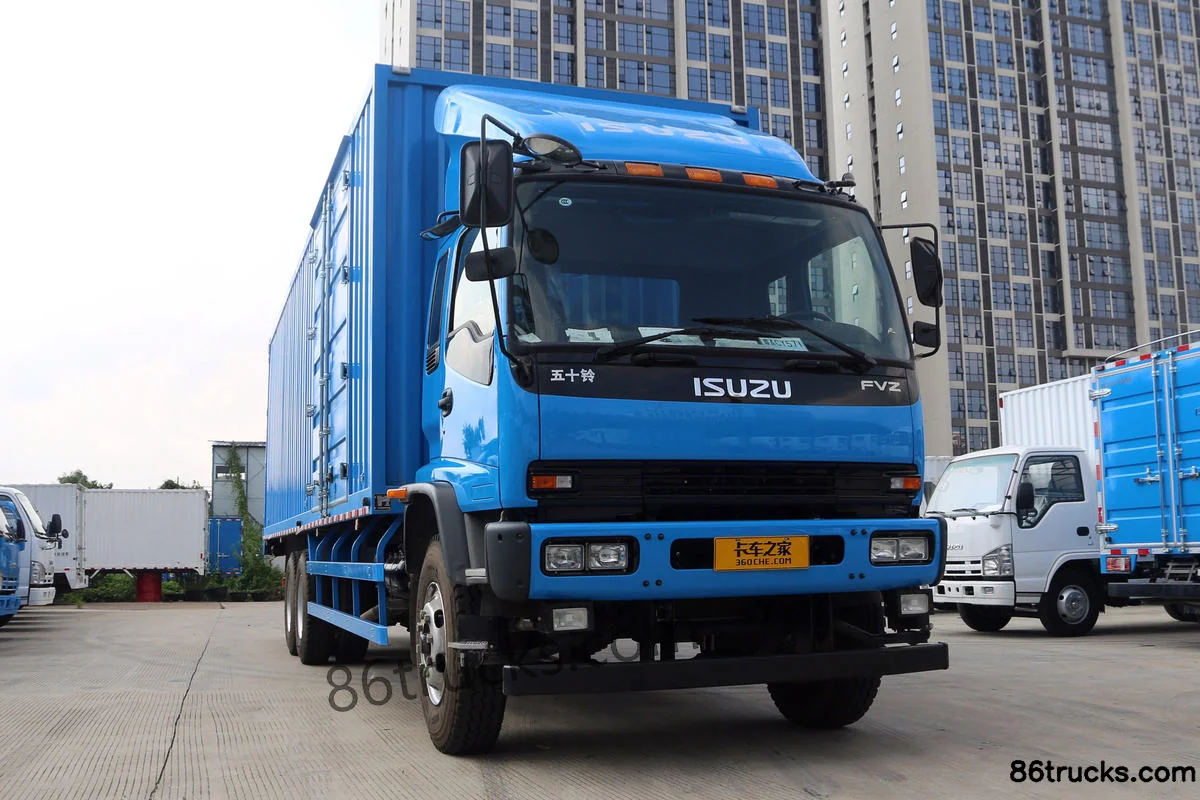

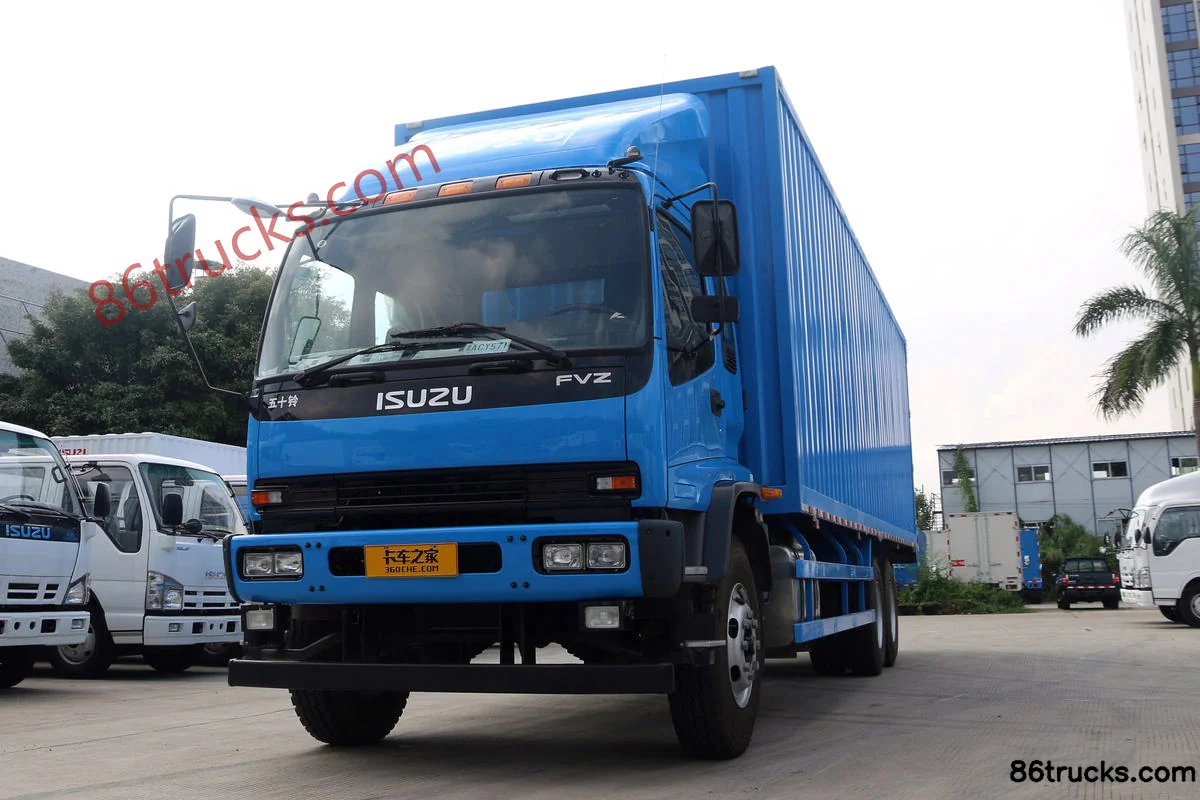

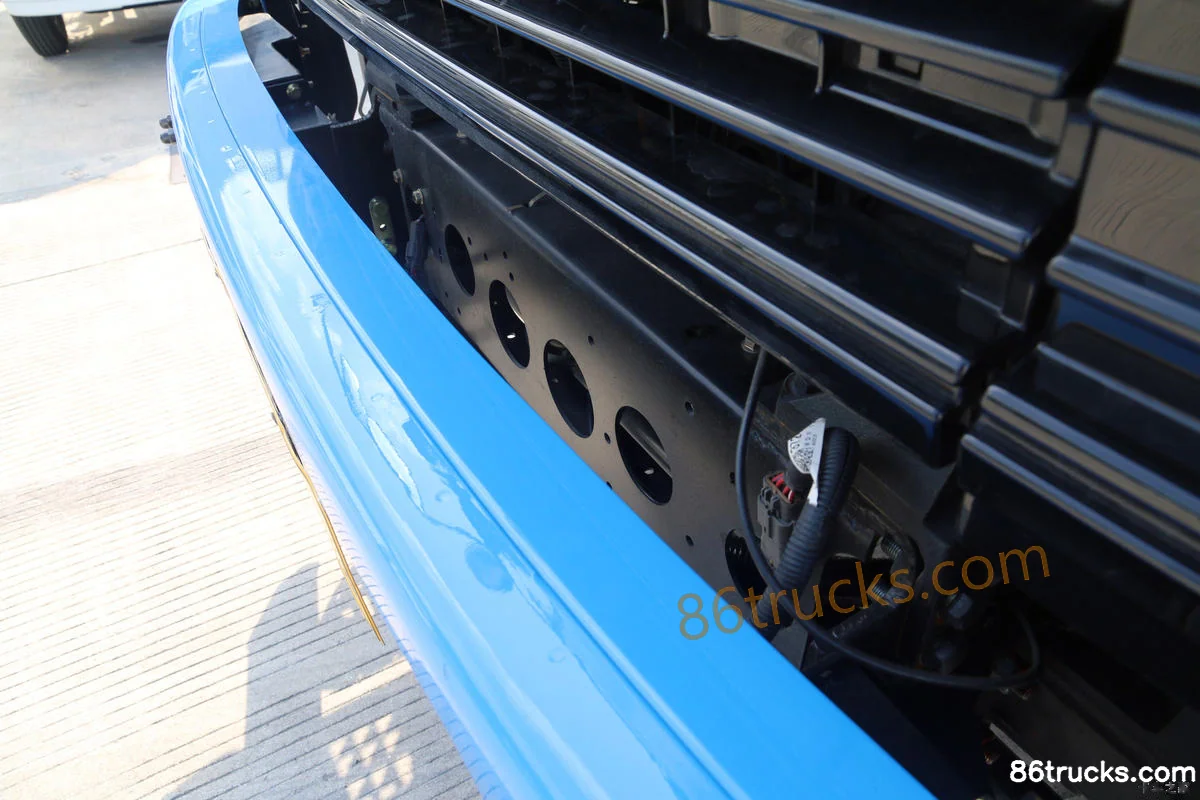

Exterior3

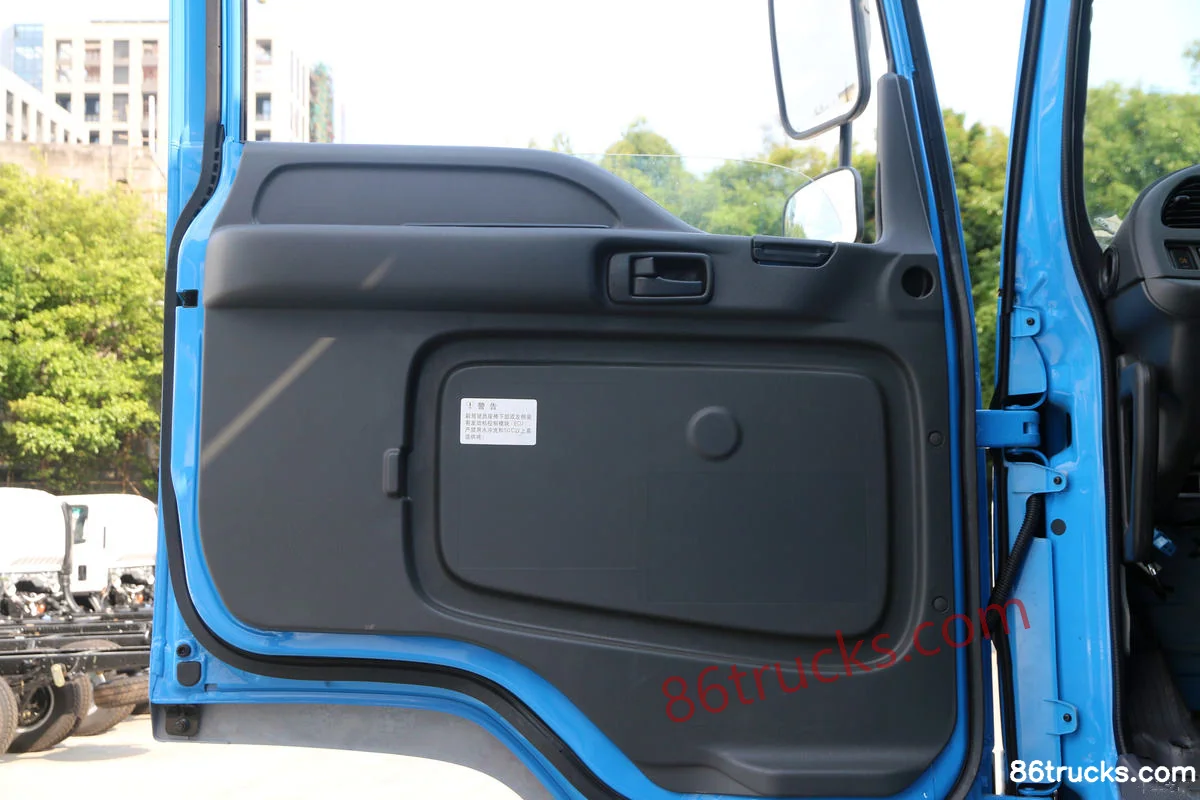

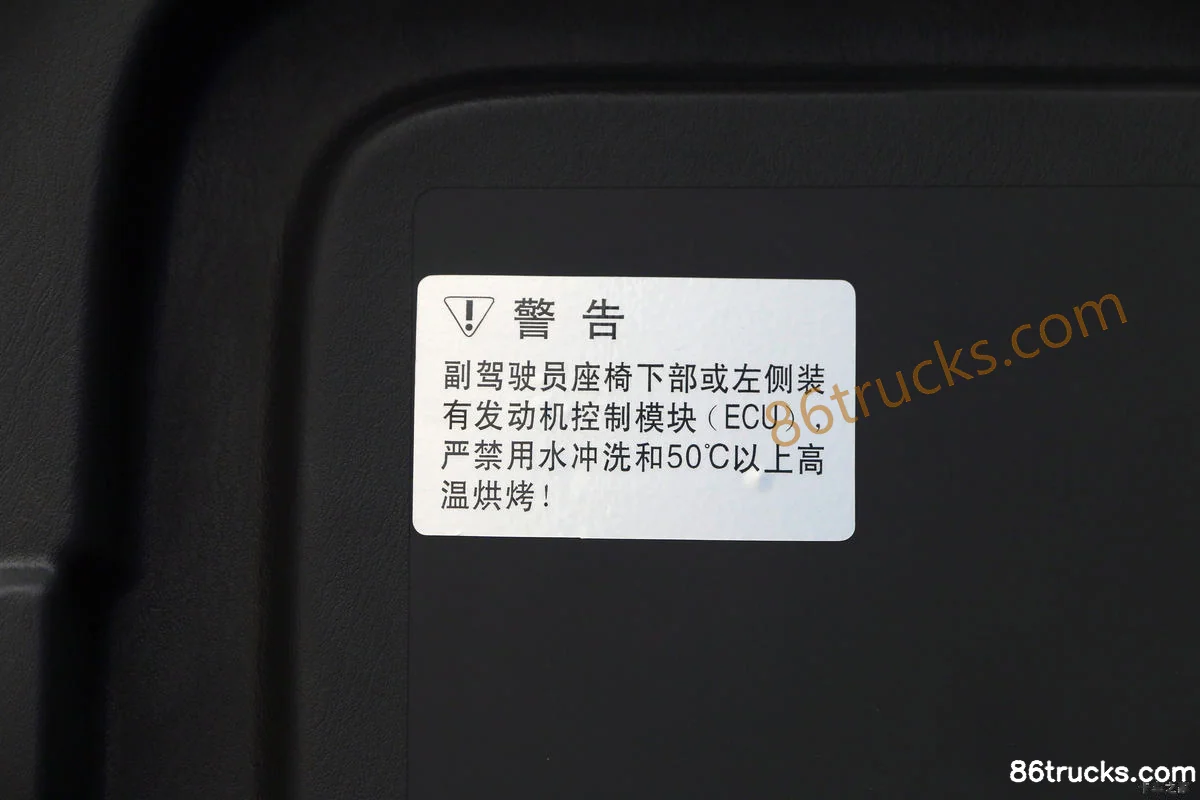

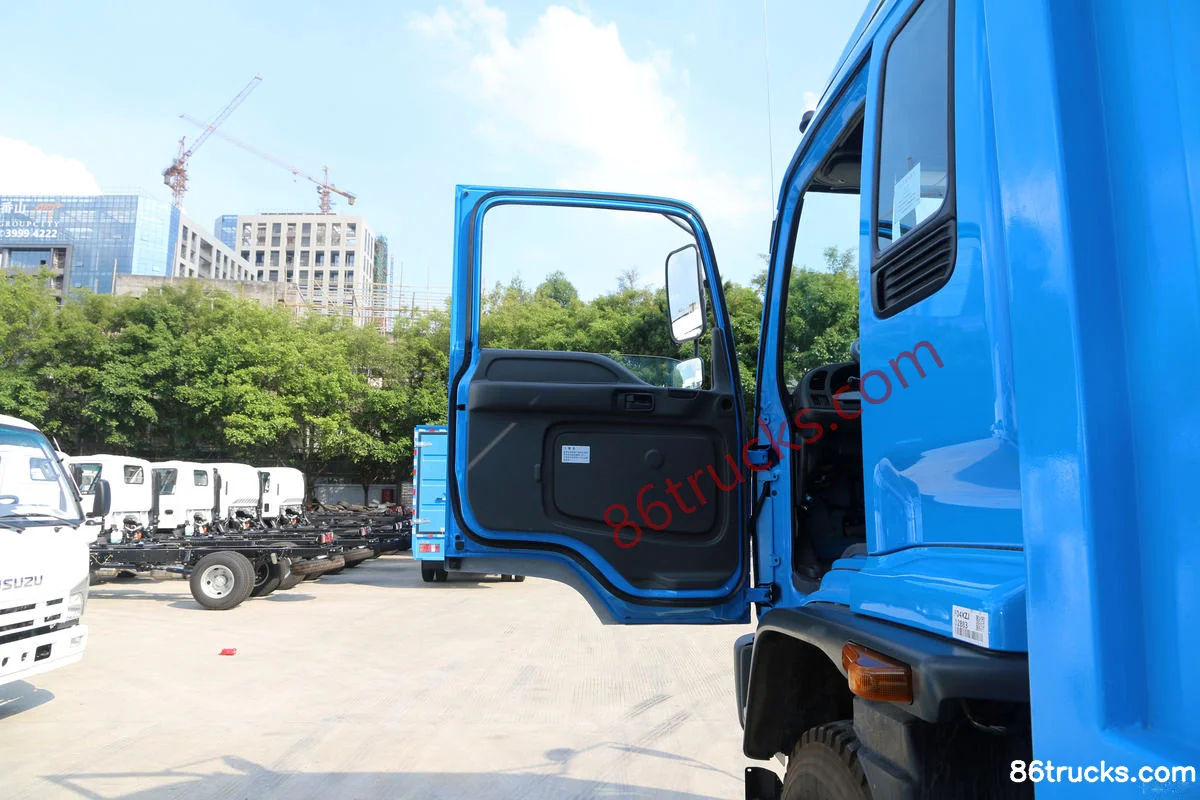

Cab3

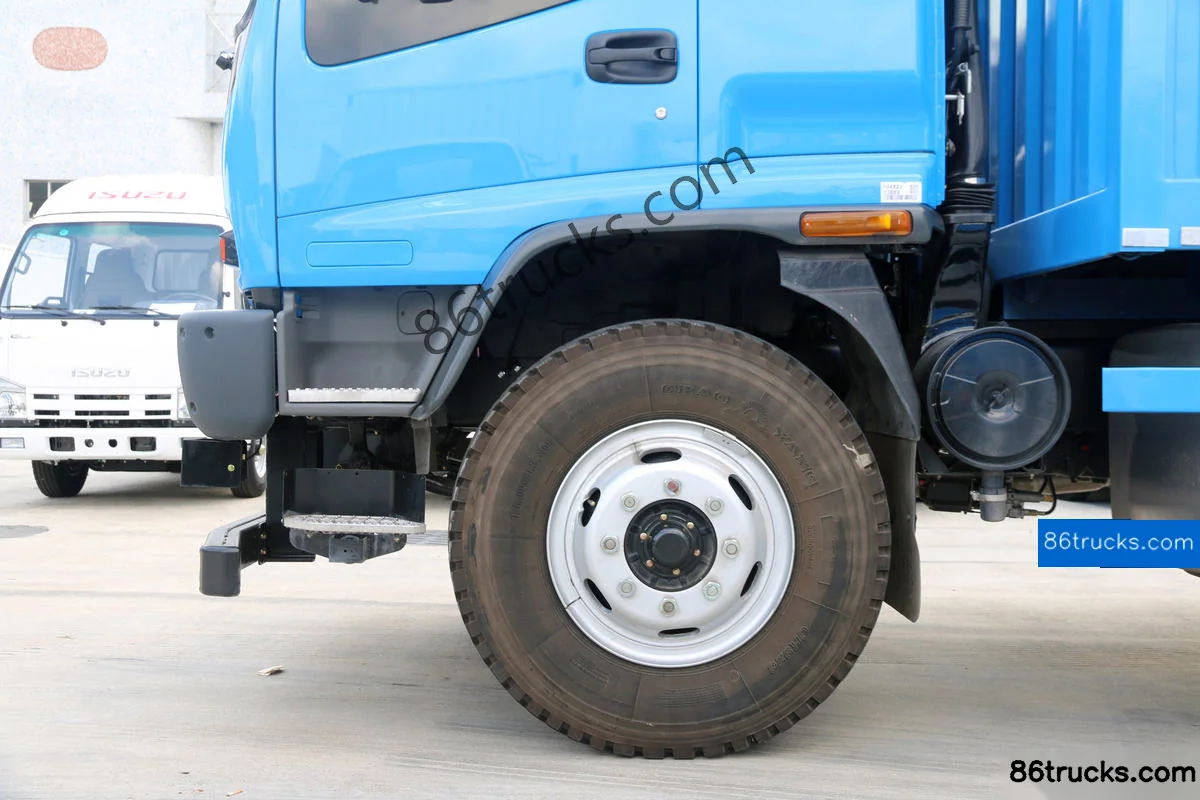

Chassis3

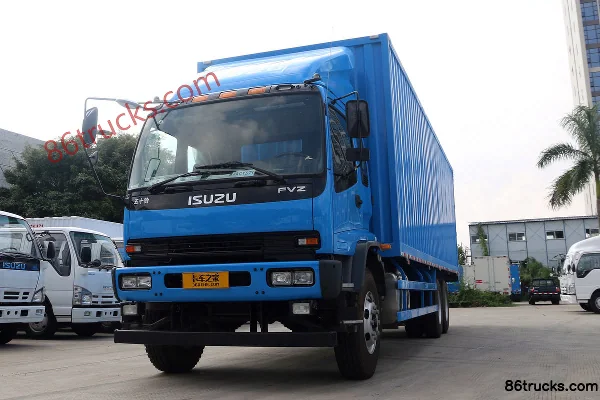

Body3

12 photos

FAQ

What emission standard does Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck?

Key specs of Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck: Drive: 4x2; Horsepower: 300 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu6HK1; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck suited for?

Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck differ from other variants in the same series?

Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck belongs to Qingling Isuzu FVZ Light Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling FVZ Heavy Truck 300 hp 4X2(6 wheels) 8.6m Box Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
