Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck

Export reference
MSRP N/A
Horsepower: 260
Emission: China VI
Fuel: Diesel
Engine: Sinotruk4.9L
Transmission: Sinotruk
Curb Weight:: 7.88ton
Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck exterior
View more photos (9)
seating capacity: 2Personnel
Rated payload: 9.99ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck is a Medium-duty truck featuring 5.4m cargo length, stake body cargo body, 2Personnel volume and 9.99t payload. On the powertrain side, it comes with a Sinotruk4.9L engine, 260 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 260 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ1187K521DF1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.4m
engine: SinotrukMC05H.26-61
transmission: SinotrukHW95512STC
Rear Axle Ratio: 4.333
Cab length: 7.63m
Cab width: 2.55m
Cab height: 3.05m
Front track width: 1940mm
rear track: 1860mm
Curb Weight: 7.88ton
Rated payload: 9.99ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Shandong Zhangqiu
tonnage class: Medium-duty truck
Approach angle: 19°
departure angle: 17°
Front/rear suspension: 1.43/2.2m
Version: Pro
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: MC05H.26-61
Engine info: Sinotruk4.9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.91L
Emission standard: China VI
Max output power: 191kW
Max hp: 260Horsepower
Max torque: 950N·m
Max torque speed: 1200-1700rpm
Transmission Parameters
Transmission Model: HW95512STC
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.4m
Cargo box width: 2.44m
Cargo box height: 0.6m
Cab parameters
Cab: G5X Pro Long High Roof
Cab width: 2240mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: Hande8.0t
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 7/7+3
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
ASR traction control:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: flat wiper blades
Service brake
Engine brake: engine brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Standard drum brake, optional disc brake
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
LCD instrument cluster:
Roadside assistance call:
lighting configuration
Headlight brand: Sinotruk light truck genuine parts
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Emergency Brake Assist (EBA):
Tire Pressure Monitoring System (TPMS):
maintenance service
24-hour service hotline: 400-188-8666
Rescue service:

Photos

Exterior3

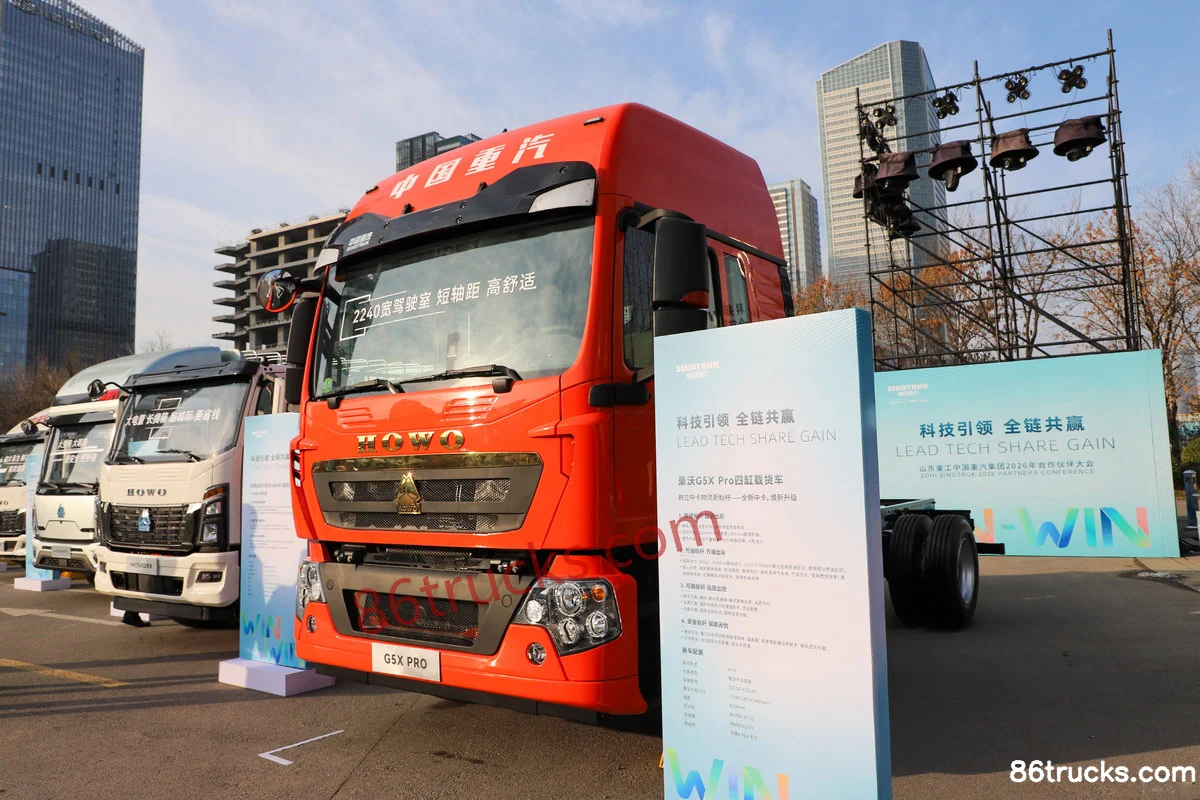

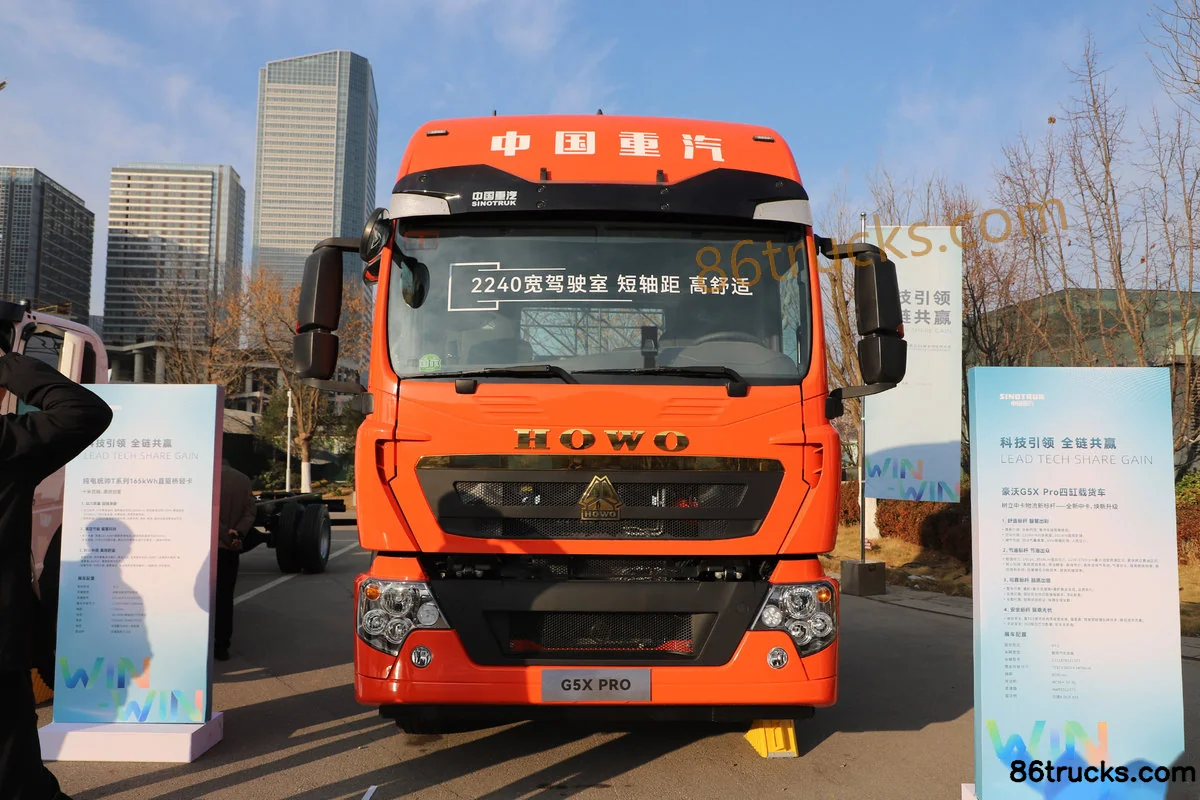

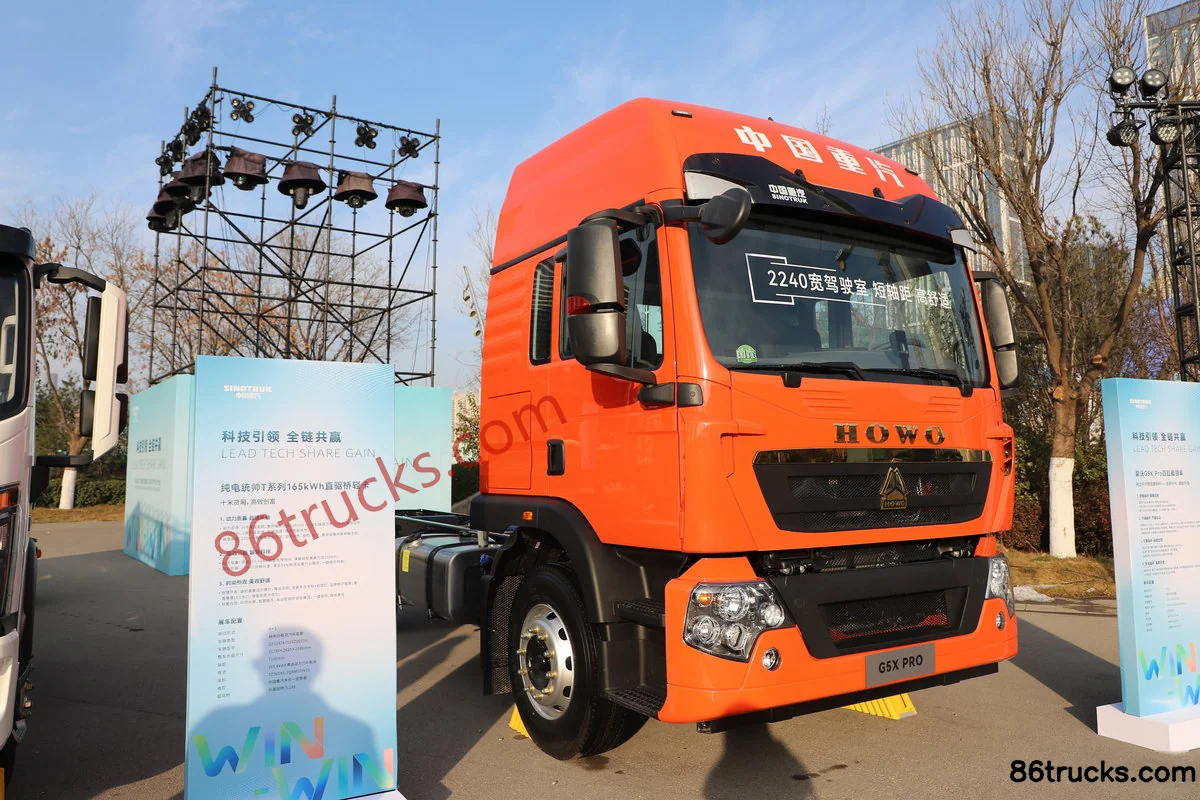

Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck Exterior (1) | 86Trucks Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck Exterior (2) | 86Trucks Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck Exterior (3) | 86Trucks

Cab3

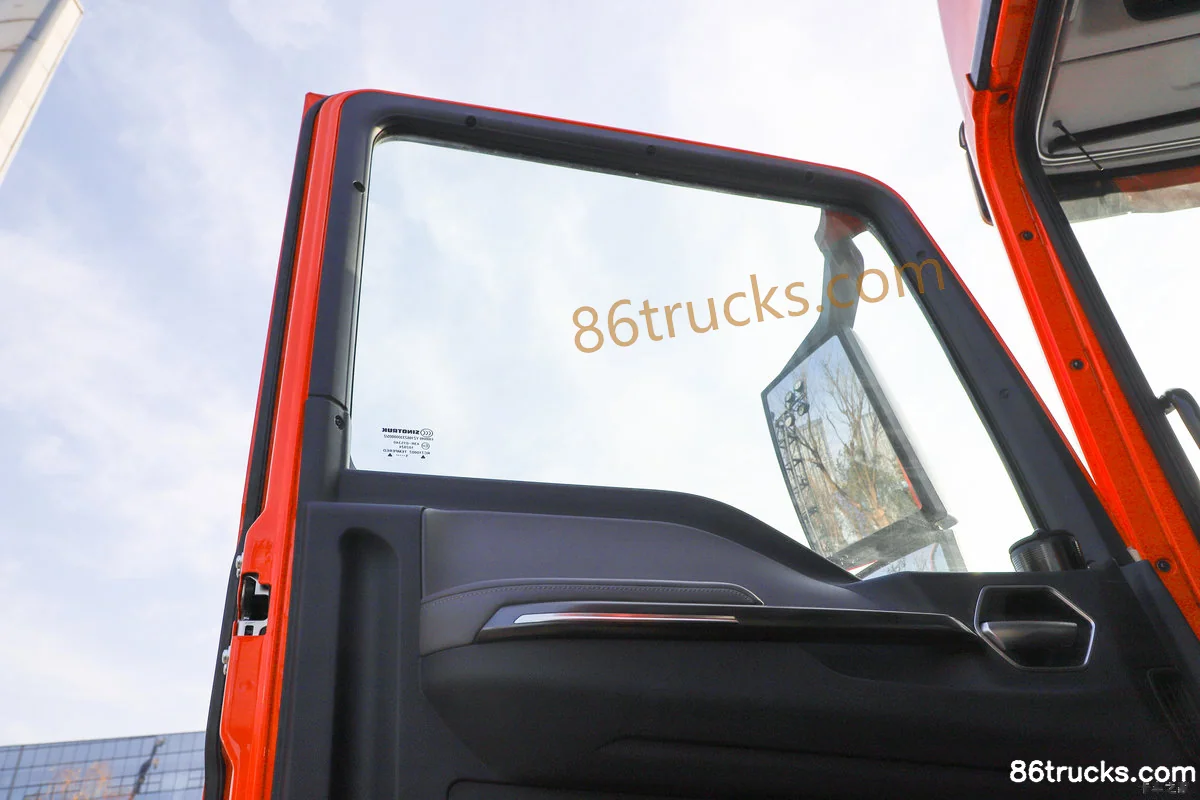

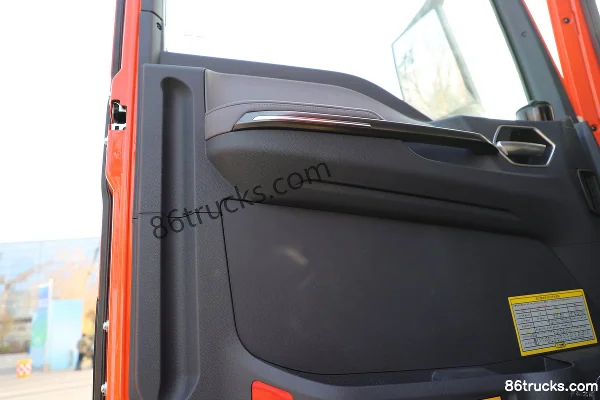

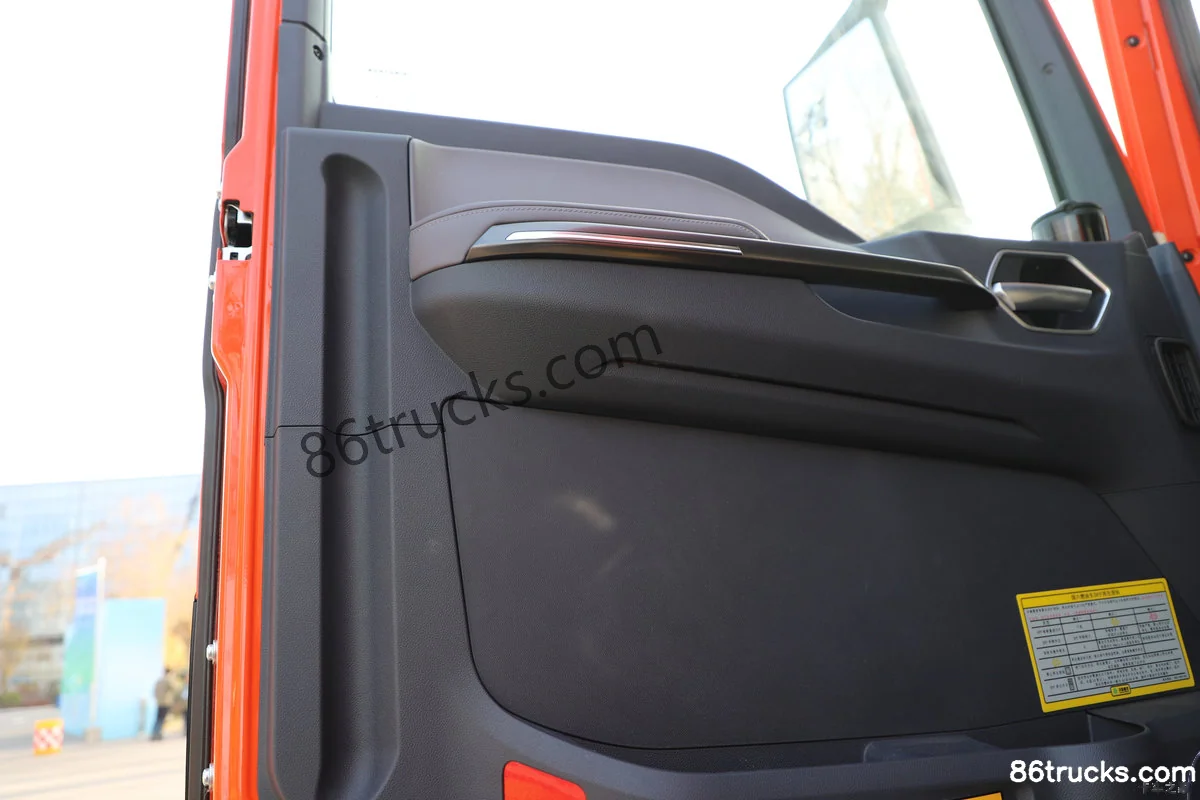

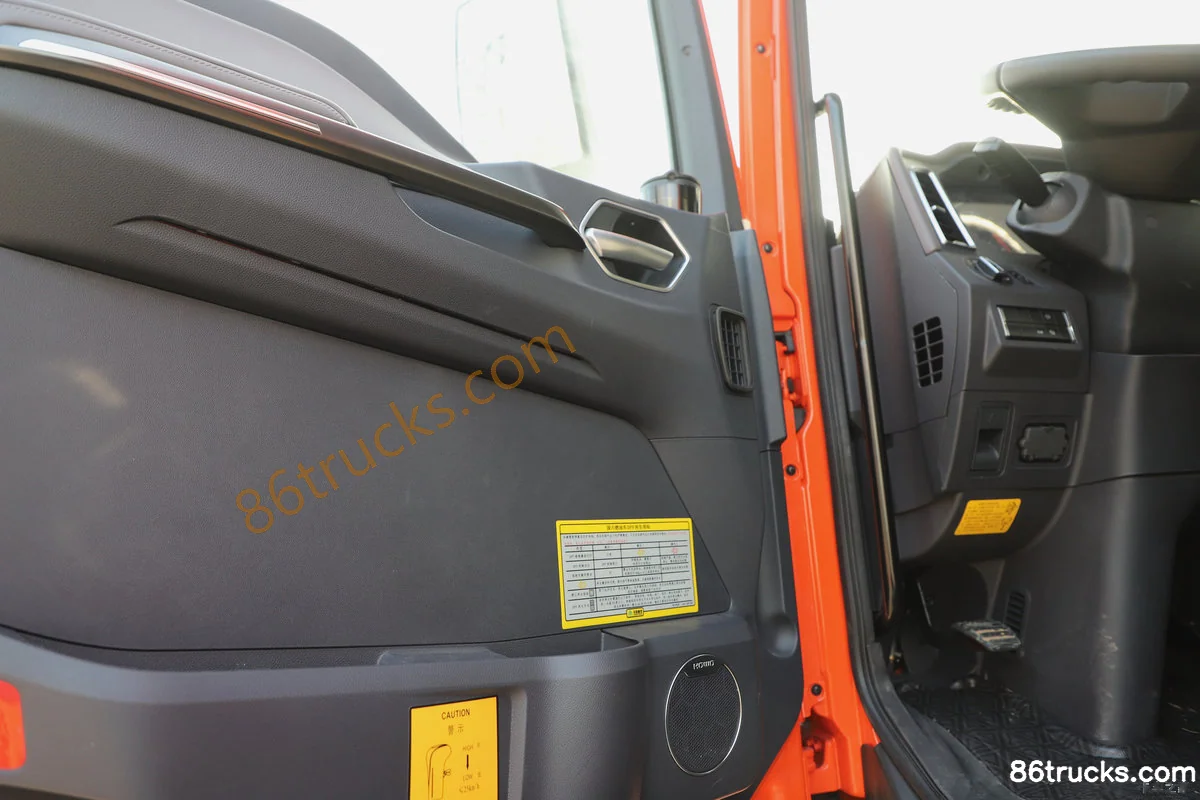

Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck Cab (1) | 86Trucks Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck Cab (2) | 86Trucks Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck Cab (3) | 86Trucks

Chassis3

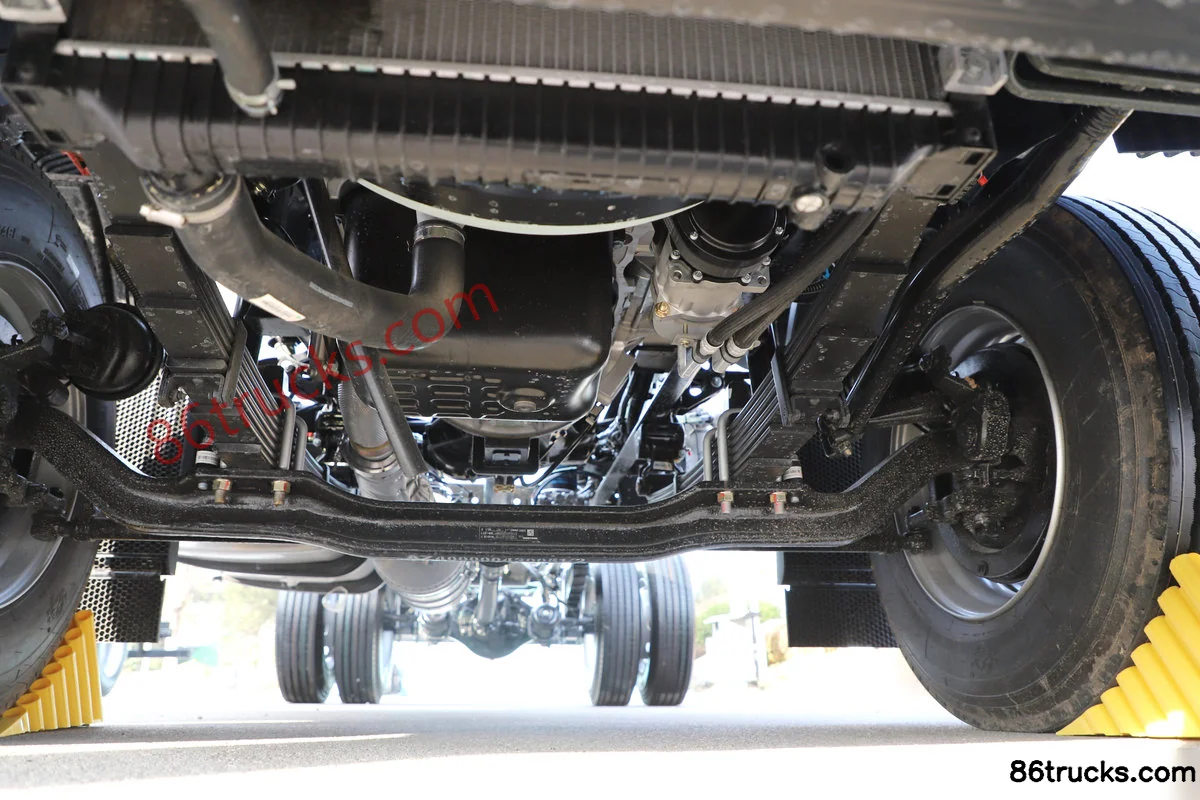

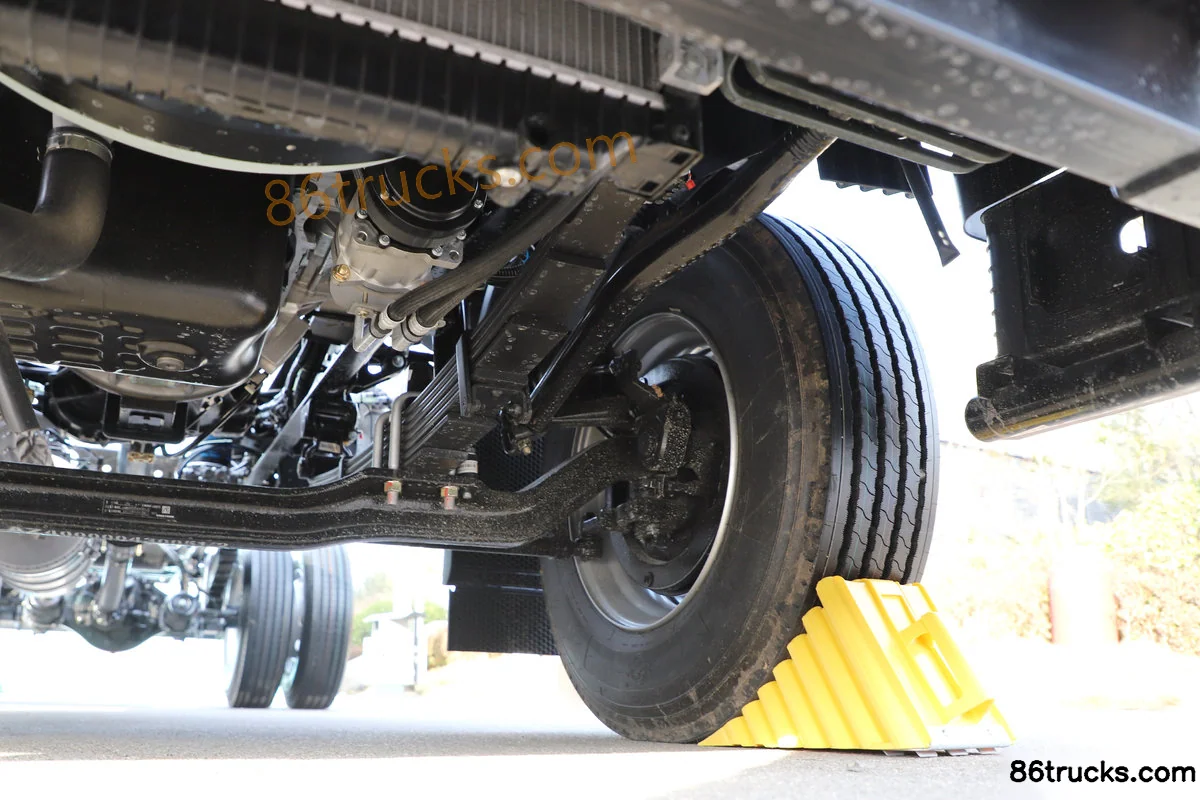

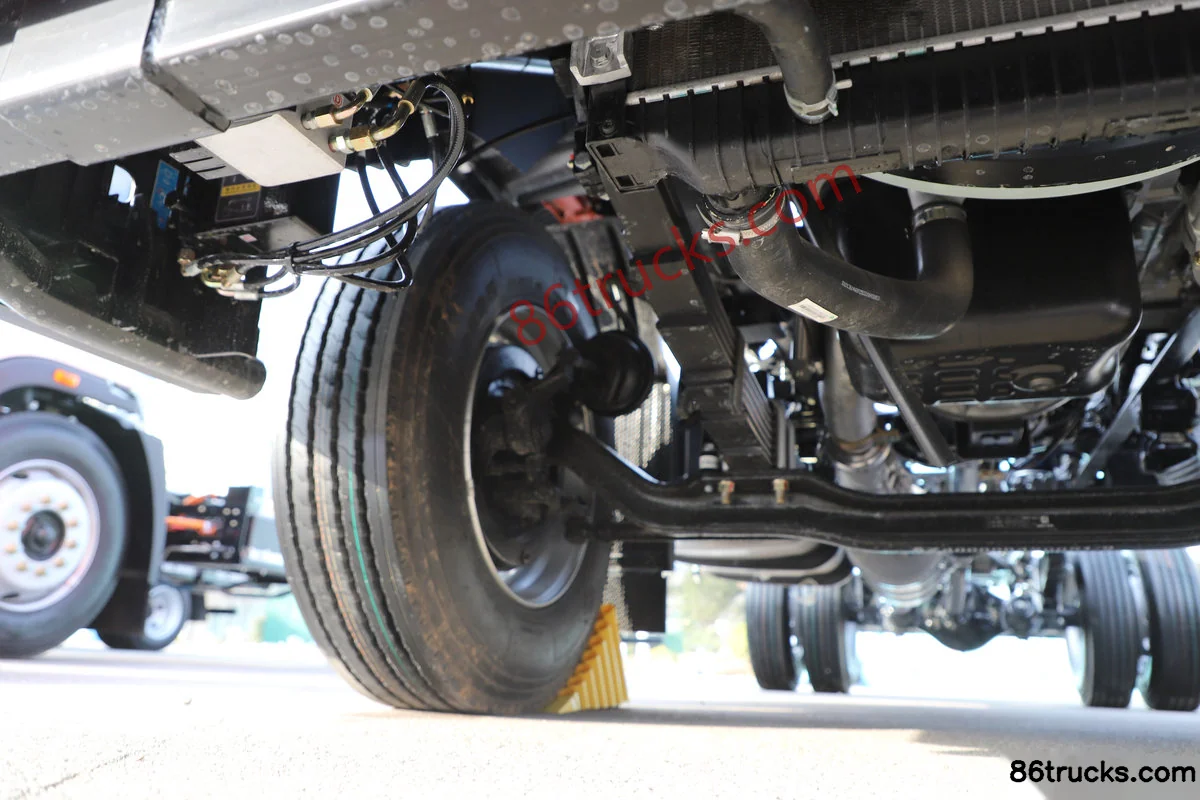

Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck Chassis (1) | 86Trucks Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck Chassis (2) | 86Trucks Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck?

Key specs of Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck: Drive: 4x2; Horsepower: 260 hp; Emission: China VI; Fuel: Diesel; Engine: Sinotruk4.9L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck suited for?

Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck differ from other variants in the same series?

Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck belongs to Sinotruk HOWO G5X medium-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO G5X Pro 4.9L diesel 260 hp 4X2(6 wheels) Sinotruk 12-speed 5.4m flatbed cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
