Dayun 11m Flatbed Side Dump Semi-Trailer

Export reference
From $16,181
MSRP ¥11.65M CNY
Axle Brand:: Fuhua Wosheng 400,000 km maintenance-free axle
suspension:: 4-leaf leaf spring
Wheel Material:: Steel
Brake chamber:: 4/2Ruili
Outrigger:: aluminum alloy
ABS:: Kemi 4S/3M
Design load capacity: 40ton
Curb Weight: 8.3ton
Tire brand: Giti
Cab length: 11m

Overview

The Dayun 11m Flatbed Side Dump Semi-Trailer is a dump semi-trailer featuring 40ton payload, 8.3ton GVW and 11m cab.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 40ton
Cab length: 11m
Cab width: 2.55m
Cab height: 1.8m
Curb Weight: 8.3ton
Chassis Specs
Axle Brand: Fuhua Wosheng 400,000 km maintenance-free axle
Number of Axles: 3
Axle Load Rating: 13T
suspension: 4-leaf leaf spring
Wheel Material: Steel
Parts & accessories
Brake chamber: 4/2Ruili
Outrigger: aluminum alloy
Toolbox:
ABS: Kemi 4S/3M
Body Parameters
Frame material: T700L
Web Plate: 6mm
frame rail height: 480mm
upper wing panel: 8mm
Lower Wing Plate: 10mm
Other notes
Other: Side guard: steel; air tank: aluminum alloy; hydraulic system: Hubei Jiaheng, 130 cylinder, with hydraulic modification kit; paint: full-vehicle electrophoresis + waterborne paint; door bars: 3 pairs on one side, 5 swing doors on the other side.
Tire
Tire brand: Giti
Tire Size: 12R22.5
Number of tires: 12pcs

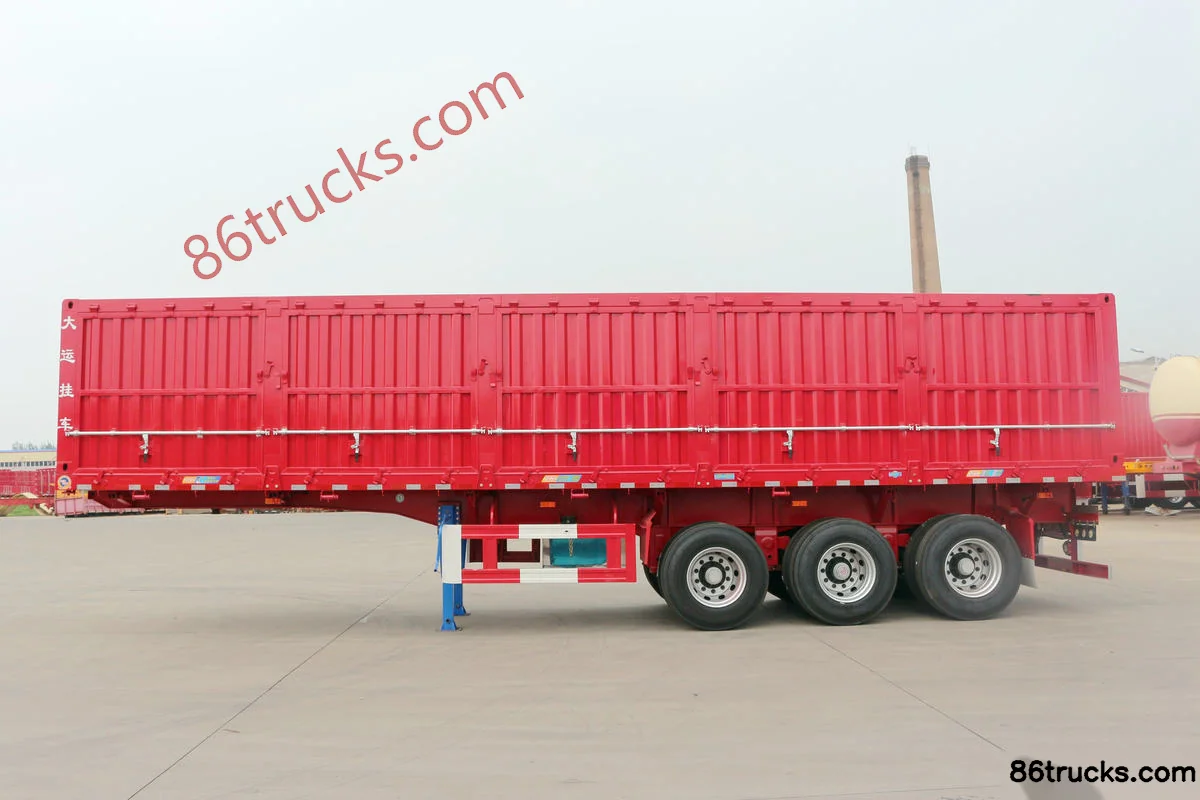

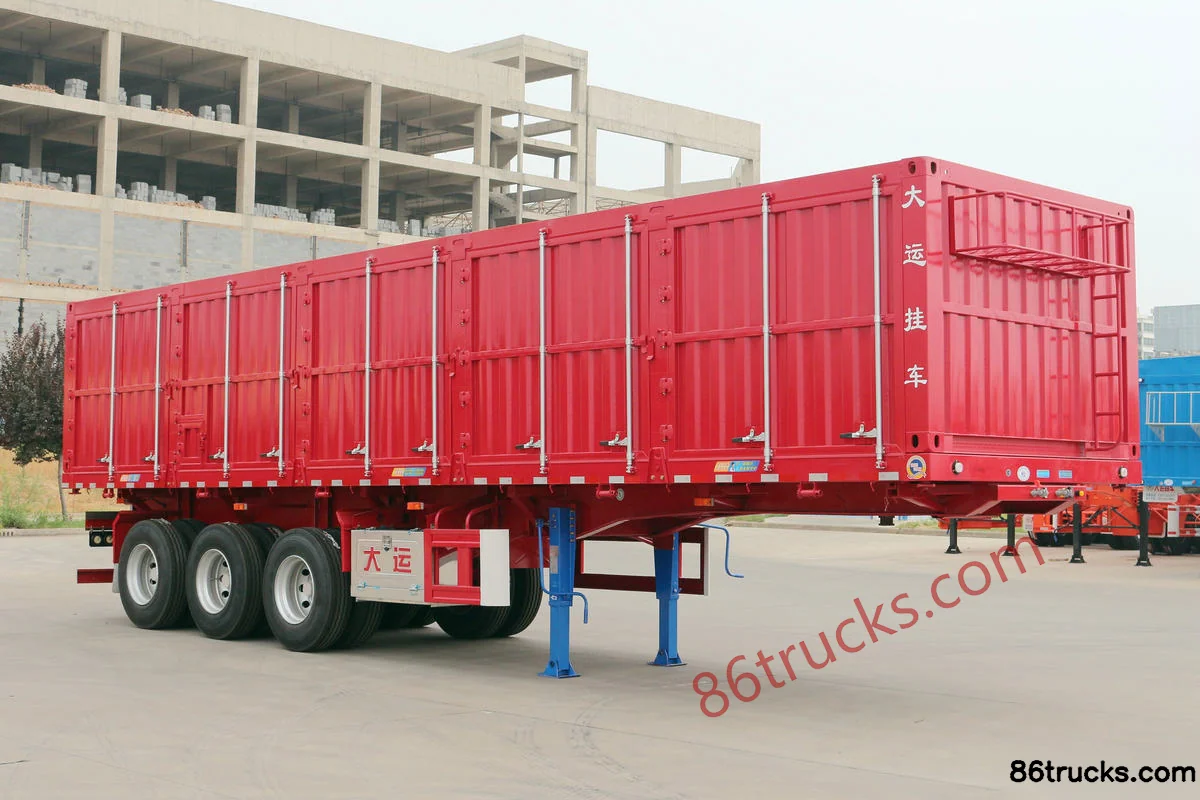

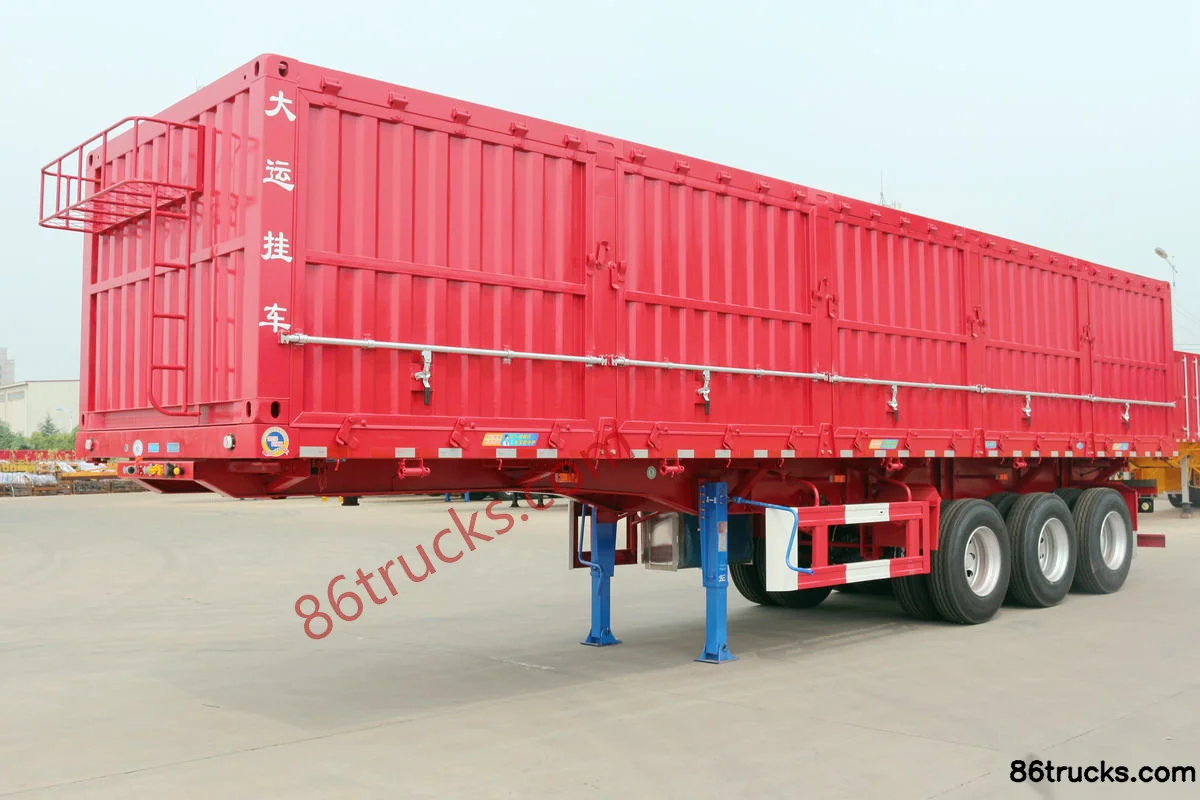

Photos

Exterior3

3 photos

FAQ

What is the export price of Dayun 11m Flatbed Side Dump Semi-Trailer, and what does it include?

Dayun 11m Flatbed Side Dump Semi-Trailer export reference is about From $16,181; MSRP is ¥11.65M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Dayun 11m Flatbed Side Dump Semi-Trailer suited for?

Dayun 11m Flatbed Side Dump Semi-Trailer is a dump semi-trailer model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun 11m Flatbed Side Dump Semi-Trailer differ from other variants in the same series?

Dayun 11m Flatbed Side Dump Semi-Trailer belongs to Dayun 11m Semi-trailer (dump semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun 11m Flatbed Side Dump Semi-Trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun 11m Flatbed Side Dump Semi-Trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
