Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck

Export reference
From $9,444
MSRP ¥6.8M CNY
Horsepower: 110
Emission: China V
Fuel: Diesel
Engine: WeichaiWP2.3
Curb Weight:: 2.56ton
Wheelbase:: 3300mm
seating capacity: 3Personnel
Rated payload: 1.74ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck is a Light Truck featuring 4.16m cargo length, stake body cargo body, 3Personnel volume and 1.74t payload. Its segment focus covers Daily industrial goods transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP2.3 engine, 110 hp, 4X2 (6 wheels) drive and China V emissions.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC1042A33D5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: WeichaiWP2.3Q110E50
transmission: 5-speed transmission
Cab length: 5.995m
Cab width: 2.24m
Cab height: 2.39m
Front track width: 1540mm
rear track: 1590mm
Curb Weight: 2.56ton
Rated payload: 1.74ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 25°
departure angle: 18°
market segment: Daily industrial goods transport
Front/rear suspension: 1.135/1.56m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3Q110E50
Engine info: WeichaiWP2.3
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.29L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.16m
Cargo box width: 2.06m
Cargo box height: 0.4m
*Cargo box interior width: 2.0599999427795
Cab parameters
Cab: M1
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1860kg
rear axle allowable load: 2635kg
Leaf spring count: 7/9+5
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

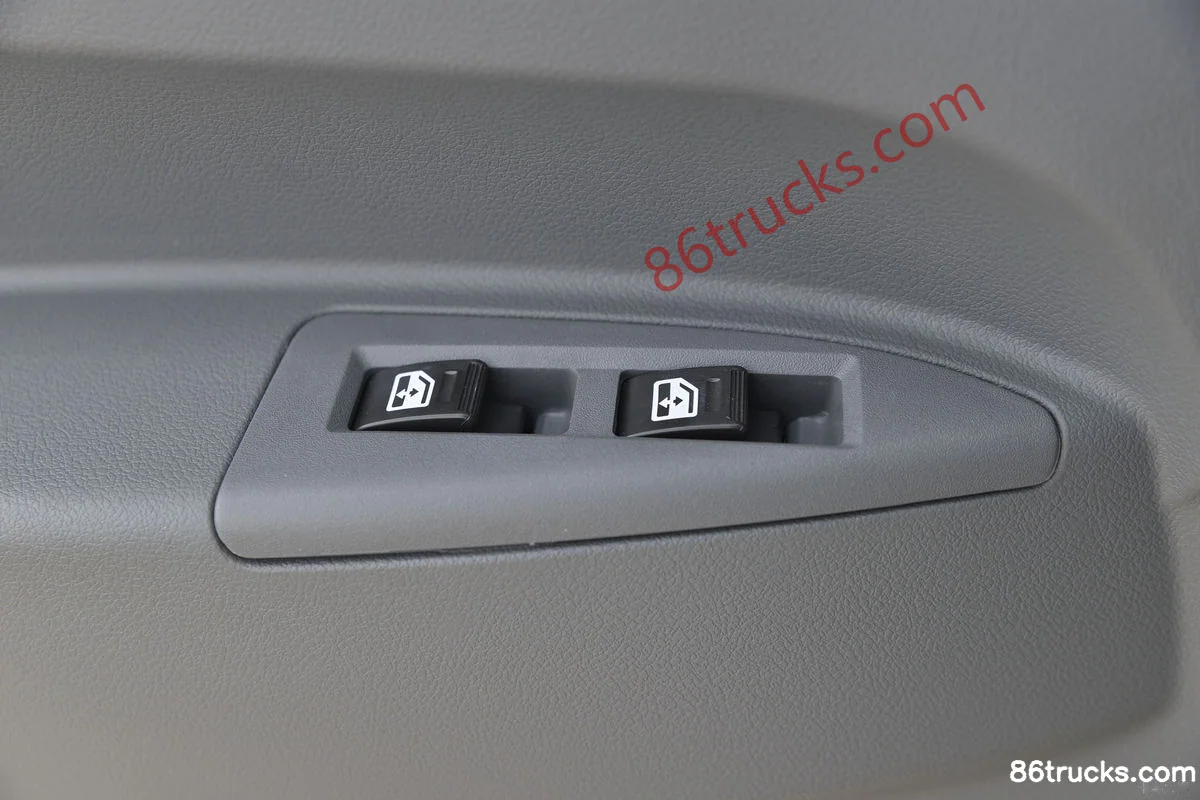

Power Windows:

Photos

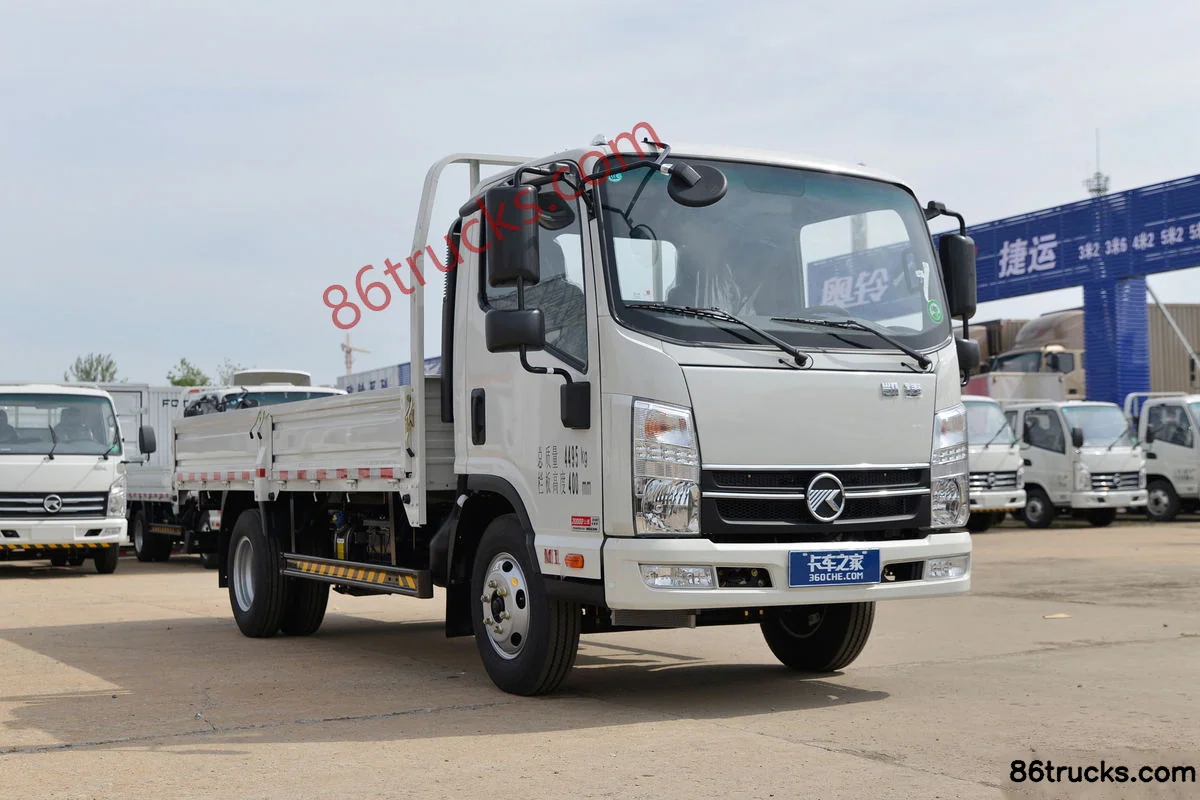

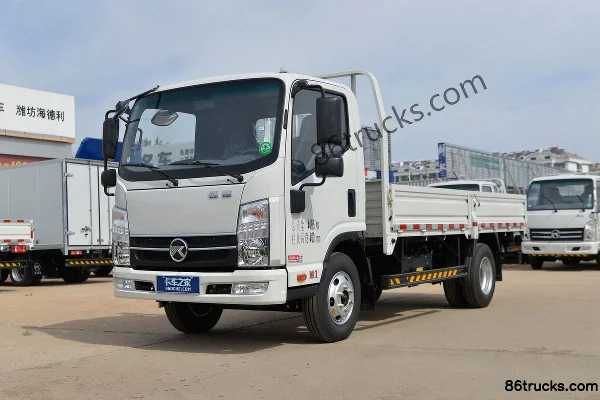

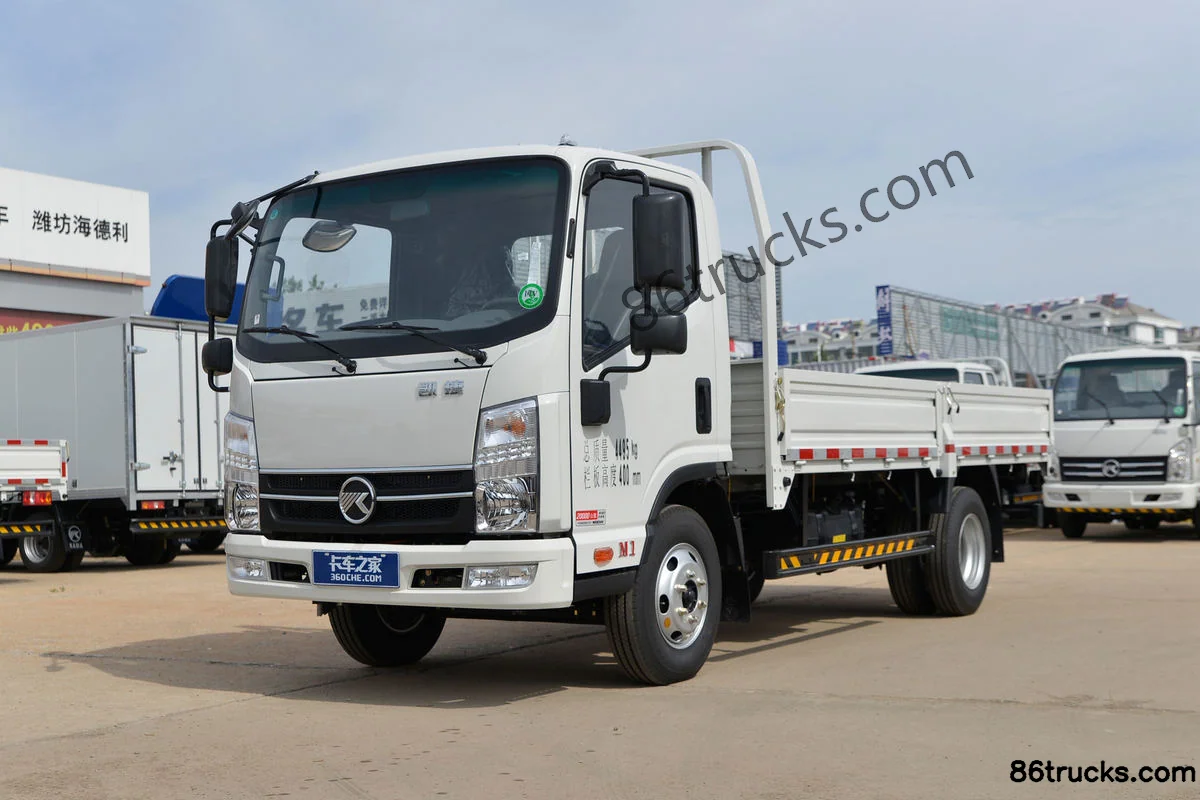

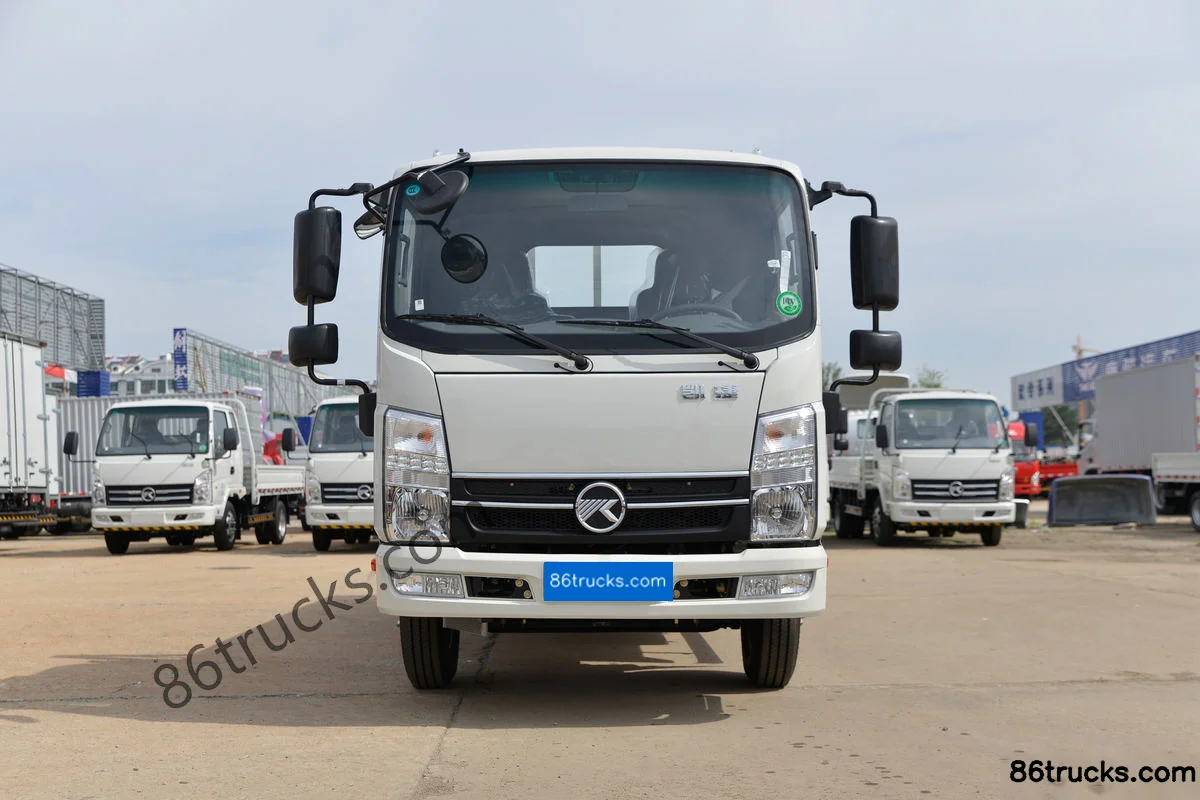

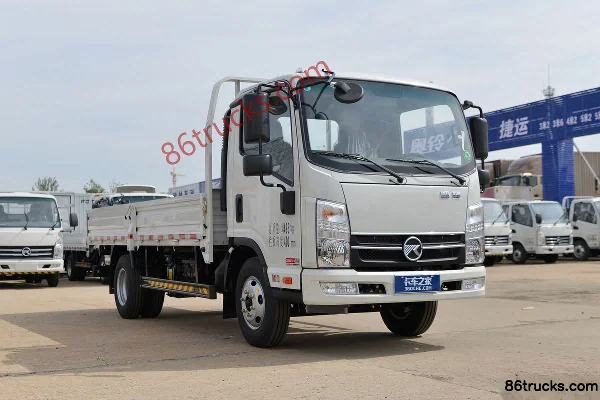

Exterior3

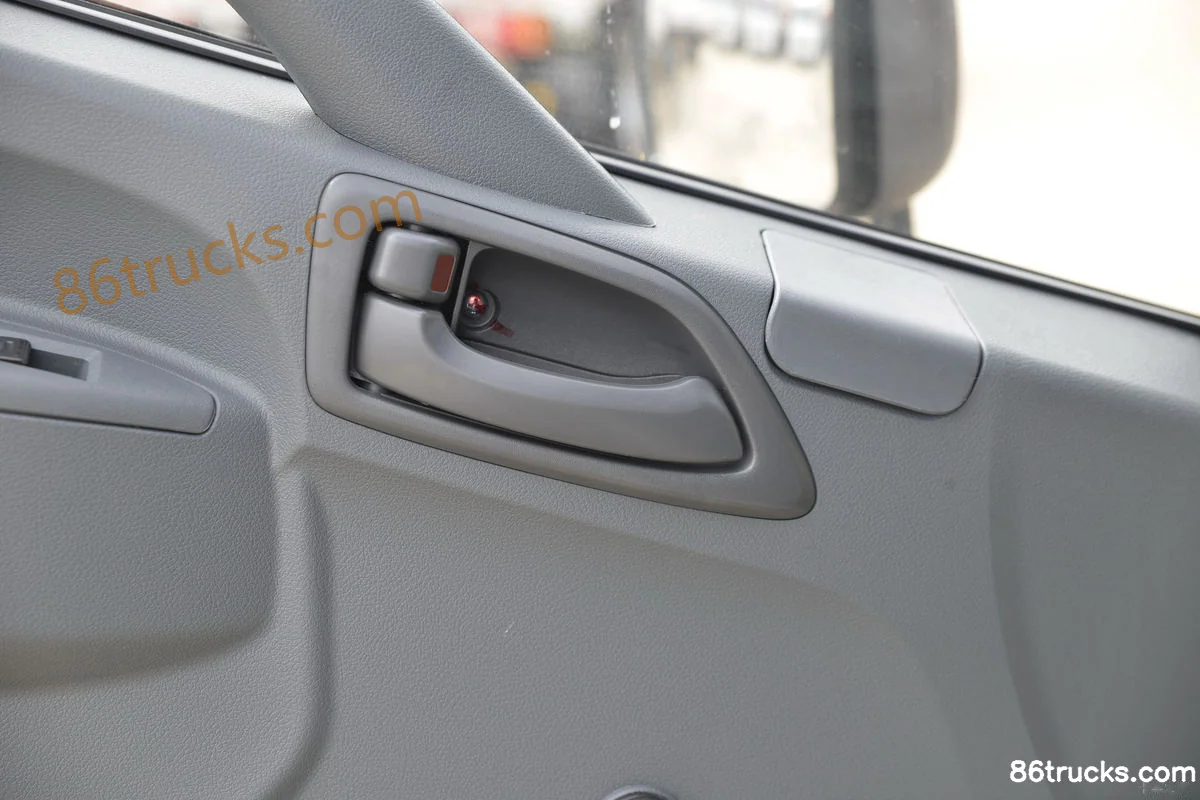

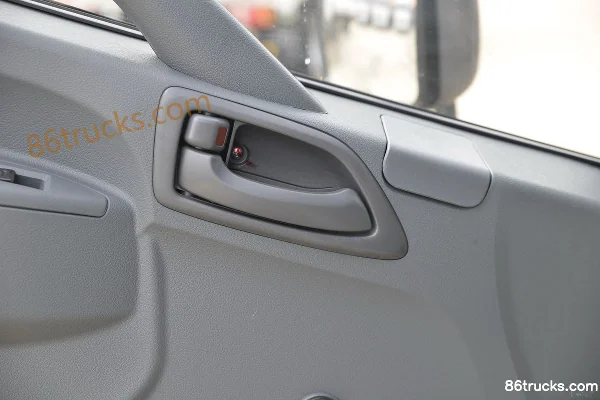

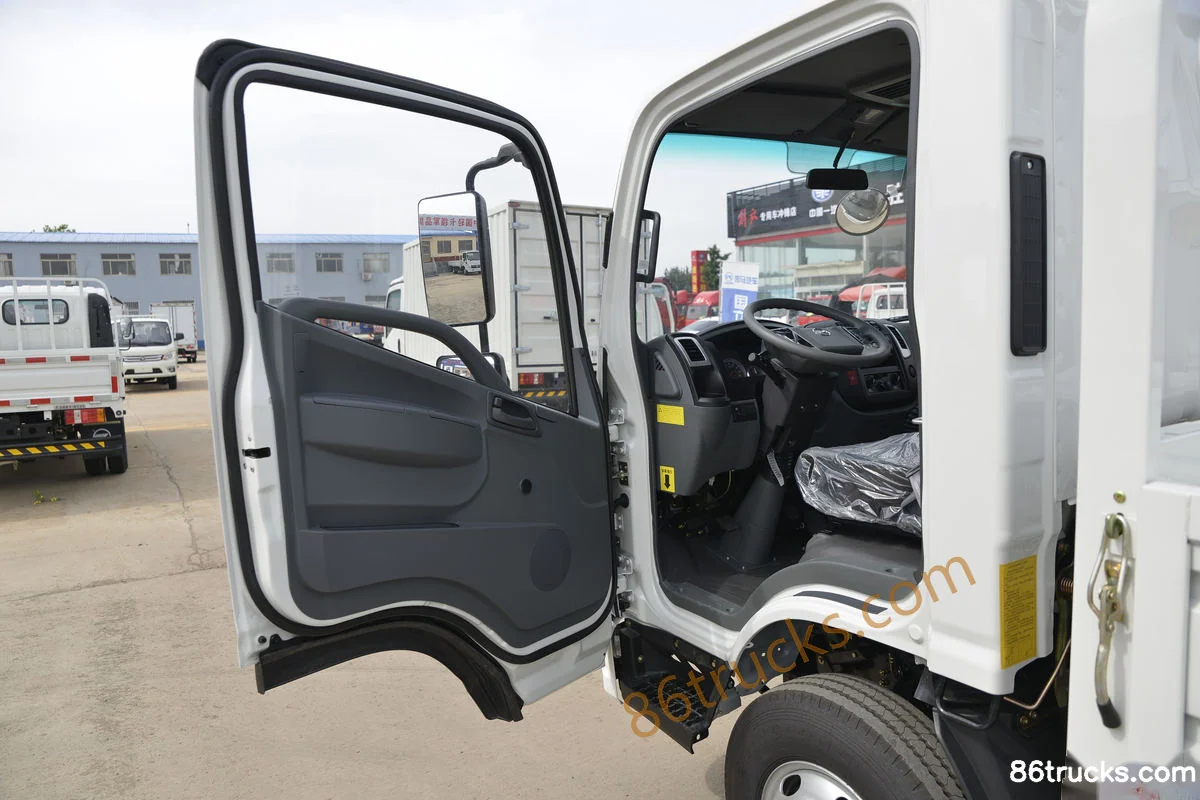

Cab3

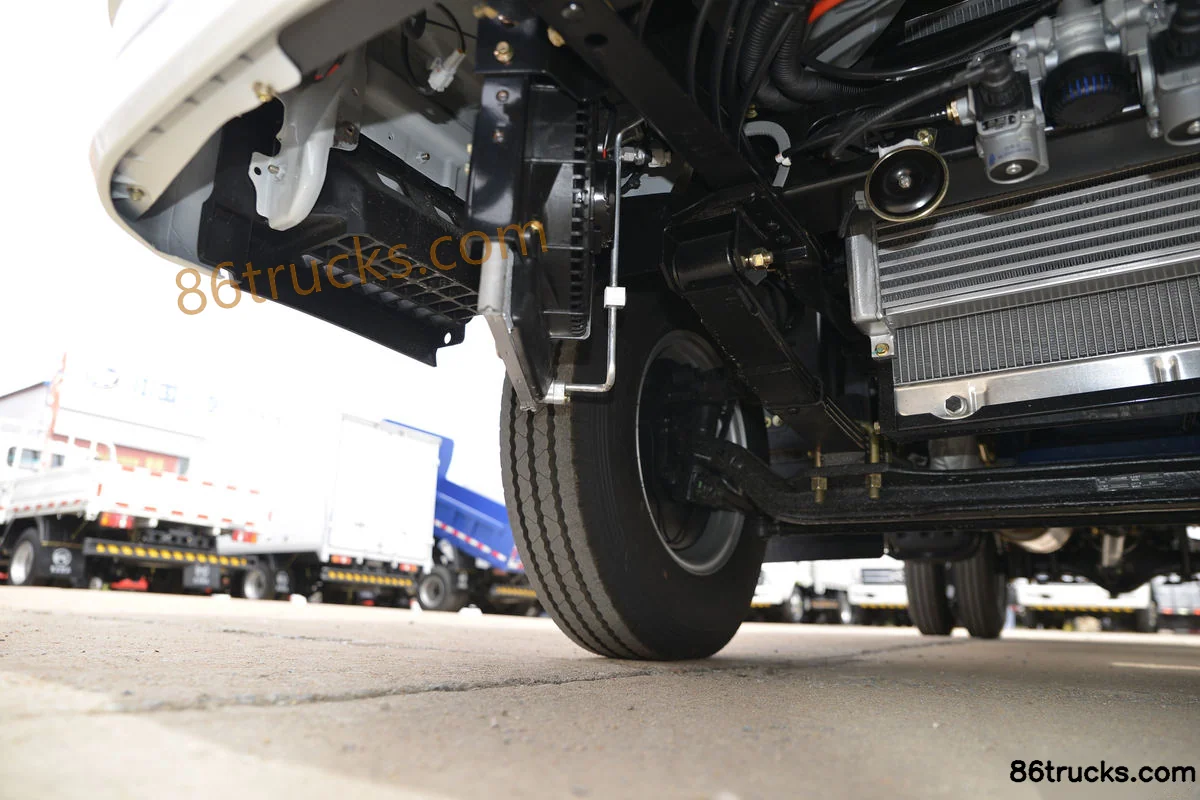

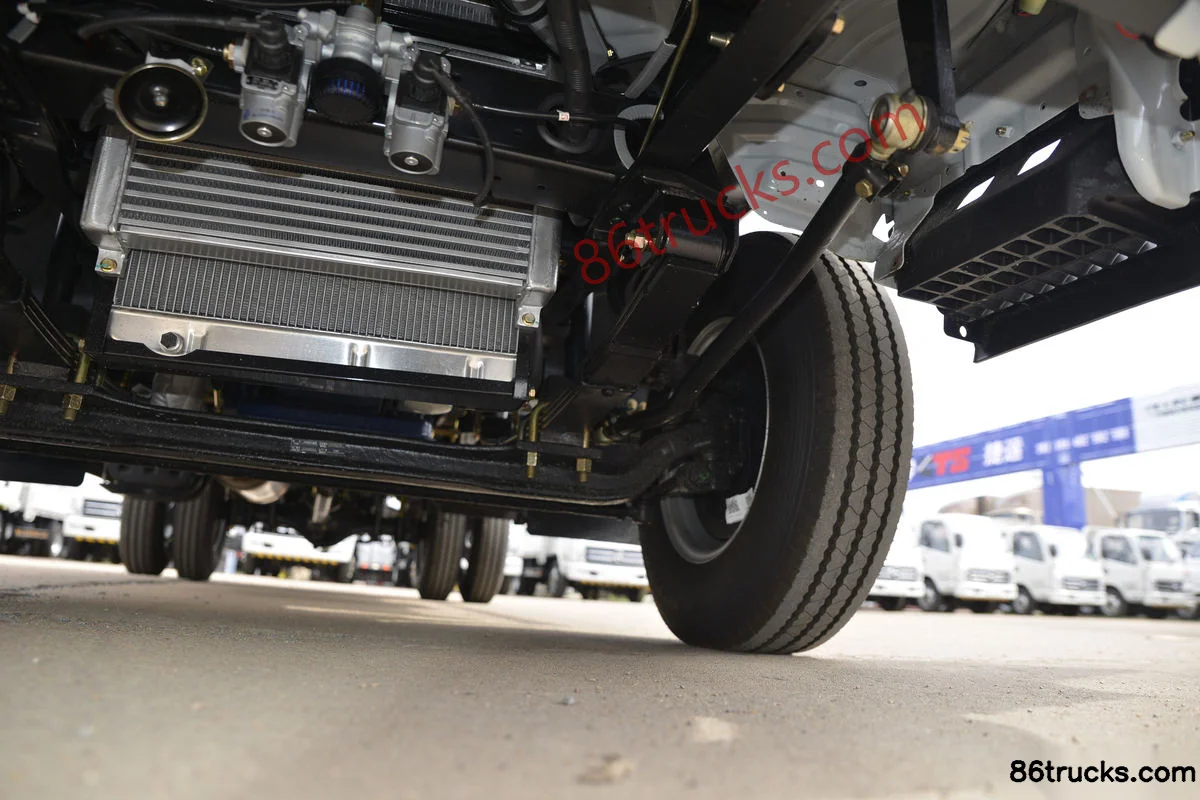

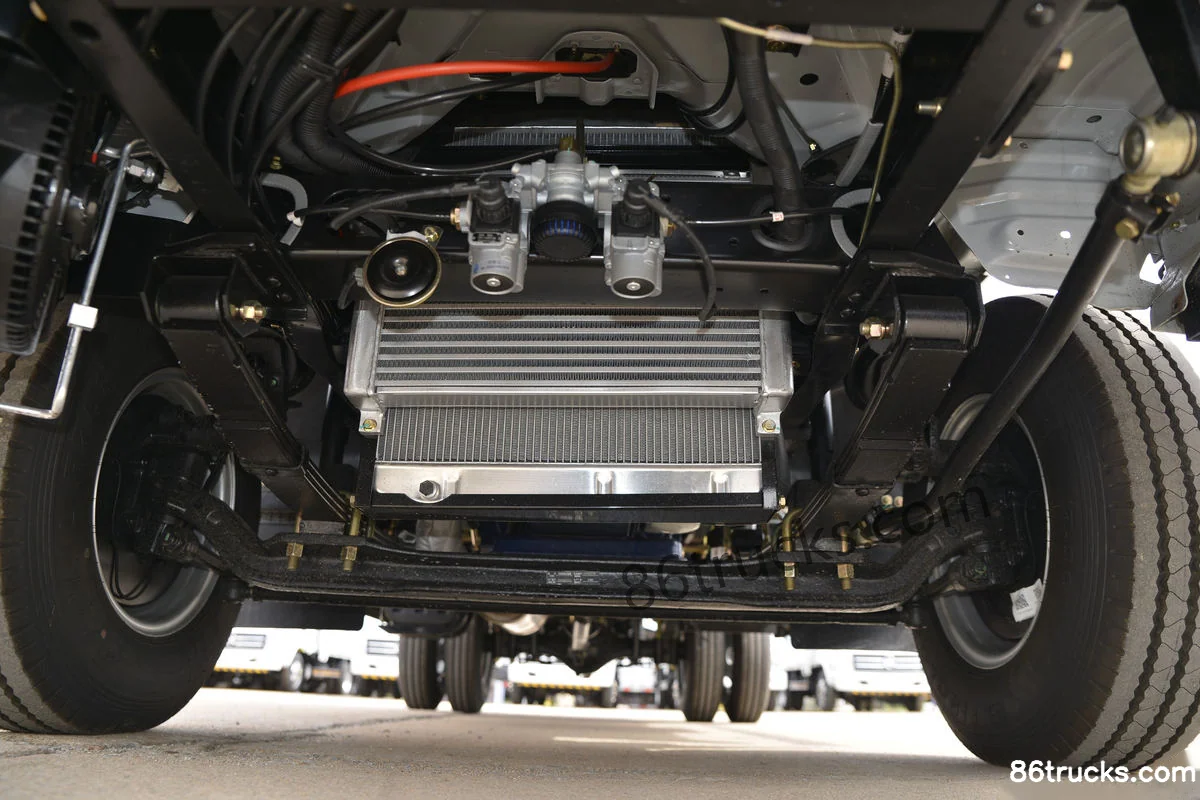

Chassis3

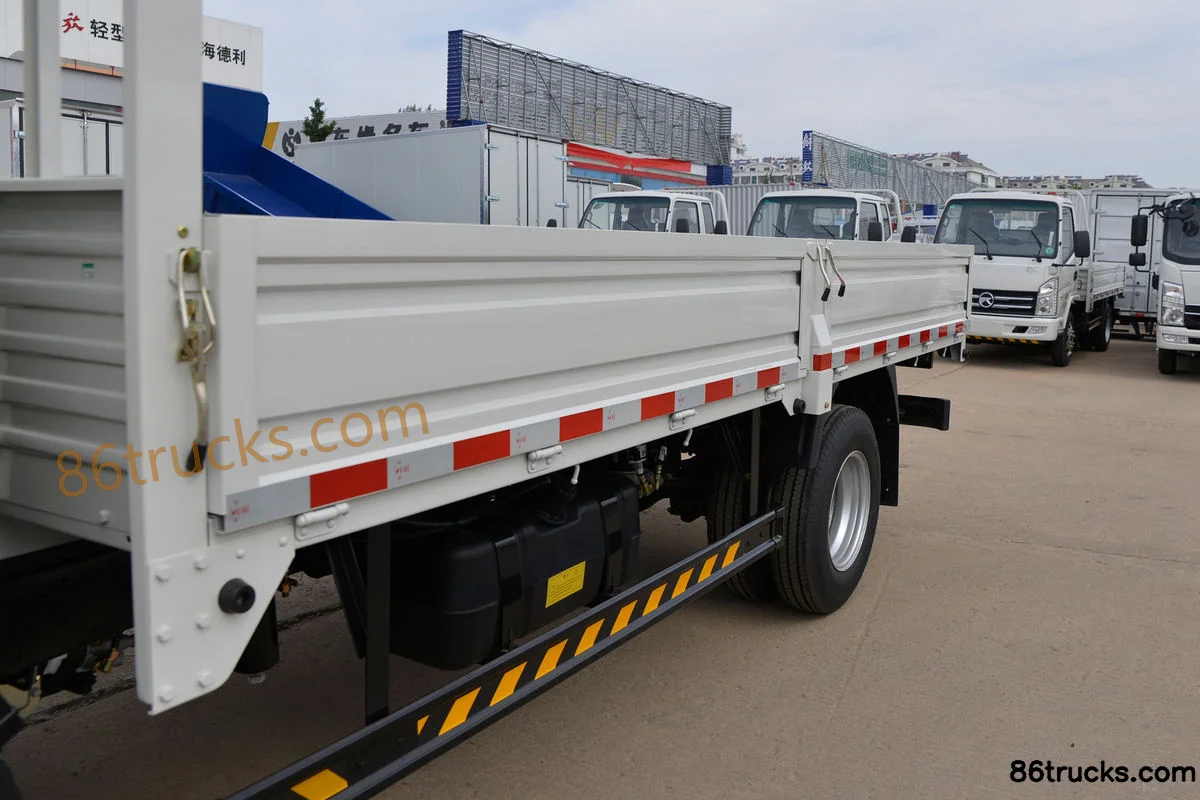

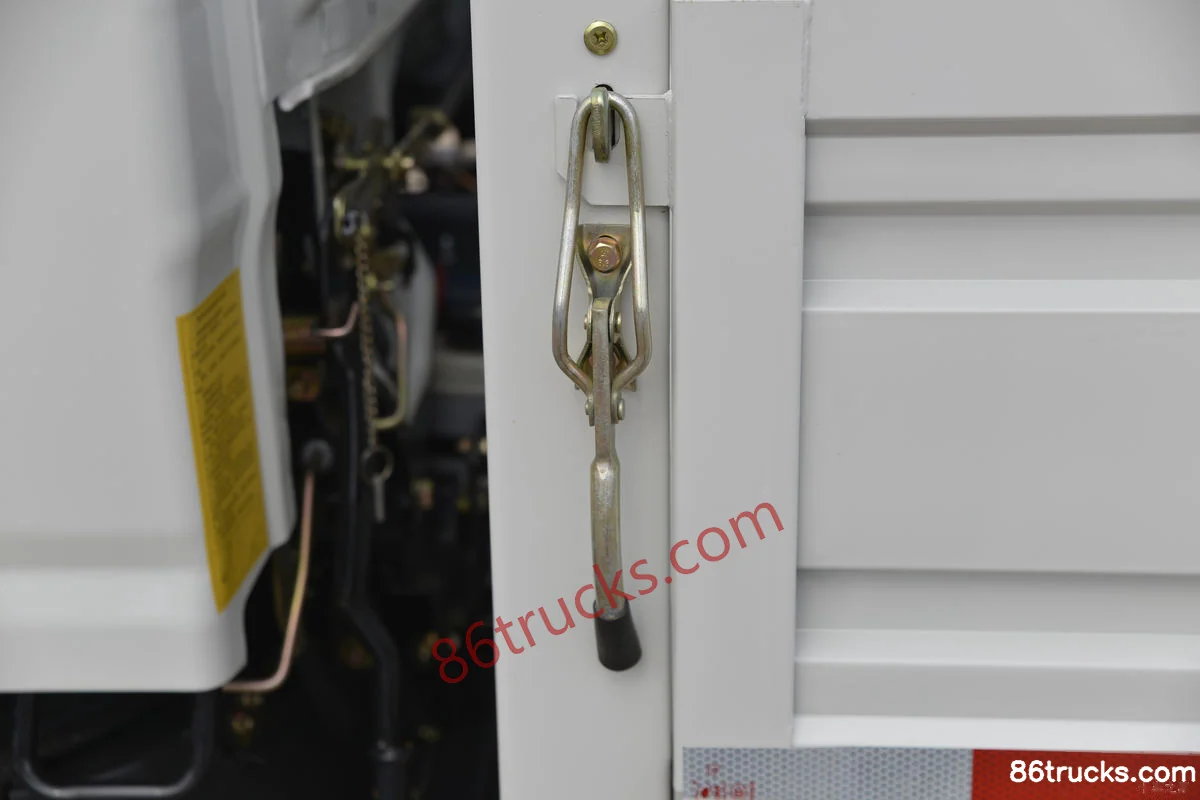

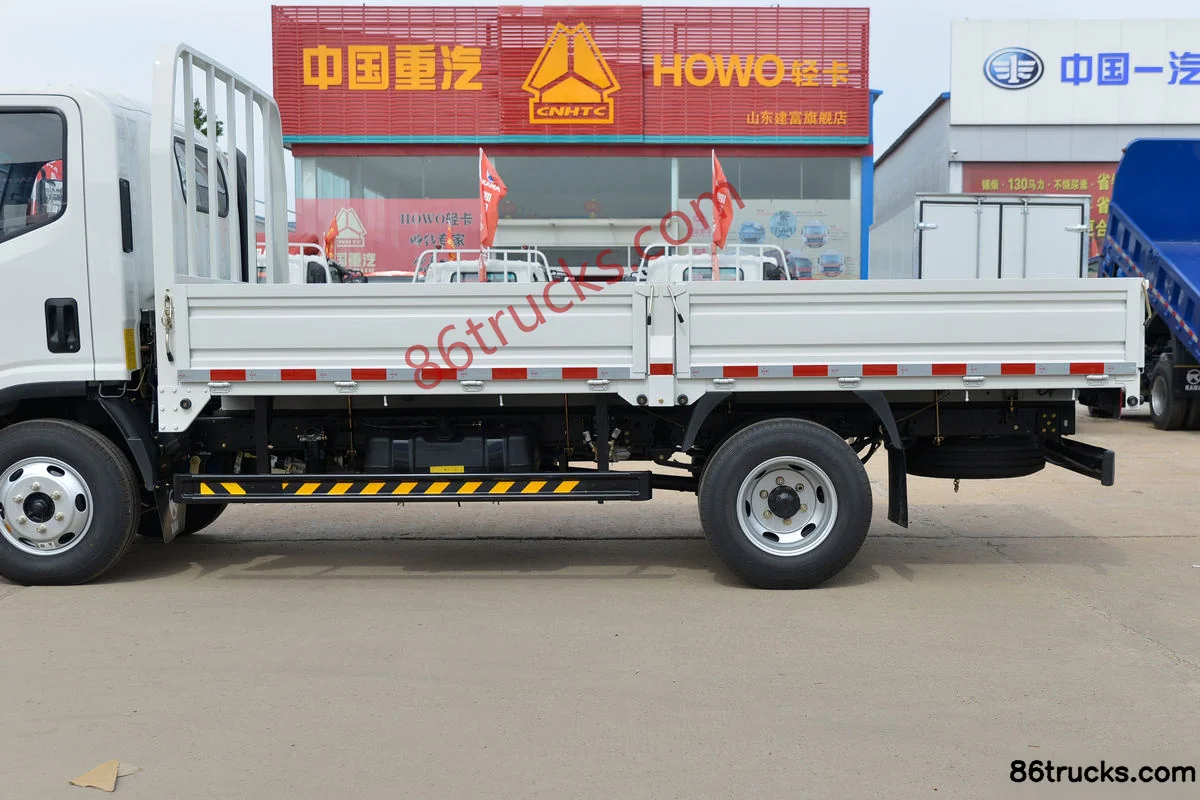

Body3

12 photos

FAQ

What is the export price of Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck, and what does it include?

Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck export reference is about From $9,444; MSRP is ¥6.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck?

Key specs of Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP2.3. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck suited for?

Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck differ from other variants in the same series?

Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck belongs to Kama Kaijie M1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie M1 110 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
