Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI)

Export reference
MSRP N/A
Horsepower: 130
Emission: China VI
Fuel: Diesel
Engine: QuanchaiQ23
Curb Weight:: 2.72ton
Wheelbase:: 3360mm

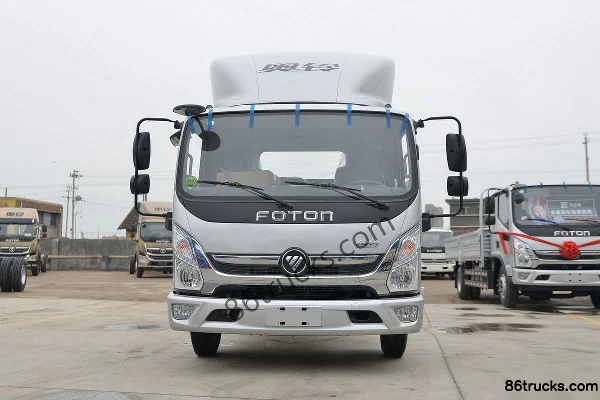

Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI) exterior
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI) is a Light Truck featuring 3.83m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a QuanchaiQ23 engine, 130 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5048CCY9JEA-AB2
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: QuanchaiQ28-130E60
transmission: 5-speed transmission
Cab length: 5.995m
Cab width: 2.47m
Cab height: 2.44m
Front track width: 1730mm
rear track: 1800mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
market segment: Logistics distribution, LTL transport
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ28-130E60
Engine info: QuanchaiQ23
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.8L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 405N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.83m
Cargo box width: 2.1/2.3m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1575kg
rear axle allowable load: 2920kg
Leaf spring count: 3/8+6
Tire
Tire Size: 7.50R16LT 6PR,7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
LCD instrument cluster:
lighting configuration
daytime running lights:
Halogen Headlights:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

0 photos

FAQ

What emission standard does Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI)?

Key specs of Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI): Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Engine: QuanchaiQ23. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI) suited for?

Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI) differ from other variants in the same series?

Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI) belongs to Foton New Jieyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling New Jieyun 130hp 4X2(6 wheels) 3.83m Row Half Warehouse Grid Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
