FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand)

Export reference
MSRP N/A
Curb Weight:: 11.805ton
Emission: China III / Euro III
Wheelbase:: 4725+1350mm
Cab dimensions:: 10×2.48×2.8m
Truck Type:: Water Sprinkler Truck
Vehicle origin:: Suizhou, Hubei
Tank Dimensions (L×W×H): 7×2.3×1.5m
Rated payload: 13ton
Drive 6X4 (10 wheels)
Horsepower 220

Overview

The Suizhou Lishen FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand) is a water sprinkler truck featuring 7×2.3×1.5m tank capacity, 13t payload, 19m³ volume and 11.805ton GVW. On the powertrain side, it comes with 220 hp, 6X4 (10 wheels) drive and China III / Euro III emissions.

China III / Euro III 220 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10×2.48×2.8m
Truck Type: Water Sprinkler Truck
Drive type: 6X4
Wheelbase: 4725+1350mm
Vehicle origin: Suizhou, Hubei
Front track width: 1914mm
rear track: 1847/1847mm
Curb Weight: 11.805ton
Rated payload: 13ton
Max. speed: 85km/h
Front/rear suspension: 1.375/2.55m
Body Parameters
Tank Dimensions (L×W×H): 7×2.3×1.5m
Vehicle certification code: SLS5250GSSC3
Body Brand: Xingshi Brand
Others: Guard material: Q235 steel plate; side guard bolted, rear guard bolted; rear guard section height 100mm, width 50mm, ground clearance 530mm.
Engine parameters
Engine Model: Xichai CA6DE3-22E3
Number of cylinders: 6cylinder
Displacement: 6.618L
Emission standard: China III / Euro III
Max output power: 162kW
Max hp: 220Horsepower
Engine Type: Inline
Cargo box parameters
Box volume: 19m³
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: Hanwei
Chassis Model: CA1253P7K2L7T1E
Leaf spring count: 4/10,11/11
Tire
Tire Size: 9.00-20,9.00R20,10.00-20,10.00R20
Number of tires: 10pcs

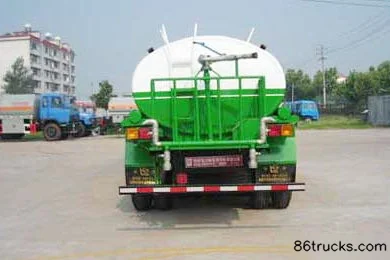

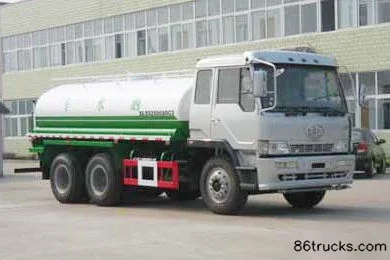

Photos

Exterior2

2 photos

FAQ

What emission standard does FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand)?

Key specs of FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand): Drive: 6x4; Horsepower: 220 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand) suited for?

FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand) differ from other variants in the same series?

FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand) belongs to Suizhou Lishen FAW Jiefang chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hanwei 220hp 6X4(10 wheels) Water Sprinkler Truck (Xingshi Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
