Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.88ton
Wheelbase:: 3650mm
Tire Size:: 10.00R20 18PR
Rated payload: 9.99ton
Drive 4X4 (6 wheels)
Horsepower 240
Cargo box length: 4m

Overview

The Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck is a Medium-duty truck featuring 9.99t payload, 18t GVW, 4m cargo body and 4X4 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.6NQ240E62 engine, 240 hp, China VI emissions and Fast Gear transmission.

China VI 240 Diesel 4X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ2188K27FB1
Drive type: 4X4
Wheelbase: 3650mm
engine: WeichaiWP4.6NQ240E62
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 6.73
Cab length: 6.63m
Cab width: 2.5m
Cab height: 2.98m
Front track width: 1800mm
rear track: 1750mm
Curb Weight: 7.88ton
Rated payload: 9.99ton
GVWR: 18ton
Origin: Yong'an, Fujian
tonnage class: Medium-duty truck
Approach angle: 24°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ240E62
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.58L
Emission standard: China VI
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 850N·m
Max torque speed: 1300-1600rpm
Rated speed: 2300rpm
Engine Type: Common Rail+DOC+DPF+SCR
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box length: 4m
Cargo box width: 2.2m
Cargo box height: 0.6m
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 6.73
Leaf spring count: 9/11+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

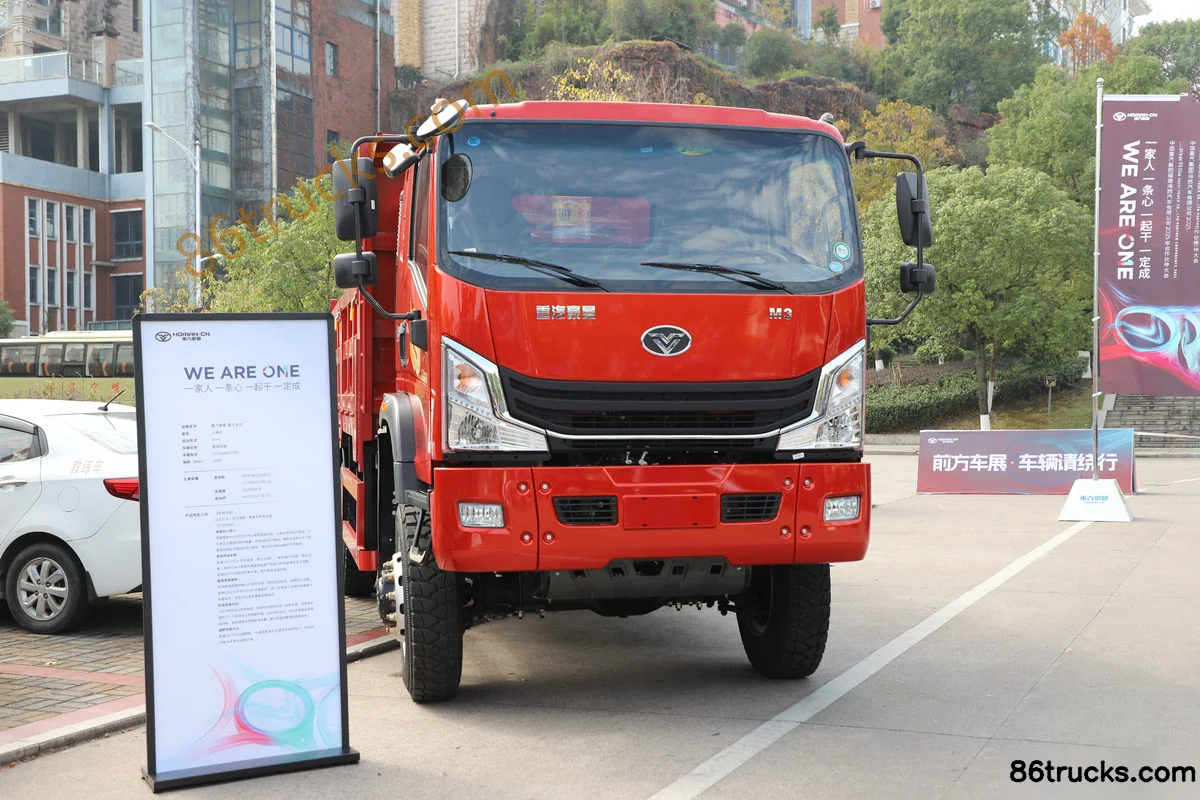

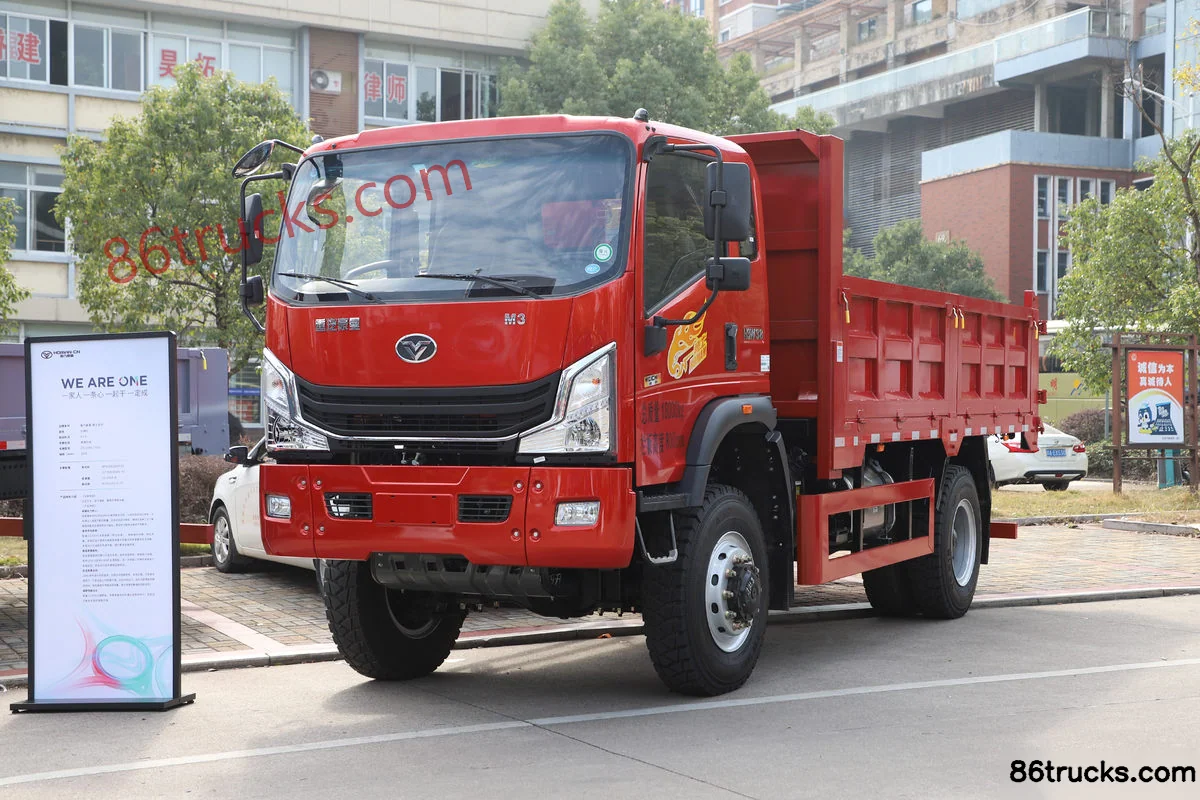

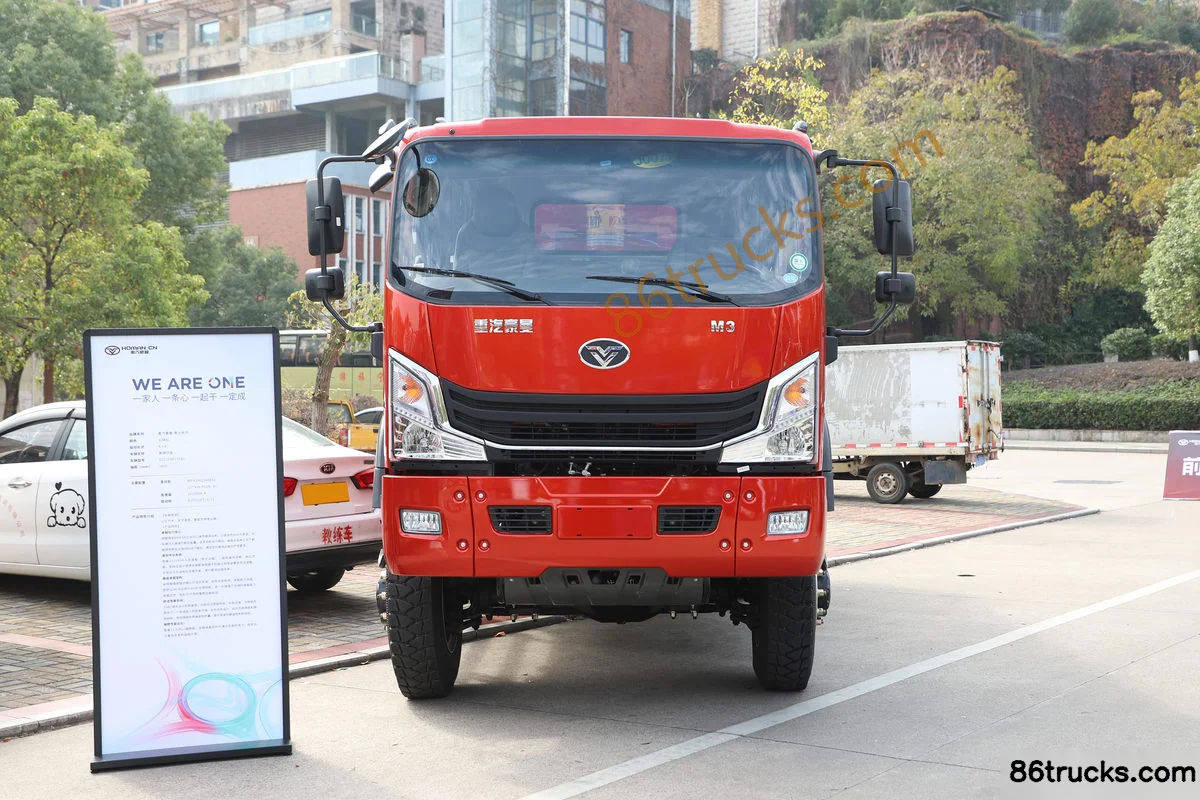

Exterior3

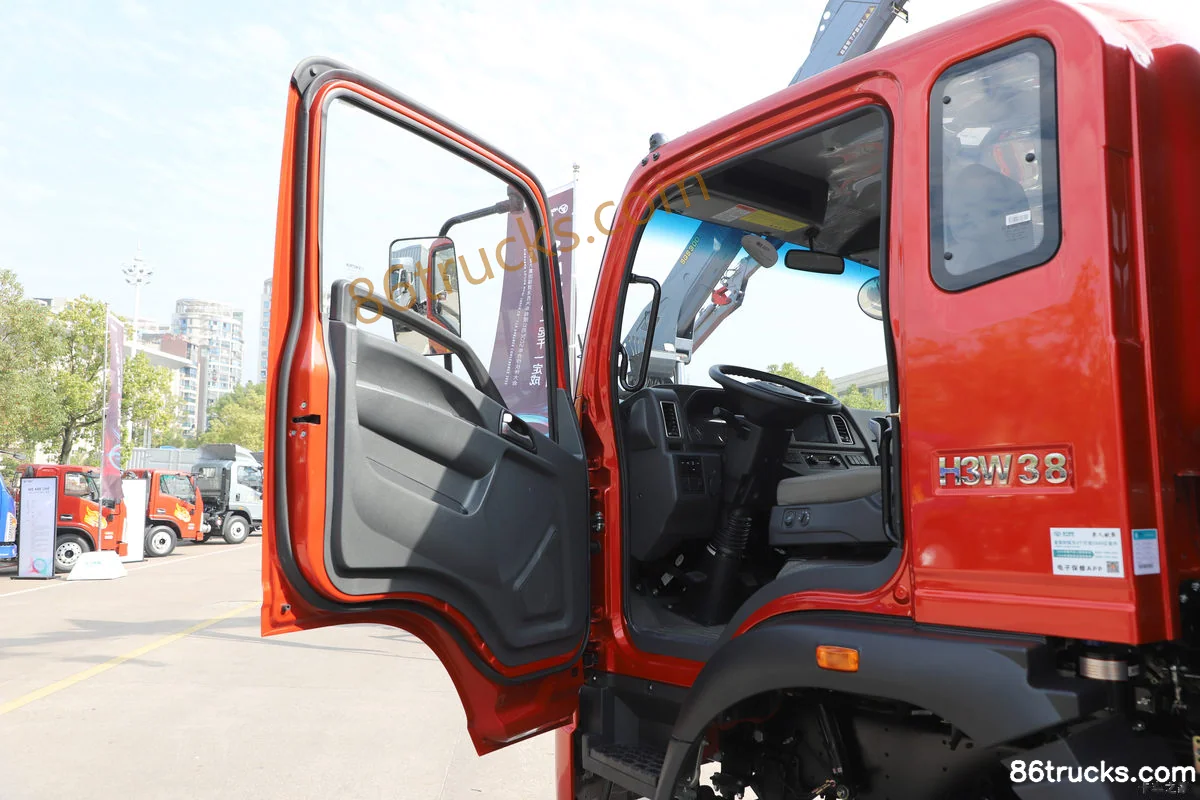

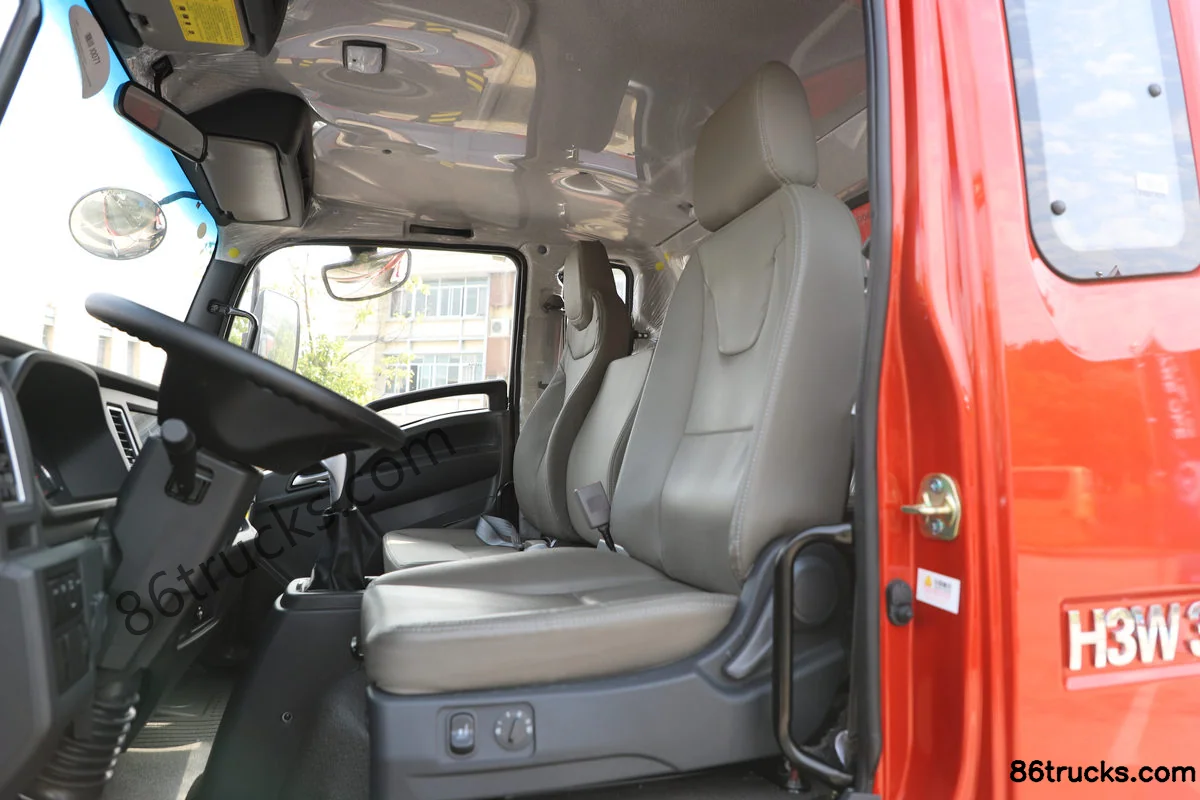

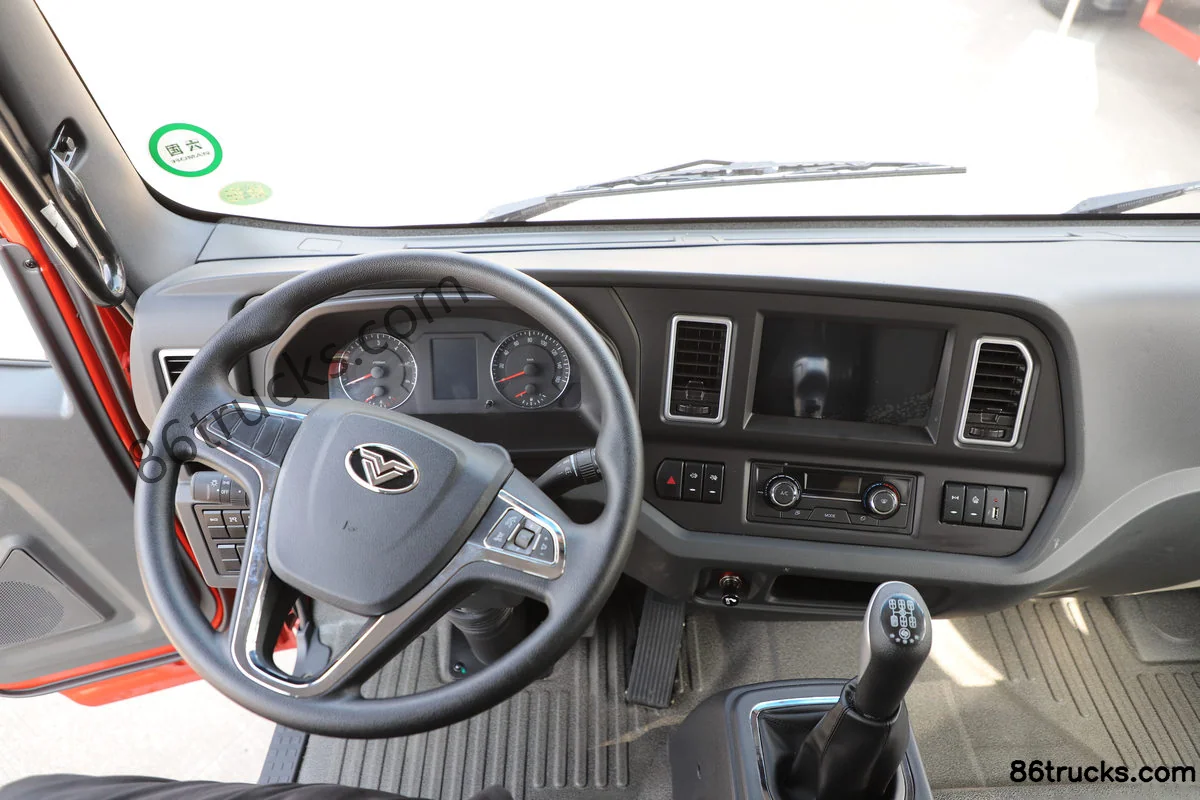

Cab3

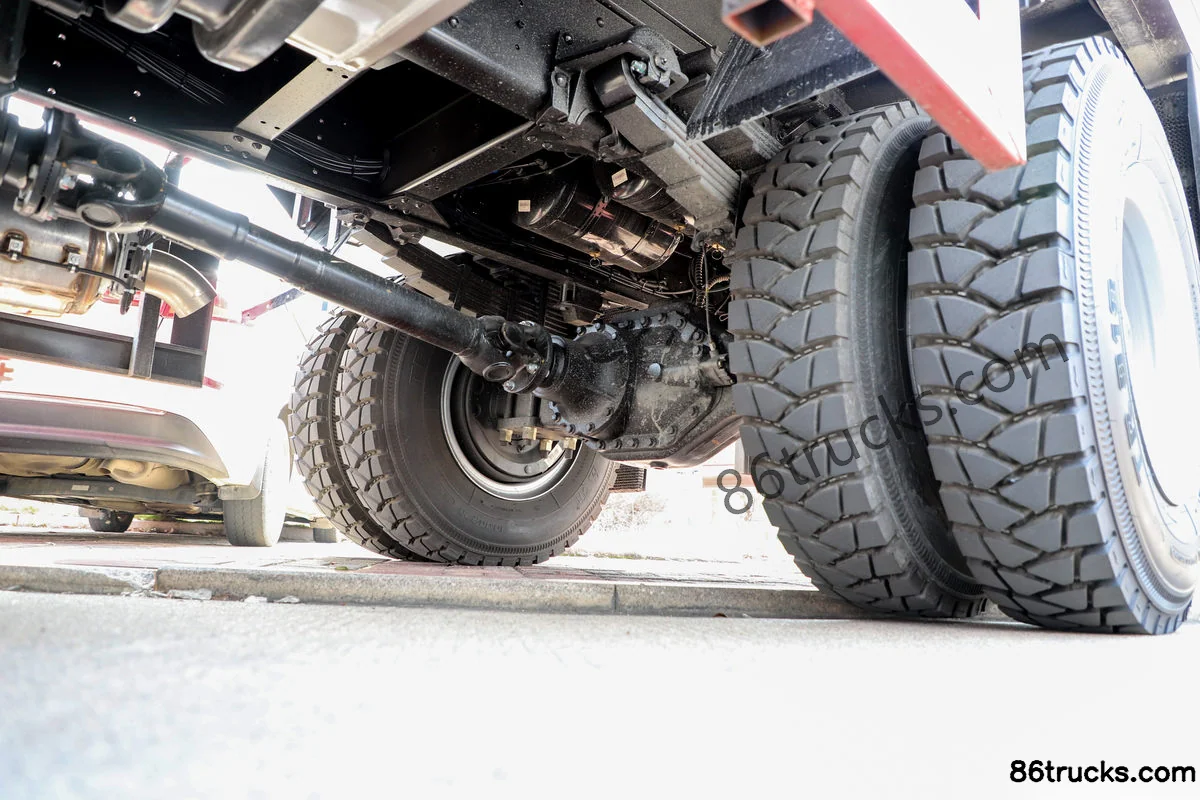

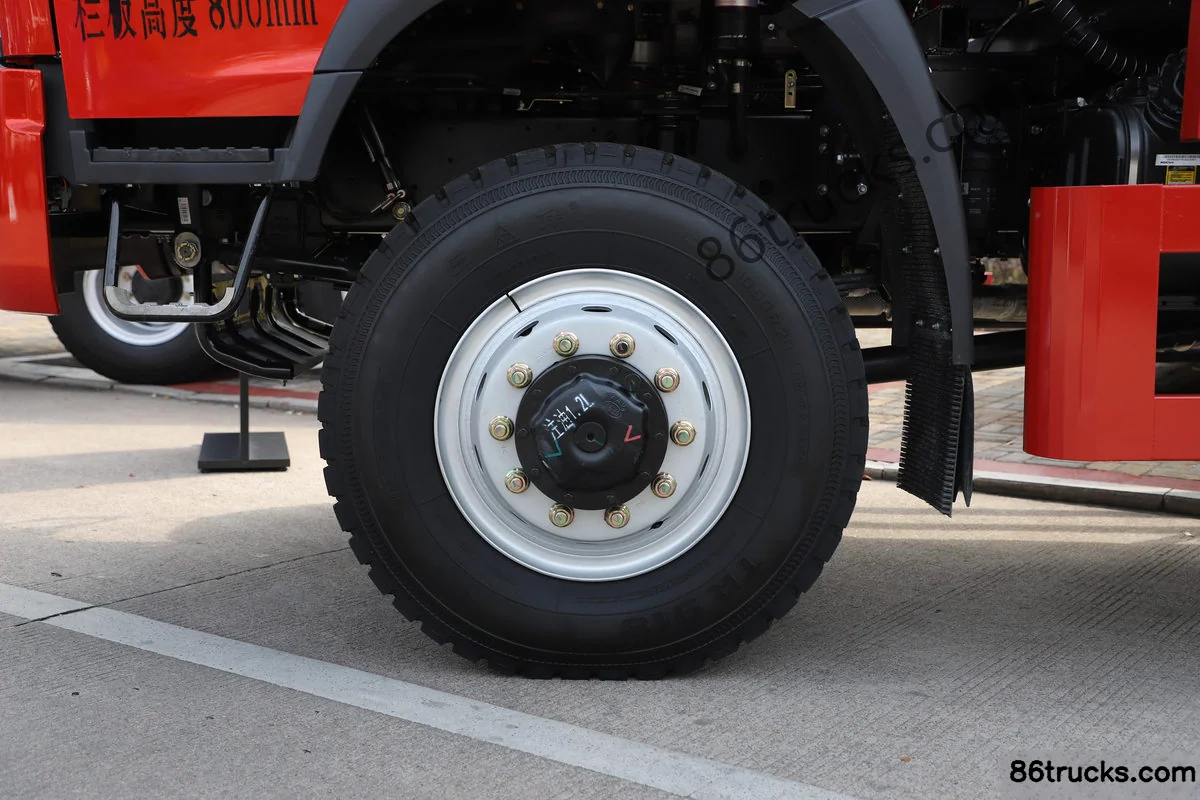

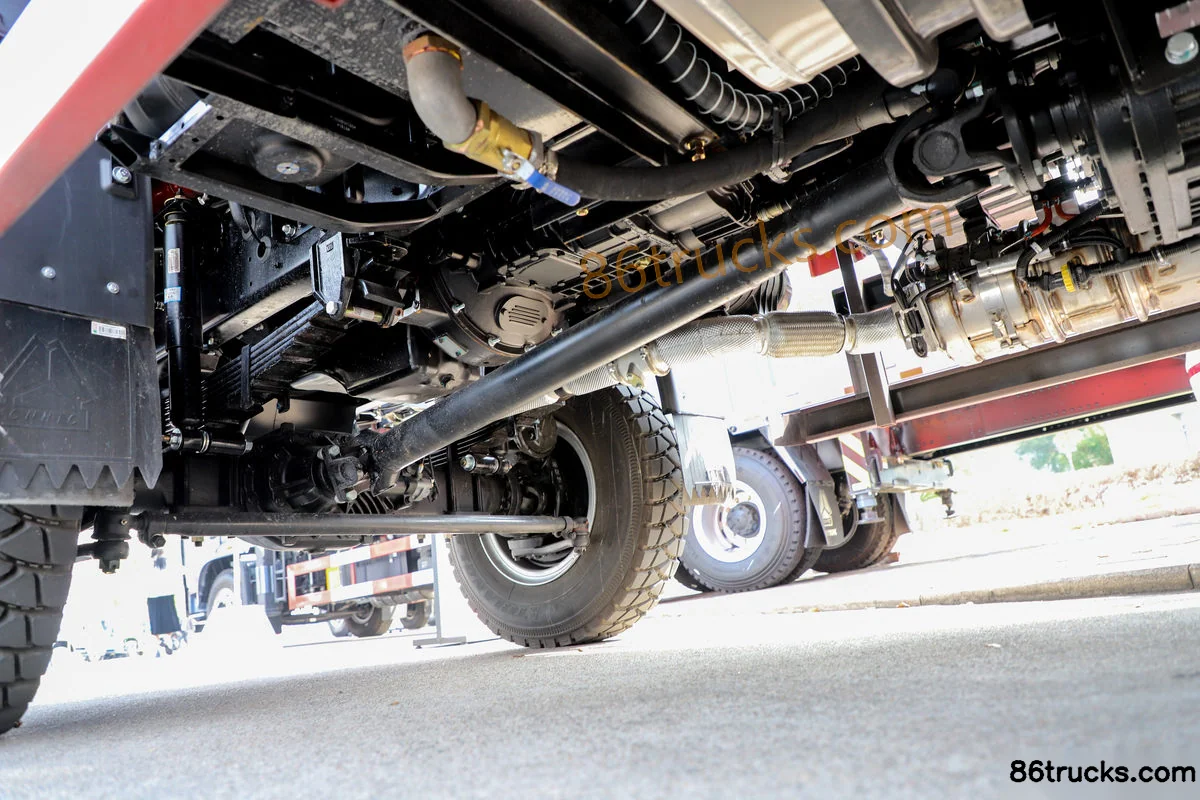

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck?

Key specs of Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck: Drive: 4x4; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck suited for?

Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck differ from other variants in the same series?

Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck belongs to Sinotruk Warrior M3 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Warrior M3 240 hp 4X4(6 wheels) 4m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
