FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand)

Export reference
MSRP N/A
Curb Weight:: 16ton
Emission: China III / Euro III
Wheelbase:: 4500mm
Cab dimensions:: 8.3×2.48×3.2m
Truck Type:: Water Sprinkler Truck
Vehicle origin:: Suizhou, Hubei
Tank Dimensions (L×W×H): 4.9×2.26×1.45m
Rated payload: 7.5ton
Drive 4X2 (6 wheels)
Horsepower 180

Overview

The FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand) is a water sprinkler truck featuring 4.9×2.26×1.45m tank capacity, 7.5t payload, 11.25m³ volume and 16ton GVW. On the powertrain side, it comes with 180 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 180 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.3×2.48×3.2m
Truck Type: Water Sprinkler Truck
Drive type: 4X2
Wheelbase: 4500mm
Vehicle origin: Suizhou, Hubei
Front track width: 1914/1800mm
rear track: 1860/1800mm
Curb Weight: 16ton
Rated payload: 7.5ton
Max. speed: 95km/h
Front/rear suspension: 1.375/2.425m
Body Parameters
Tank Dimensions (L×W×H): 4.9×2.26×1.45m
Vehicle certification code: CSC5160GSSC3
Body Brand: Chusheng Brand
Engine parameters
Engine Model: FAW CA6DE3-18E3
Number of cylinders: 6cylinder
Displacement: 6.618L
Emission standard: China III / Euro III
Max output power: 136kW
Max hp: 180Horsepower
Engine Type: Inline
Cargo box parameters
Box volume: 11.25m³
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: New Hanwei J5M
Chassis Model: CA1163P7K2L2E
Leaf spring count: 4/4+3,10/12+8
Tire
Tire Size: 9.00R20,9.00-20,10.00R20,10.00-20
Number of tires: 6pcs

Photos

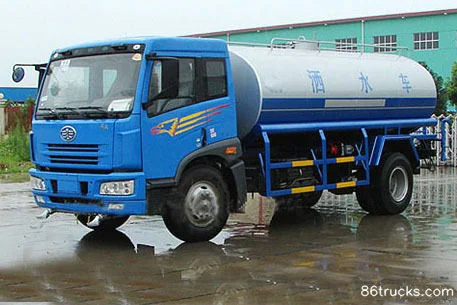

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand)?

Key specs of FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand): Drive: 4x2; Horsepower: 180 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand) suited for?

FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand) differ from other variants in the same series?

FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand) belongs to Chusheng FAW Jiefang Qingdao chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Hanwei (J5M) 180 hp 4X2(6 wheels) water sprinkler truck (Chusheng brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
