Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh

Export reference
MSRP N/A
Curb Weight:: 9.5ton
Front axle allowable load:: 7000kg
Wheelbase:: 3800+1350mm
Emission: China VI
Fuel: LNG (liquefied natural gas)
GVWR:: 25ton
Drive 6X4 (10 wheels)
CLTC range: 460km
Motor 1 Brand: Lv Kong
Horsepower 240

Overview

The Dongfeng Commercial Vehicle Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh is a Heavy truck featuring 460km battery/range, Lv Kong motor, 6X4 (10 wheels) drive and 7000kg payload. On the powertrain side, it comes with 240 hp.

China VI 240 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 6X4
Wheelbase: 3800+1350mm
CLTC range: 460km
Curb Weight: 9.5ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ460XS-LKM2810
Motor Type: Permanent magnet synchronous motor
total rated power: 315kW
Peak power: 510kW
Motor 1 Peak Power: 510kW
Number of drive motors: Single motor
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 78.3kWh
Engine parameters
Engine Brand: Yuchai
Engine Model: YCRE170-K08N20
Number of cylinders: 4cylinder
fuel type: LNG (liquefied natural gas)
Emission standard: China VI
Max output power: 177kW
Max hp: 240Horsepower
Transmission Parameters
Transmission Model: J4S280 DD
shift method: AMT manual/auto
Forward gears: 4Gear
Number of Reverse Gears:
Cab parameters
Cab: D320e high-roof single-bunk
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 7000kg
Fifth wheel: 90#
rear axle description: EP35DX2
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
EBS electronic braking system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Power Mirrors:
Electric Heated Rearview Mirror:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Forward Collision Warning (FCW):

Photos

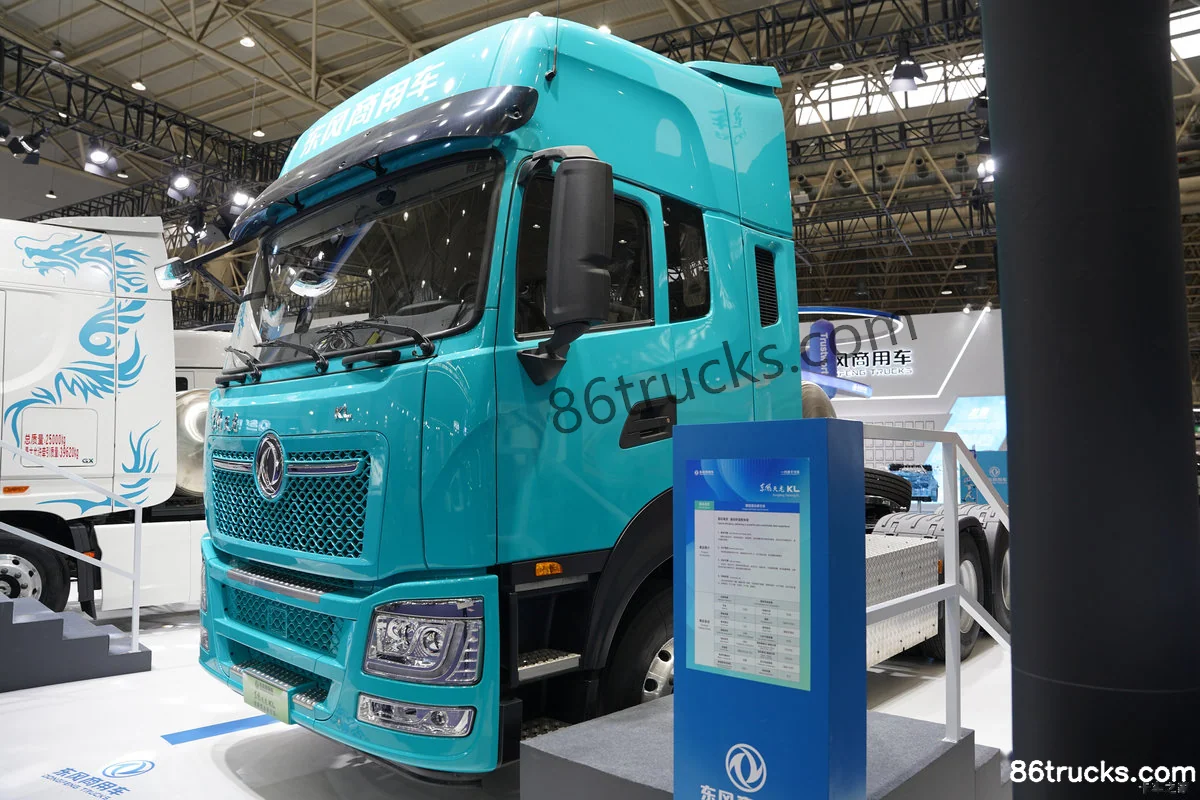

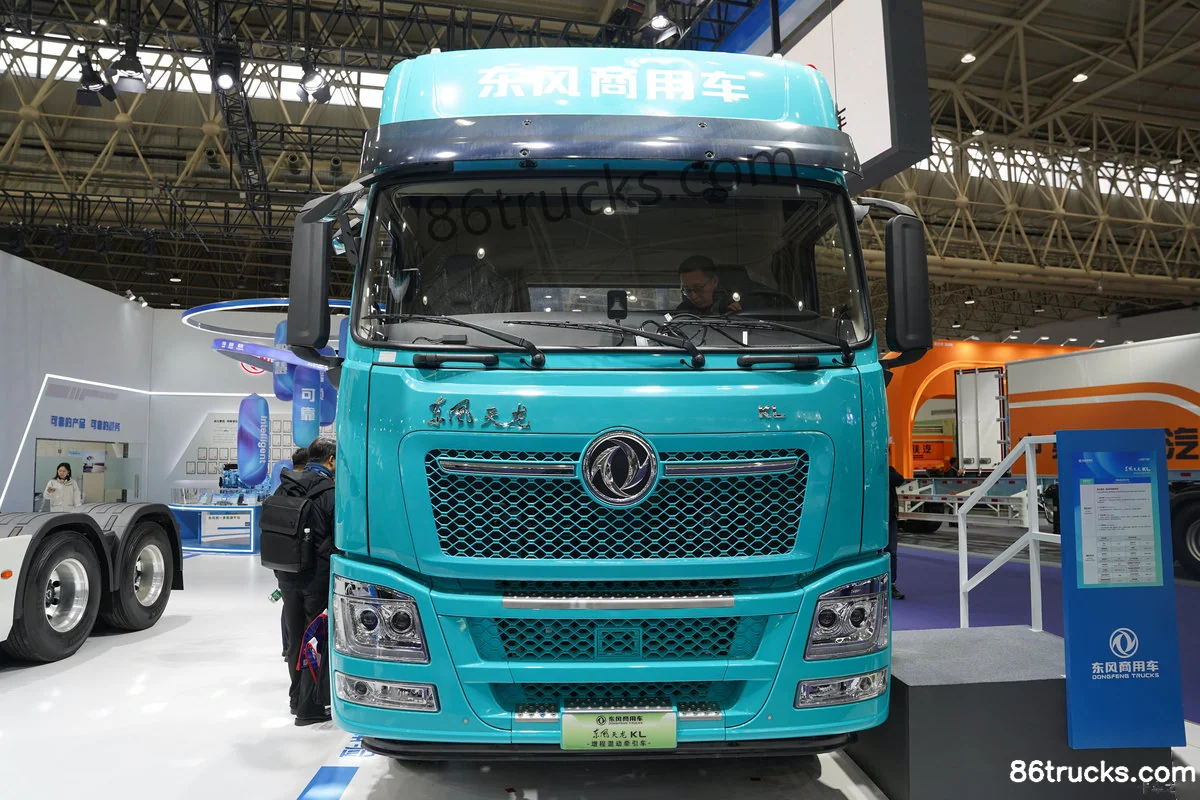

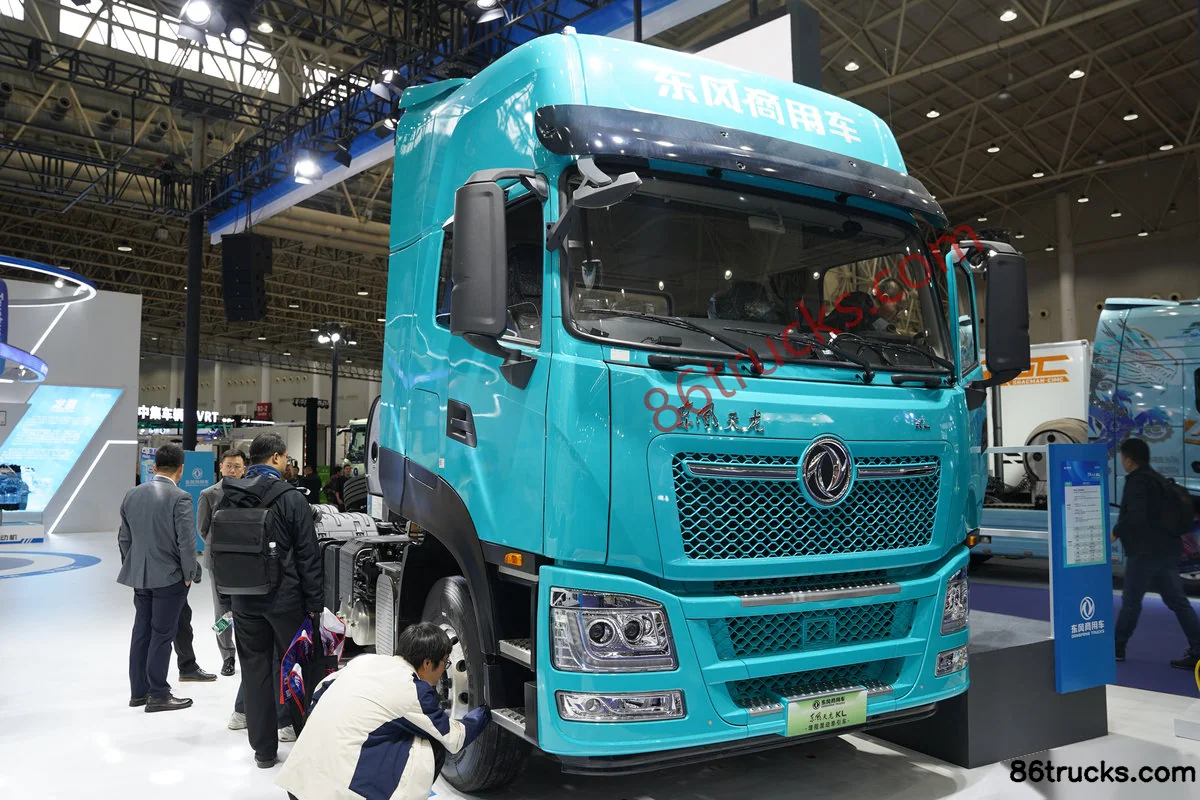

Exterior3

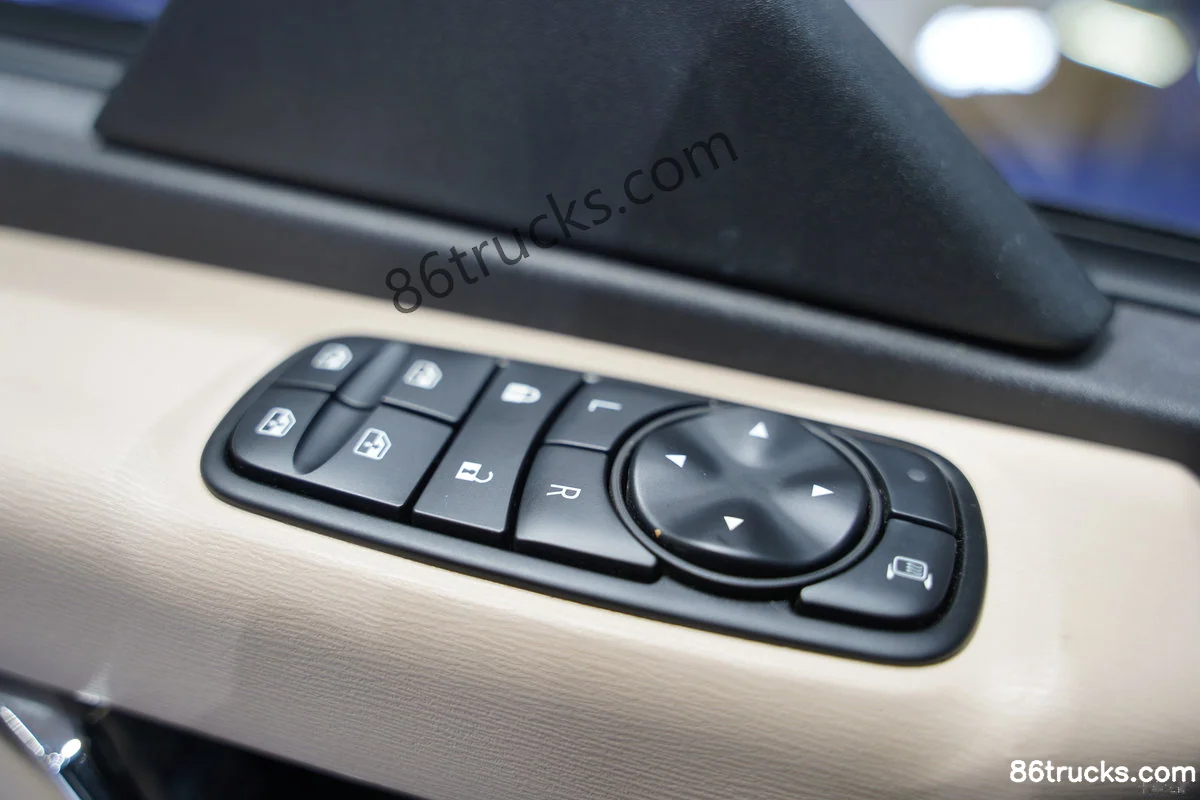

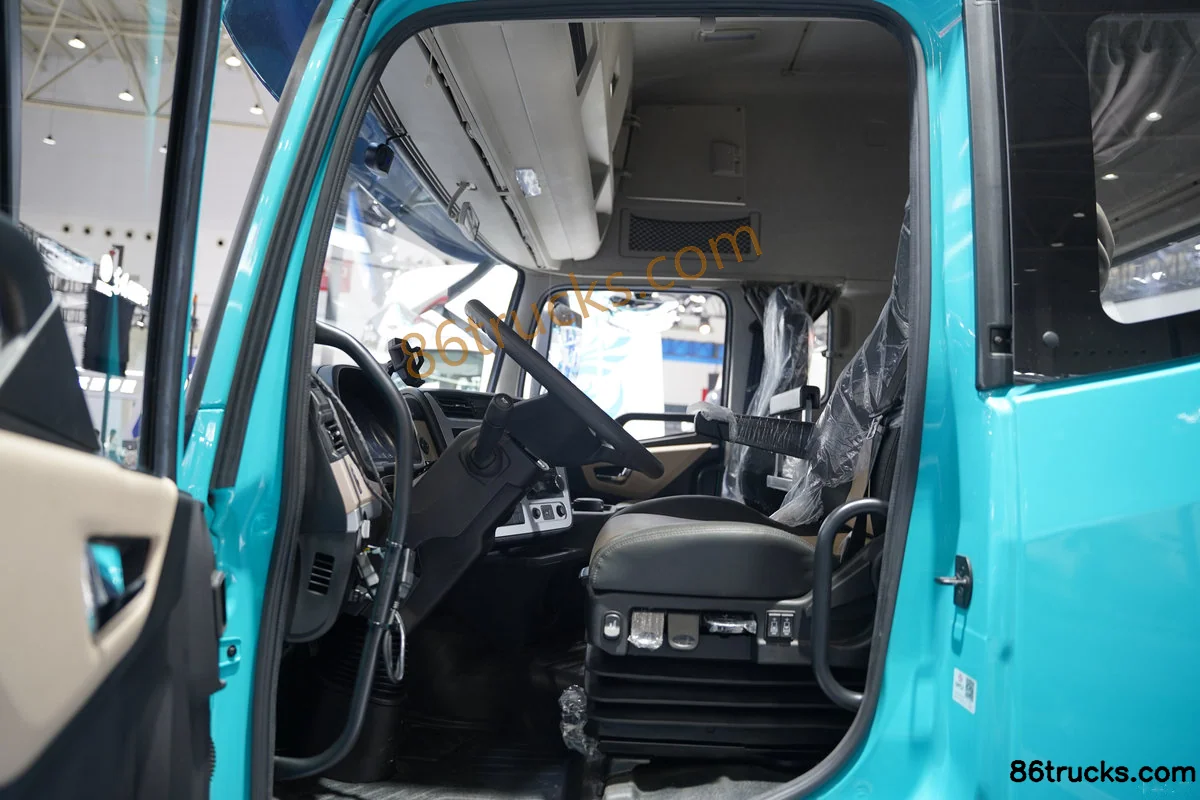

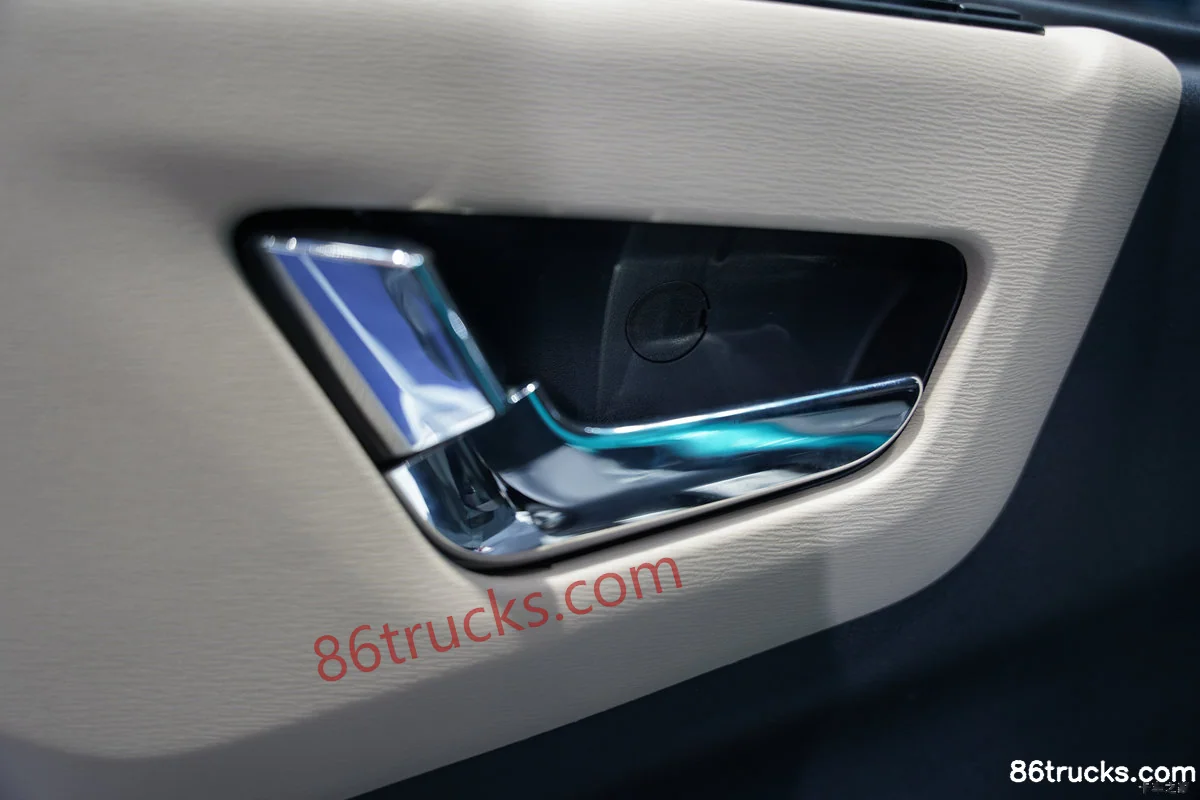

Cab3

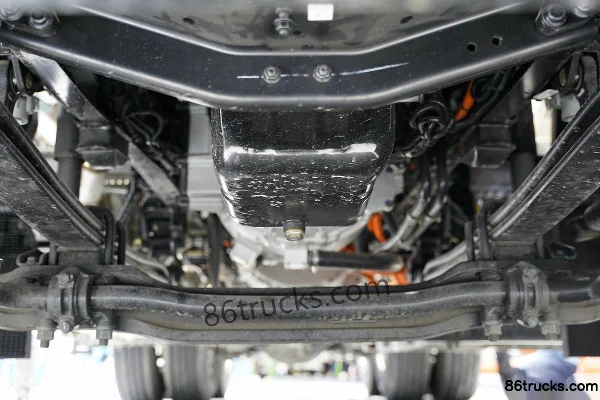

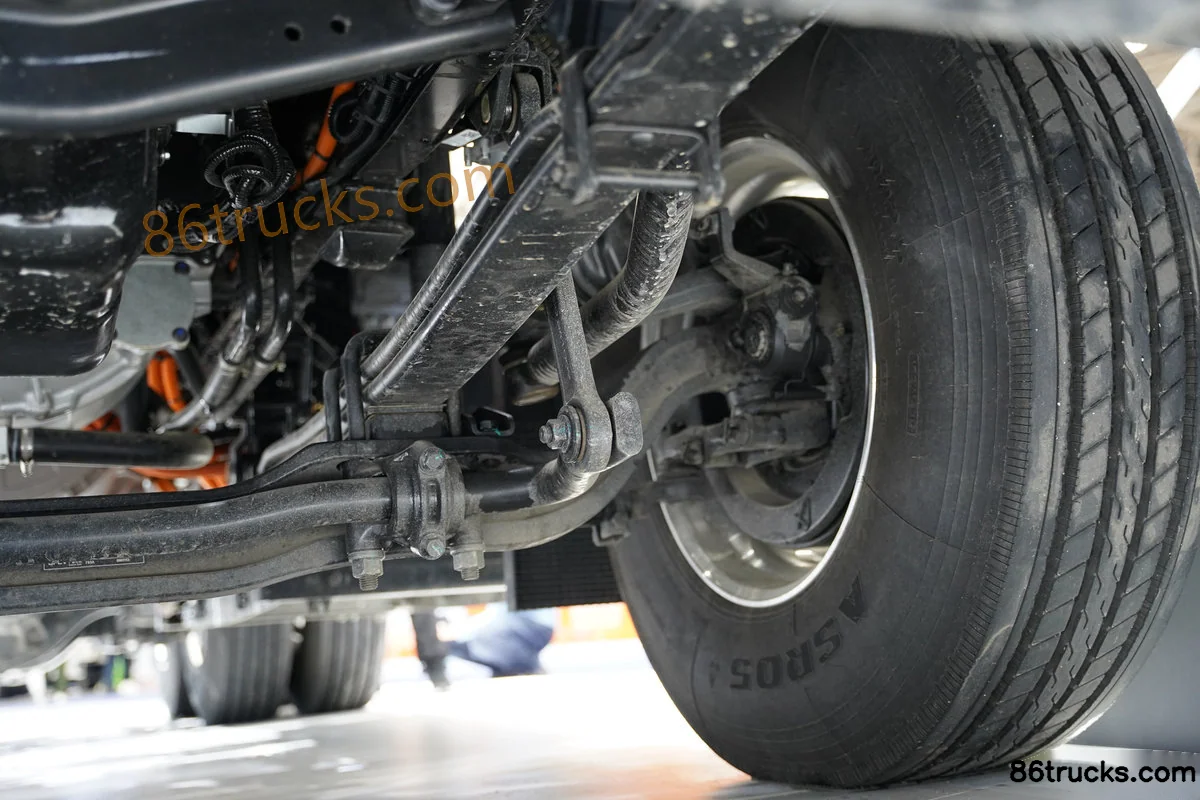

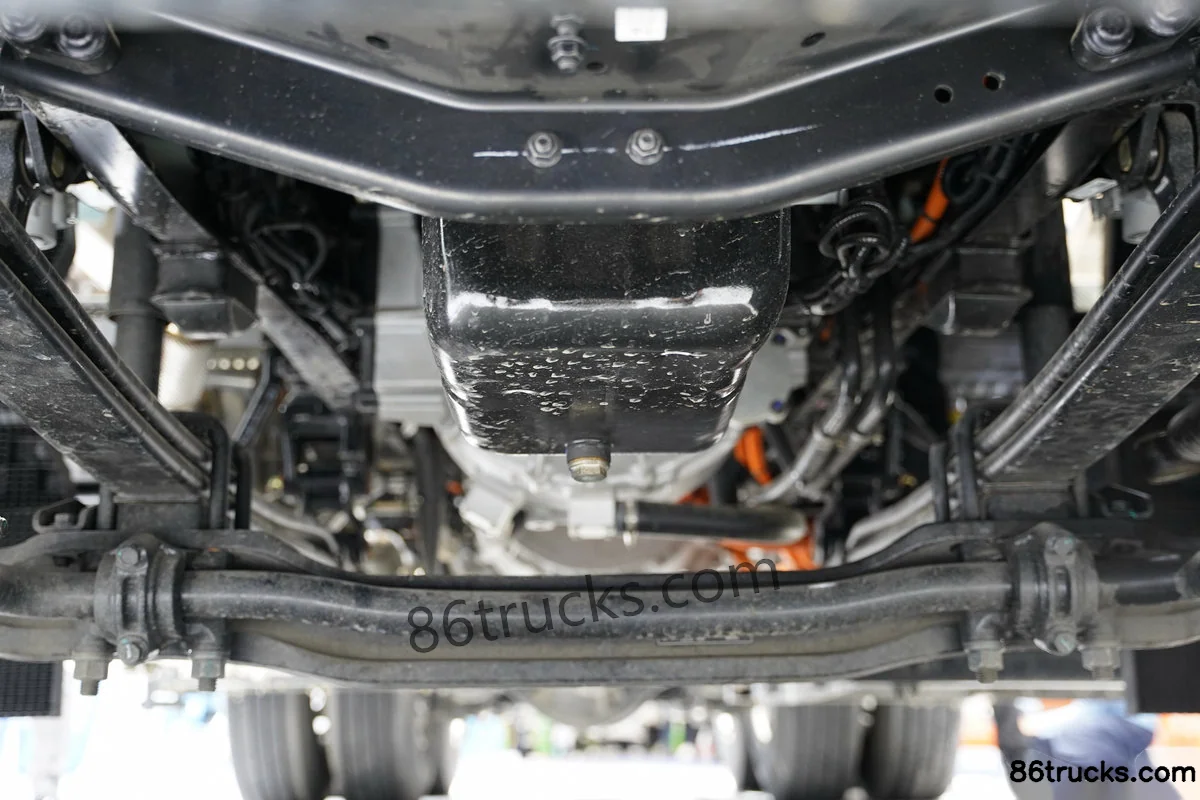

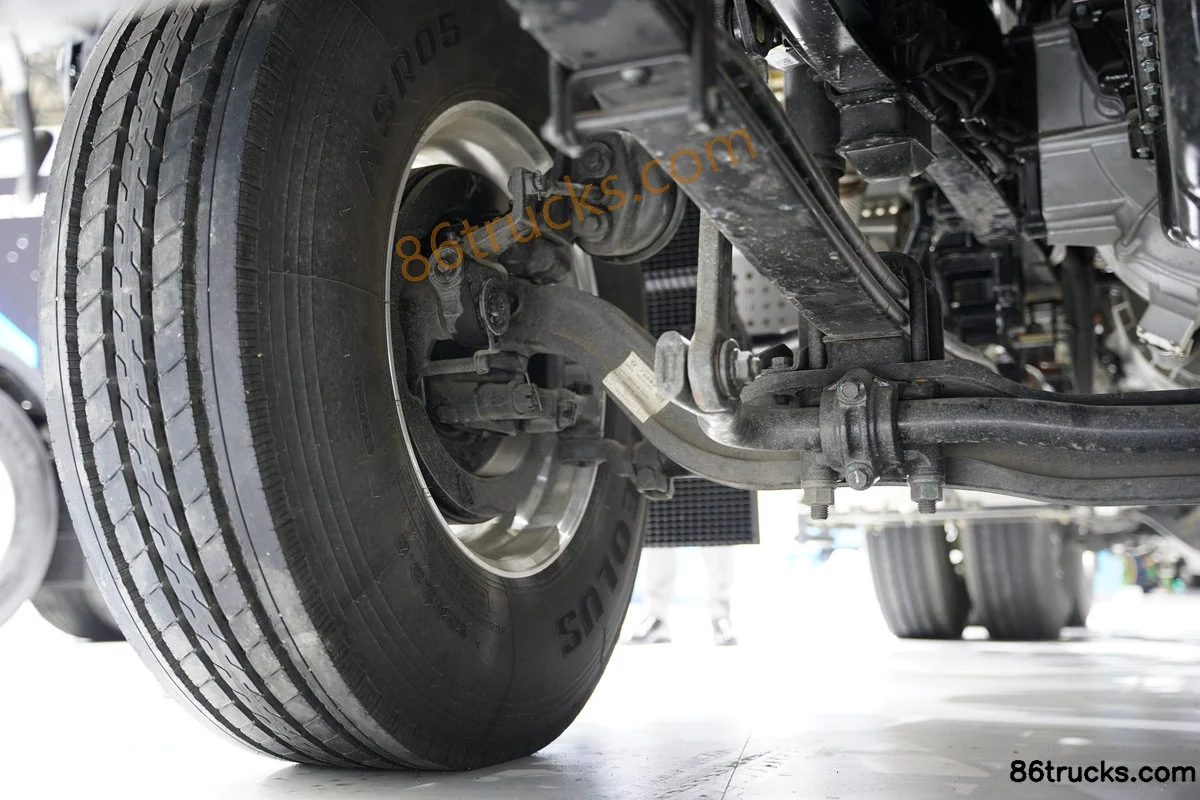

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh?

Key specs of Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh: Drive: 6x4; Horsepower: 240 hp; Emission: China VI; Fuel: LNG (liquefied natural gas). See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh suited for?

Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh differ from other variants in the same series?

Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh belongs to Dongfeng Tianlong KL (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianlong KL 6X4(10 wheels) Range-Extended Hybrid Tractor Truck CATL 78.3kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
