Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh

Export reference
MSRP N/A
Rated payload:: 8.87ton
Wheelbase:: 5100mm
Cargo box type:: Van body
Model code (announced):: LZ5181XXYH5AZBEV01
Type:: enclosed cargo truck
Box length class:: 9.7m
Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh exterior
View more photos (9)
Drive 4X2 (6 wheels)
Battery Brand: Guoxuan
Motor 1 Brand: Fangsheng
Curb Weight: 9ton

Overview

The Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh is a Medium-duty truck featuring Guoxuan battery/range, Fangsheng motor, 4X2 (6 wheels) drive and 8.87t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ5181XXYH5AZBEV01
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5100mm
Box length class: 9.7m
Cab length: 9m
Cab width: 2.55m
Cab height: 4m
Curb Weight: 9ton
Rated payload: 8.87ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Fangsheng
Motor 1 Model: TZ240XS-FSR04
Motor Type: Permanent magnet synchronous motor
total rated power: 175kW
Peak power: 280kW
Battery/Charging
Charging method: Fast Charge
Battery Brand: Guoxuan
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 215.424kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.8m
Cargo box width: 2.46m
Cargo box height: 2.7m
Cab parameters
Cab width: 2300mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 9T electric drive axle
rear axle allowable load: 11500kg
Aluminum wheels:
Tire
Tire Size: 275/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:

Photos

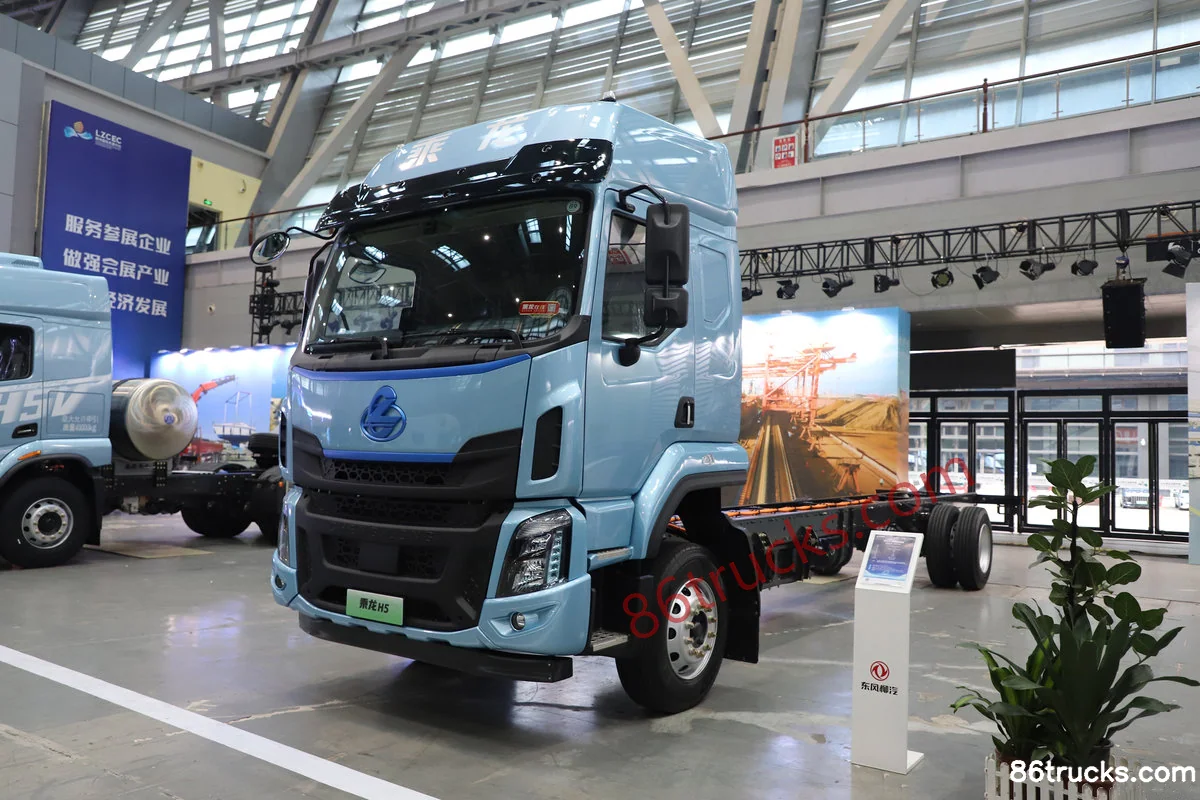

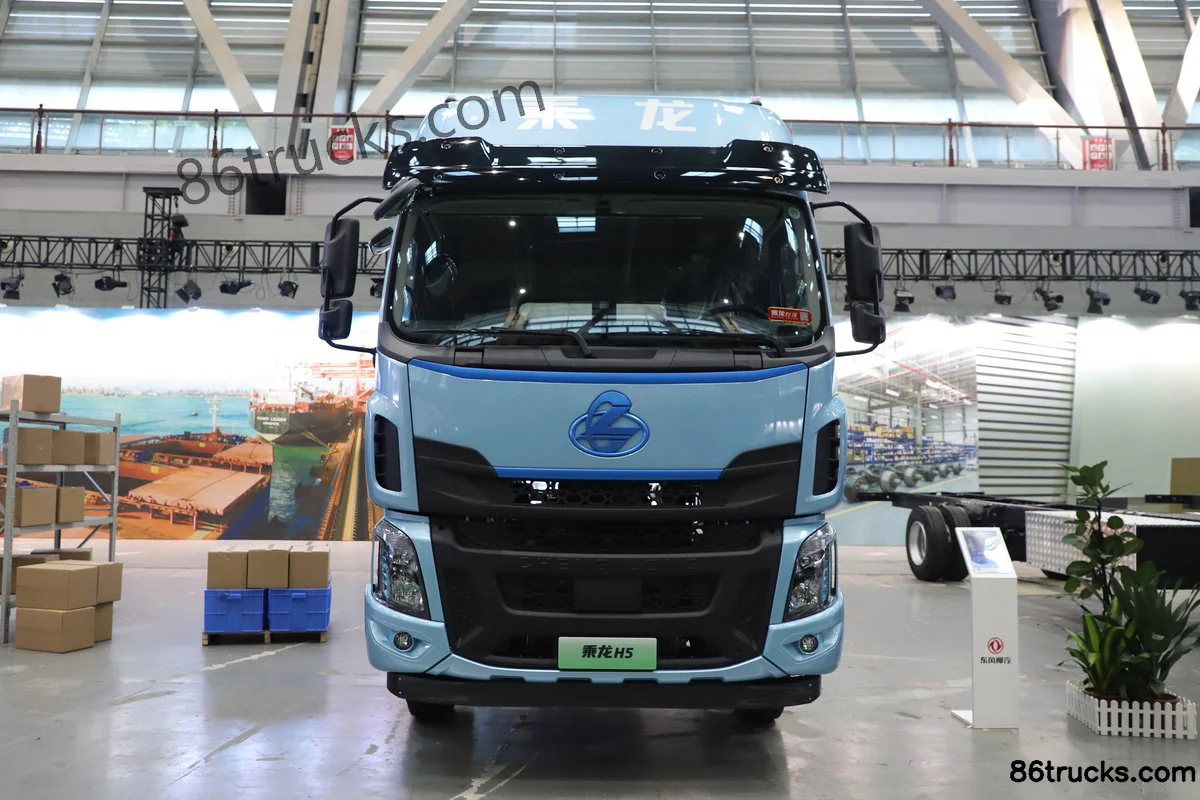

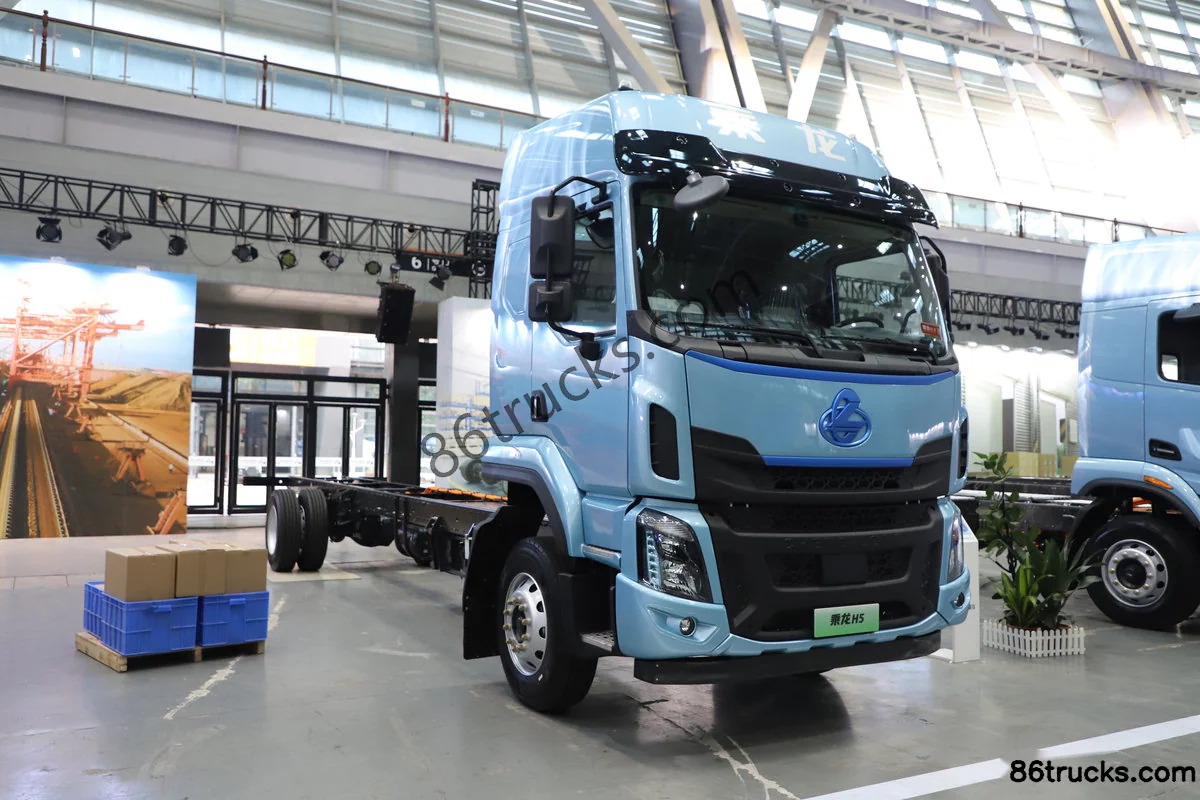

Exterior3

Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh Exterior (1) | 86Trucks Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh Exterior (2) | 86Trucks Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh Exterior (3) | 86Trucks

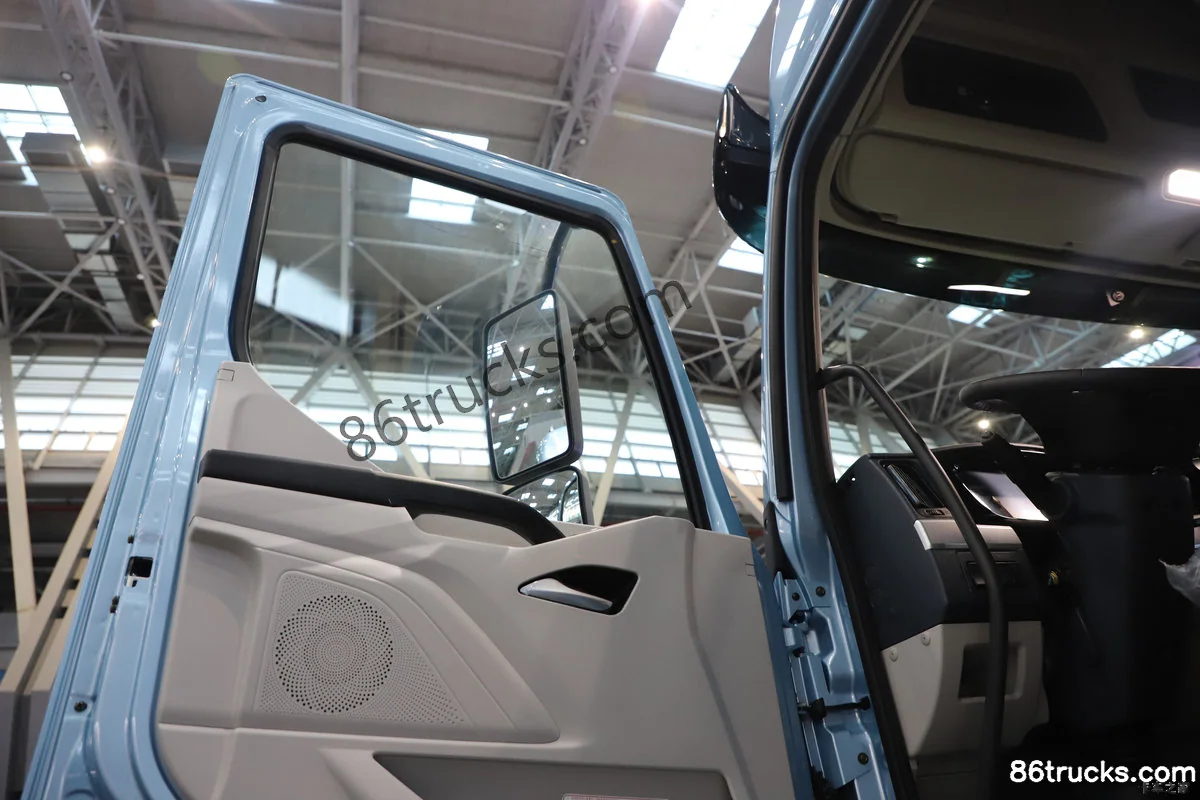

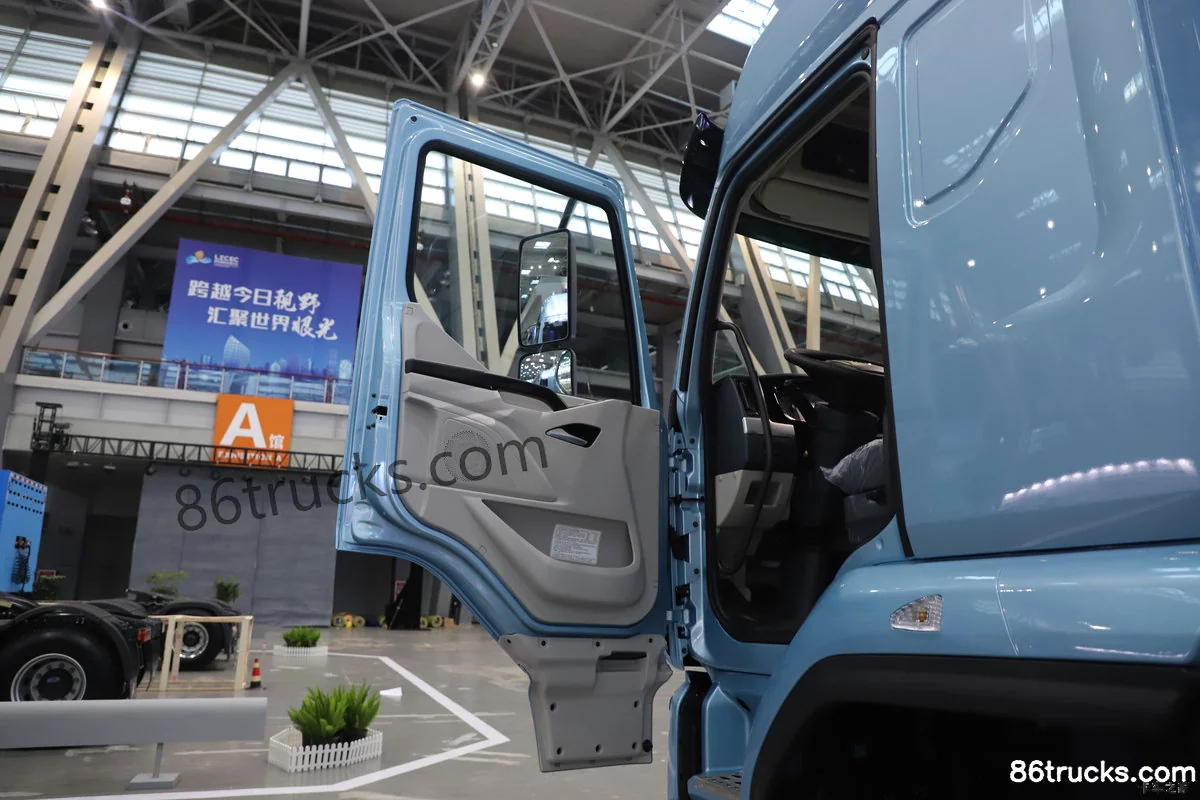

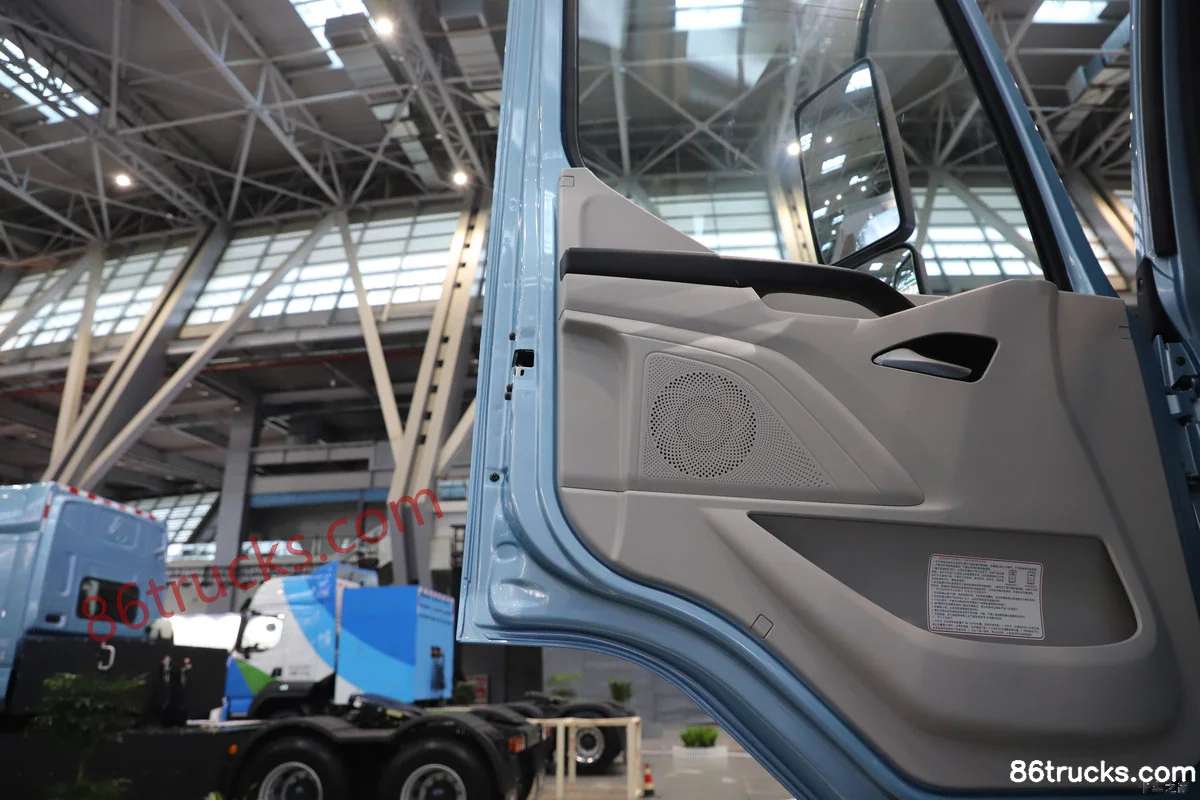

Cab3

Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh Cab (1) | 86Trucks Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh Cab (2) | 86Trucks Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh Cab (3) | 86Trucks

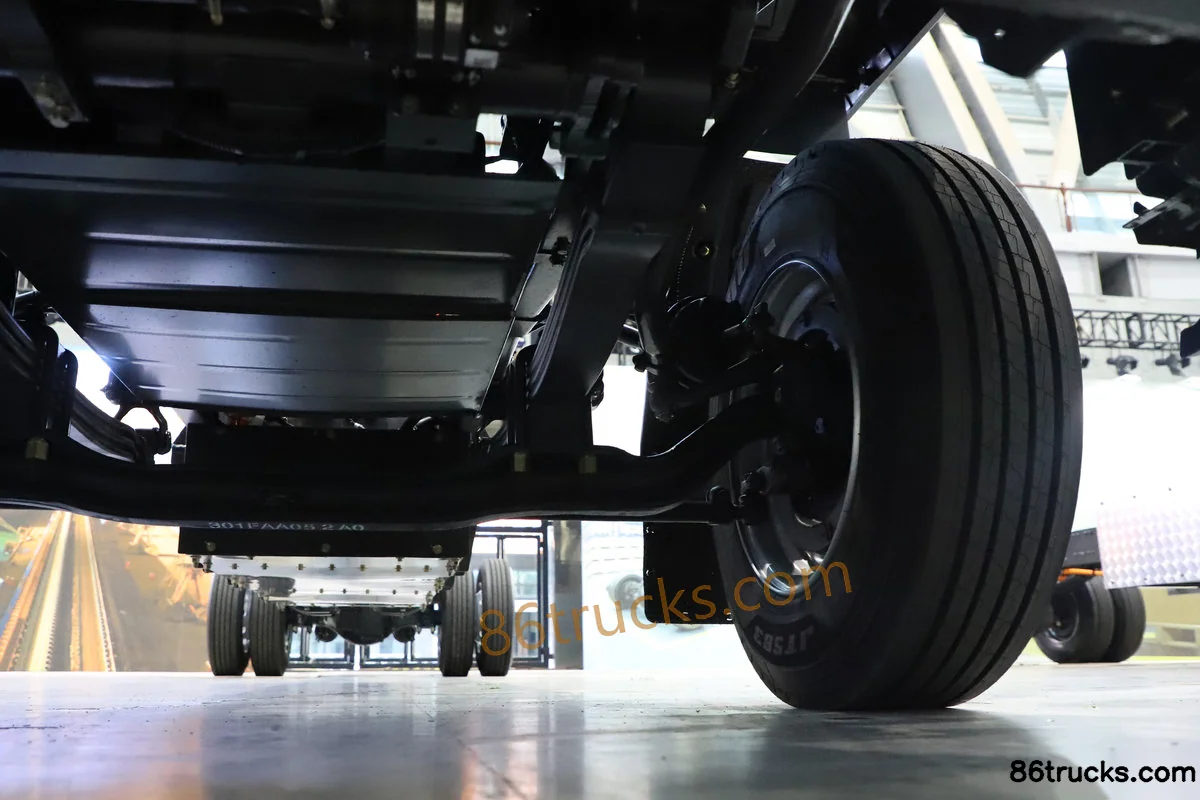

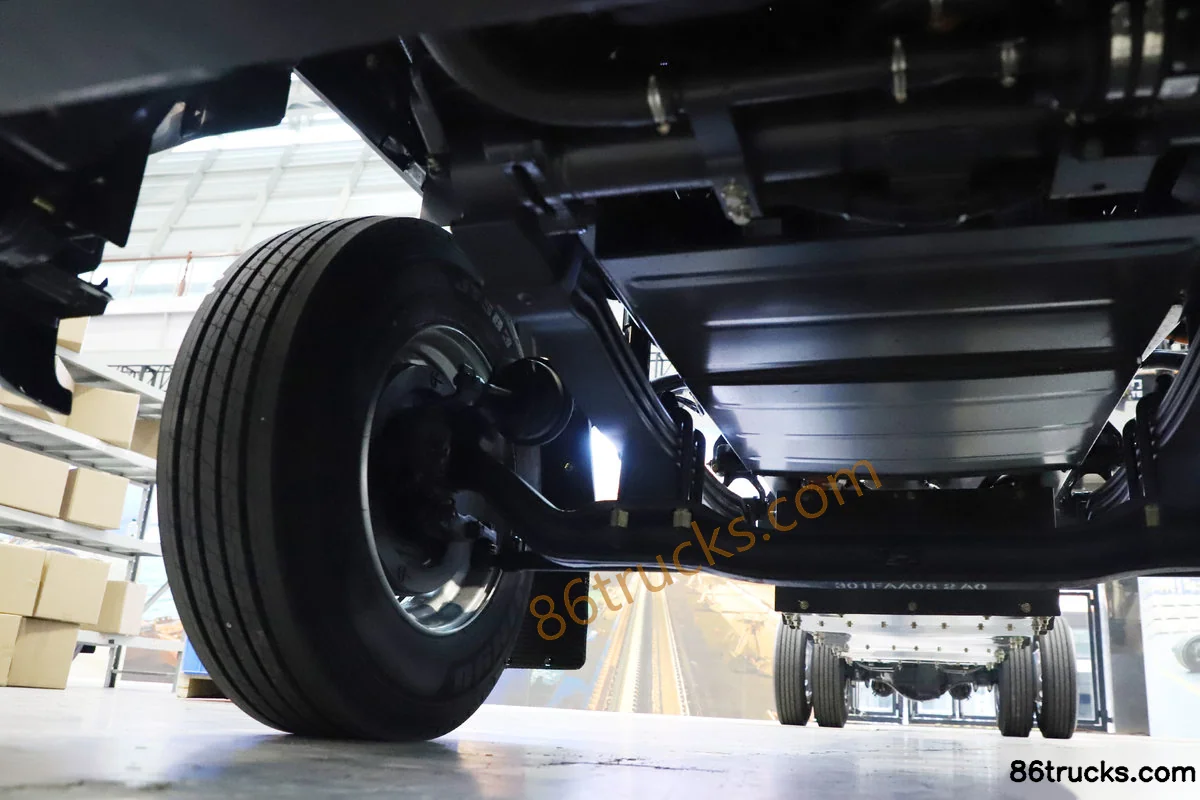

Chassis3

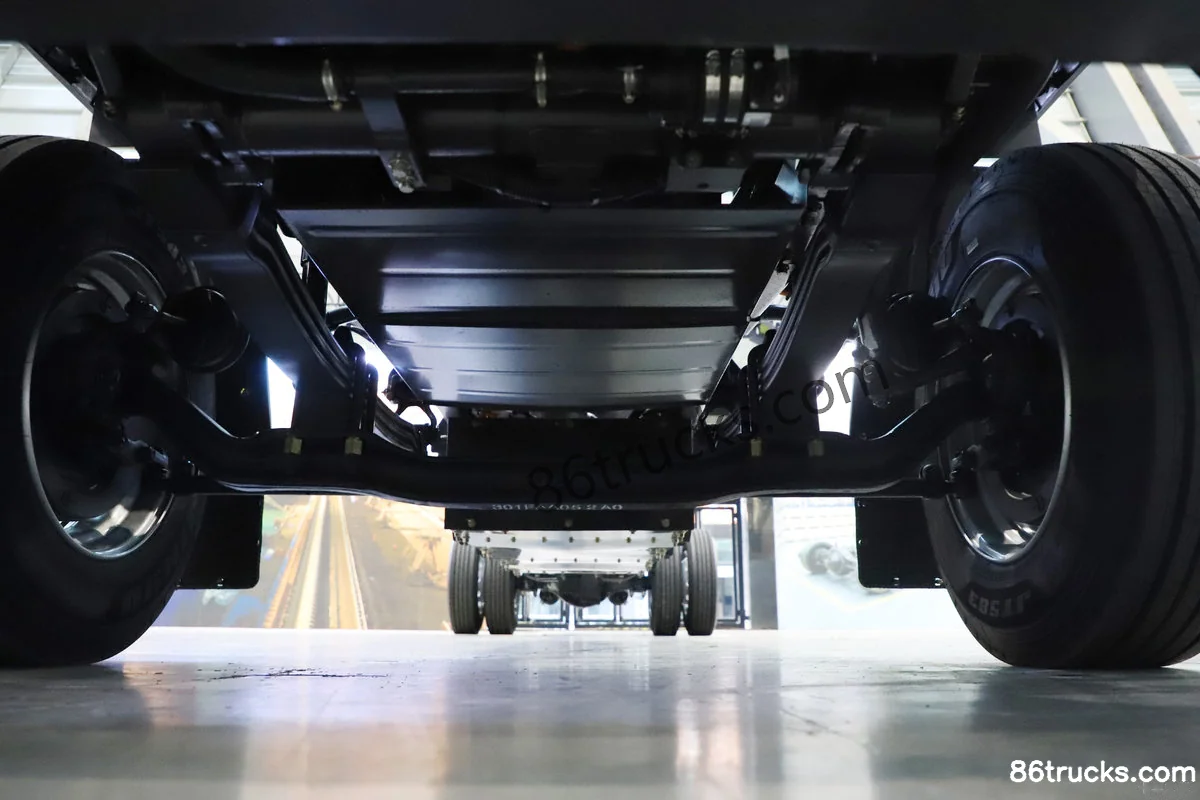

Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh Chassis (1) | 86Trucks Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh Chassis (2) | 86Trucks Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh?

Key specs of Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh suited for?

Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh differ from other variants in the same series?

Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh belongs to Dongfeng H5 Heavy Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng H5 4X2(6 wheels) Air Brake 9.8m Electric Box Cargo Truck Guoxuan 215.424kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
