Karry Jiangtun E5 Economy Version 2.5T 2-Seat 4.48m Pure Electric Panel Van 32kWh

Export reference
From $11,514
MSRP ¥8.29M CNY
Cargo box volume:: 5.3
Model code (announced):: SQR5030XXYBEVH77
Cab length:: 4.48m
GVWR:: 2.51ton
Max. speed:: 75km/h
Front/rear suspension:: 0.71/0.87m
CLTC range: 230km
Motor 1 Brand: Suzhou Inovance
Curb Weight: 1.38ton
Wheelbase: 2900mm

Overview

The Chery Commercial Vehicle Karry Jiangtun E5 Economy Version 2.5T 2-Seat 4.48m Pure Electric Panel Van 32kWh is a Electric Panel Van featuring 230km battery/range, Suzhou Inovance motor, 1t payload and 5.3 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR5030XXYBEVH77
Wheelbase: 2900mm
Cab length: 4.48m
Cab width: 1.76m
Cab height: 1.995m
CLTC range: 230km
Curb Weight: 1.38ton
Rated payload:
GVWR: 2.51ton
Max. speed: 75km/h
Front/rear suspension: 0.71/0.87m
Version: Economy Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Suzhou Inovance
Motor 1 Model: TZ180XS136
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
Peak power: 50kW
total peak torque: 160N·m
Battery/Charging
Battery Brand: CALB
Charging method: slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 32kWh
Body parameters
Cargo box volume: 5.3
Max body depth: 2.515
Max body width: 1.595
Cargo Box Height: 1.31
Chassis Specs

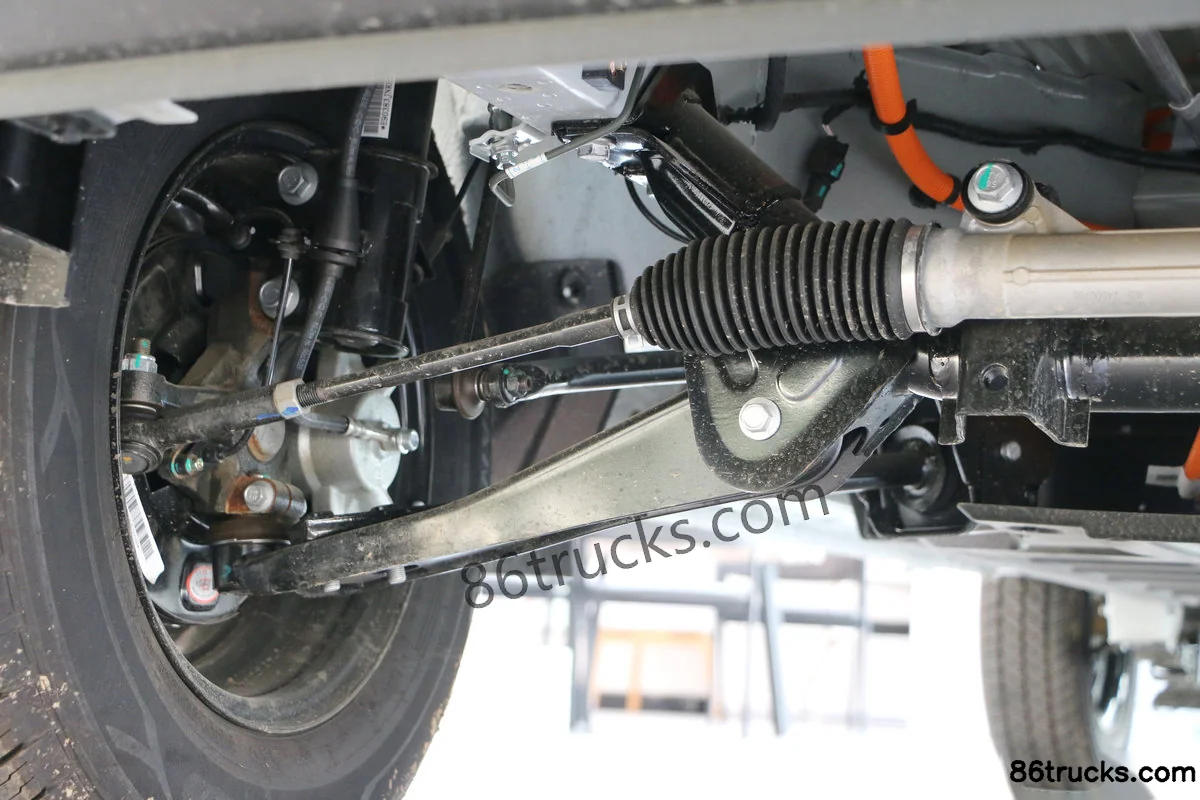

Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters

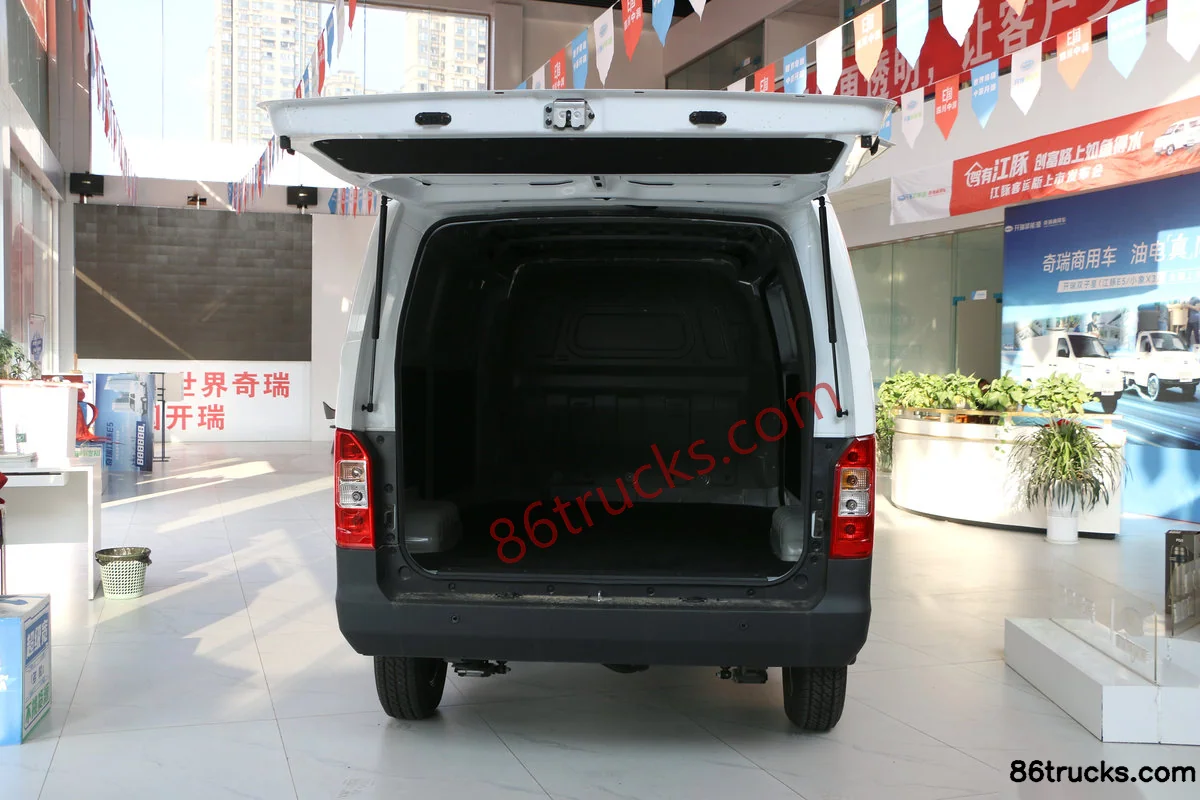

Tailgate type: top-hinged door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 185R14LT 8PR
Rear Wheel Specification: 185R14LT 8PR
Cab parameters
Seat rows:
Safety features
Remote key:
Control configuration
ABS:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:

Photos

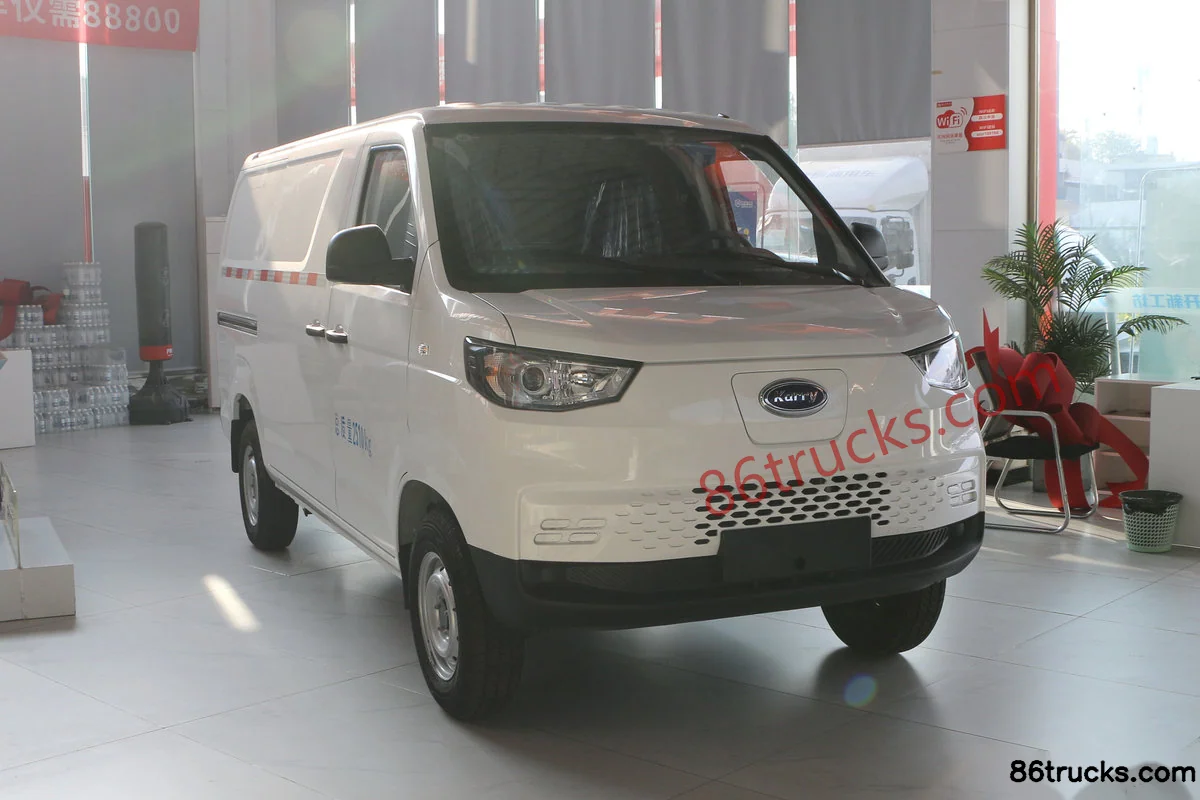

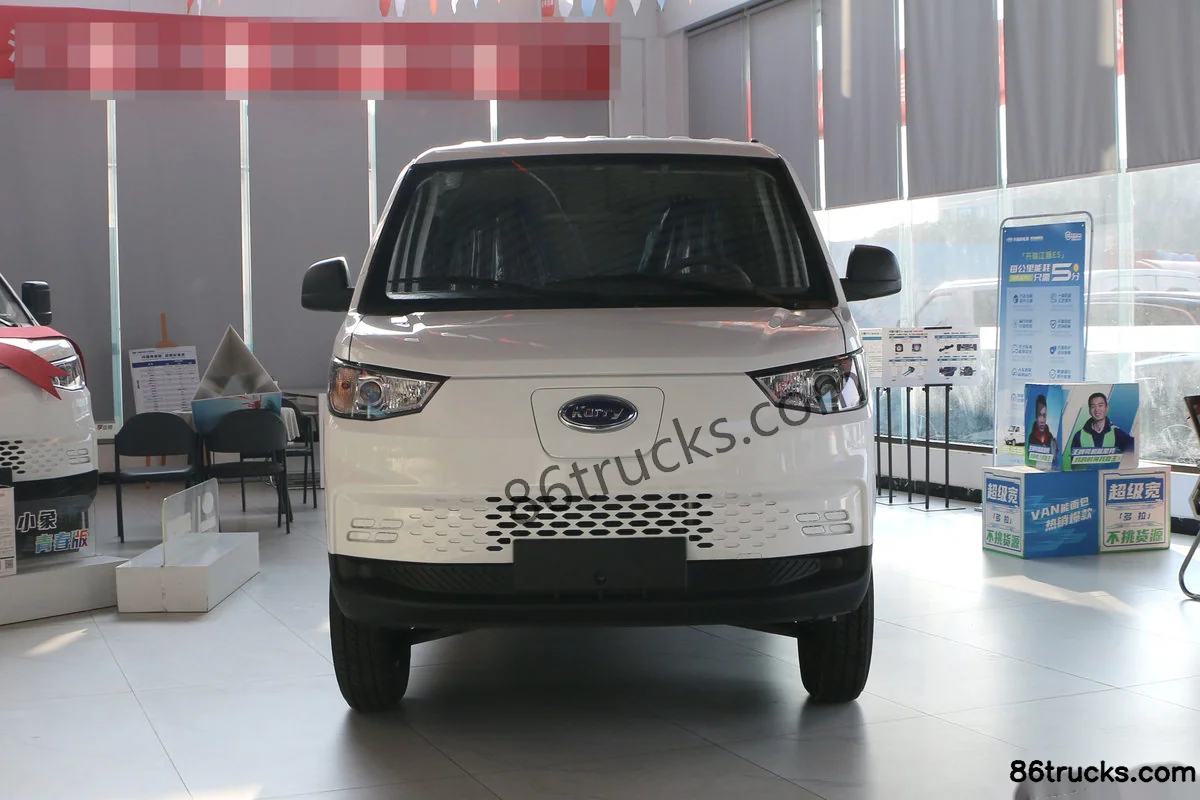

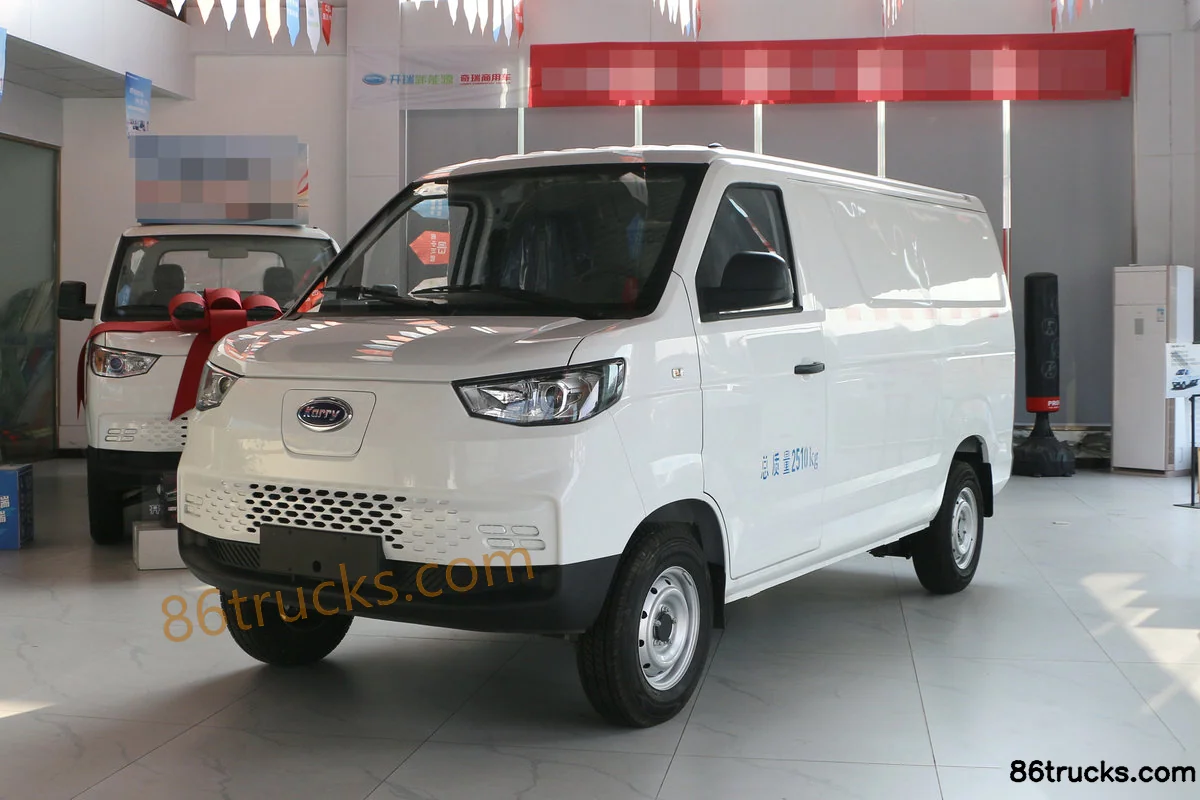

Exterior3

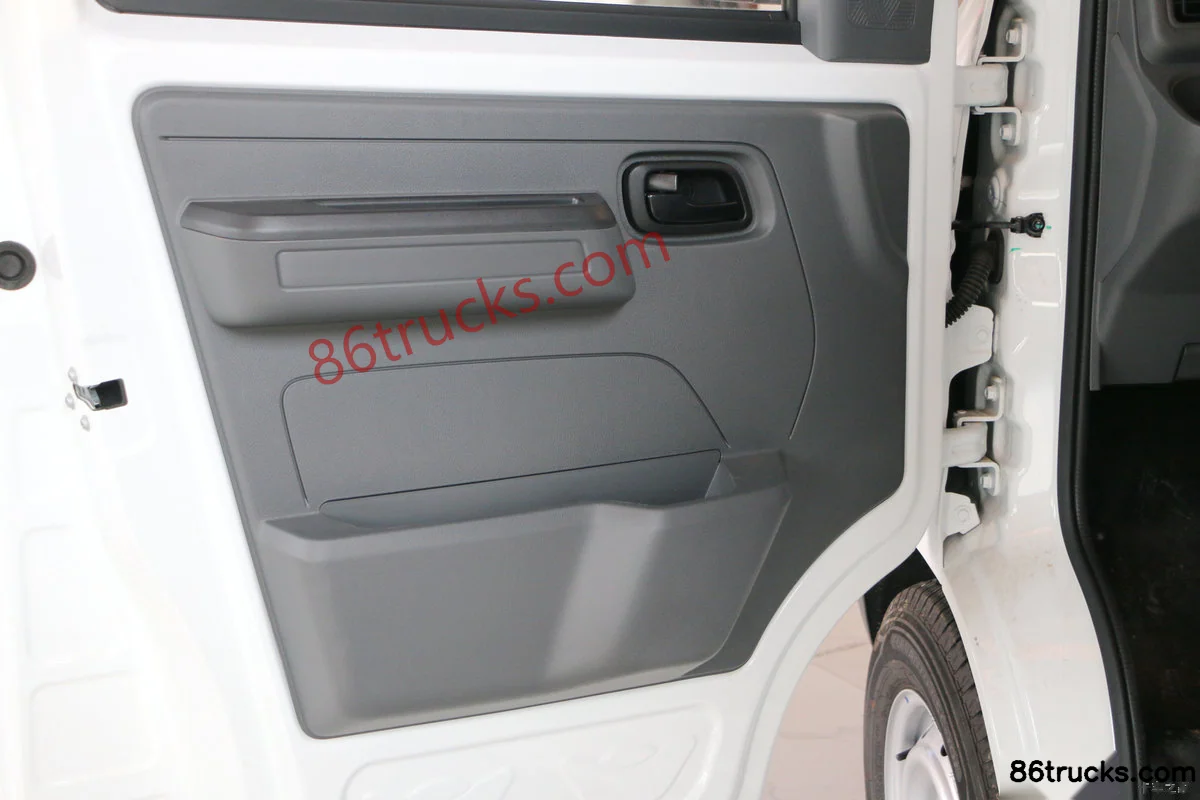

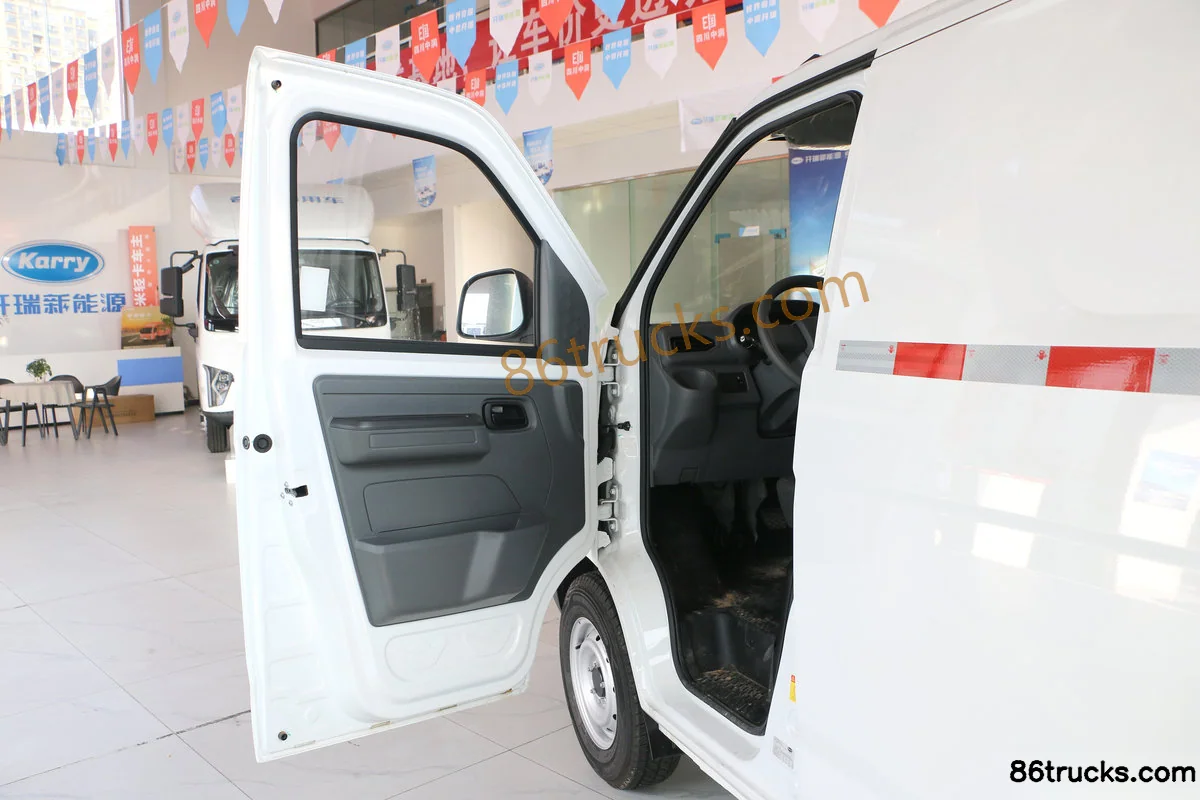

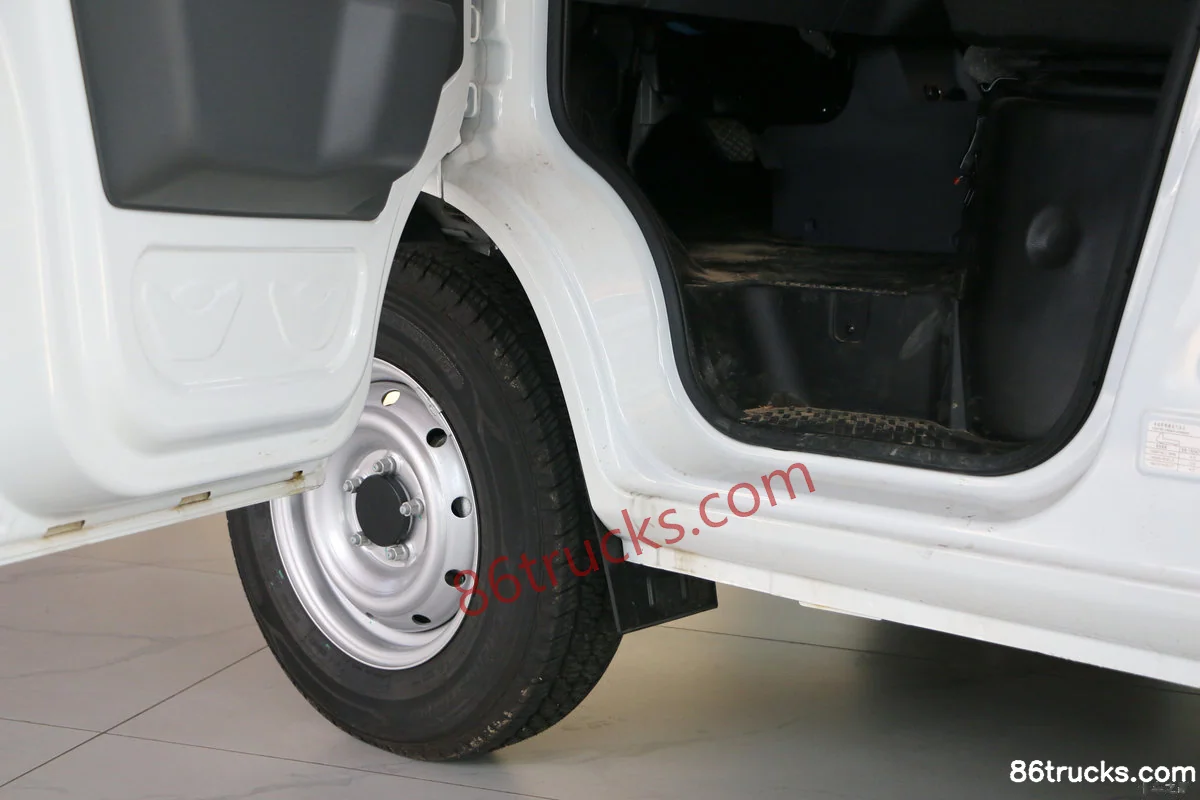

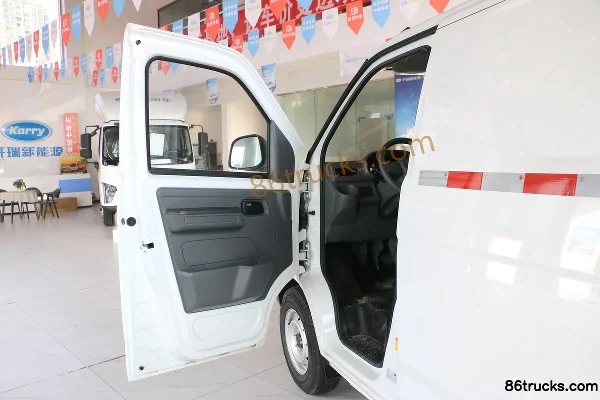

Cab3

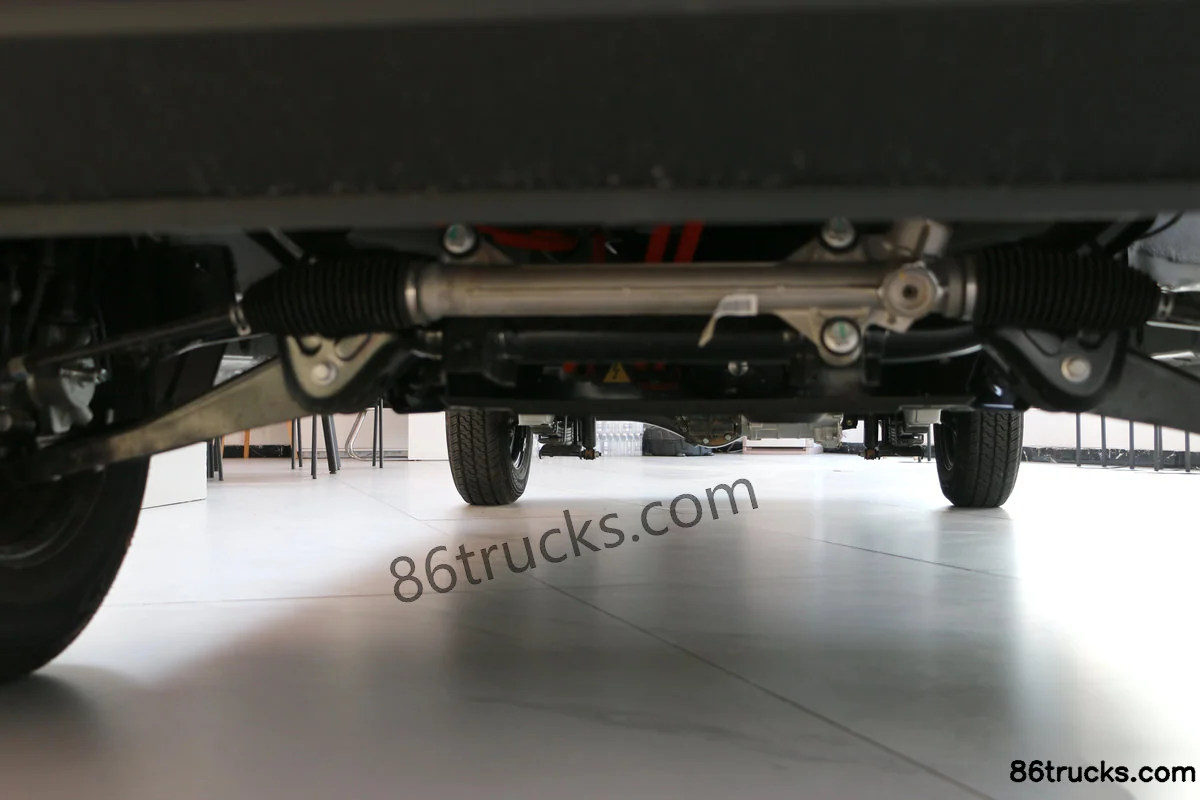

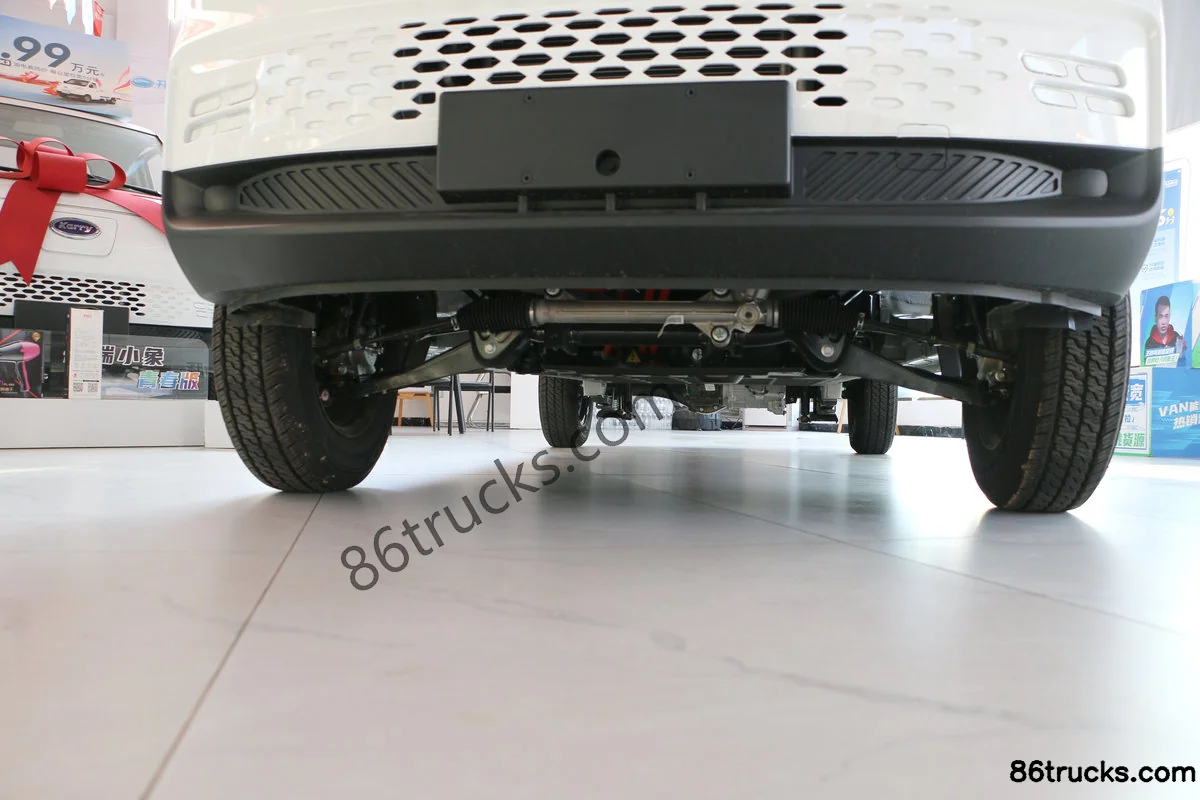

Chassis3

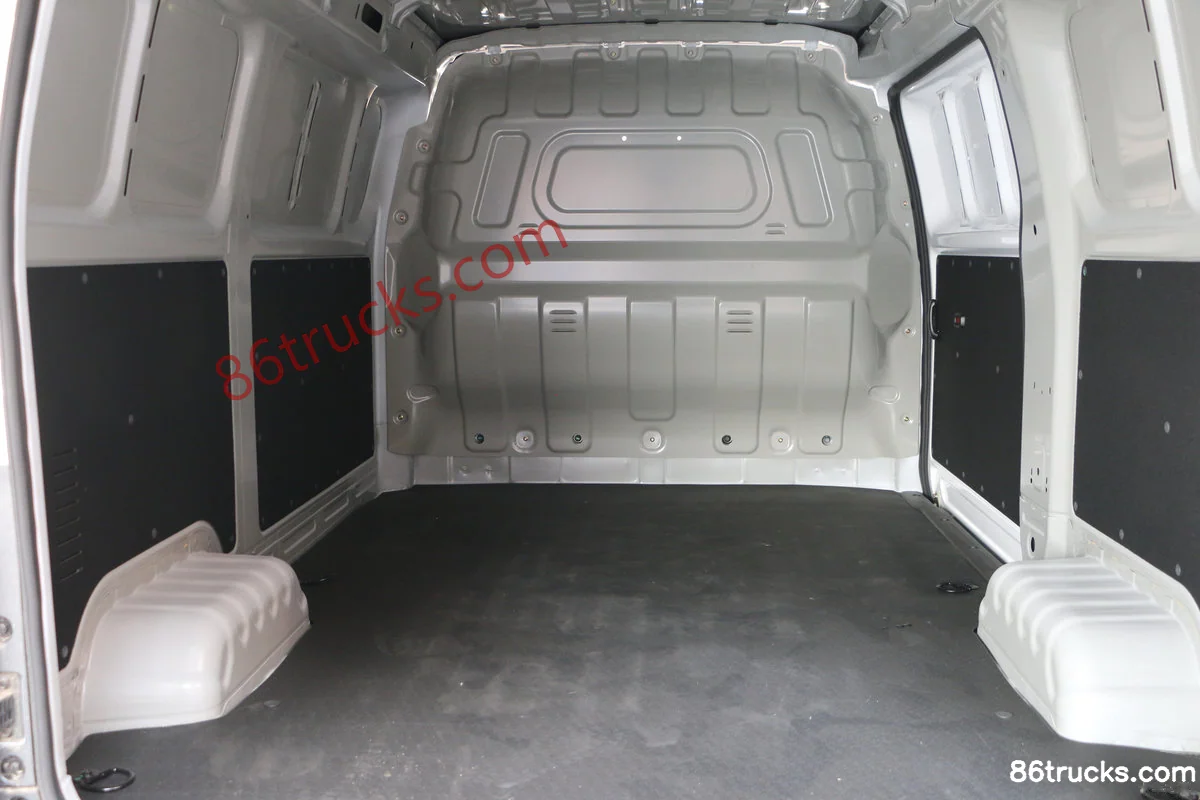

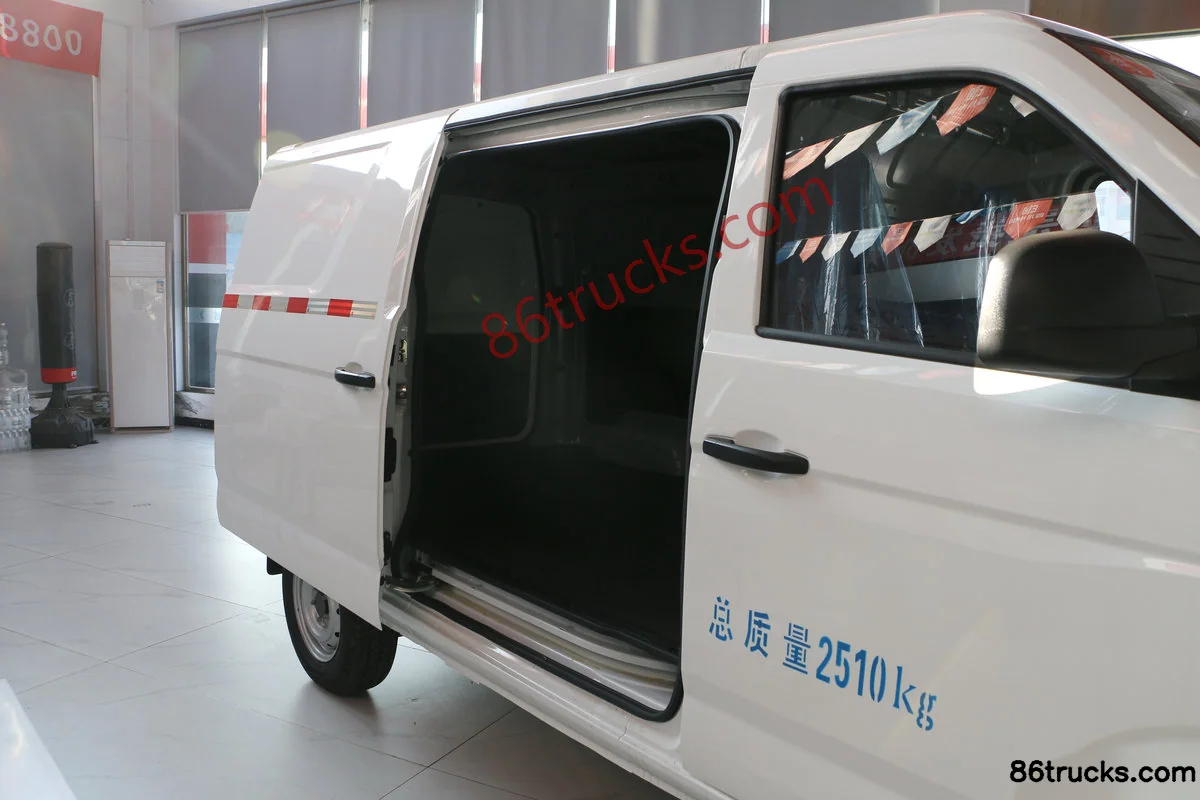

Body3

12 photos

FAQ

What is the export price of Karry Jiangtun E5 Economy Version 2.5T 2-Seat 4.48m Pure Electric Panel Van 32kWh, and what does it include?

Karry Jiangtun E5 Economy Version 2.5T 2-Seat 4.48m Pure Electric Panel Van 32kWh export reference is about From $11,514; MSRP is ¥8.29M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Karry Jiangtun E5 Economy Version 2.5T 2-Seat 4.48m Pure Electric Panel Van 32kWh suited for?

Karry Jiangtun E5 Economy Version 2.5T 2-Seat 4.48m Pure Electric Panel Van 32kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Karry Jiangtun E5 Economy Version 2.5T 2-Seat 4.48m Pure Electric Panel Van 32kWh differ from other variants in the same series?

Karry Jiangtun E5 Economy Version 2.5T 2-Seat 4.48m Pure Electric Panel Van 32kWh belongs to Karry Auto Jiangtun (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Jiangtun E5 Economy Version 2.5T 2-Seat 4.48m Pure Electric Panel Van 32kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Jiangtun E5 Economy Version 2.5T 2-Seat 4.48m Pure Electric Panel Van 32kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
