FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 37.505ton
Wheelbase:: 1900+2400mm
Tire Size:: 12R22.5
rear axle allowable load:: 11500kg
Displacement:: 8.57L
Drive 6X2 (8 wheels)
Horsepower 350
Emission China IV
Transmission FAW Jiefang

Overview

The FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck is a Heavy truck featuring 6X2 (8 wheels) drive, 350 hp, 25t GVW and China IV emissions. On the powertrain side, it comes with a XichaiCA6DL2-35E4 engine, FAW Jiefang transmission and Diesel fuel.

China IV 350 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4250P25K24T3E4
Drive type: 6X2
Wheelbase: 1900+2400mm
engine: XichaiCA6DL2-35E4
transmission: FAW JiefangCA12TAX160M
Rear Axle Ratio: 4.111
Cab length: 6.72m
Cab width: 2.495m
Cab height: 3.91m
Front track width: 2020/2020mm
Gross Trailer Weight: 37.505ton
rear track: 1830mm
Curb Weight: 8.3ton
GVWR: 25ton
Max. speed: 115km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL2-35E4
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.57L
Emission standard: China IV
Max output power: 261kW
Max hp: 350Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1500rpm
Rated speed: 2100rpm
Transmission Parameters
Transmission Model: FAW JiefangCA12TAX160M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 350L
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
upper bunk width: 720mm
Lower Bunk Width: 810mm
Chassis Specs
Suspension type: Leaf spring
Frame Dimensions: 300x80x8mm
rear axle description: 498 stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/3/4+3
Tire
Tire Size: 12R22.5
Number of tires: 10pcs

Photos

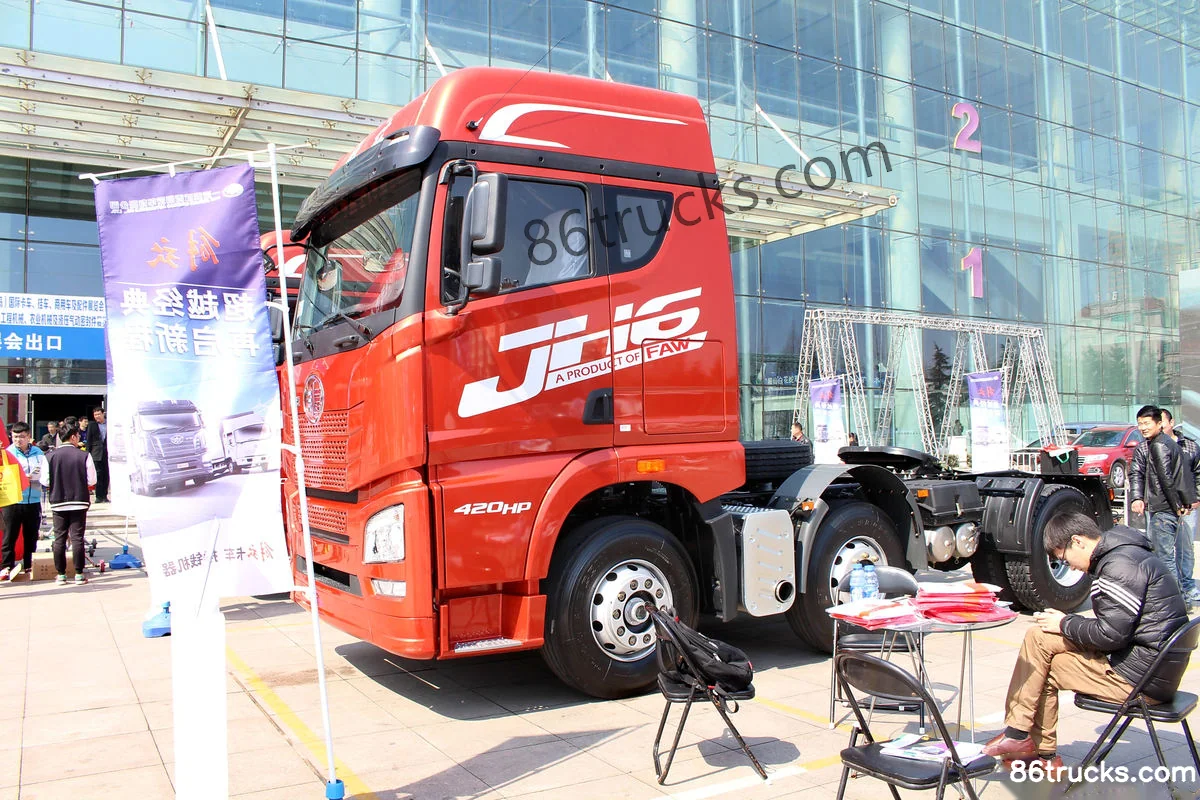

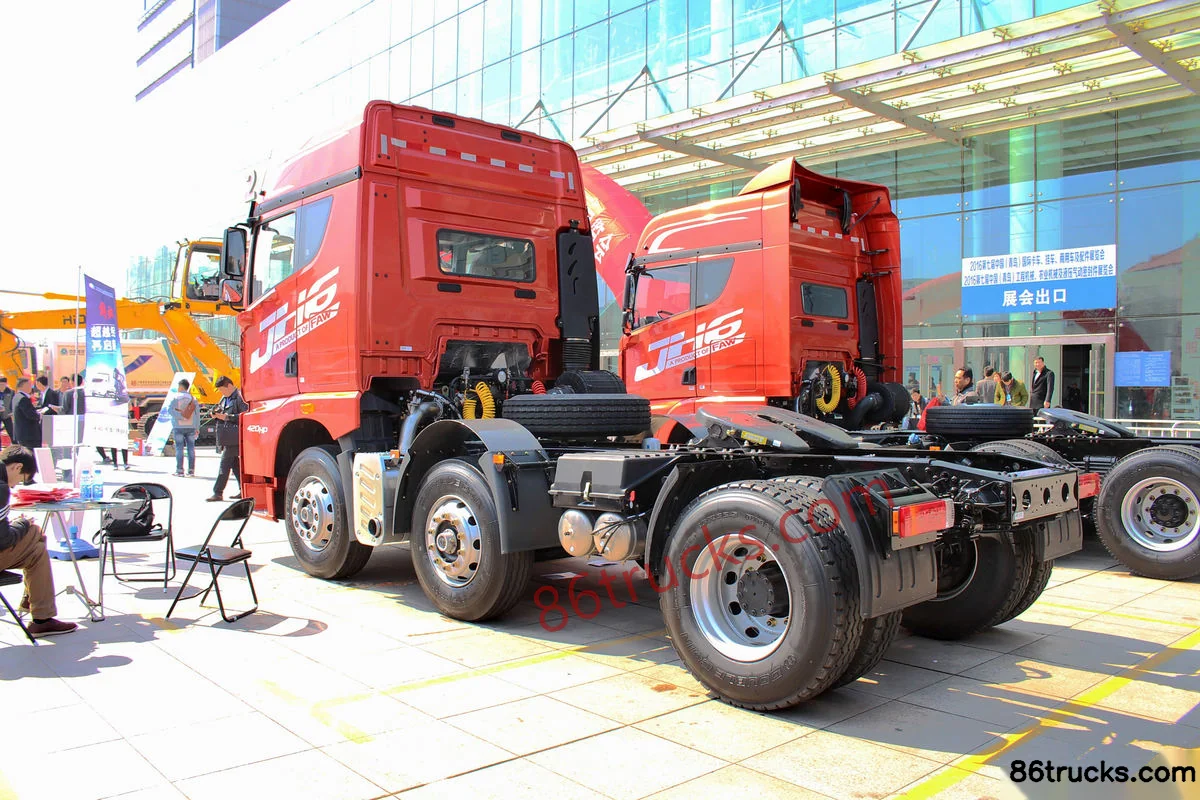

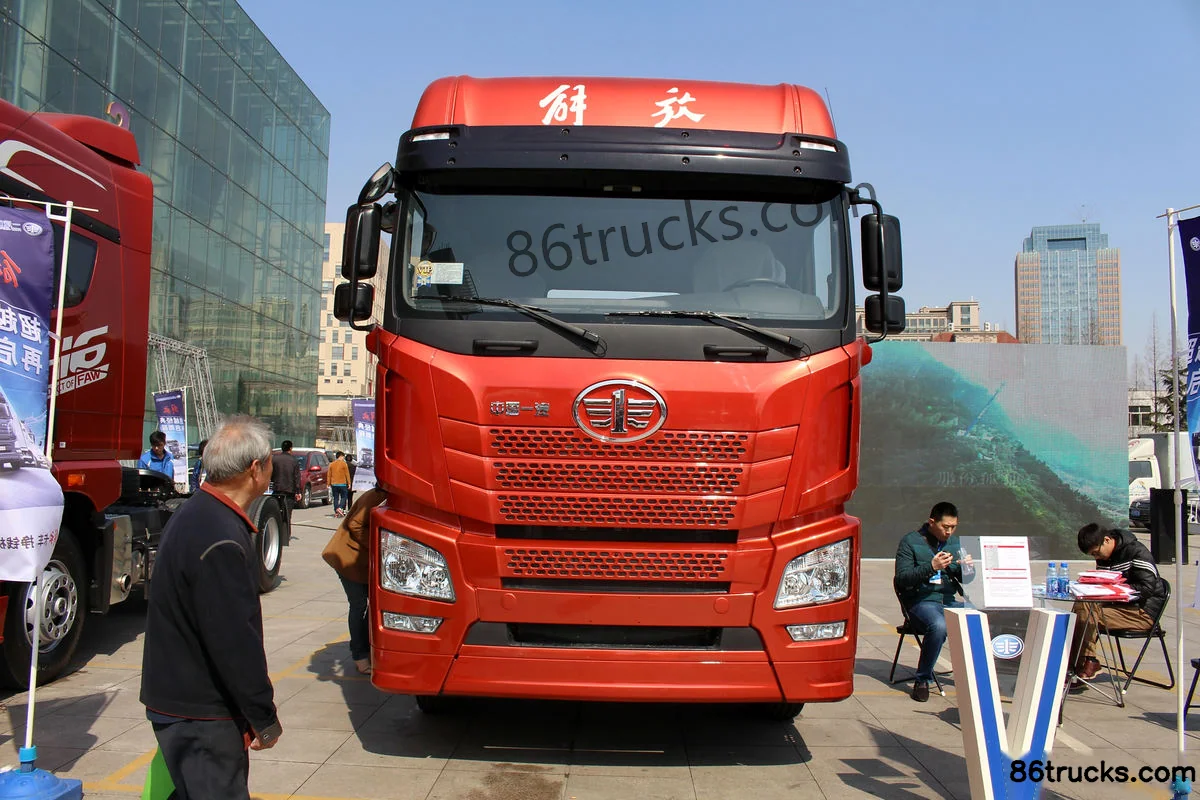

Exterior3

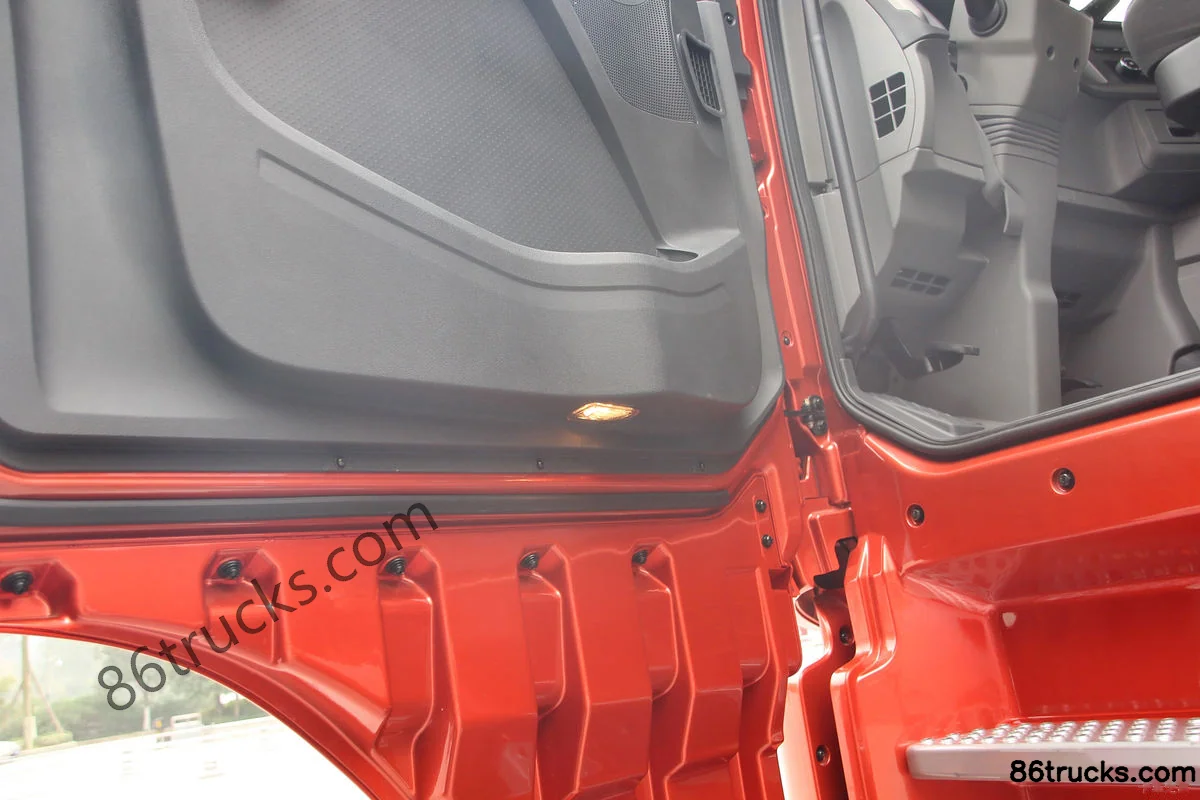

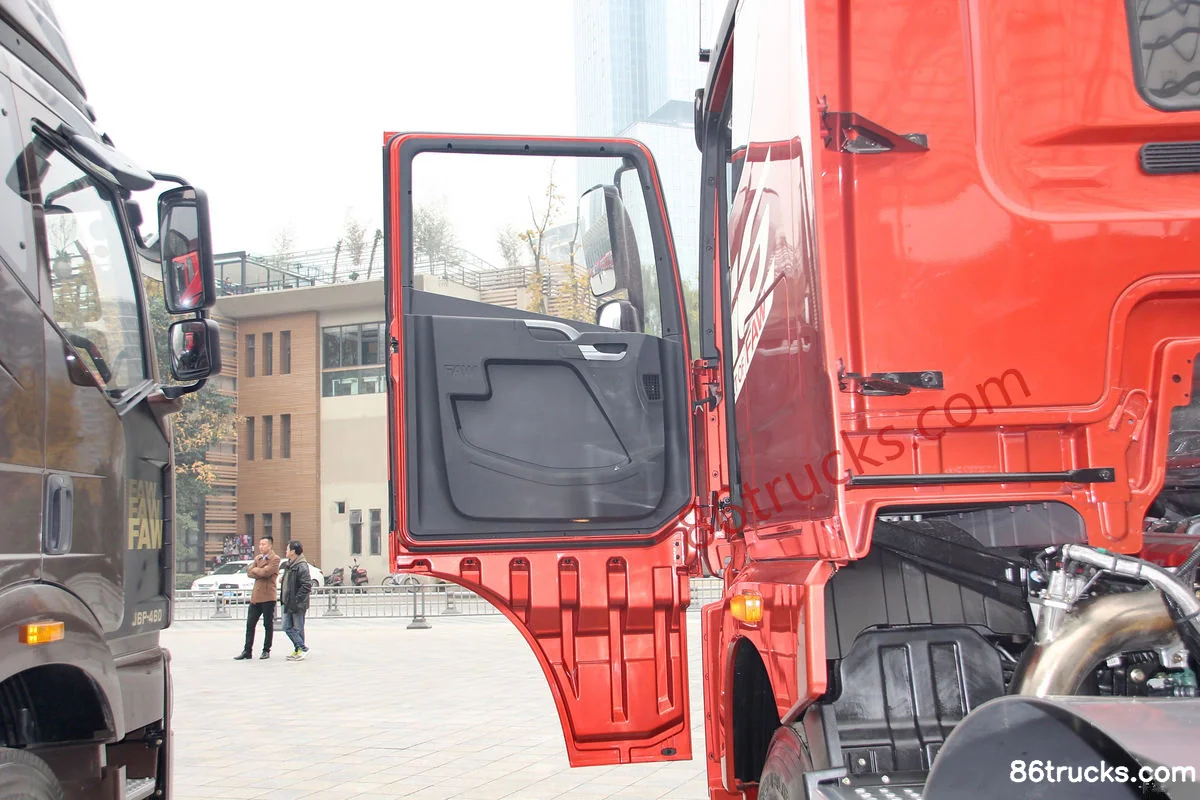

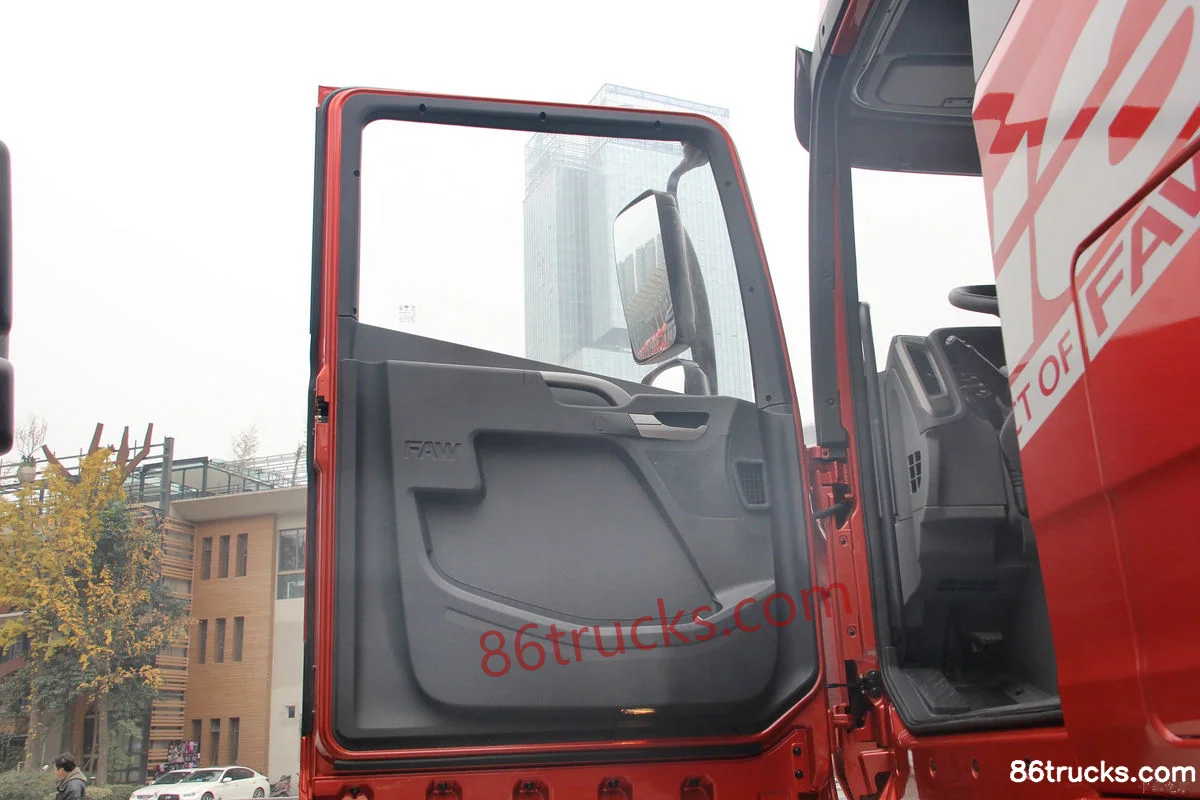

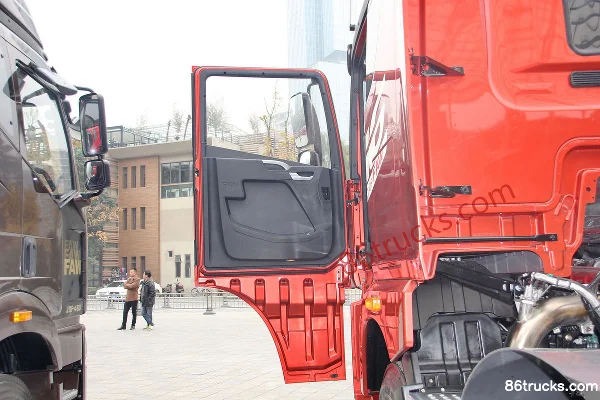

Cab3

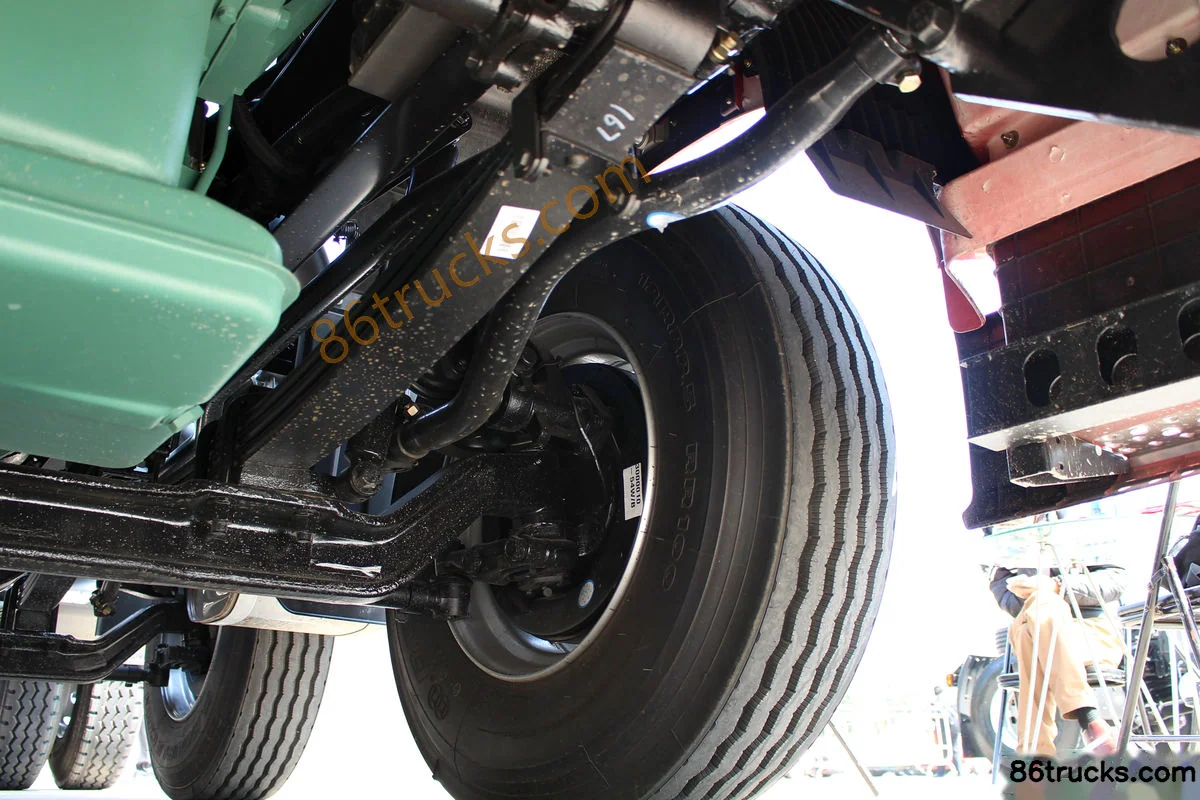

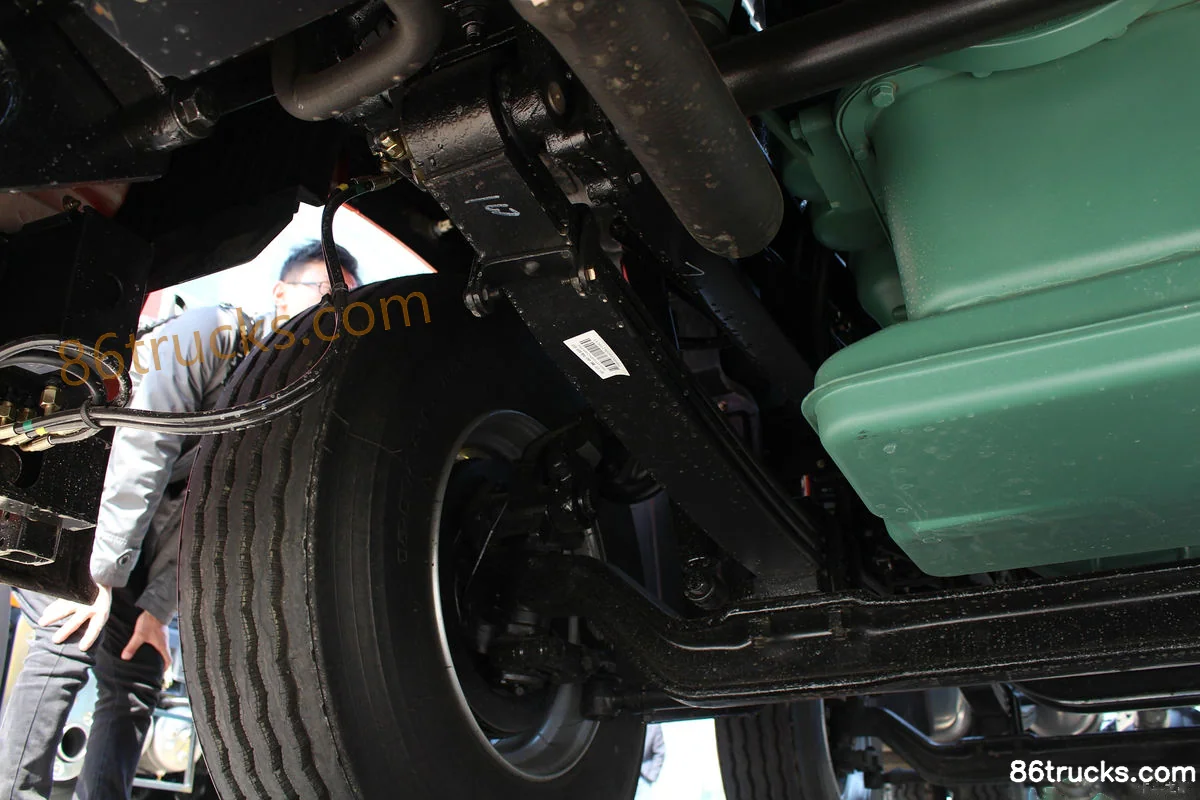

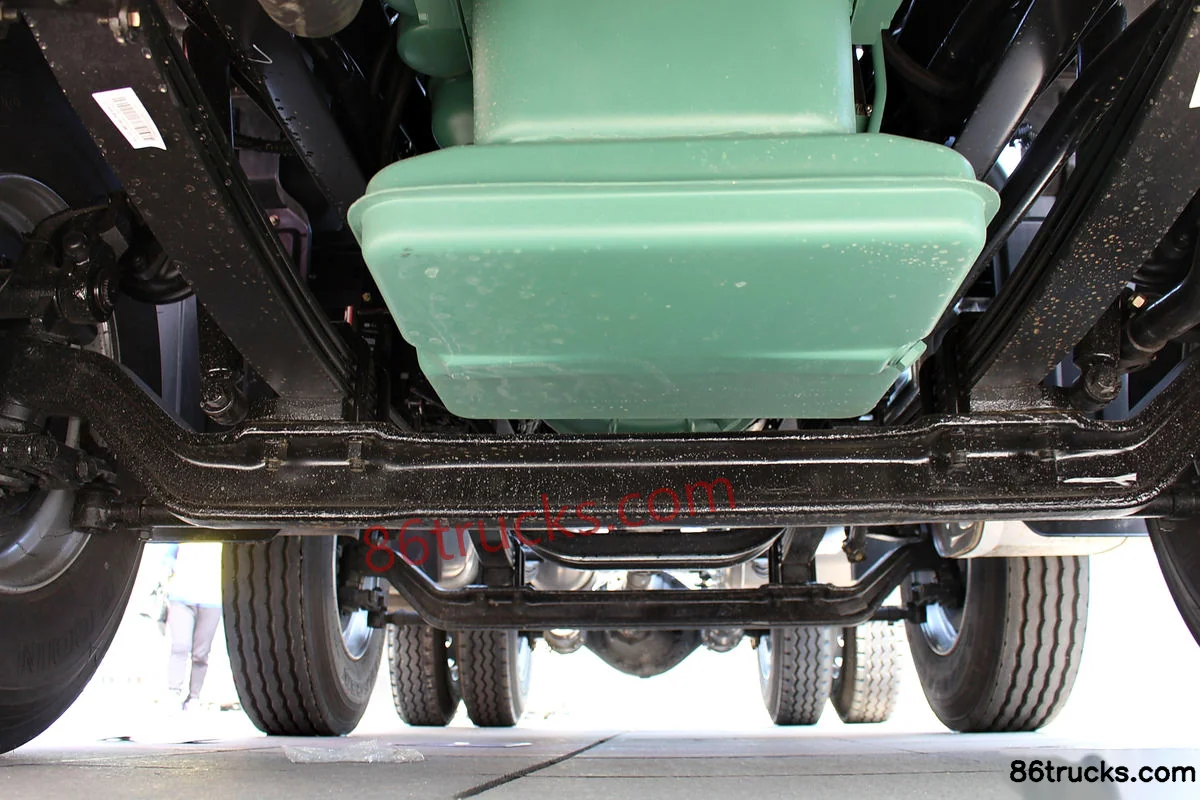

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck?

Key specs of FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck: Drive: 6x2; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck suited for?

FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck differ from other variants in the same series?

FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck belongs to FAW Jiefang Qingdao JH6 heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
