Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels)

Export reference
From $17,611
MSRP ¥12.68M CNY
Rated payload:: 1.045ton
Wheelbase:: 3050mm
Cargo box type:: stake body
Model code (announced):: GXA1039BEV
Type:: Cargo Trucks
Box length class:: 3m
Drive 4X2 (6 wheels)
CLTC range: 282km
Motor 1 Brand: Wuling
Curb Weight: 1.335ton

Overview

The Wuling New Energy Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels) is a mini truck featuring 282km battery/range, Wuling motor, 4X2 (6 wheels) drive and 1.045t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): GXA1039BEV
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3050mm
Box length class: 3m
Cab length: 4.845m
Cab width: 1.61m
Cab height: 1.92m
CLTC range: 282km
Curb Weight: 1.335ton
Rated payload: 1.045ton
GVWR: 2.51ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: mini truck
Remarks: Standard energy recovery.
Energy Type: Electric
electric motor
Motor 1 Brand: Wuling
Motor 1 Model: TZ180XSC080
Motor Type: Permanent magnet synchronous motor
total rated power: 35kW
Peak power: 80kW
total peak torque: 180N·m
Battery/Charging
Battery Brand: Zhongqi New Energy
Charging method: DC fast charge / slow charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 1.5h
Battery capacity: 38.4kWh
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.015m
Cargo box width: 1.53m
Cargo box height: 0.37m
Cab parameters
Cab width: 1680mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 965kg
rear axle allowable load: 1545kg
Tire
Tire Size: 175/75R14C
Number of tires: 4pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

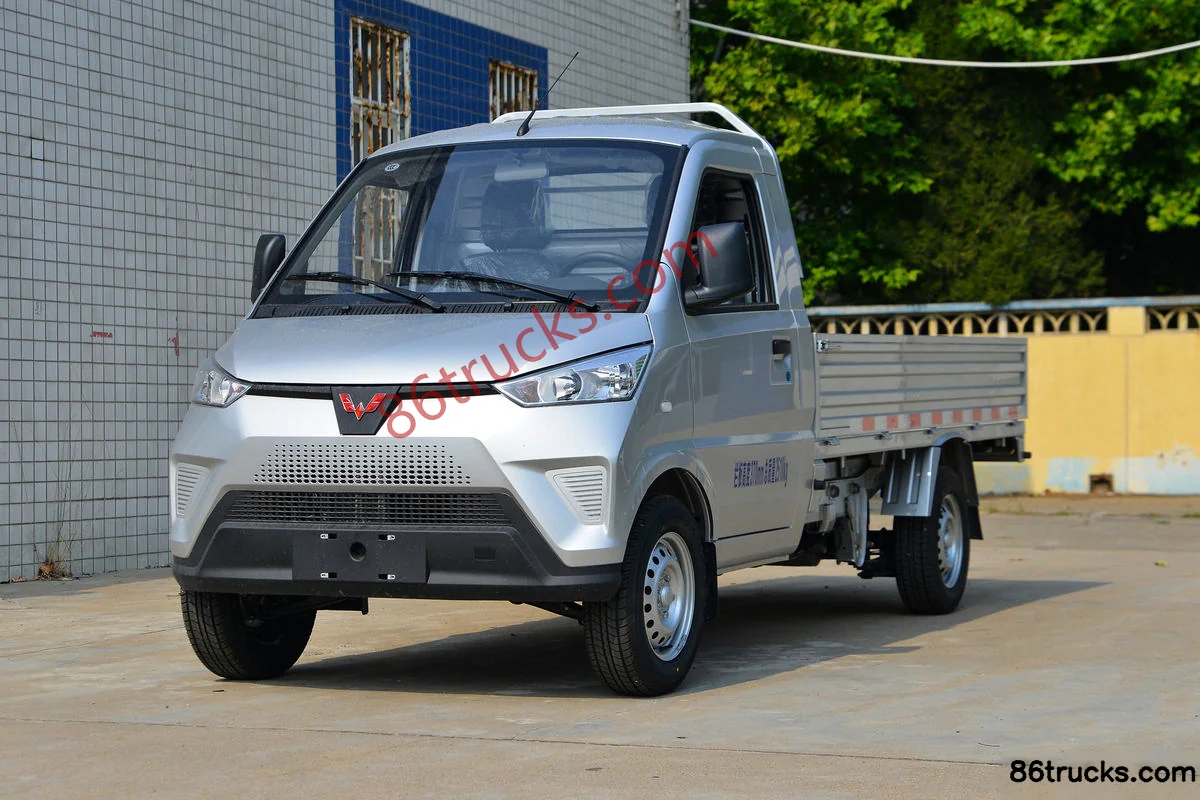

Exterior1

1 photos

FAQ

What is the export price of Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels), and what does it include?

Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels) export reference is about From $17,611; MSRP is ¥12.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels)?

Key specs of Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels) suited for?

Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels) differ from other variants in the same series?

Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels) belongs to Wuling Auto Wuling Electric Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Wuling Electric Truck Hydraulic Brake 3.015m Single Row Pure Electric Flatbed Mini Truck CRRC New Energy 38.4kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
