JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis)

Export reference
From $21,764
MSRP ¥15.67M CNY
Horsepower: 160
Emission: China IV
Fuel: Diesel
Engine: Dongkang 6-cyl
Transmission: WLY
Curb Weight:: 5.6ton
seating capacity: 3Personnel
Rated payload: 9.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis) is a Medium-duty truck featuring 6.75m cargo length, stake body cargo body, 3Personnel volume and 9.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dongkang 6-cyl engine, 160 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1162P70K1E1
Type: Chassis
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 6.8m
engine: DongfengISDe160 40
transmission: WLYWLY6G70
Cab length: 8.995m
Cab width: 2.475m
Cab height: 2.72m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 5.6ton
Rated payload: 9.8ton
GVWR: 15.595ton
Max. speed: 115km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 21.4°
departure angle: 13.8°
market segment: Building materials, agricultural products
Remarks: Standard: power steering, A/C, clutch booster, exhaust brake, spring brake, air dryer, tachograph, air-suspension seat, MP3, multifunction steering wheel, power windows, central door lock, ABS
Front/rear suspension: 1.29/2.405m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISDe160 40
Engine info: Dongkang 6-cyl
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1400rpm
Rated speed: 2500rpm
Engine Type: Electronically controlled
Transmission Parameters
Transmission Model: WLYWLY6G70
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.75m
Cargo box width: 2.3m
Cargo box height: 0.6m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 210L
Chassis Specs
Front axle description: 3.5T
Front axle allowable load: 5600kg
rear axle description: 9T Cast Axle
rear axle allowable load: 9995kg
Leaf spring count: 10/9+7
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

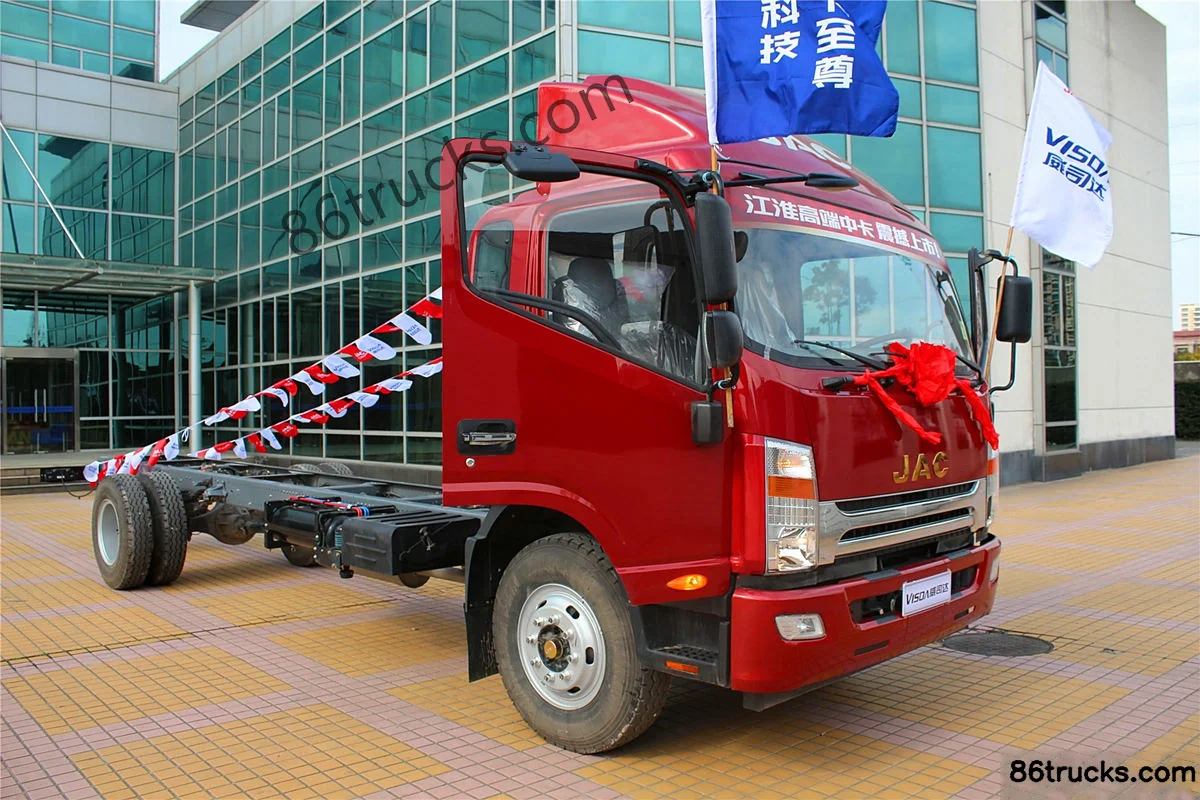

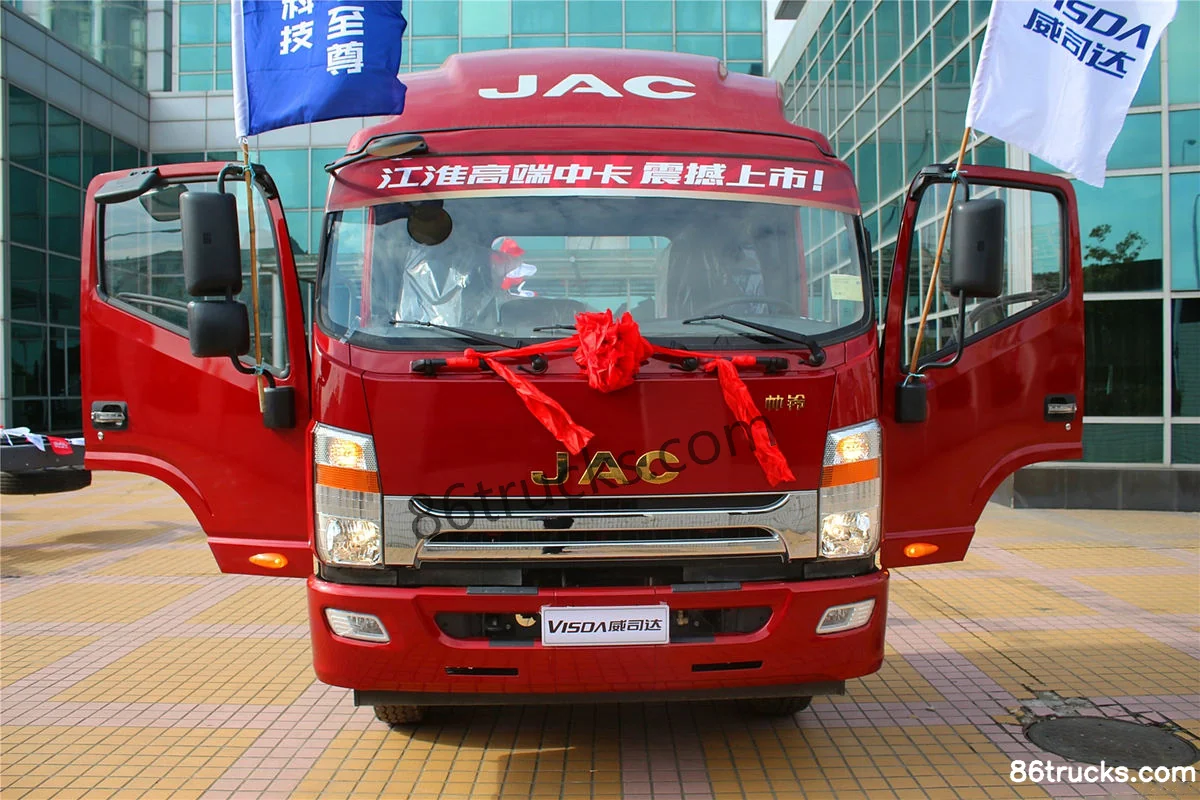

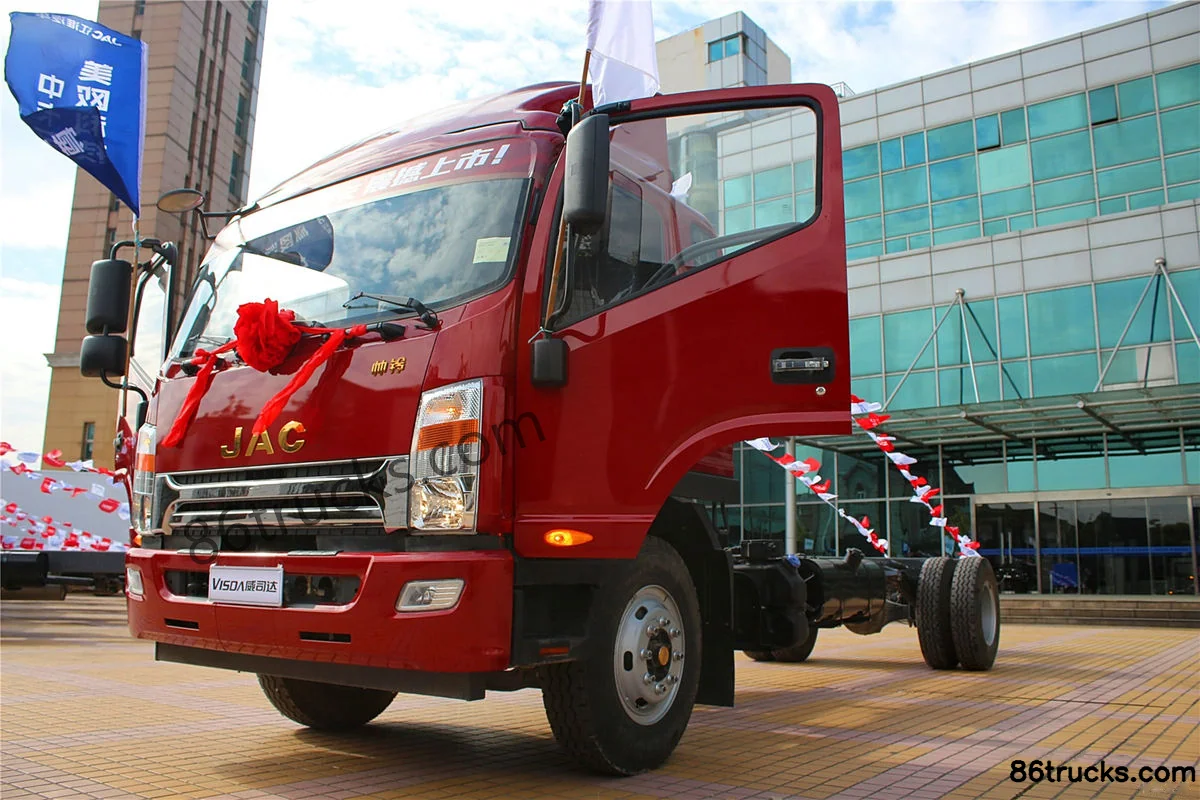

Exterior3

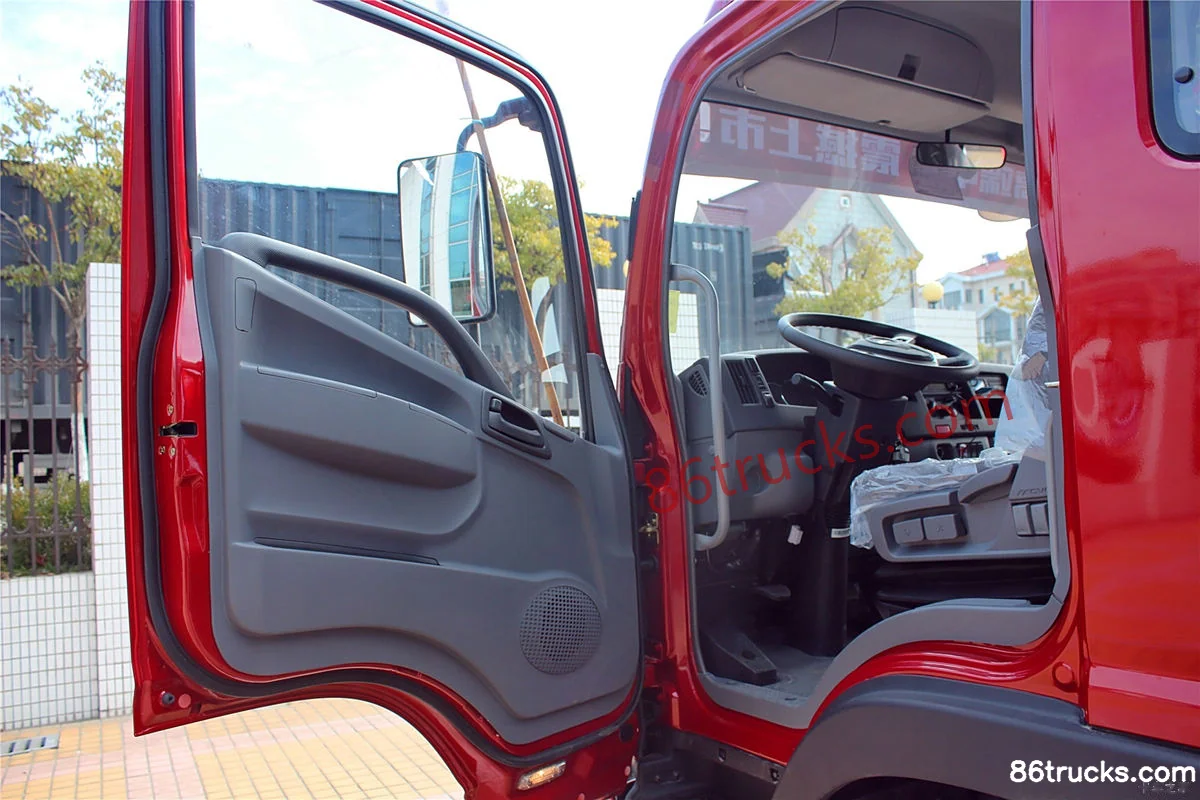

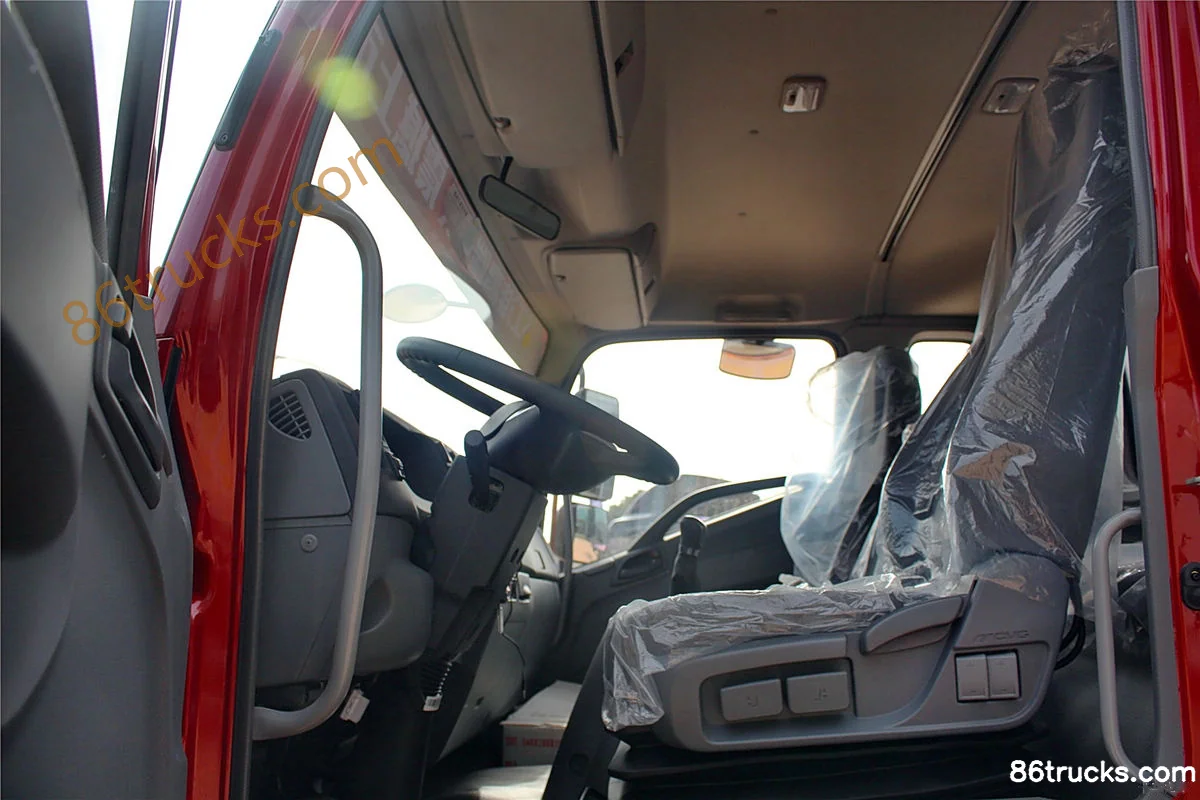

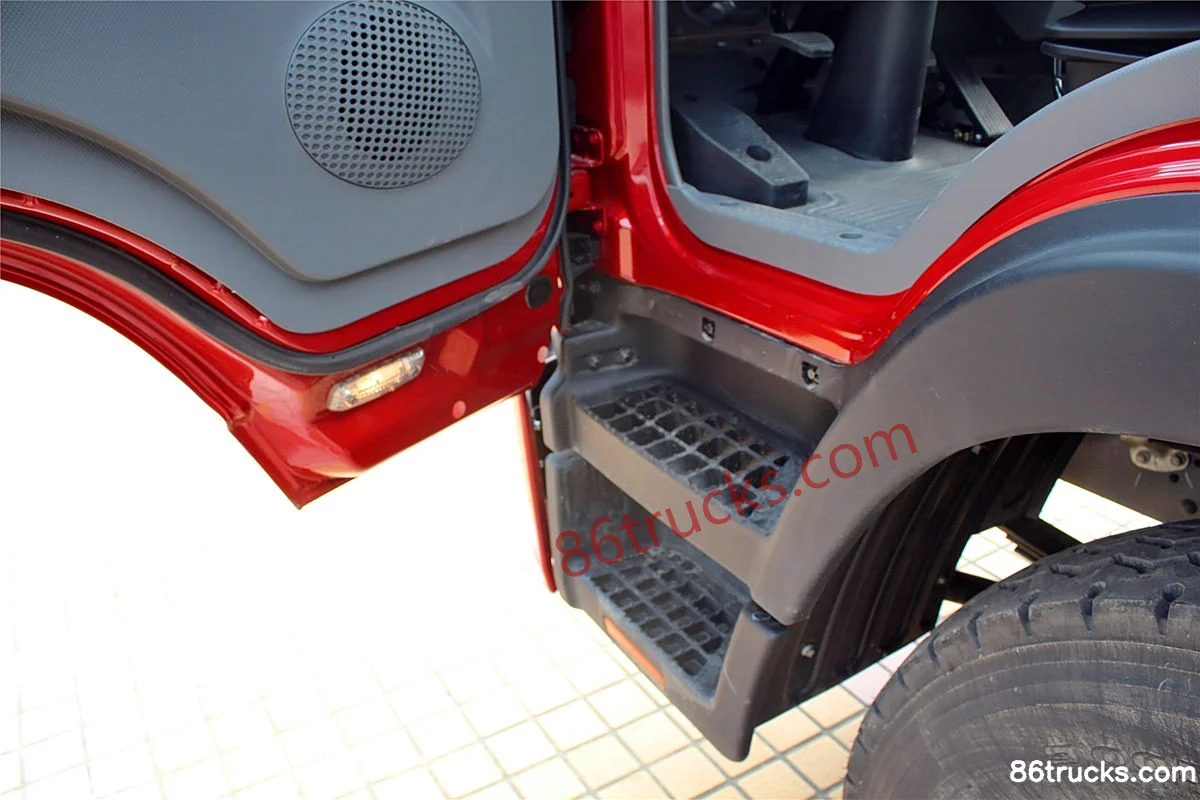

Cab3

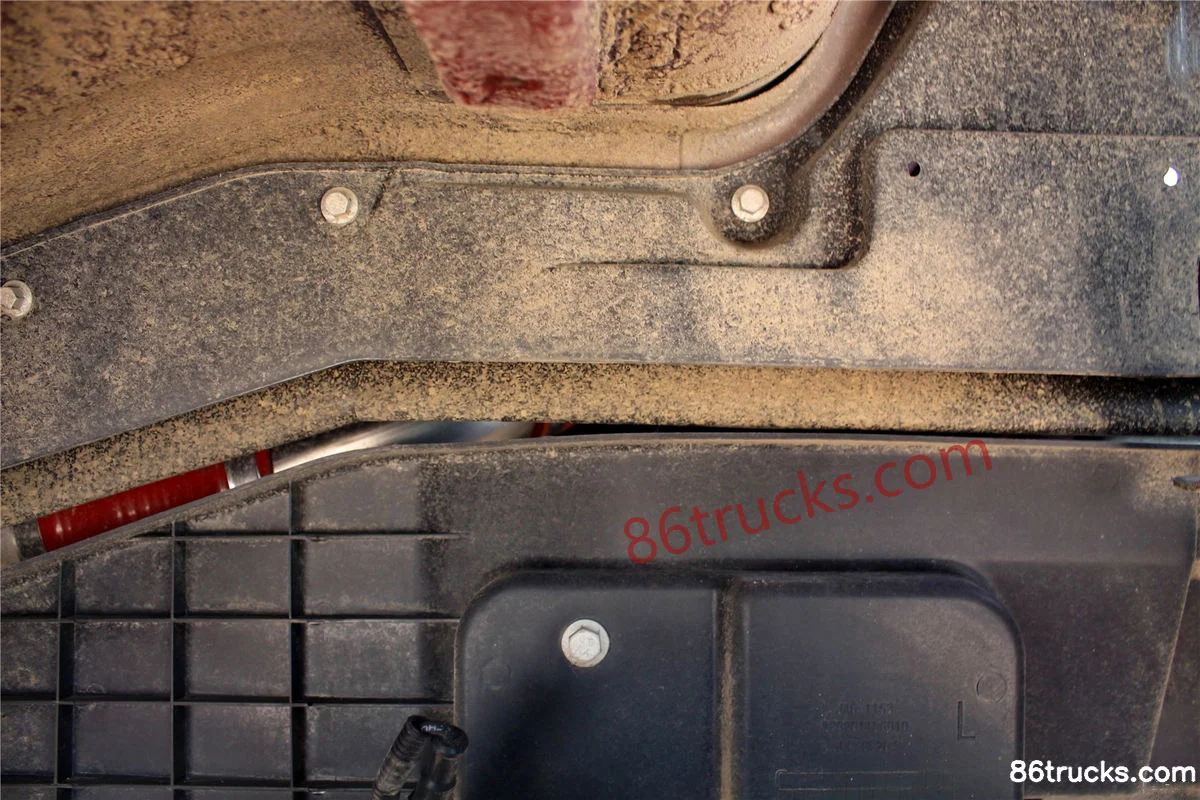

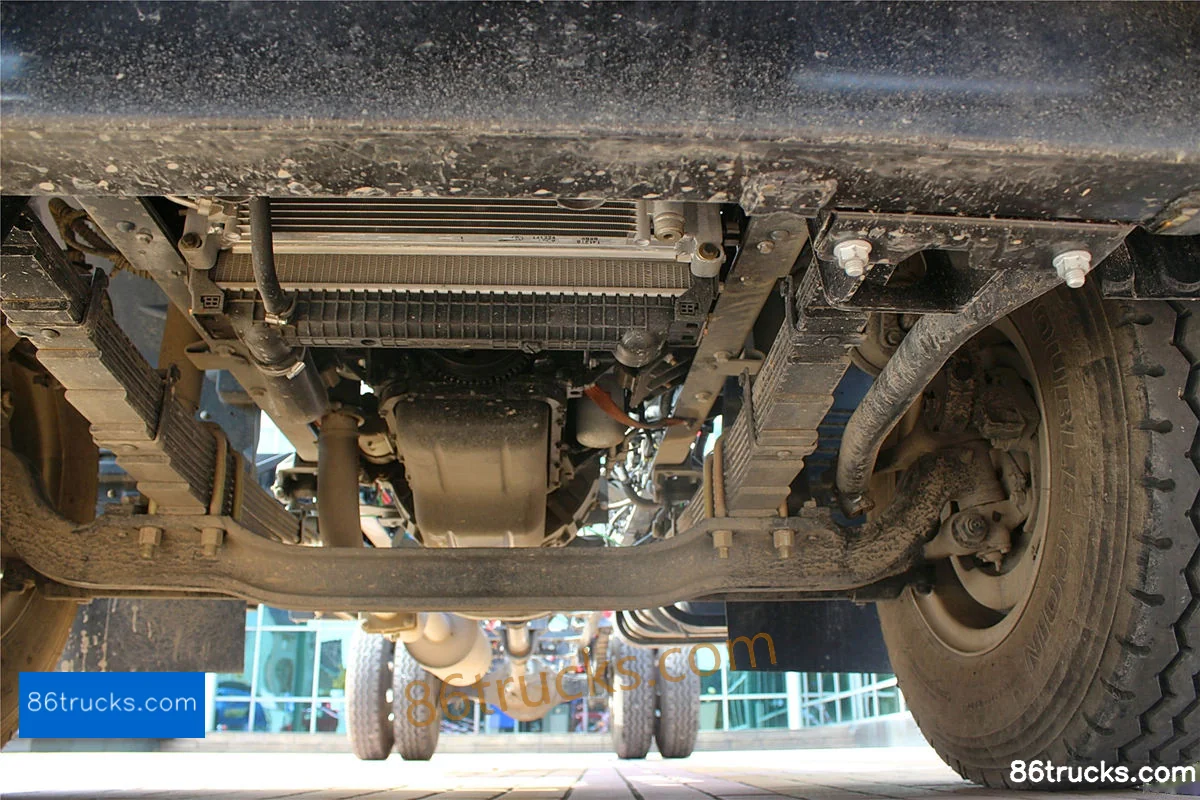

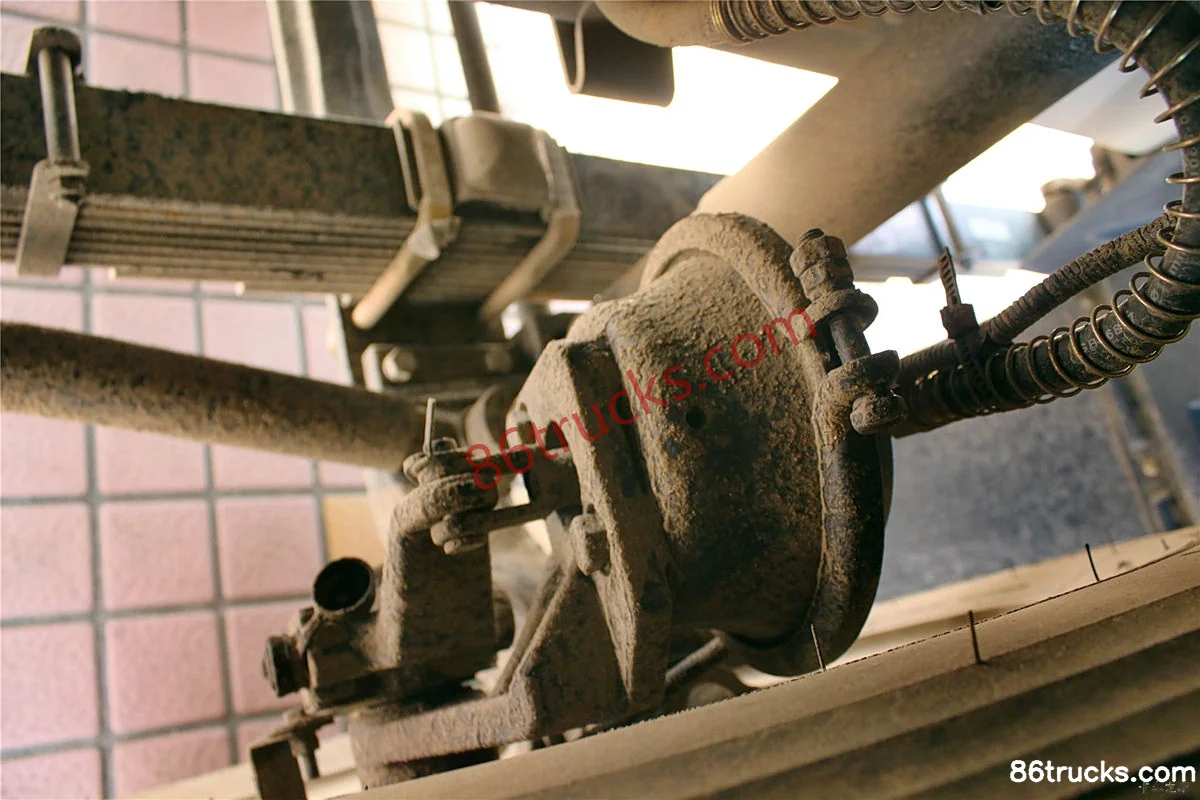

Chassis3

9 photos

FAQ

What is the export price of JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis), and what does it include?

JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis) export reference is about From $21,764; MSRP is ¥15.67M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis)?

Key specs of JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis): Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Engine: Dongkang 6-cyl; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis) suited for?

JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis) differ from other variants in the same series?

JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis) belongs to JAC Q9 medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Weisida W530 Medium Truck 160 hp 4X2(6 wheels) 6.75m Flatbed Cargo Truck (Chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
