JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3800+1350mm
Tire Size:: 12R22.5 18PR,
Front axle allowable load:: 7000kg
Displacement:: 12.939L
JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck exterior
View more photos (9)
Drive 6X4 (10 wheels)
Horsepower 460
Emission China VI
Transmission Fast Gear

Overview

The JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 460 hp, 25t GVW and China VI emissions. Its segment focus covers Coal transport, matching those duty cycles. On the powertrain side, it comes with Fast Gear transmission and LNG (liquefied natural gas) fuel.

China VI 460 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC4251P1N7E33YS
Drive type: 6X4
Min. turning diameter: 18.5m
Wheelbase: 3800+1350mm
engine: United Power6K1346N-60
transmission: Fast Gear12JSDX220TA-B
Rear Axle Ratio: 3.7
Cab length: 7.695m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2030mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
market segment: Coal transport
Remarks: Ventilated & heated seats, lane departure warning system, driver fatigue warning system, one-key start, telematics, MP5.
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: United Power
Engine Model: United Power6K1346N-60
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 12.939L
Emission standard: China VI
Max output power: 339kW
Max hp: 460Horsepower
Max torque: 2100N·m
Max torque speed: 1050-1500rpm
Rated speed: 1700rpm
Transmission Parameters
Transmission Model: Fast Gear12JSDX220TA-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1000L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: I-beam section
Front axle allowable load: 7000kg
rear axle description: Single-stage reduction
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 2/3
Tire
Tire Size: 12R22.5 18PR,
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
Traction Control (ASR/TCS/TRC etc.):
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
lighting configuration
LED headlight:
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
Service features
subsidy available: Yes
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:
maintenance service
24-hour service hotline:
Rescue service:

Photos

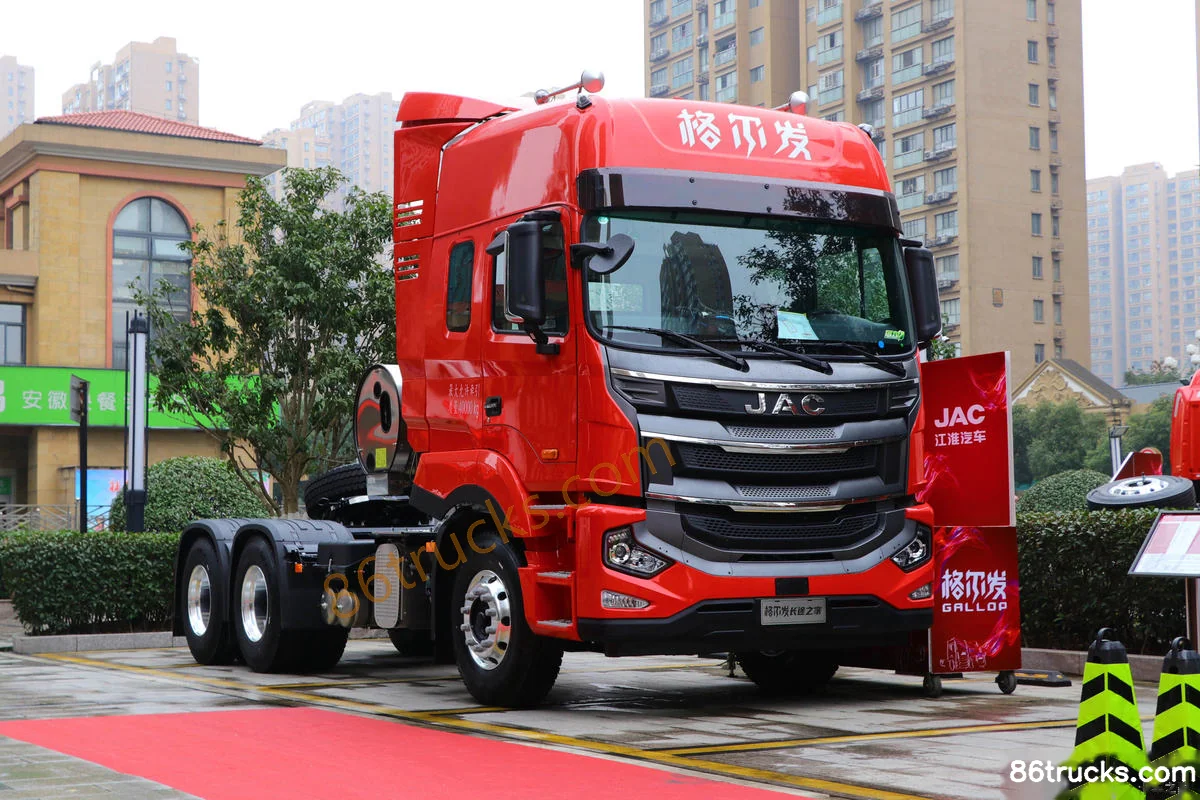

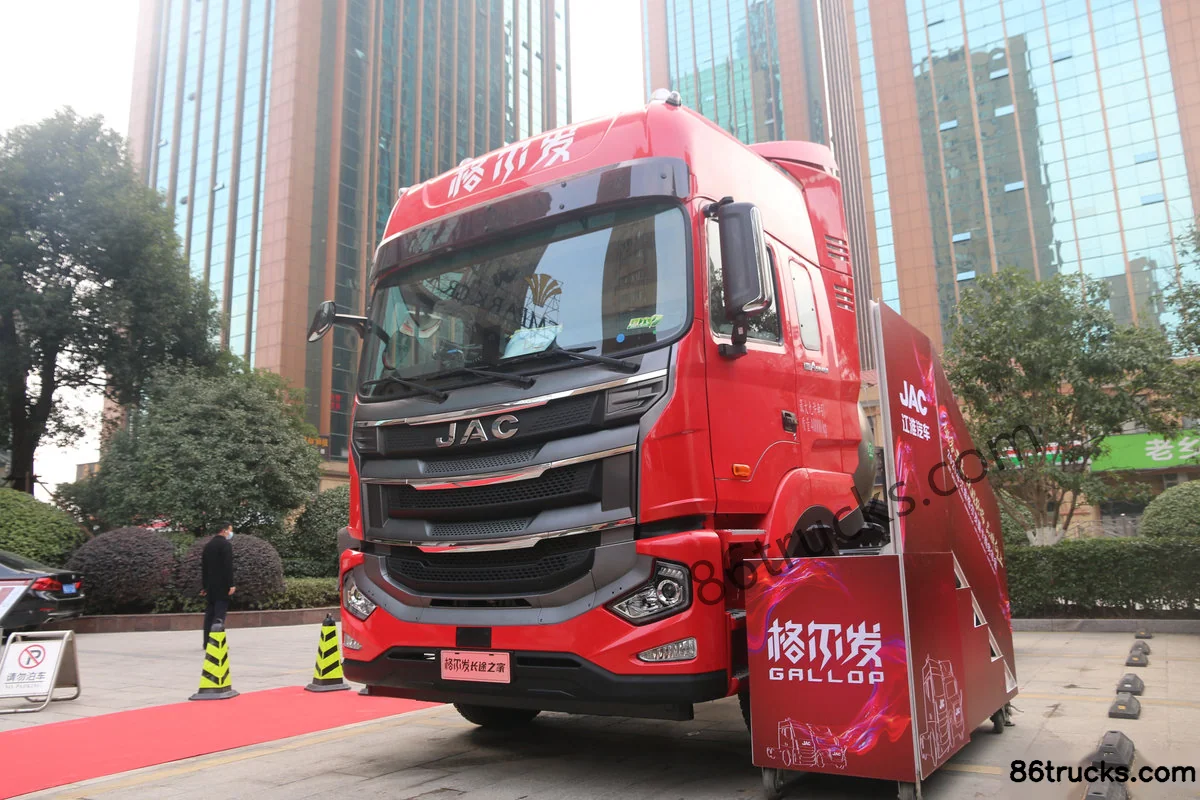

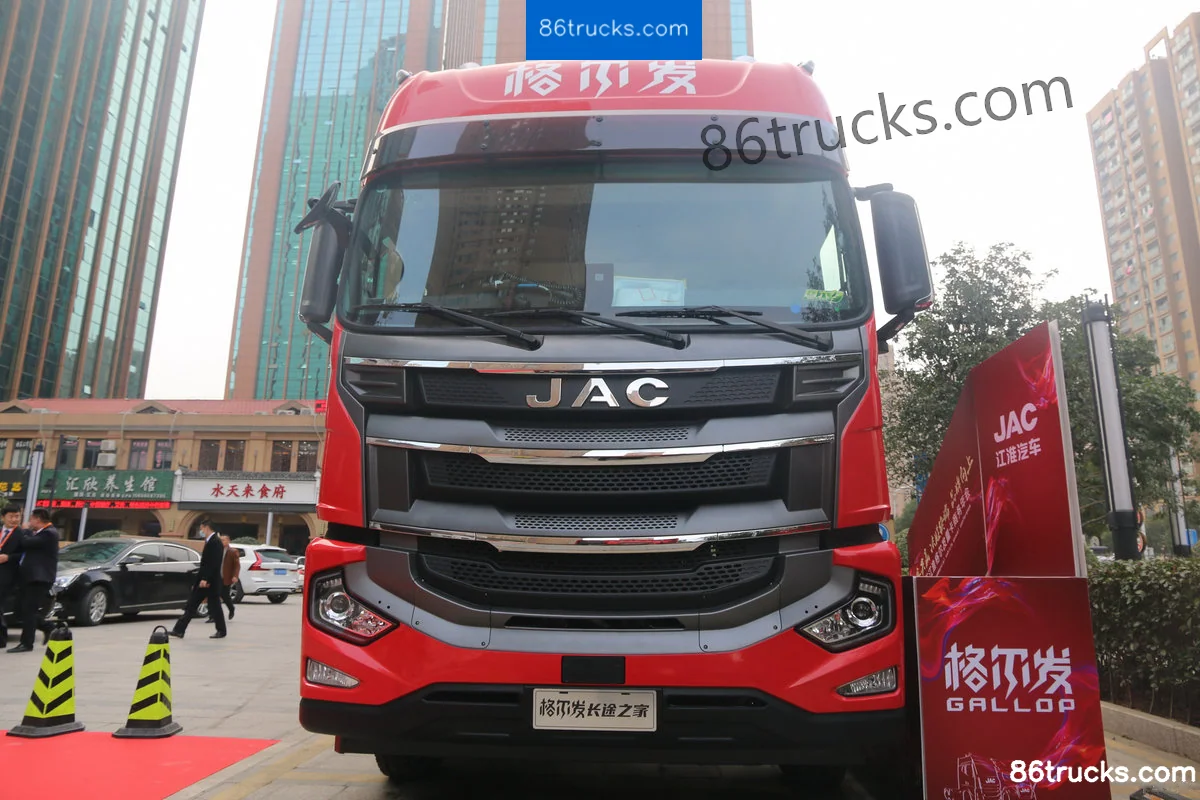

Exterior3

JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck Exterior (1) | 86Trucks JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck Exterior (2) | 86Trucks JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck Exterior (3) | 86Trucks

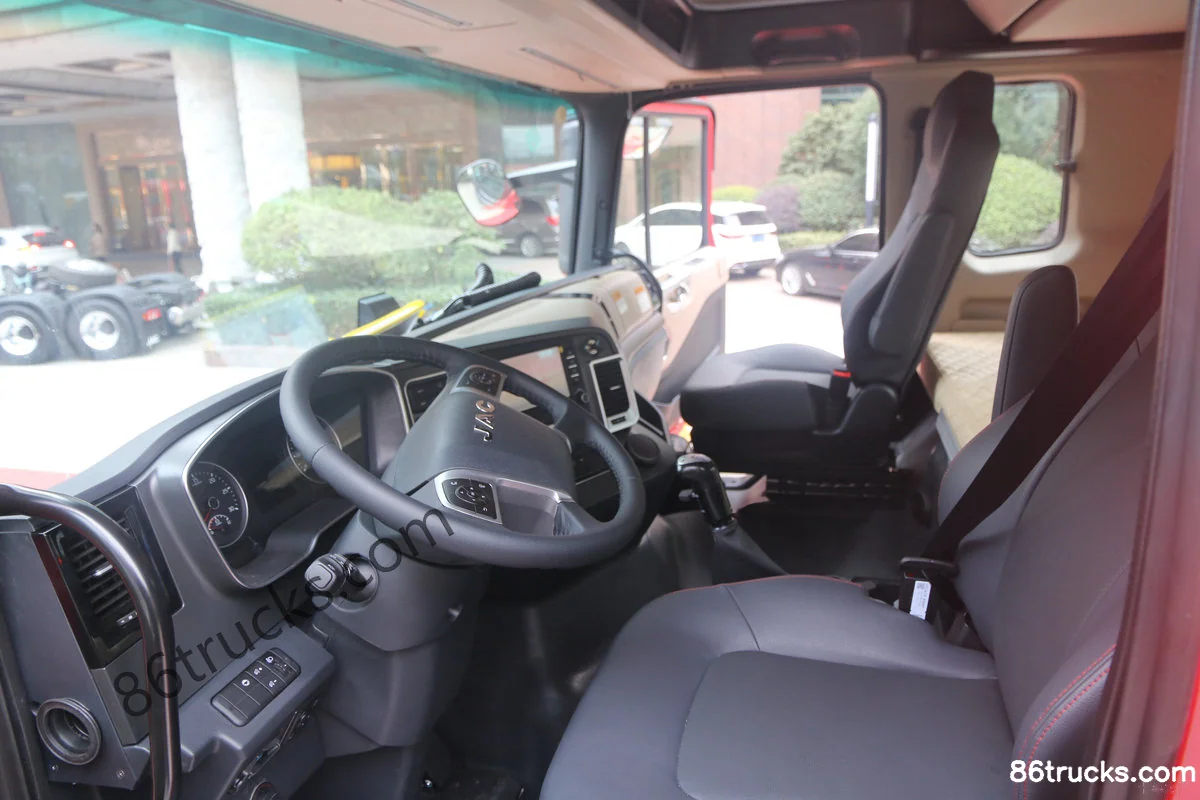

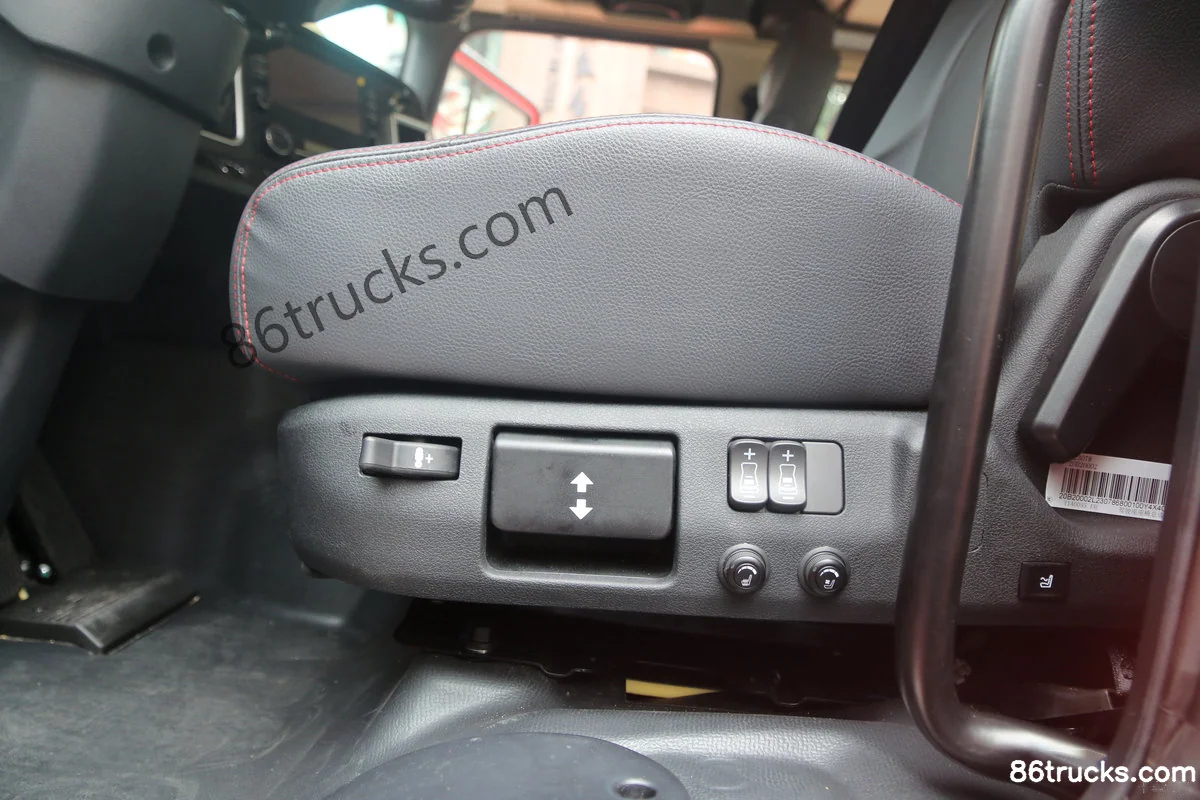

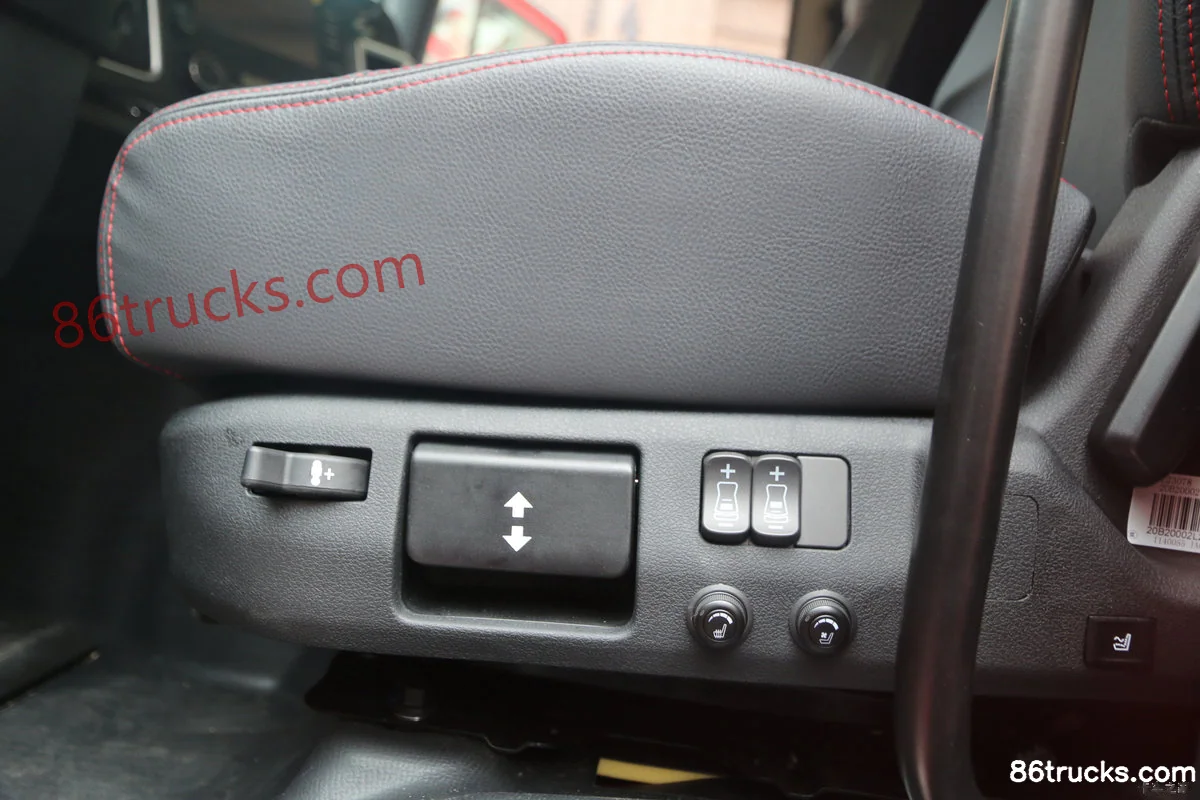

Cab3

JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck Cab (1) | 86Trucks JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck Cab (2) | 86Trucks JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck Cab (3) | 86Trucks

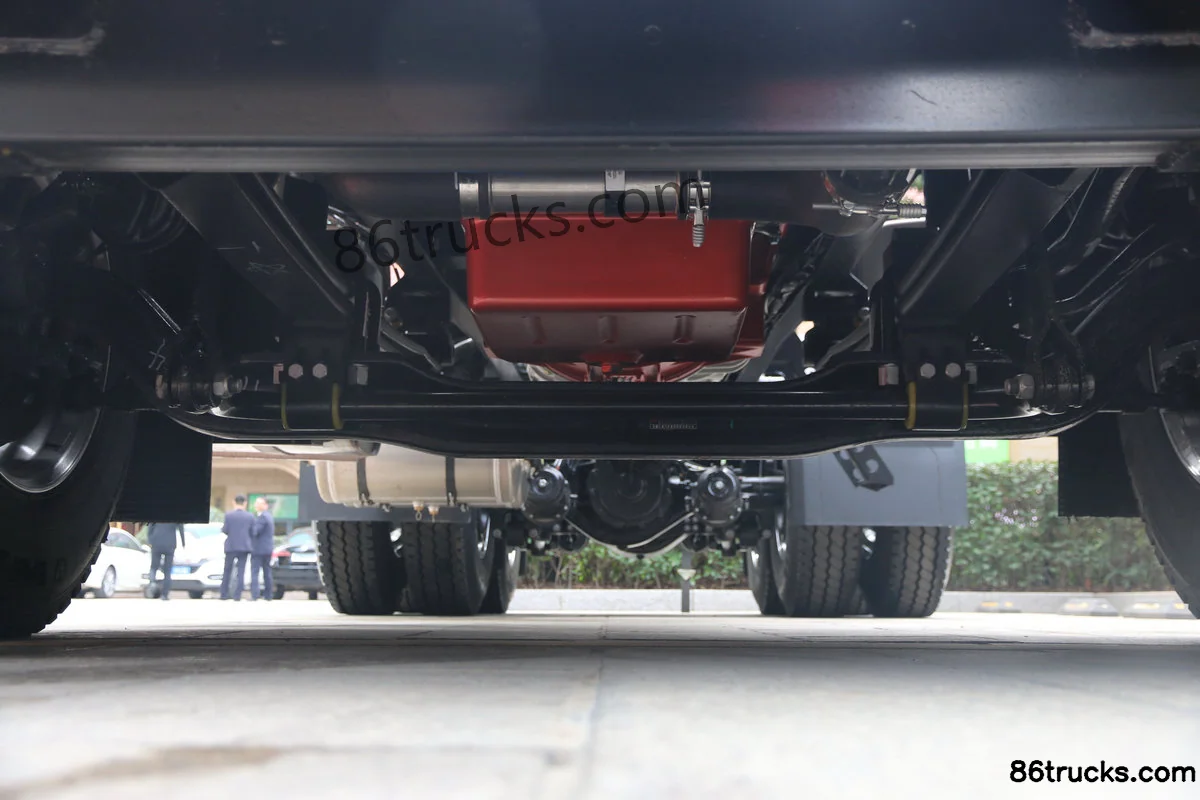

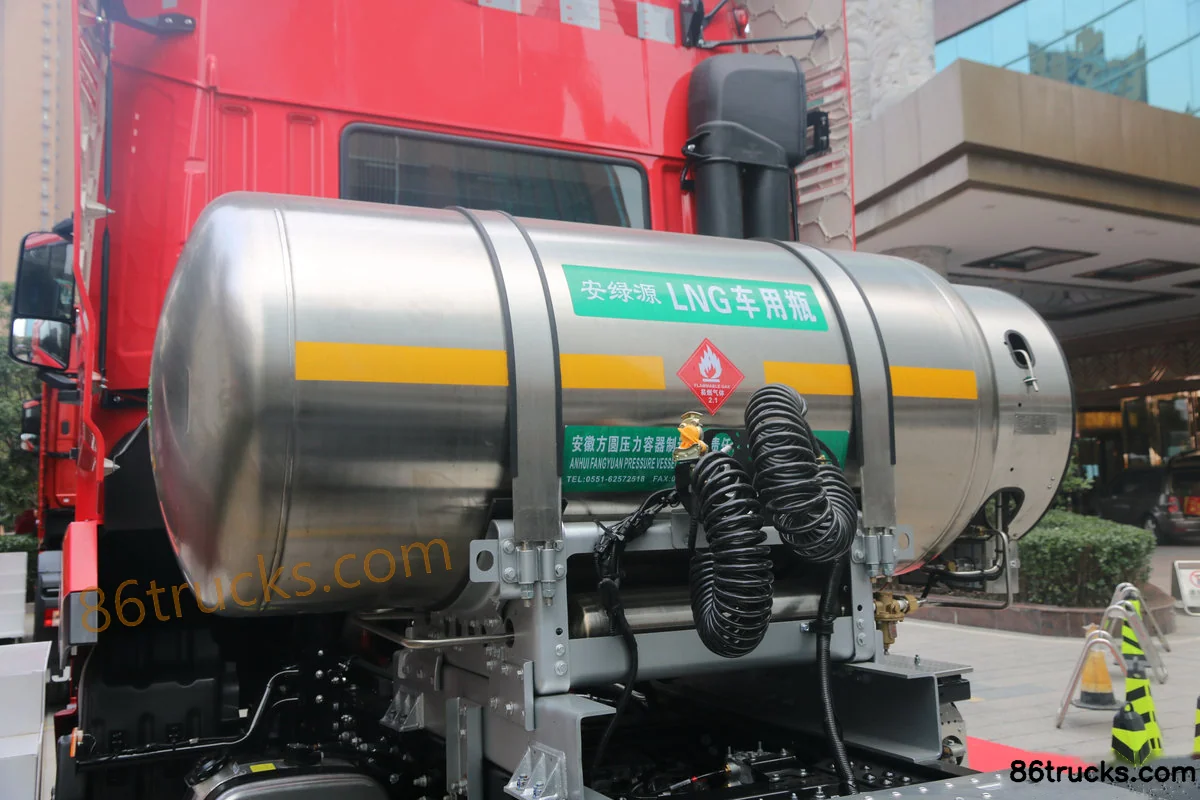

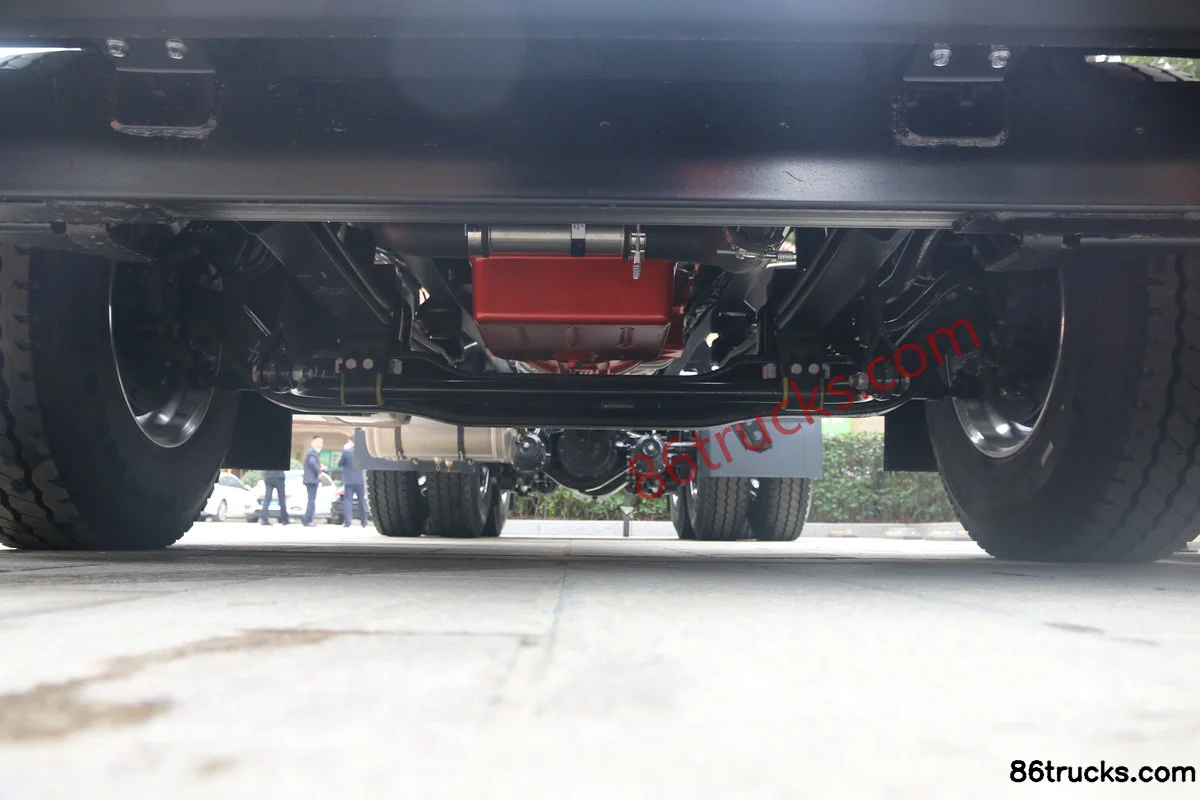

Chassis3

JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck Chassis (1) | 86Trucks JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck Chassis (2) | 86Trucks JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck?

Key specs of JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck: Drive: 6x4; Horsepower: 460 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck suited for?

JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck differ from other variants in the same series?

JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck belongs to JAC Gallop A5 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5W III Heavy Truck 460 hp 6X4(10 wheels) LNG Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
