Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck

Export reference
MSRP N/A
Horsepower: 102
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D19
Transmission: NAVECO
Curb Weight:: 2.3ton

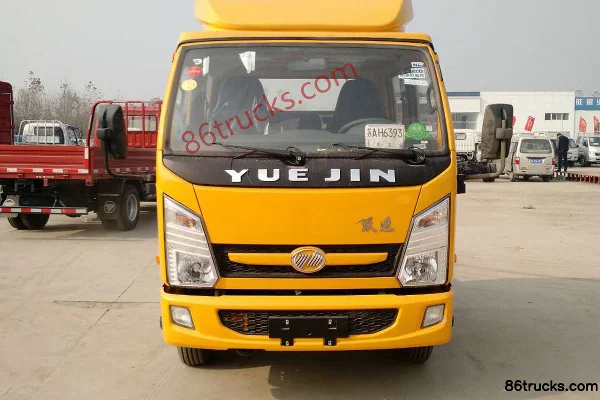

Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck exterior
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck is a Light Truck featuring 2.65m cargo length, stake body cargo body, 5Personnel volume and 1.495t payload. On the powertrain side, it comes with a Yunnei Dewei D19 engine, 102 hp, 4X2 (6 wheels) drive and China V emissions.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NJ1042KBDBNS
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 2.7m
engine: Yunnei PowerD19TCIE1
transmission: NAVECO17H26
Cab length: 5.465m
Cab width: 1.96m
Cab height: 2.23m
Front track width: 1507mm
rear track: 1430mm
Curb Weight: 2.3ton
Rated payload: 1.495ton
GVWR: 4.12ton
Max. speed: 98km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 25°
departure angle: 16°
Front/rear suspension: 1.125/1.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE1
Engine info: Yunnei Dewei D19
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: NAVECO17H26
Transmission Brand: NAVECO
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.65m
Cargo box width: 1.81m
Cargo box height: 0.37m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1760kg
Frame Dimensions: 160*70*4mm
rear axle allowable load: 2360kg
Leaf spring count: 7/7+6
Tire
Tire Size: 6.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
Load-sensing proportioning valve (SABS):
interior configuration
AC control type: Manual
Power Windows:
Exterior features
Air deflector:

Photos

0 photos

FAQ

What emission standard does Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck?

Key specs of Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D19; Transmission: NAVECO. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck suited for?

Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck differ from other variants in the same series?

Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck belongs to Yuejin Shangjun X Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Shangjun X100-28 102hp 4X2(6 wheels) 2.65m double-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
