Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Curb Weight:: 14.1ton
Wheelbase:: 1950+4600+1400mm
Tire Size:: 12R22.5 18PR
Cab dimensions:: 12×2.6×3.98m
Rated payload: 17.77ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.45×2.45×2.5m
Horsepower 510

Overview

The Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck is a Refrigerated Truck featuring 9.45×2.45×2.5m cargo body, 17.77t payload, 12×2.6×3.98m cab and 1950+4600+1400mm wheelbase. On the powertrain side, it comes with 510 hp, 8X4 (12 wheels) drive, China VI emissions and Diesel fuel.

China VI 510 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×3.98m
Truck Type: Refrigerated Truck
Drive type: 8X4
Wheelbase: 1950+4600+1400mm
Vehicle origin: Shandong Zhangqiu
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 14.1ton
Rated payload: 17.77ton
GVWR: 32ton
Max. speed: 89km/h
Front/rear suspension: 1.492/2.558m
Energy Type: Diesel
Engine parameters
Engine Model: SinotrukMC13H.51-61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 13.02L
Emission standard: China VI
Max output power: 378kW
Max hp: 510Horsepower
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Cargo box parameters
Cargo box dimensions: 9.45×2.45×2.5m
Cargo box width: 2.45m
Cargo box height: 2.5m
Body Parameters
Vehicle certification code: ZZ5326XLCV466HF1K
Body Brand: Sitrak
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SITRAK G7
Chassis Model: ZZ1326V466HF1K
Leaf spring count: 4/4/-/-
Transmission Parameters
Number of gears: 16Gear
Transmission Model: SinotrukHW25716XACL
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Exterior features
Air deflector: Yes
Multimedia features
Center Console Color Screen:

Photos

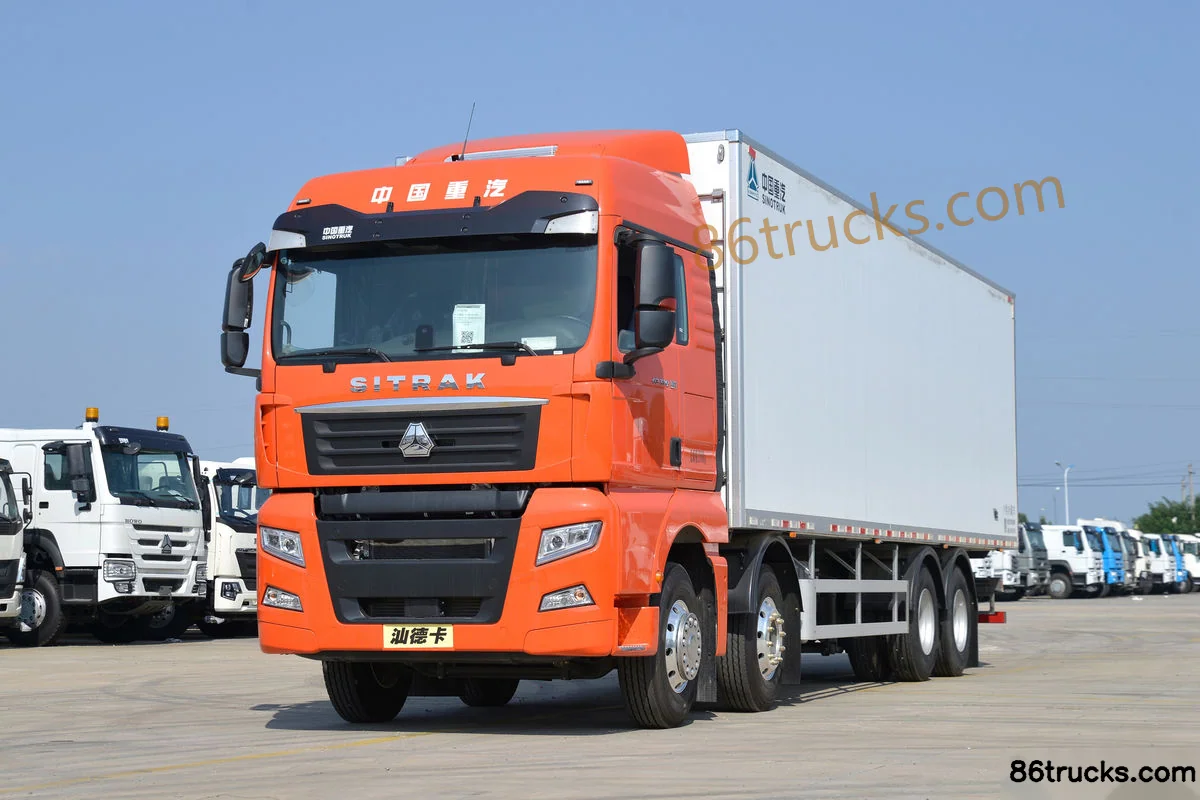

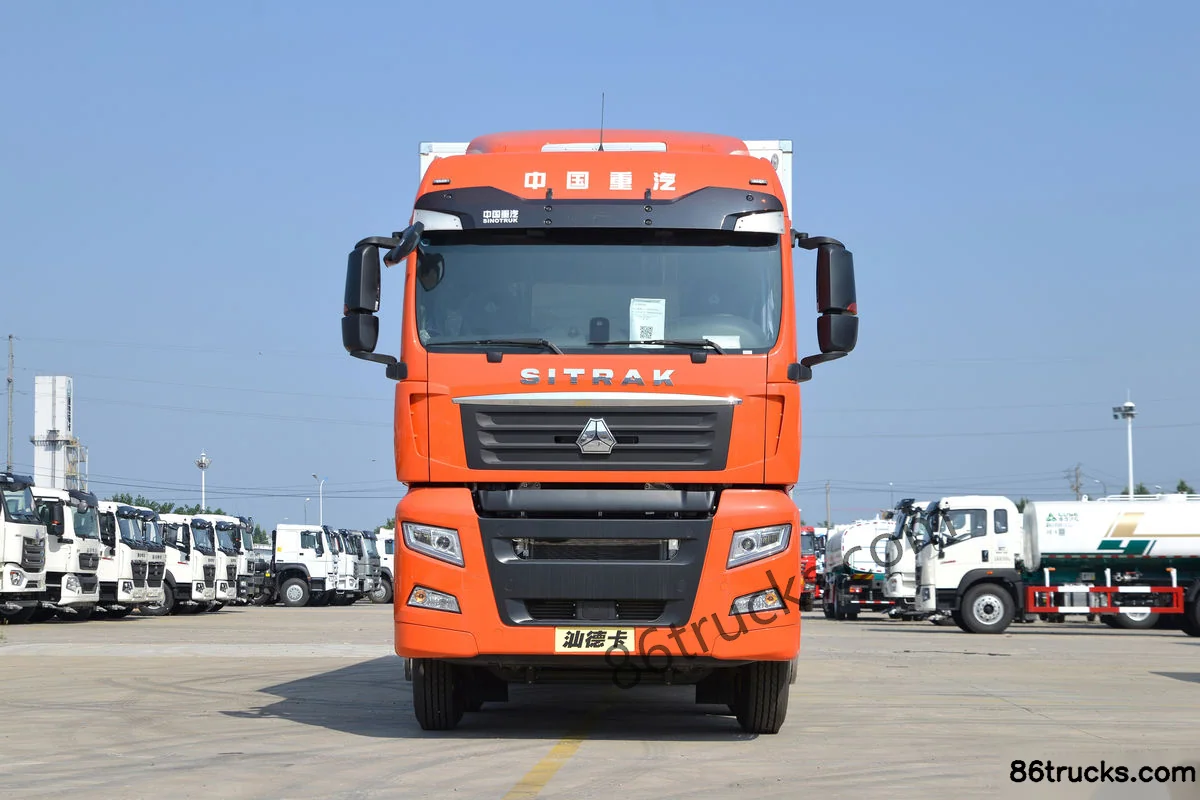

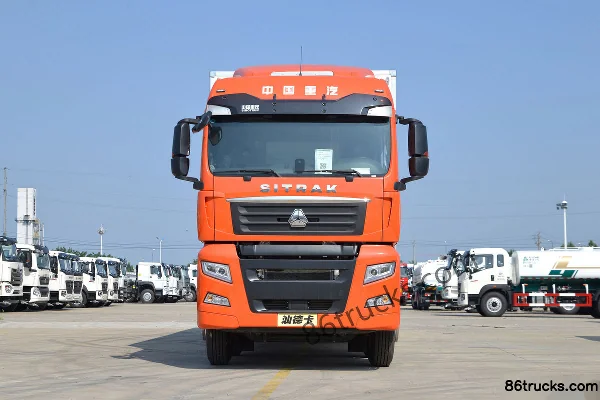

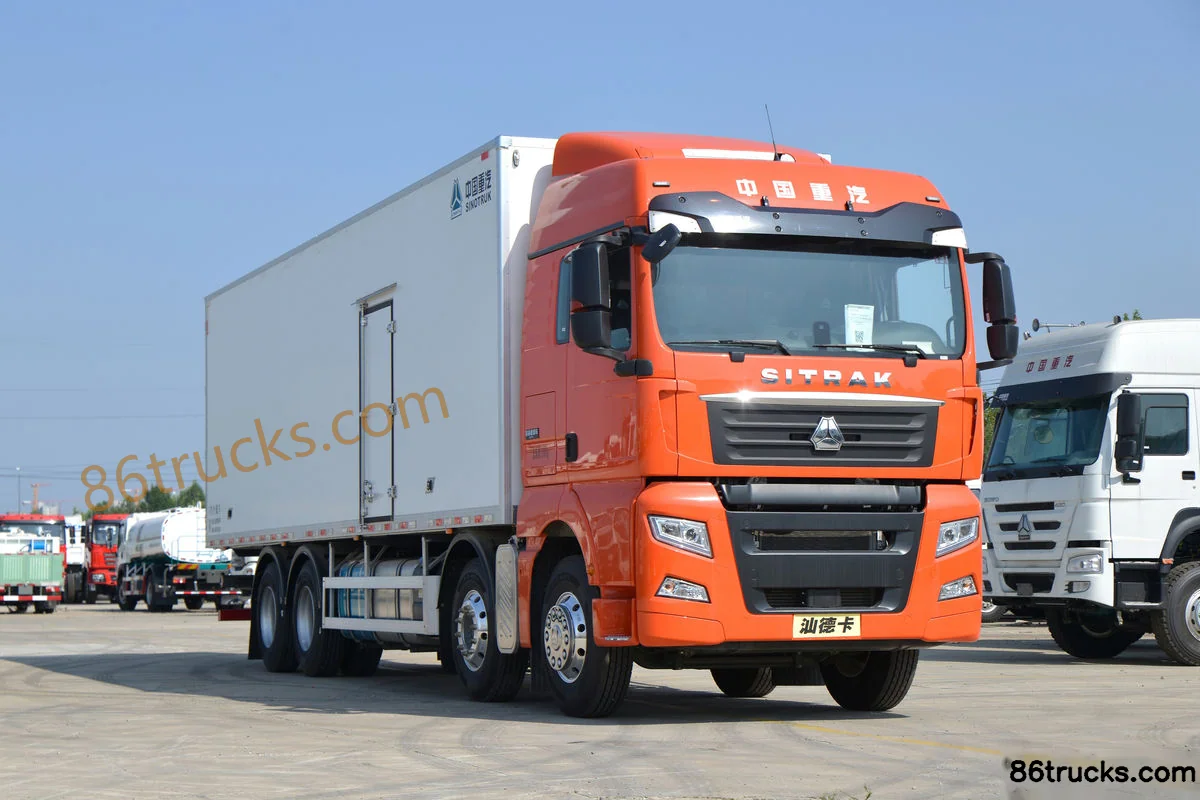

Exterior3

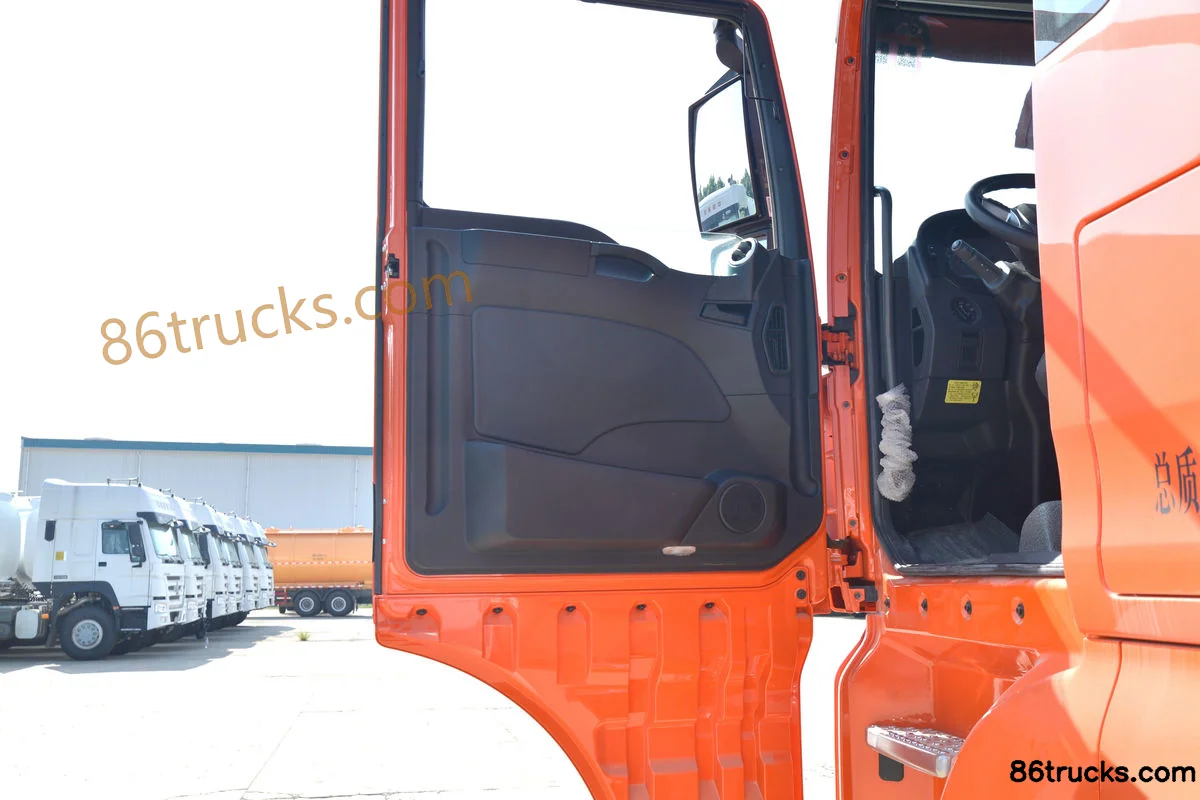

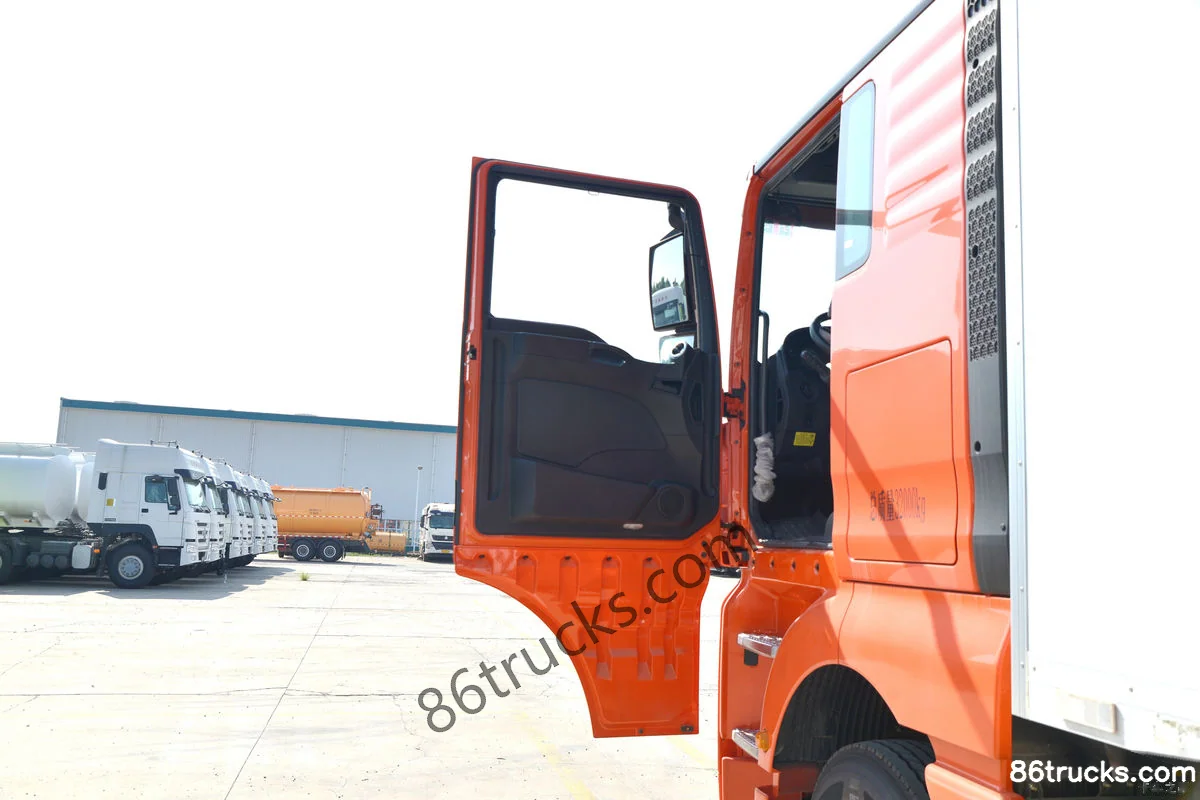

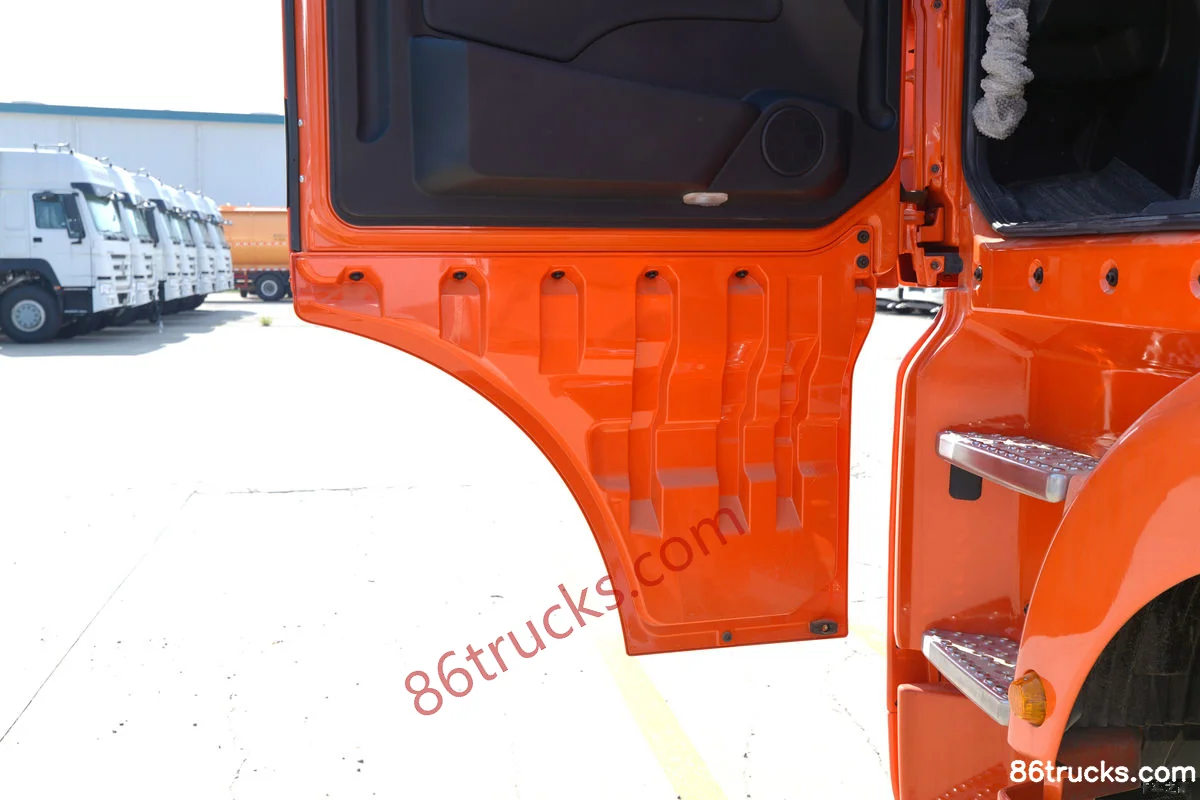

Cab3

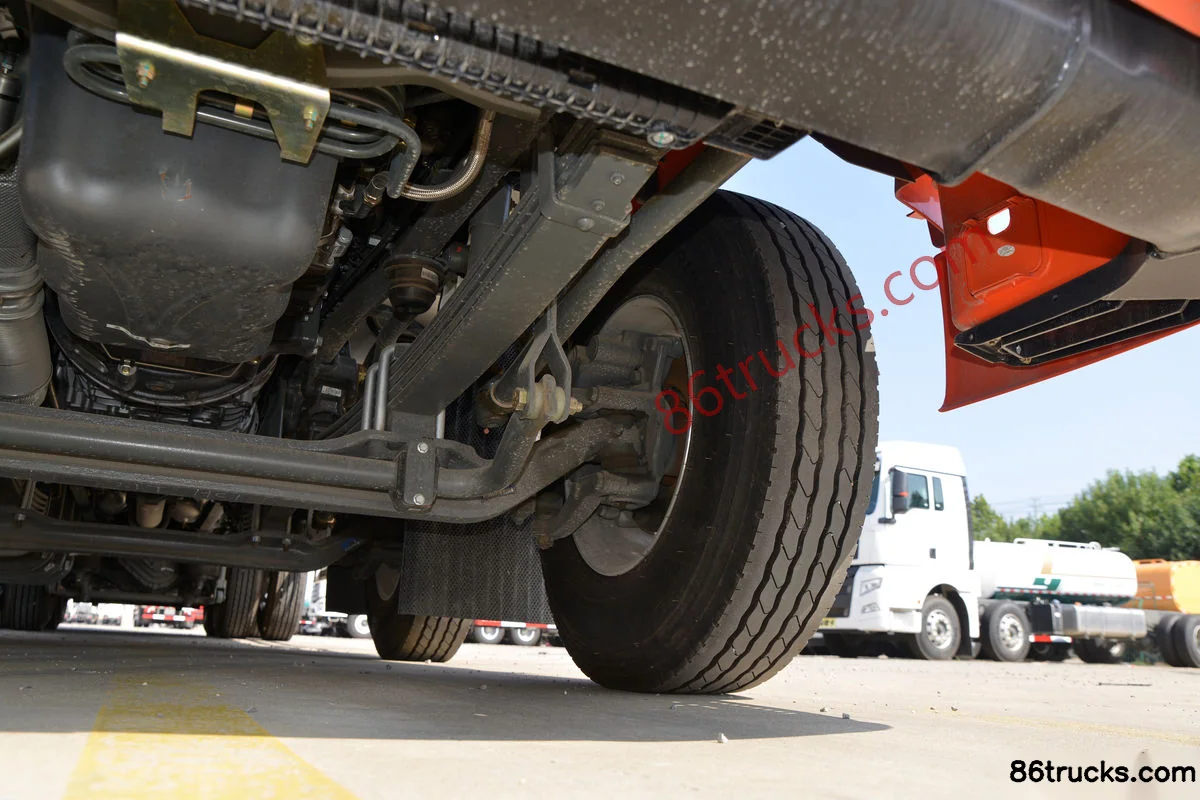

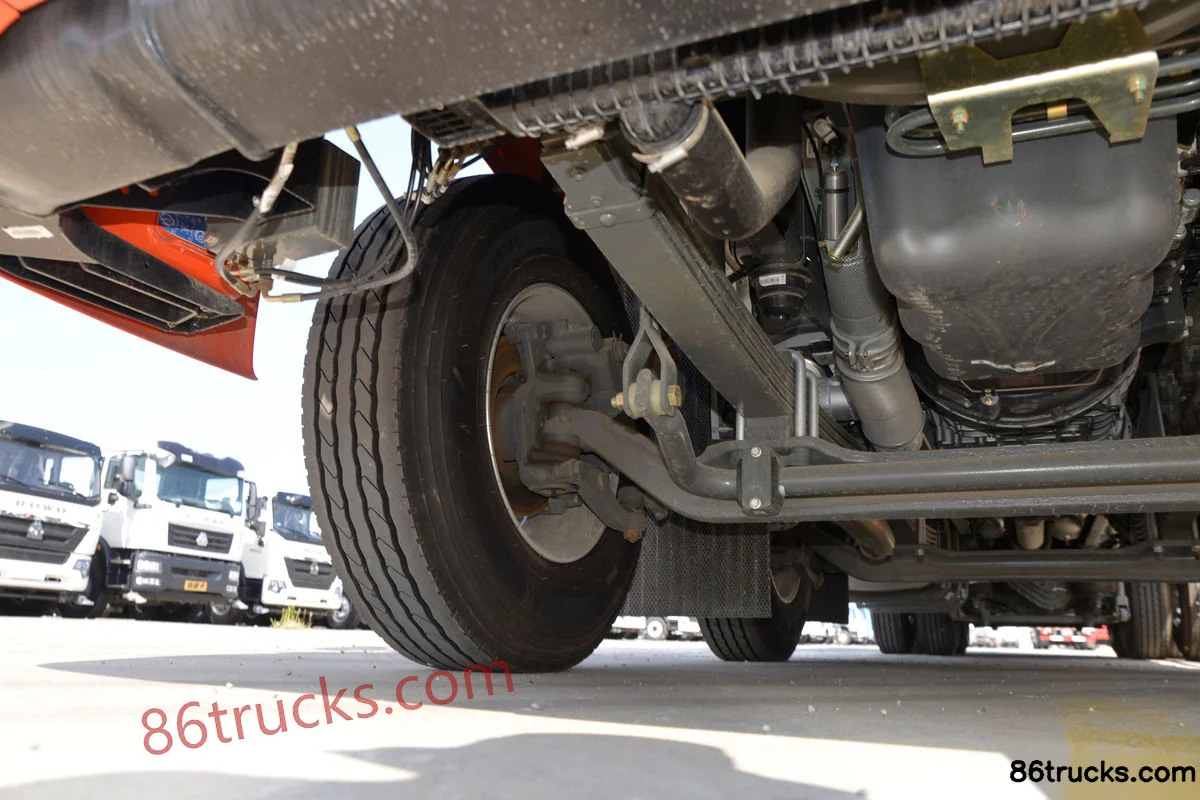

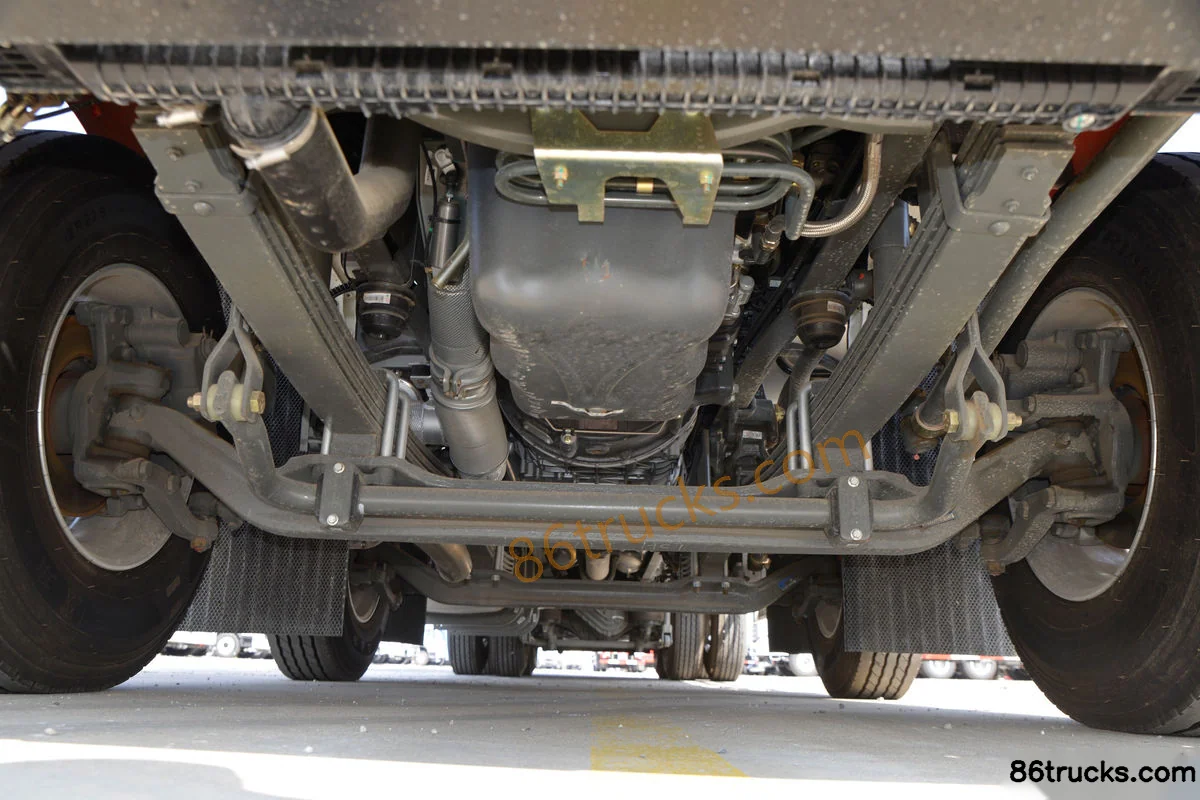

Chassis3

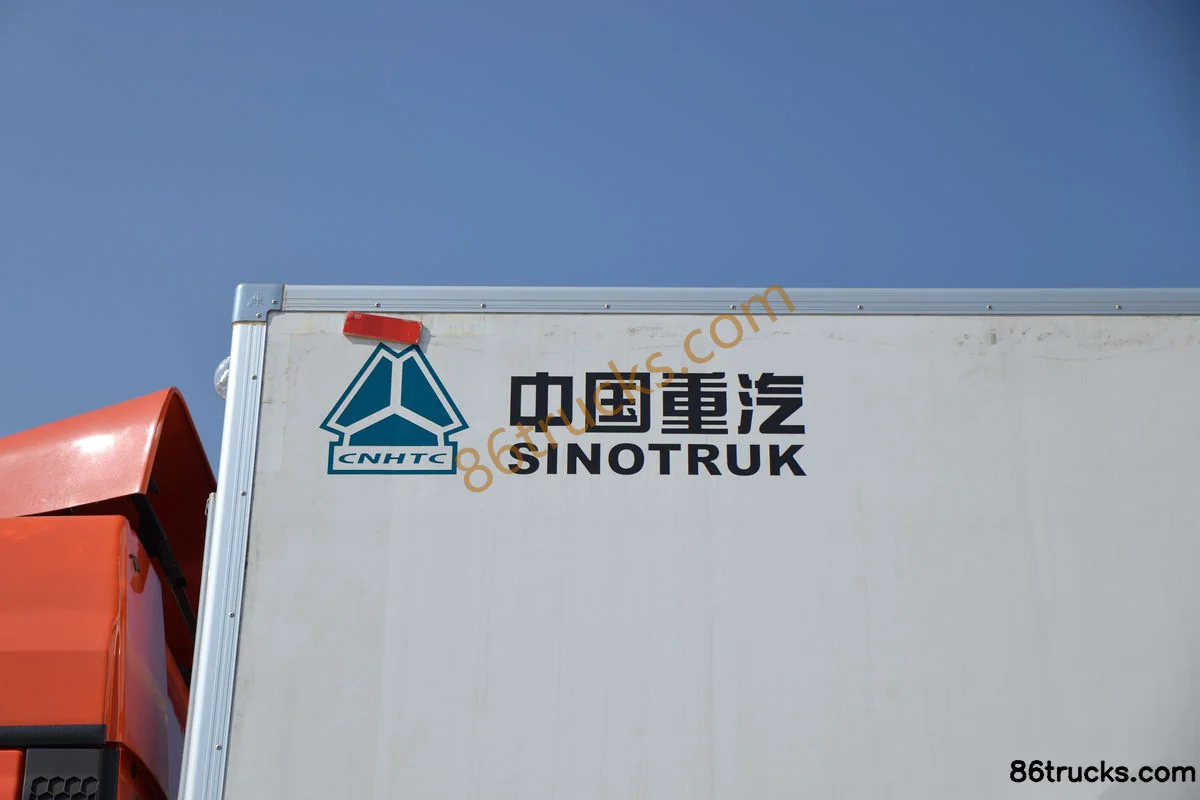

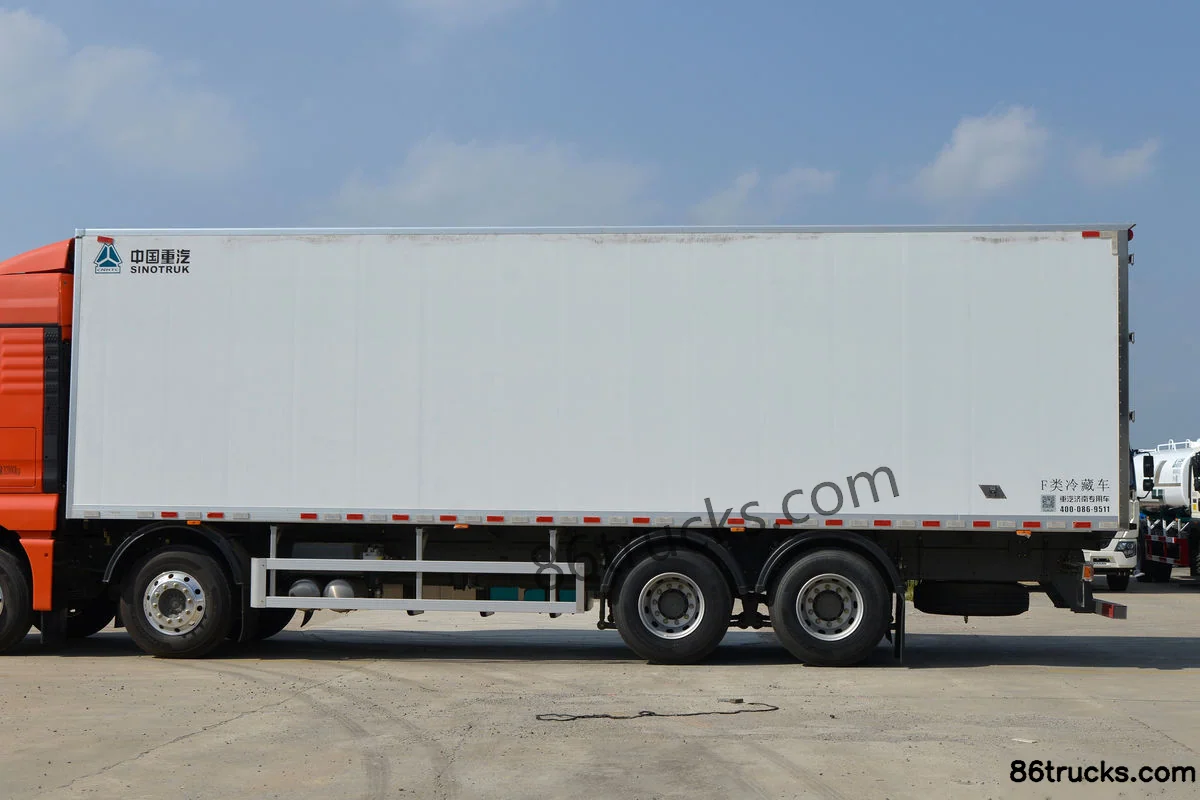

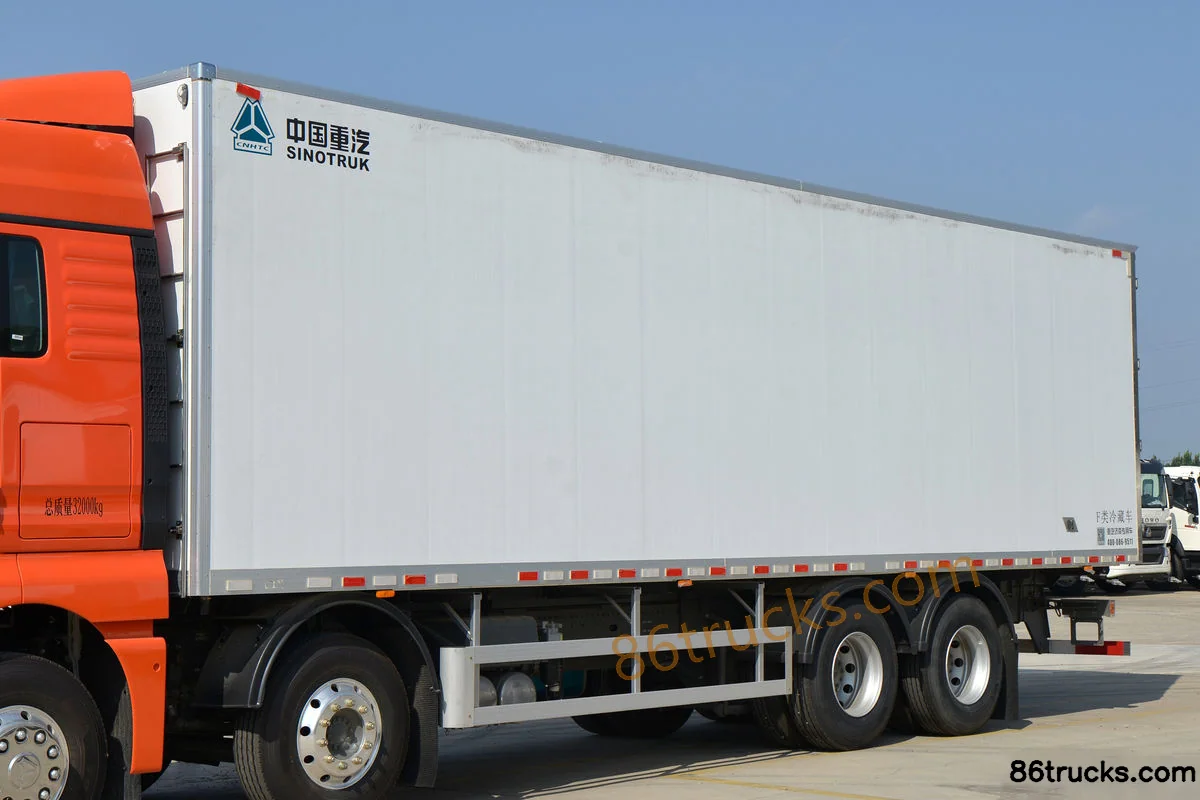

Body3

12 photos

FAQ

What emission standard does Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck?

Key specs of Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck: Drive: 8x4; Horsepower: 510 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck suited for?

Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck differ from other variants in the same series?

Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck belongs to Sitrak G7 heavy truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak SITRAK G7 510 hp 8X4(12 wheels) 9.45m AMT Automatic Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
