Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 35ton
Wheelbase:: 3800mm
Tire Size:: 295/80R22.5
Front axle allowable load:: 6505kg
Displacement:: 11.596L
Drive 4X2 (6 wheels)
Horsepower 430
Emission China V
Transmission Fast Gear

Overview

The Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 430 hp, 17.995t GVW and China V emissions. On the powertrain side, it comes with a WeichaiWP12.430E50 engine, Fast Gear transmission and Diesel fuel.

China V 430 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ4181H7AB
Drive type: 4X2
Wheelbase: 3800mm
engine: WeichaiWP12.430E50
transmission: Fast Gear12JSD180TA
Rear Axle Ratio: 3.231
Cab length: 6.04m
Cab width: 2.495m
Cab height: 3.93m
Front track width: 2040mm
rear track: 1820mm
Gross Trailer Weight: 35ton
Curb Weight: 6.8ton
GVWR: 17.995ton
Max. speed: 100km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Remarks: Standard: WABCO brake valve, automatic adjuster arm, split rear wheel mudguard, metallic paint, multi-state switch, electronically controlled silicone oil fan, WEVB, electric height adjustment for air suspension; 1. Optional domestic steering gear, 2. Optional 90# fifth wheel, 3. Optional 12R22.5 tires, 4. Optional 3.583 ratio
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.430E50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.596L
Emission standard: China V
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 2060N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD180TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1050L
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
upper bunk width: 600mm
Lower Bunk Width: 780mm
Chassis Specs
Suspension type: Leaf spring
Front axle allowable load: 6505kg
Frame Dimensions: 282 single-layer framemm
Steering gear: Imported
rear axle description: 500 rear axle
rear axle allowable load: 11490kg
Axle ratio: 3.231
Leaf spring count: 3/4+3
Tire
Tire Size: 295/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Cruise control (CCS):

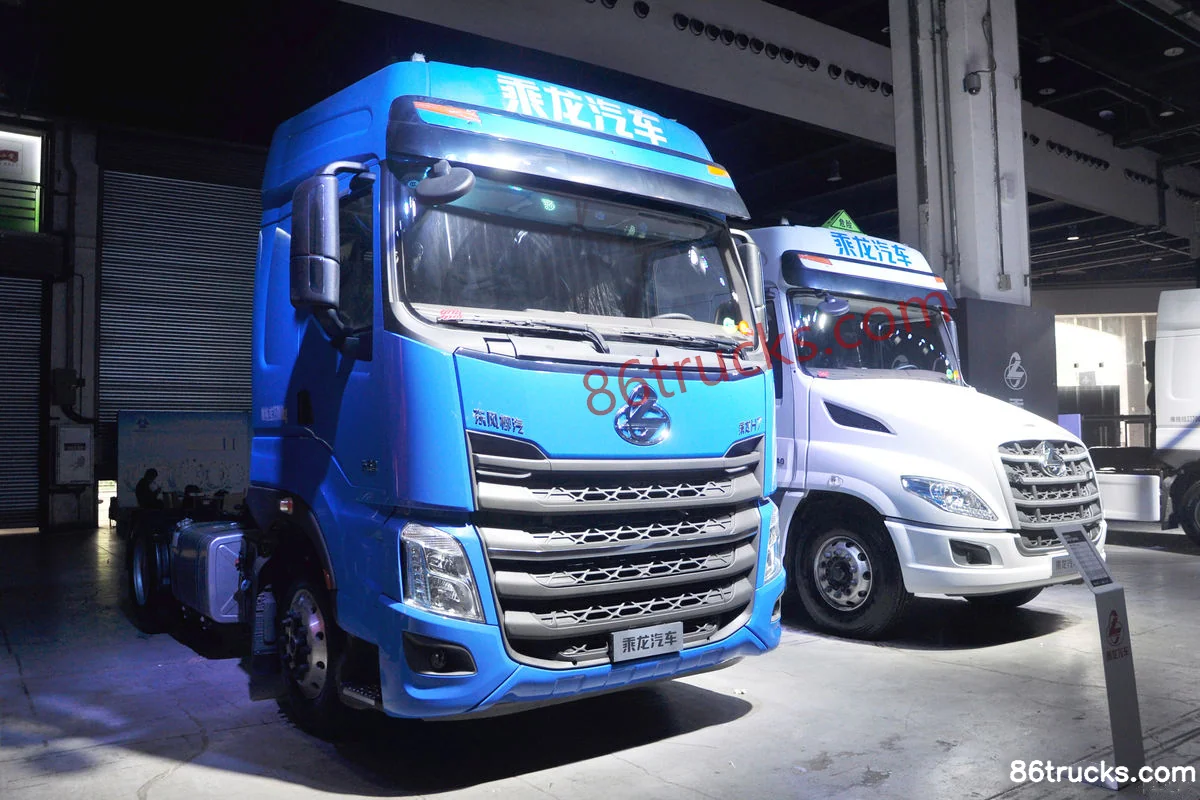

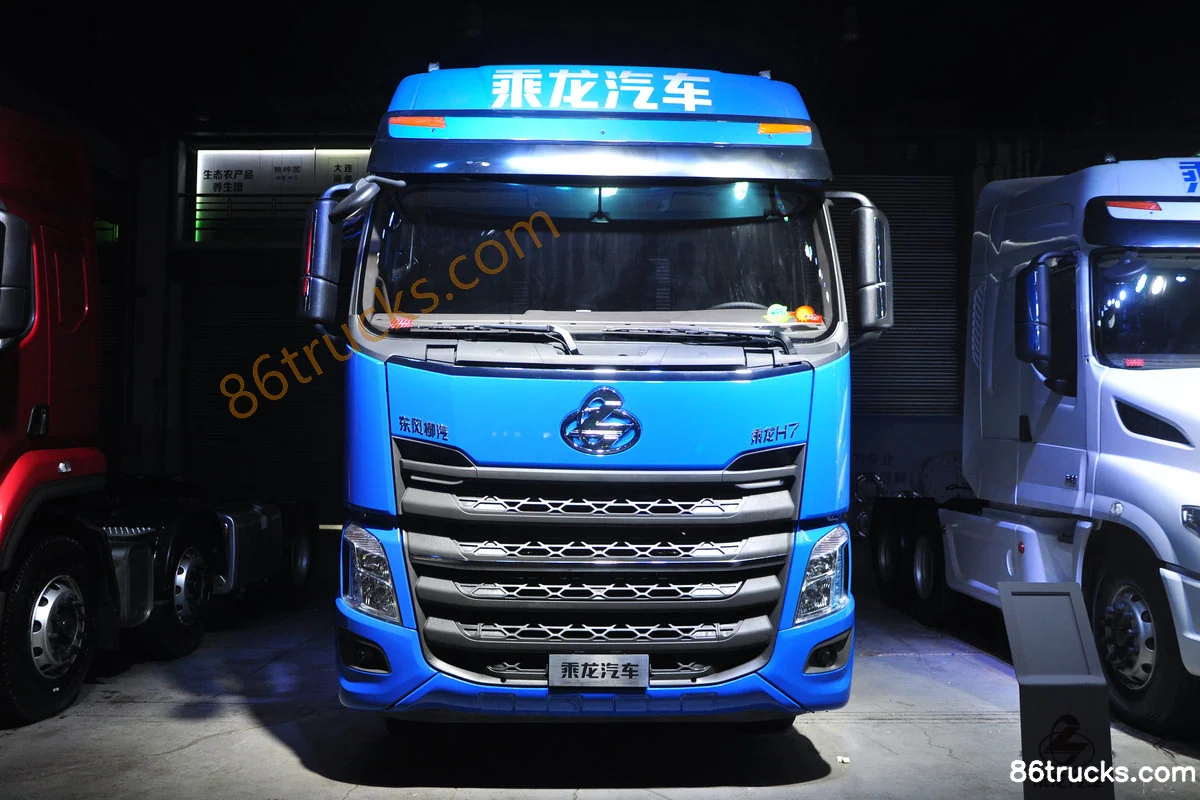

Photos

Exterior2

2 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck?

Key specs of Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck: Drive: 4x2; Horsepower: 430 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck suited for?

Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck belongs to Dongfeng Chenglong H7 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H7 Heavy Truck 430hp 4X2(6 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
