Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck

Export reference
MSRP N/A
Horsepower: 116
Emission: China IV
Fuel: Diesel
Engine: Yunnei 4100
Transmission: Lu'an
Curb Weight:: 3.36ton
seating capacity: 2Personnel
Rated payload: 4.725ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck is a Light Truck featuring 4.68m cargo length, stake body cargo body, 2Personnel volume and 4.725t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yunnei 4100 engine, 116 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC1081LLB38P4
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3815mm
Box length class: 4.7m
engine: Yunnei PowerYN33CRD1
transmission: Lu'an LC6T46
Rear Axle Ratio: 4.875
Cab length: 6.89m
Cab width: 2.18m
Cab height: 2.38m
Front track width: 1540mm
rear track: 1550mm
Curb Weight: 3.36ton
Rated payload: 4.725ton
GVWR: 8.28ton
Max. speed: 90km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
market segment: Building materials, agricultural products
Front/rear suspension: 1.2/1.875m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRD1
Engine info: Yunnei 4100
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.298L
Emission standard: China IV
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: Lu'an LC6T46
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.68m
Cargo box width: 2m
Cargo box height: 0.45m
*Cargo box interior width: 2
Cab parameters
Cab: Wide-body Cab
Cab width: 1990mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 3000kg
Frame Dimensions: 200×65×6mm
rear axle allowable load: 5280kg
Axle ratio: 4.875
Leaf spring count: 9/11+8
Tire
Tire brand: Linglong
Tire Size: 7.50R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

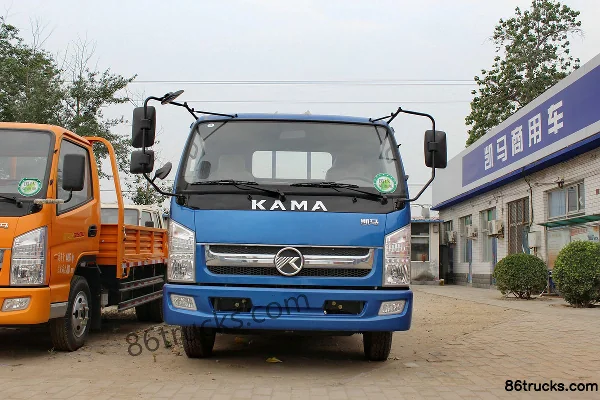

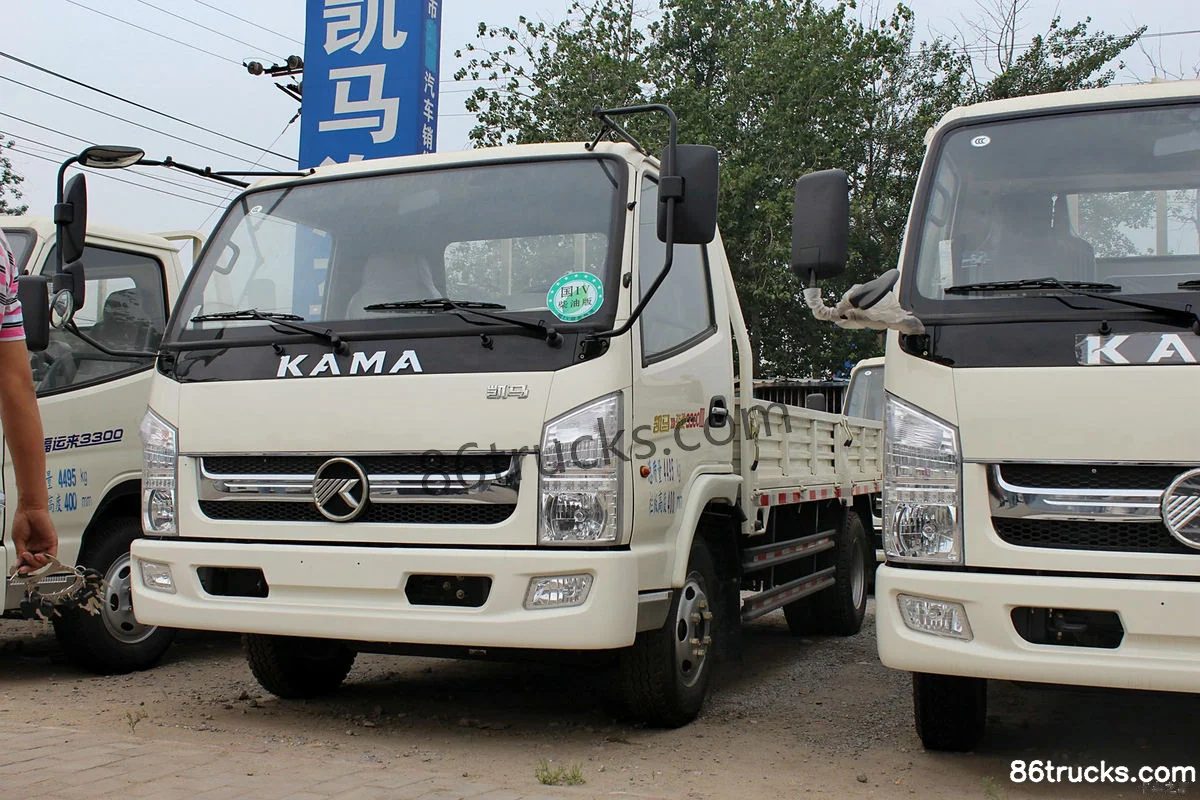

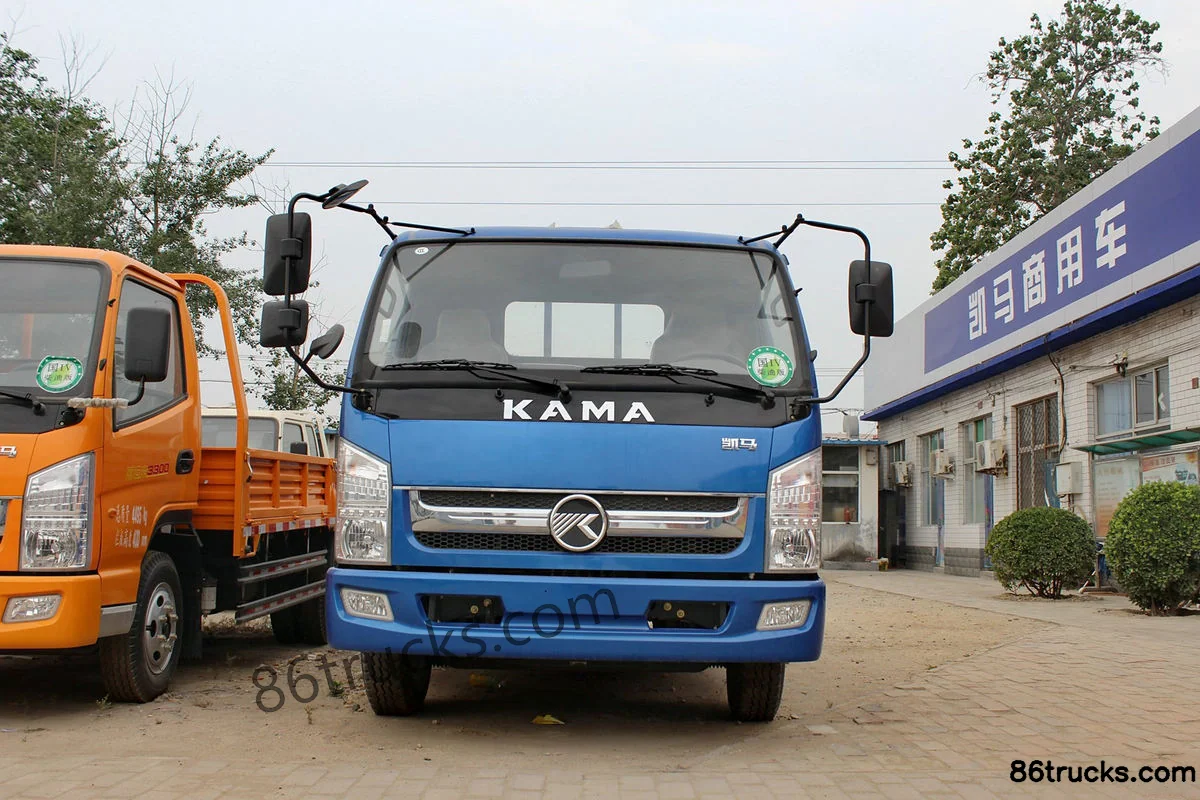

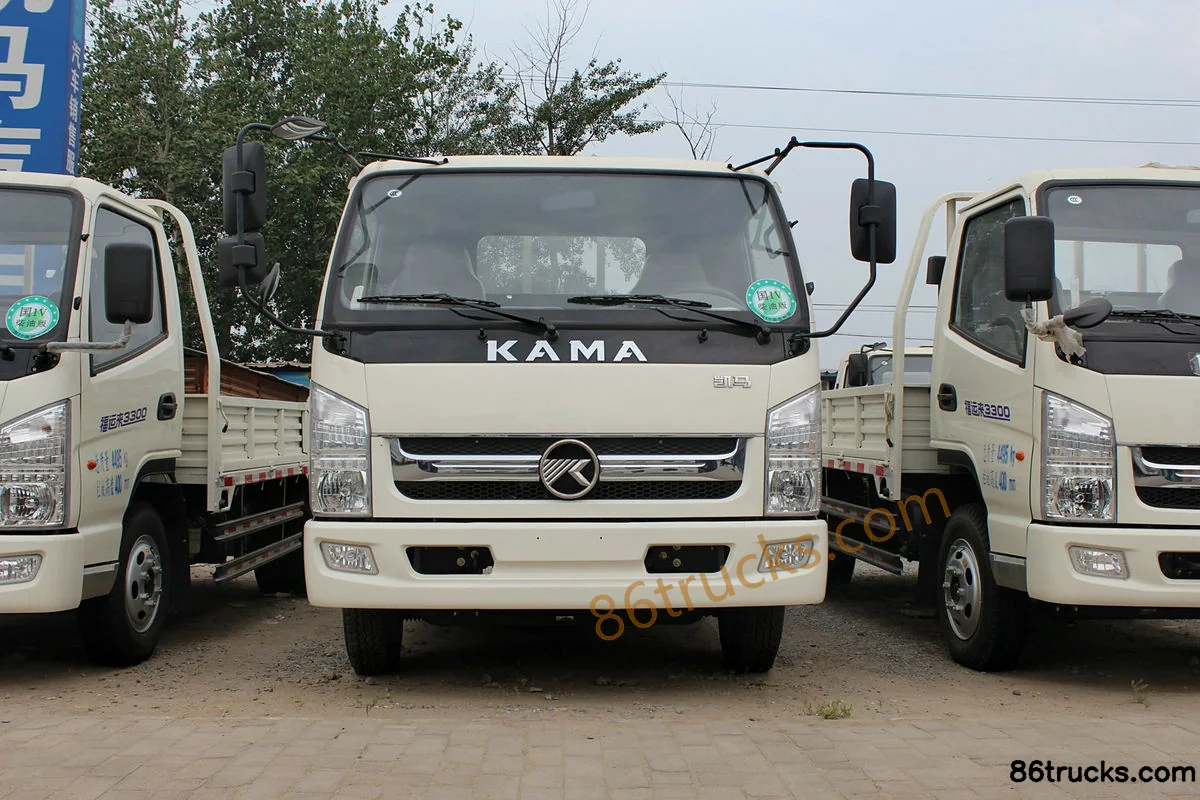

Exterior3

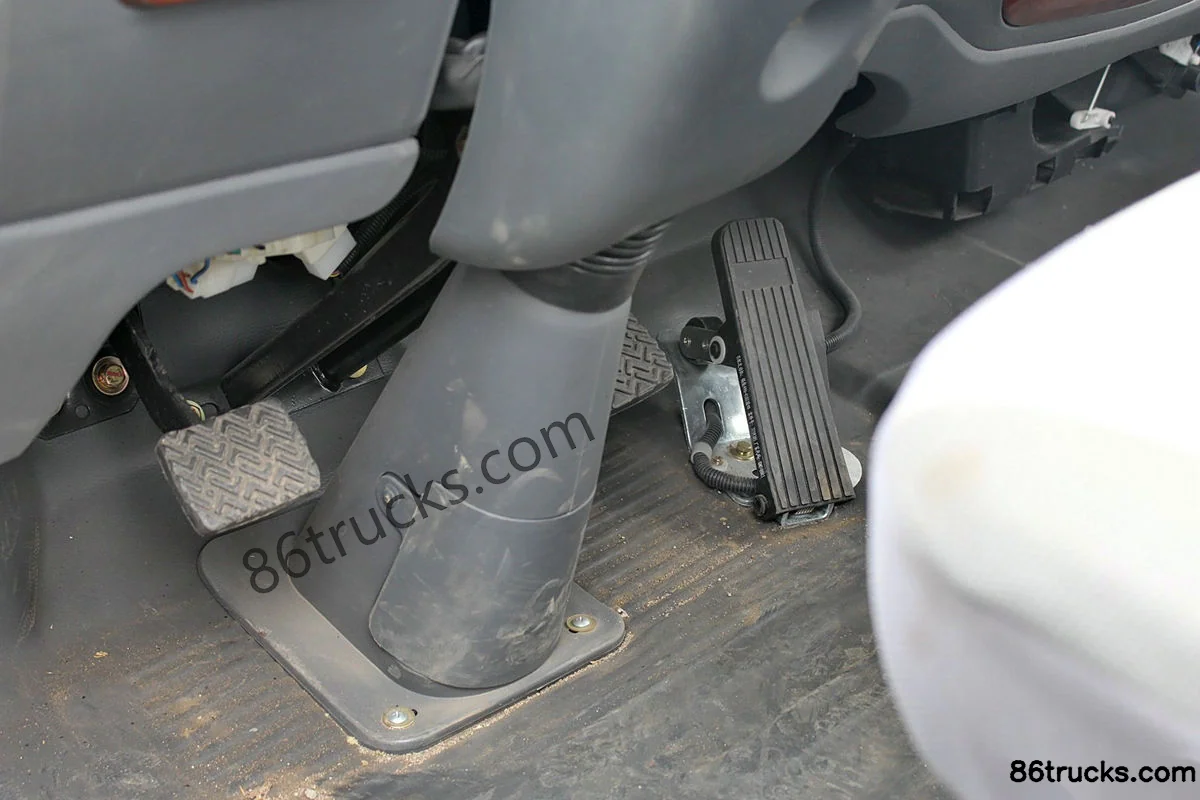

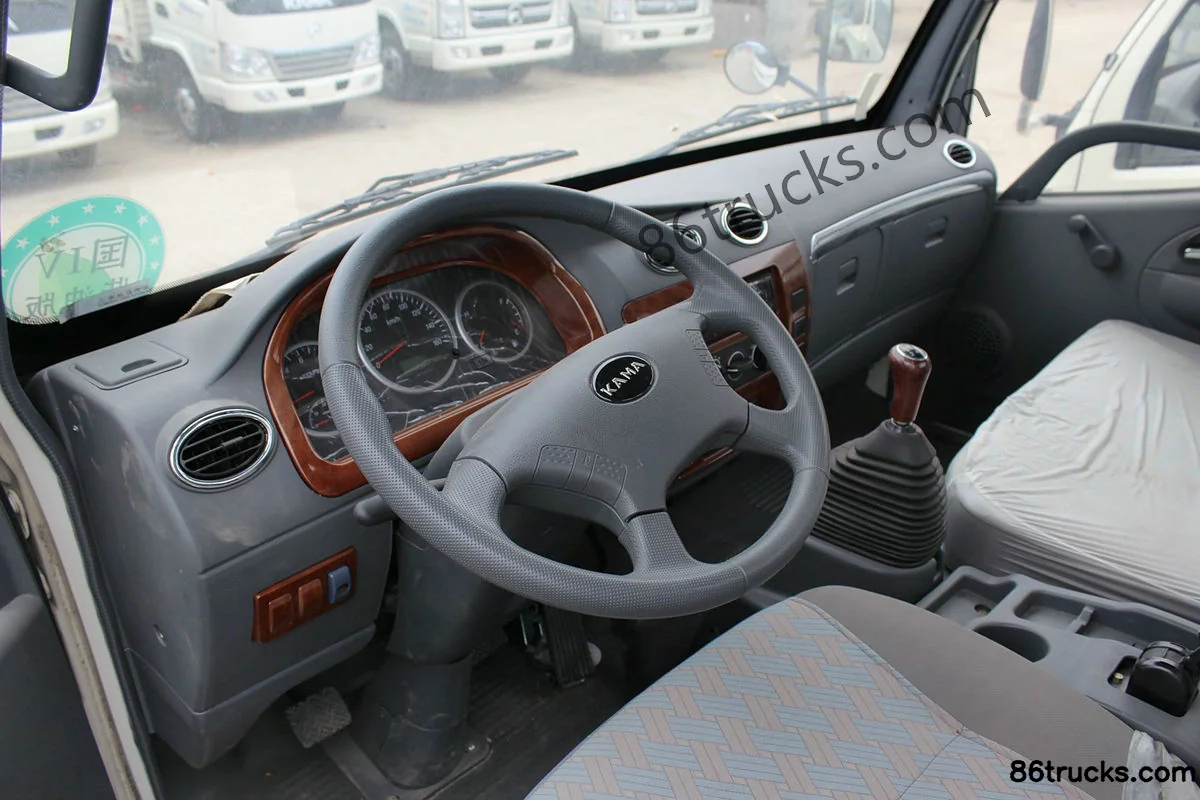

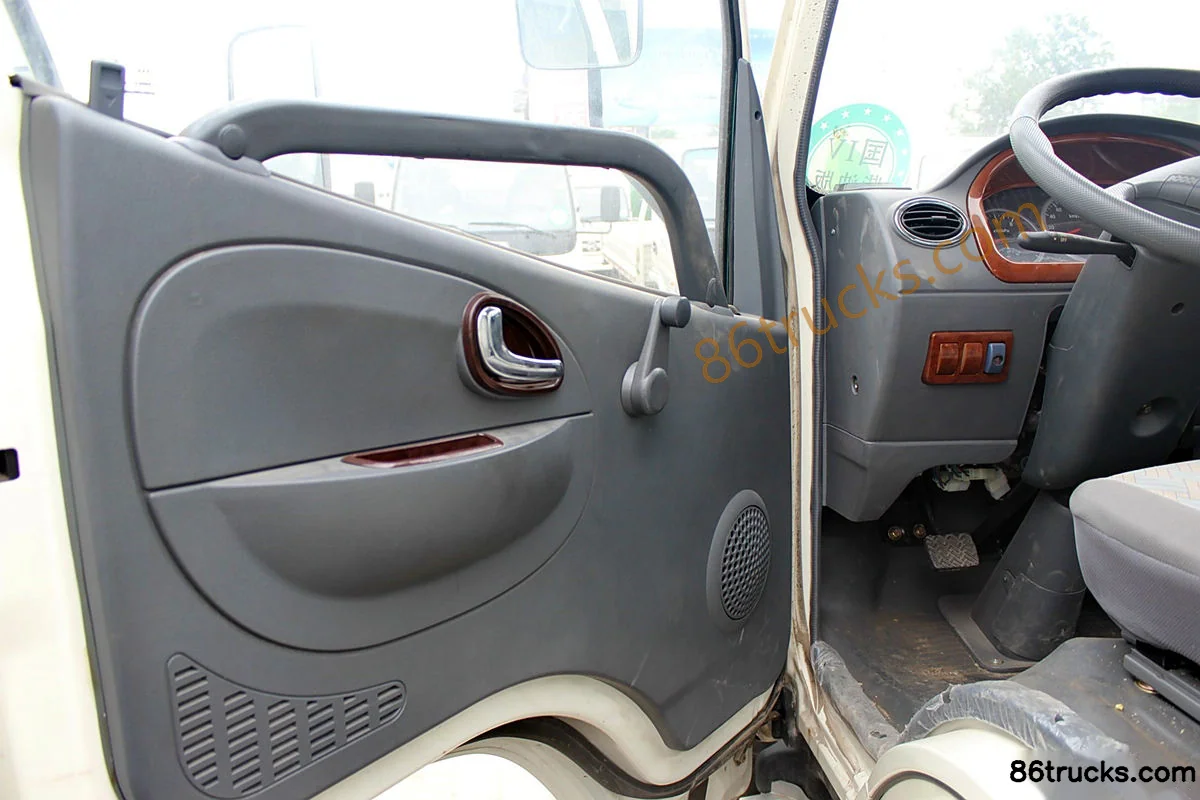

Cab3

6 photos

FAQ

What emission standard does Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck?

Key specs of Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck: Drive: 4x2; Horsepower: 116 hp; Emission: China IV; Fuel: Diesel; Engine: Yunnei 4100; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck suited for?

Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck differ from other variants in the same series?

Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck belongs to Kama Junchi Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Junchi 116hp 4X2(6 wheels) 4.7m half-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
