Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels)

Export reference
From $20,806
MSRP ¥14.98M CNY
Rated payload:: 1.15ton
Wheelbase:: 2760mm
Cargo box volume:: 7.2m³
Model code (announced):: HQK5034XXYGBEVC
Type:: enclosed cargo truck
Box length class:: 2.8m
Drive 4X2 (6 wheels)
CLTC range: 215km
Motor 1 Brand: Beineng
Curb Weight: 1.27ton

Overview

The Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels) is a mini truck featuring 215km battery/range, Beineng motor, 4X2 (6 wheels) drive and 1.15t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HQK5034XXYGBEVC
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2760mm
Box length class: 2.8m
Cab length: 4.79m
Cab width: 1.61m
Cab height: 2.39m
CLTC range: 215km
Curb Weight: 1.27ton
Rated payload: 1.15ton
GVWR: 2.55ton
Max. speed: 90km/h
Origin: Yongning, Nanning
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Beineng
Motor 1 Model: TZ186XSM04
Max torque: 230N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 40kW
Peak power: 70kW
total rated torque: 110N·m
total peak torque: 230N·m
Electronic Control
ECU Brand: Shandong Jieyuan New Energy Technology Development Co., Ltd.
Battery/Charging
Charging method: Fast/Slow
Battery Brand: Shandong Jieyuan
Battery type: Lithium Iron Phosphate Battery
fast charge time: 2h
Battery capacity: 33.28kWh
Battery rated voltage: 320V
Battery total voltage: 320V
Energy Density: 129.3
Battery Model: CG0A
Slow charge time: 10h
Cargo box parameters
Cargo box volume: 7.2m³
Cargo box type: Van body
Cargo box length: 2.76m
Cargo box width: 1.53m
Cargo box height: 1.705m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1250kg
rear axle allowable load: 1300kg
Tire
Tire Size: 175/70R14LT 8PR,175/70R14C 8PR
Number of tires: 4pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Steering Wheel Material: Plastic
AC control type: Manual
Exterior features
side skirt:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

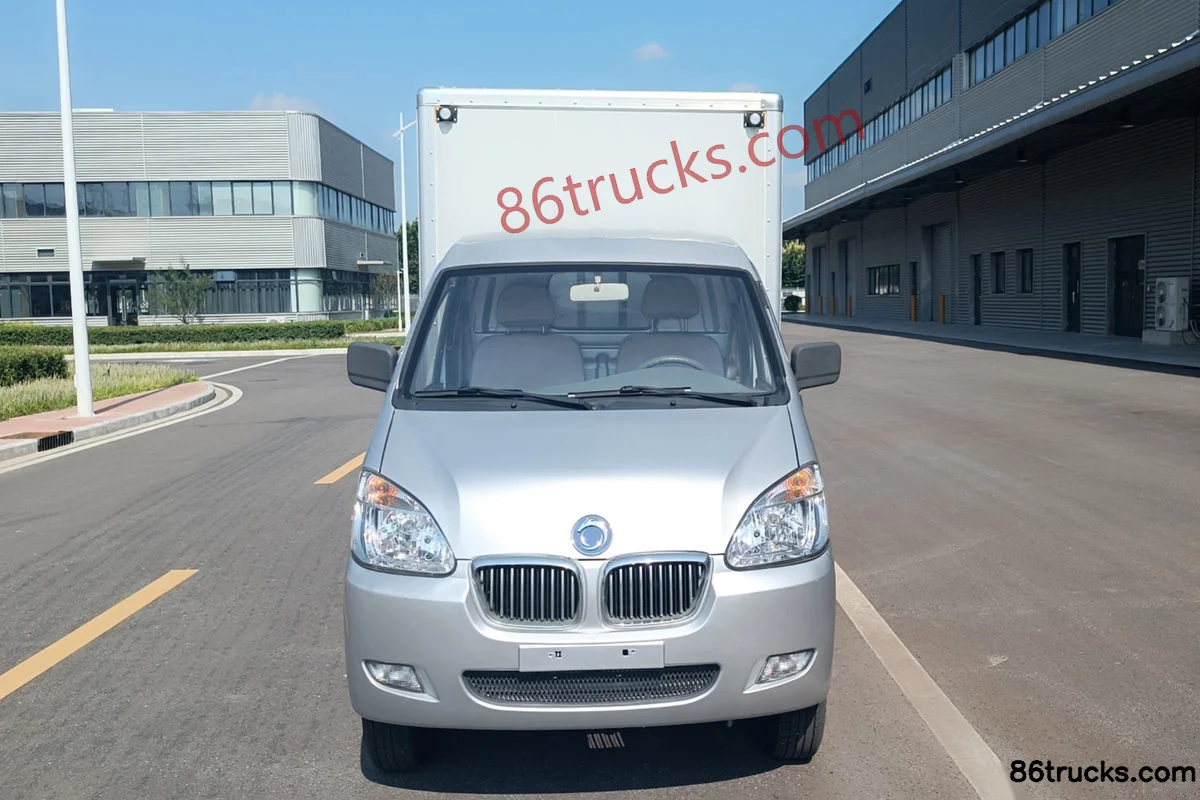

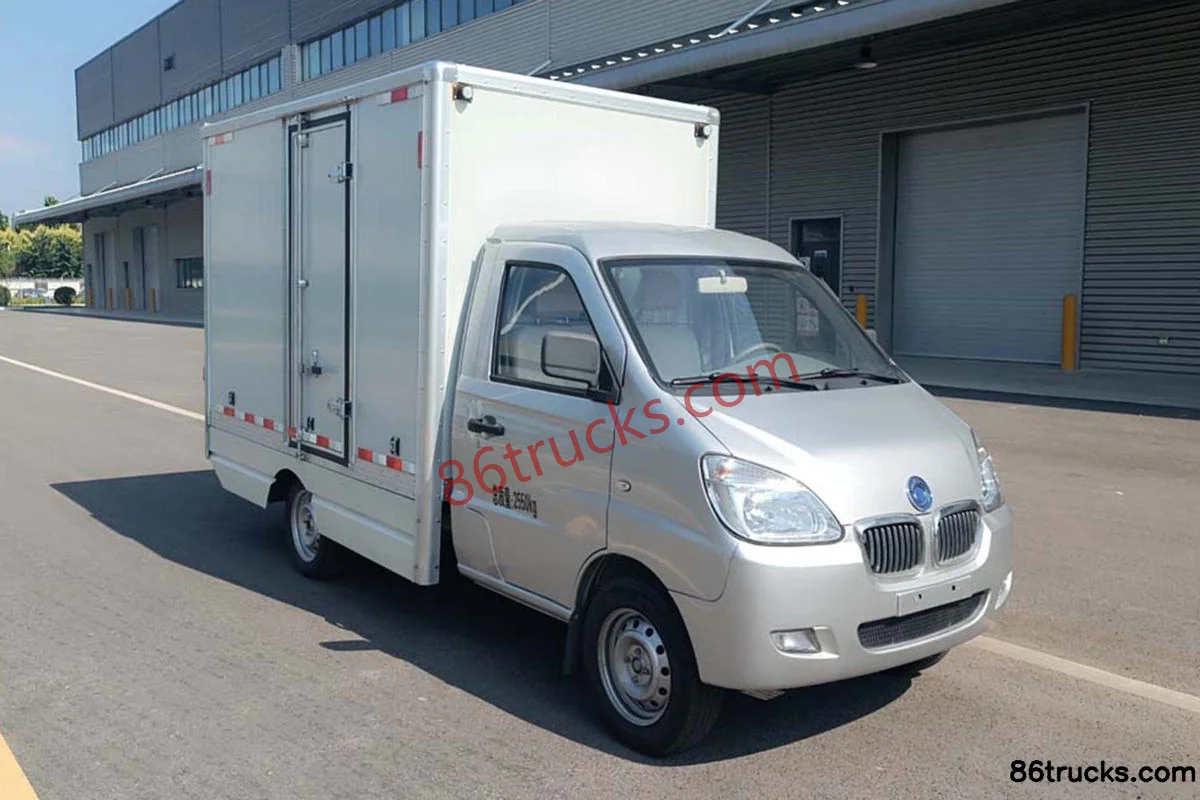

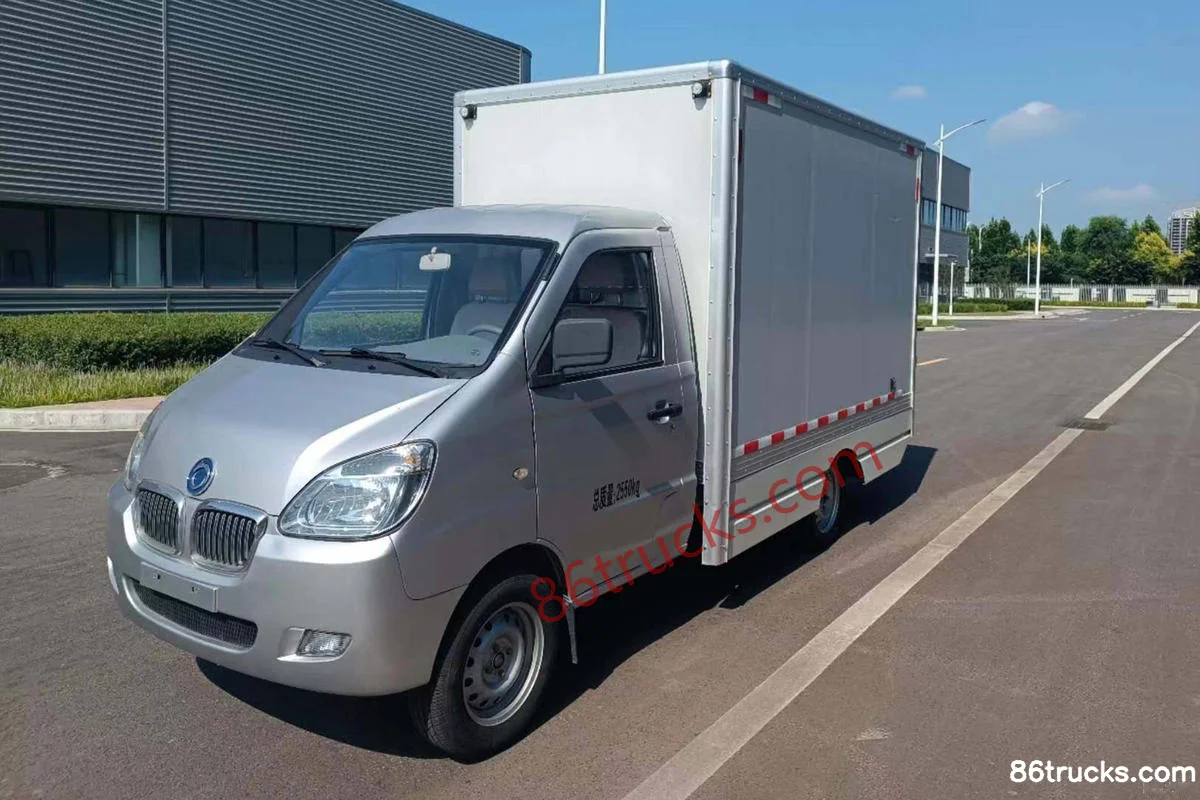

Photos

Exterior3

3 photos

FAQ

What is the export price of Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels), and what does it include?

Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels) export reference is about From $20,806; MSRP is ¥14.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels)?

Key specs of Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels) suited for?

Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels) differ from other variants in the same series?

Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels) belongs to T20 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Zixiang Pai T20 2.5T 2.76m single-row pure electric van micro truck 33.28kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
