Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI)

Export reference
MSRP N/A
Horsepower: 490
Emission: China VI
Fuel: Diesel
Engine: Fukang 12L
Transmission: ZF
Curb Weight:: 11.2ton
seating capacity: 2Personnel
Rated payload: 19.67ton
Drive 8X4 (12 wheels)
Cargo box length: 9.53m

Overview

The Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI) is a Heavy-duty cargo trucks featuring 9.53m cargo length, 9.53m cargo body, 2Personnel volume and 19.67t payload. Its segment focus covers LTL transport, matching those duty cycles. On the powertrain side, it comes with a Fukang 12L engine, 490 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 490 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1319Y6GRL-06
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 2100+4400+1350mm
Box length class: 9.5m
engine: FotonX12NS6B490
transmission: ZF automatic transmission
Rear Axle Ratio: 2.846
Cab length: 12m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 2020/2020mm
rear track: 1880/1880mm
Curb Weight: 11.2ton
Rated payload: 19.67ton
GVWR: 31ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 11°
market segment: LTL transport
Front/rear suspension: 1.46/2.69m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX12NS6B490
Engine info: Fukang 12L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.8L
Emission standard: China VI
Max output power: 360kW
Max hp: 490Horsepower
Max torque: 2300N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZF automatic transmission
Transmission Brand: ZF
shift method: AMT manual/auto
Housing Material: aluminum alloy
Cargo box parameters
Cargo box length: 9.53m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: EST
Cab tilting: Electric
seating capacity: 2Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 800L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.846
Leaf spring count: 2/2/3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

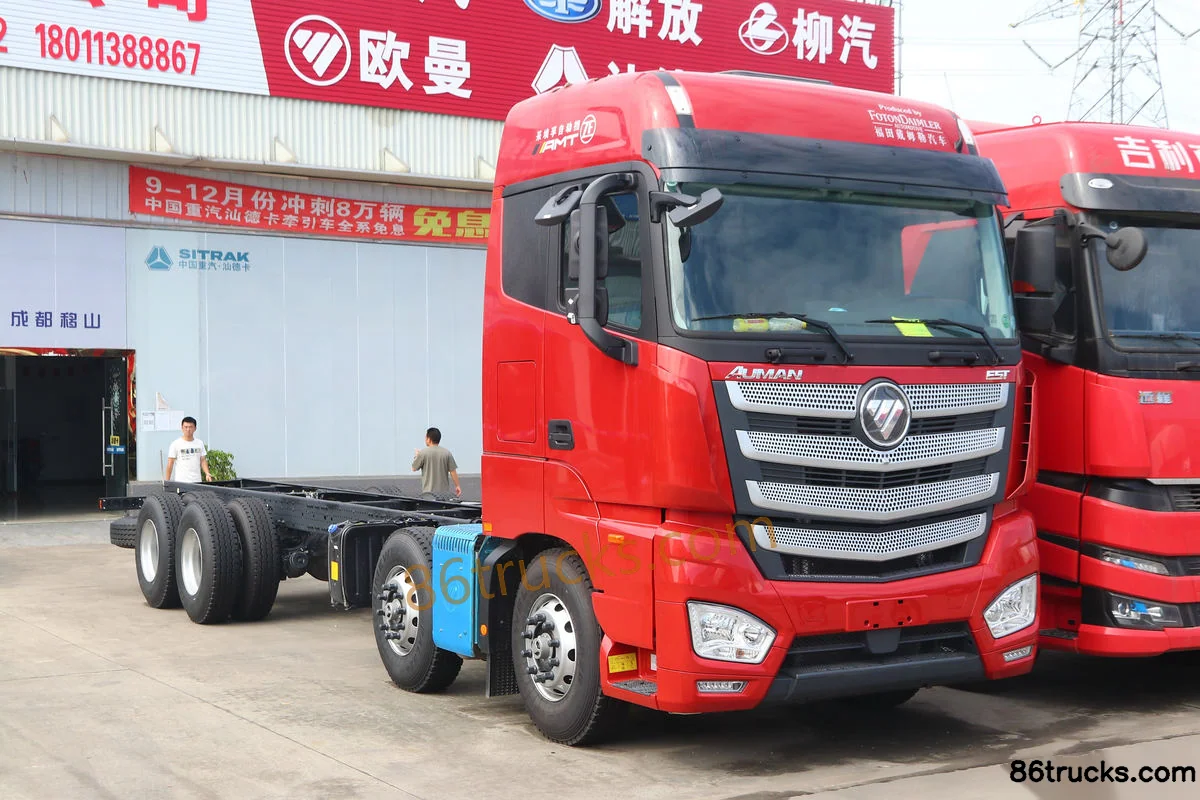

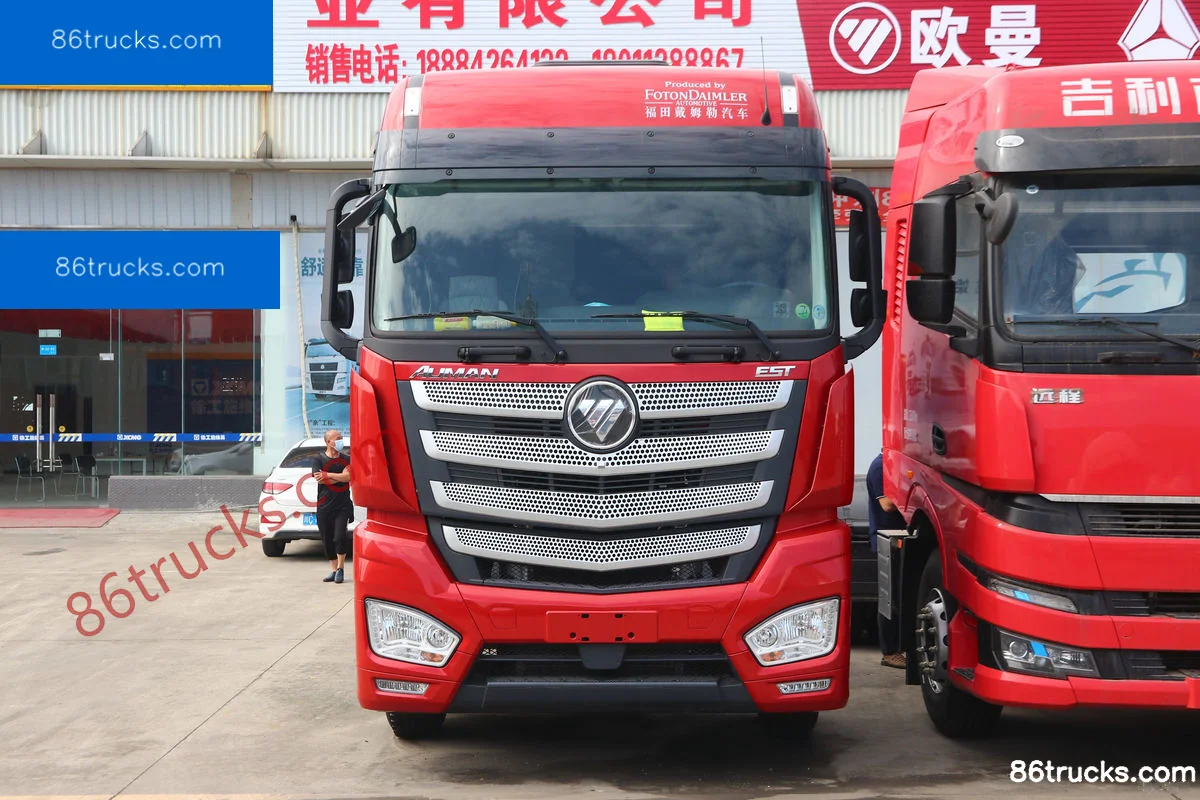

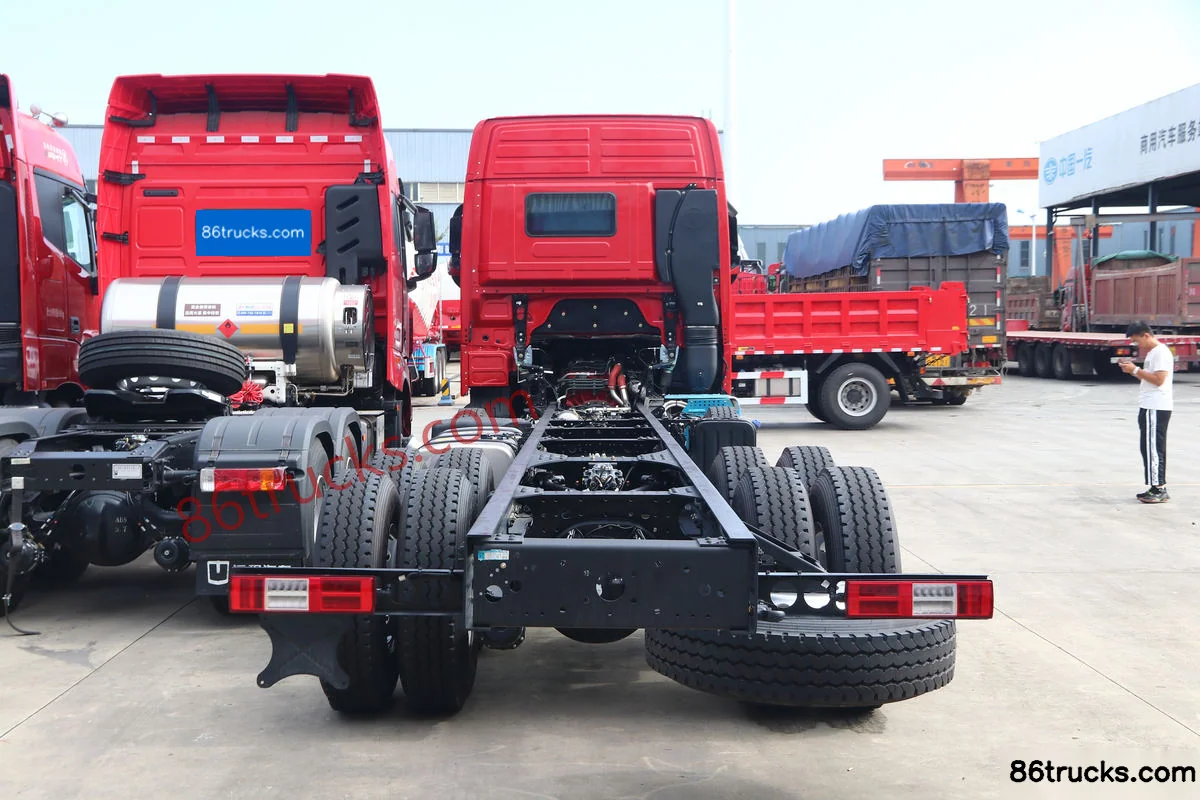

Exterior3

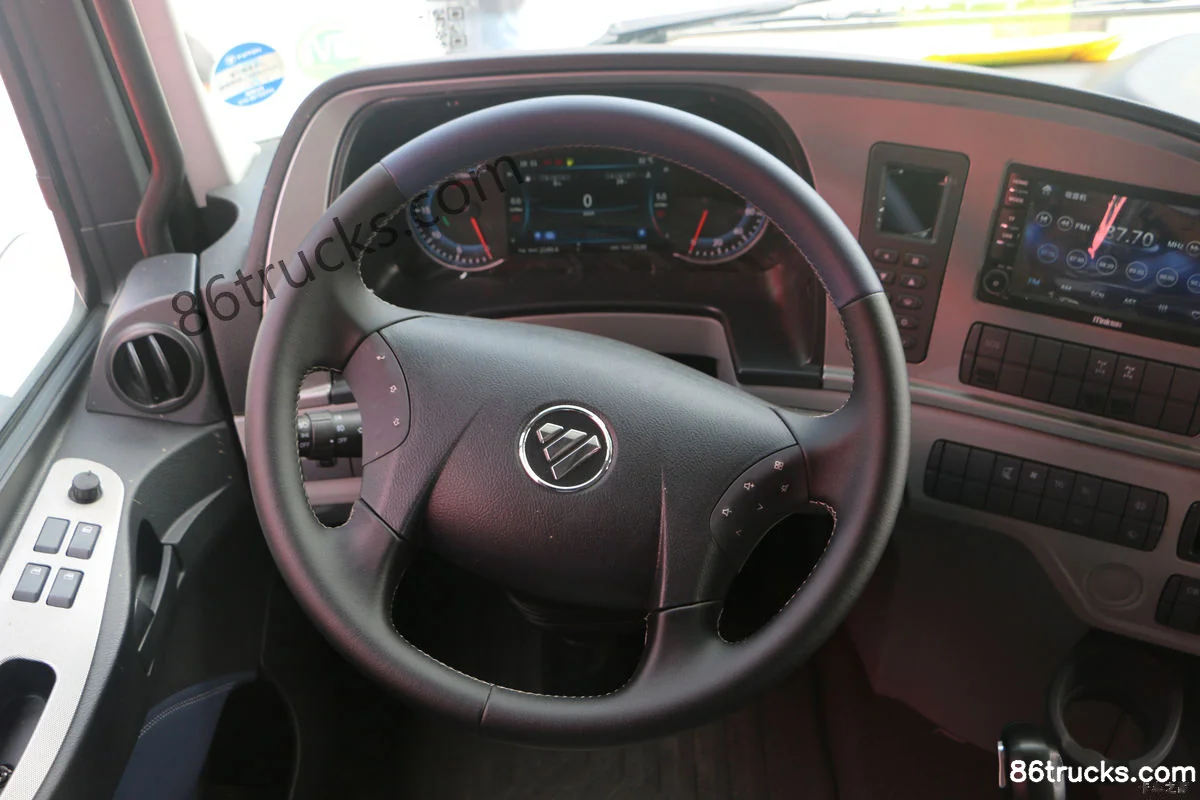

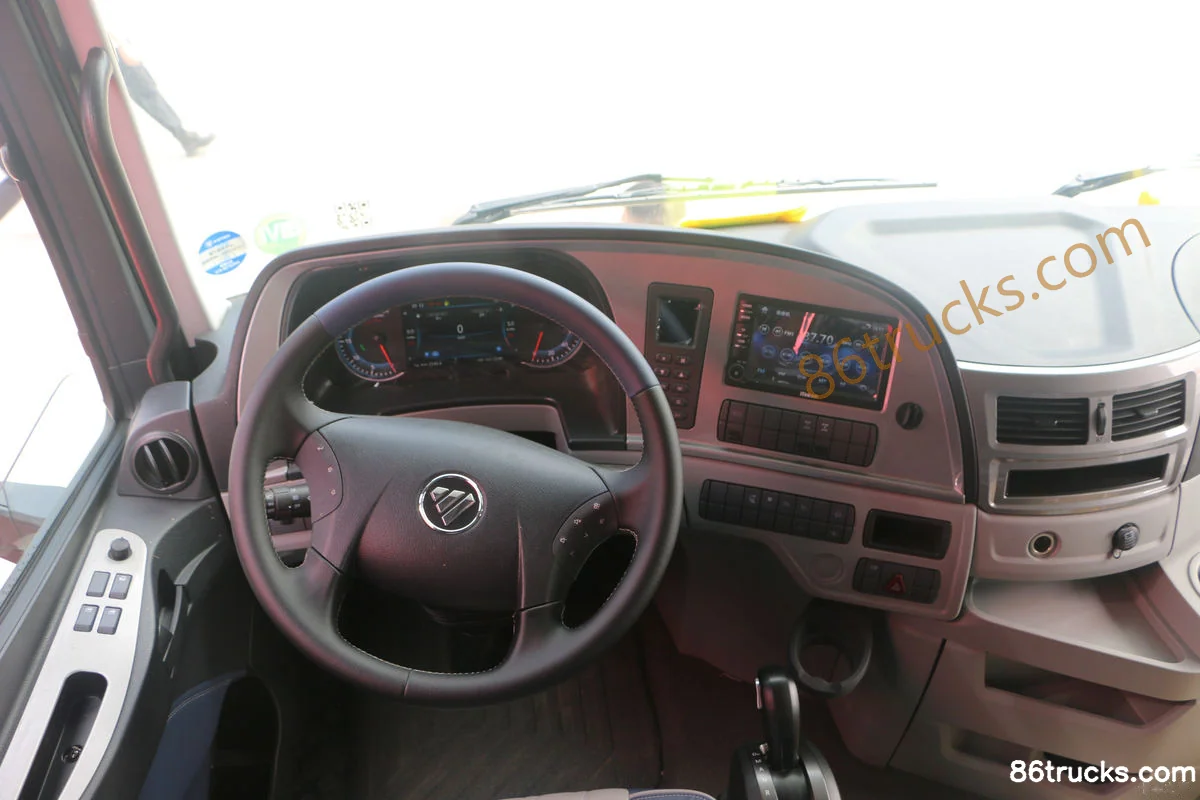

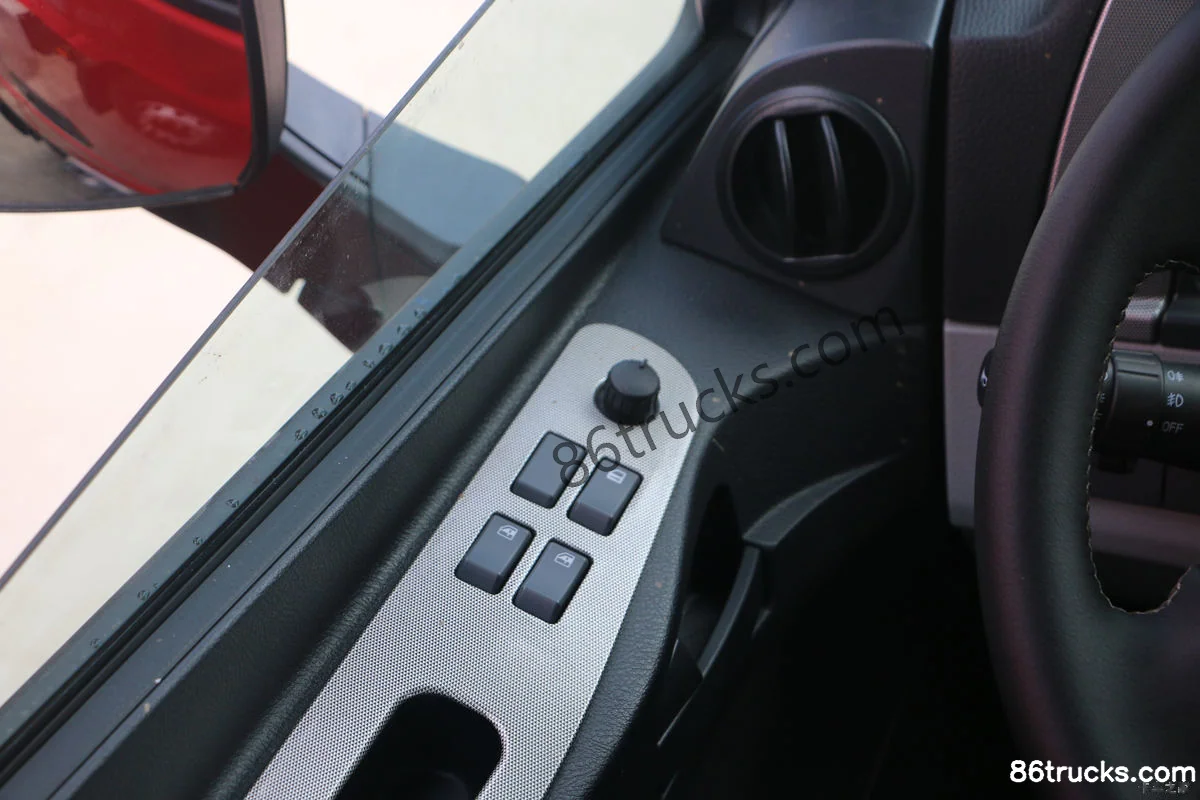

Cab3

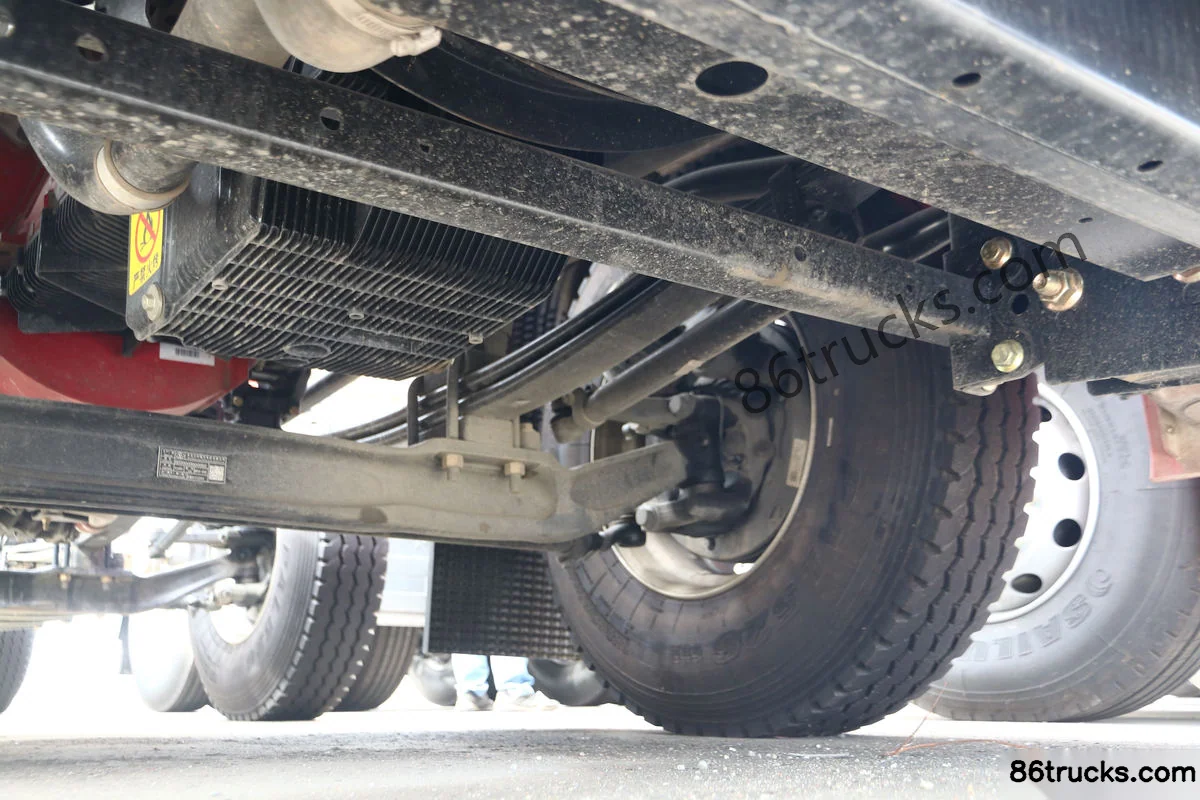

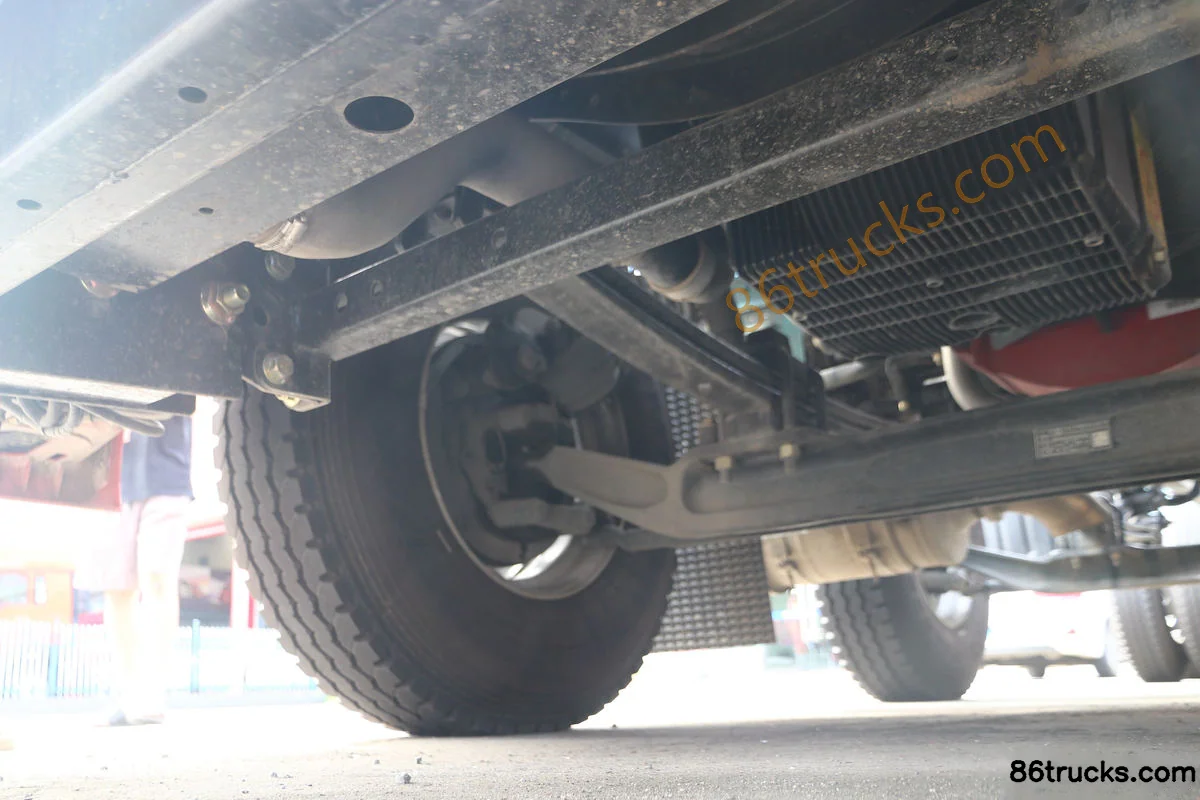

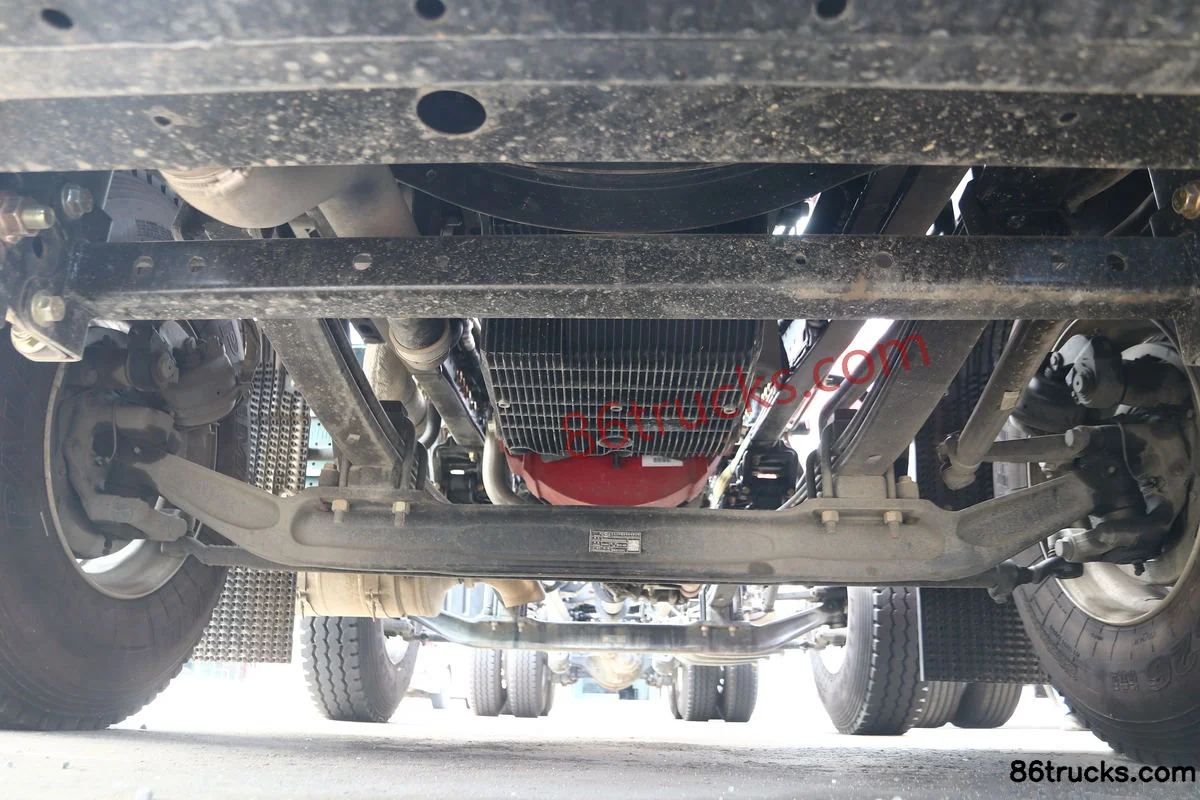

Chassis3

9 photos

FAQ

What emission standard does Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI)?

Key specs of Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI): Drive: 8x4; Horsepower: 490 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang 12L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI) suited for?

Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI) differ from other variants in the same series?

Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI) belongs to Foton Auman EST Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman EST 6 Series Heavy Truck 490 hp 8X4(12 wheels) 9.53m AMT Automatic Flat Side Panel Cargo Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
