FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3450+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 13.21L
Drive 6X4 (10 wheels)
Horsepower 580
Emission China VI
Transmission FAW Jiefang

Overview

The FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 580 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a XichaiCA6DV1-58E66 engine, FAW Jiefang transmission and Diesel fuel.

China VI 580 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4258P25K2T1E6A80
Drive type: 6X4
Wheelbase: 3450+1350mm
engine: XichaiCA6DV1-58E66
transmission: FAW JiefangCA12TA280SRT
Rear Axle Ratio: 2.688
Cab length: 7m
Cab width: 2.5m
Cab height: 3.55m
Front track width: 2020mm
Gross Trailer Weight: 40ton
rear track: 1830/1830mm
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: CA6DV1-58E66
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 13.21L
Emission standard: China VI
Max output power: 429kW
Max hp: 580Horsepower
Transmission Parameters
Transmission Model: CA12TA280SRT
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: Aluminum
Fuel tank heating: 725L water-heated
Fuel tank capacity: 1200L
Cab parameters
Cab: Yingteng Low-floor Large Sleeper High Roof Cab
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Fifth wheel: 90#
Front axle allowable load: 7000kg
Frame Dimensions: 280 single-layer platemm
rear axle description: 435 upgraded axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.688
Leaf spring count: 2/2
clutch: Φ430
Tire
Tire Size: 12R22.5 18PR
Tire Type: Front aluminum alloy, rear lightweight steel rims
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
lighting configuration
LED headlight:
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
smart configuration
Trailer stability system:
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:

Photos

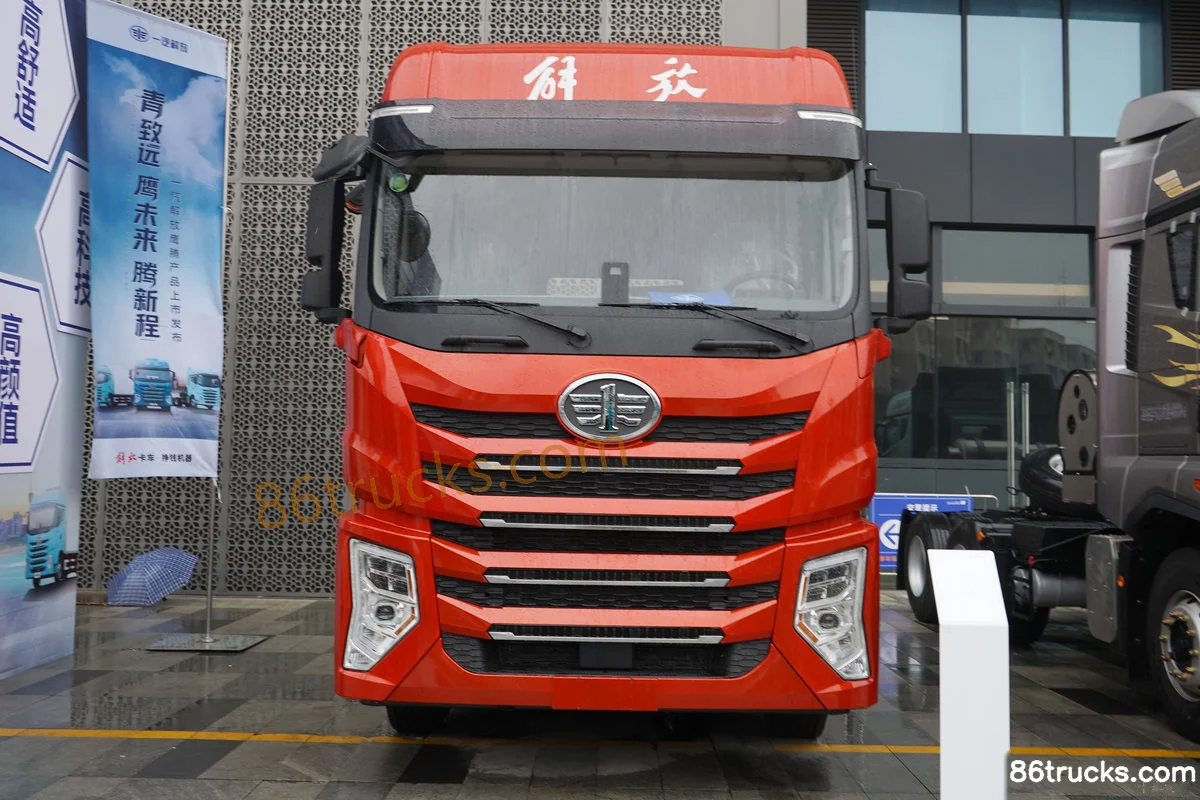

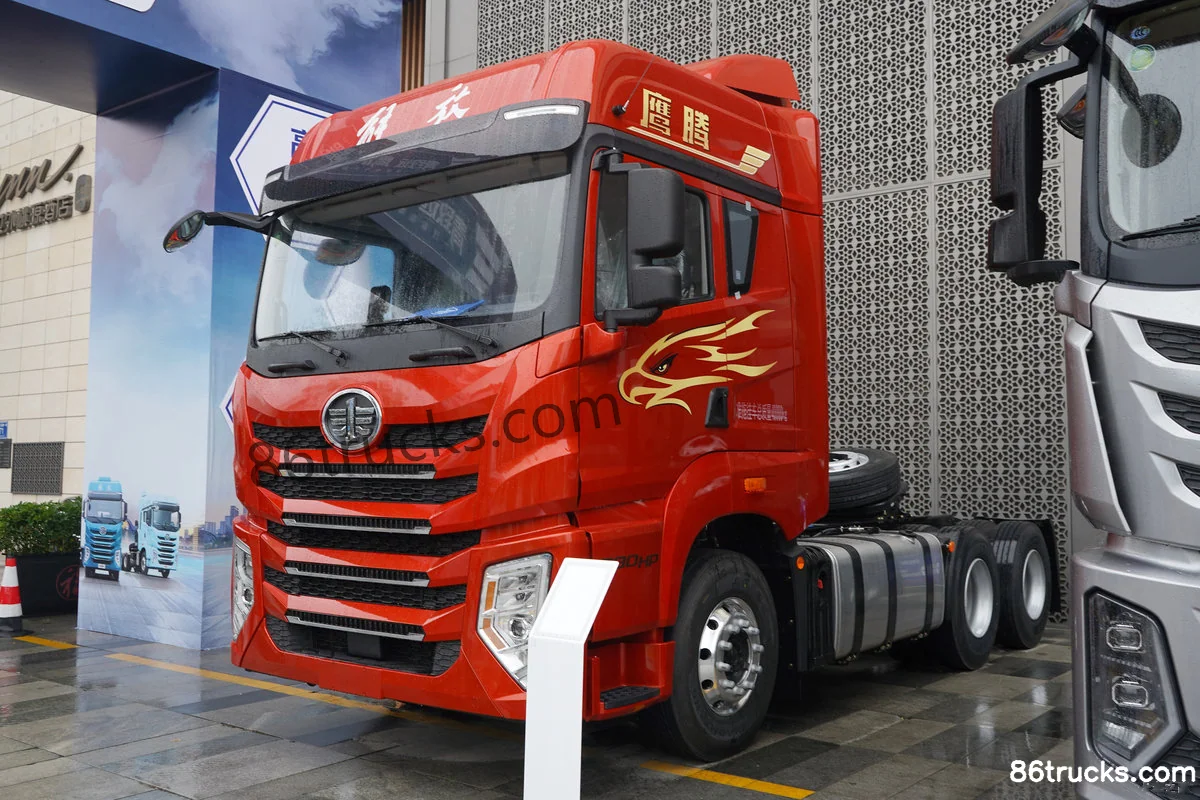

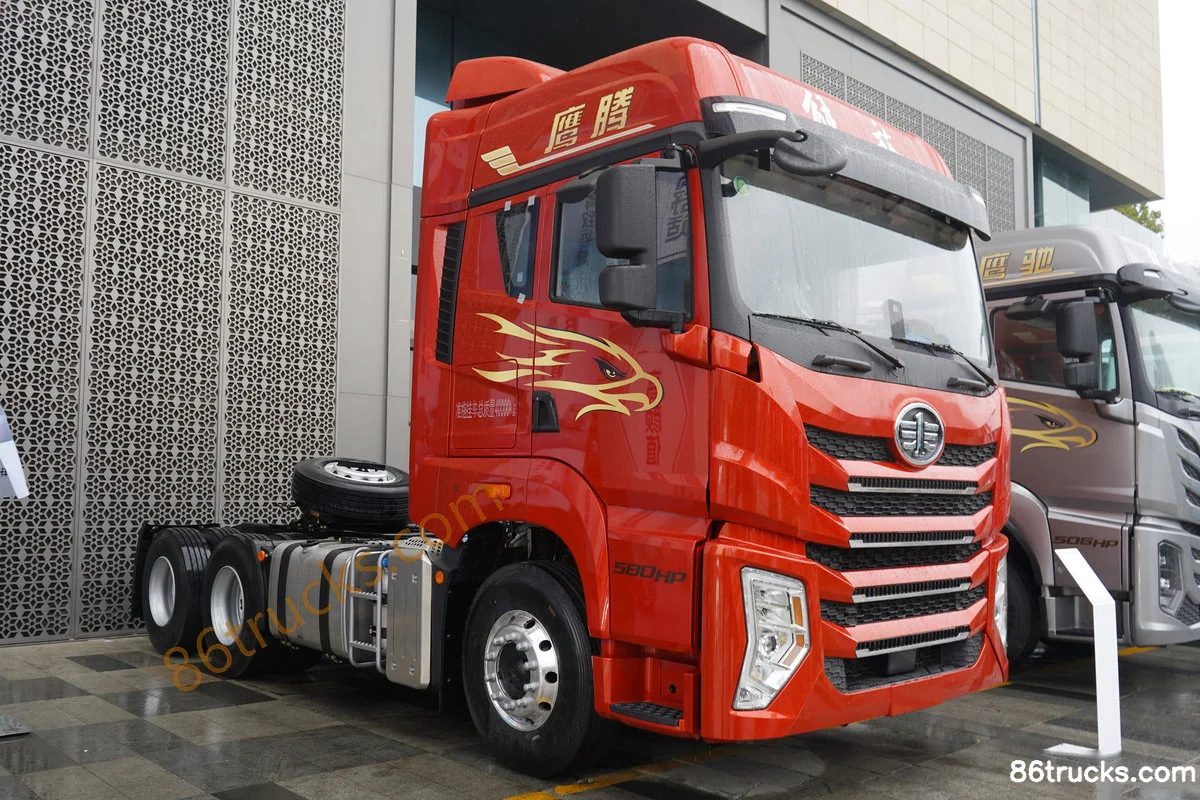

Exterior3

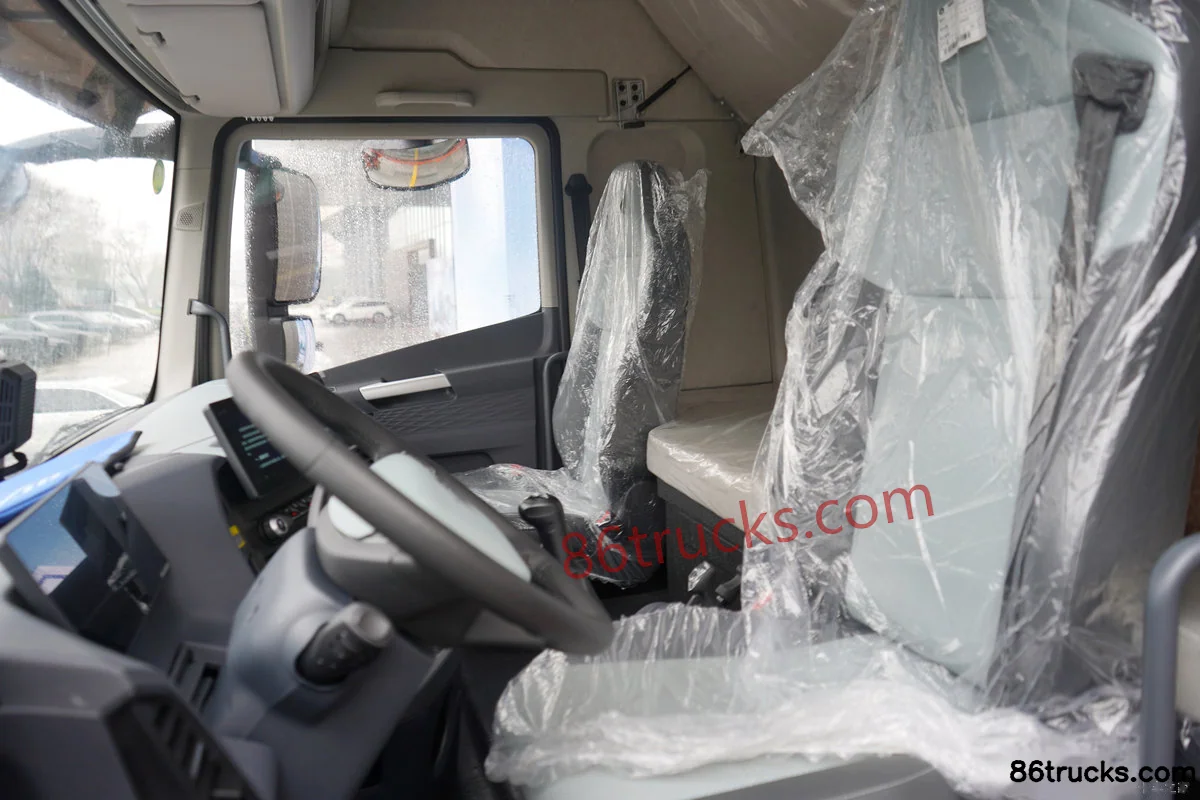

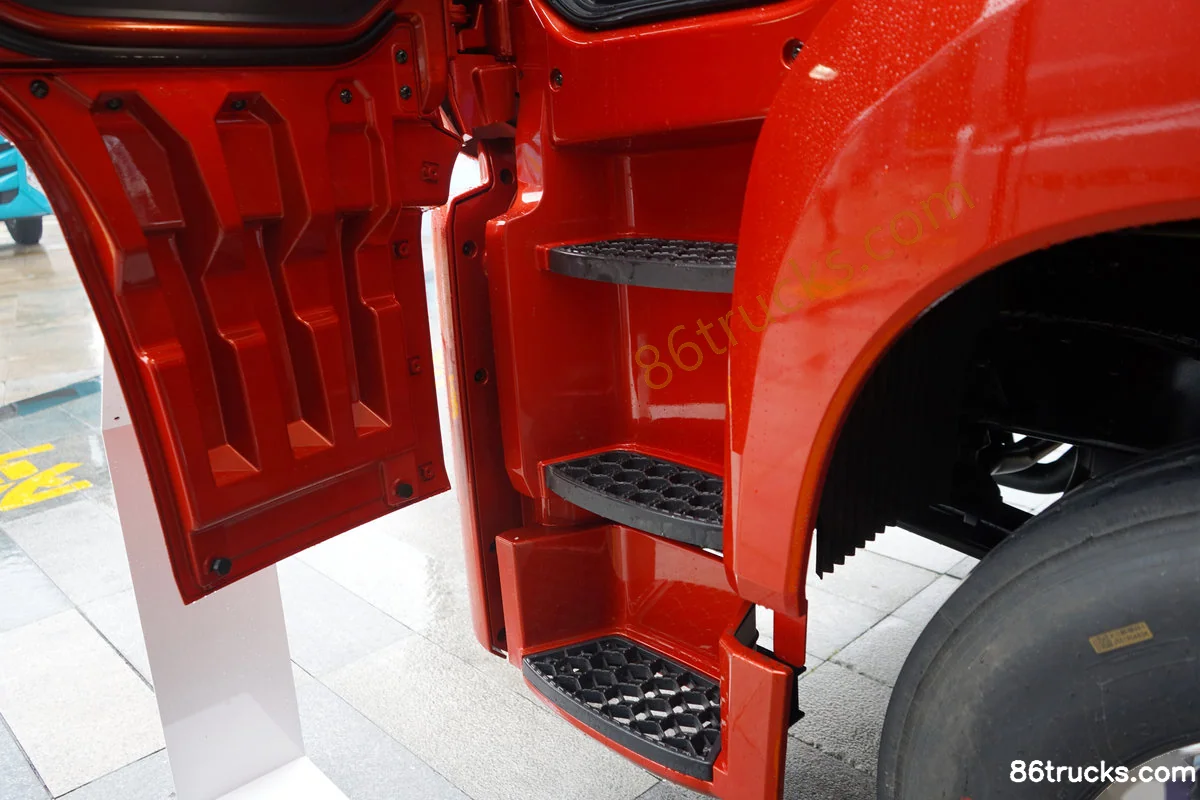

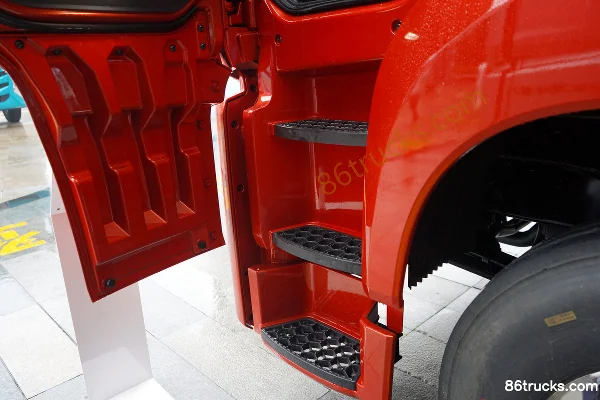

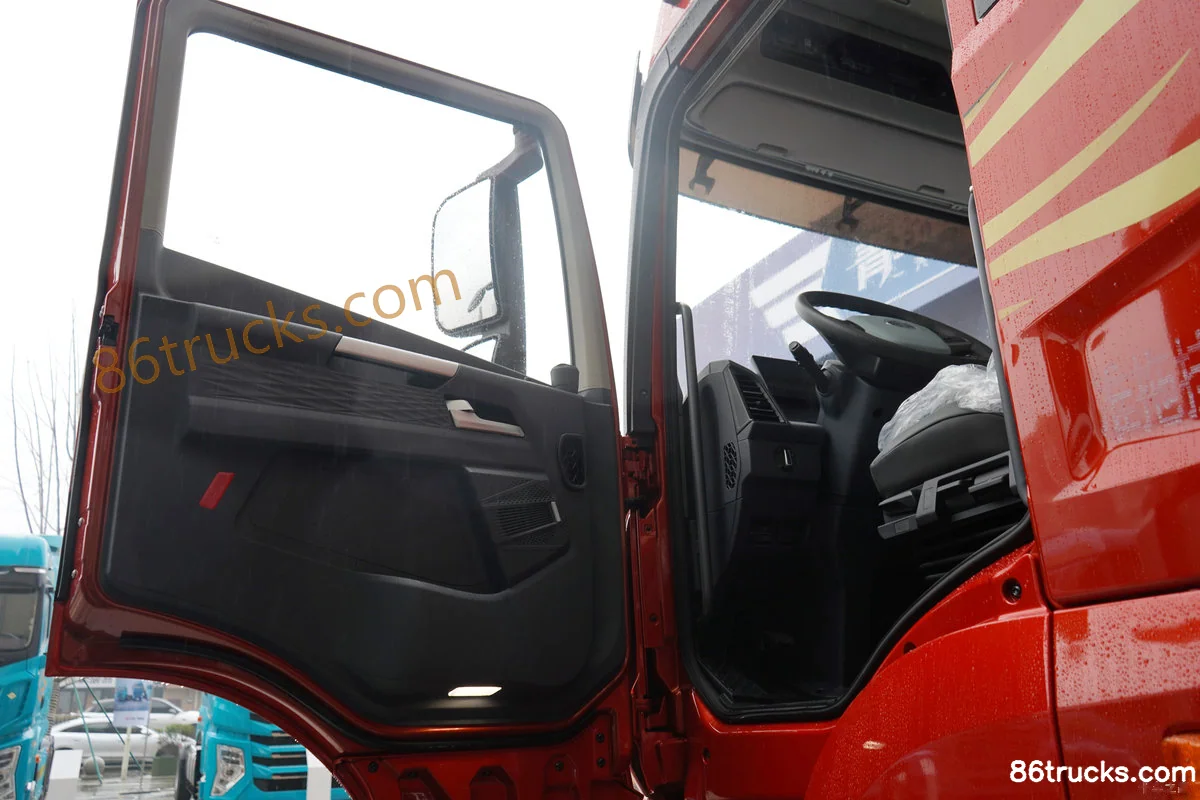

Cab3

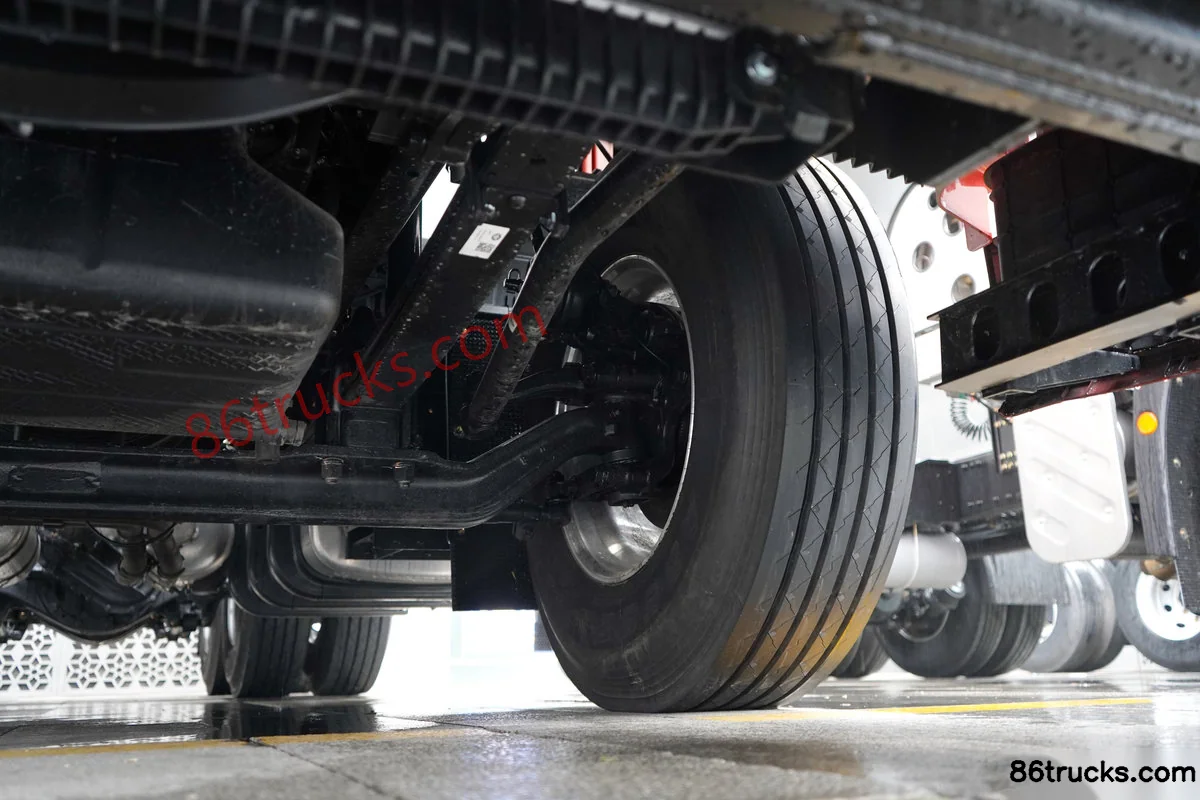

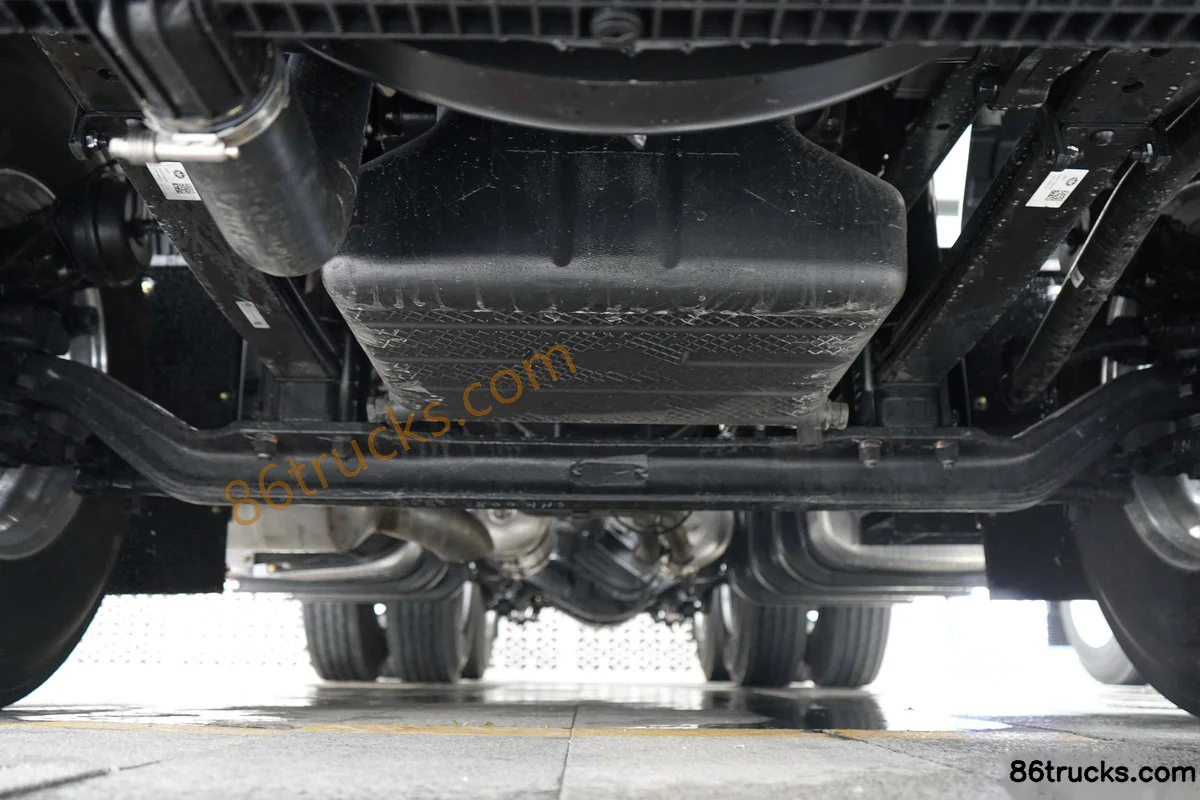

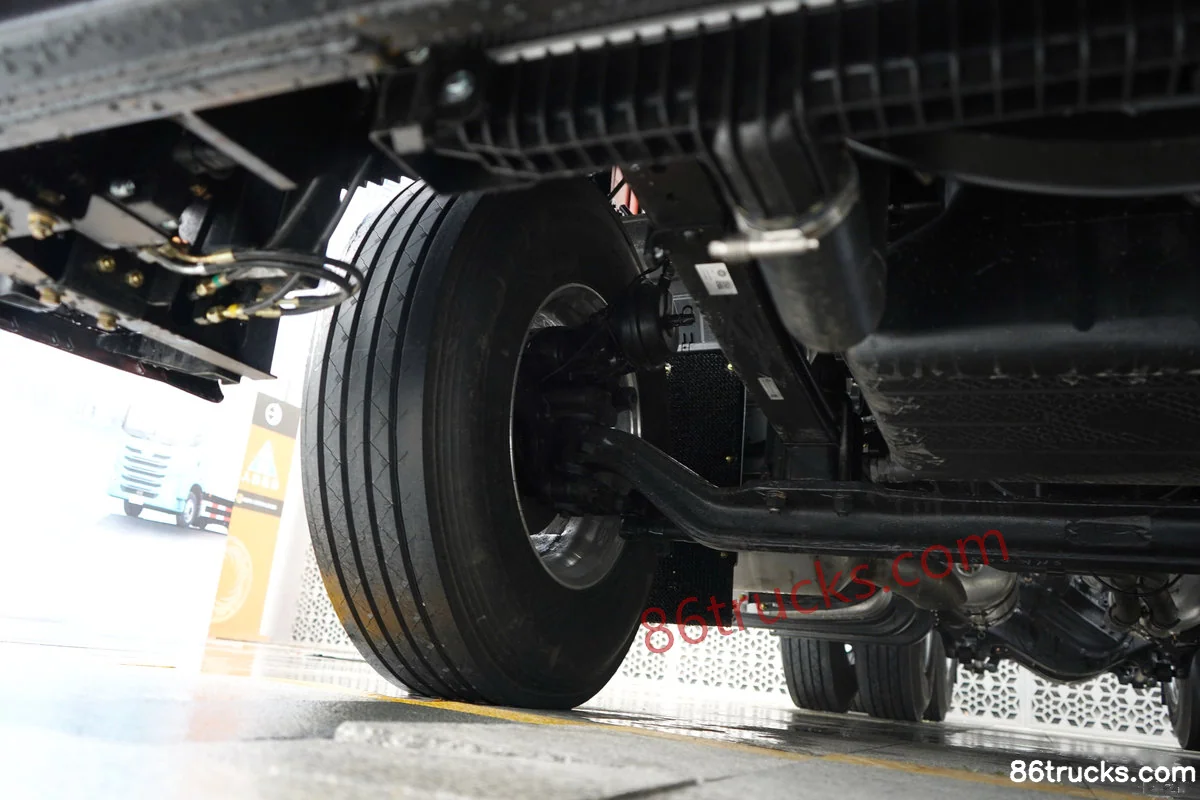

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck?

Key specs of FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck: Drive: 6x4; Horsepower: 580 hp; Emission: China VI; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck suited for?

FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck differ from other variants in the same series?

FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck belongs to FAW Jiefang Qingdao Yingteng Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Yingteng 13.2L Diesel 580 hp 6X4(10 wheels) FAW Jiefang 12-Speed Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
