JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck

Export reference
From $12,236
MSRP ¥8.81M CNY
Horsepower: 109
Emission: China IV
Fuel: Diesel
Engine: JMC493
Transmission: JMC
Curb Weight:: 2.5ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck is a Light Truck featuring 4.18m cargo length, Stake type cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a JMC493 engine, 109 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5044CCYXG2
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Nanchang JMC JX493ZLQ4
transmission: JMCJC528T8
Cab length: 5.995m
Cab width: 1.92m
Cab height: 2.9m
Front track width: 1385mm
rear track: 1425mm
Curb Weight: 2.5ton
Rated payload: 1.495ton
GVWR: 4.125ton
Max. speed: 95km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 27°
departure angle: 15.3°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.065/1.57m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ4
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 260N·m
Max torque speed: 1800-2000rpm
Rated speed: 3800rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: JMCJC528T8
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 1.8m
Cargo box height: 0.37m
*Cargo box interior width: 1.7999999523163
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1685kg
rear axle description: 2440
rear axle allowable load: 2440kg
Leaf spring count: 7/4+5
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs
Control configuration
ABS:

Photos

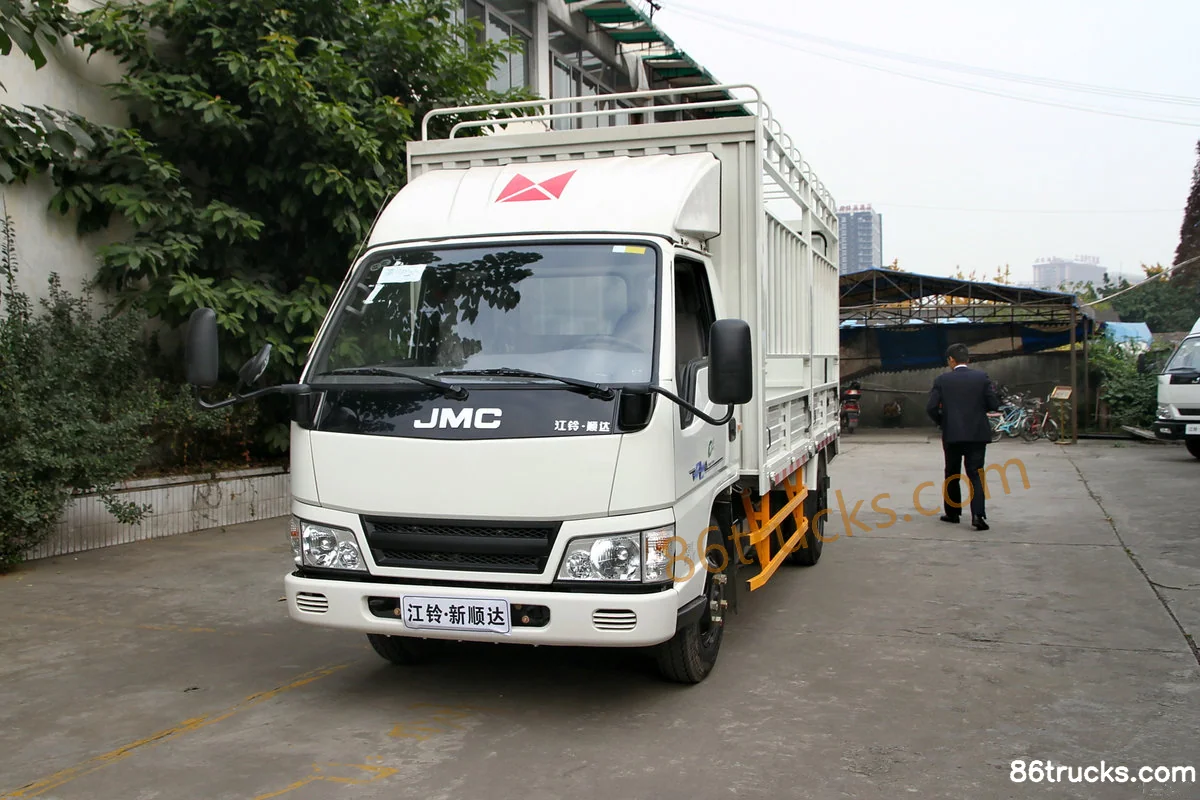

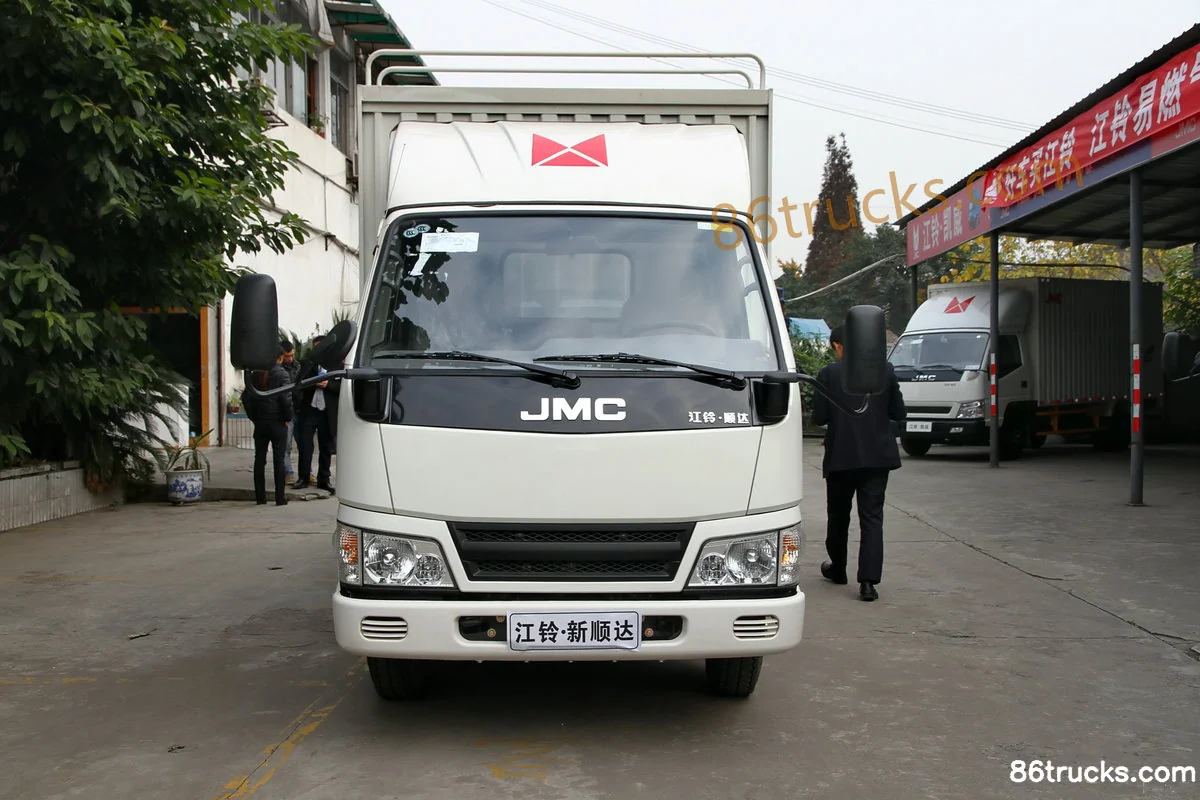

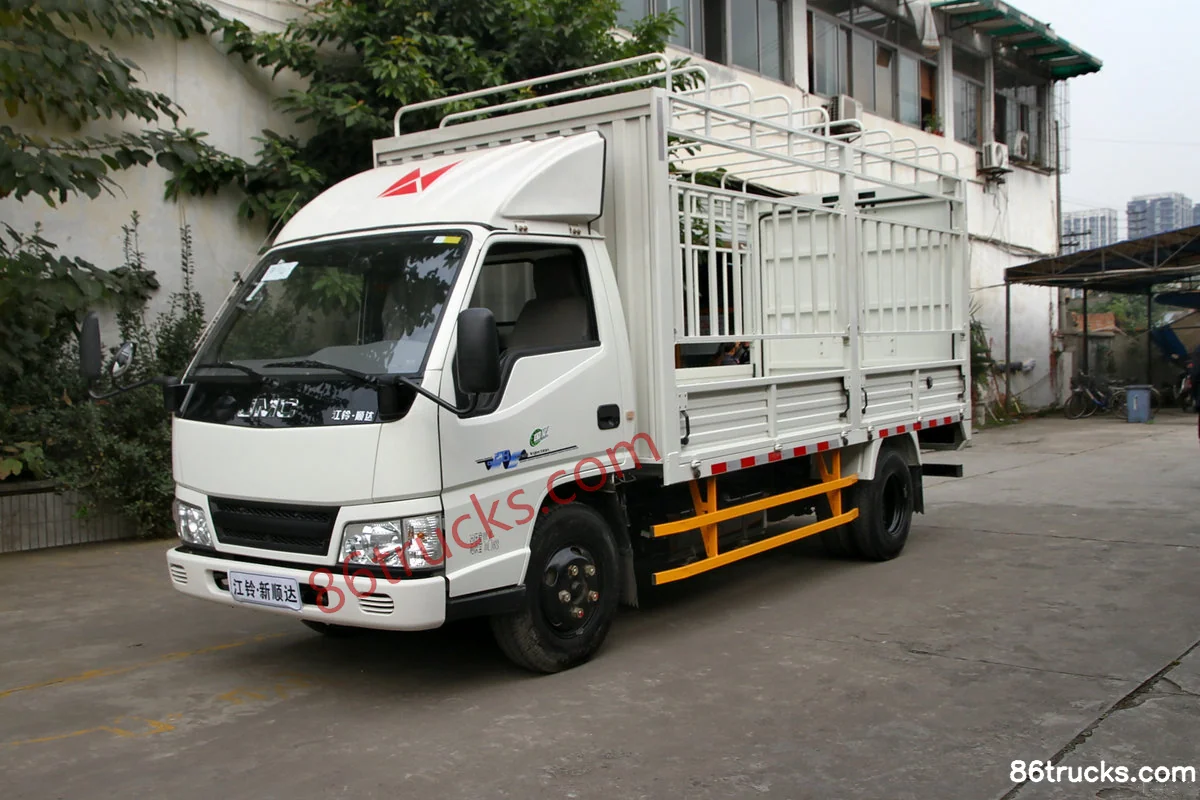

Exterior3

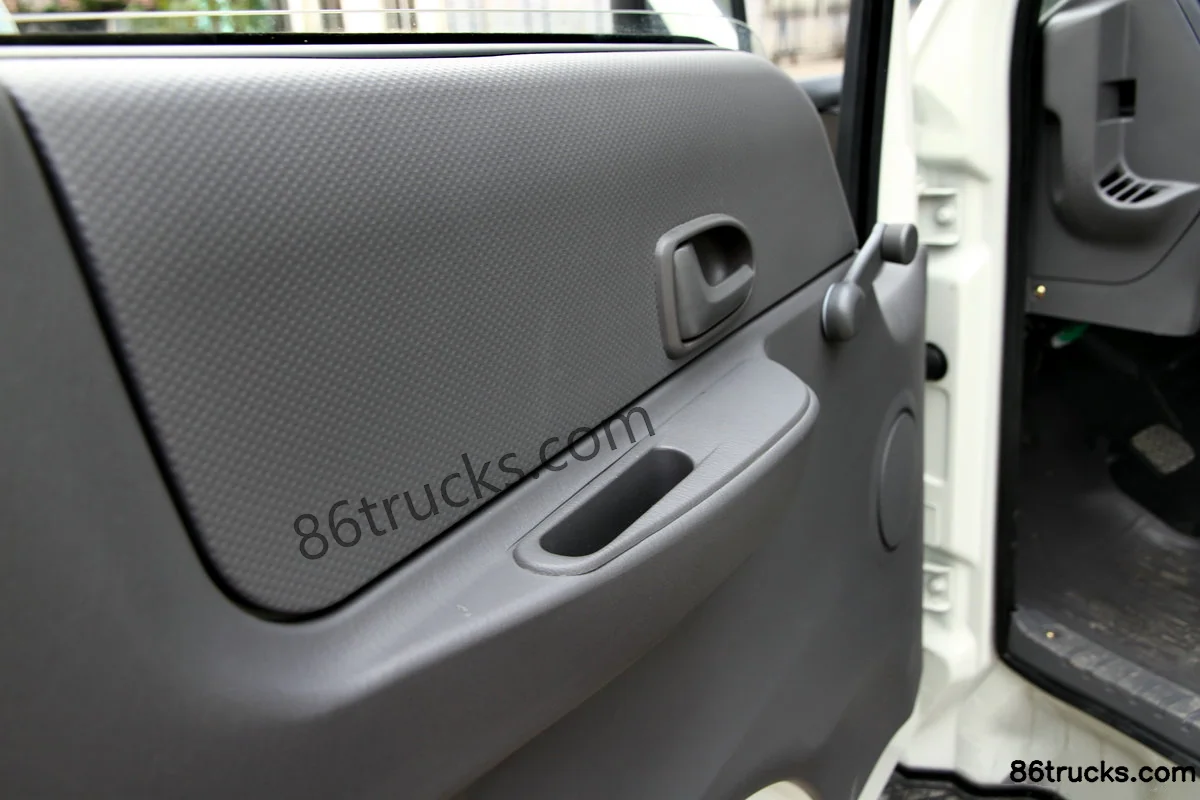

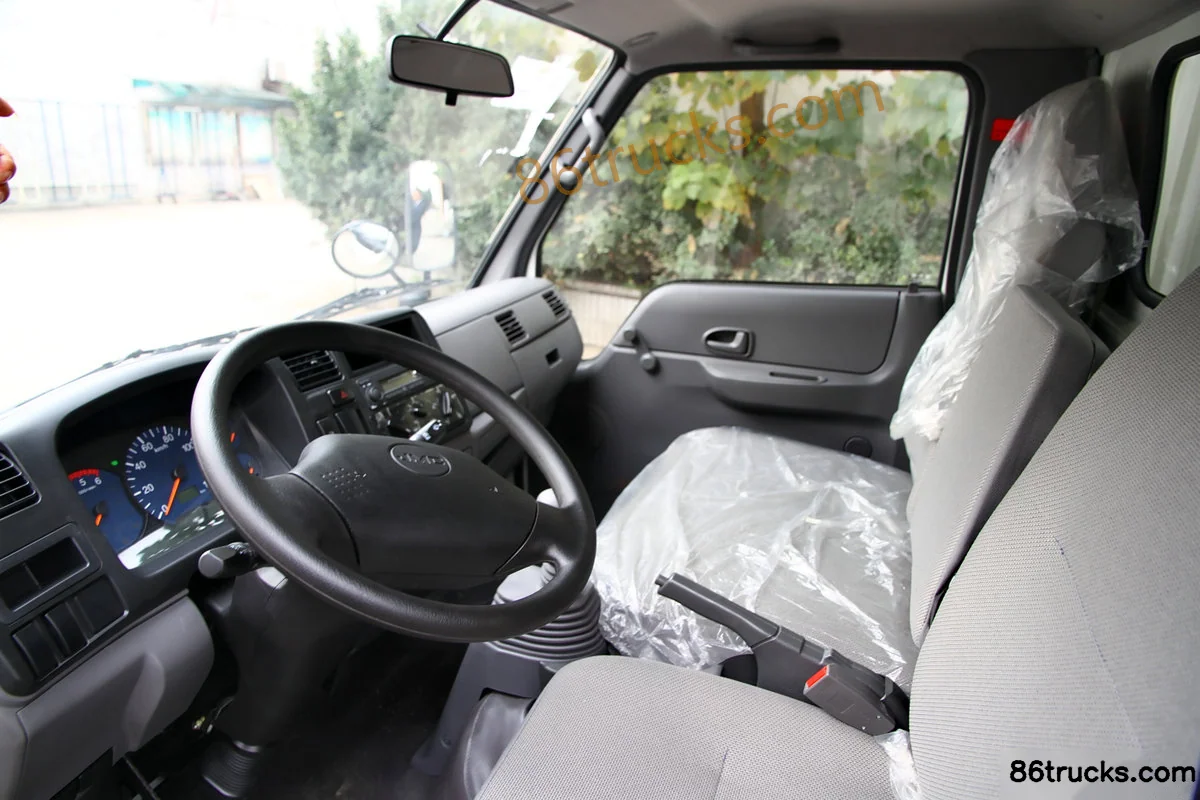

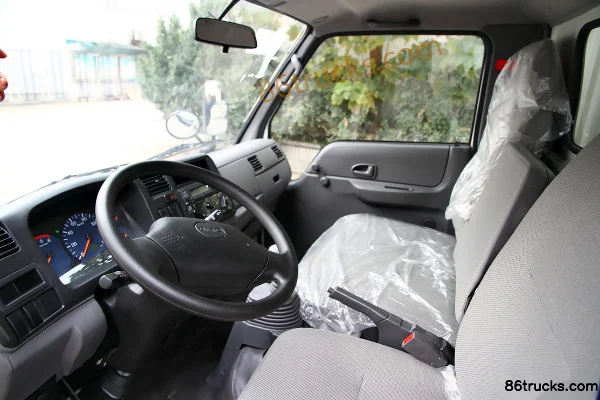

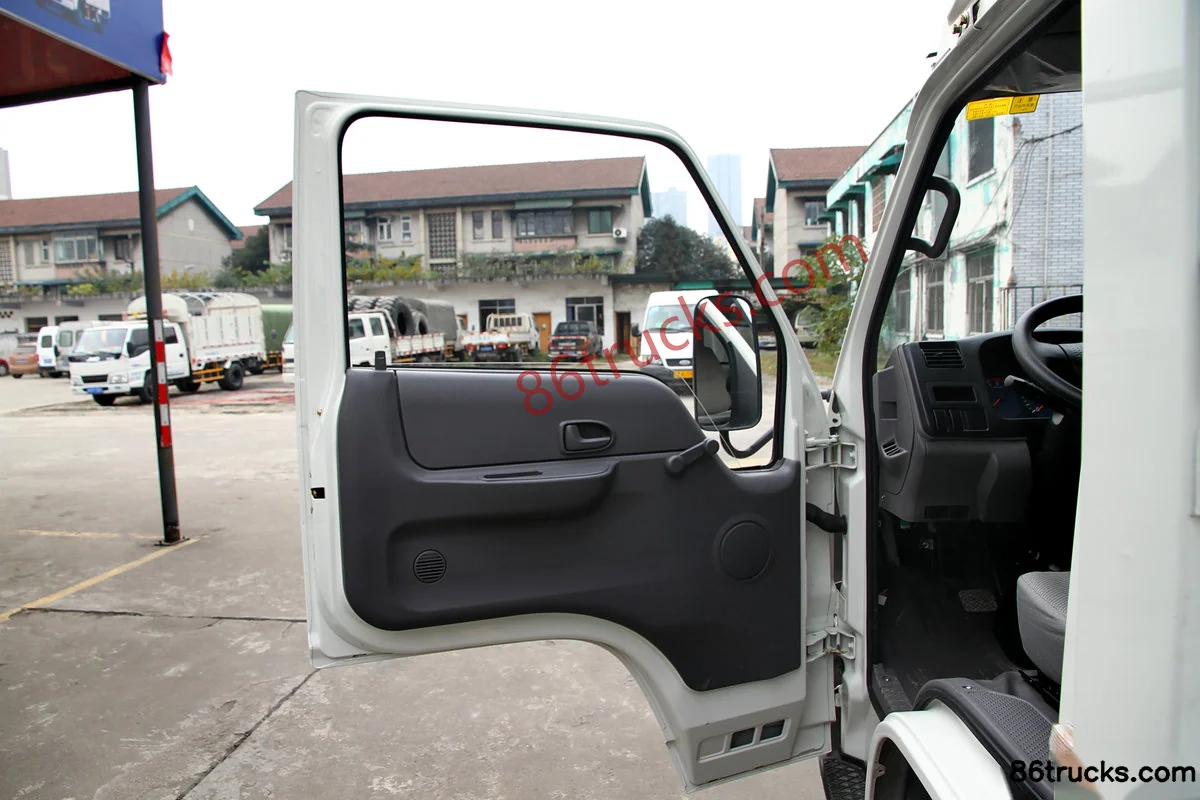

Cab3

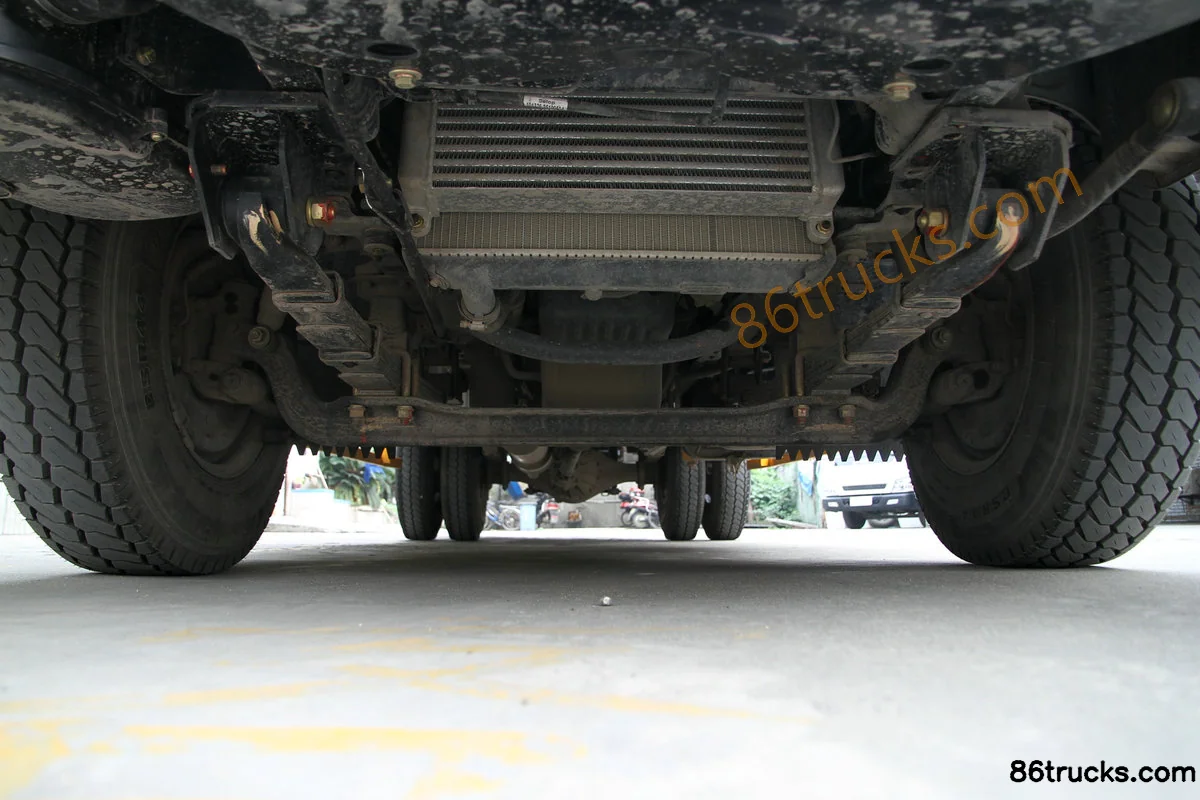

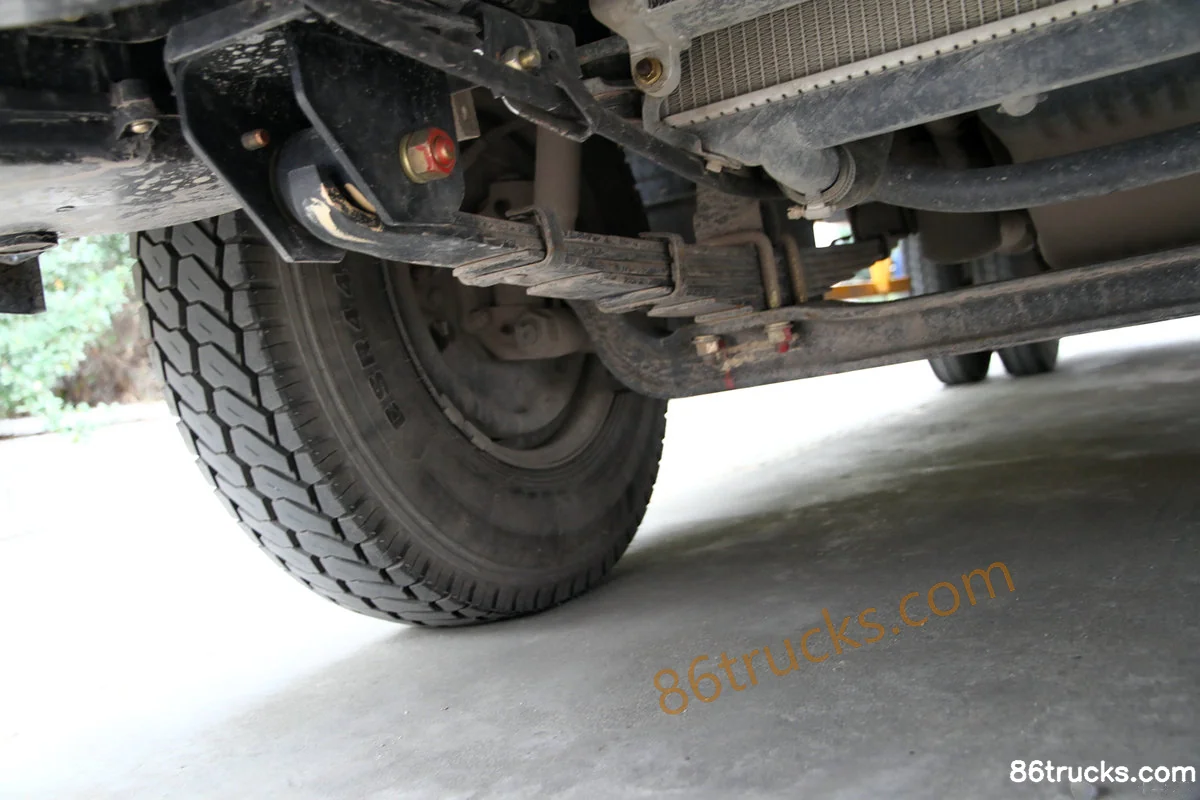

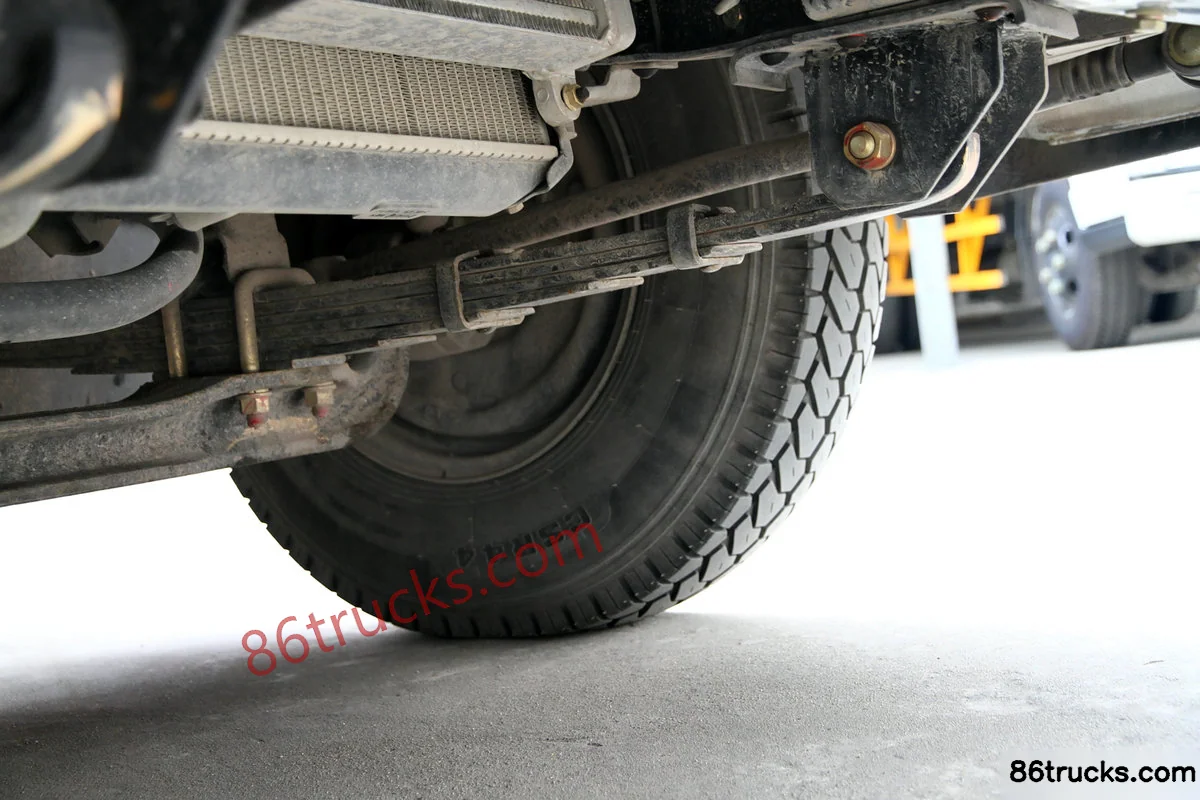

Chassis3

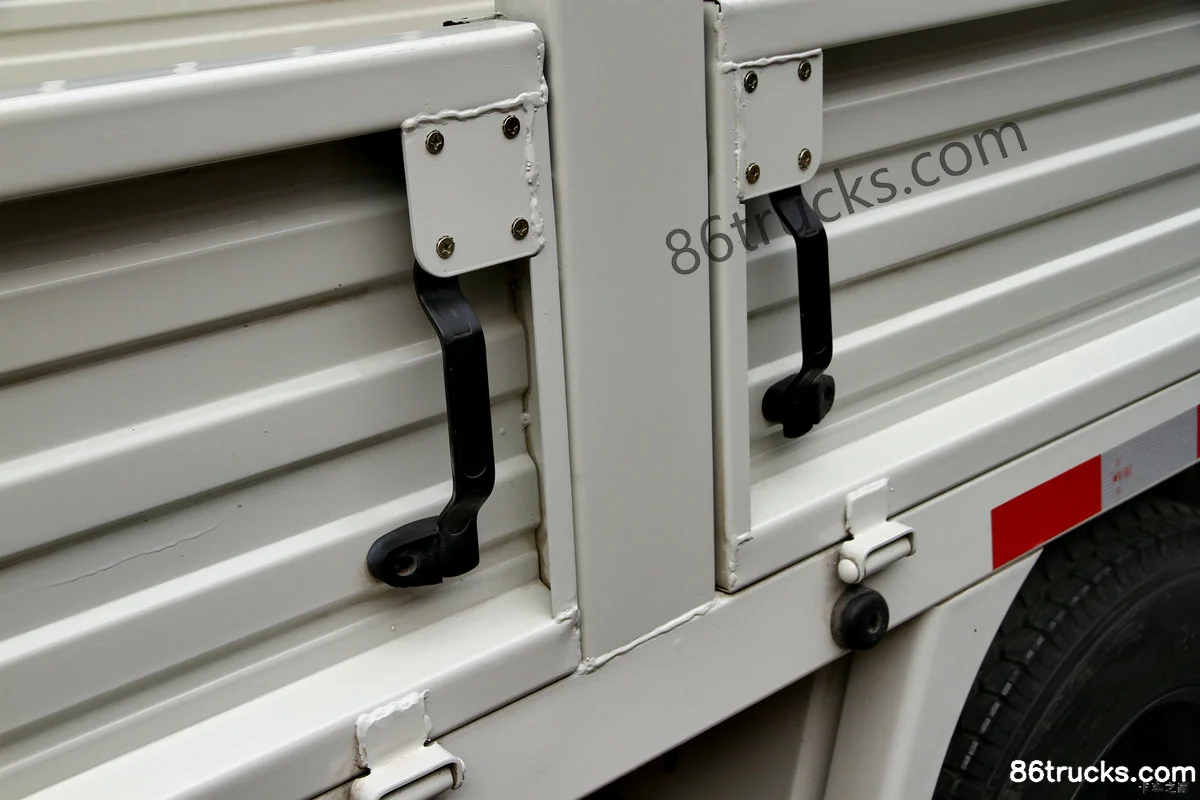

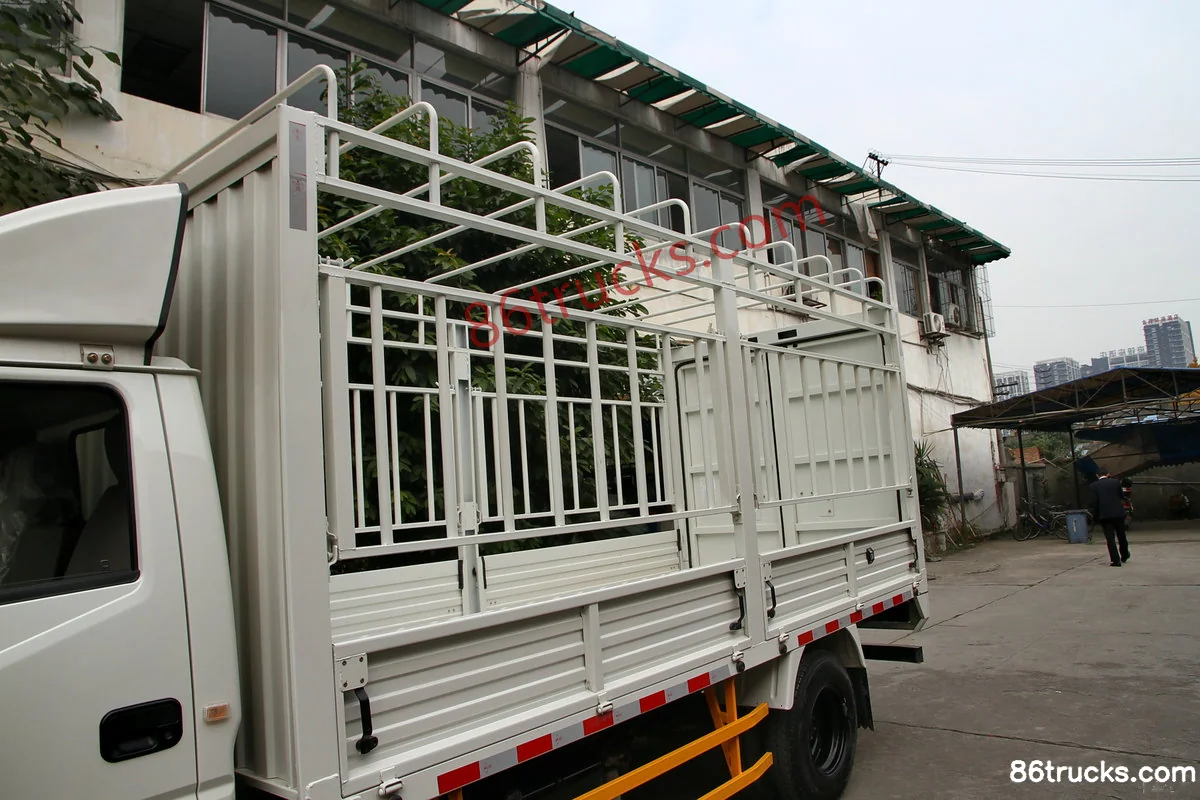

Body3

12 photos

FAQ

What is the export price of JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck, and what does it include?

JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck export reference is about From $12,236; MSRP is ¥8.81M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck?

Key specs of JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck: Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel; Engine: JMC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck suited for?

JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck differ from other variants in the same series?

JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck belongs to JMC New Shunda Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Shunda 109 hp 4X2(6 wheels) 4.18m Single Row Stake Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
