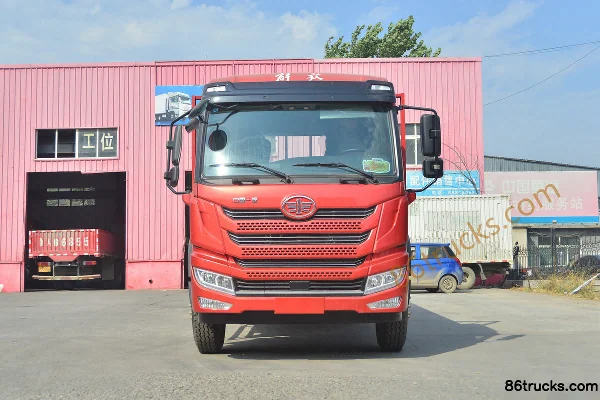

FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai)

Export reference
From $24,722
MSRP ¥17.8M CNY
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: WeichaiWP4.6
Transmission: Fast Gear
Curb Weight:: 7.88ton
seating capacity: 3Personnel
Rated payload: 9.99ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai) is a Medium-duty truck featuring 5.75m cargo length, stake body cargo body, 3Personnel volume and 9.99t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP4.6 engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1181PK2L1E6A80
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4900mm
Box length class: 5.8m
engine: WeichaiWP4.6NQ220E61
transmission: Fast Gear8JS85C
Rear Axle Ratio: 4.333
Cab length: 8.075m
Cab width: 2.55m
Cab height: 2.8m
Front track width: 1922mm
rear track: 1860mm
Curb Weight: 7.88ton
Rated payload: 9.99ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Qingdao
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 10°
market segment: Building materials, agricultural products
Front/rear suspension: 1.332/2.243m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ220E61
Engine info: WeichaiWP4.6
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.58L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: 4-valve, high-pressure common rail, turbocharged intercooled, EGR+DPF+DOC+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.75m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Long V2.0 semi-high roof semi-floating cab
seating capacity: 3Personnel
Cab tilting: Electric
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: G116
Front axle allowable load: 6500kg
Frame Dimensions: 237×75×7mm
rear axle description: 385 upgraded cast axle
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 7/7+3
clutch: Φ395
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai), and what does it include?

FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai) export reference is about From $24,722; MSRP is ¥17.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai)?

Key specs of FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai): Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: WeichaiWP4.6; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai) suited for?

FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai) differ from other variants in the same series?

FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai) belongs to FAW Jiefang Qingdao Long V Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Long V Medium Truck 220 hp 4X2(6 wheels) 5.75m flatbed cargo truck (China VI) (Weichai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
