Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV)

Export reference
MSRP N/A
Horsepower: 270
Emission: China V
Fuel: Diesel
Engine: Yuchai7.5L
Transmission: Fast Gear
Curb Weight:: 10.305ton
seating capacity: 3Personnel
Rated payload: 21.5ton
Drive 8X2 (10 wheels)
Cargo box type: stake body

Overview

The Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV) is a Heavy-duty cargo trucks featuring 9.6m cargo length, stake body cargo body, 3Personnel volume and 21.5t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai7.5L engine, 270 hp, 8X2 (10 wheels) drive and China V emissions.

China V 270 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ1320GLV
Type: Chassis
Drive type: 8X2
Wheelbase: 1850+4650+1350mm
Box length class: 9.6m
engine: YuchaiYC6A270-50
transmission: Fast Gear9JS119
Rear Axle Ratio: 4.875
Cab length: 12m
Cab width: 2.55m
Cab height: 3.05m
Front track width: 1940/1940mm
rear track: 1860/1860mm
Curb Weight: 10.305ton
Rated payload: 21.5ton
GVWR: 32ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Heavy-duty cargo trucks
Approach angle: 28°
departure angle: 21°
market segment: Building materials, agricultural products
Front/rear suspension: 1.45/2.7m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A270-50
Engine info: Yuchai7.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.52L
Emission standard: China V
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear9JS119
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6750/6750kg
rear axle description: 13T
rear axle allowable load: 18500 (two-axle group)kg
Axle ratio: 4.875
Leaf spring count: 3/3/-/-,4/4/-/-,9/9/-/-
Tire
Tire Size: 11.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

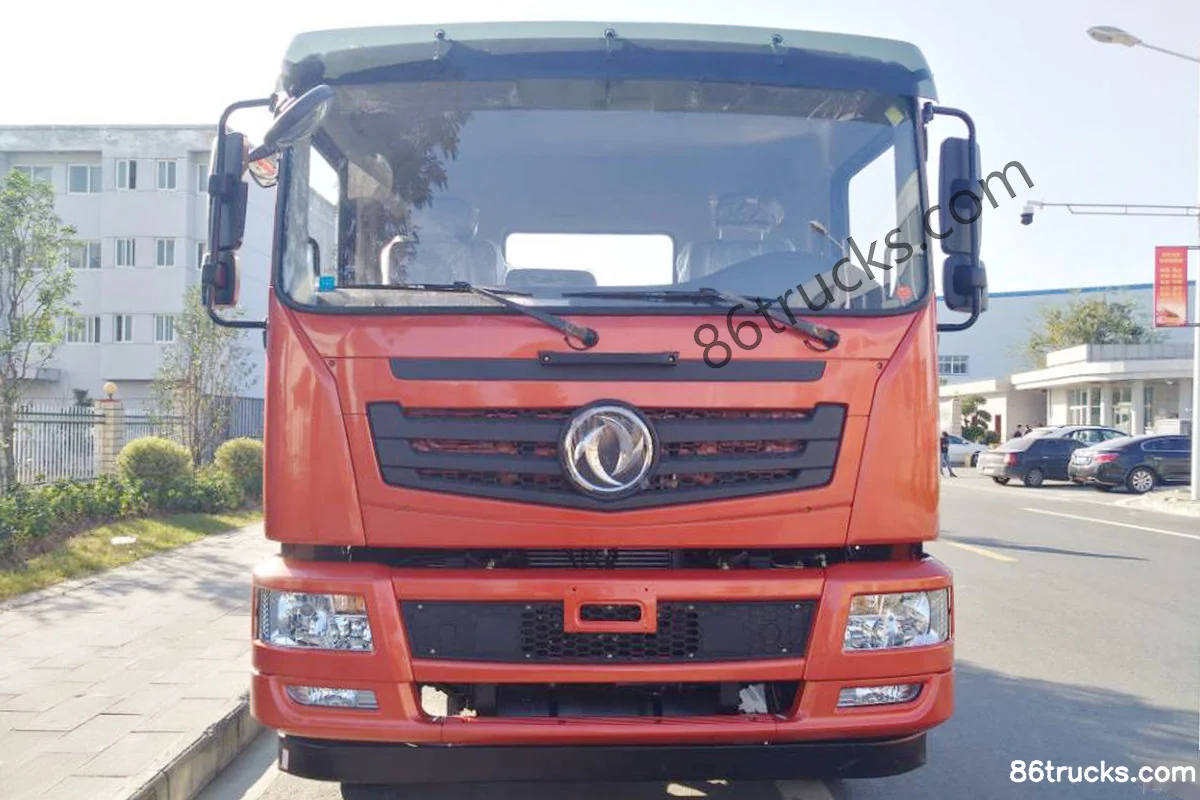

Exterior1

1 photos

FAQ

What emission standard does Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV)?

Key specs of Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV): Drive: 8x2; Horsepower: 270 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai7.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV) suited for?

Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV) differ from other variants in the same series?

Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV) belongs to Dongfeng Yulong (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Yulong heavy truck 270 hp 8X2(10 wheels) 9.6m flatbed cargo truck chassis (EQ1320GLV)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
