JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI)

Export reference
From $20,833
MSRP ¥15M CNY
Horsepower: 160
Emission: China VI
Fuel: Diesel
Engine: Ankang B4.0
Transmission: Fast Gear
Curb Weight:: 4.4ton
seating capacity: 3Personnel
Rated payload: 7.4ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI) is a Light Truck featuring 5.175m cargo length, Stake type cargo body, 3Personnel volume and 7.4t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Ankang B4.0 engine, 160 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5128CCYP71K2D1S
Type: stake truck
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.2m
engine: Anhui CumminsHFC4DE2-2E
transmission: Fast Gear8JS75TC
Cab length: 7.06m
Cab width: 2.55m
Cab height: 2.85m
Front track width: 1705mm
rear track: 1785mm
Curb Weight: 4.4ton
Rated payload: 7.4ton
GVWR: 11.995ton
Max. speed: 110km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 13°
market segment: Agricultural product transport, green channel
Remarks: Standard emission monitoring + BeiDou + telematics; steel cargo box, anti-spray device, roof vent, MP3, air drum brakes, dual batteries, self-adjusting arms, optional: 2450mm wide cargo box, patterned floor cargo box, bunk seat (with armrest), stabilizer bar
Front/rear suspension: 1.11/2.3m
Energy Type: Diesel
Engine parameters
Engine Brand: Anhui Cummins
Engine Model: Anhui CumminsHFC4DE2-2E
Engine info: Ankang B4.0
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.951L
Emission standard: China VI
Max output power: 117kW
Max hp: 160Horsepower
Max torque: 460N·m
Max torque speed: 1600-2400rpm
Rated speed: 2900rpm
Engine Type: EGR+DOC+DPF+SCR+ASC
Transmission Parameters
Transmission Model: Fast Gear8JS75TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 5.175m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 3795kg
rear axle allowable load: 8200kg
Leaf spring count: 9/9+7
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Exterior features
Aluminum air tank:
lighting configuration
daytime running lights:
LED taillight:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

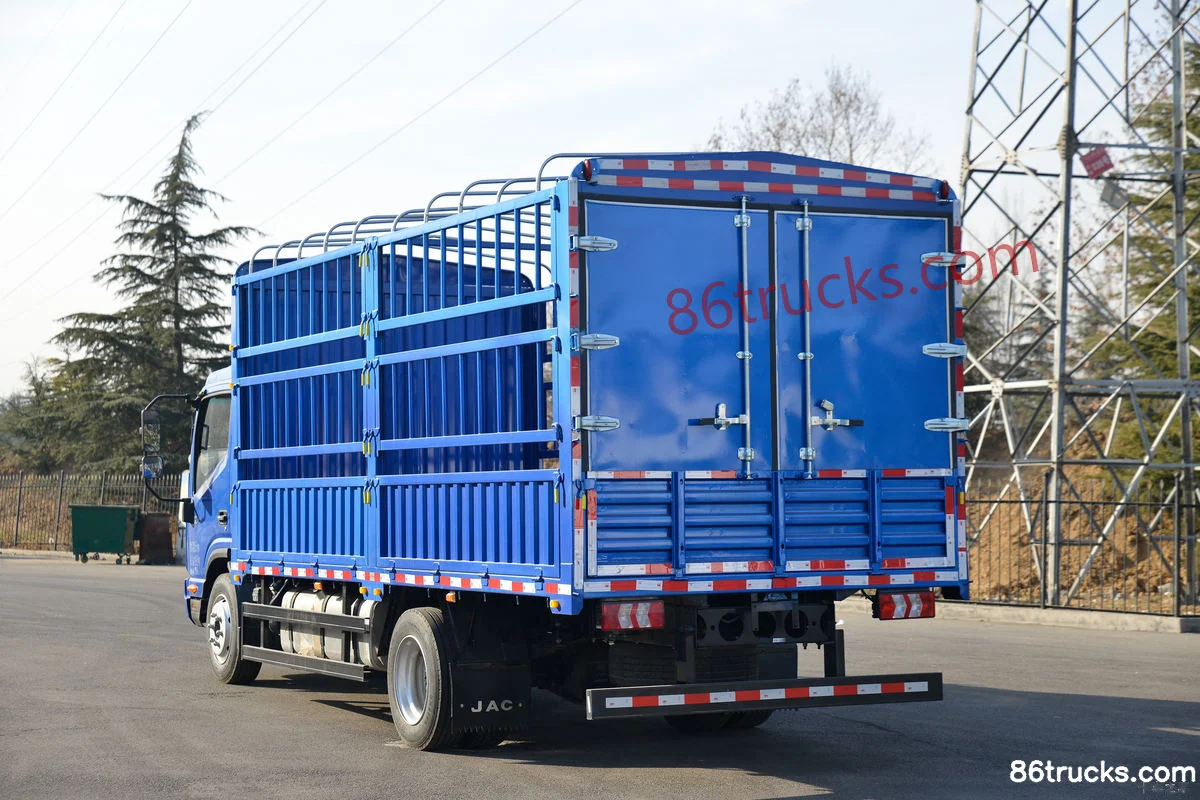

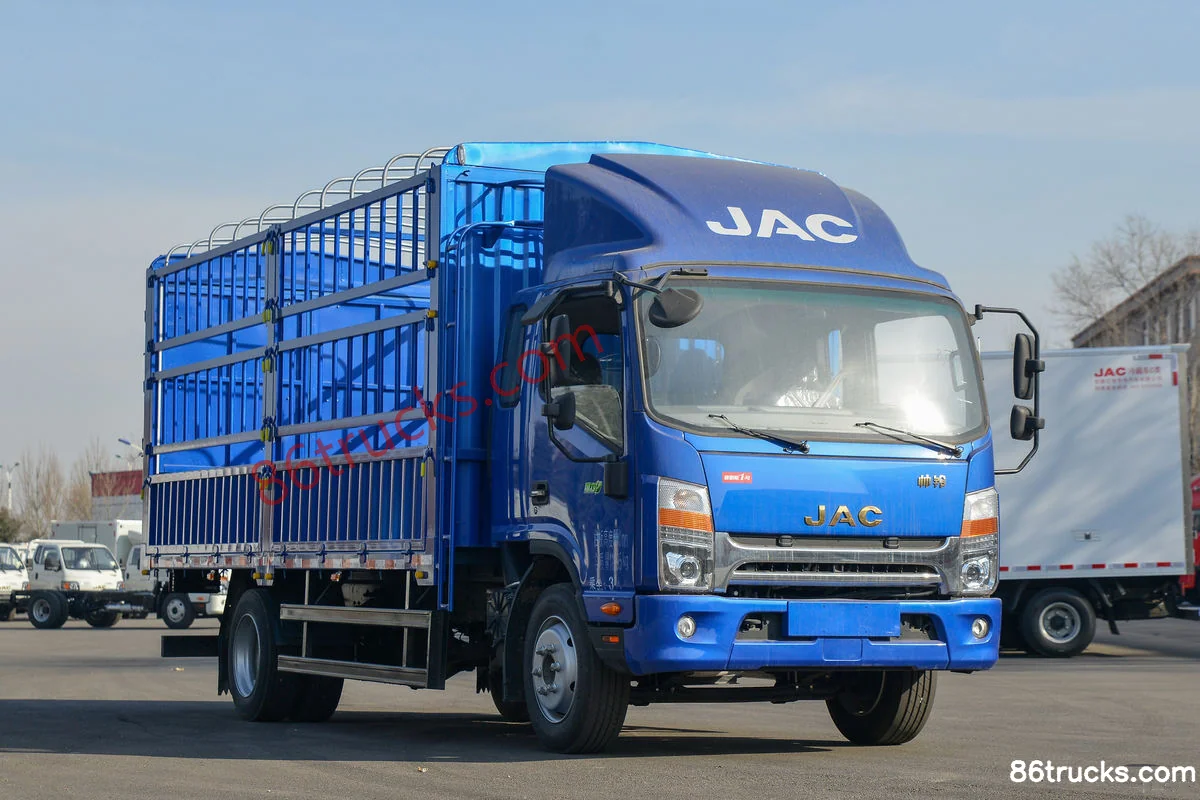

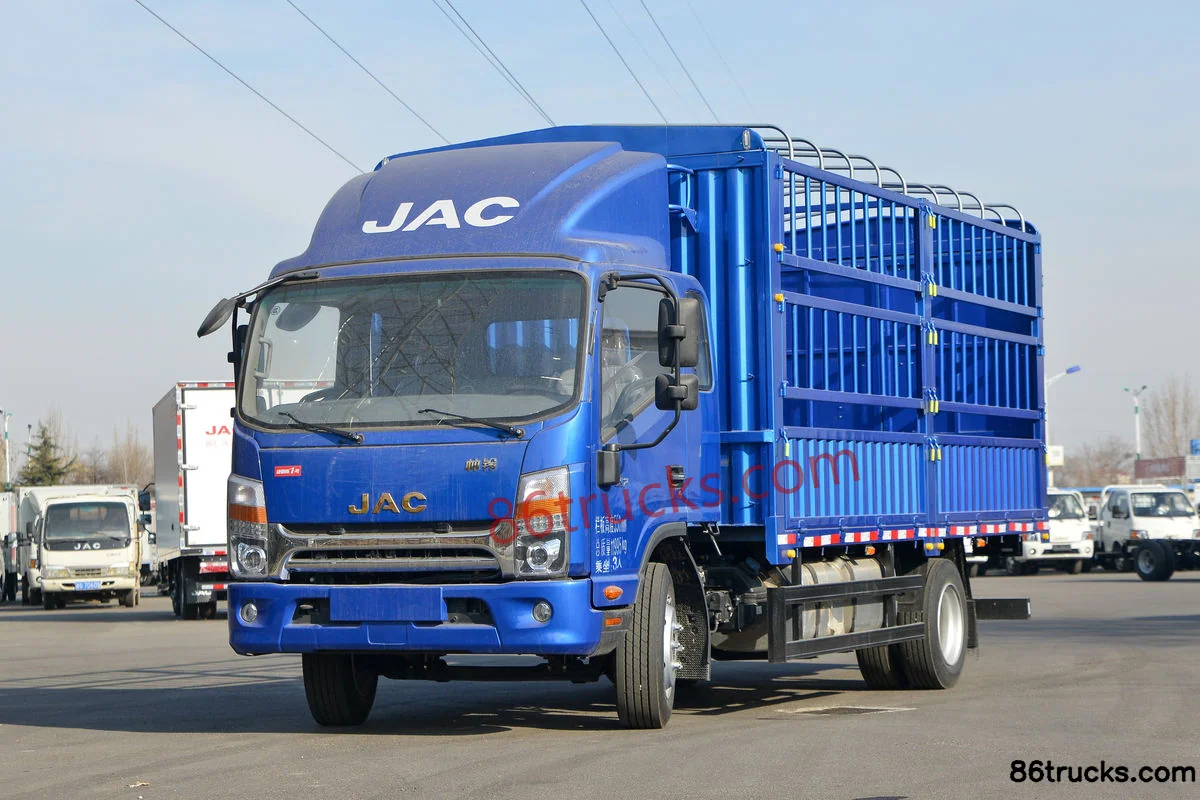

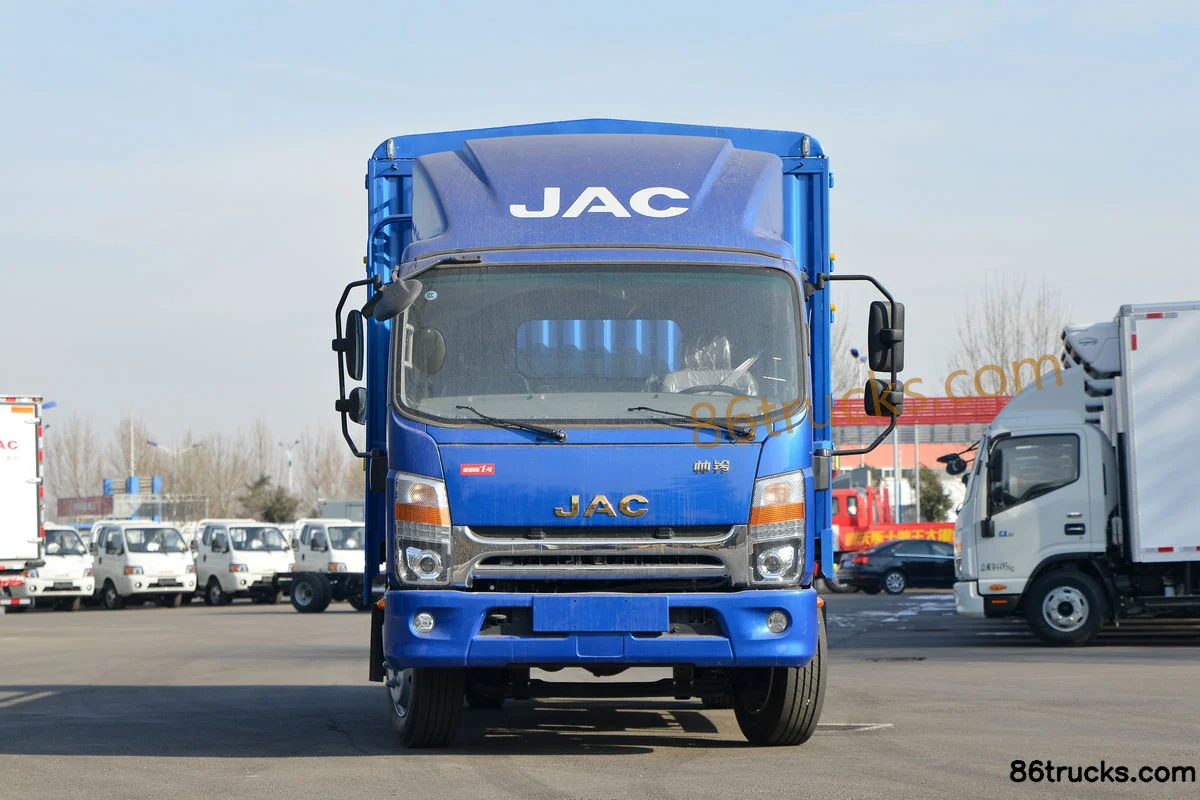

Exterior3

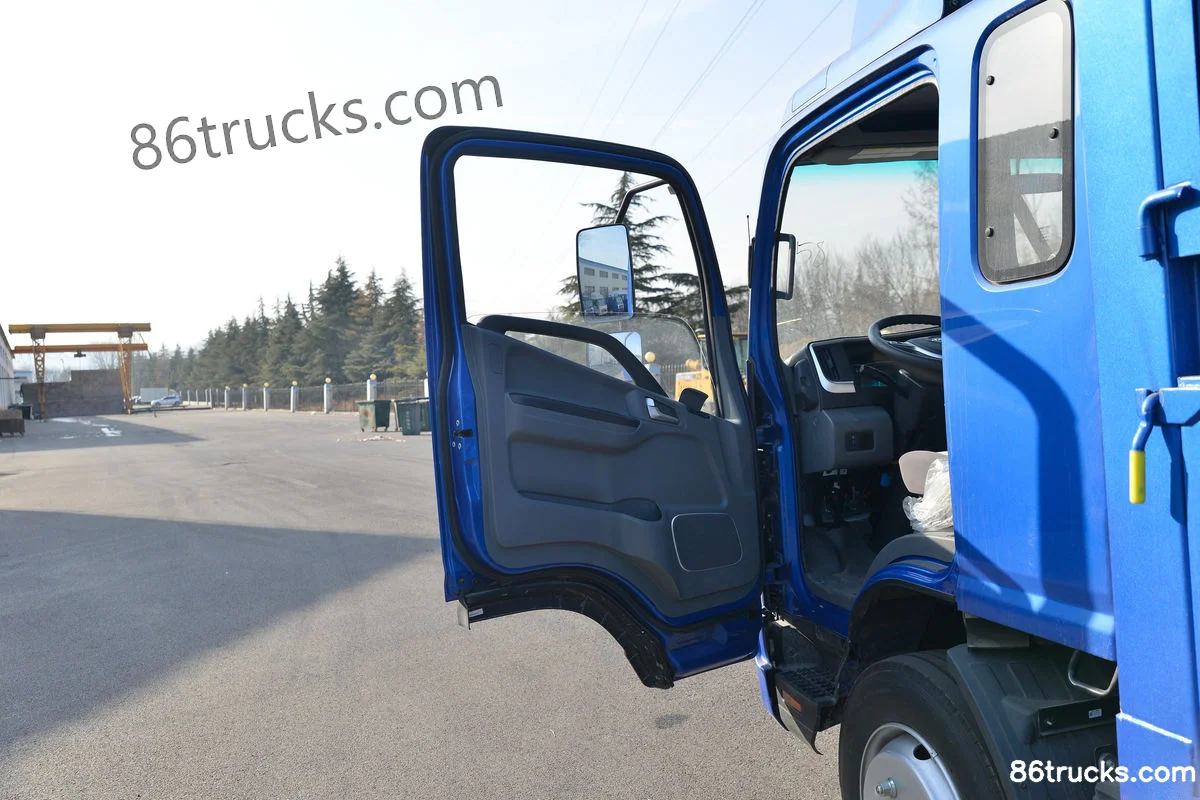

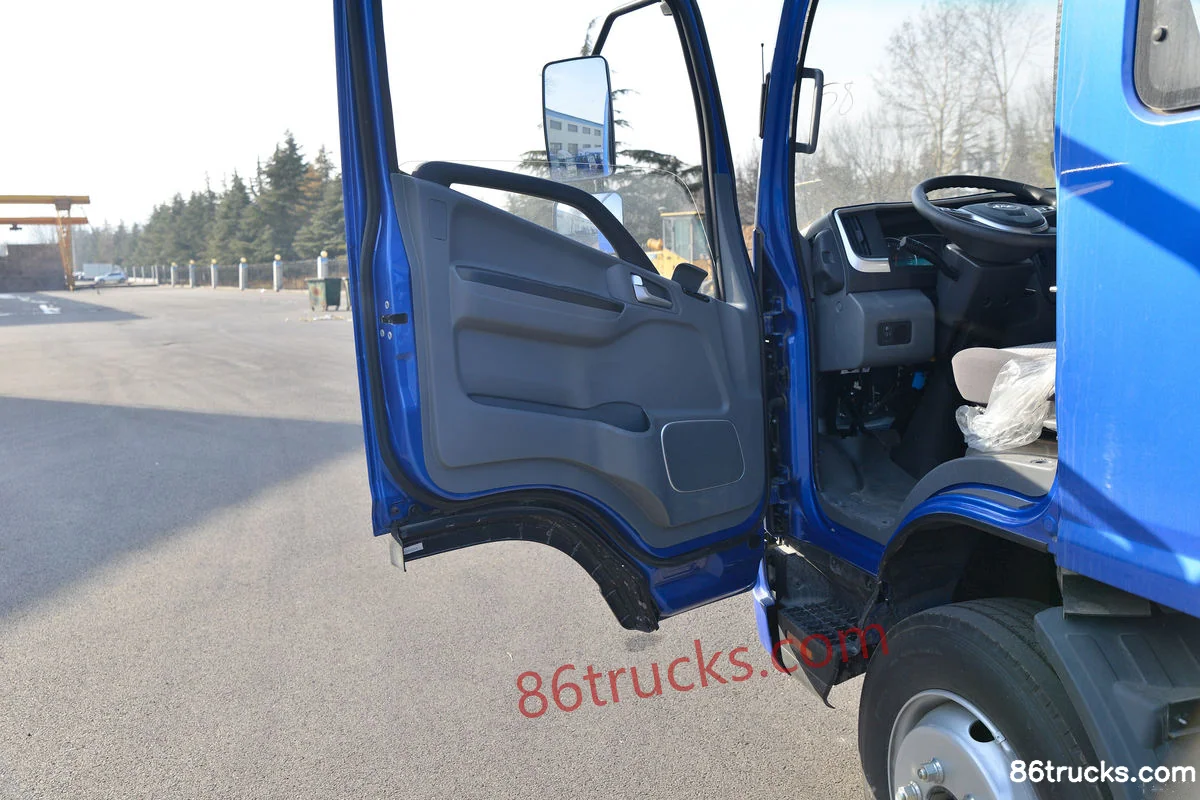

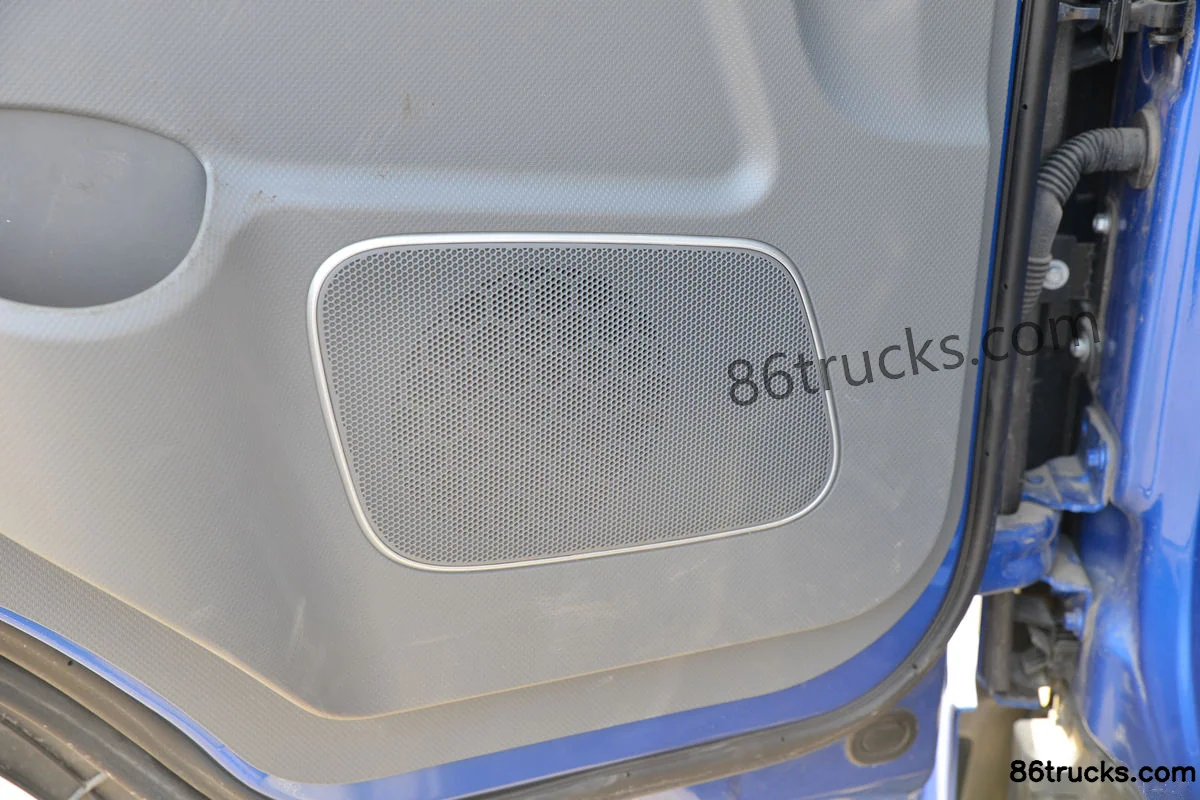

Cab3

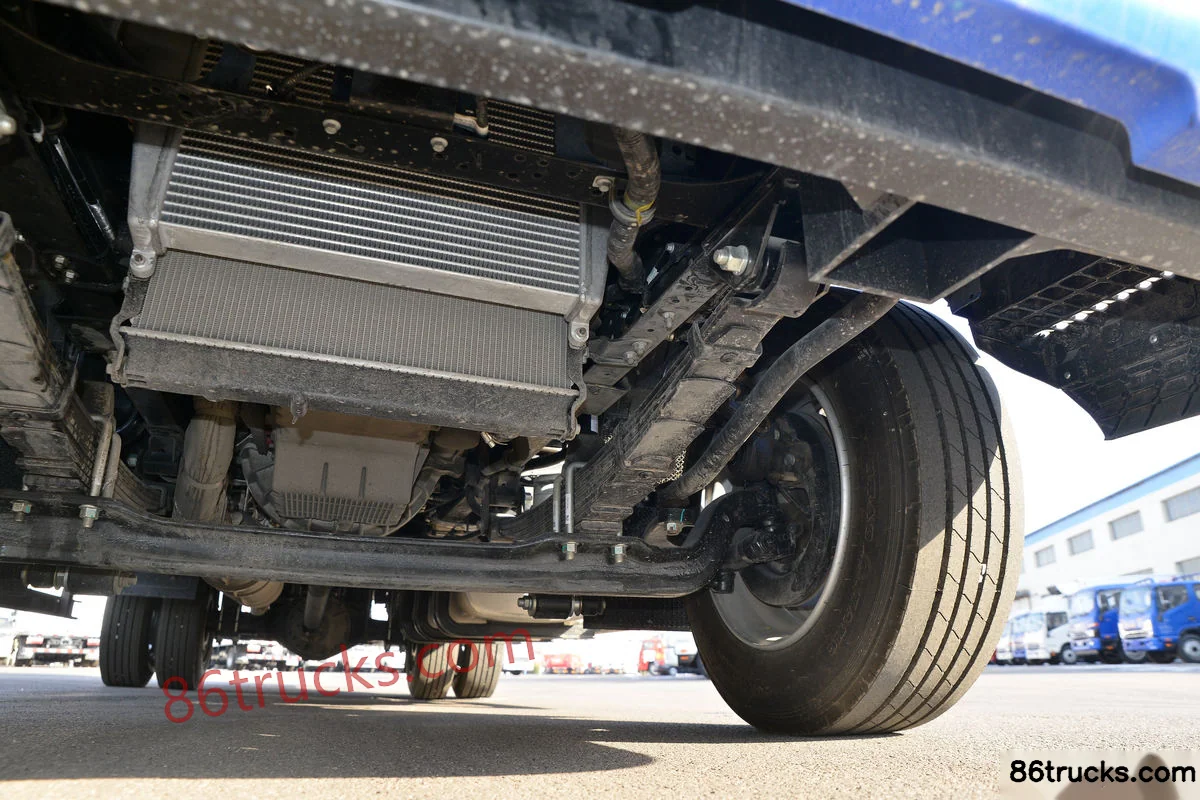

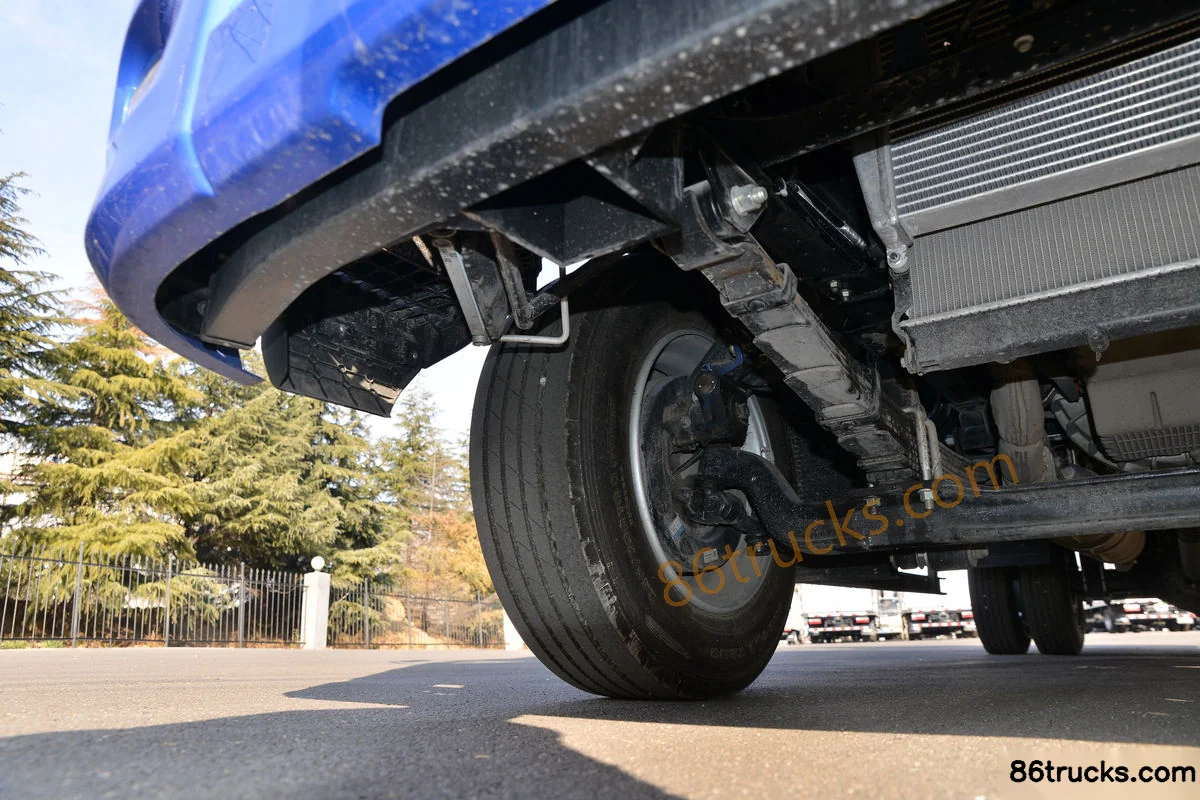

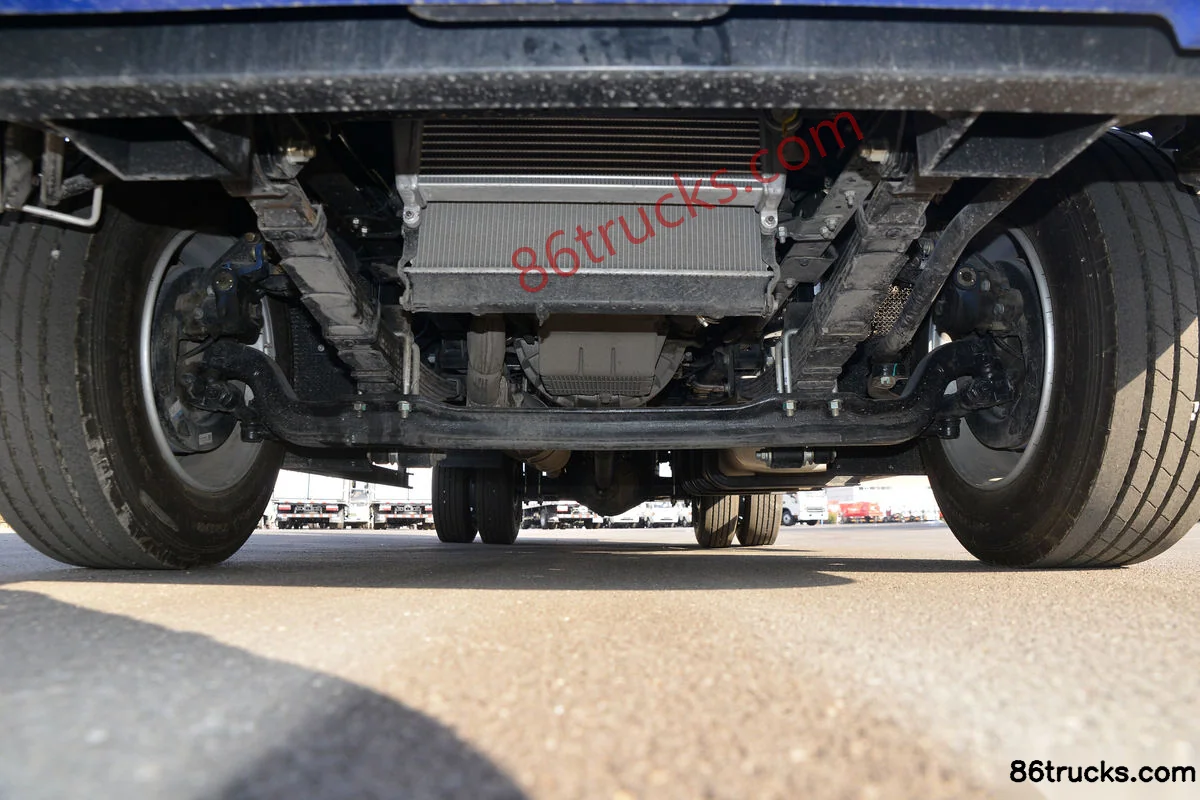

Chassis3

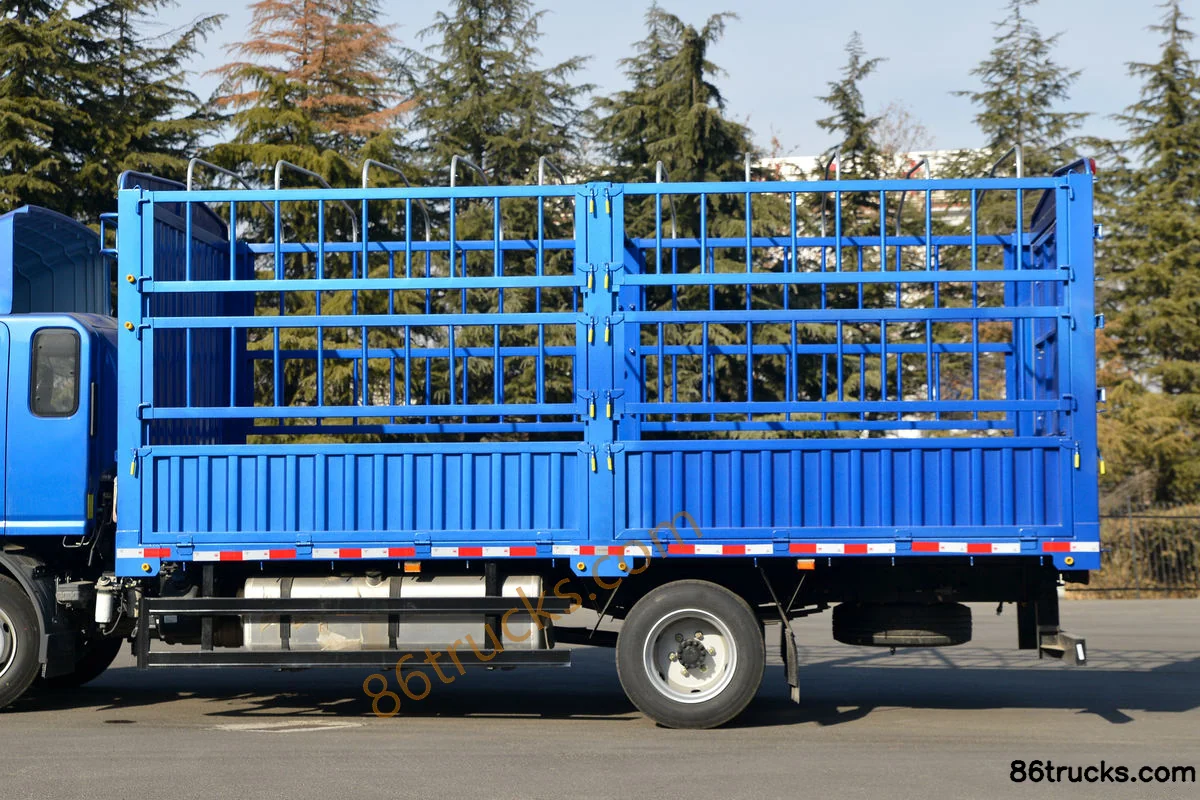

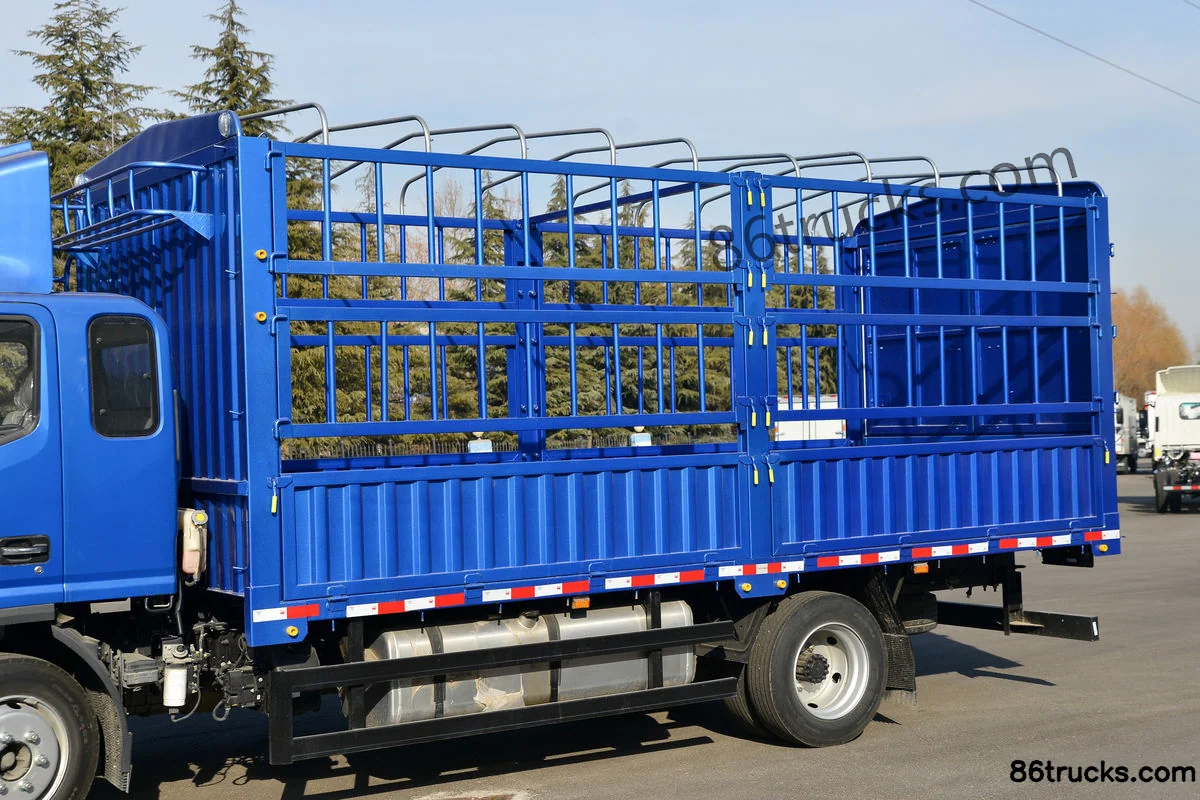

Body3

12 photos

FAQ

What is the export price of JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI), and what does it include?

JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI) export reference is about From $20,833; MSRP is ¥15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI)?

Key specs of JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI): Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Engine: Ankang B4.0; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI) suited for?

JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI) differ from other variants in the same series?

JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI) belongs to JACQ7 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing Q7 160 hp 4X2(6 wheels) 5.175 m stake truck (wide body) (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
