SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck

Export reference

MSRP N/A

Fuel: Diesel

Gross Trailer Weight:: 35.805ton

Wheelbase:: 3600mm

Tire Size:: 12R22.5

Front axle allowable load:: 6500kg

Displacement:: 10.8L

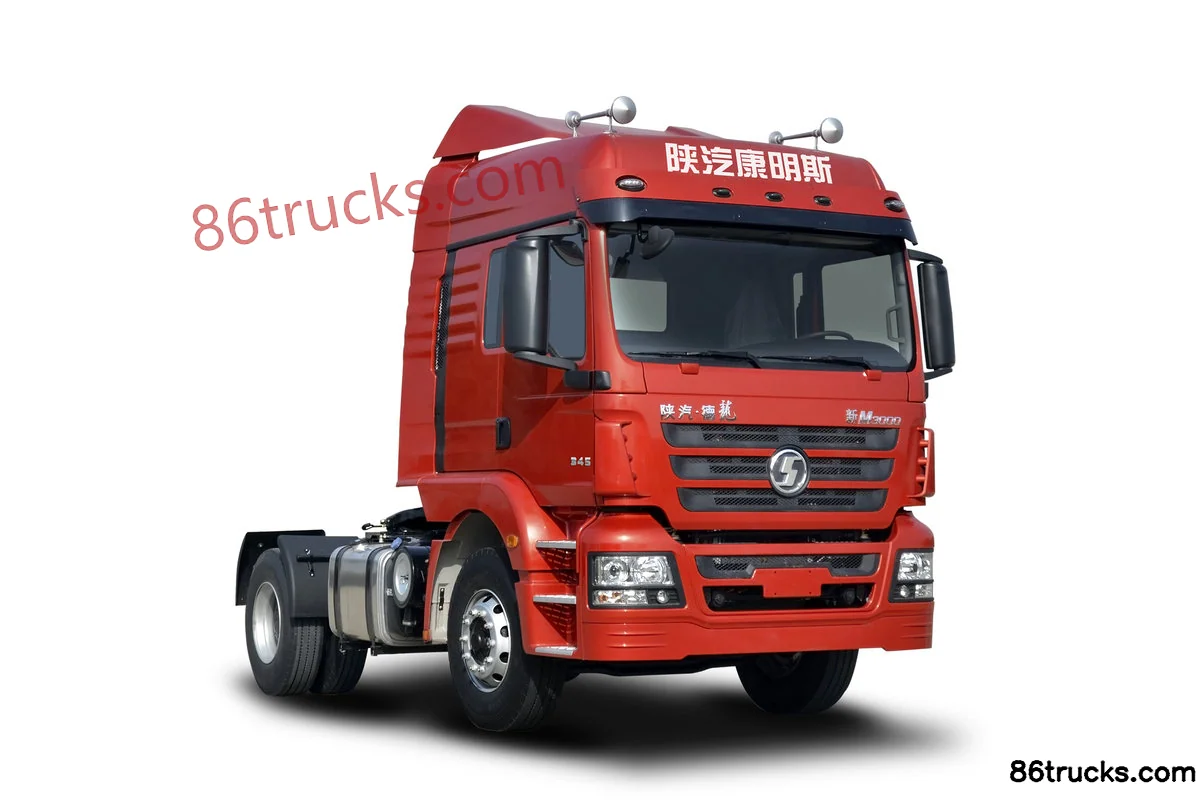

SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck exterior

View more photos (1)

Drive 4X2 (6 wheels)

Horsepower 345

Emission China V

Transmission Fast Gear

Overview

The SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 345 hp, 18t GVW and China V emissions. On the powertrain side, it comes with a Xi’an CumminsISM11E5 345 engine, Fast Gear transmission and Diesel fuel.

China V 345 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): SX4180MB1

Drive type: 4X2

Wheelbase: 3600mm

engine: Xi’an CumminsISM11E5 345

transmission: Fast Gear12JSD160TA

Rear Axle Ratio: 4.111

Cab length: 6.08m

Cab width: 2.49m

Cab height: 3.91m

Front track width: 2011mm

Gross Trailer Weight: 35.805ton

rear track: 1860mm

Curb Weight: 7ton

GVWR: 18ton

Max. speed: 105km/h

Origin: Xi'an, Shaanxi

tonnage class: Heavy truck

Remarks: Highway bumper, lightweight integrated mudguard; Options: extended mid-roof cab with top deflector, extended high-roof cab without deflector, 10JSD160(Iron)+13T3.7, 12JSD160T(Al)+13T3.7

Version: Standard Container Version

Energy Type: Diesel

Engine parameters

Engine Brand: Xi’an Cummins

Engine Model: Xi’an CumminsISM11E5 345

Number of cylinders: 6cylinder

fuel type: Diesel

Cylinder arrangement: Inline

Displacement: 10.8L

Emission standard: China V

Max output power: 254kW

Max hp: 345Horsepower

Max torque: 1800N·m

Max torque speed: 1100-1300rpm

Rated speed: 1900rpm

Technology route: Common Rail SCR

Transmission Parameters

Transmission Model: Fast Gear12JSD160TA

Transmission Brand: Fast Gear

shift method: Manual

Forward gears: 12Gear

Number of Reverse Gears: 2pcs

Housing Material: aluminum alloy

fuel tank

Fuel tank/air tank material: aluminum alloy

Fuel tank capacity: 400L

Cab parameters

Cab: High roof

Cab suspension: Four-point air suspension

seating capacity: 3Personnel

Seat rows: Sleeper cab

Lower Bunk Width: 840mm

Chassis Specs

Suspension type: Leaf spring

Front axle description: MAN 5.5T

Fifth wheel: Low-position 50 fifth wheel

Front axle allowable load: 6500kg

Frame Dimensions: 850×270（8+5）mm

rear axle description: 13T MAN single reduction

rear axle allowable load: 11500kg

Axle ratio: 4.111

Leaf spring count: 10/9+6

Aluminum wheels:

Tire

Tire Size: 12R22.5

Tire Type: tubeless tire

Number of tires: 6pcs

Control configuration

ABS:

interior configuration

steering wheel adjustment: pneumatic

AC control type: Automatic

Independent Heater:

Power Windows:

Power Mirrors:

Electric Heated Rearview Mirror:

Power interface:

Reverse Camera:

Remote key:

Electronic Central Lock:

Exterior features

Air deflector:

Diesel primary filter heating:

Service brake

Engine brake: Jacob brake

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

Multimedia features

GPS/Beidou driving recorder:

External audio input (AUX/USB/iPod etc.):

Radio:

lighting configuration

daytime running lights:

LED taillight:

smart configuration

Telematics System:

Tire Pressure Monitoring System (TPMS):

Photos

Exterior1

1 photos

FAQ

What emission standard does SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck?

Key specs of SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck: Drive: 4x2; Horsepower: 345 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck suited for?

SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck differ from other variants in the same series?

SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck belongs to SHACMAN Delong New M3000 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Cummins Delong New M3000 Standard Container Edition 345 hp 4X2(6 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
