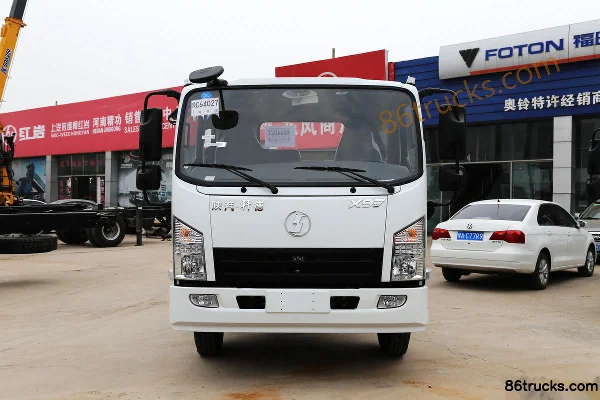

SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck

Export reference
MSRP N/A
Horsepower: 143
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck is a Light Truck featuring 3.75m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 143 hp, 4X2 (6 wheels) drive and China V emissions.

China V 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX5040XXYGP5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: FotonISF3.8s5141
transmission: WLYWLY6T50
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.1m
Front track width: 1670mm
rear track: 1525mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Baoji, Shaanxi
tonnage class: Light Truck
Approach angle: 17°
departure angle: 14°
market segment: Urban Distribution
Series: 9 series
Front/rear suspension: 1.2/1.435m
Version: Logistics Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 440N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY6T50
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.75m
Cargo box width: 2.1m
Cargo box height: 2.1m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: 1995
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 3.5T
Front axle allowable load: 1500kg
Frame Dimensions: 800×192/132(6)mm
rear axle description: 5T
rear axle allowable load: 2995kg
Leaf spring count: 7/10+3
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR
Number of tires: 6pcs
Service brake
Exhaust brake:

Photos

0 photos

FAQ

What emission standard does SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck?

Key specs of SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck: Drive: 4x2; Horsepower: 143 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck suited for?

SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck belongs to SHACMAN Xuande X9 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X9 Logistics Edition 141hp 4X2(6 wheels) 3.75m Semi-row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
