Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 3800+1350mm
Model code (announced):: LZ4252H5DZBEV
Front/rear track width:: Front track: 2040mm; Rear track: 1860/1860mm
Cab length:: 7.39m
GVWR:: 25ton
Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh exterior
View more photos (9)
Drive 6X4 (10 wheels)
Battery Brand: CATL
Motor 1 Brand: Fast Gear
Gross Trailer Weight: 35.17ton

Overview

The Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh is a Heavy truck featuring CATL battery/range, Fast Gear motor, 6X4 (10 wheels) drive and 7000kg payload. On the powertrain side, it comes with Fast Gear transmission.

6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ4252H5DZBEV
Drive type: 6X4
Wheelbase: 3800+1350mm
Front/rear track width: Front track: 2040mm; Rear track: 1860/1860mm
Cab length: 7.39m
Cab width: 2.525m
Cab height: 3.69m
Gross Trailer Weight: 35.17ton
Curb Weight: 13.7ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Remarks: Rear-mounted + side-mounted battery
Energy Type: Electric
electric motor
Motor 1 Brand: Fast Gear
Motor 1 Model: TZ445XSSF-SZF601
Motor Type: Permanent magnet synchronous motor
total rated power: 480kW
Peak power: 630kW
Motor 1 Peak Power: 630kW
Number of drive motors: Single motor
Battery/Charging
Battery Brand: CATL
Charging method: Dual-gun 800A charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 600kWh
Transmission Parameters
Transmission Model: 6.0E+280
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 6Gear
Number of Reverse Gears:
Cab parameters
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 457 front axle
Front axle allowable load: 7000kg
Fifth wheel: 50#
rear axle description: 2×485 rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Exterior features
Aluminum air tank:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):

Photos

Exterior3

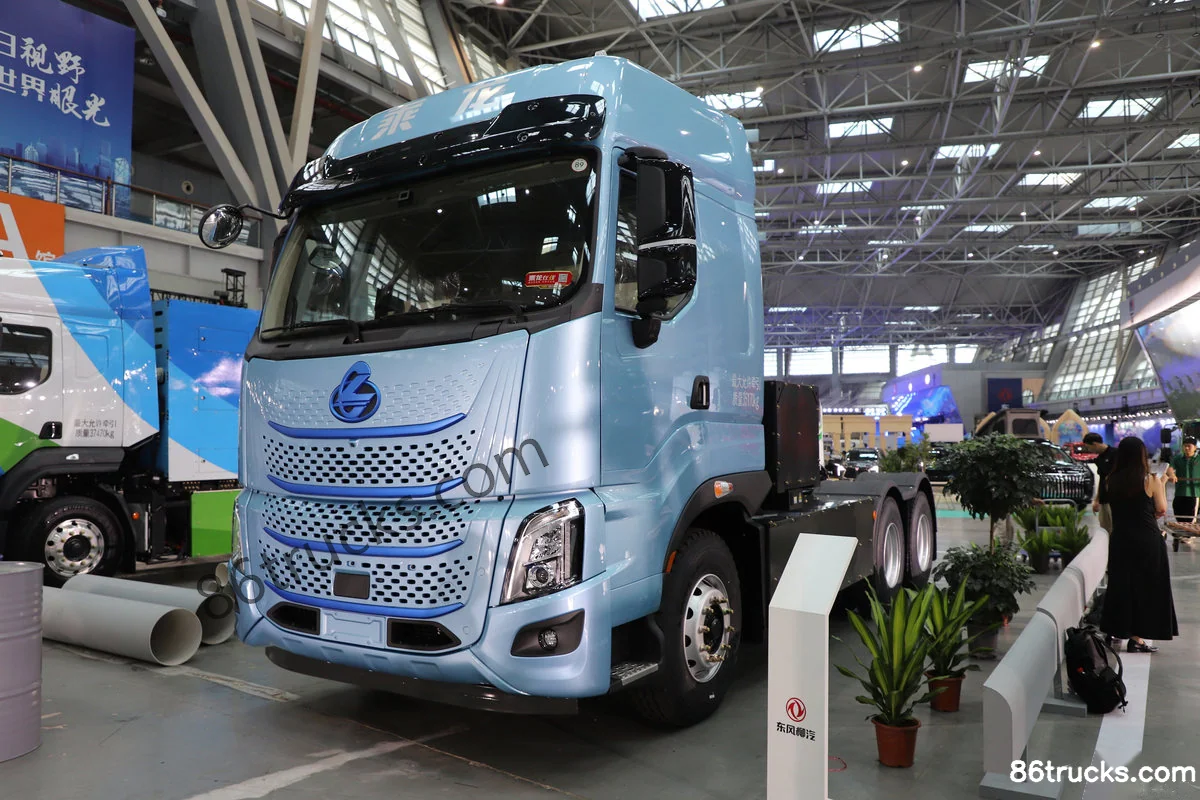

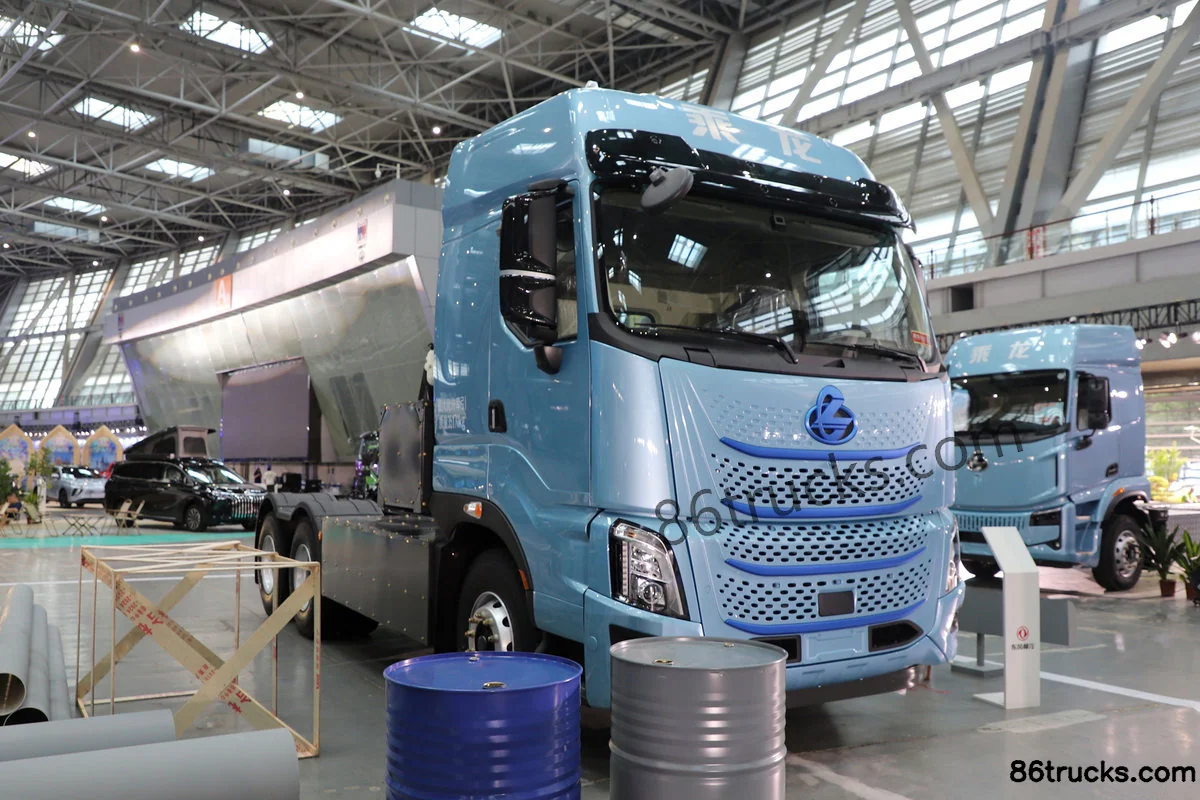

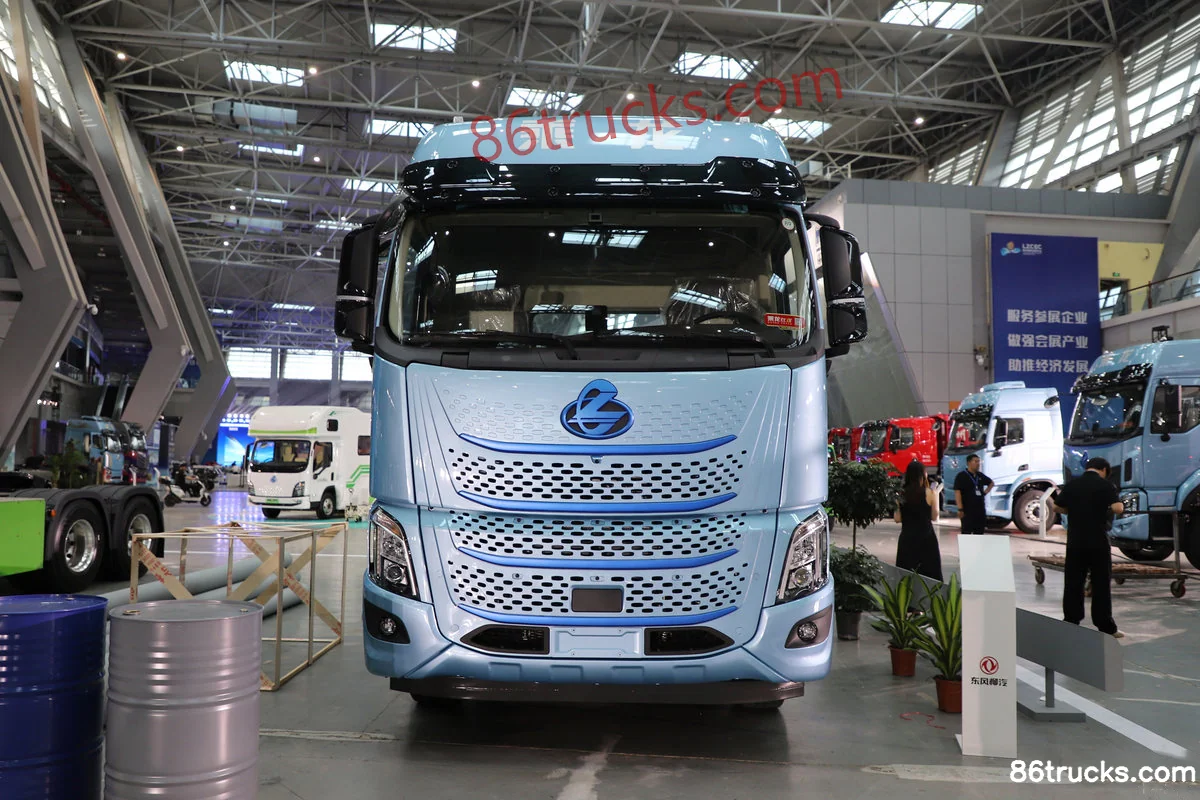

Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh Exterior (1) | 86Trucks Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh Exterior (2) | 86Trucks Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh Exterior (3) | 86Trucks

Cab3

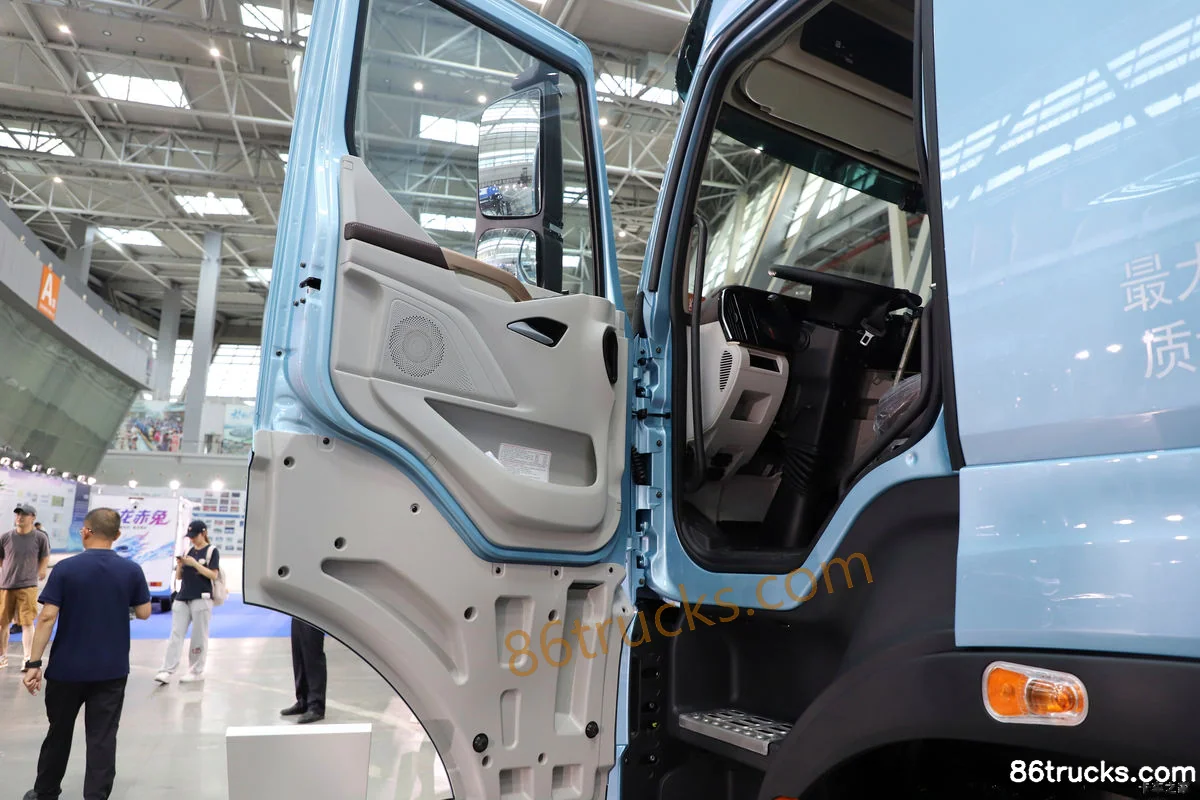

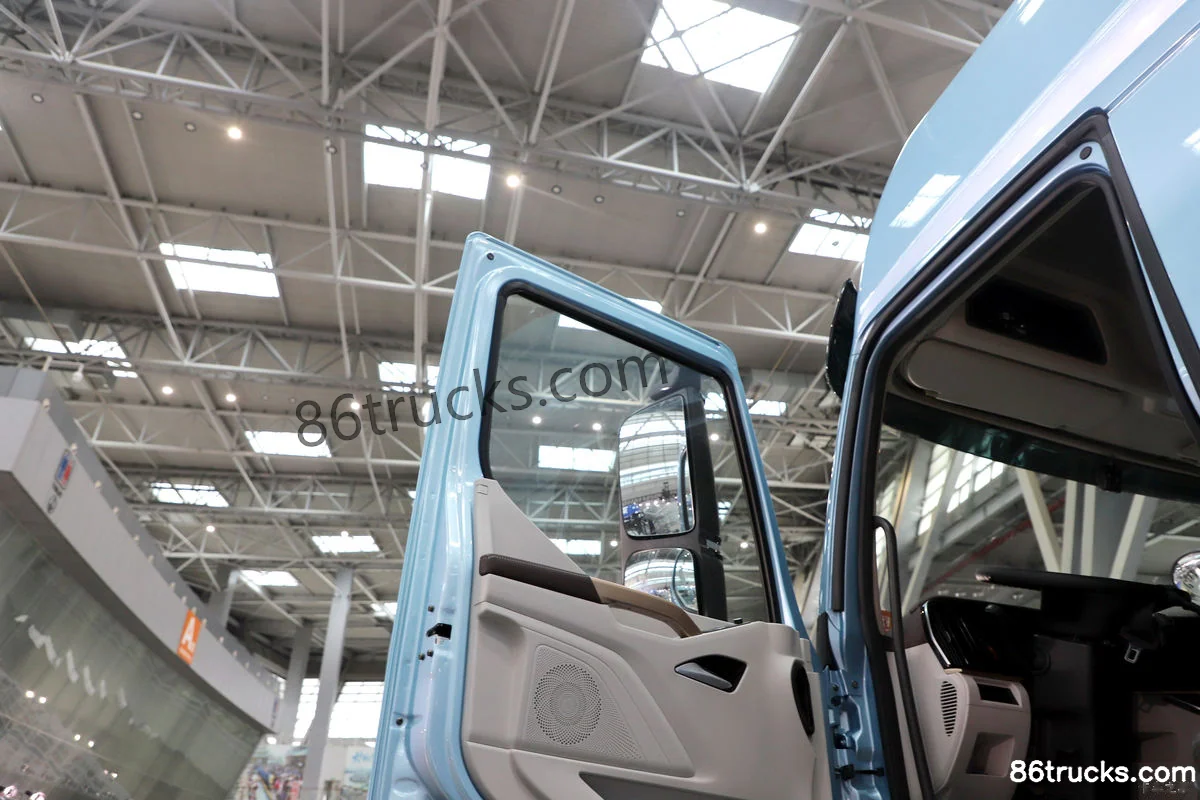

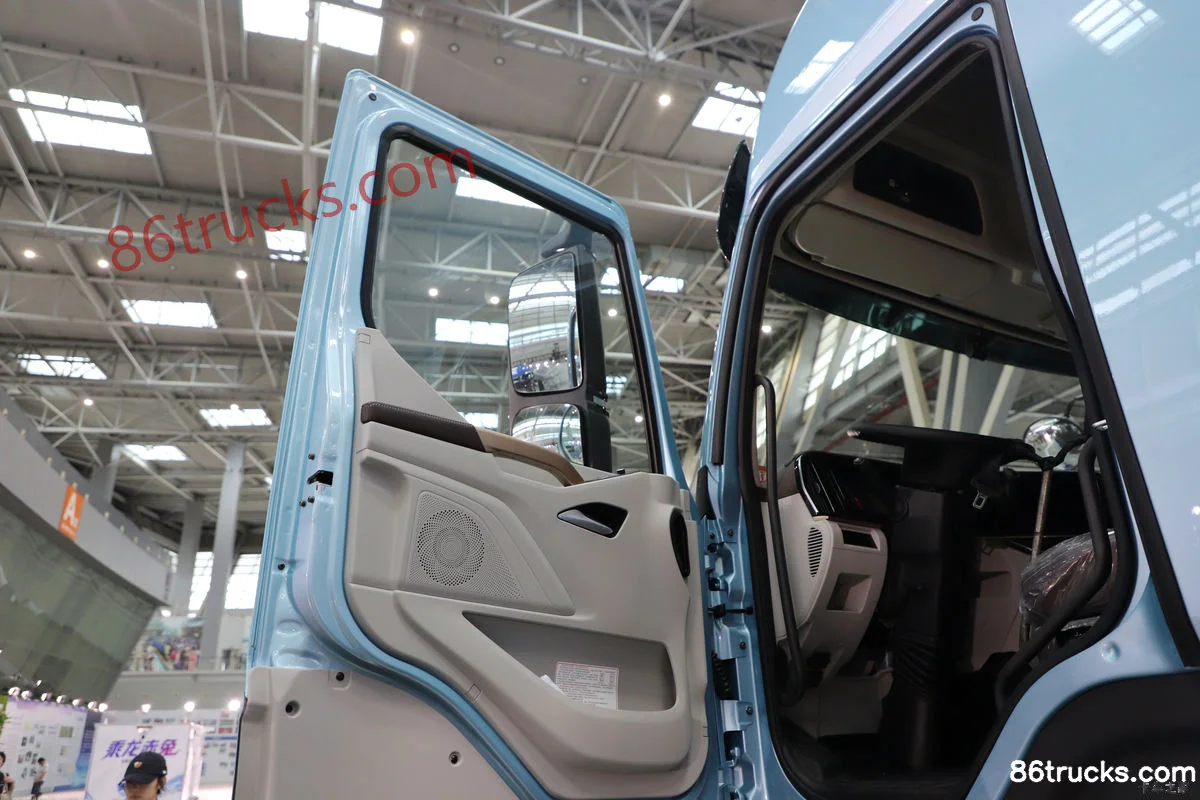

Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh Cab (1) | 86Trucks Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh Cab (2) | 86Trucks Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh Cab (3) | 86Trucks

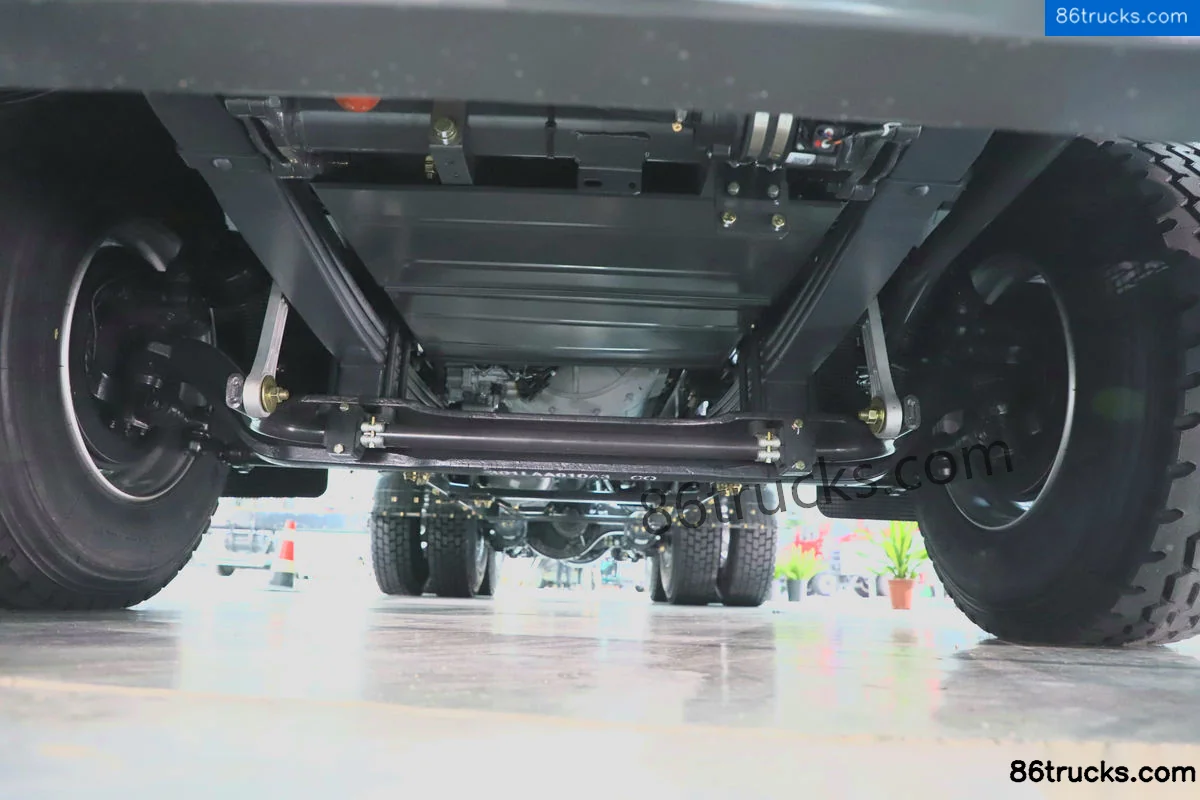

Chassis3

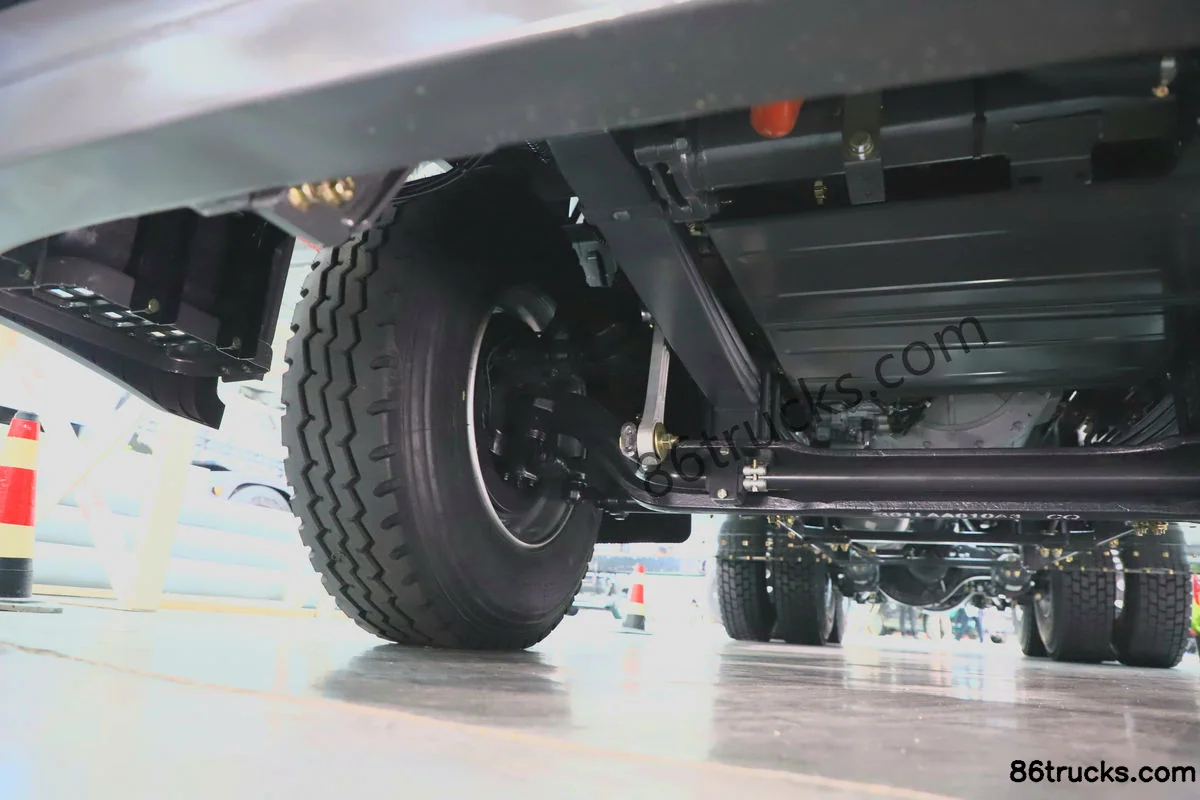

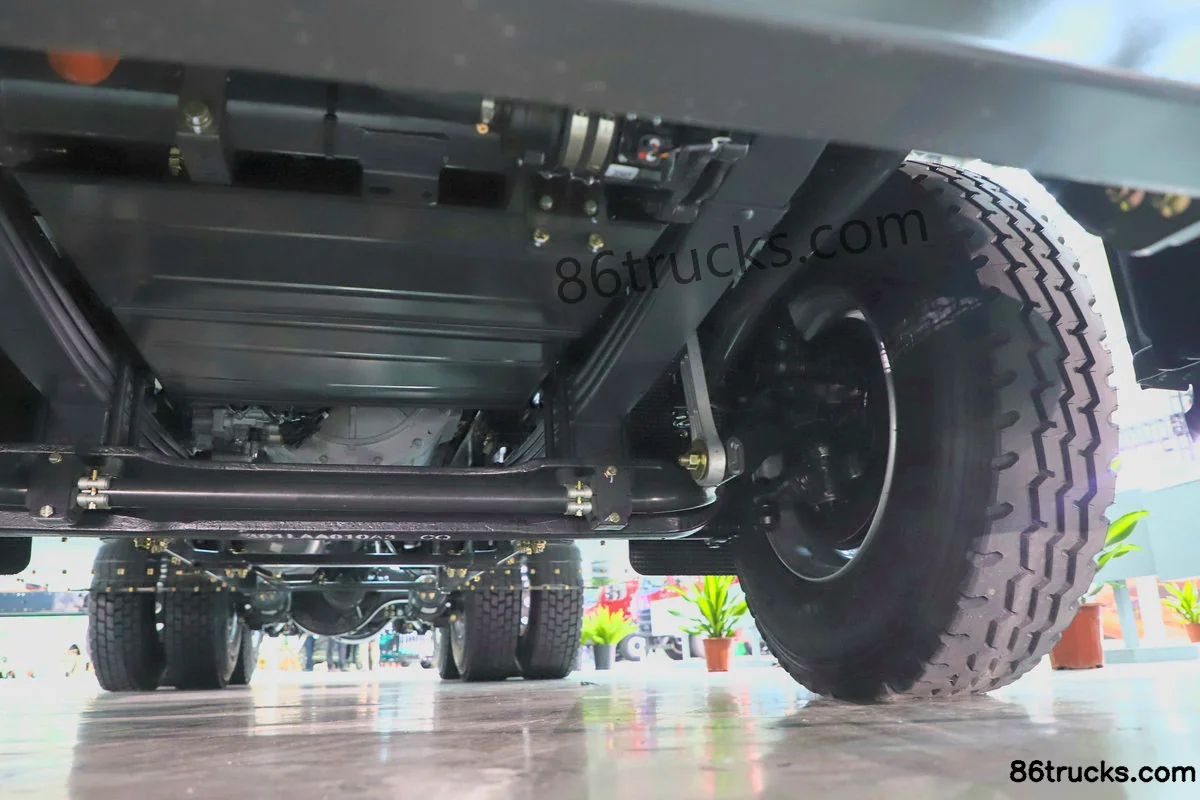

Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh Chassis (1) | 86Trucks Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh Chassis (2) | 86Trucks Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh?

Key specs of Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh: Drive: 6x4; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh suited for?

Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh differ from other variants in the same series?

Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh belongs to Dongfeng Chenglong H7 pro heavy truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng H7pro 6X4(10 wheels) Pure Electric Tractor Truck CATL 600kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
