FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444)

Export reference
MSRP N/A
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: Xichai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 10.7ton
seating capacity: 3Personnel
Rated payload: 13.67ton
Drive 6X2 (8 wheels)
Cargo box type: Wing Van

Overview

The FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444) is a Medium-duty truck featuring 9.65m cargo length, Wing Van cargo body, 3Personnel volume and 13.67t payload. Its segment focus covers Agricultural by-product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Xichai 6-cylinder engine, 220 hp, 6X2 (8 wheels) drive and China V emissions.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5250XYKPK2L7T3E5A80
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1900+5650mm
Box length class: 9.6m
engine: XichaiCA6DLD-22E5
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.444
Cab length: 11.995m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1914/1914mm
rear track: 1860mm
Curb Weight: 10.7ton
Rated payload: 13.67ton
GVWR: 24.5ton
Max. speed: 98km/h
Origin: Qingdao/Chengdu
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 10°
market segment: Agricultural by-product transport, logistics distribution, LTL transport, daily bulk goods, daily industrial goods transport
Front/rear suspension: 1.332/3.463m
Version: 2.0 version
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DLD-22E5
Engine info: Xichai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.6L
Emission standard: China V
Max output power: 164kW
Max hp: 220Horsepower
Max torque: 860N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 9.65m
Cargo box width: 2.42m
Cargo box height: 2.6m
*Cargo box interior width: 2.4200000762939
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: G116
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280*80*(8+5)mm
rear axle description: 435 upgraded stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.444
Leaf spring count: 12/12/10+9,3/3/4+3
clutch: Φ395
Tire
Tire Size: 11.00R20 18PR,295/80R22.5 18P
Number of tires: 8pcs
Control configuration
ABS:

Photos

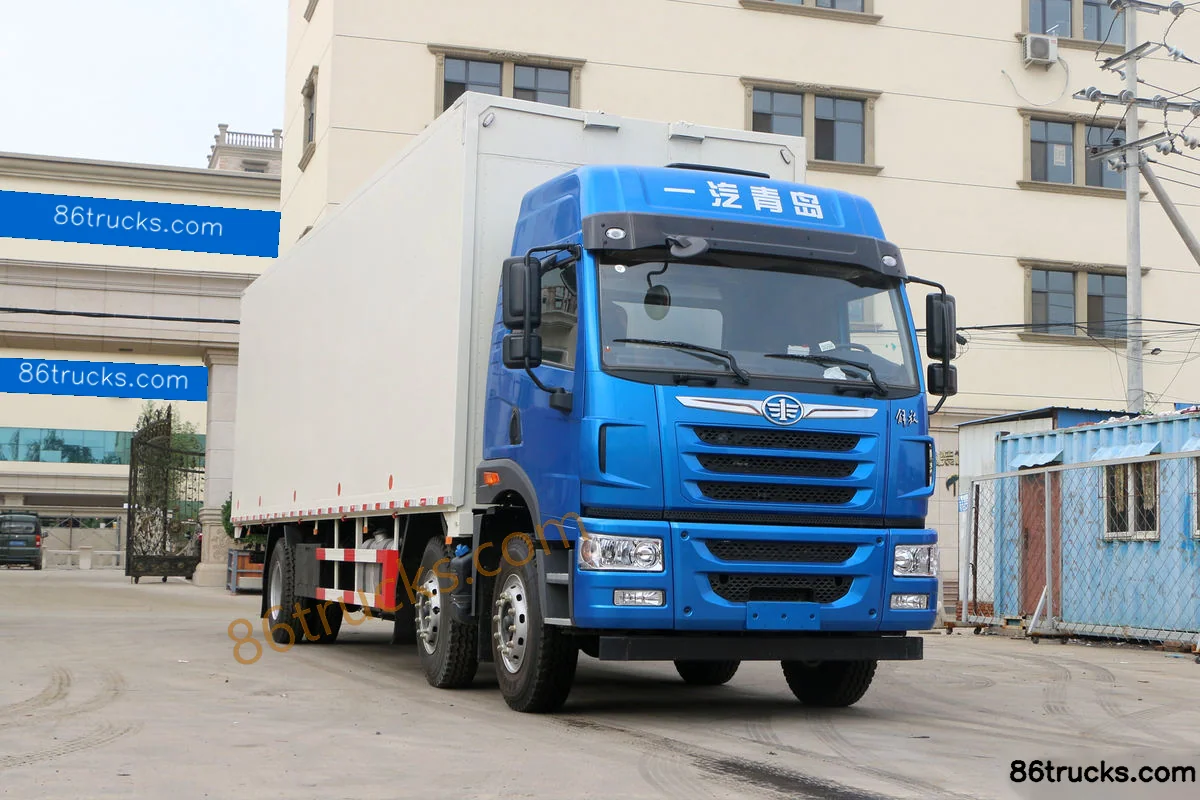

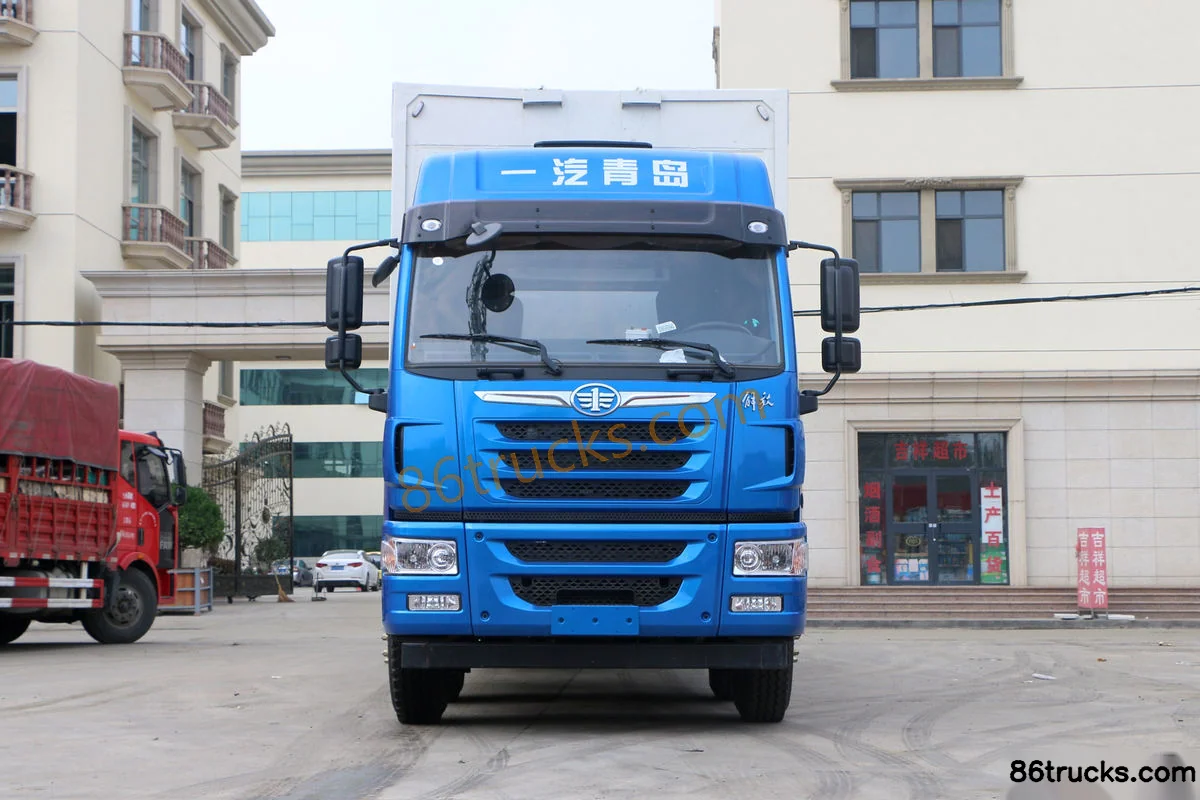

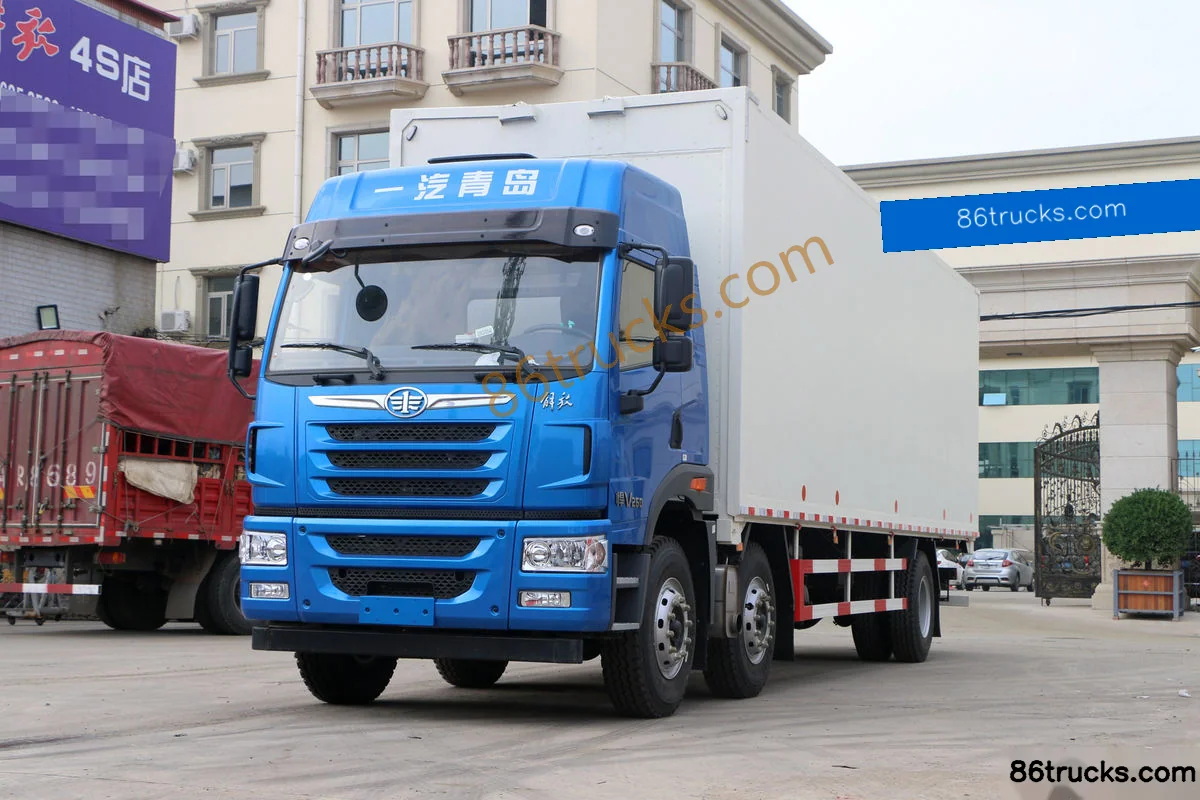

Exterior3

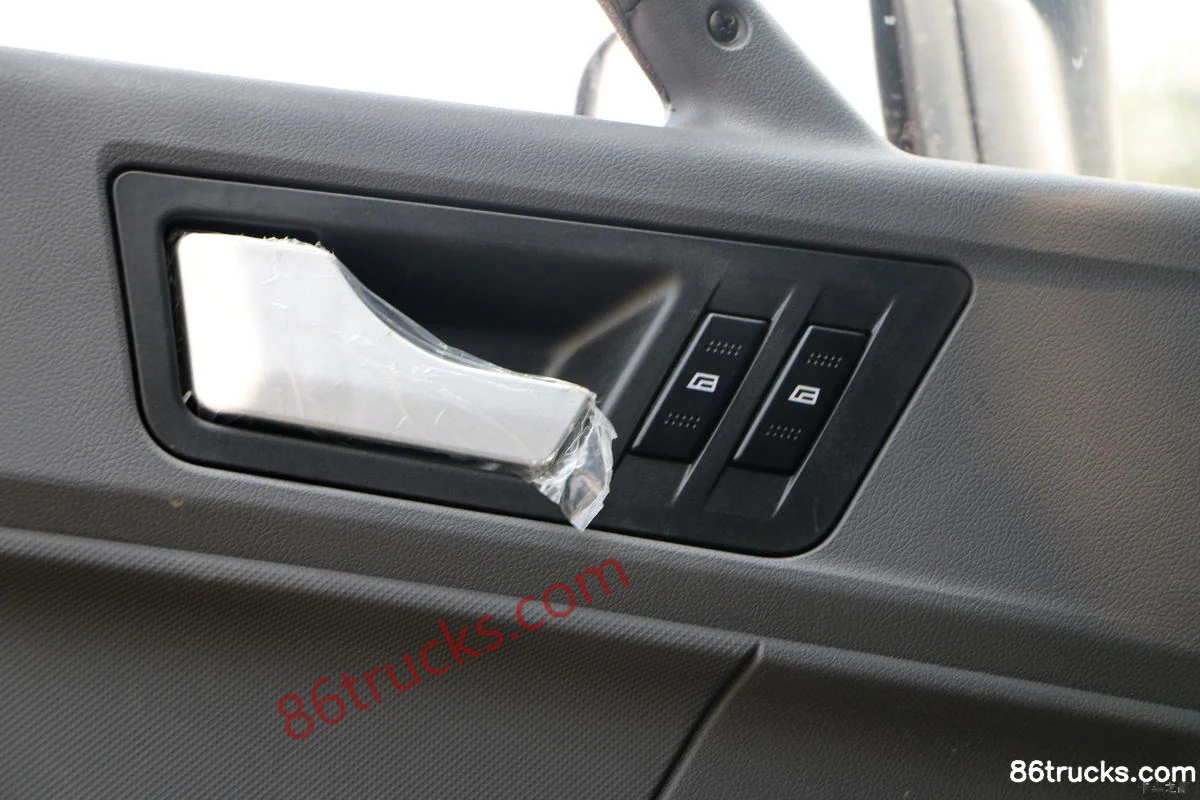

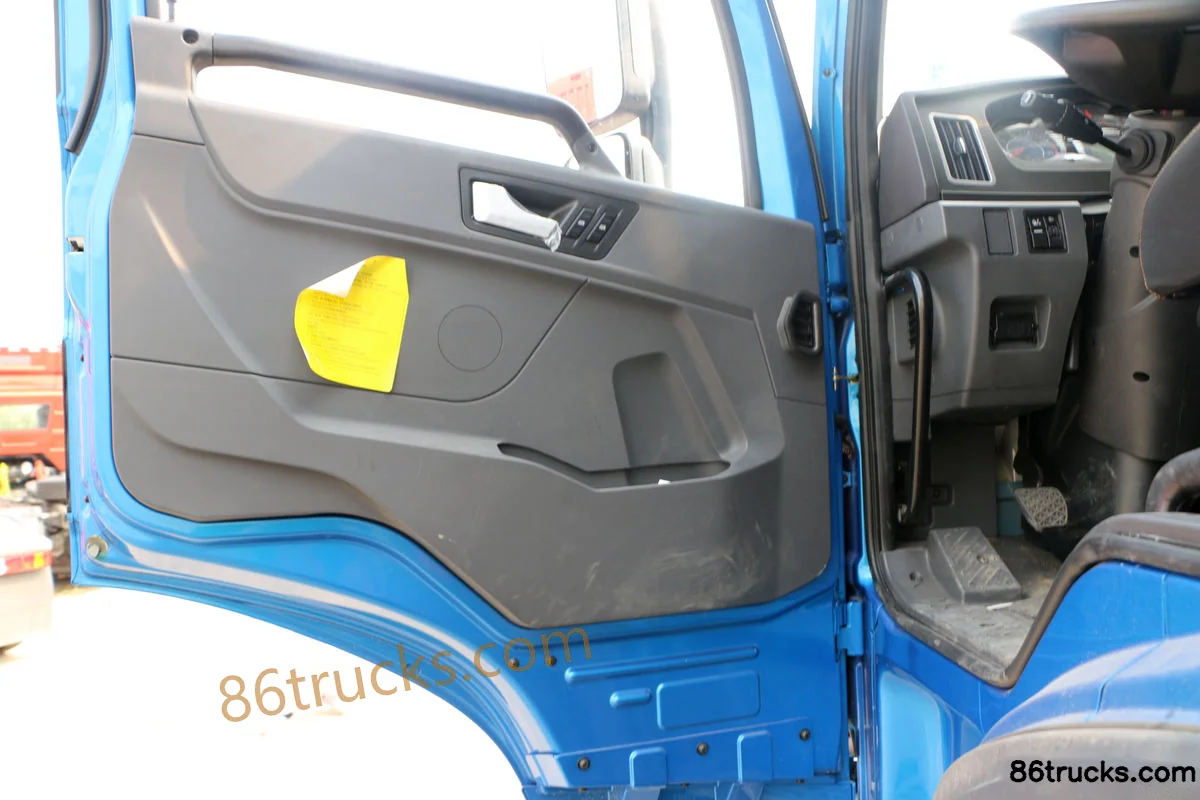

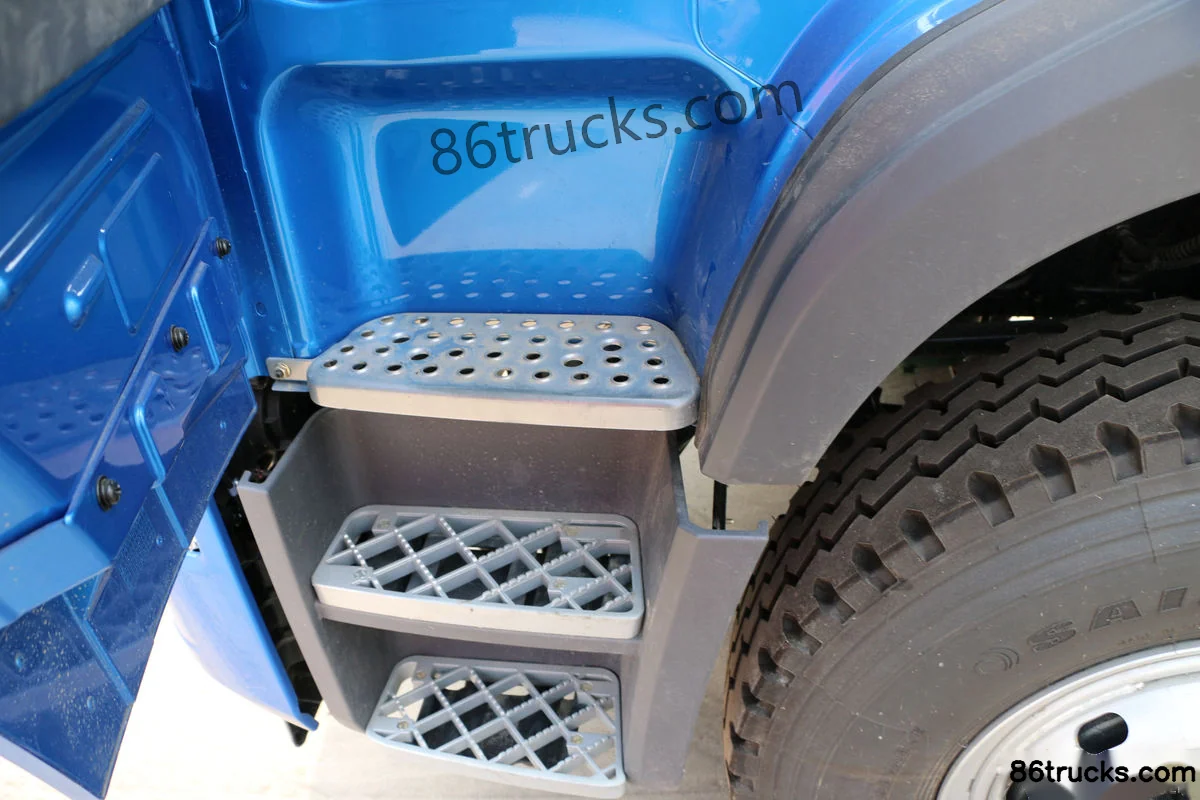

Cab3

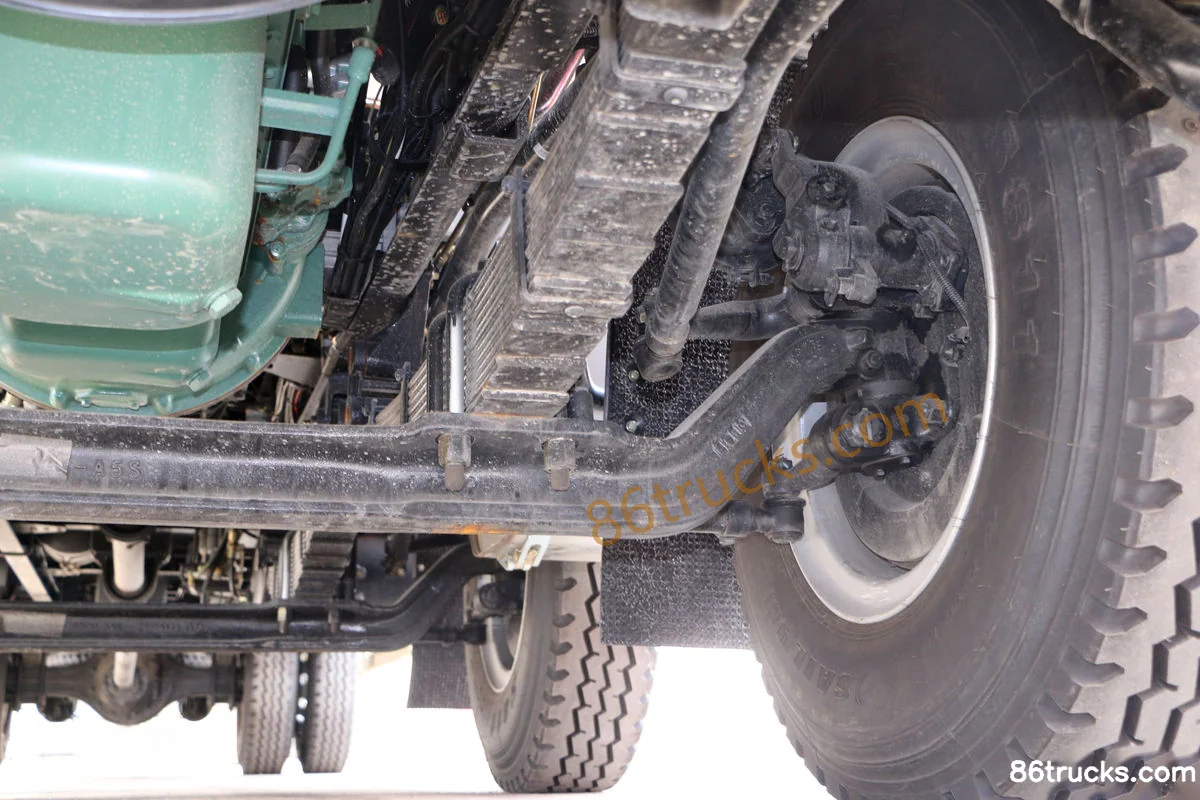

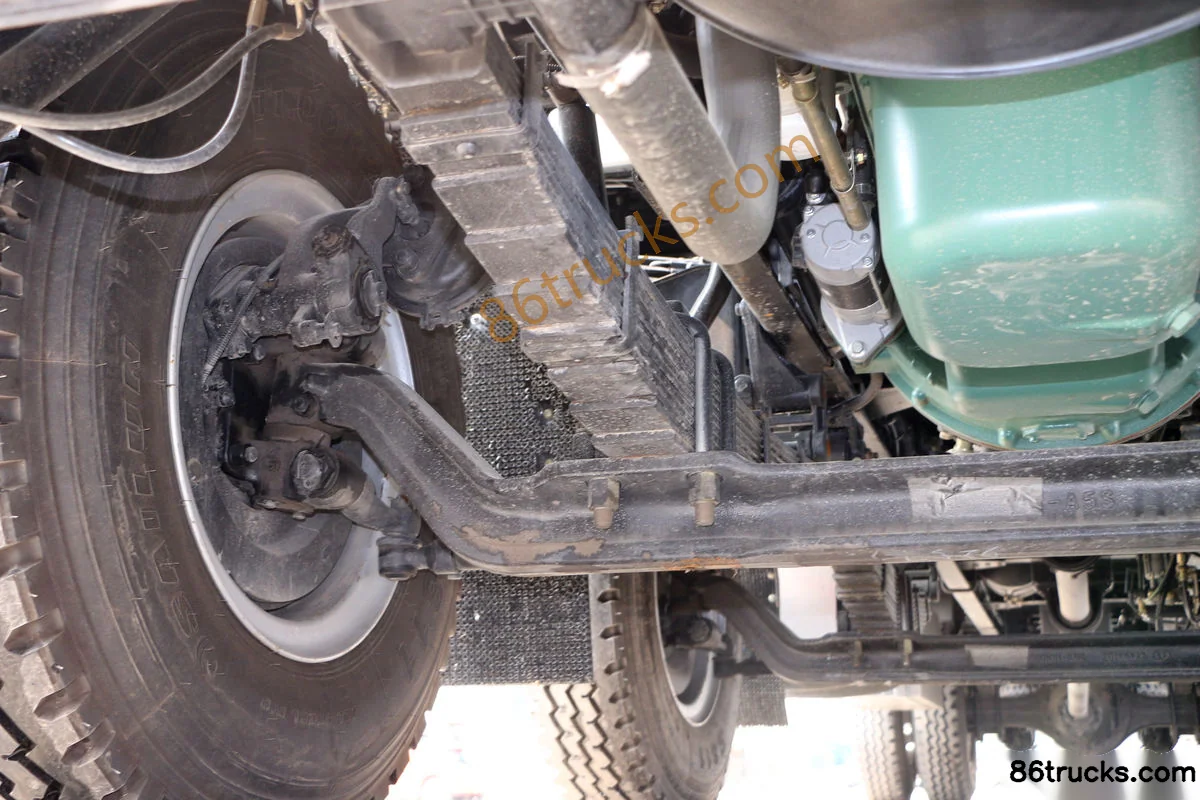

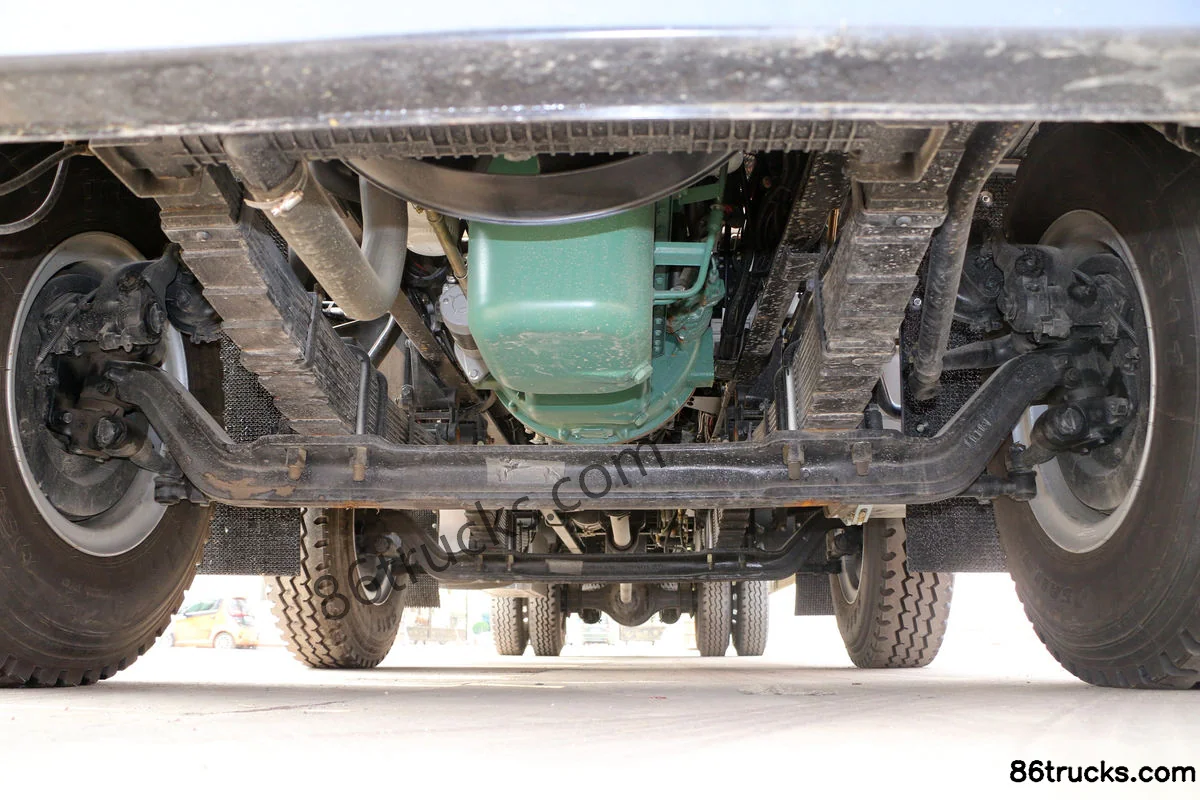

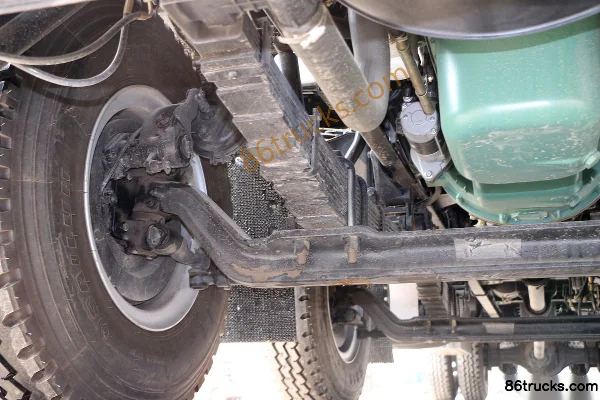

Chassis3

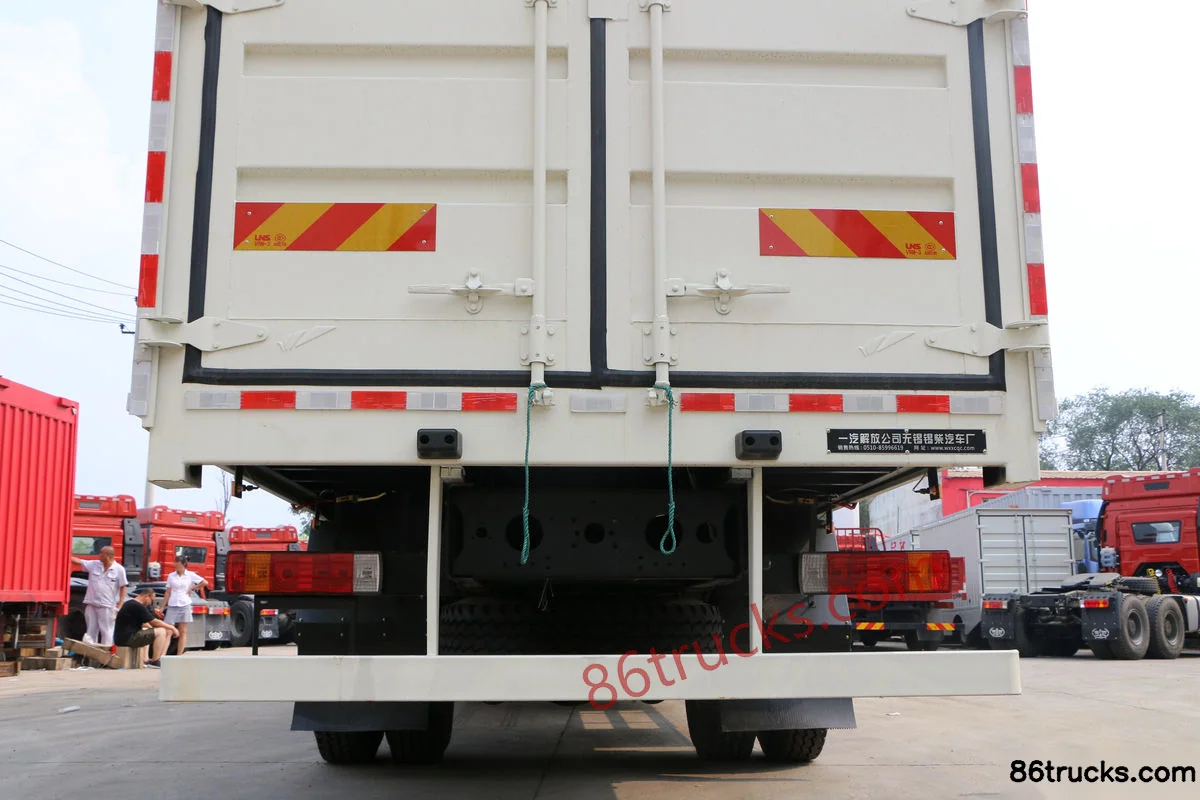

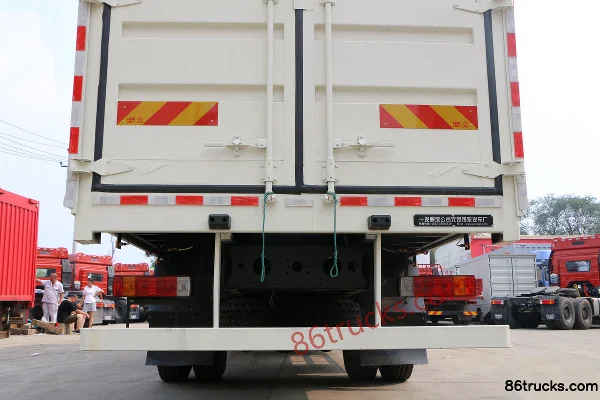

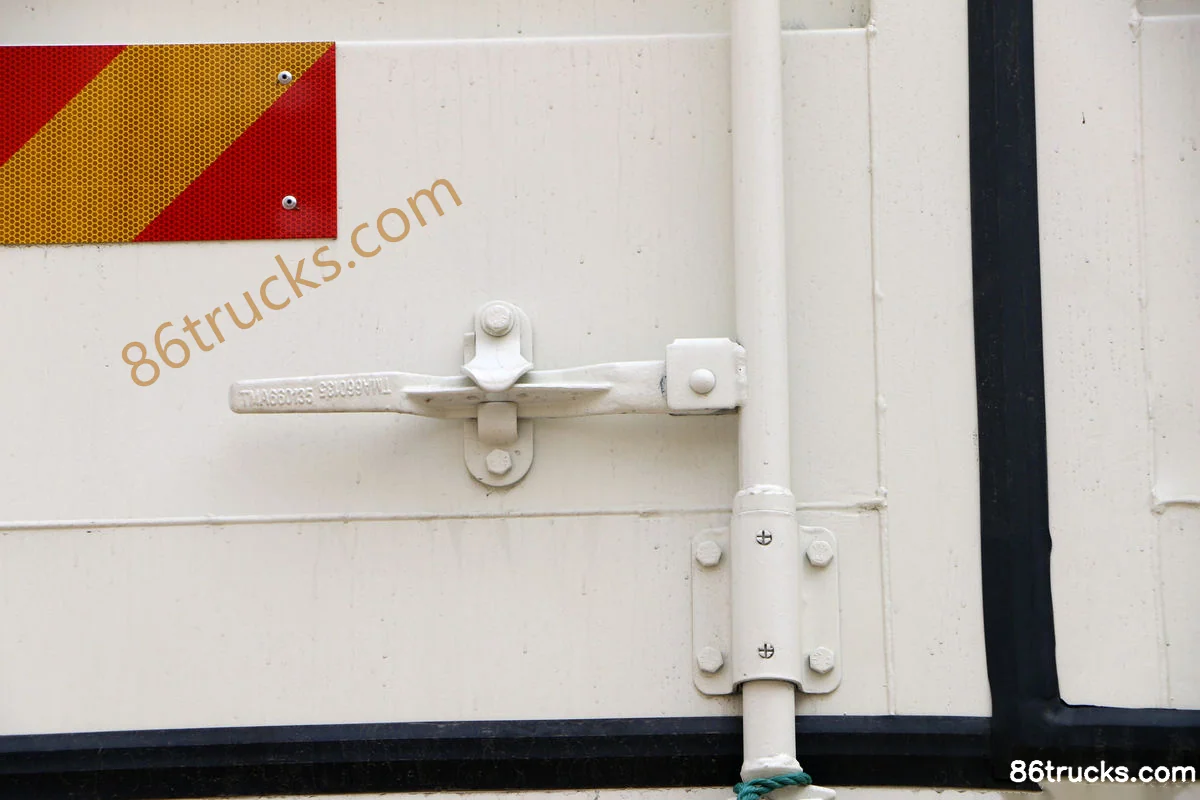

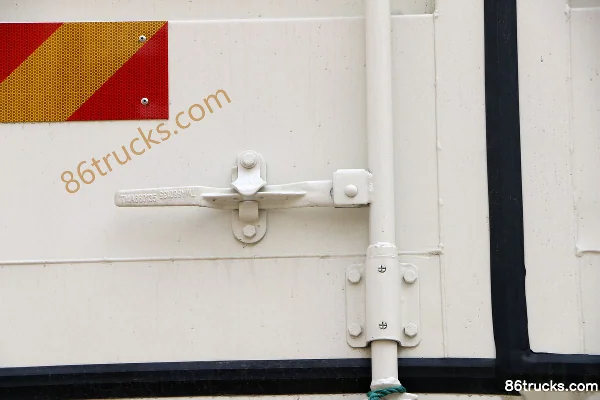

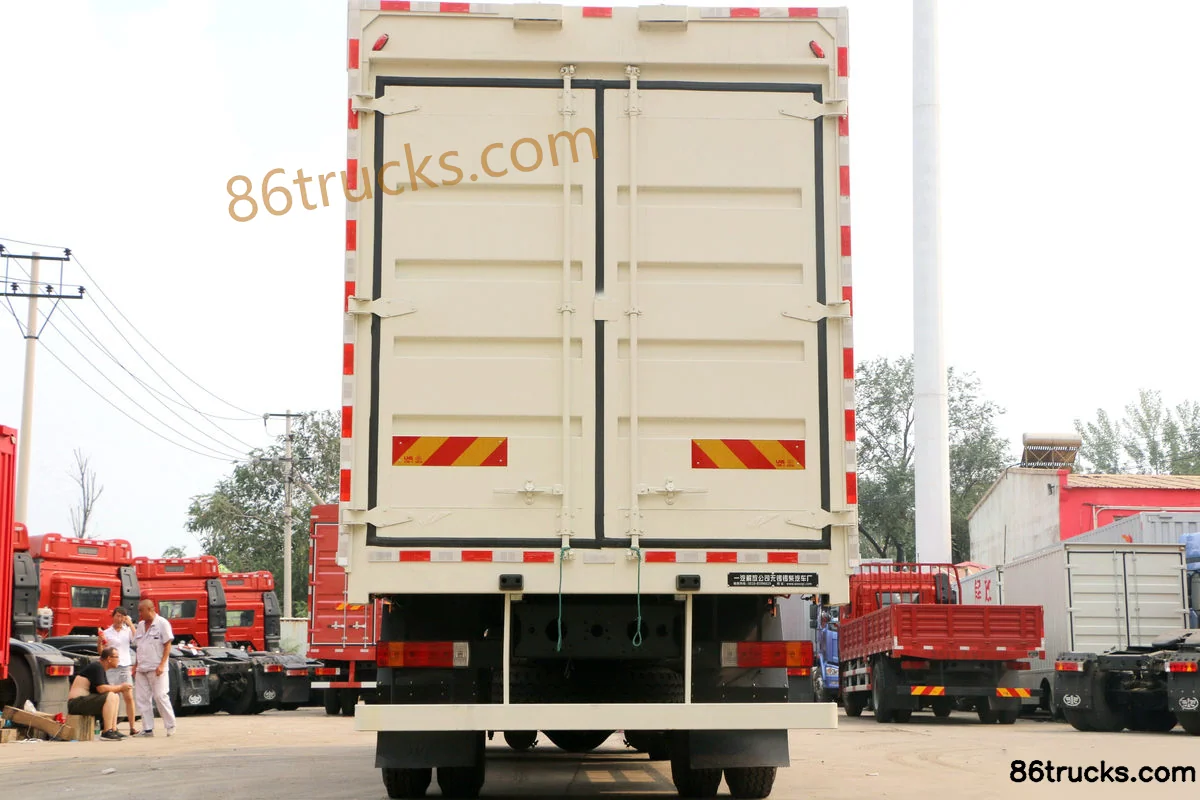

Body3

12 photos

FAQ

What emission standard does FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444)?

Key specs of FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444): Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: Xichai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444) suited for?

FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444) differ from other variants in the same series?

FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444) belongs to FAW Jiefang Qingdao HanV heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Han V 2.0 Edition 220 hp 6X2(8 wheels) 9.65m Wing Opening Van Cargo Truck (Rear Axle Ratio 4.444)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
