JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI)

Export reference

MSRP N/A

Emission: China VI

Fuel: Diesel

Curb Weight:: 7.875ton

Wheelbase:: 5800mm

Tire Size:: 11R22.5 18PR

Cab dimensions:: 10.7×2.6×3.95m

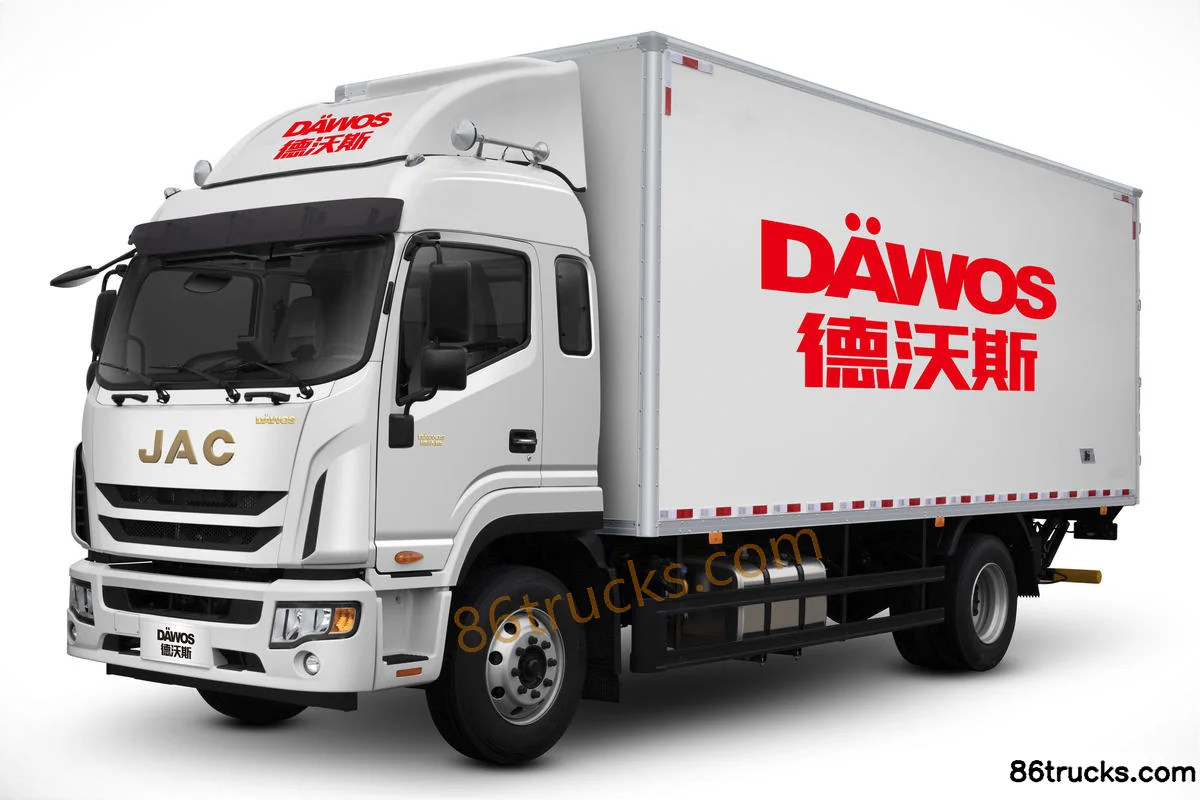

JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI) exterior

View more photos (1)

Rated payload: 9.995ton

Drive 4X2 (6 wheels)

Cargo box dimensions: 7.8×2.45×2.55m

Horsepower 220

Overview

The JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI) is a Refrigerated Truck featuring 7.8×2.45×2.55m cargo body, 9.995t payload, 10.7×2.6×3.95m cab and 5800mm wheelbase. On the powertrain side, it comes with 220 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Cab dimensions: 10.7×2.6×3.95m

Truck Type: Refrigerated Truck

Drive type: 4X2

Vehicle origin: Hefei, Anhui

Wheelbase: 5800mm

Front track width: 1830mm

rear track: 1800mm

Curb Weight: 7.875ton

Rated payload: 9.995ton

Max. speed: 110km/h

Remarks: Standard: metallic paint, exhaust brake, self-adjusting arm, telematics, rear underrun guard, aluminum long-life oil transmission, long-life oil transmission, standard wheel-end long-life; Optional: 10.00R20 tires, 450L fuel tank, multi-leaf front suspension, heavy-duty rear leaf springs, 90 km/h no-speed-limiter package, ConMet wheel ends

Front/rear suspension: 1.4/3.1m

Energy Type: Diesel

Engine parameters

Engine Model: Anhui CumminsB4.5NS6B220

Number of cylinders: 4cylinder

fuel type: Diesel

Displacement: 4.5L

Emission standard: China VI

Max output power: 162kW

Max hp: 220Horsepower

Max torque: 820N·m

Rated speed: 2300rpm

Engine Type: DOC+DPF+SCR

Cargo box parameters

Cargo box dimensions: 7.8×2.45×2.55m

Cargo box width: 2.45m

Cargo box height: 2.55m

Body Parameters

Vehicle certification code: HFC5181XLCB80K1E4S

Body Brand: JAC

Chassis Specs

Chassis Brand: JAC

Chassis Series: Dewos Q9

Chassis Model: HFC5181XXYB80K1E4S

Leaf spring count: 3/9+7

Transmission Parameters

Number of gears: 8Gear

Transmission Model: 8-speed gearbox

Tire

Tire Size: 11R22.5 18PR

Number of tires: 6pcs

Control configuration

ABS:

Stability control system:

Power steering:

EBS electronic braking system:

clutch booster:

Load-sensing proportioning valve (SABS):

automatic slack adjuster:

interior configuration

Multifunction steering wheel:

AC control type: Manual

Power Windows:

Power Mirrors:

Electric Heated Rearview Mirror:

Power interface:

Reverse Radar:

Seat material: Fabric

Reverse Camera:

Remote key:

Electronic Central Lock:

Exterior features

Air deflector:

Aluminum air tank:

Diesel primary filter heating:

Multimedia features

Center Console Color Screen:

GPS/Beidou driving recorder:

External audio input (AUX/USB/iPod etc.):

Bluetooth / hands-free calling:

Radio:

lighting configuration

Front fog lamp:

daytime running lights:

Headlight height adjustment:

Halogen Headlights:

Service brake

Brake Type: Air brake

hydraulic retarder:

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

smart configuration

Cruise control (CCS):

Tire Pressure Monitoring System (TPMS):

maintenance service

24-hour service hotline: none

Photos

Exterior1

1 photos

FAQ

What emission standard does JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI)?

Key specs of JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI): Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI) suited for?

JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI) differ from other variants in the same series?

JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI) belongs to JAC Q9 medium-duty truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Dewosi Q9 220 hp 4X2(6 wheels) 8.2m refrigerated truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
