Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck

Export reference
From $15,556
MSRP ¥11.2M CNY
Horsepower: 141
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck is a Light Truck featuring 4.2m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 141 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 141 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1047F341BD145
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: FotonISF3.8s4141
transmission: WLYWLY6S51B-61
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2.25m
Cab height: 2.45m
Front track width: 1625mm
rear track: 1525mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 18°
departure angle: 18°
market segment: Building materials, agricultural products
Remarks: wide deluxe cab, metallic paint, factory fairing, new instrument panel, factory A/C, clutch, power steering, 195 double-layer frame, five-door corrugated panel cargo box, cargo box height 500mm, aluminum fuel tank, with exhaust brake, all-steel radial tires,
Front/rear suspension: 1.16/1.475m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 105kW
Max hp: 141Horsepower
Max torque: 450N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY6S51B-61
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.2m
Cargo box width: 2.05m
Cargo box height: 0.5m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 1790kg
rear axle description: Single reduction axle with spring brake
rear axle allowable load: 2705kg
Axle ratio: 5.375
Leaf spring count: 11/11+7
Tire
Tire Size: 7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

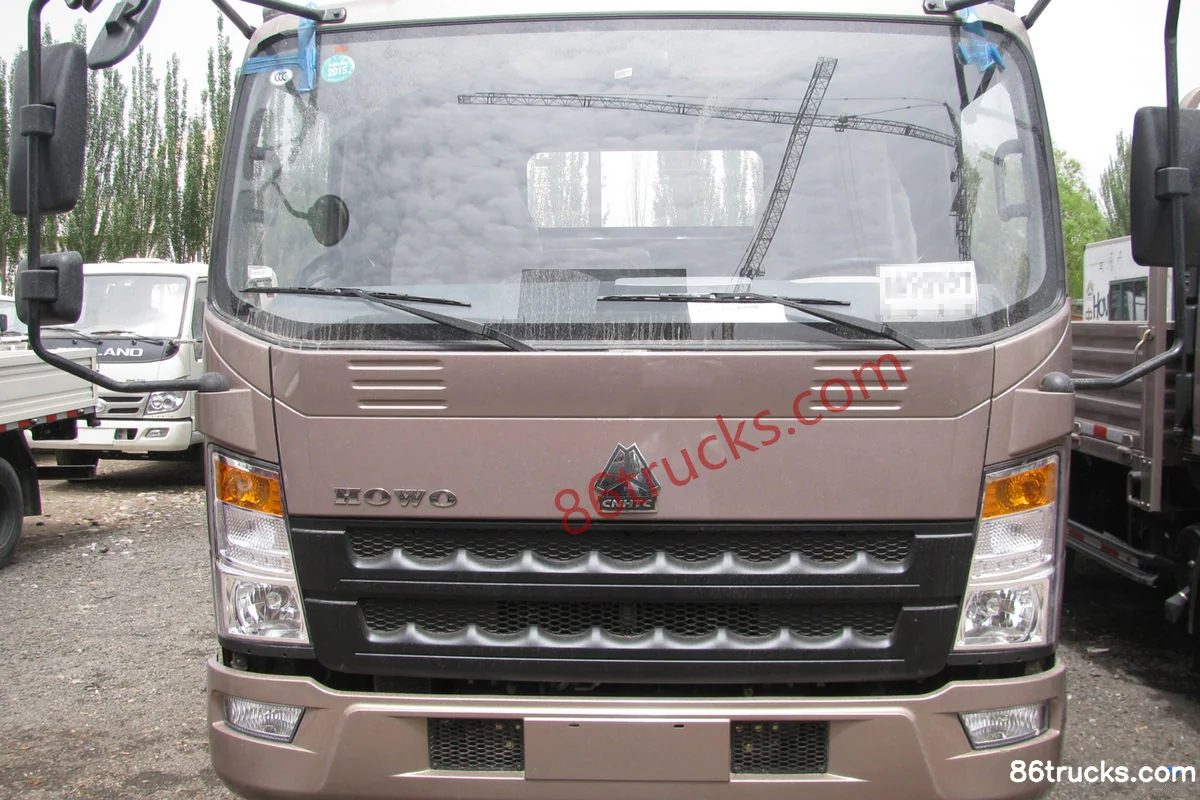

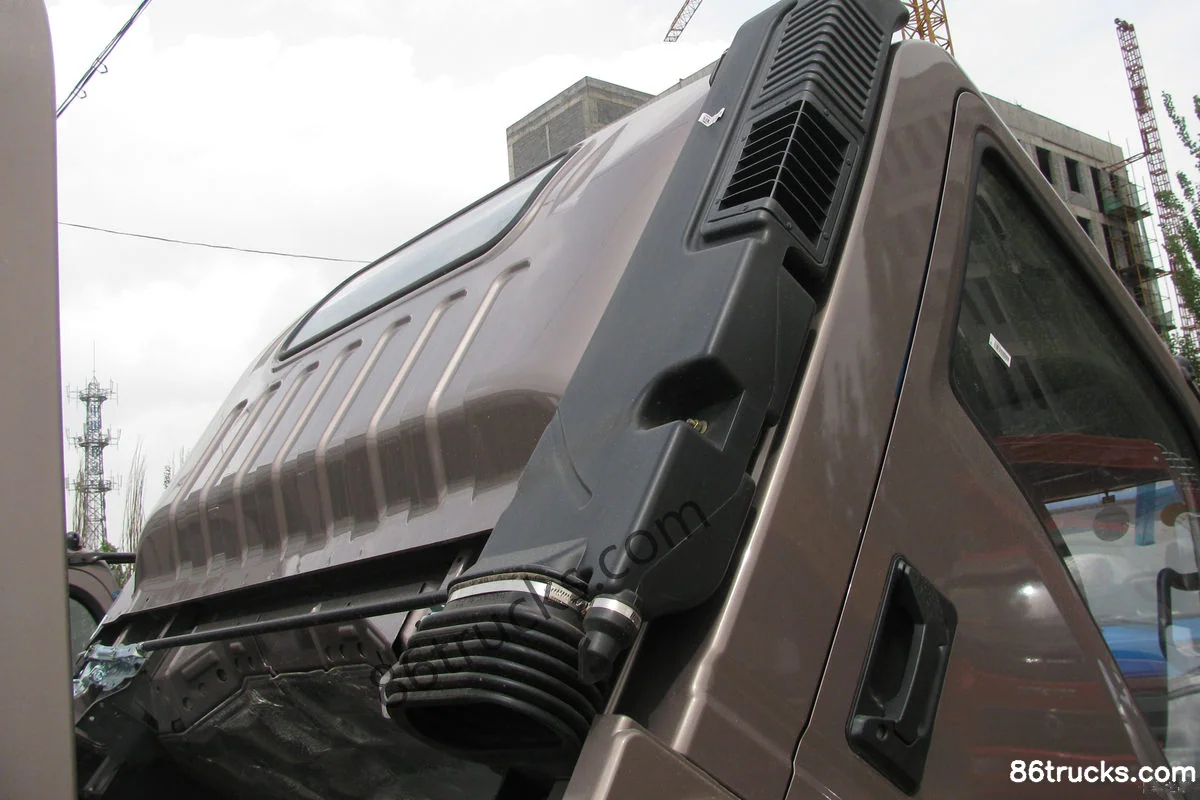

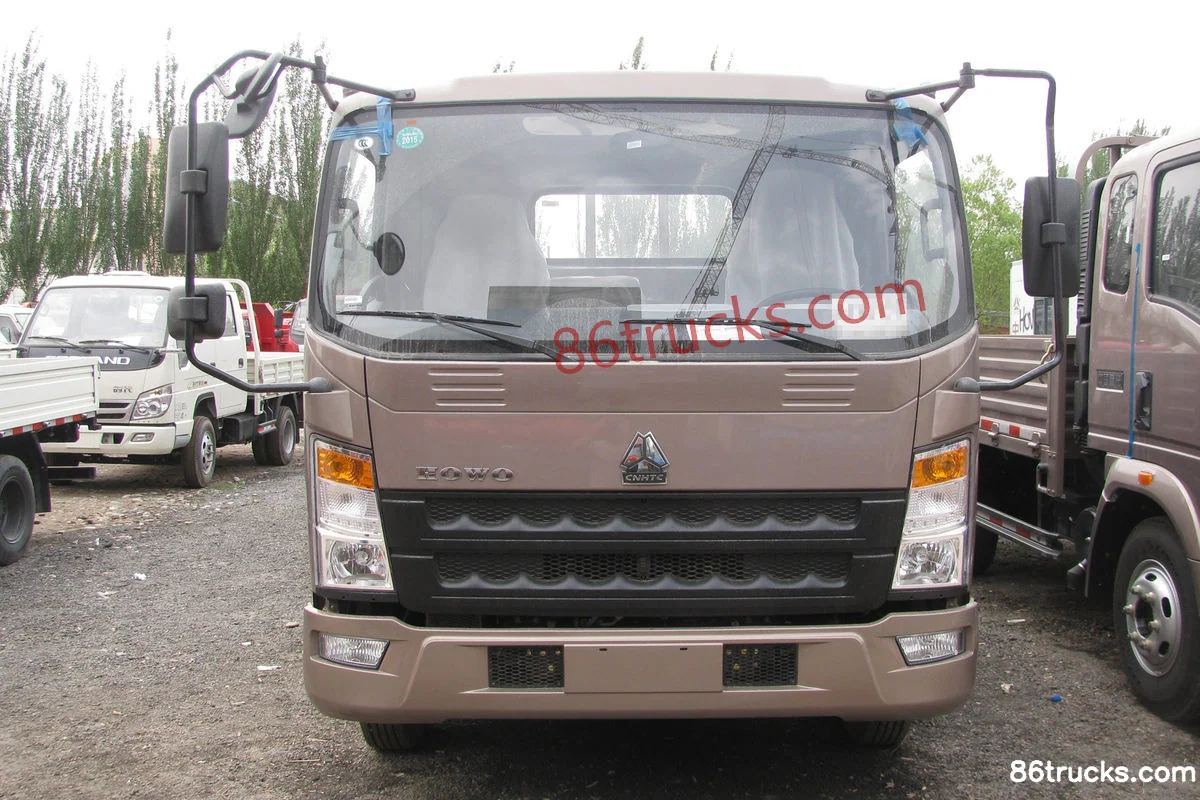

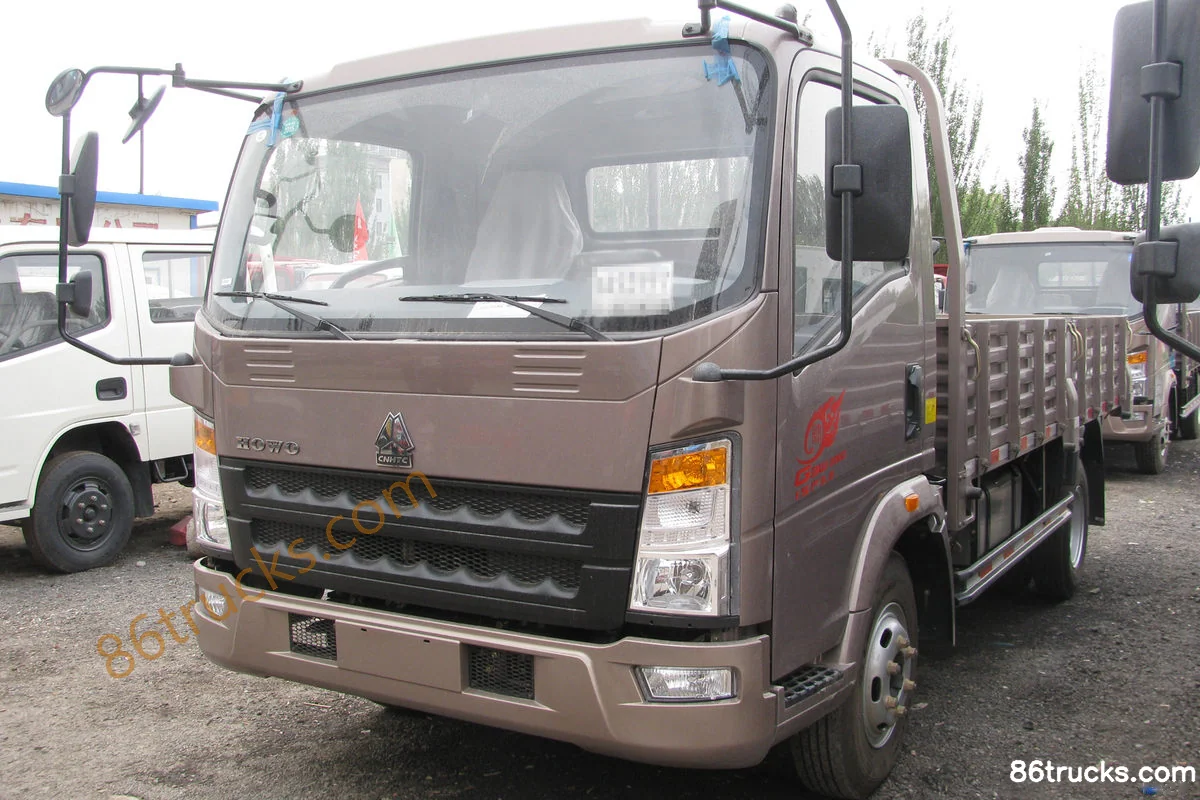

Exterior3

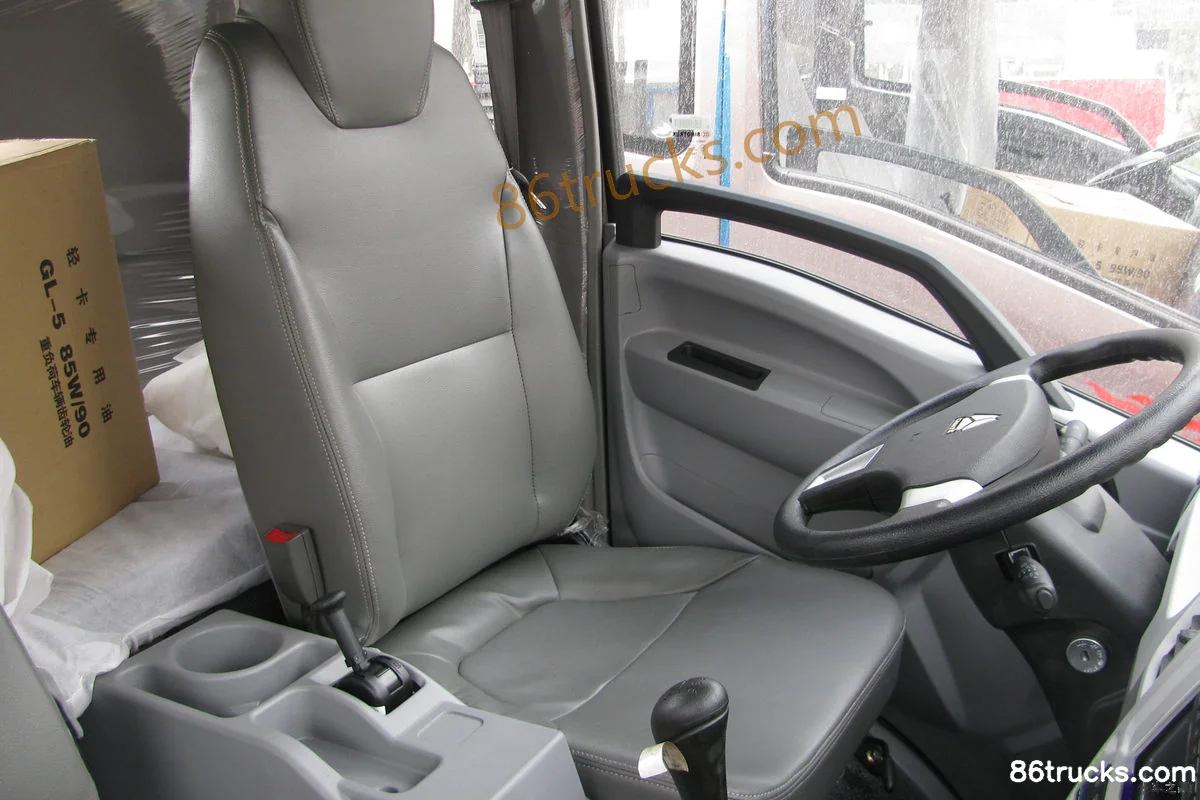

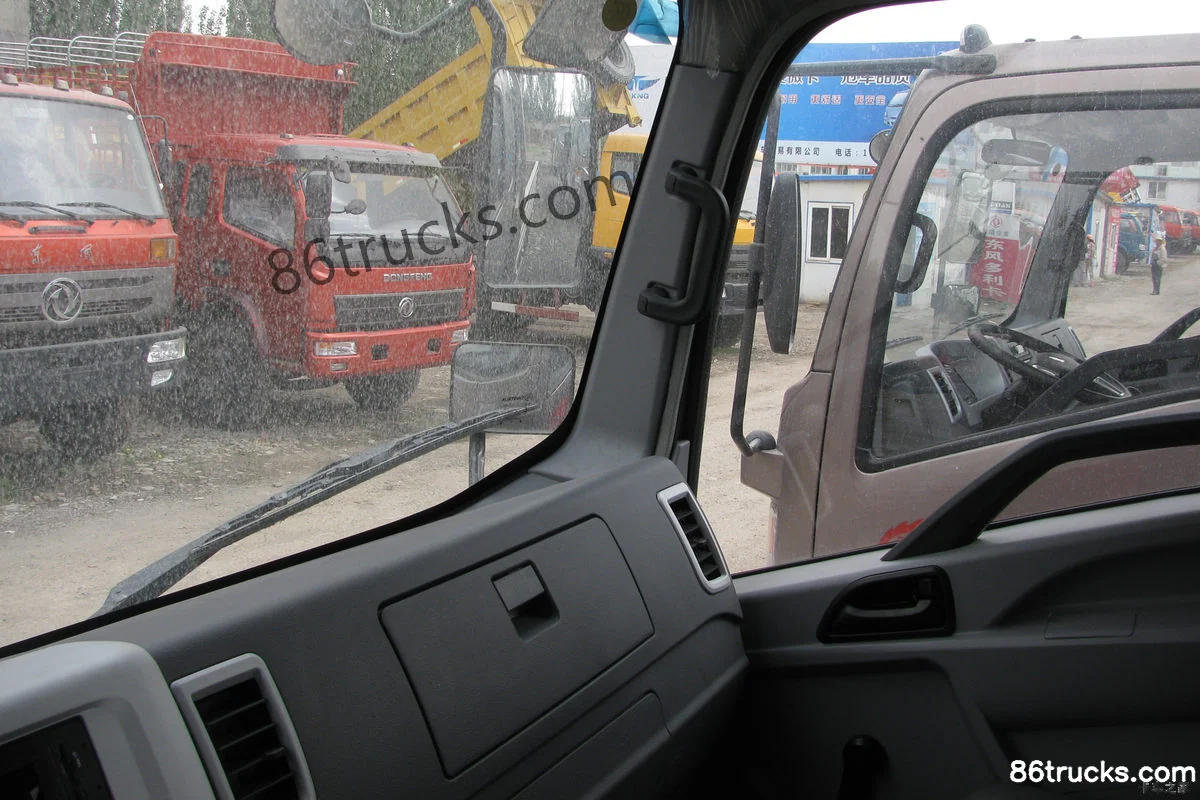

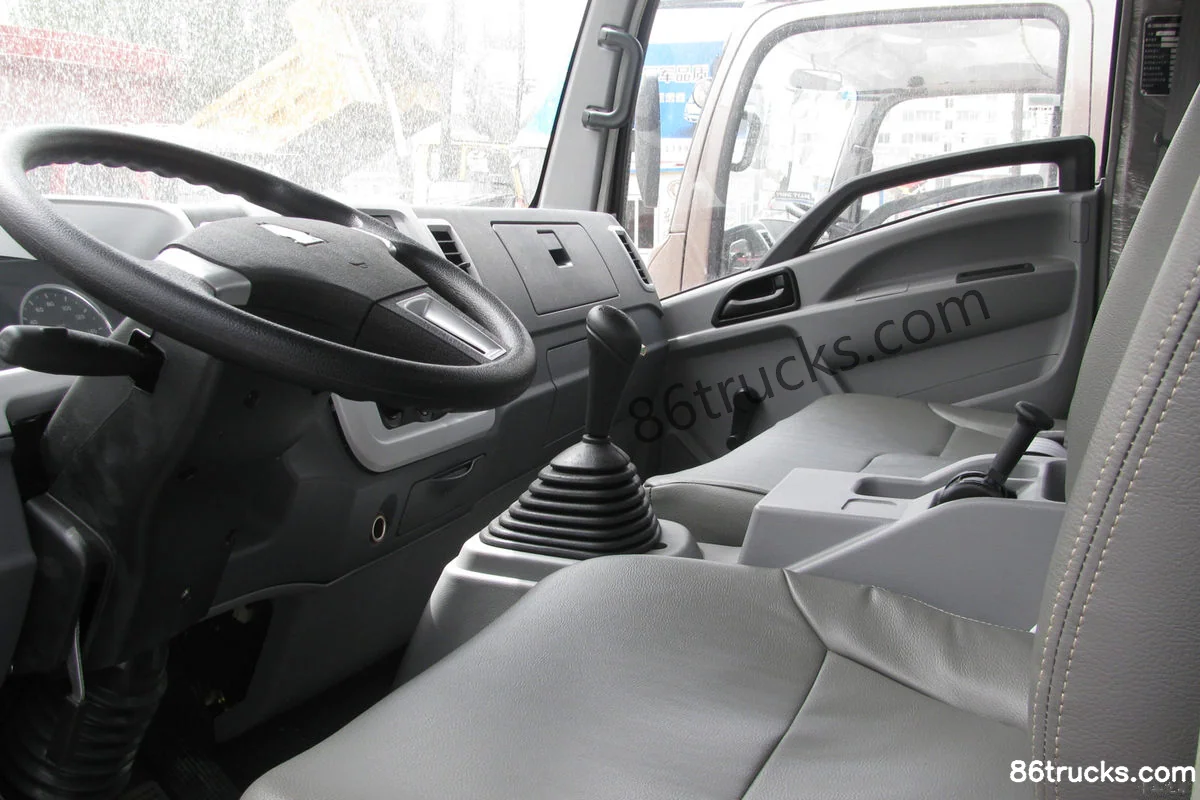

Cab3

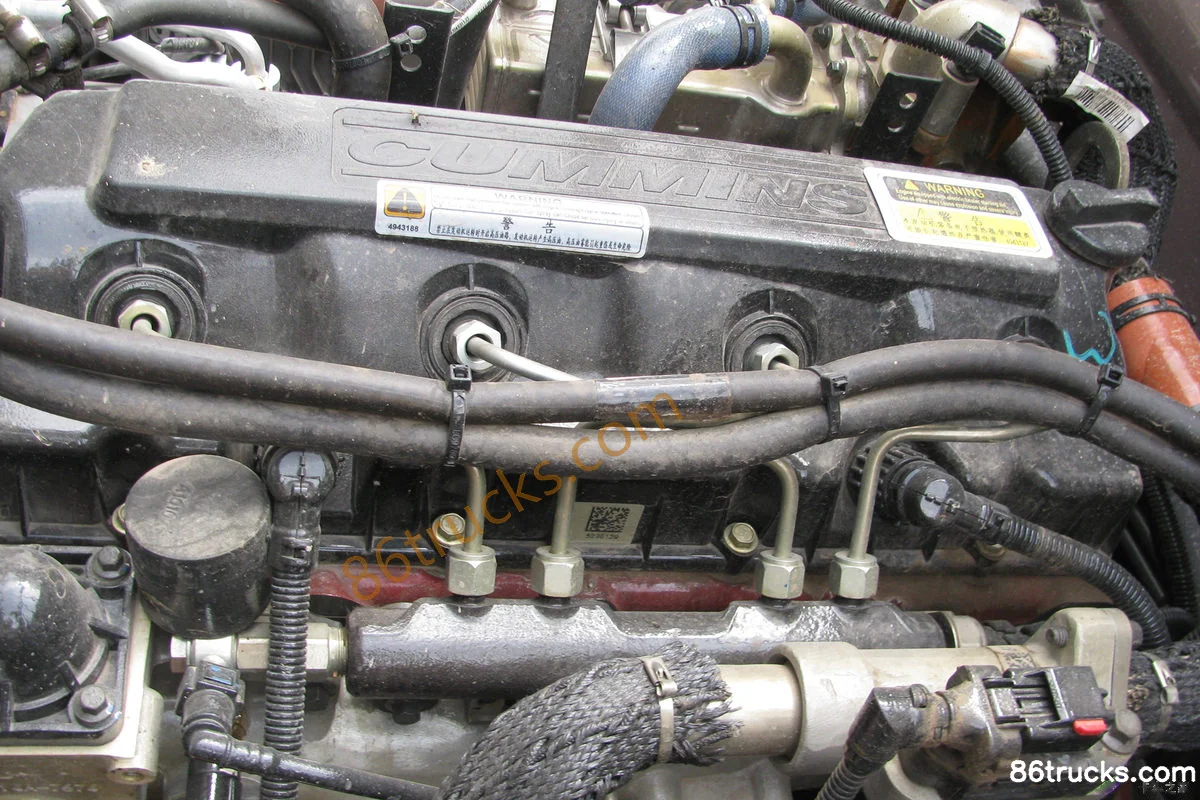

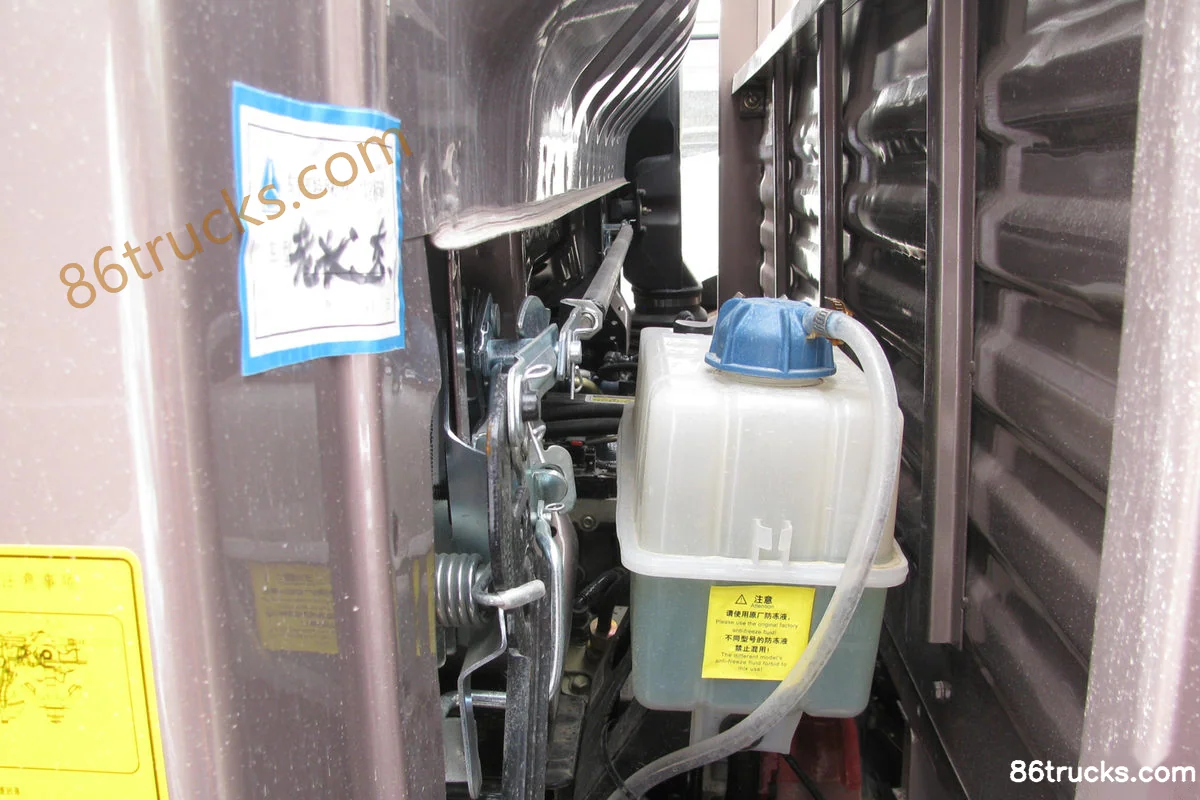

Chassis3

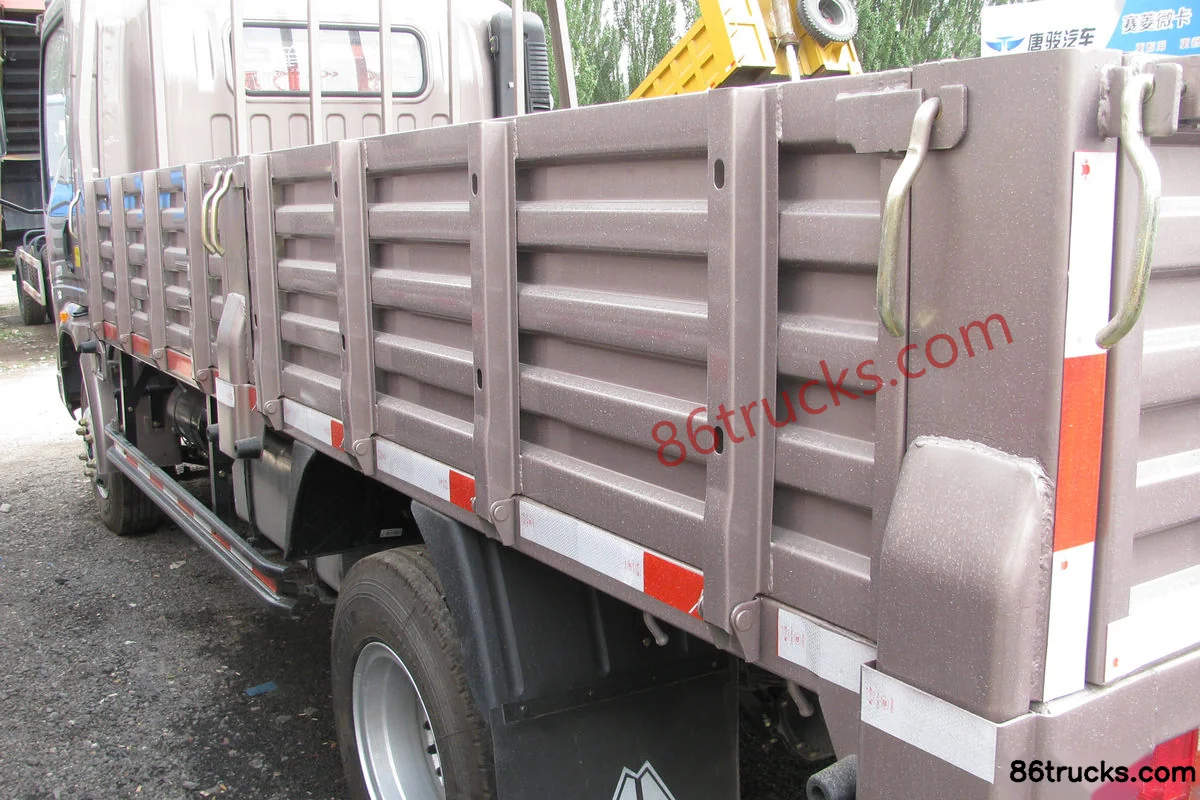

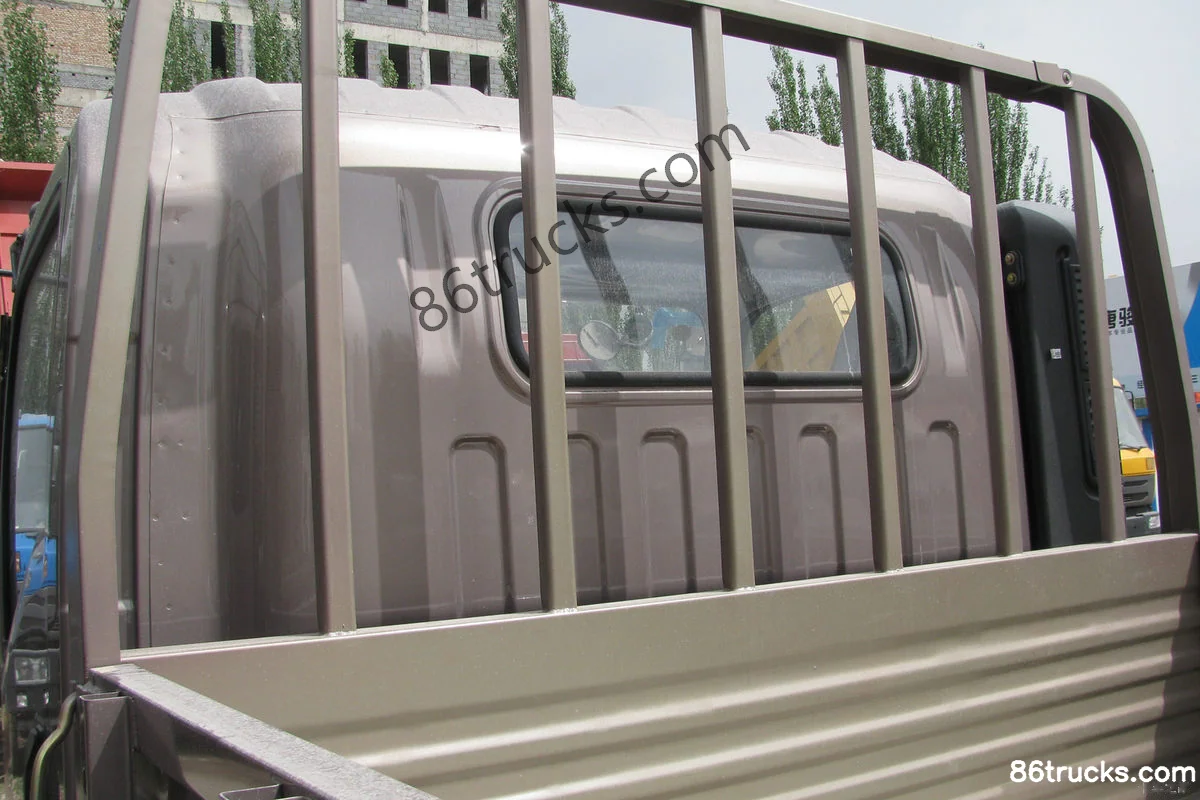

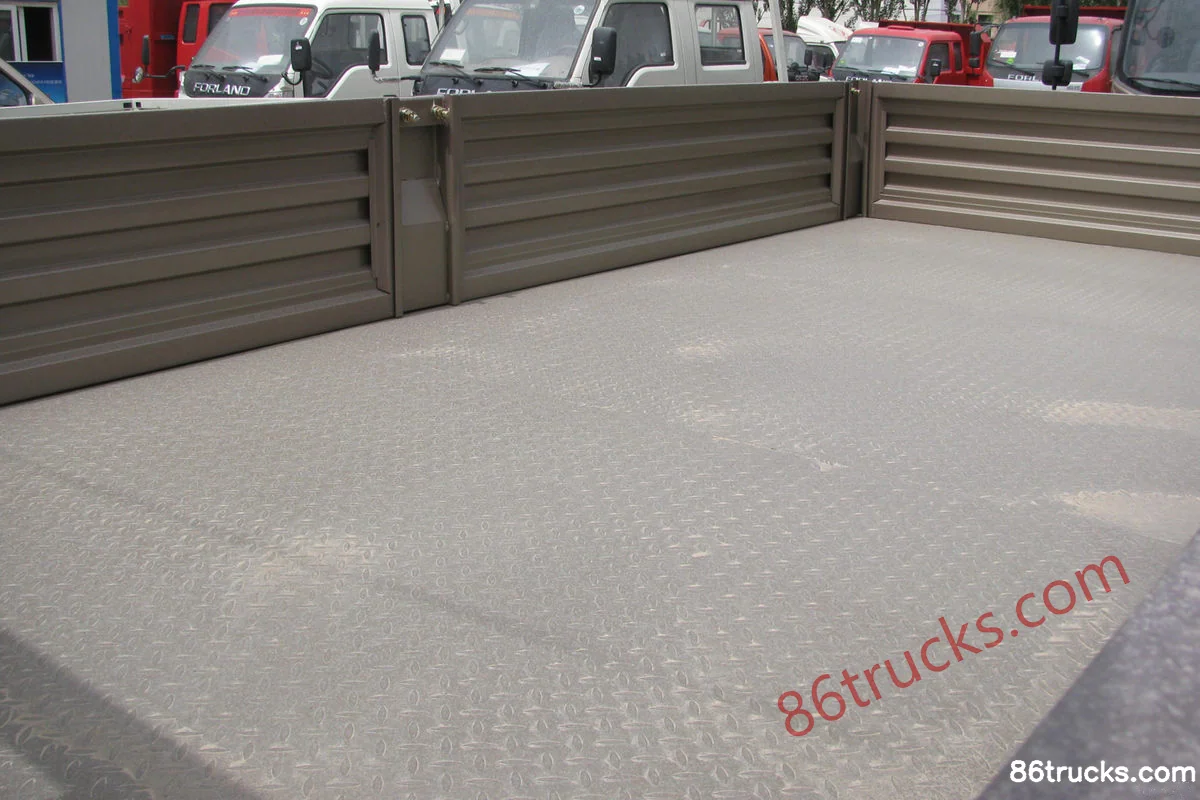

Body3

12 photos

FAQ

What is the export price of Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck, and what does it include?

Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck export reference is about From $15,556; MSRP is ¥11.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck?

Key specs of Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 141 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck suited for?

Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck differ from other variants in the same series?

Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck belongs to Sinotruk Tongshuai Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Tongshuai 141hp 4X2(6 wheels) 4.2m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
