FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis

Export reference
From $20,139
MSRP ¥14.5M CNY
Emission: China V
Fuel: Diesel
Engine: Xichai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 5.15ton
Wheelbase:: 5250mm
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Chassis
Horsepower 180

Overview

The FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis is a Medium-duty truck featuring Chassis cargo body, 3Personnel volume, Long V mid-roof semi-floating cab cab and 5250mm wheelbase. On the powertrain side, it comes with a Xichai 4-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1169PK2L2BE5A80
Type: Chassis
Drive type: 4X2
Wheelbase: 5250mm
engine: XichaiCA4DLD-18E5
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.875
Cab length: 8.832m
Cab width: 2.304m
Cab height: 2.75m
Front track width: 1800mm
rear track: 1740mm
Curb Weight: 5.15ton
GVWR: 16ton
Max. speed: 98km/h
Origin: Qingdao/Chengdu
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 11°
Front/rear suspension: 1.332/2.25m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DLD-18E5
Engine info: Xichai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.4L
Emission standard: China V
Max output power: 134kW
Max hp: 180Horsepower
Max torque: 680N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: Long V mid-roof semi-floating cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: Upgraded X135
Frame Dimensions: 237×75×(7+4)mm
rear axle description: 385 improved cast axle
Axle ratio: 4.875
Leaf spring count: 7/10+3
clutch: Φ395
Tire
Tire Size: 9.00R20
Tire Type: 16-ply
Number of tires: 6pcs
Control configuration
ABS:

Photos

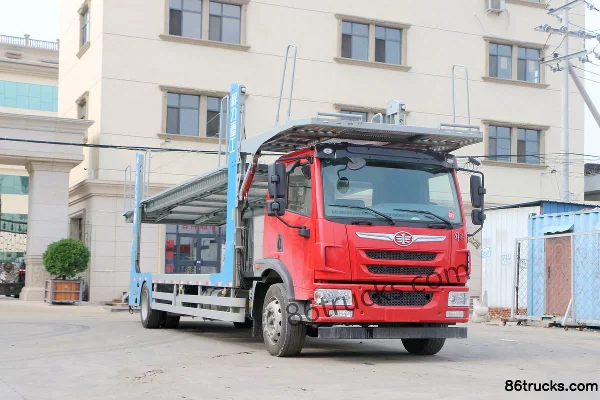

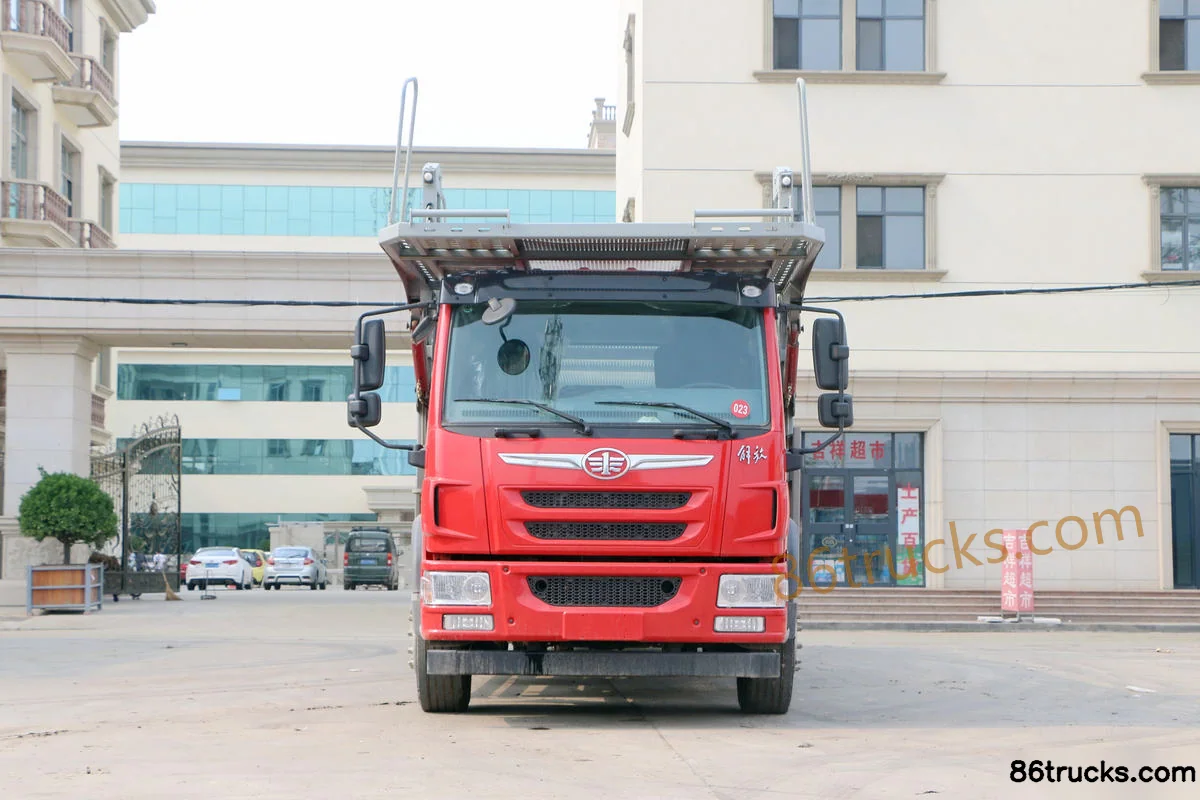

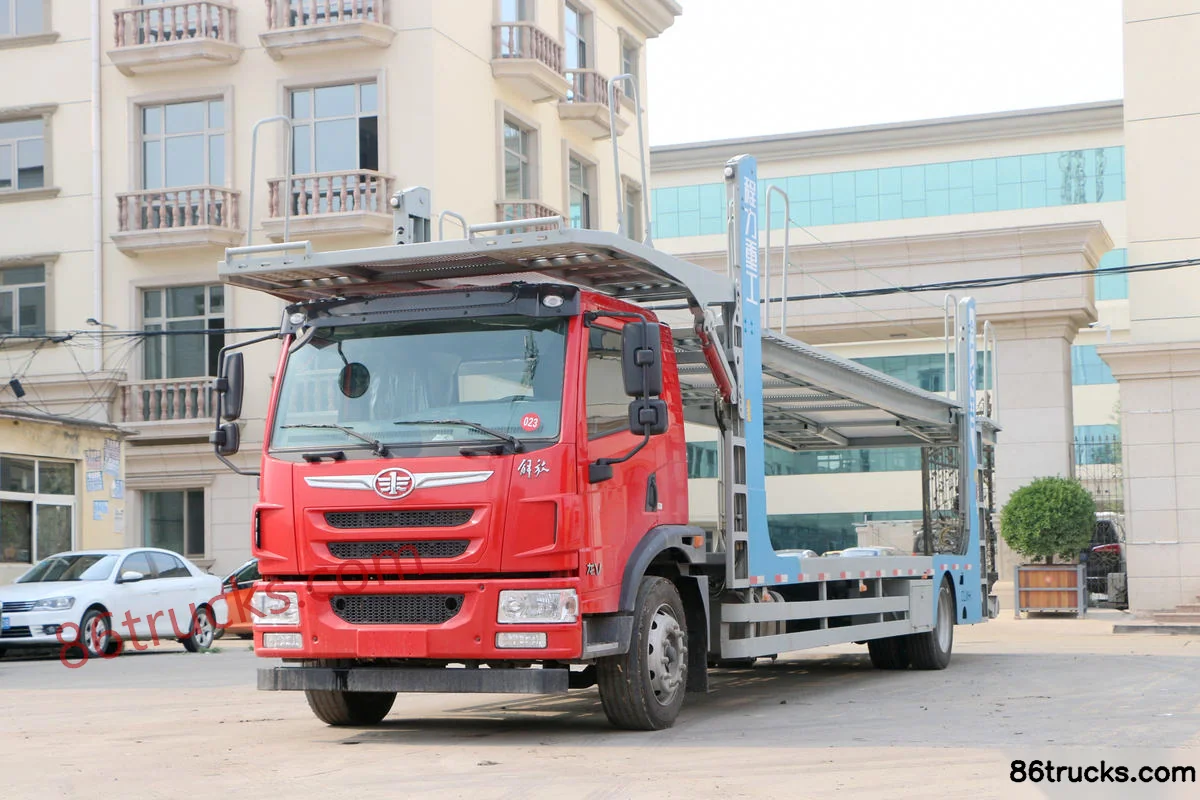

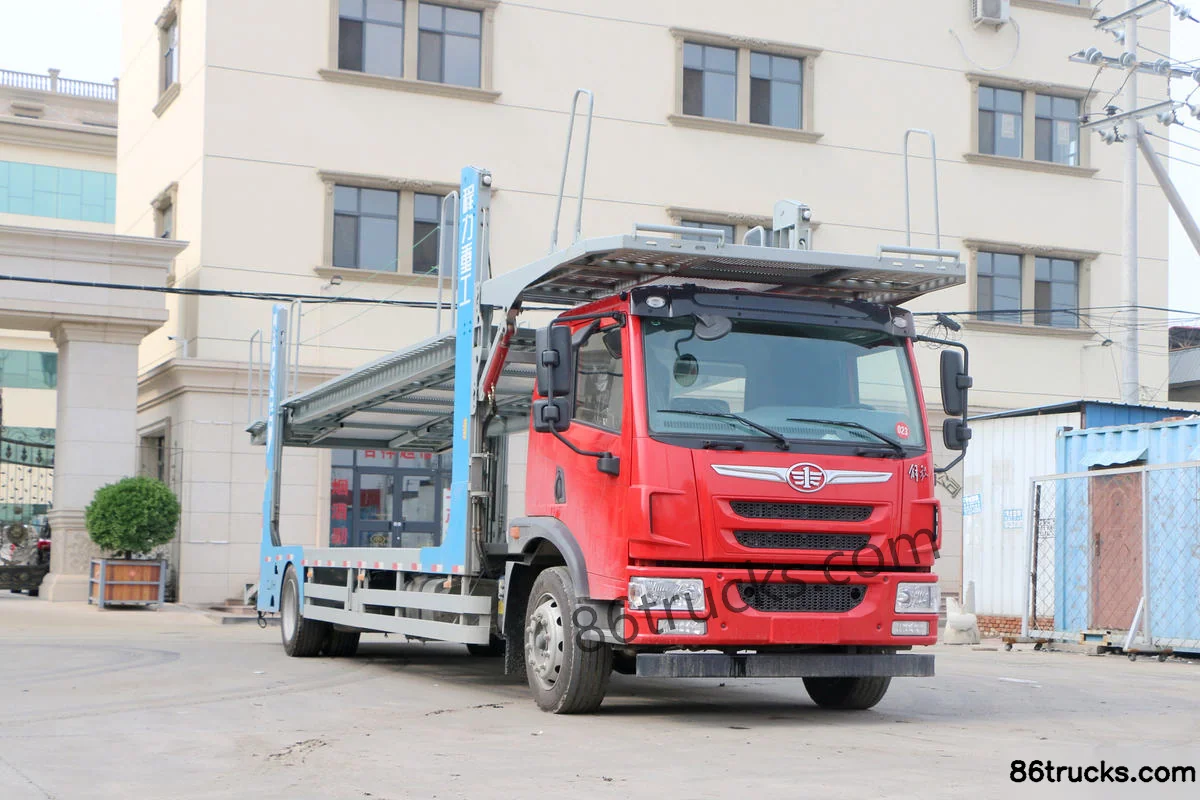

Exterior3

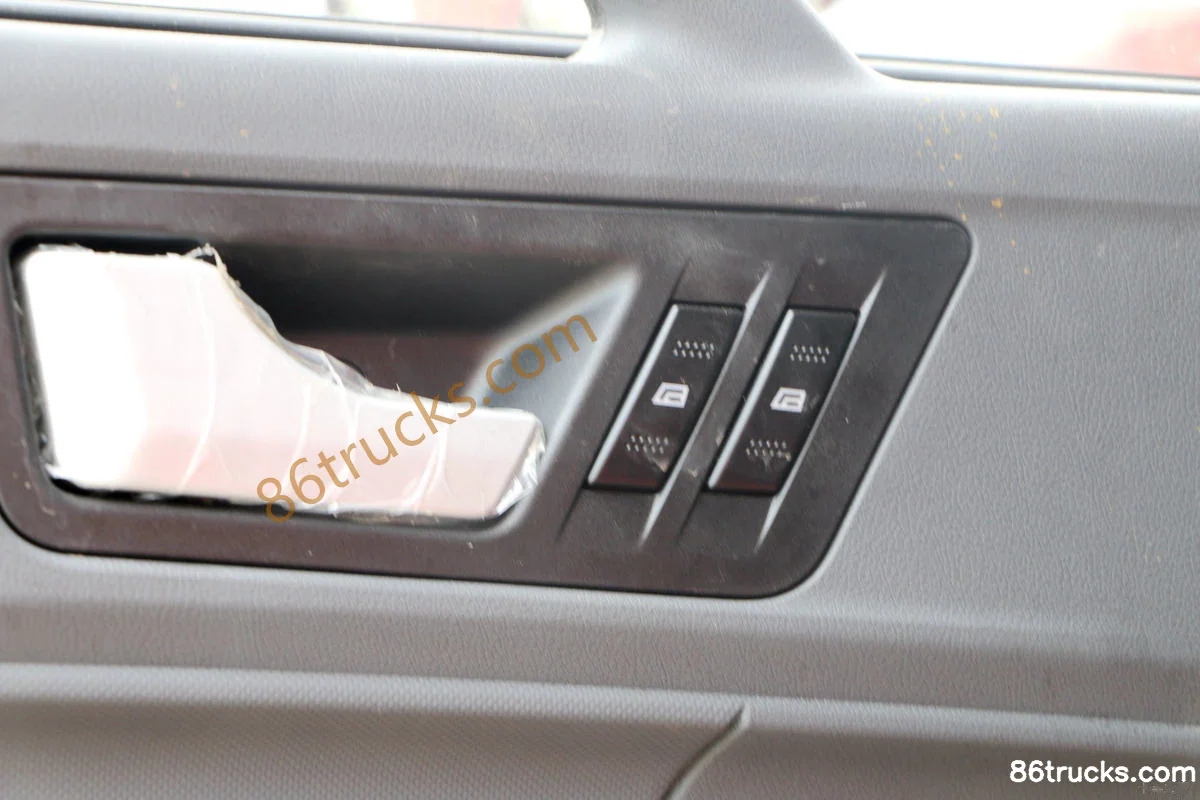

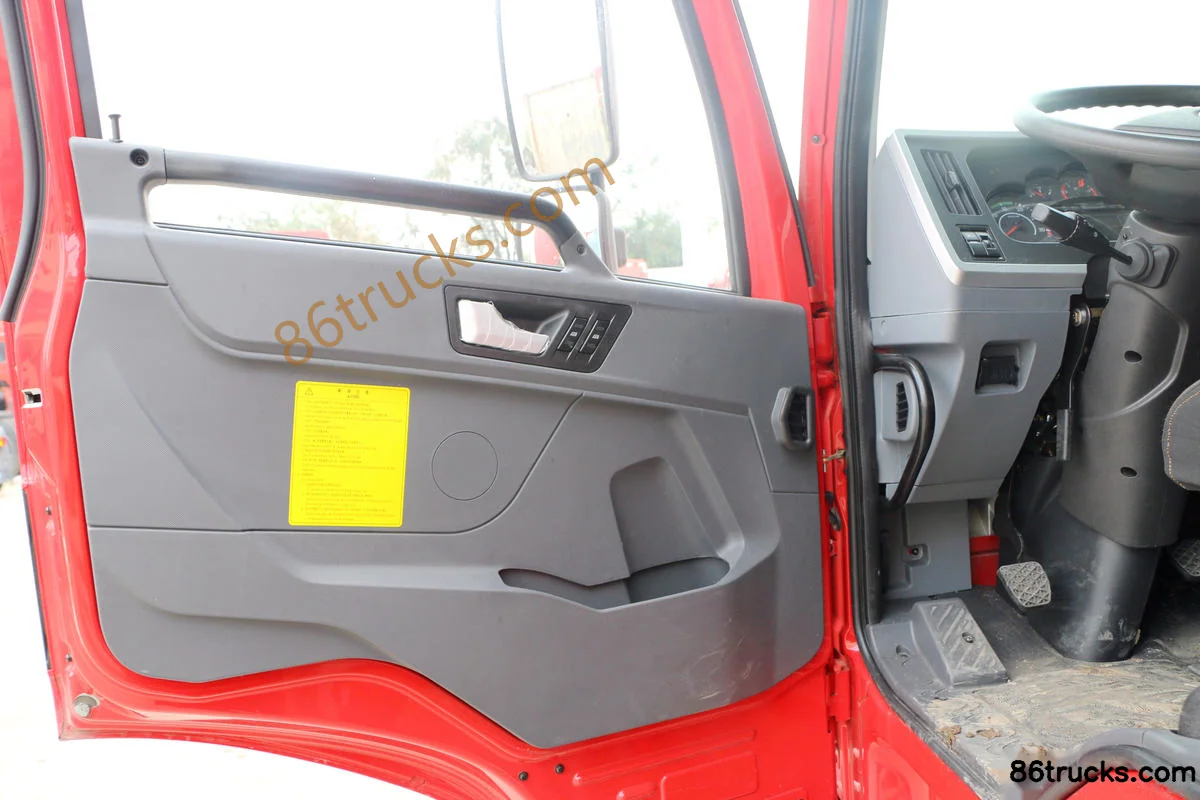

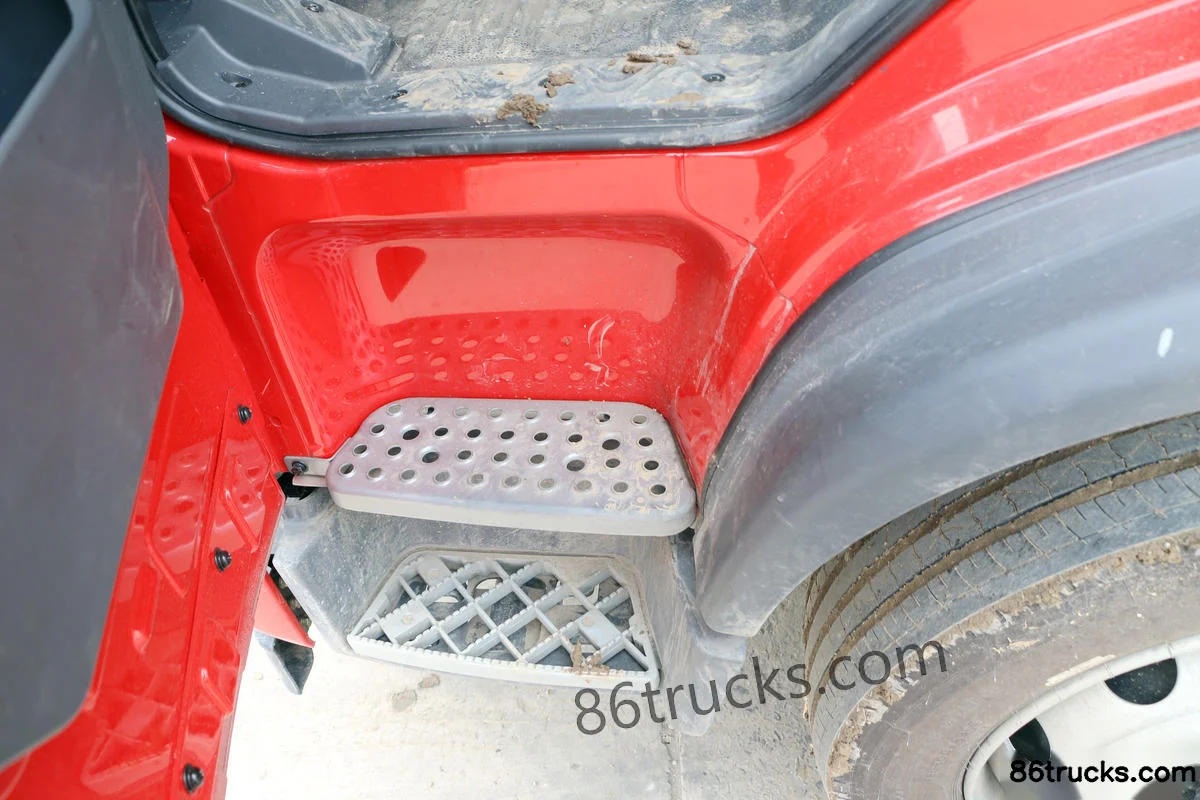

Cab3

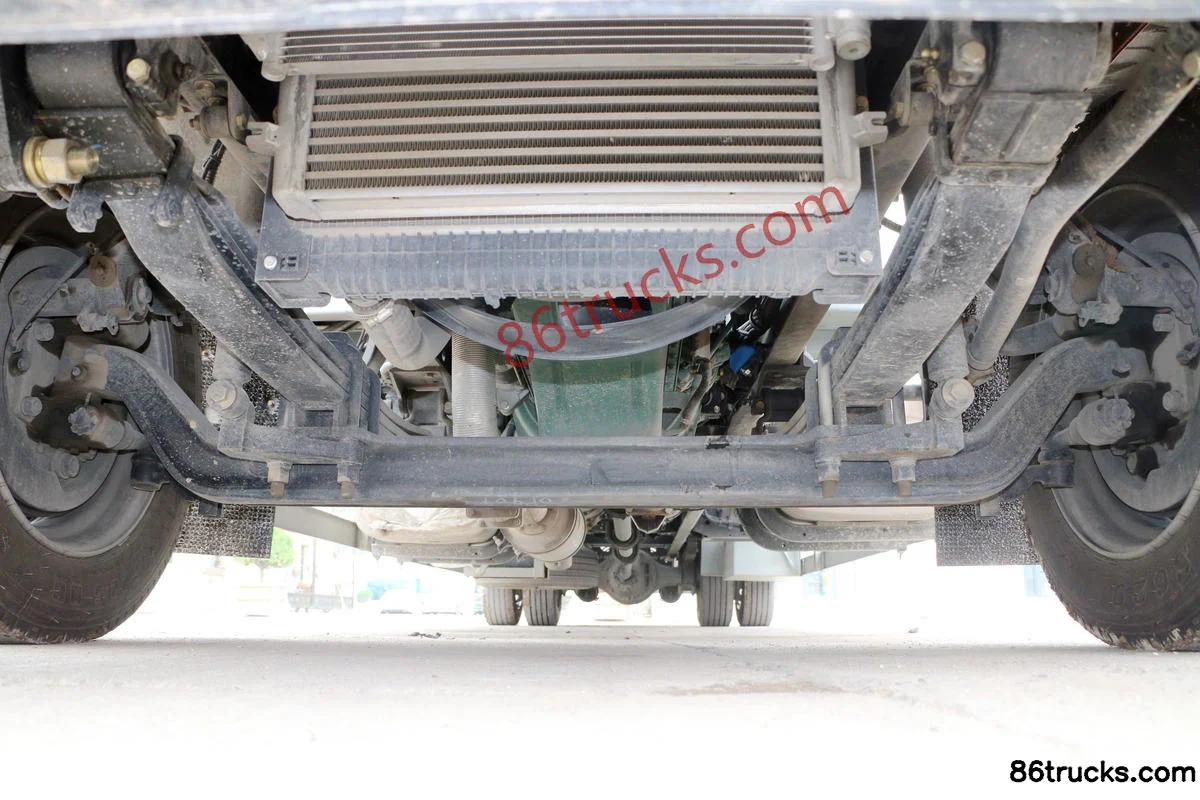

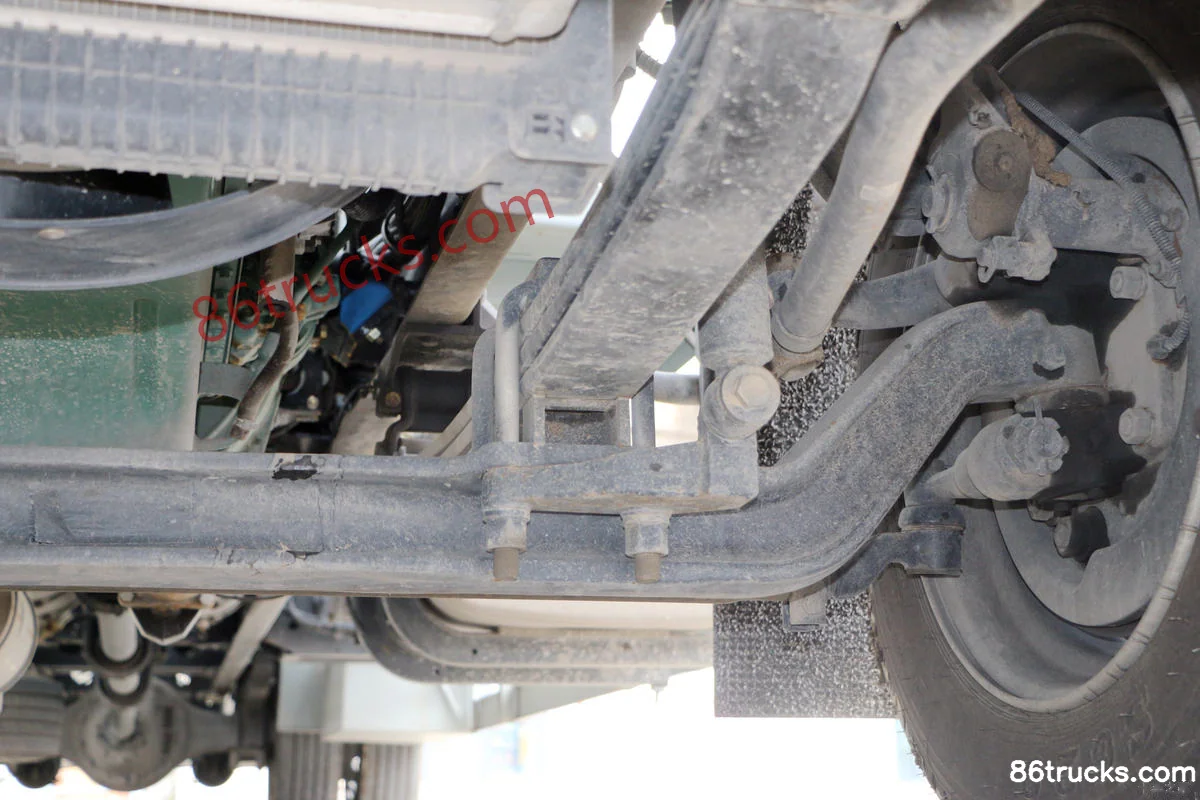

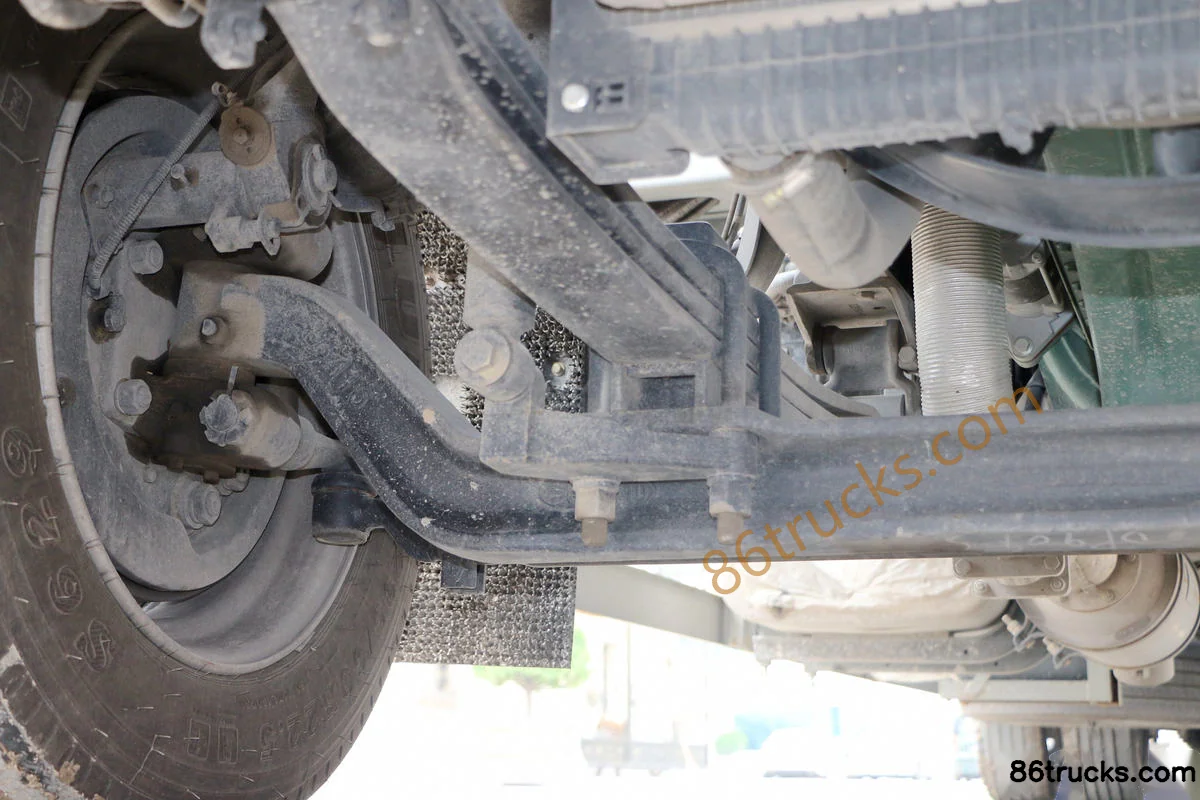

Chassis3

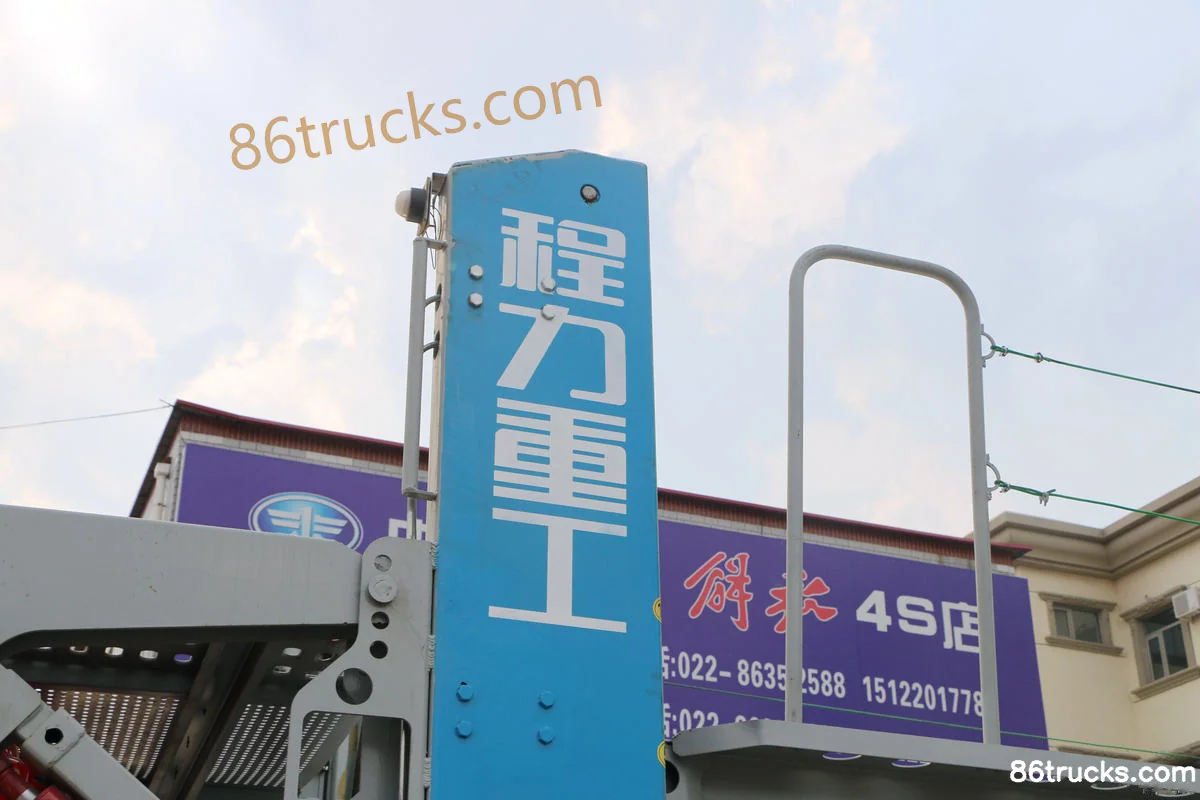

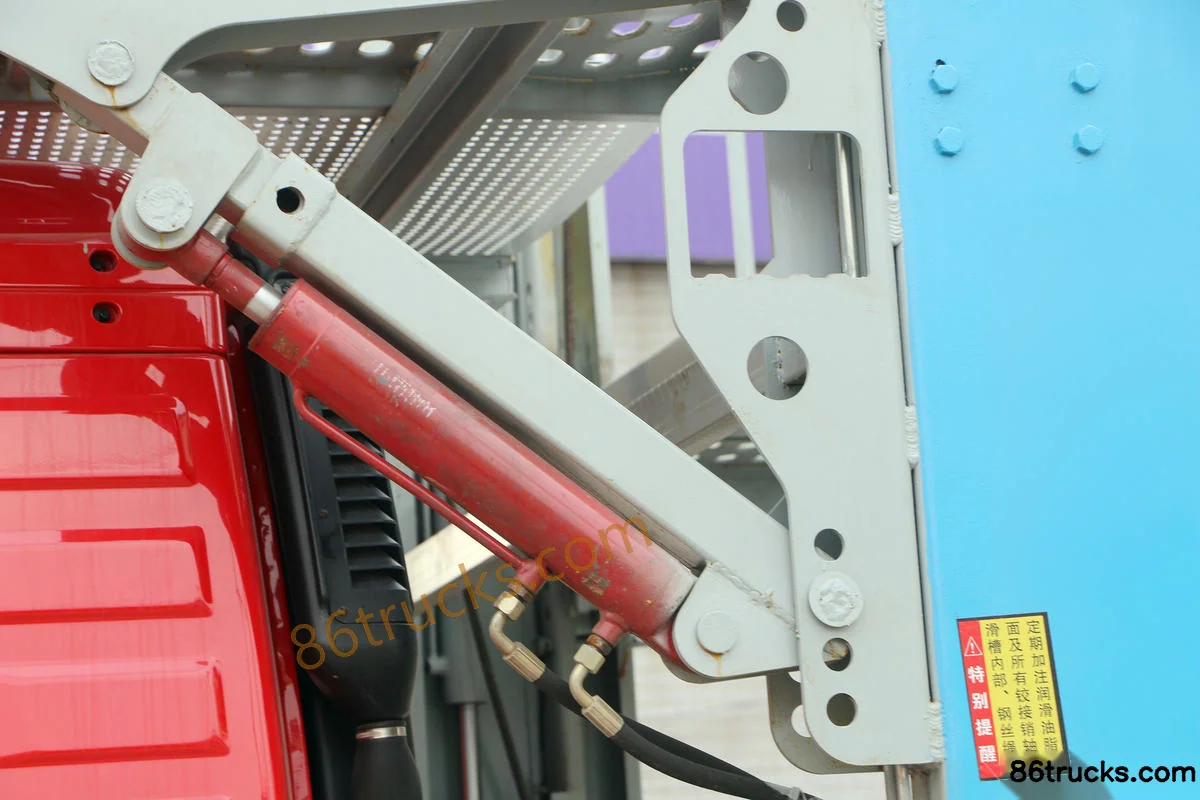

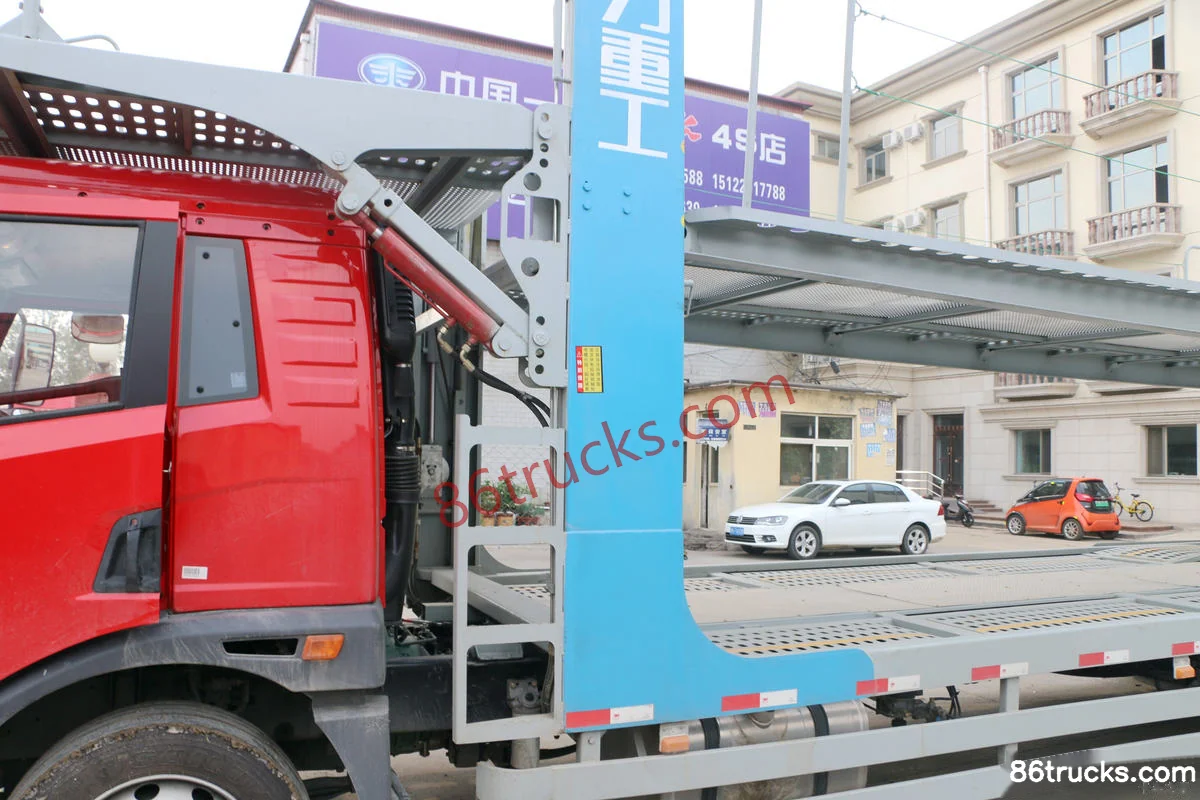

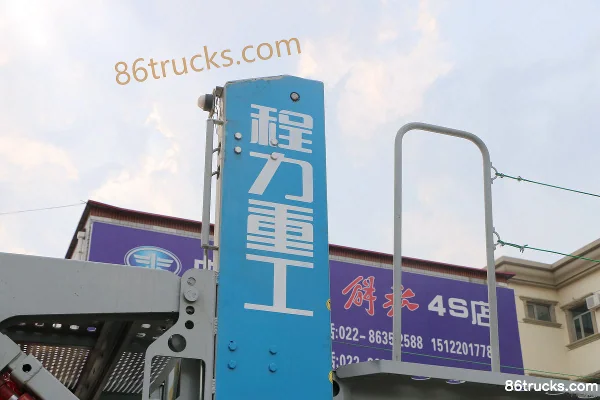

Body3

12 photos

FAQ

What is the export price of FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis, and what does it include?

FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis export reference is about From $20,139; MSRP is ¥14.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis?

Key specs of FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Xichai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis suited for?

FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis differ from other variants in the same series?

FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis belongs to FAW Jiefang Qingdao Long V Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Long V Medium Truck 180 hp 4X2(6 wheels) Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
