JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck

Export reference
From $16,014
MSRP ¥11.53M CNY
Horsepower: 156
Emission: China V
Fuel: Diesel
Engine: De Wei D30
Transmission: Lu'an
Curb Weight:: 4.05ton

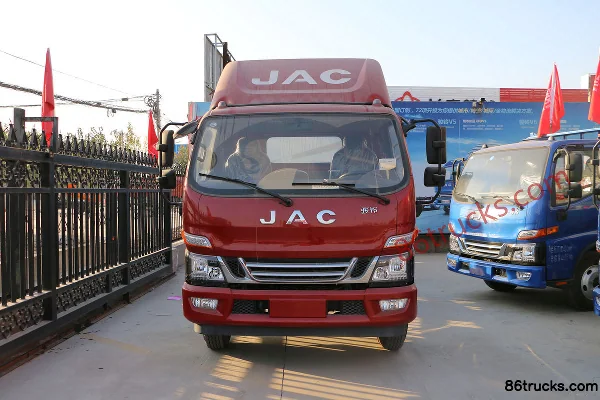

JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck exterior
seating capacity: 3Personnel
Rated payload: 7.75ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck is a Light Truck featuring 5.53m cargo length, Stake type cargo body, 3Personnel volume and 7.75t payload. Its segment focus covers Green Pass, matching those duty cycles. On the powertrain side, it comes with a De Wei D30 engine, 156 hp, 4X2 (6 wheels) drive and China V emissions.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5120CCYP91K1D1V
Type: stake truck
Drive type: 4X2
Wheelbase: 4150mm
Box length class: 5.5m
engine: Yunnei PowerD30TCIE4
transmission: Lu'an LC6T540
Cab length: 7.35m
Cab width: 2.4m
Cab height: 3.58m
Front track width: 1700mm
rear track: 1610mm
Curb Weight: 4.05ton
Rated payload: 7.75ton
GVWR: 11.995ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 14°
market segment: Green Pass
Front/rear suspension: 1.055/2.145m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIE4
Engine info: De Wei D30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.977L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 450N·m
Max torque speed: 1500-2700rpm
Rated speed: 3200rpm
Engine Oil Change Interval: 20,000 km
Transmission Parameters
Transmission Model: Lu'an LC6T540
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Transmission oil change interval: 60,000 km
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 5.53m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 4320kg
Frame Dimensions: 180*65*5-800mm
rear axle allowable load: 7675kg
Axle ratio: 4.875
Leaf spring count: 9/6+6
Frame Type: Dovetail beam
rear axle oil change interval: 60,000 km
Aluminum wheels:
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar: none
Seat material: leather
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Wiper type: flat wiper blades
Service brake
Engine brake: none
Parking brake: Spring brake
Exhaust brake:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
Roadside assistance call:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Fatigue driving monitoring: none
maintenance service
24-hour service hotline:
Rescue service:

Photos

0 photos

FAQ

What is the export price of JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck, and what does it include?

JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck export reference is about From $16,014; MSRP is ¥11.53M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck?

Key specs of JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Engine: De Wei D30; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck suited for?

JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck differ from other variants in the same series?

JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck belongs to JAC V7 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V7 156hp 4X2(6 wheels) 5.53m Single-Row Guardrail Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
