Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed)

Export reference
MSRP N/A
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: WeichaiWP3N
Curb Weight:: 2.565ton
Wheelbase:: 3280mm
seating capacity: 3Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed) is a Light Truck featuring 4.165m cargo length, stake body cargo body, 3Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP3N engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1047C3314E145-1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 4.2m
engine: WeichaiWP3NQ160E50
transmission: 8-speed gearbox
Rear Axle Ratio: 4.333
Cab length: 5.995m
Cab width: 2.4m
Cab height: 2.5m
Front track width: 1620mm
rear track: 1530mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Shandong Zhangqiu
tonnage class: Light Truck
Approach angle: 19°
departure angle: 17°
market segment: Building materials, agricultural products
Front/rear suspension: 1.165/1.55m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3NQ160E50
Engine info: WeichaiWP3N
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.97L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 480N·m
Transmission Parameters
Transmission Model: 8-speed gearbox
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.165m
Cargo box width: 2.3m
Cargo box height: 0.5m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 1790kg
rear axle description: 4.2T
rear axle allowable load: 2705kg
Axle ratio: 4.333
Leaf spring count: 11/9+7
Tire
Tire Size: 7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual

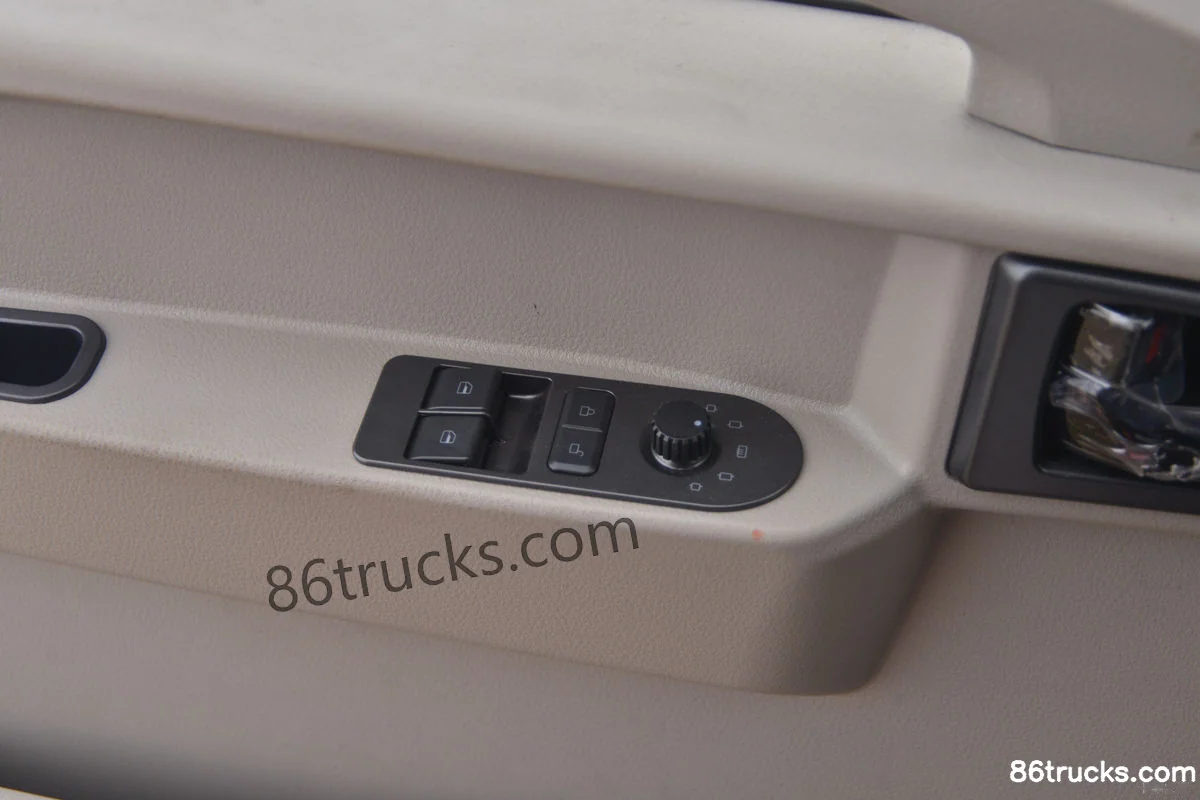

Power Windows:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
smart configuration
Cruise control (CCS):

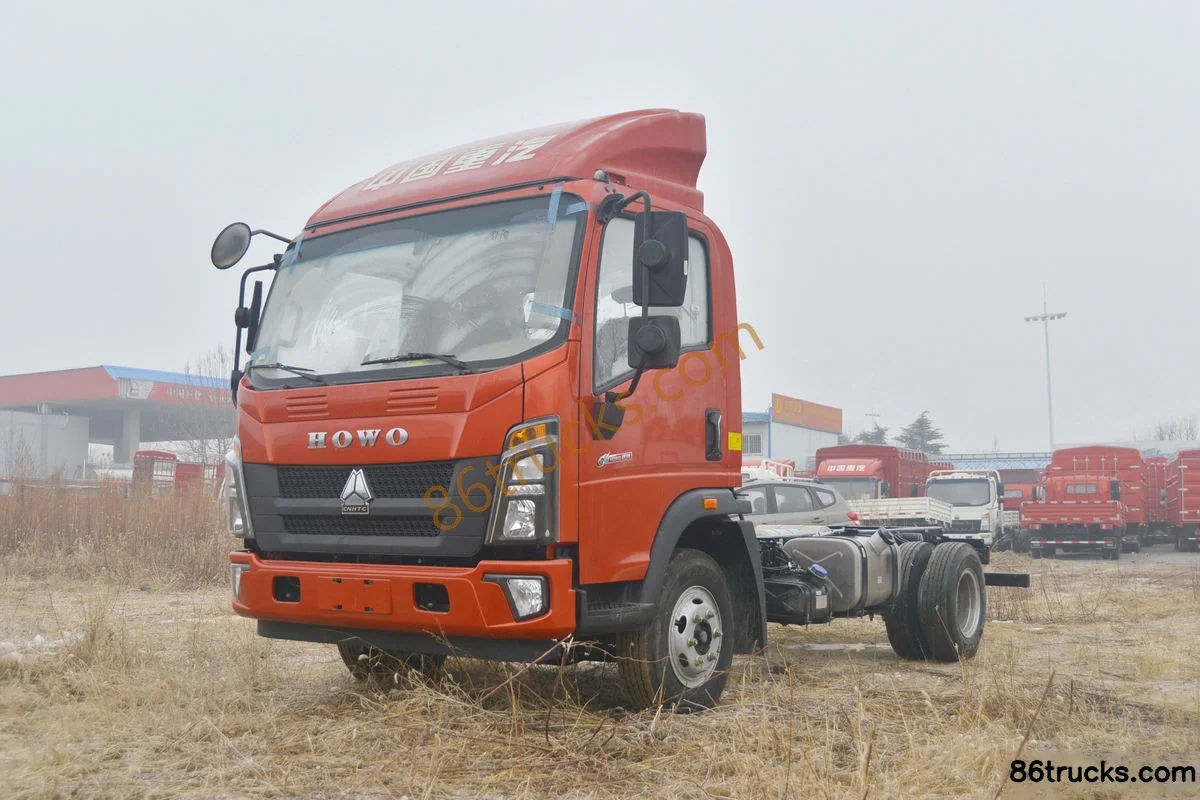

Photos

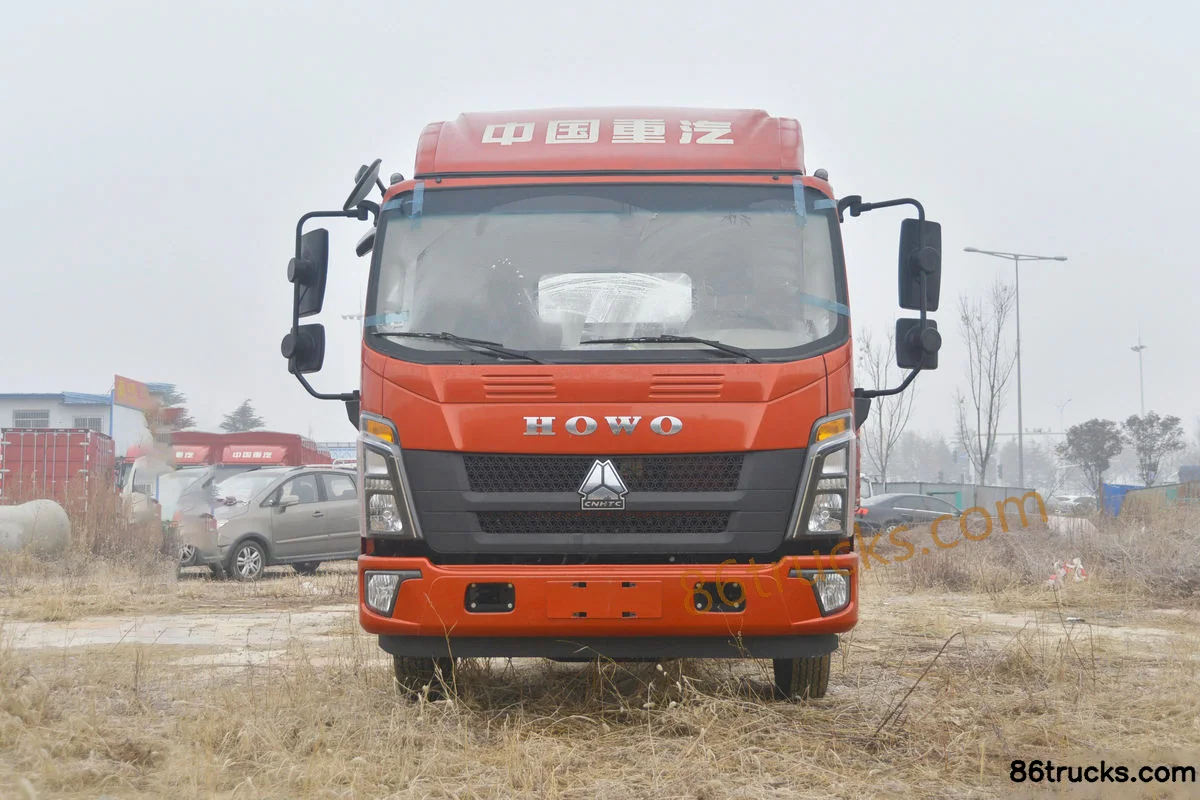

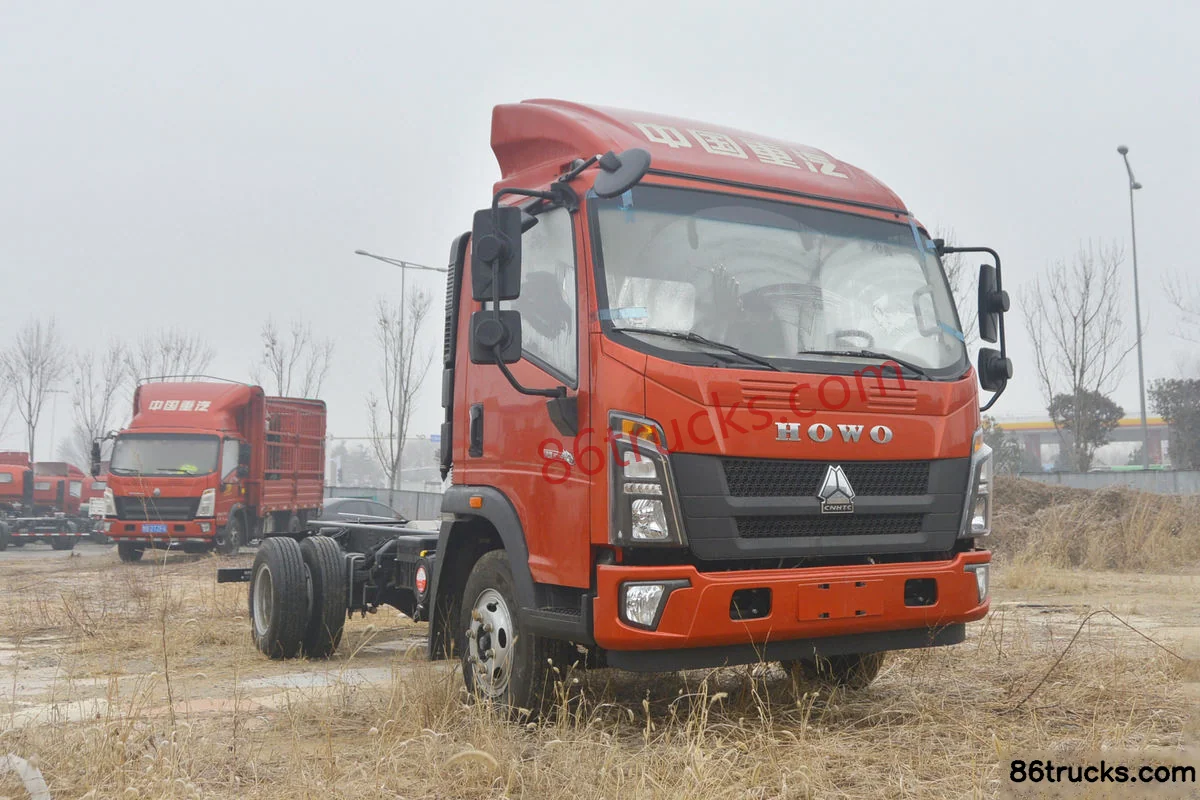

Exterior3

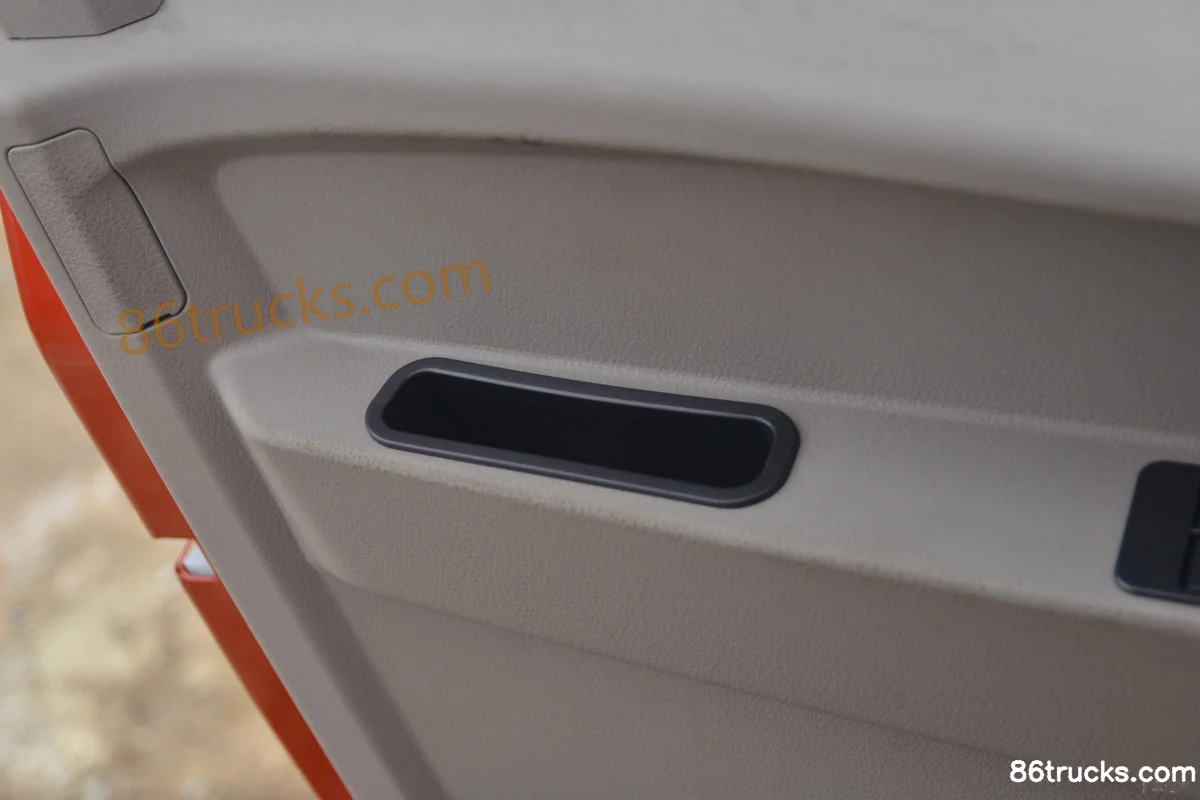

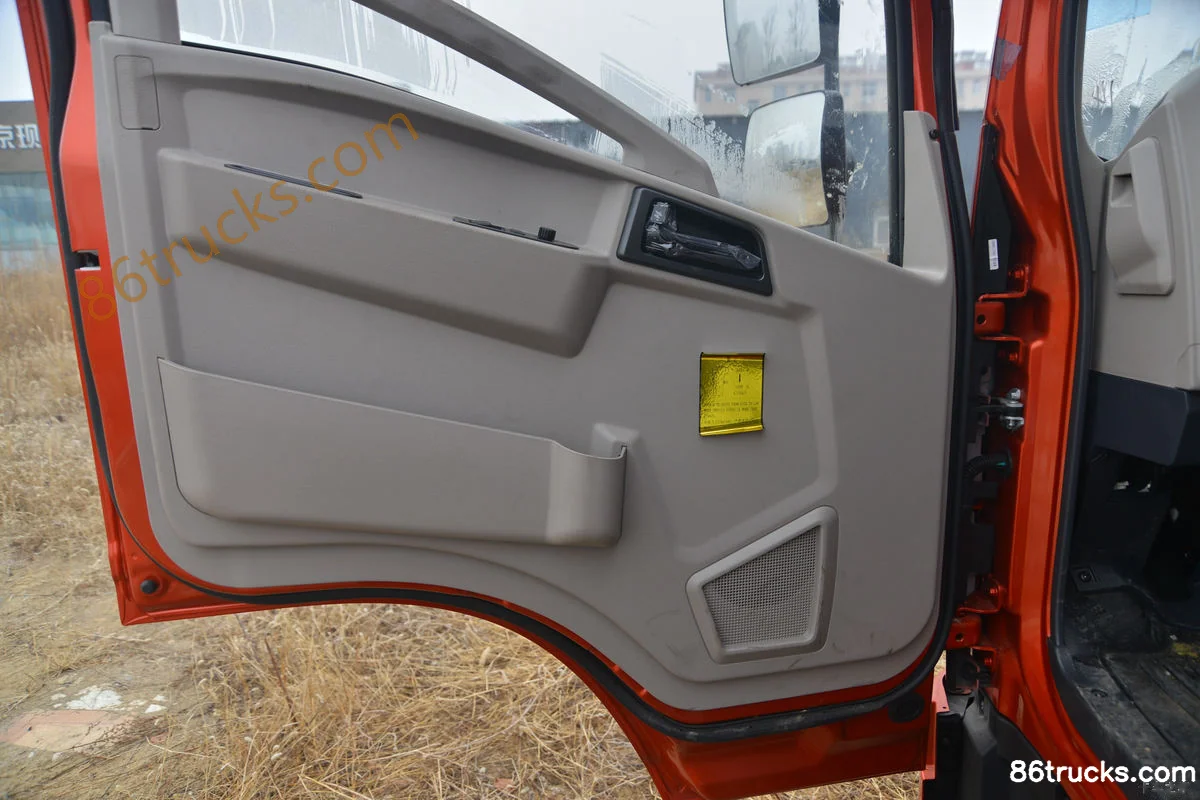

Cab3

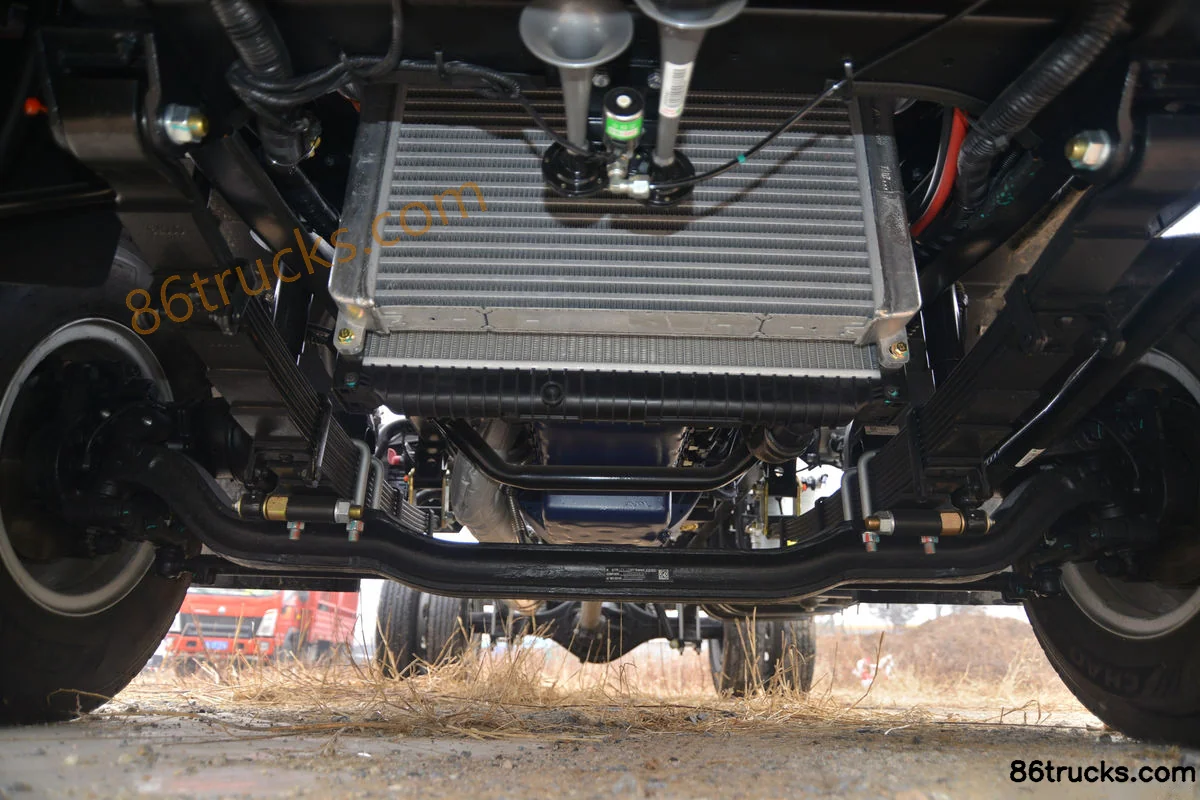

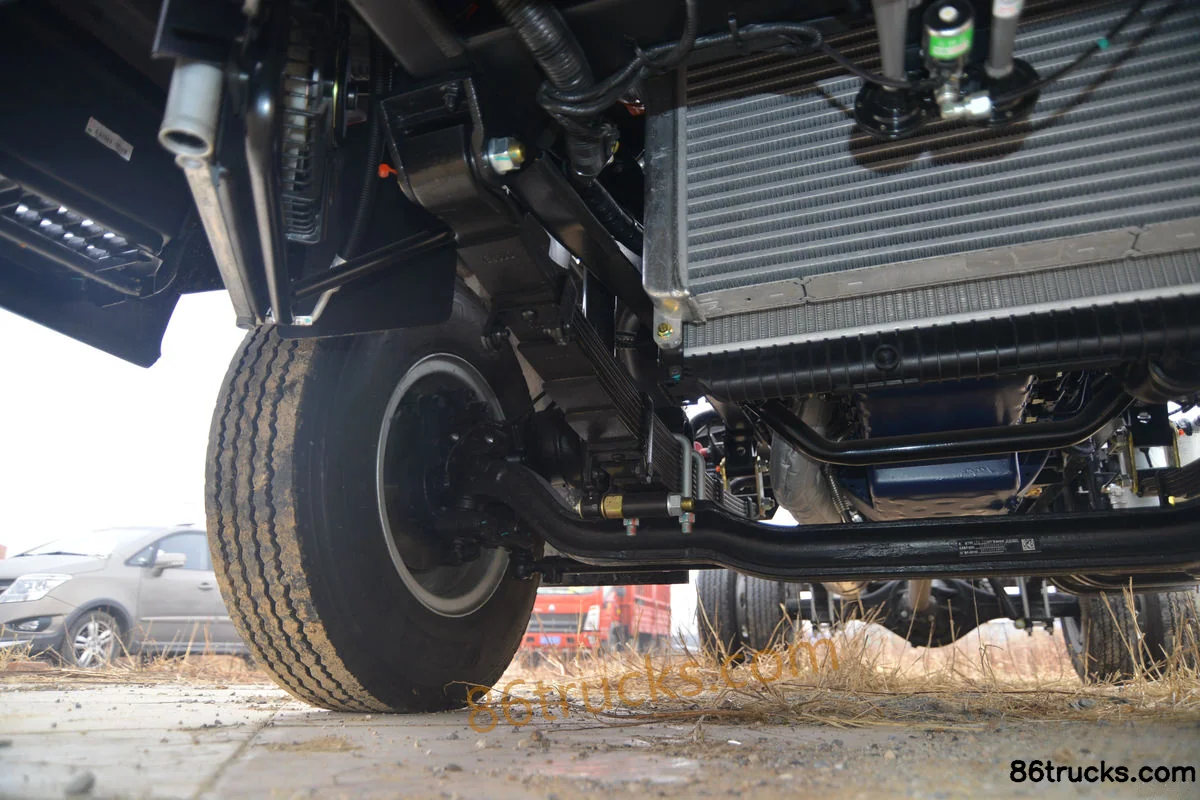

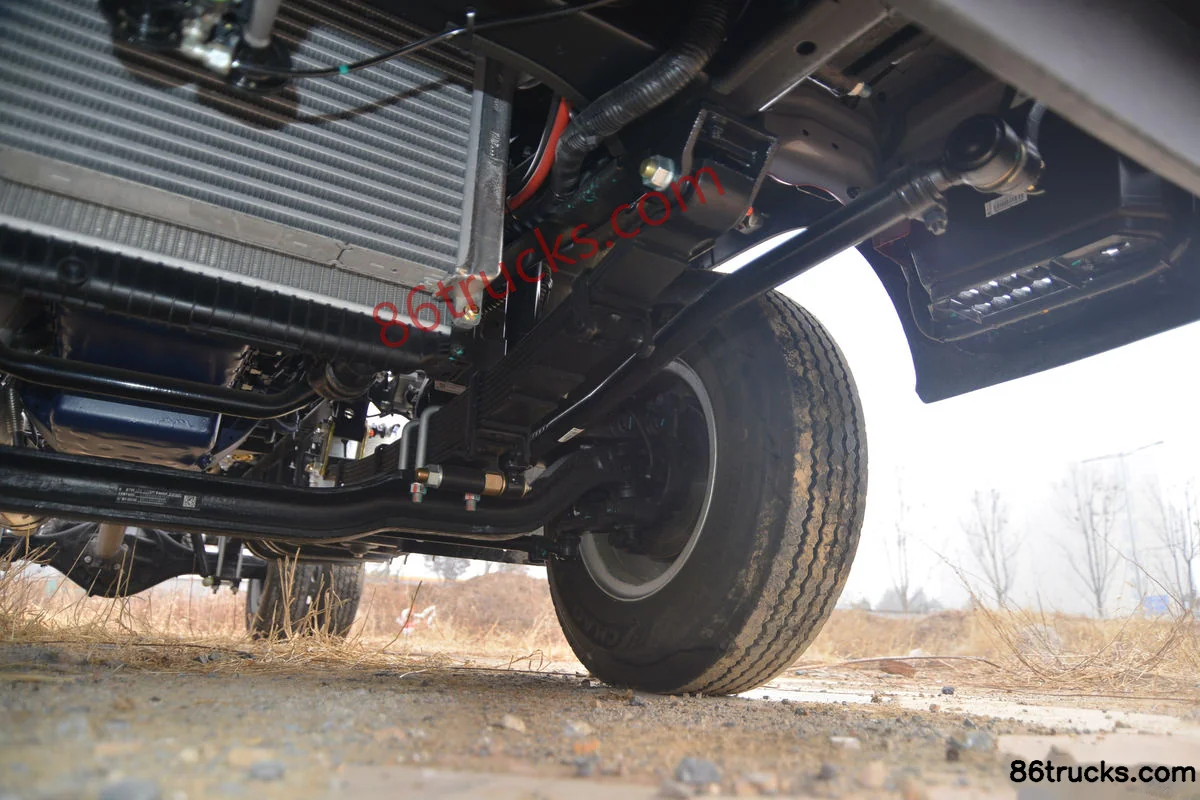

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed)?

Key specs of Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed): Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP3N. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed) suited for?

Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed) differ from other variants in the same series?

Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed) belongs to Sinotruk Tongshuai Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Tongshuai 160 hp 4X2(6 wheels) 4.165m Single Row Flatbed Light Truck (8-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
