JEE 150kW Electric Truck Motor (JEETZ340XS1240AK01)

Export reference
MSRP N/A
Peak speed:: 4000rpm
Voltage Range:: 450-750
total rated power:: 80kW
Suitable Range: 150 kW electric drive system
Motor 1 Model: JEETZ340XS1240AK01
Motor Manufacturer: Anhui JEE

Overview

The Anhui JEE JEE 150kW Electric Truck Motor (JEETZ340XS1240AK01) is a parts product with fit for 150 kW electric drive system and spec JEETZ340XS1240AK01.

Model Specs

Legend: ● Standard ○ Optional - N/A

electric motor
Motor Manufacturer: Anhui JEE
Suitable Range: 150 kW electric drive system
Motor Rated Speed: 1200rpm
Peak speed: 4000rpm
Voltage Range: 450-750
Motor 1 Brand: Juyi
Motor 1 Model: JEETZ340XS1240AK01
Motor Type: Permanent magnet synchronous motor
total rated power: 80kW
Peak power: 150kW
total peak torque: 1500N·m
total rated torque: 640N·m
Other parameters
cooling method: Water-Cooled

Photos

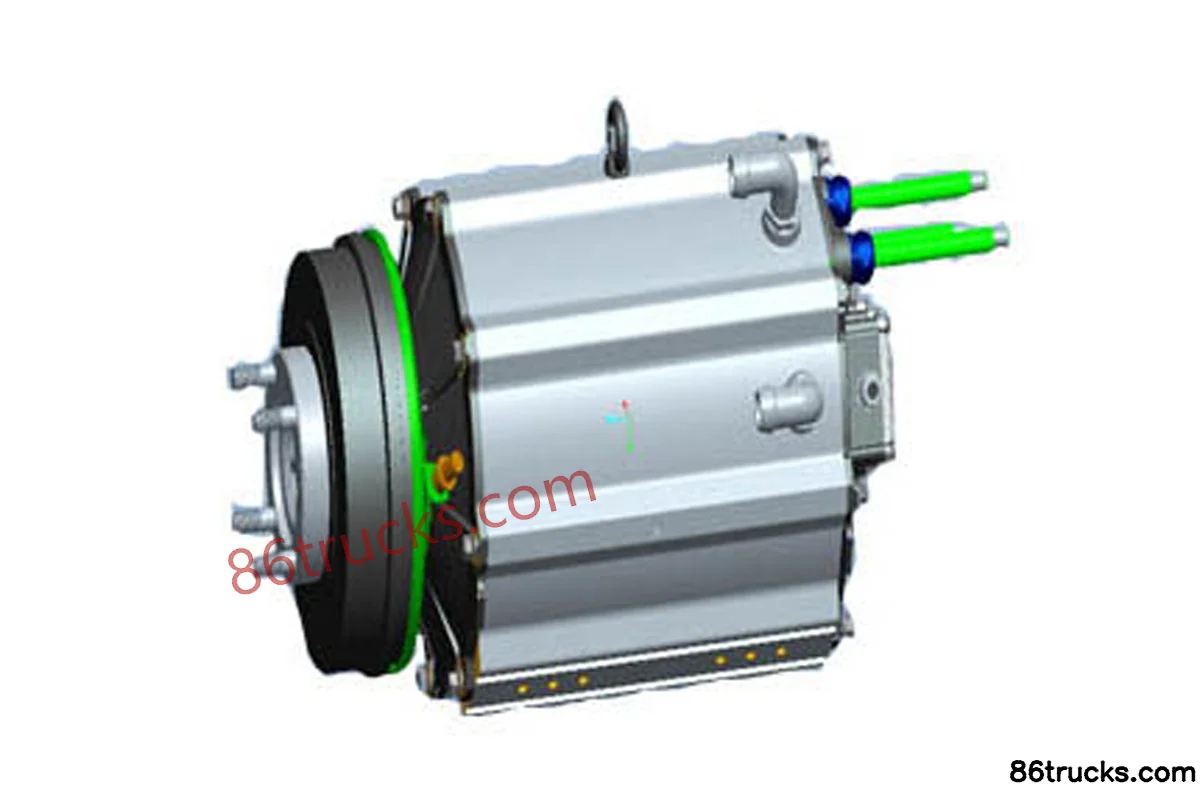

Exterior1

1 photos

FAQ

What transport jobs is JEE 150kW Electric Truck Motor (JEETZ340XS1240AK01) suited for?

JEE 150kW Electric Truck Motor (JEETZ340XS1240AK01) is a electric motor model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JEE 150kW Electric Truck Motor (JEETZ340XS1240AK01) differ from other variants in the same series?

JEE 150kW Electric Truck Motor (JEETZ340XS1240AK01) belongs to Juyi New Energy (electric motor). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JEE 150kW Electric Truck Motor (JEETZ340XS1240AK01)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JEE 150kW Electric Truck Motor (JEETZ340XS1240AK01)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
