Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck

Export reference
From $47,639
MSRP ¥34.3M CNY
Fuel: Diesel
Gross Trailer Weight:: 34.6ton
Wheelbase:: 3800mm
Tire Size:: 295/80R22.5
Front axle allowable load:: 6500kg
Displacement:: 12.9L
Drive 4X2 (6 wheels)
Horsepower 560
Emission China V
Transmission ZF

Overview

The Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck is a Heavy truck featuring 4X2 (6 wheels) drive, 560 hp, 18t GVW and China V emissions. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a FotonX13NS5-560 engine, ZF transmission and Diesel fuel.

China V 560 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ4189SLFKA-AQ
Drive type: 4X2
Wheelbase: 3800mm
engine: FotonX13NS5-560
transmission: ZFZF12TX2620TD
Rear Axle Ratio: 2.714
Cab length: 6.255m
Cab width: 2.49m
Cab height: 3.16m
Front track width: 2005mm
rear track: 1800mm
Gross Trailer Weight: 34.6ton
Curb Weight: 7.2ton
GVWR: 18ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Heavy truck
market segment: Logistics Freight
Series: 6 series
Version: Northern Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonX13NS5-560
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.9L
Emission standard: China V
Max output power: 412kW
Max hp: 560Horsepower
Max torque: 2600N·m
Max torque speed: 1000-1400rpm
Rated speed: 1800rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: ZFZF12TX2620TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1000L
Cab parameters
Cab: High-roof standard floor
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Fifth wheel: 90#
Front axle allowable load: 6500kg
rear axle description: 485
rear axle allowable load: 11500kg
Axle ratio: 2.714
Leaf spring count: 2/4+3
Tire
Tire Size: 295/80R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

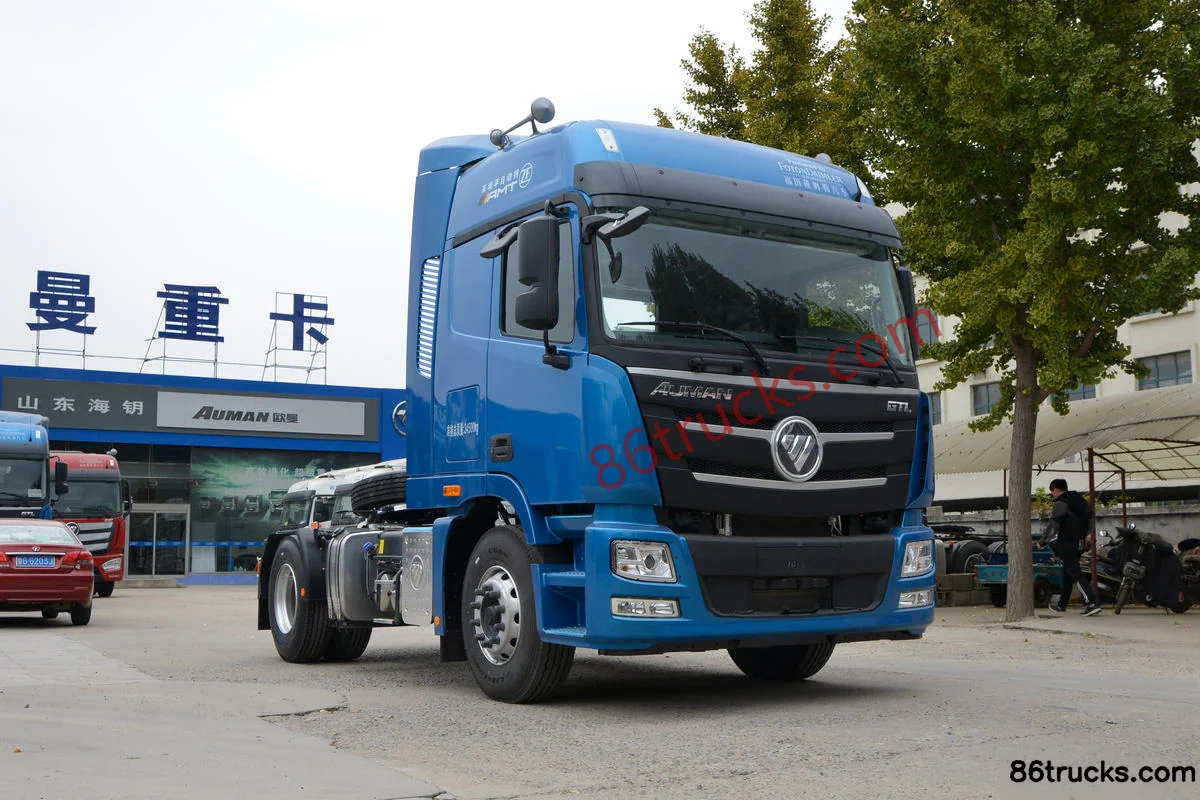

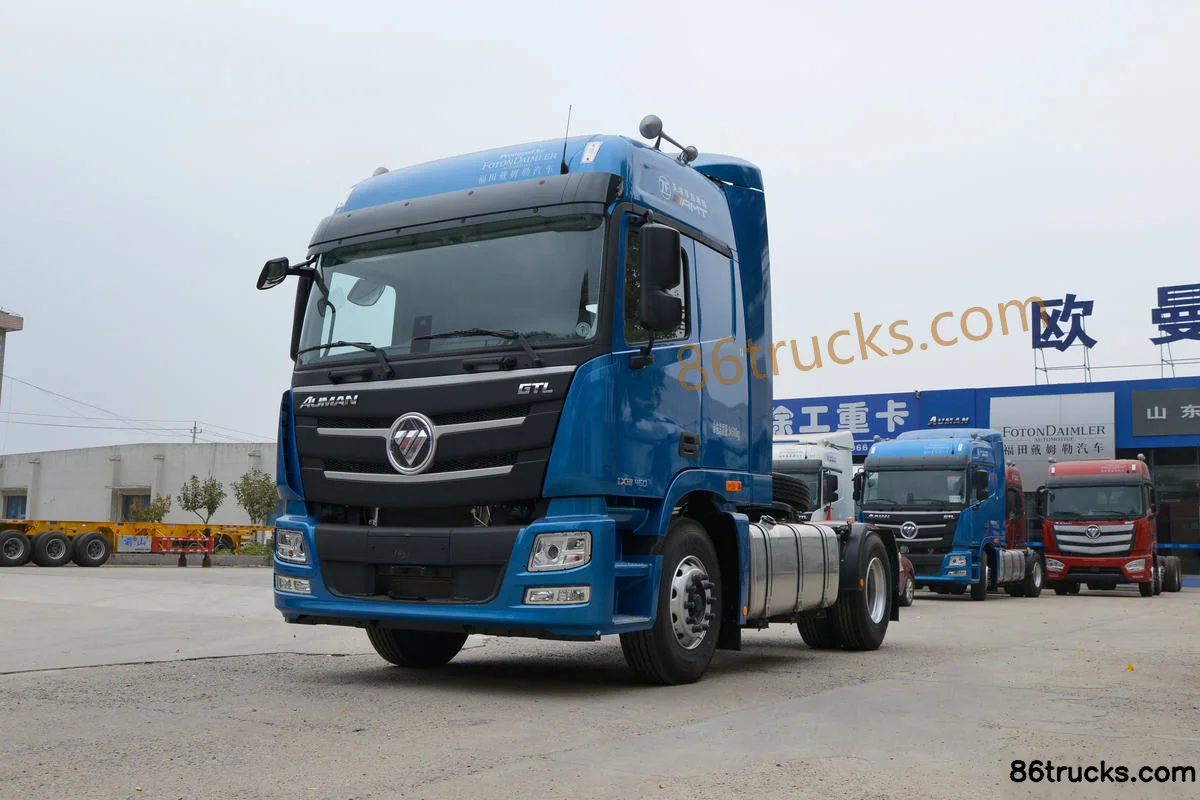

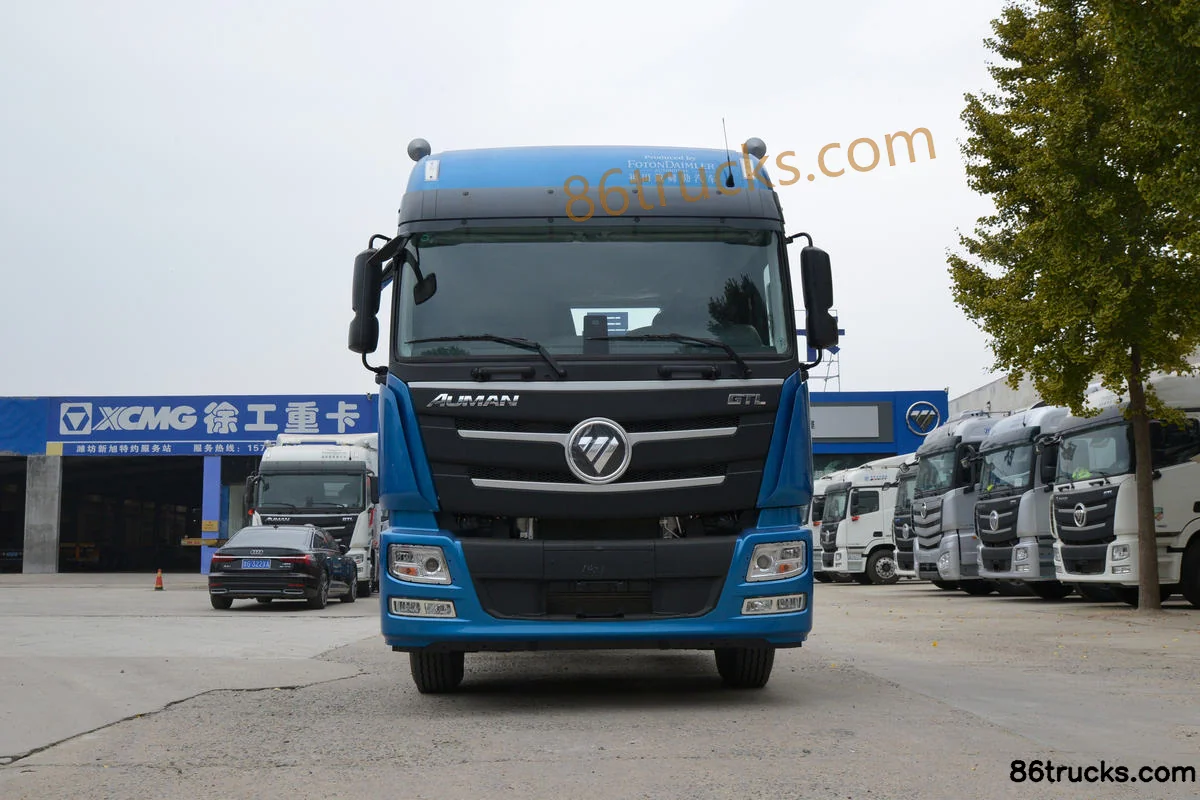

Exterior3

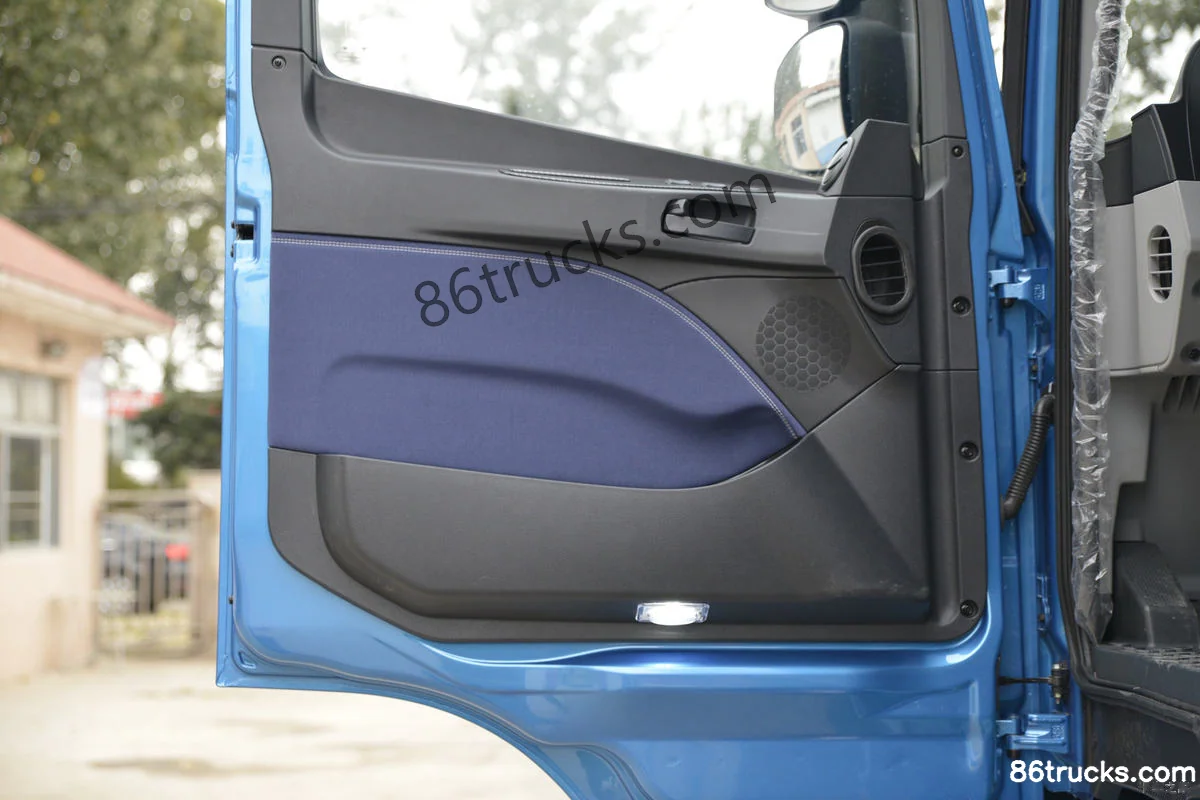

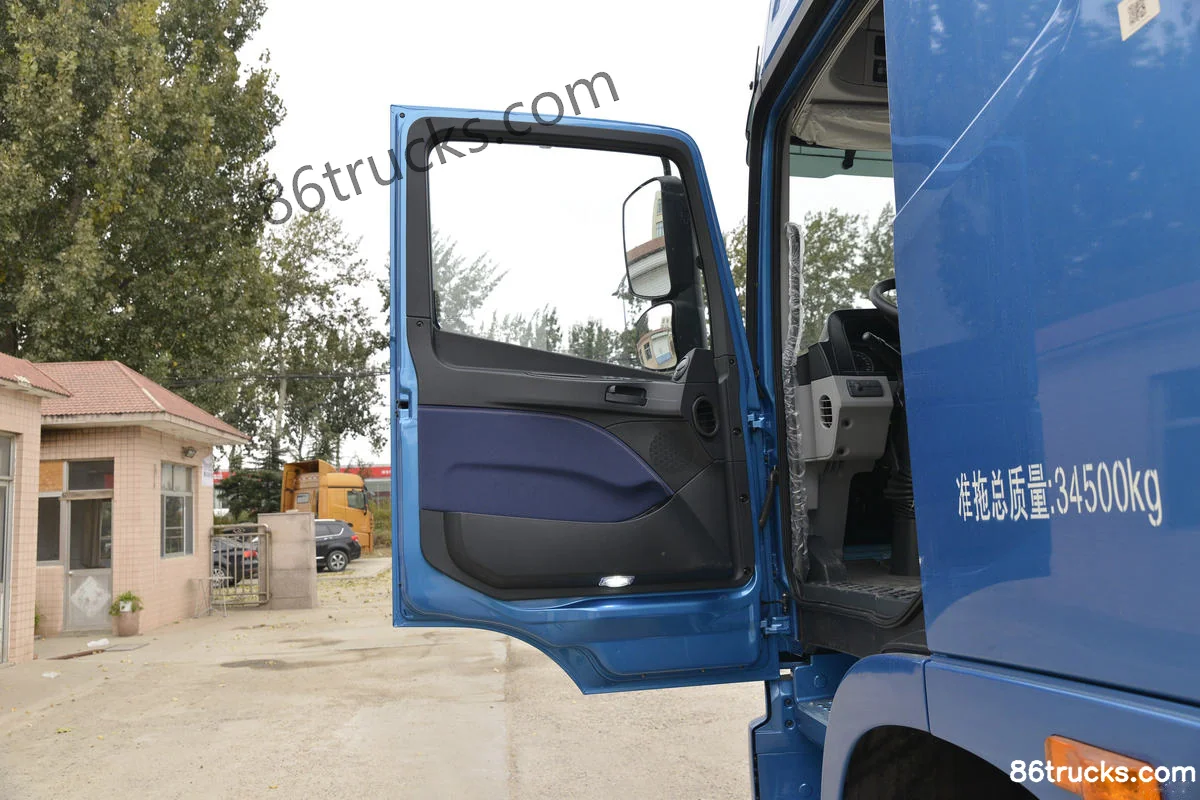

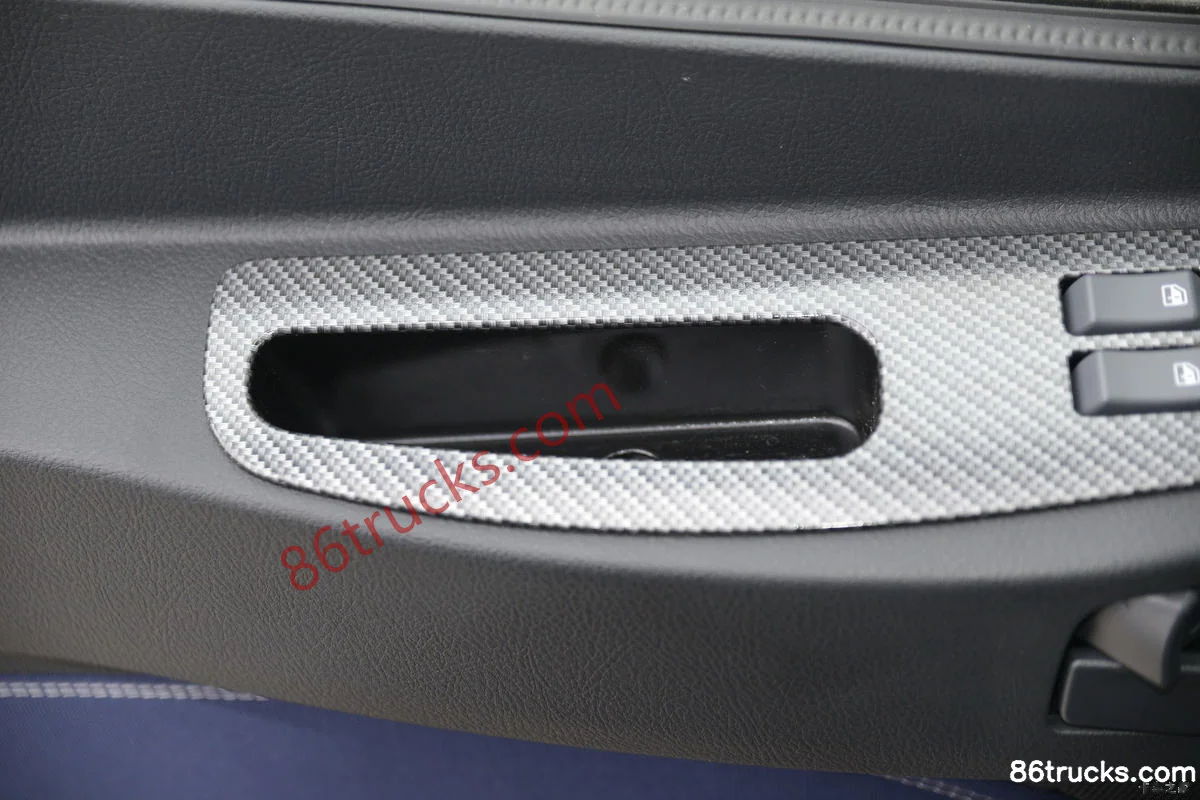

Cab3

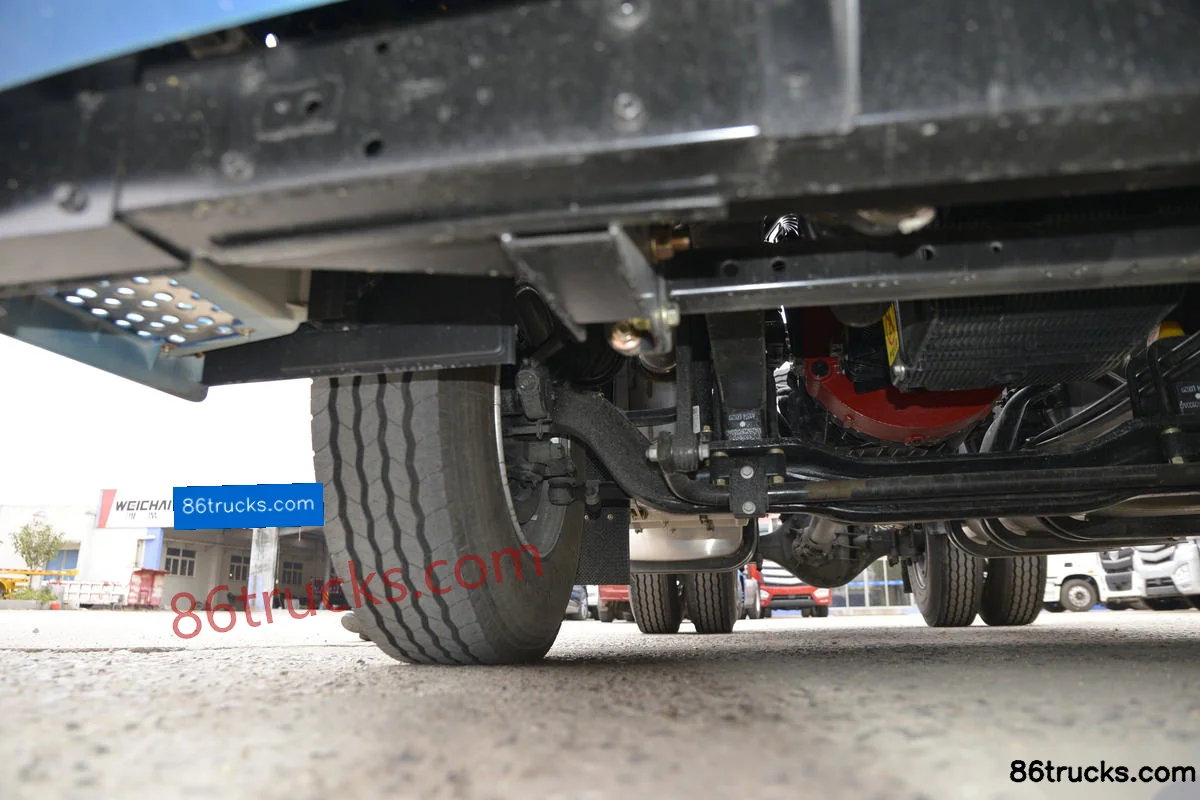

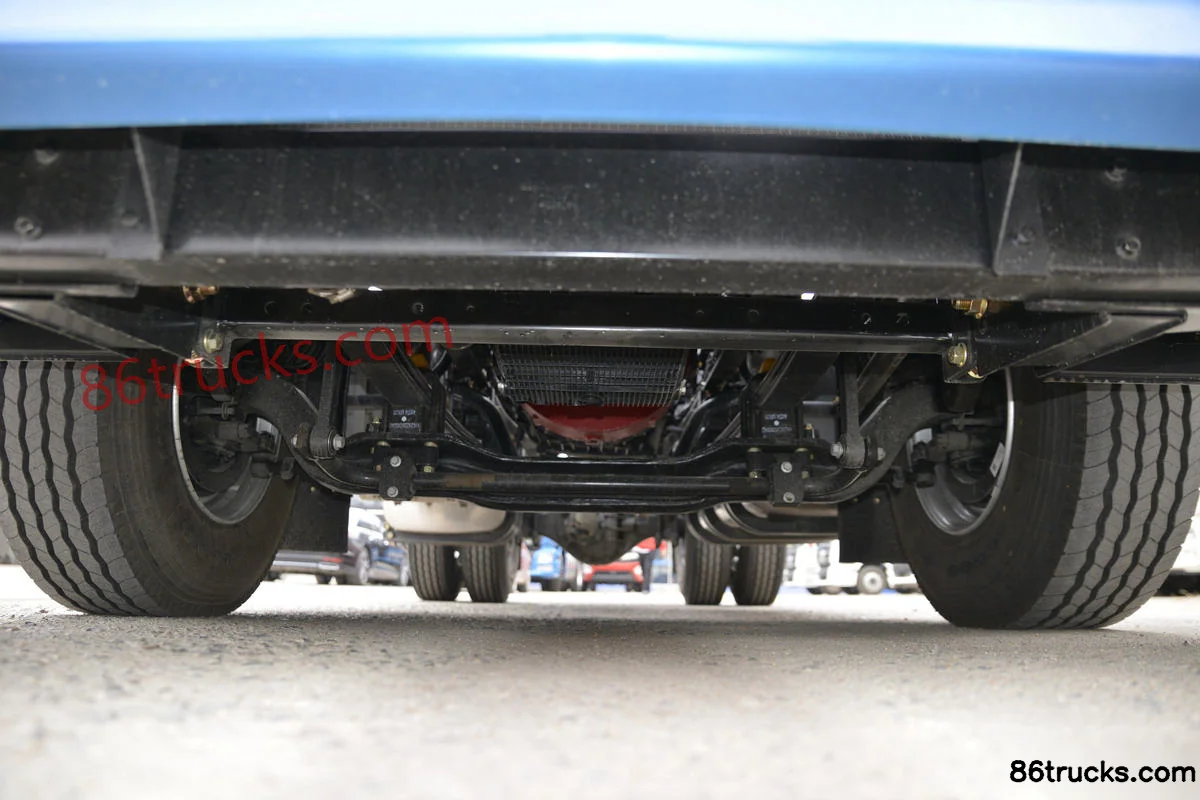

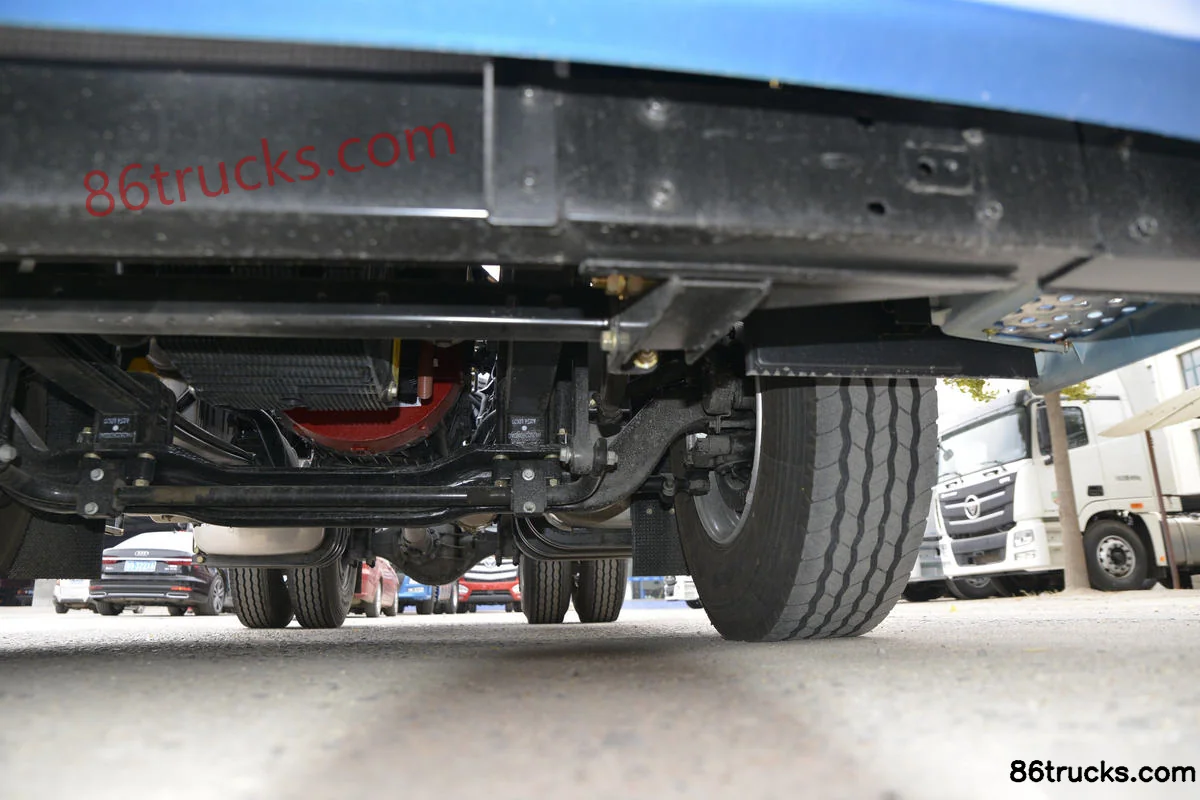

Chassis3

9 photos

FAQ

What is the export price of Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck, and what does it include?

Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck export reference is about From $47,639; MSRP is ¥34.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck?

Key specs of Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck: Drive: 4x2; Horsepower: 560 hp; Emission: China V; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck suited for?

Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck differ from other variants in the same series?

Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck belongs to Foton Auman GTL Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman GTL 6 Series heavy truck Northern Edition 560 hp 4X2(6 wheels) tractor truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
