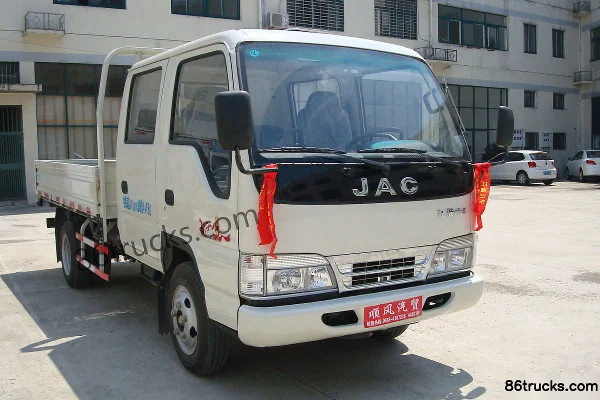

JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck

Export reference
From $8,611
MSRP ¥6.2M CNY
Horsepower: 82
Emission: China IV
Fuel: Diesel
Engine: Yangchai485
Curb Weight:: 1.82ton
Wheelbase:: 2600mm
seating capacity: 5Personnel
Rated payload: 1.95ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck is a Light Truck featuring 2.34m cargo length, stake body cargo body, 5Personnel volume and 1.95t payload. On the powertrain side, it comes with a Yangchai485 engine, 82 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 82 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1042R93K3B3
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2600mm
Box length class: 2.3m
Cab length: 5.1m
Cab width: 1.81m
Cab height: 2.13m
Front track width: 1420mm
rear track: 1395mm
Curb Weight: 1.82ton
Rated payload: 1.95ton
GVWR: 4.095ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Remarks: 1. Optional front panel, grille, front bumper, combination lights, front fog lights as per chassis; 2. Optional side guard; 3. Side and rear underrun protection material: Q235, bolted connection; rear protection section size (L×W): 130mm×30mm, ground clearance 520mm; 5. Dimension correspondence: overall width / cargo box inner width — 1) 1810/1710, 2) 1910/1810
Energy Type: Diesel
Engine parameters
Engine Brand: Yangchai
Engine Model: YangchaiYZ4DC1-40
Engine info: Yangchai485
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.16L
Emission standard: China IV
Max output power: 60kW
Max hp: 82Horsepower
Max torque: 200N·m
Max torque speed: 1000-2000rpm
Rated speed: 3200rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.34m
Cargo box width: 1.81m
Cargo box height: 0.37m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank capacity: 120L
Chassis Specs
rear axle description: 2625
Leaf spring count: 3/5+3,5/5+3
Tire
Tire Size: 6.50-158PR,6.50-168PR,6.50R158PR,6.50R168PR
Number of tires: 6pcs

Photos

0 photos

FAQ

What is the export price of JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck, and what does it include?

JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck export reference is about From $8,611; MSRP is ¥6.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck?

Key specs of JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck: Drive: 4x2; Horsepower: 82 hp; Emission: China IV; Fuel: Diesel; Engine: Yangchai485. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck suited for?

JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck differ from other variants in the same series?

JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck belongs to JAC Haoyun light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Haoyun 26 82 hp 4X2(6 wheels) 2.3m double-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
