Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck

Export reference
From $59,722
MSRP ¥43M CNY
Horsepower: 350
Emission: China V
Fuel: Diesel
Engine: Isuzu10L
Transmission: ZF
Curb Weight:: 13.1ton
seating capacity: 2Personnel
Rated payload: 17.77ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck is a Heavy-duty cargo trucks featuring 9.4m cargo length, Stake type cargo body, 2Personnel volume and 17.77t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Isuzu10L engine, 350 hp, 8X4 (12 wheels) drive and China V emissions.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL5310CCYU1VDHJ
Type: stake truck
Drive type: 8X4
Wheelbase: 1850+4575+1370mm
Box length class: 9.4m
engine: Qingling Isuzu6UZ1-TCG51
transmission: ZFZF8S2030TO
Rear Axle Ratio: 4.55
Cab length: 12m
Cab width: 2.54m
Cab height: 3.9m
Front track width: 2065/2065mm
rear track: 1855/1855mm
Curb Weight: 13.1ton
Rated payload: 17.77ton
GVWR: 31ton
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 17°
market segment: Daily industrial goods transport, agricultural and sideline products transport, LTL transport, green channel
Remarks: Optional ratio 3.909, 3.07, 3.42, 3.21, 3.7
Front/rear suspension: 1.37/2.835m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu6UZ1-TCG51
Engine info: Isuzu10L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.839L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1422N·m
Transmission Parameters
Transmission Model: ZFZF8S2030TO
Transmission Brand: ZF
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.4m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: PF075
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.55
Leaf spring count: 7/7/10
Tire
Tire Size: 315/80R22.5 16PR,12R22.5 16PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Cruise control (CCS):

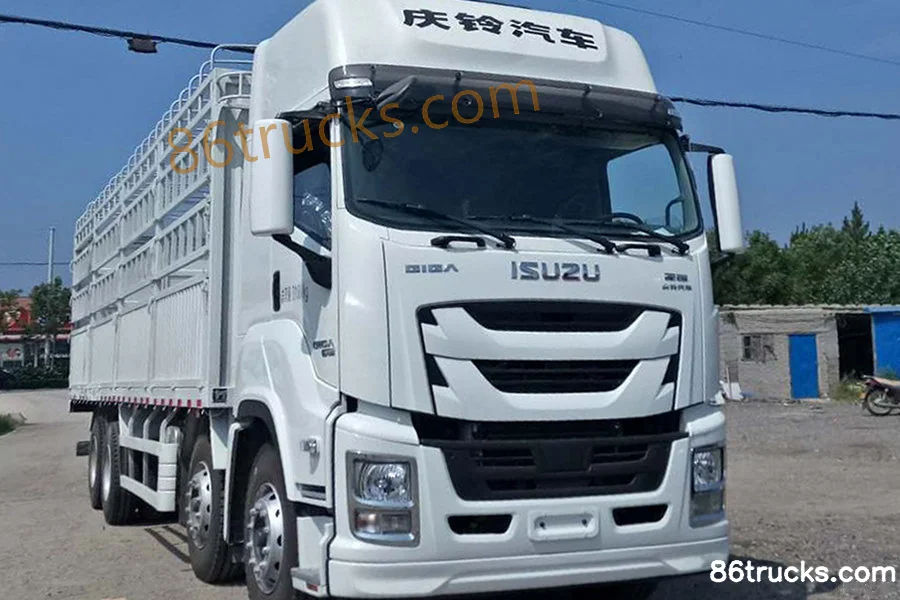

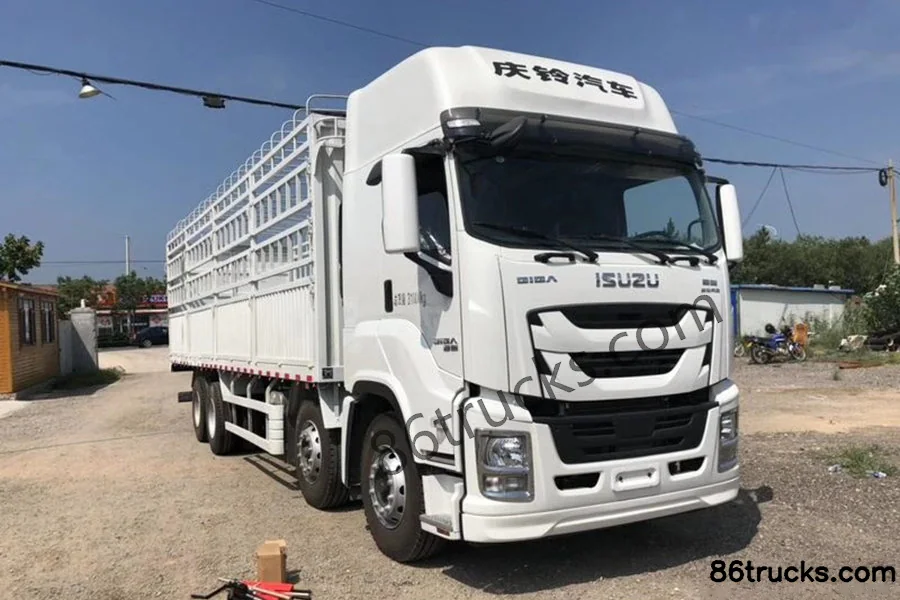

Photos

Exterior2

2 photos

FAQ

What is the export price of Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck, and what does it include?

Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck export reference is about From $59,722; MSRP is ¥43M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck?

Key specs of Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu10L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck suited for?

Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck differ from other variants in the same series?

Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck belongs to Qingling Isuzu Giga (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu Giga 350 hp 8X4(12 wheels) 9.4m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
