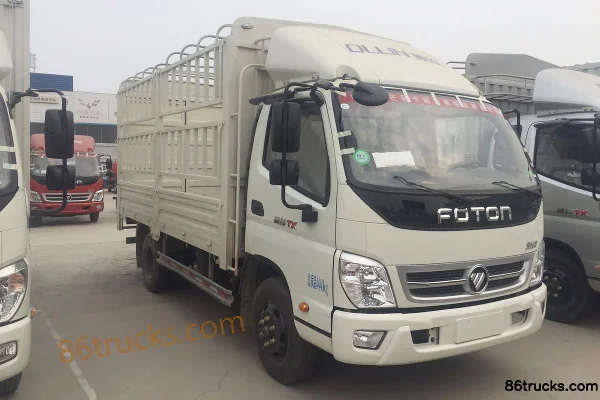

Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake)

Export reference
From $10,514
MSRP ¥7.57M CNY
Horsepower: 110
Emission: China V
Fuel: Diesel
Engine: Foton493
Transmission: WLY
Curb Weight:: 2.4ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake) is a Light Truck featuring 3.655m cargo length, Stake type cargo body, 2Personnel volume and 1.495t payload. On the powertrain side, it comes with a Foton493 engine, 110 hp, 4X2 (6 wheels) drive and China V emissions.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5041CCY-A1
Type: Chassis
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.7m
engine: Foton4J28TC3
transmission: WLYWLY5T92
Rear Axle Ratio: 4.875
Cab length: 5.445m
Cab width: 1.91m
Cab height: 2.75m
Front track width: 1530mm
rear track: 1425mm
Curb Weight: 2.4ton
Rated payload: 1.495ton
GVWR: 4.025ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Remarks: Equipped with MP3
Front/rear suspension: 1.105/1.54m
Version: Tech Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: Foton4J28TC3
Engine info: Foton493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Inline, vertical, water-cooled
Transmission Parameters
Transmission Model: WLYWLY5T92
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.655m
Cargo box width: 1.81m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1610kg
Frame Dimensions: 152×55×4.5mm
rear axle description: 3.5T
rear axle allowable load: 2415kg
Axle ratio: 4.875
Leaf spring count: 7/7+5
Tire
Tire Size: 6.50R16 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Electronic Central Lock:
Exterior features
Air deflector:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake), and what does it include?

Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake) export reference is about From $10,514; MSRP is ¥7.57M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake)?

Key specs of Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake): Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel; Engine: Foton493; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake) suited for?

Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake) differ from other variants in the same series?

Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake) belongs to Foton TX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.655m single-row railed light truck chassis (hydraulic brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
