Sinotruk Warrior EM1 4.5T 4X2(6 wheels) 3.2m Electric Dump Truck 98.04kWh

Export reference
MSRP N/A
Rated payload:: 0.965ton
Wheelbase:: 2900mm
Cargo box type:: Dump type
Model code (announced):: ZZ3048K17ZBEV0
Cab length:: 4.495m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 150km
Motor 1 Brand: Sinotruk
Curb Weight: 3.4ton

Overview

The Sinotruk Warrior EM1 4.5T 4X2(6 wheels) 3.2m Electric Dump Truck 98.04kWh is a Light Truck featuring 150km battery/range, Sinotruk motor, 4X2 (6 wheels) drive and 0.965t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3048K17ZBEV0
Drive type: 4X2
Wheelbase: 2900mm
Cab length: 4.495m
Cab width: 1.95m
Cab height: 2.1m
CLTC range: 150km
Curb Weight: 3.4ton
Rated payload: 0.965ton
GVWR: 4.495ton
Max. speed: 85km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Sinotruk
Motor 1 Model: TZ342XSHX16501
Motor Type: Permanent magnet synchronous motor
total rated power: 105kW
Peak power: 165kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 98.04kWh
Energy Density: 154
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 3.2m
Cargo box width: 1.75m
Cargo box height: 0.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1945kg
rear axle allowable load: 2550kg
Tire
Tire Size: 7.00R16LT 14PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
Power Windows:

Photos

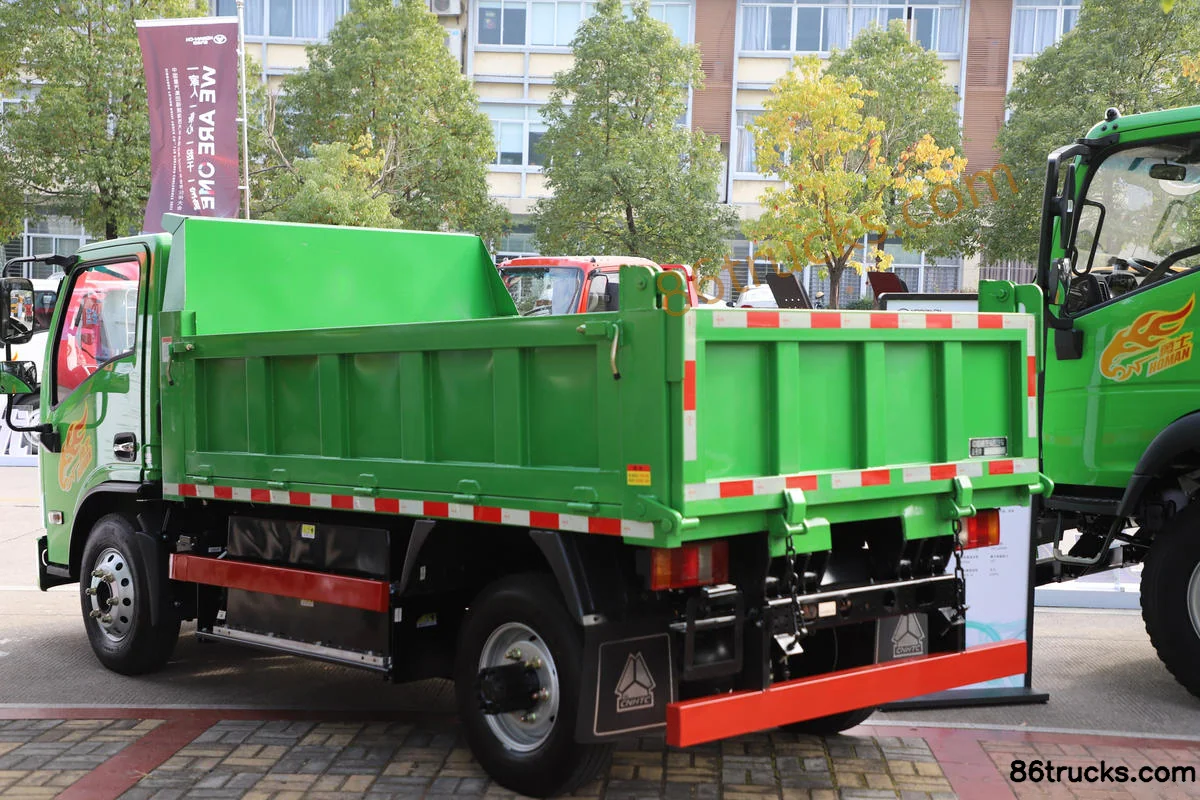

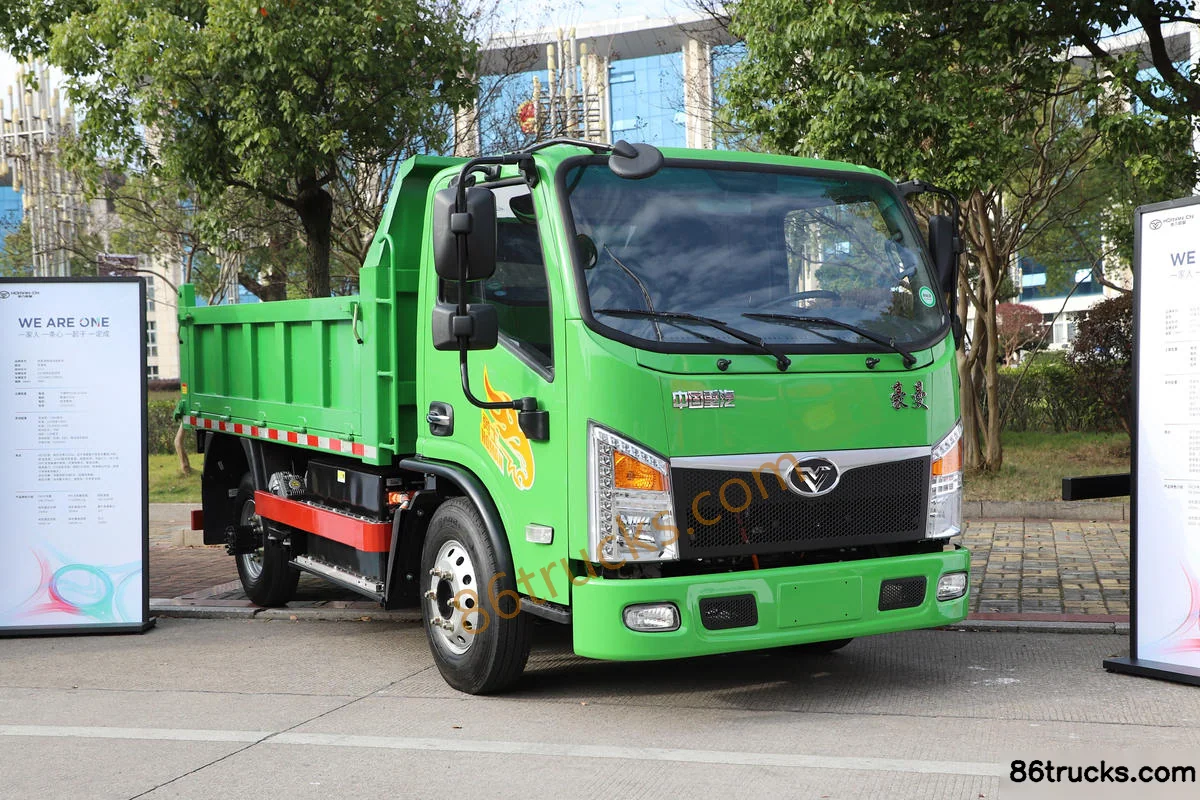

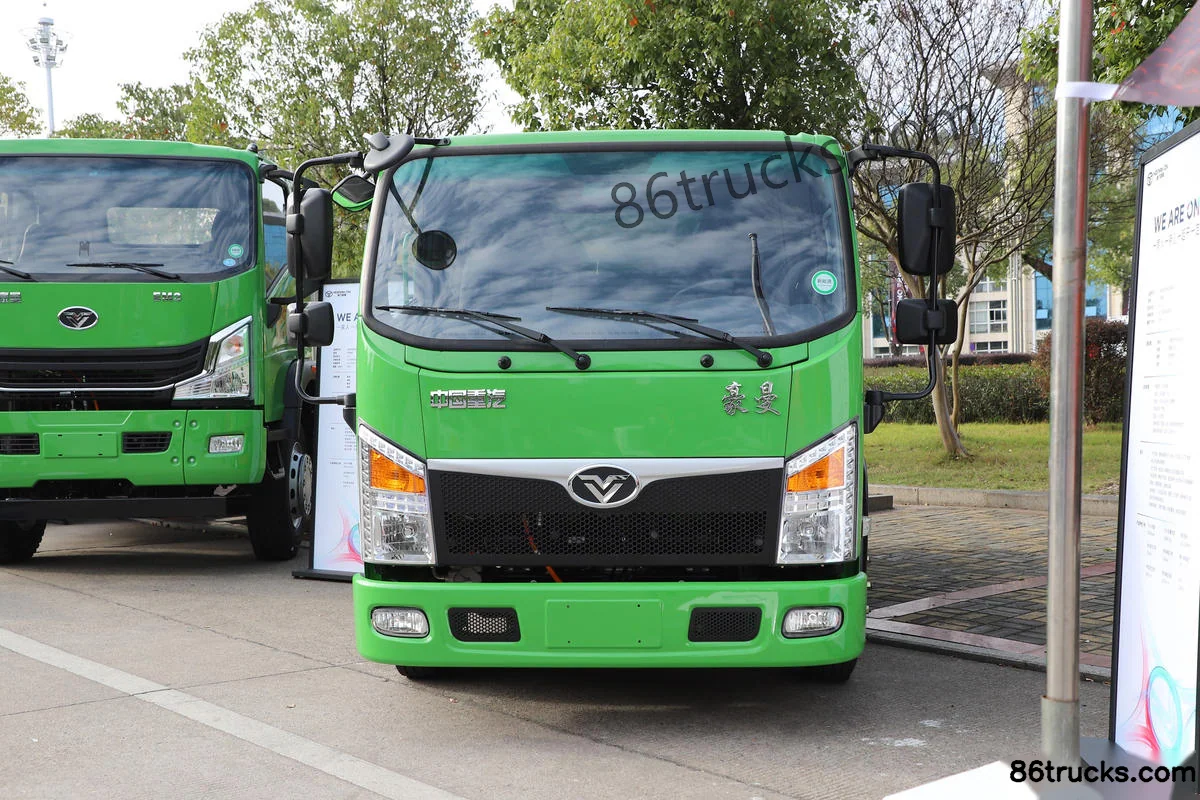

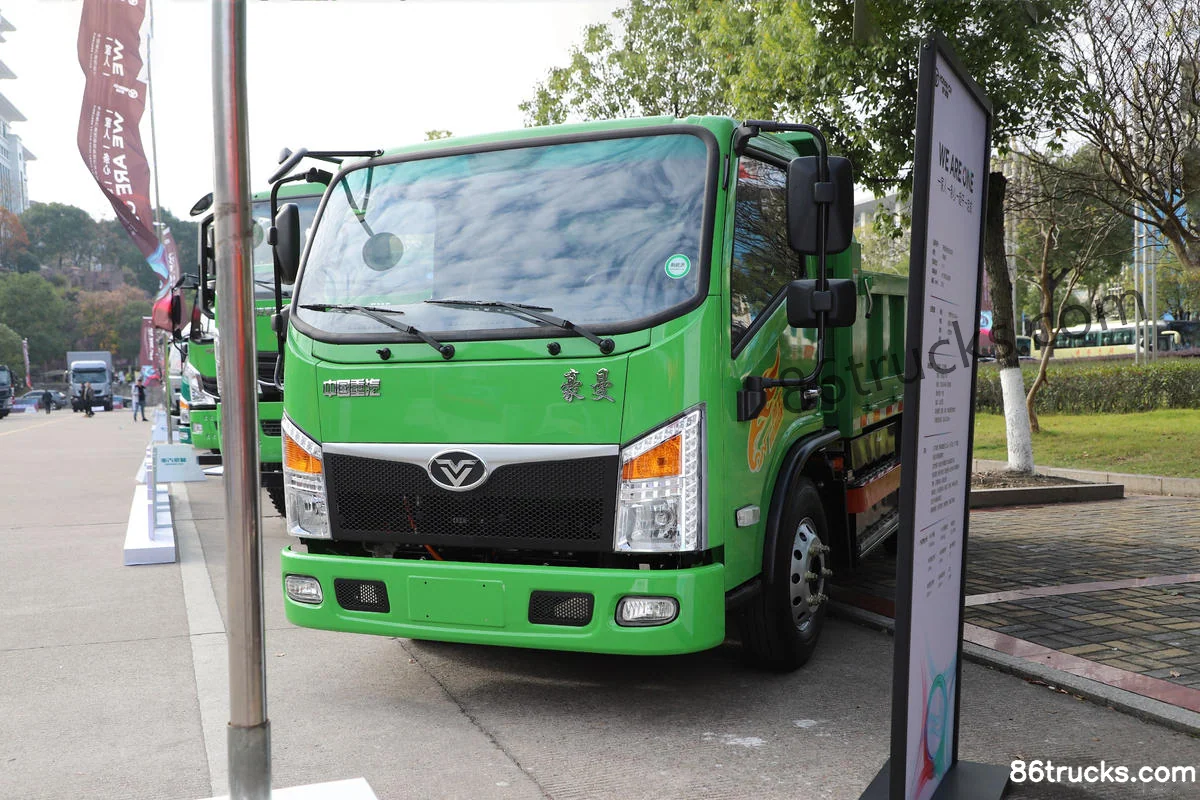

Exterior3

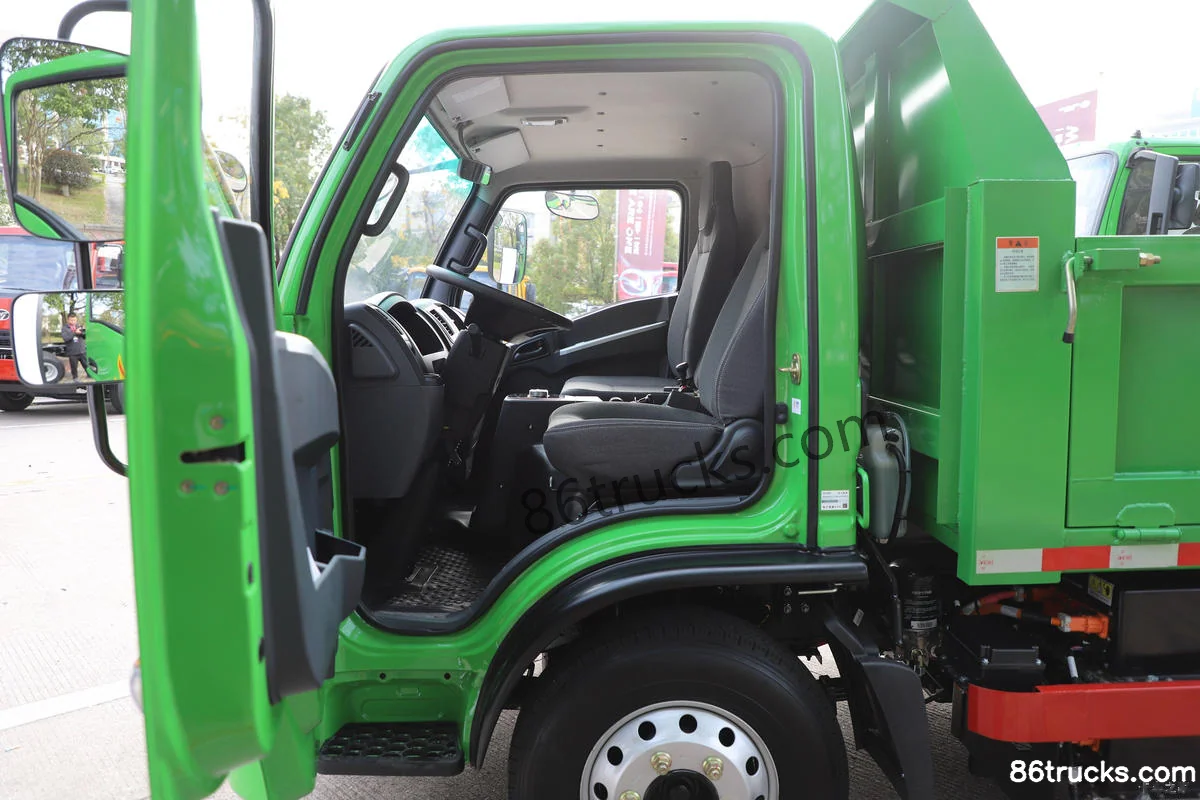

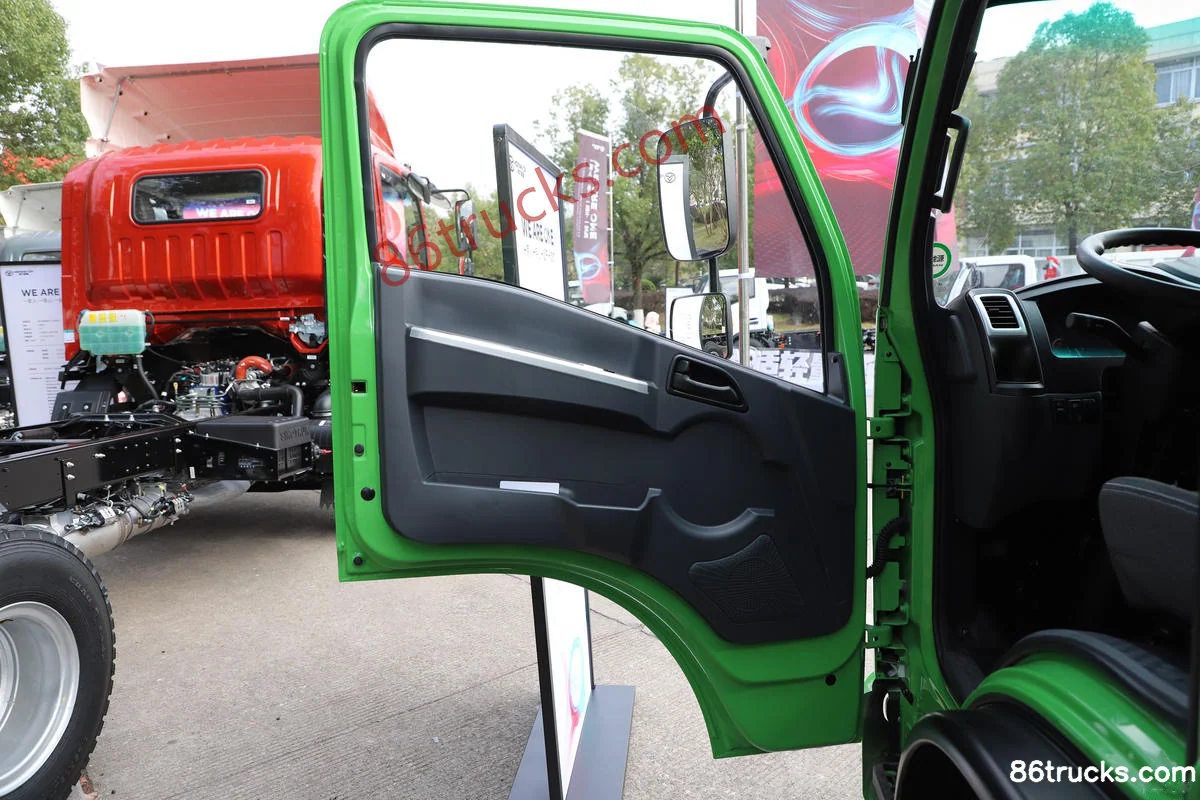

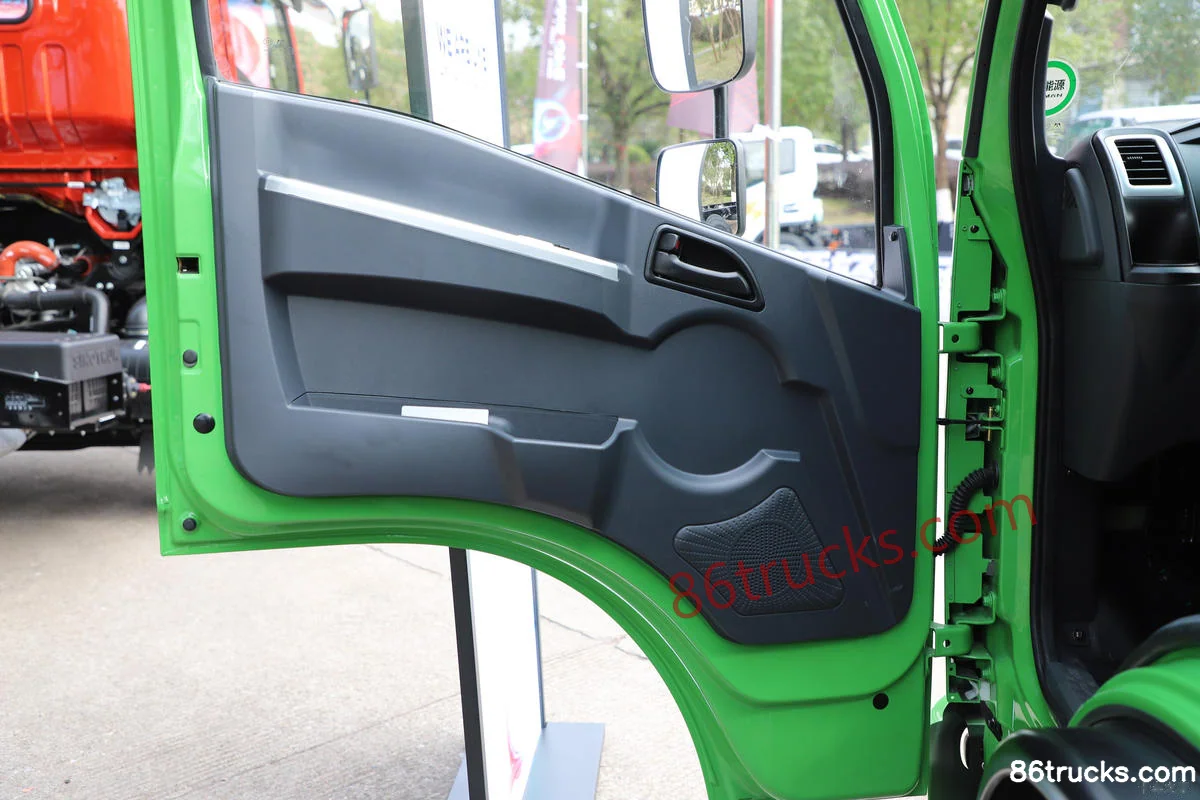

Cab3

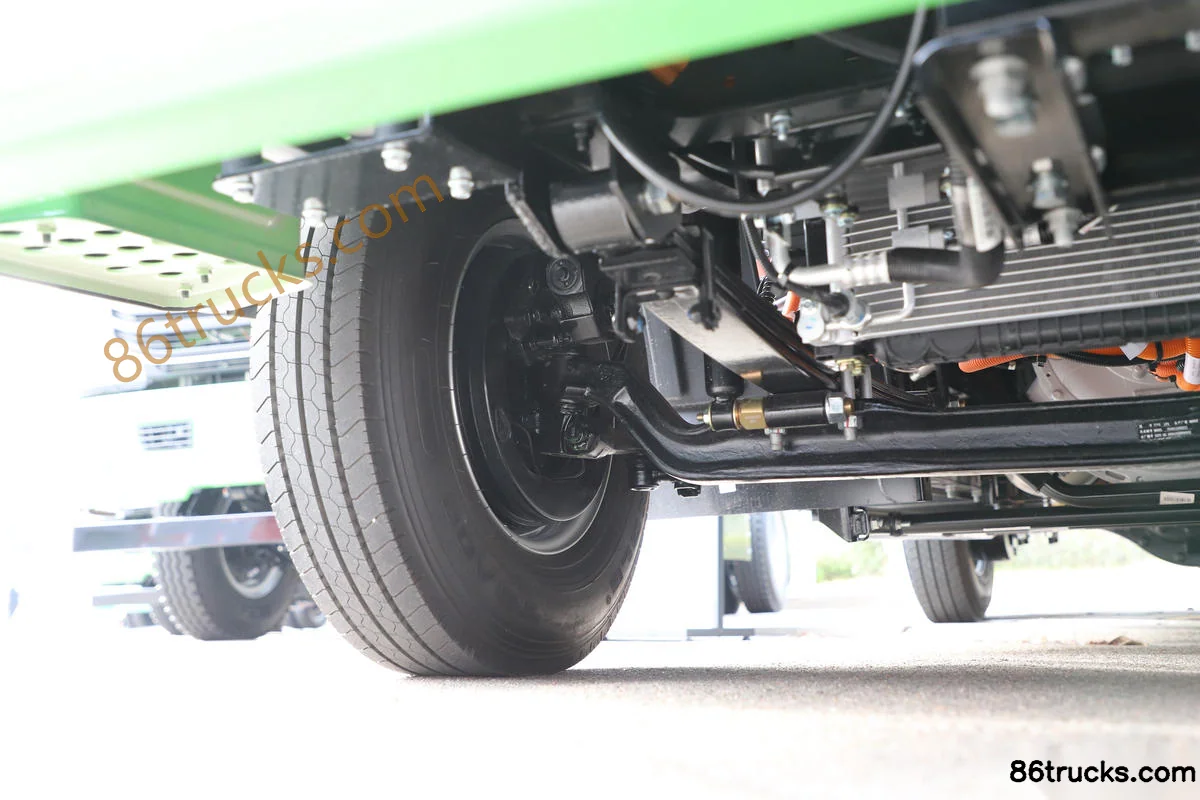

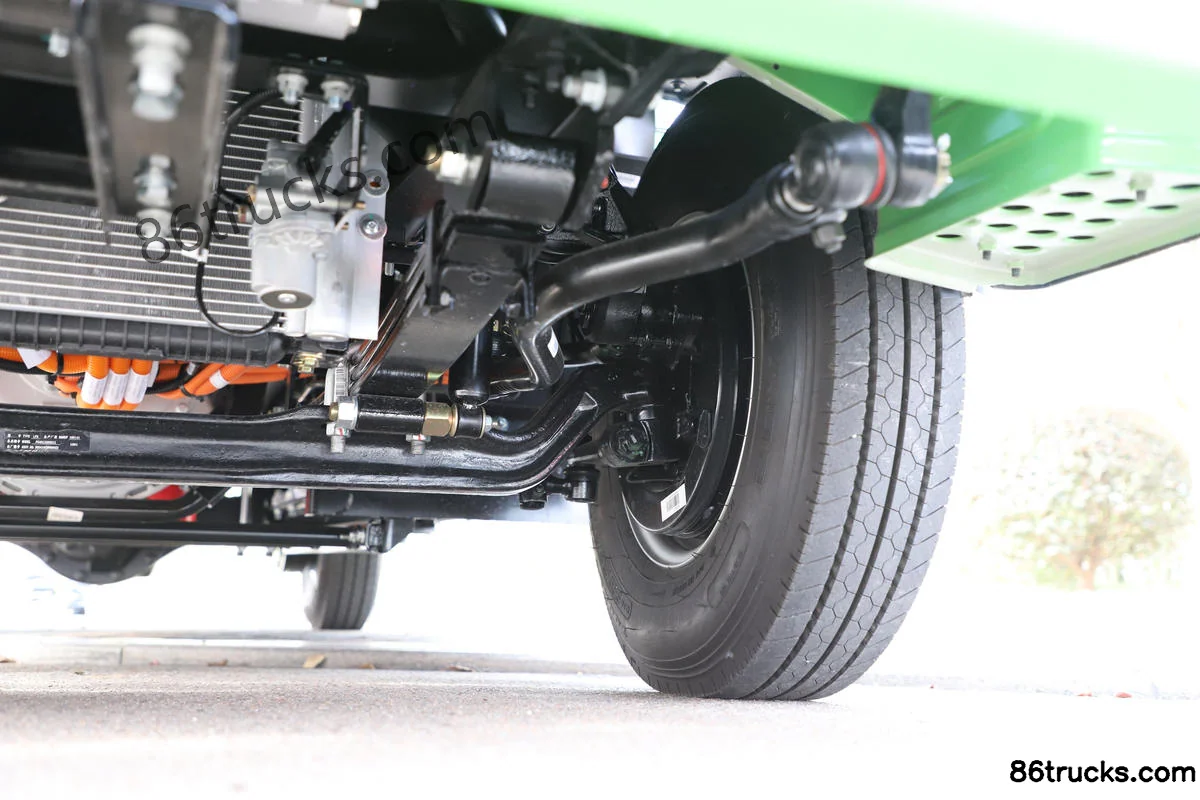

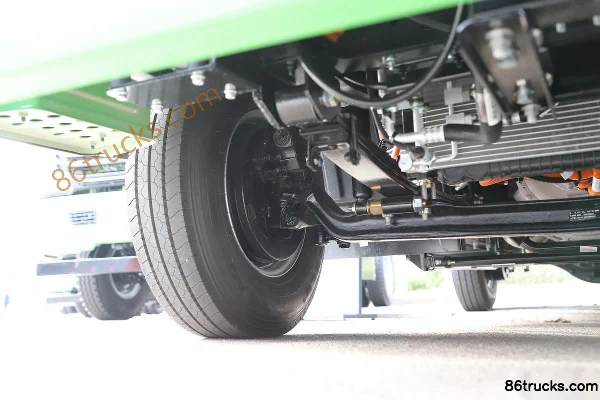

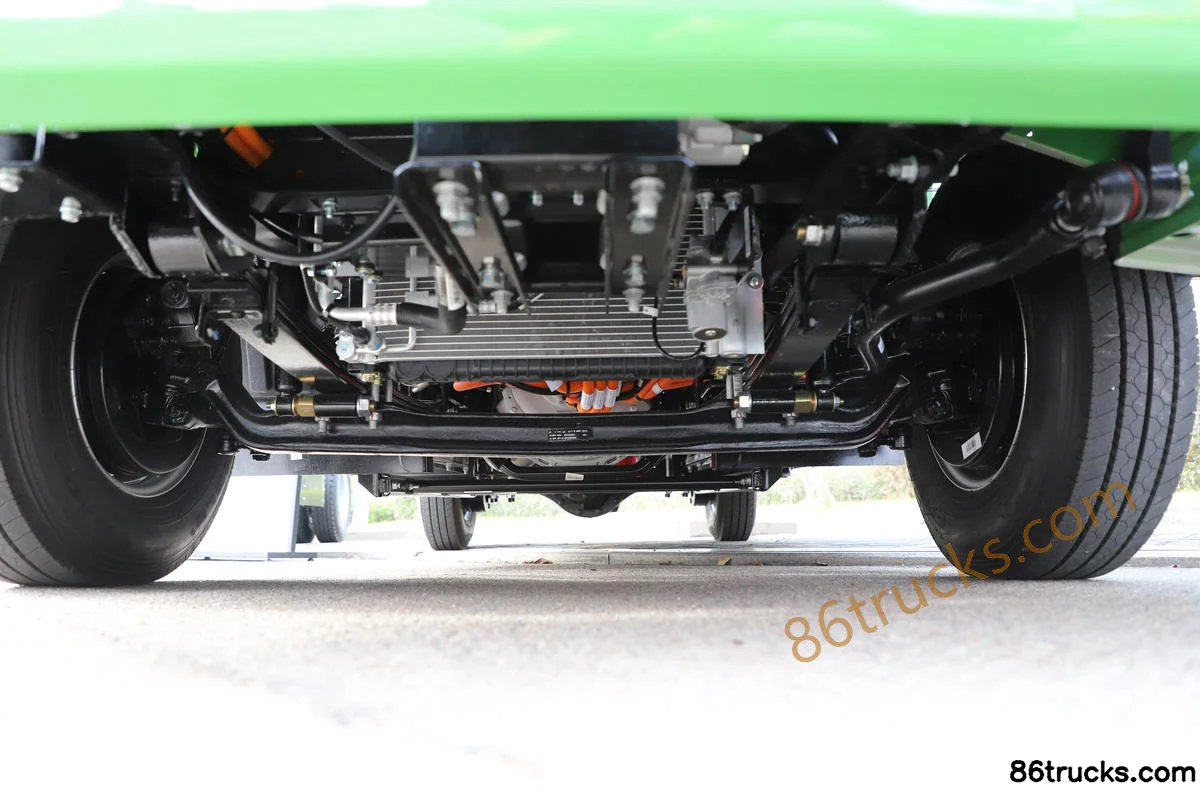

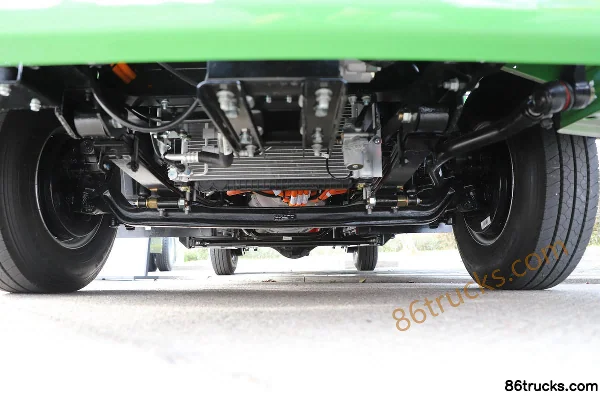

Chassis3

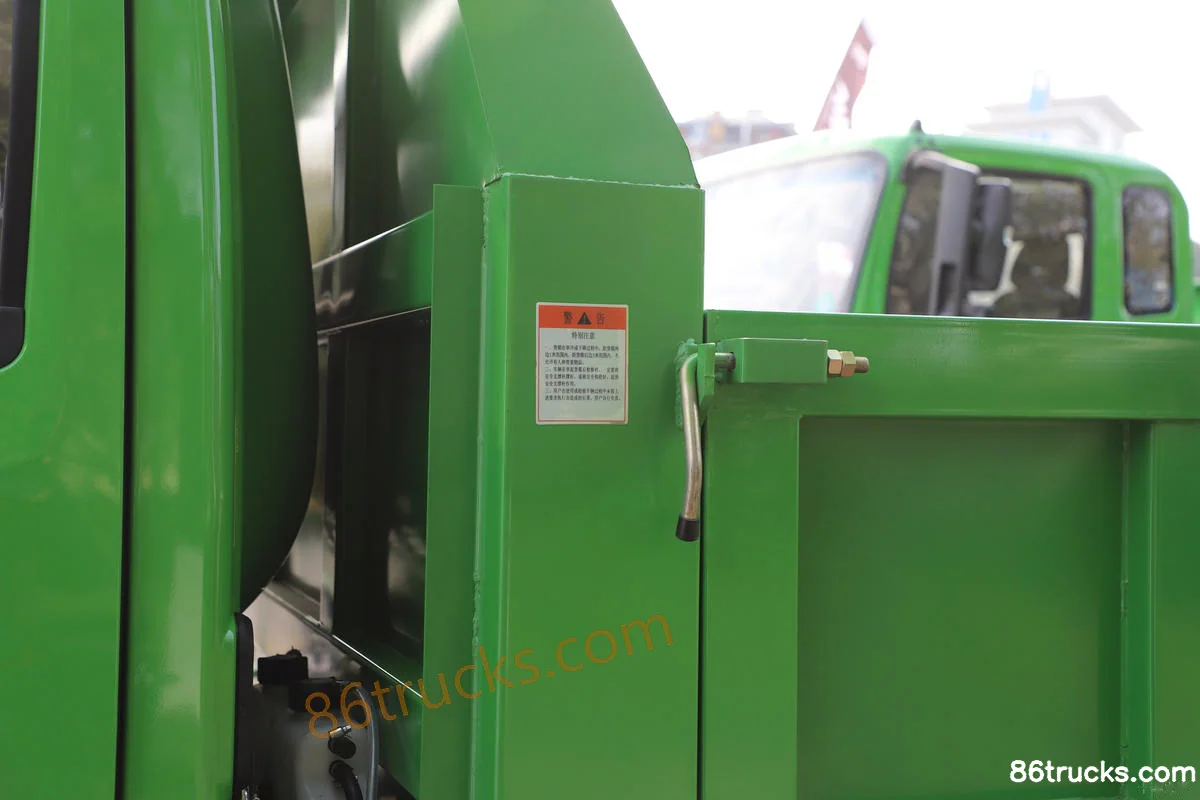

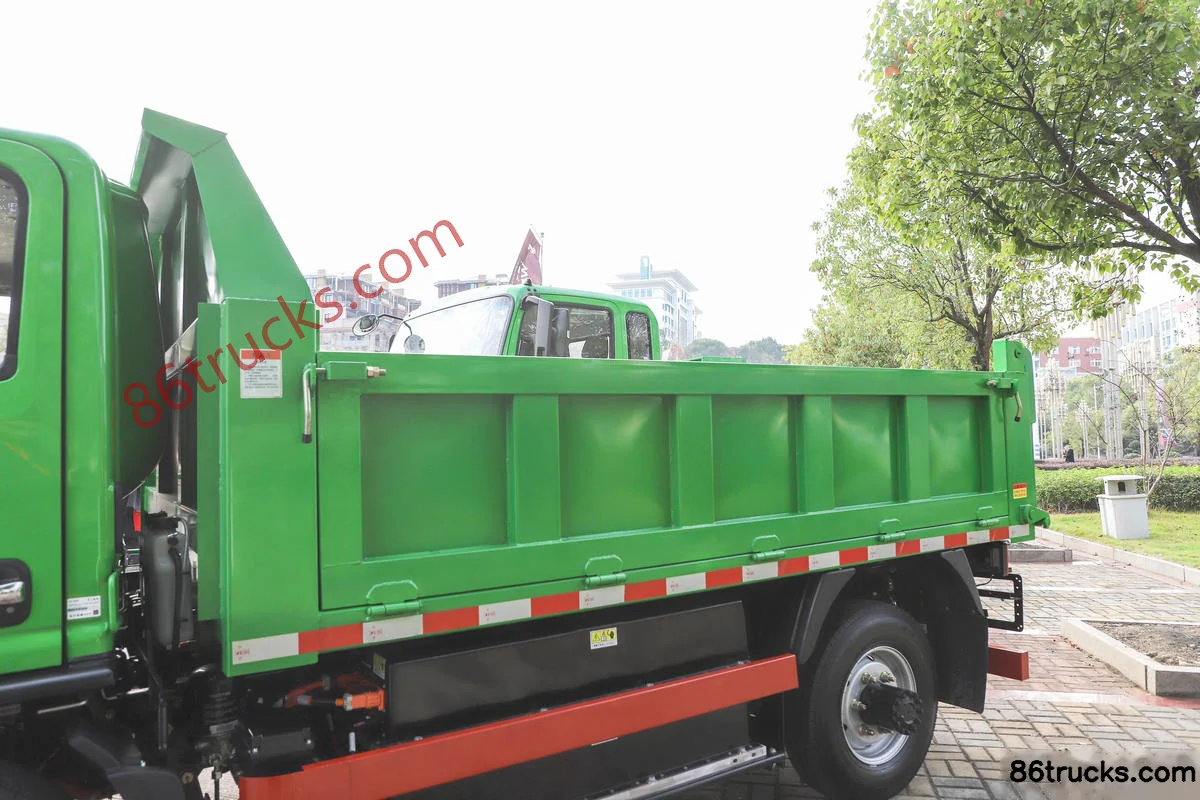

Body3

12 photos

FAQ

What are the key specs of Sinotruk Warrior EM1 4.5T 4X2(6 wheels) 3.2m Electric Dump Truck 98.04kWh?

Key specs of Sinotruk Warrior EM1 4.5T 4X2(6 wheels) 3.2m Electric Dump Truck 98.04kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Warrior EM1 4.5T 4X2(6 wheels) 3.2m Electric Dump Truck 98.04kWh suited for?

Sinotruk Warrior EM1 4.5T 4X2(6 wheels) 3.2m Electric Dump Truck 98.04kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Warrior EM1 4.5T 4X2(6 wheels) 3.2m Electric Dump Truck 98.04kWh differ from other variants in the same series?

Sinotruk Warrior EM1 4.5T 4X2(6 wheels) 3.2m Electric Dump Truck 98.04kWh belongs to Sinotruk Warrior EM1 (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Warrior EM1 4.5T 4X2(6 wheels) 3.2m Electric Dump Truck 98.04kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Warrior EM1 4.5T 4X2(6 wheels) 3.2m Electric Dump Truck 98.04kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
