Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed)

Export reference
From $14,375
MSRP ¥10.35M CNY
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Yunnei 490
Transmission: Lu'an
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed) is a Light Truck featuring 4.15m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yunnei 490 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1043JDD6V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Yunnei PowerYN27CRE10
transmission: Lu'an 5-speed
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.145m
Cab height: 2.46m
Front track width: 1650mm
rear track: 1600mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 15°
market segment: Building materials, agricultural products
Front/rear suspension: 1.14/1.495m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN27CRE10
Engine info: Yunnei 490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.672L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 305N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Lu'an 5-speed
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 0.4m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 1885mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 90L
Chassis Specs
Front axle allowable load: 1800kg
rear axle allowable load: 2695kg
Axle ratio: 4.875
Leaf spring count: 3/5+5
Tire

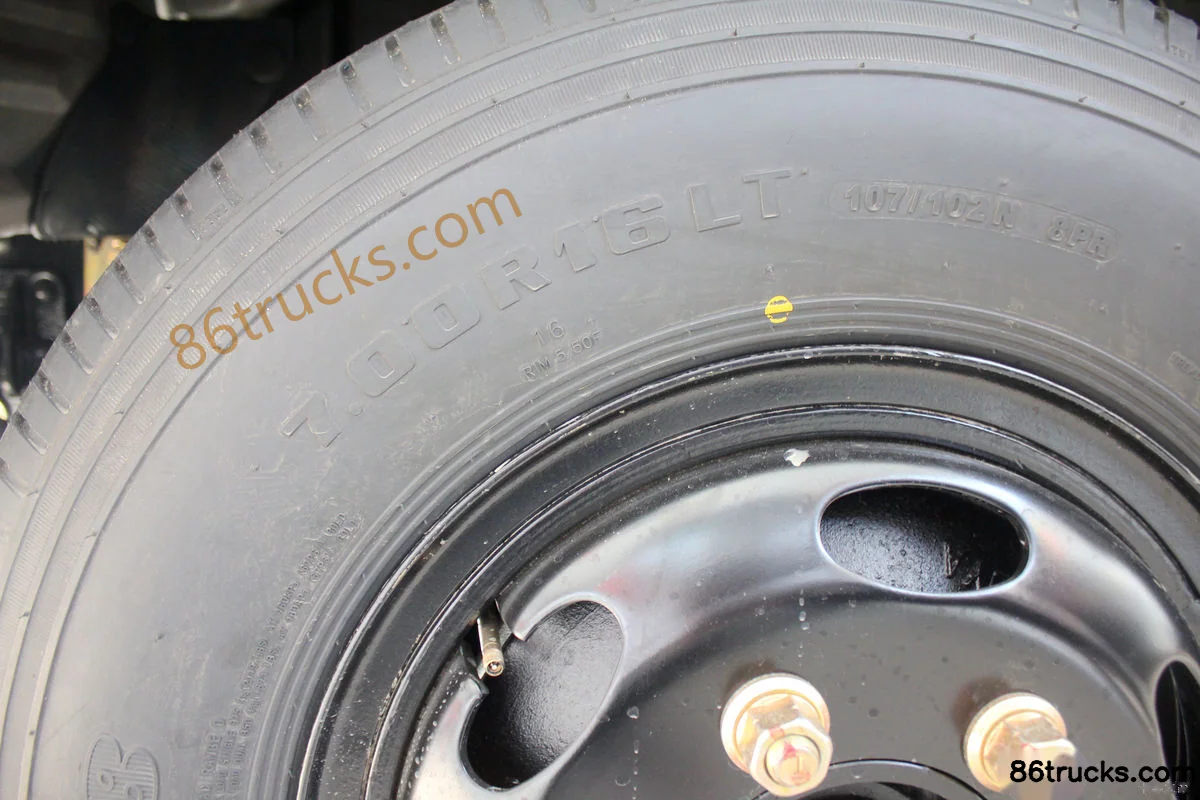

Tire Size: 7.00R16 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

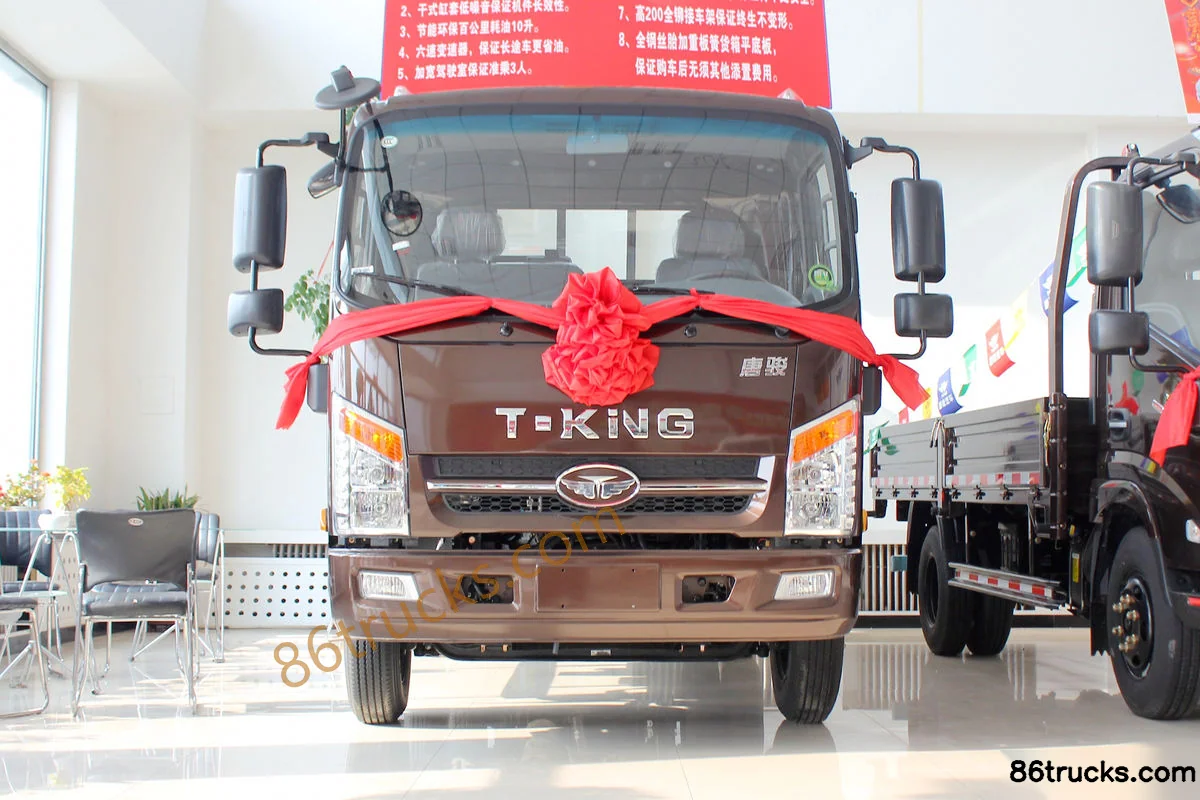

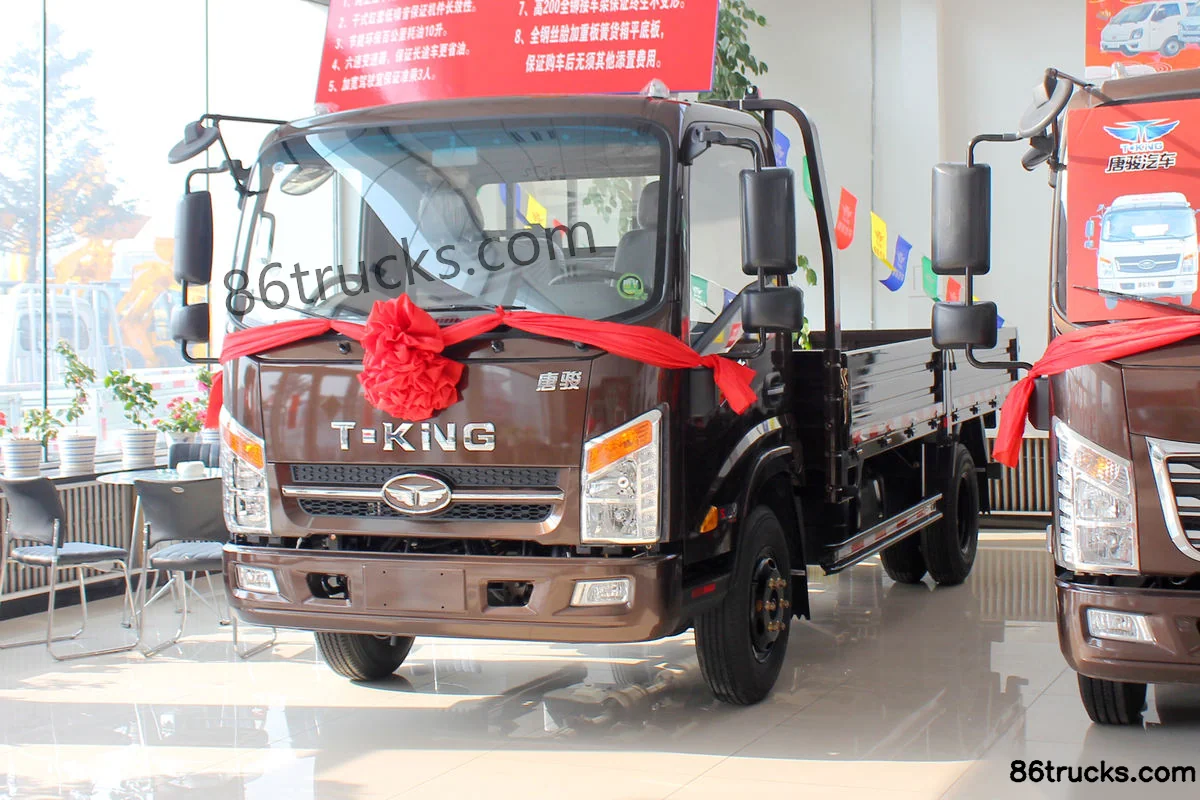

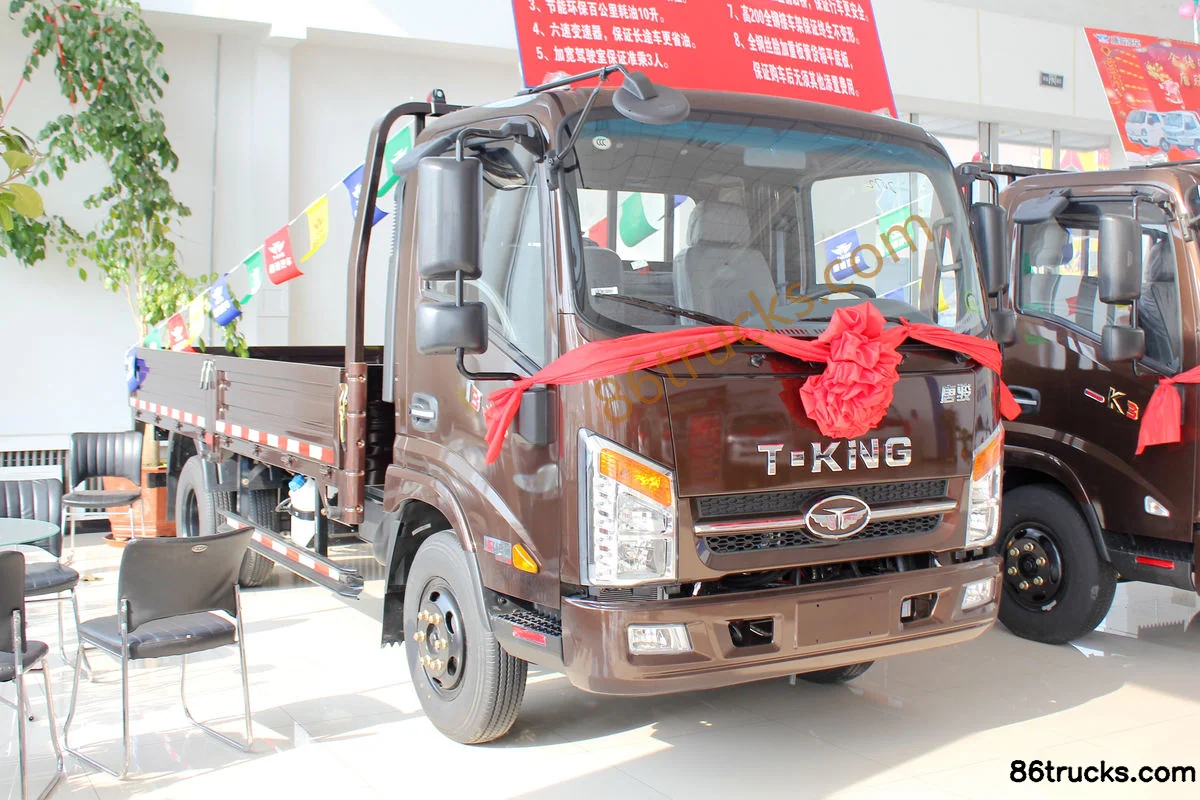

Exterior3

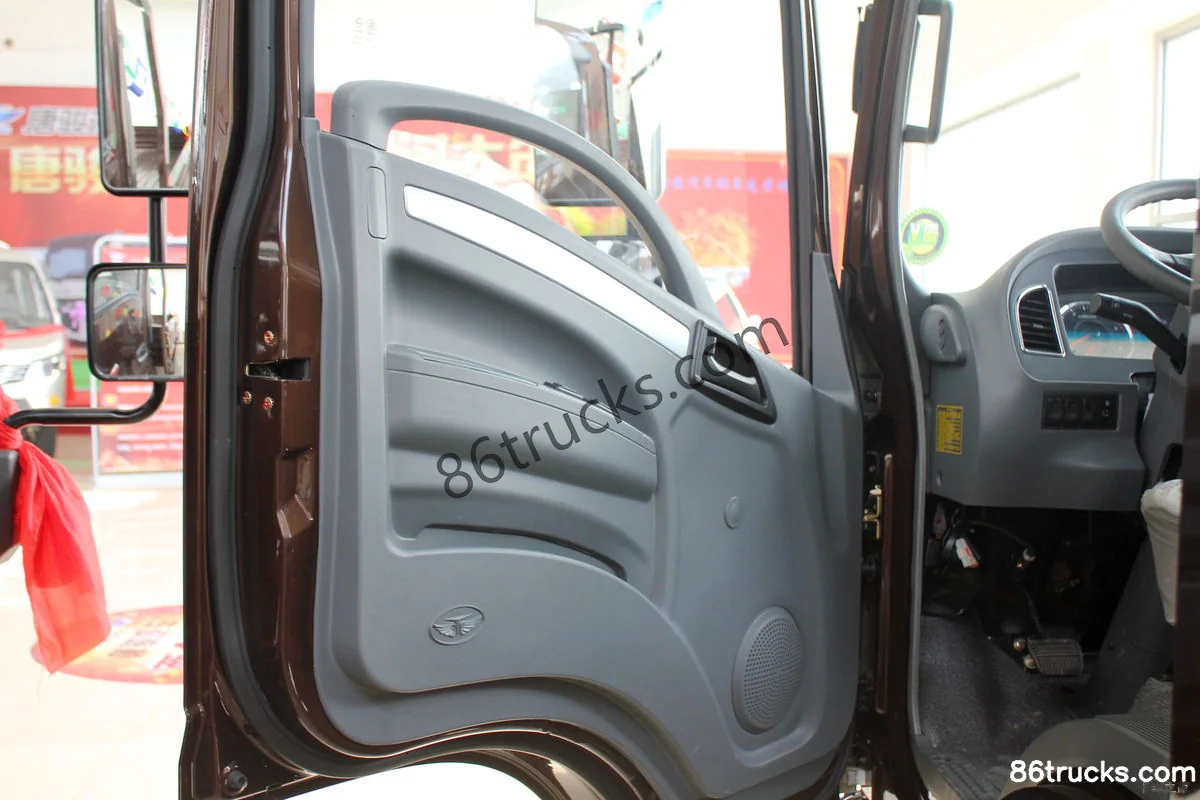

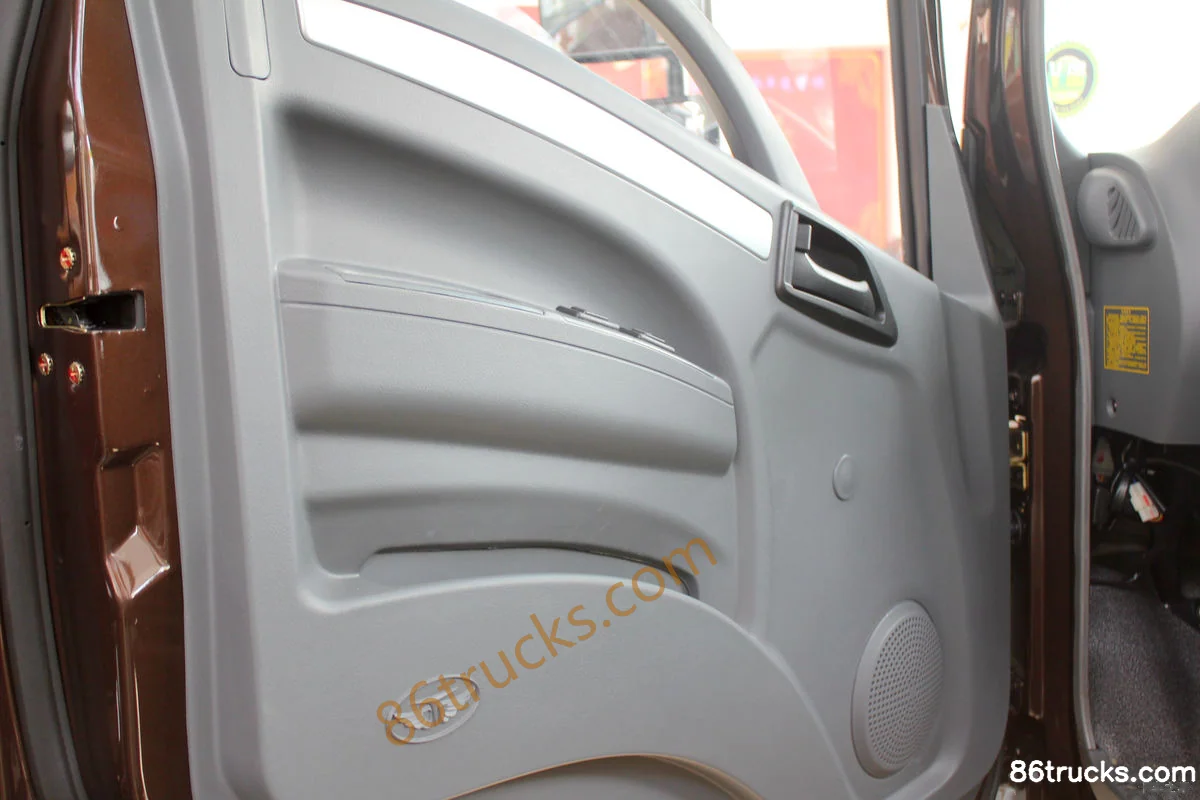

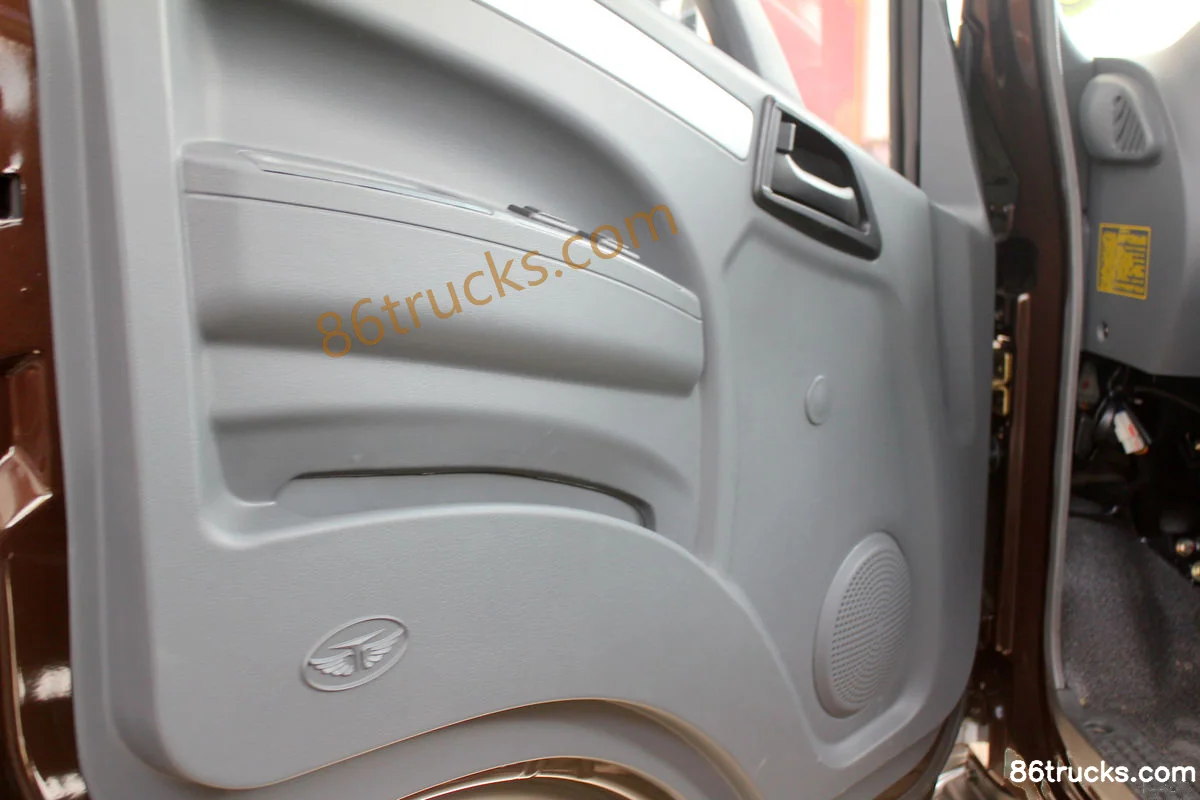

Cab3

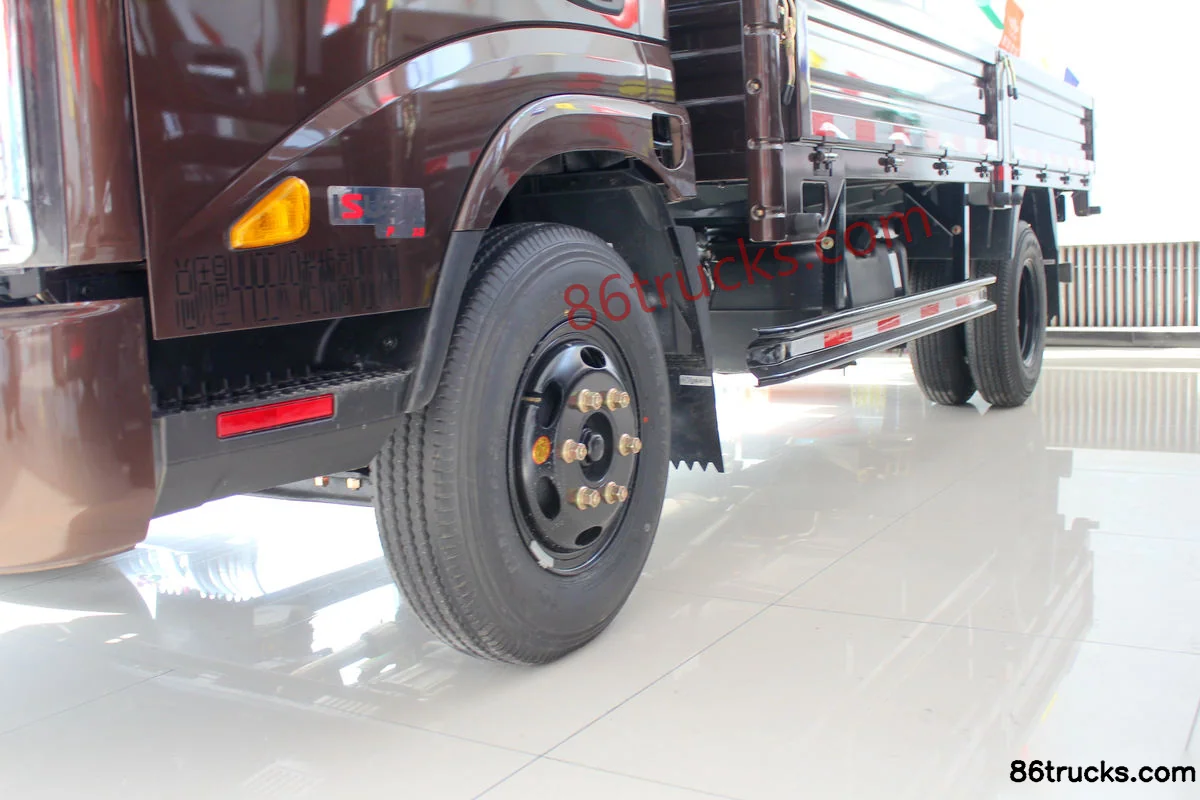

Chassis3

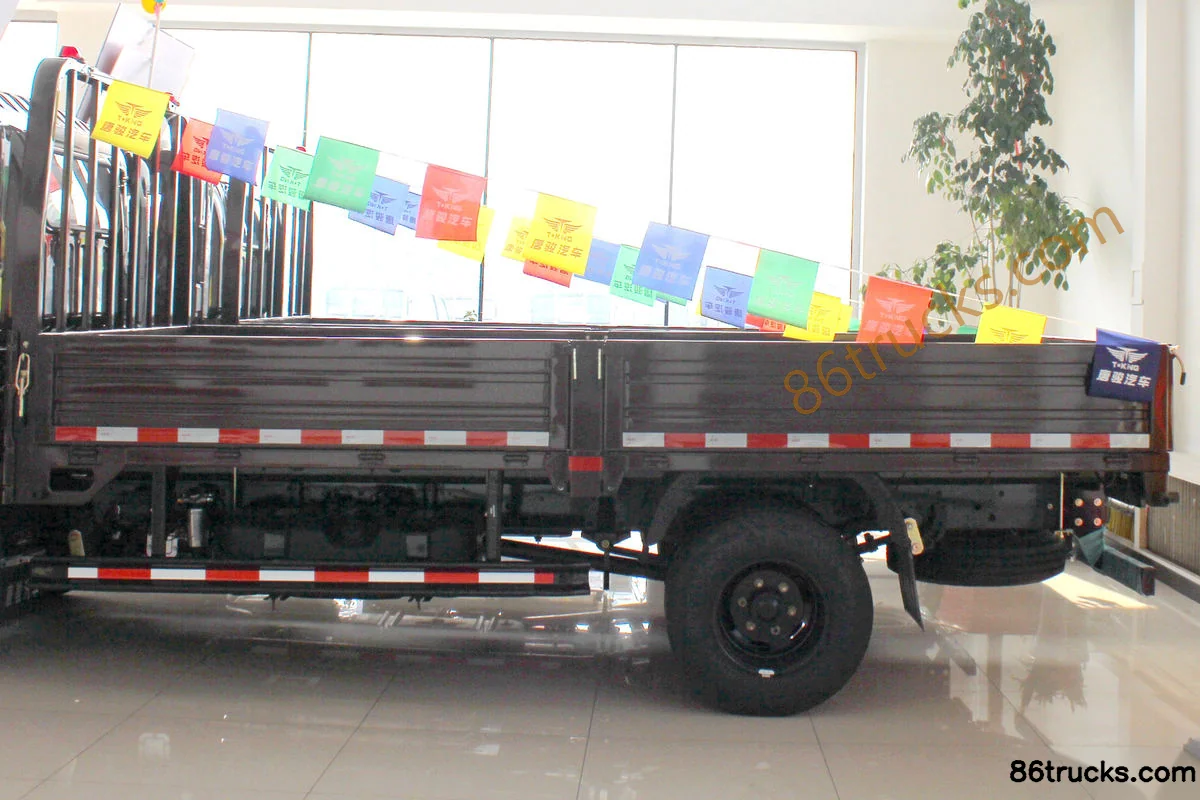

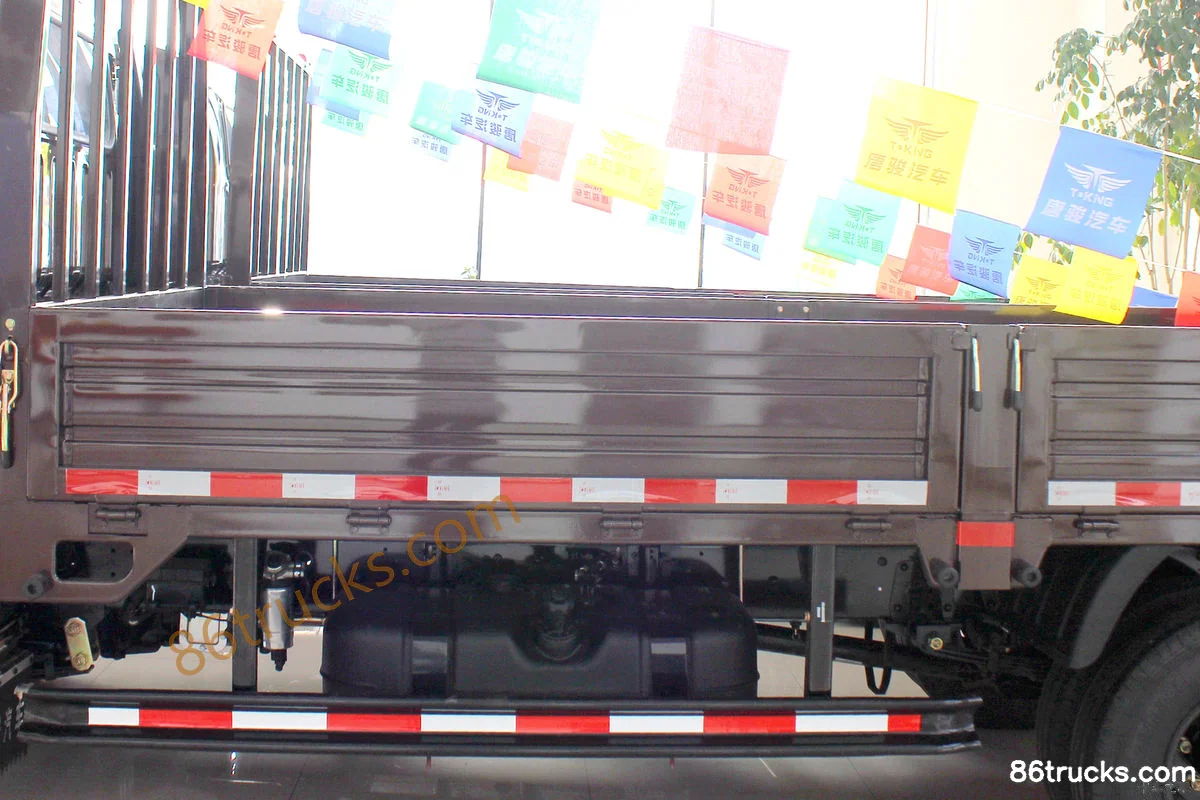

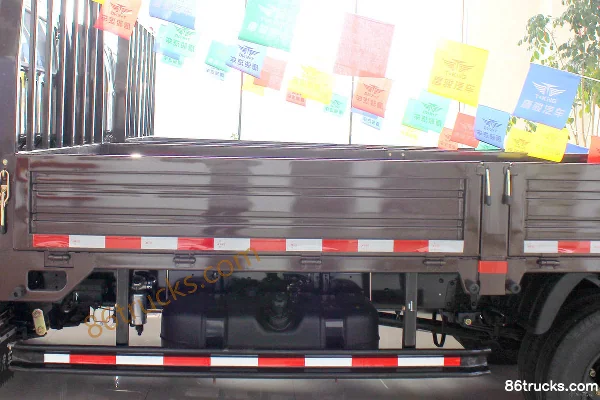

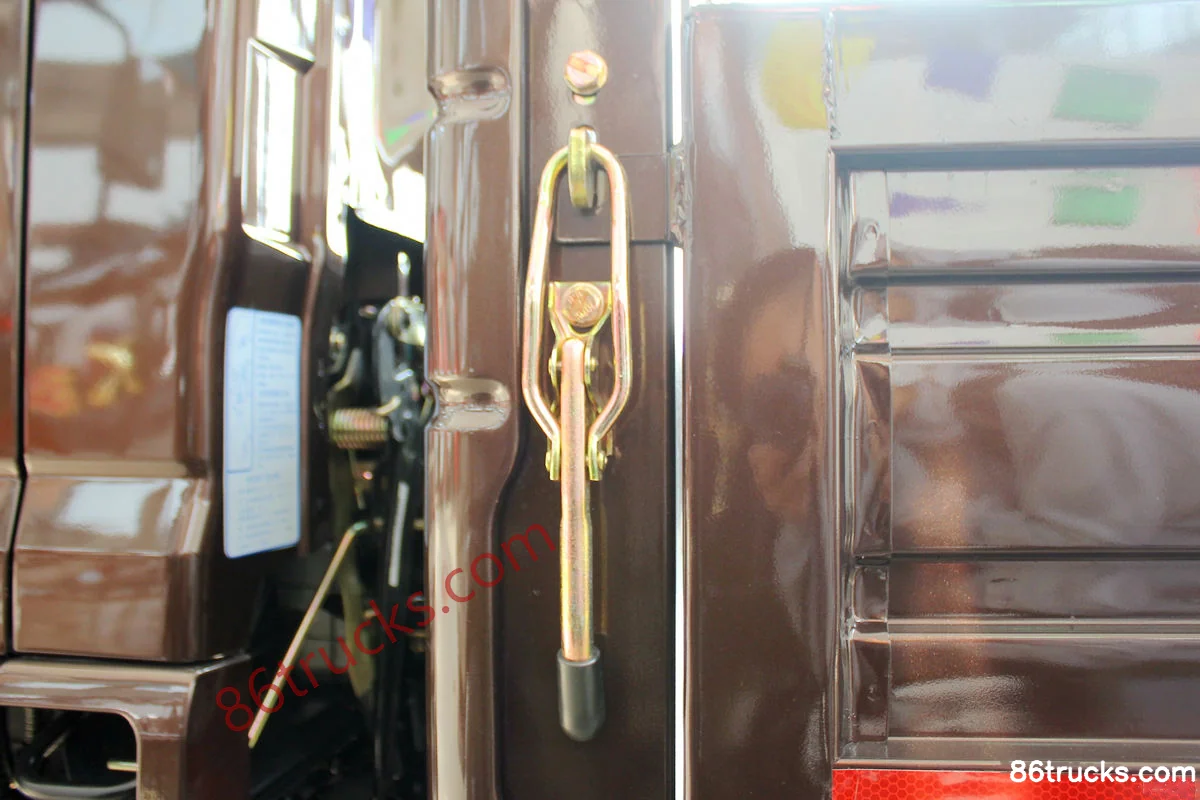

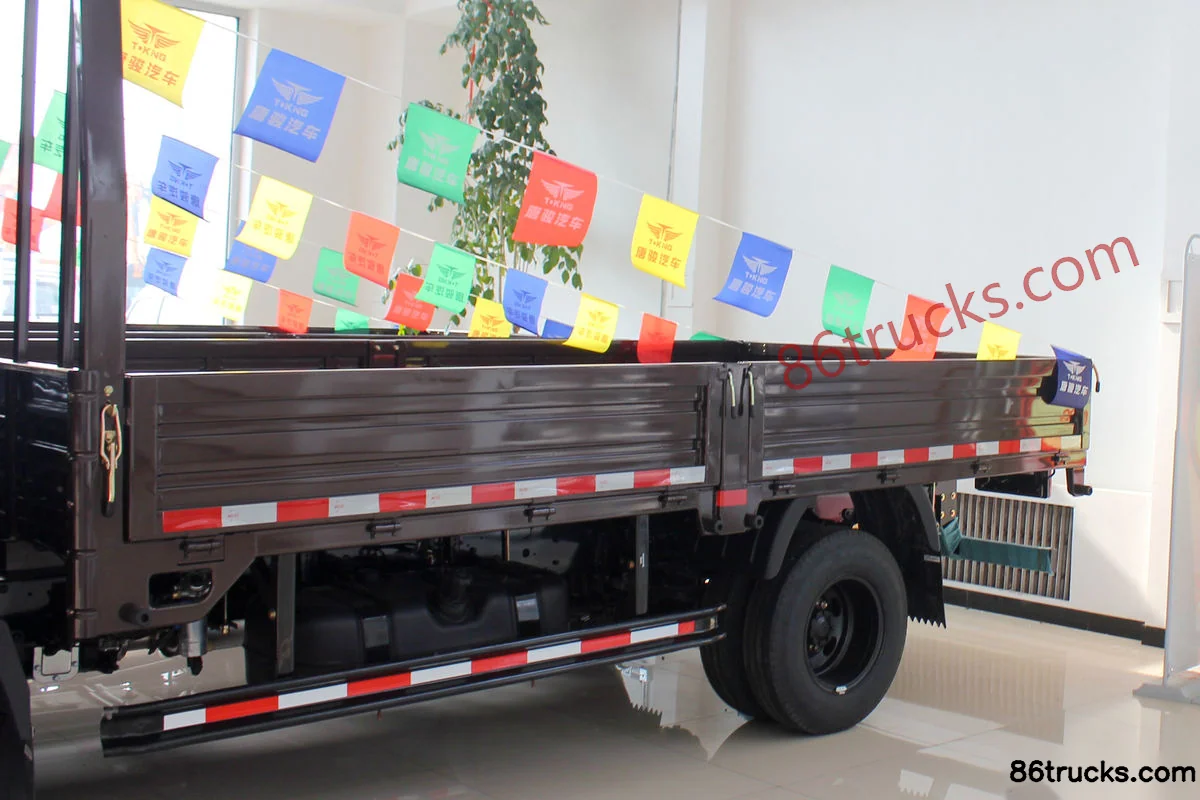

Body3

12 photos

FAQ

What is the export price of Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed), and what does it include?

Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed) export reference is about From $14,375; MSRP is ¥10.35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed)?

Key specs of Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed): Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei 490; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed) suited for?

Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed) differ from other variants in the same series?

Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed) belongs to T3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling T3 Series 116hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (Lu'an 5-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
