FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck

Export reference
From $18,194
MSRP ¥13.1M CNY
Horsepower: 130
Emission: China V
Fuel: Diesel
Engine: WeichaiWP2.3
Transmission: WLY
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck is a Light Truck featuring 4.16m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP2.3 engine, 130 hp, 4X2 (6 wheels) drive and China V emissions.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5040CCYP40K61L2E5A84
Type: stake truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: WeichaiWP2.3NQ130E50
transmission: WLYWLY6TS40
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.42m
Cab height: 2.475m
Front track width: 1600mm
rear track: 1525mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 115km/h
Origin: Qingdao/Chengdu
tonnage class: Light Truck
Approach angle: 20°
departure angle: 13°
market segment: Agricultural product transport, green channel
Remarks: Front brake: optional disc brake.
Front/rear suspension: 1.155/1.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3NQ130E50
Engine info: WeichaiWP2.3
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.29L
Emission standard: China V
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: WLYWLY6TS40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.16m
Cargo box width: 2.1/2.2/2.3m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: Flat roof single row cab
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1950kg
Frame Dimensions: 180×780 216×865mm
rear axle description: 295H rear axle
rear axle allowable load: 2545kg
Axle ratio: 4.875
Leaf spring count: 3/3+3,3/7+3,7/7+3,7/10+3,3/7+9,3/10+4,7/10+3
Aluminum wheels:
Tire
Tire Size: 6.50R16 12PR,7.00R16 8PR,7.50R16 8PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster: none
LCD instrument cluster:
lighting configuration
Headlight brand: none
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

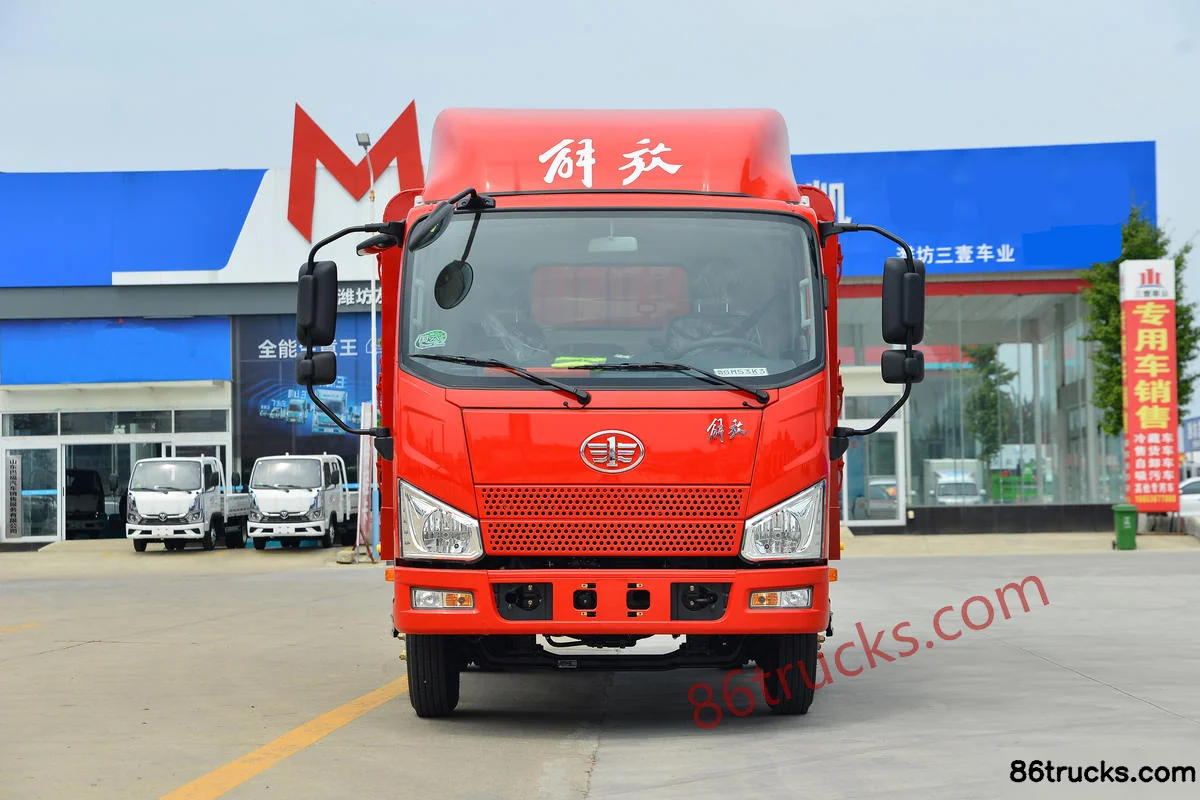

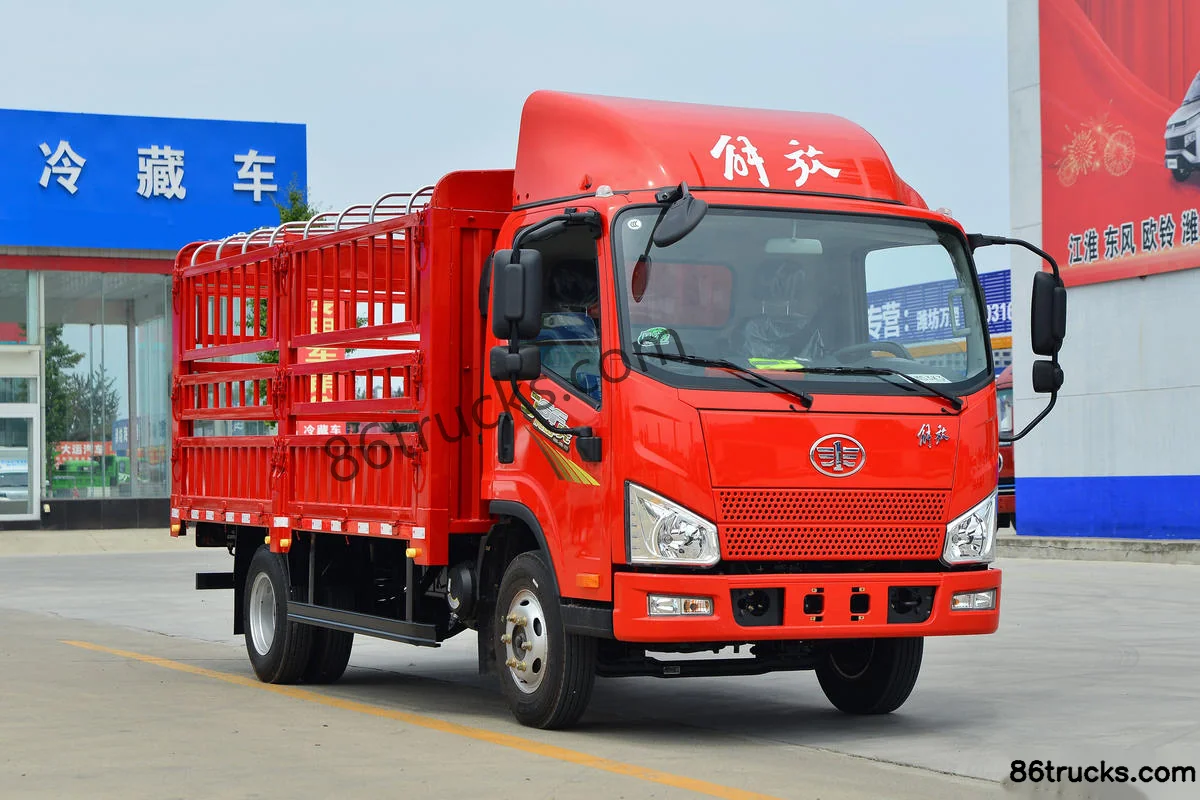

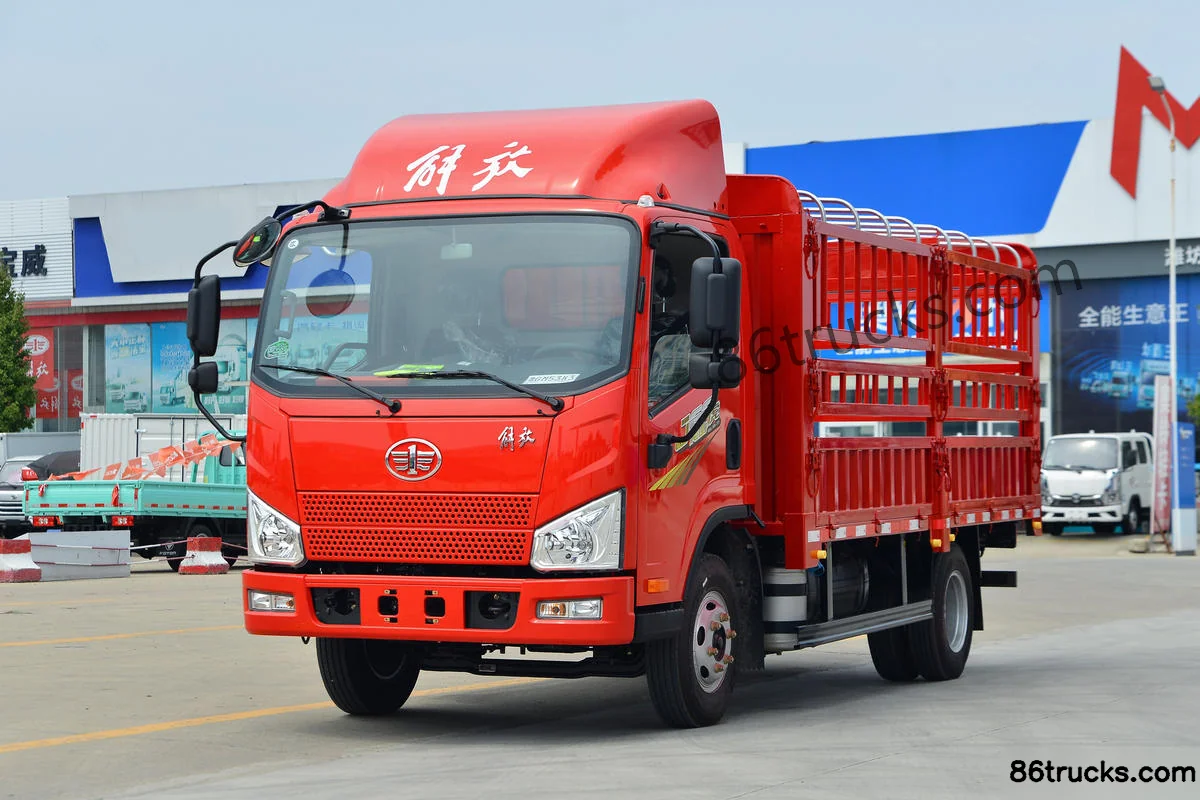

Exterior3

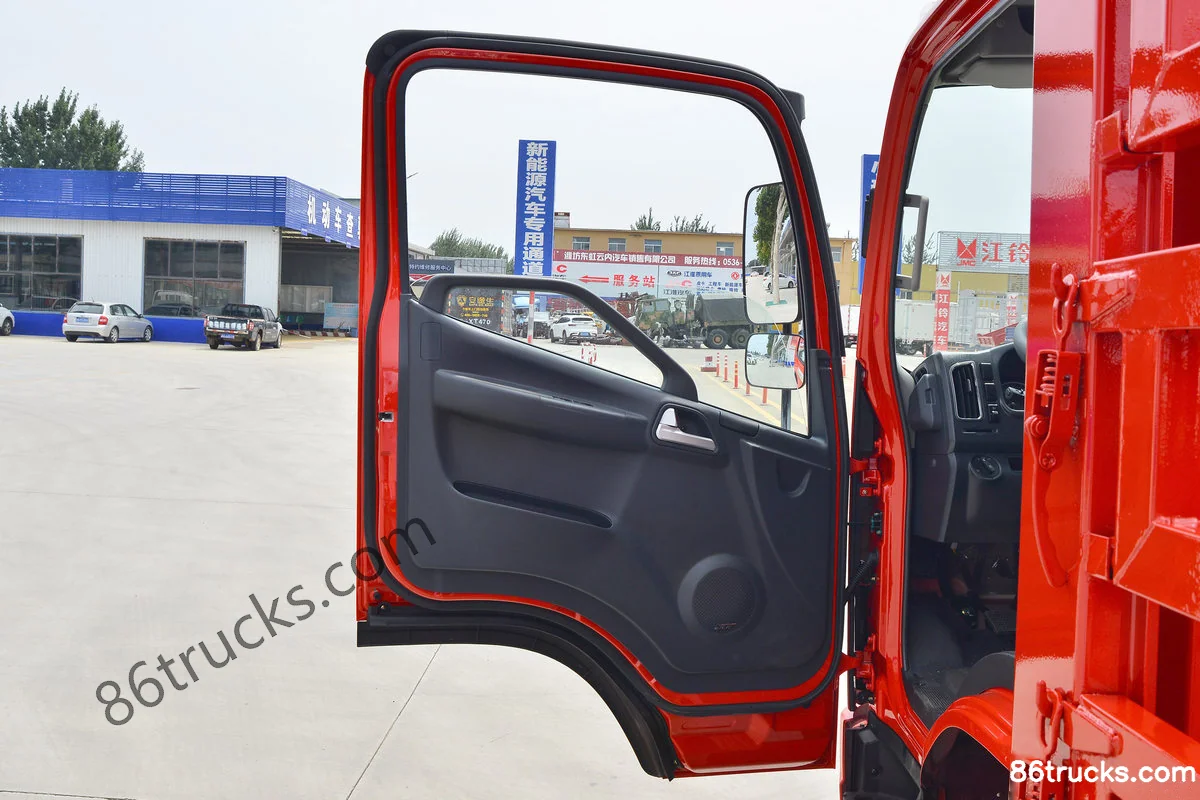

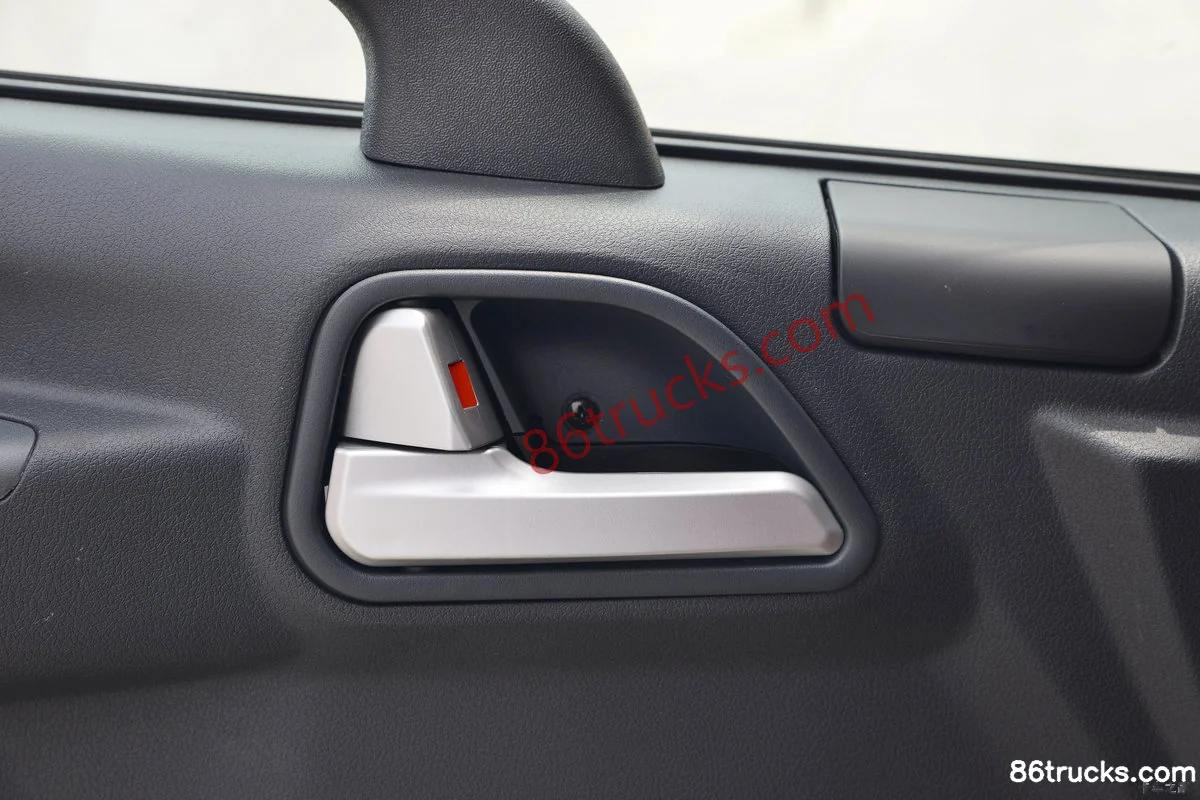

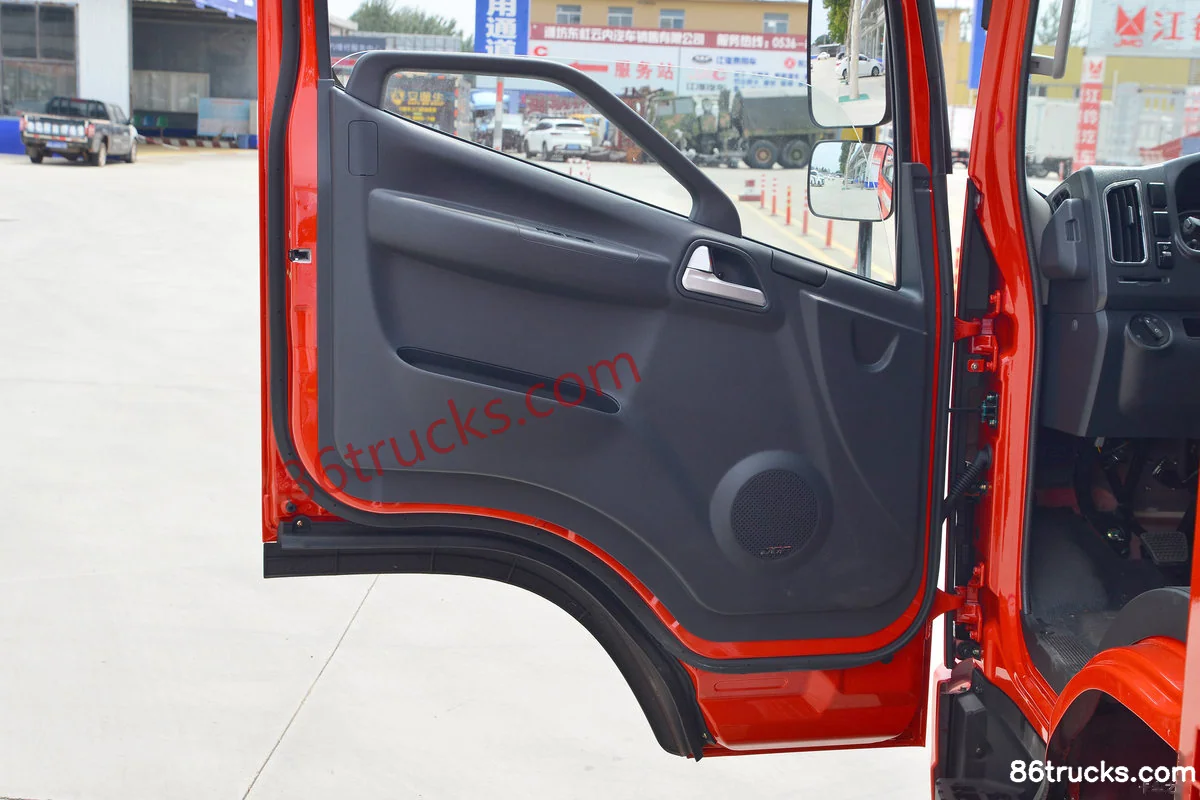

Cab3

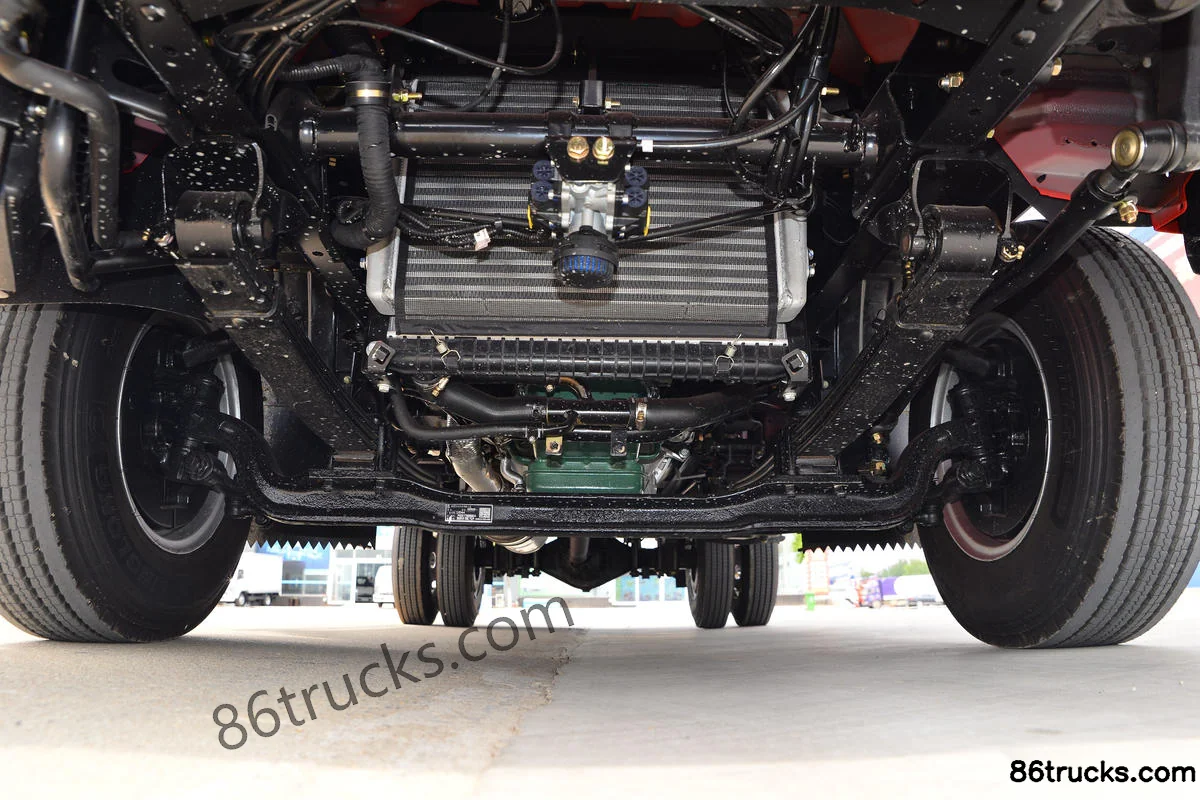

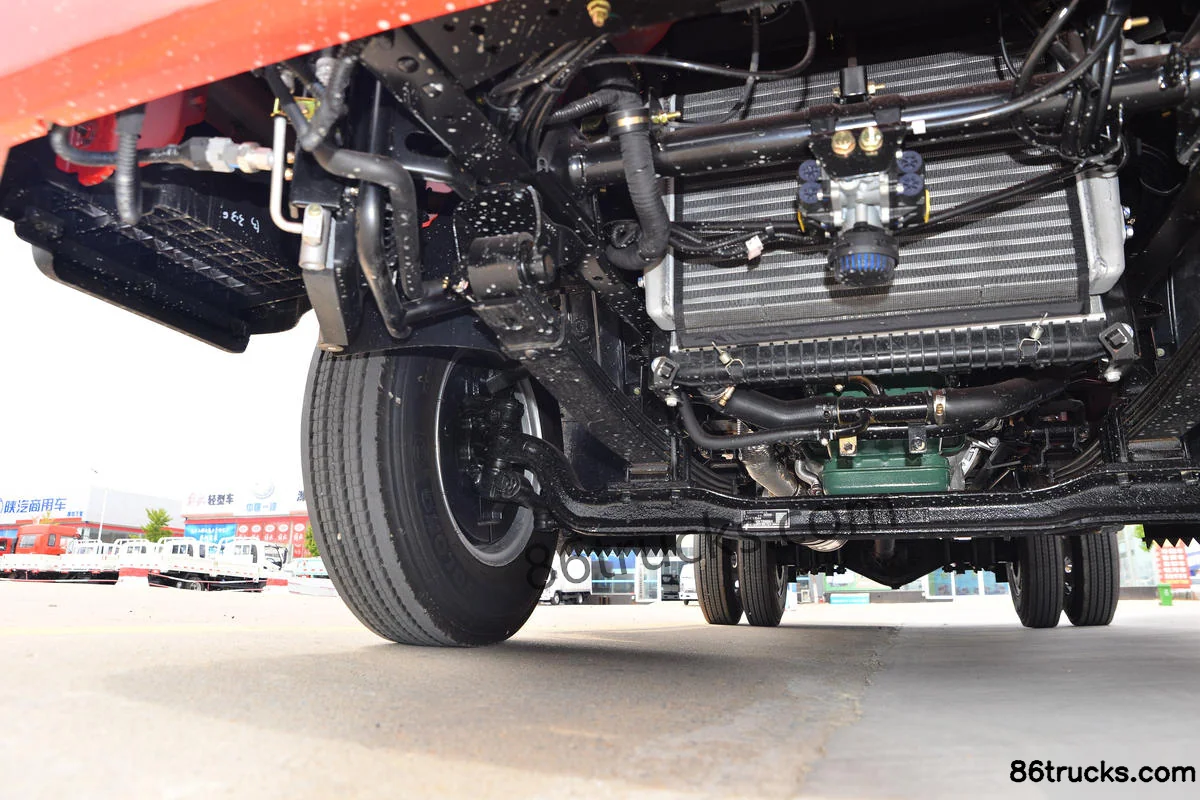

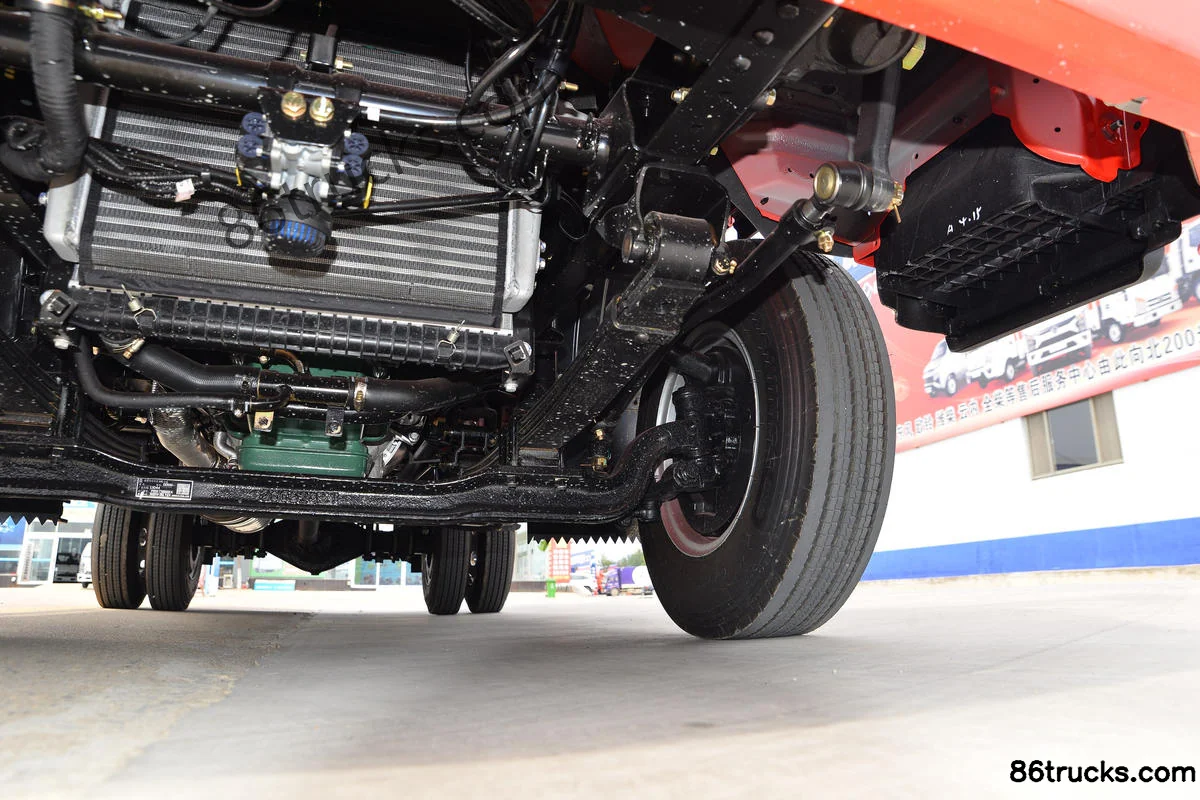

Chassis3

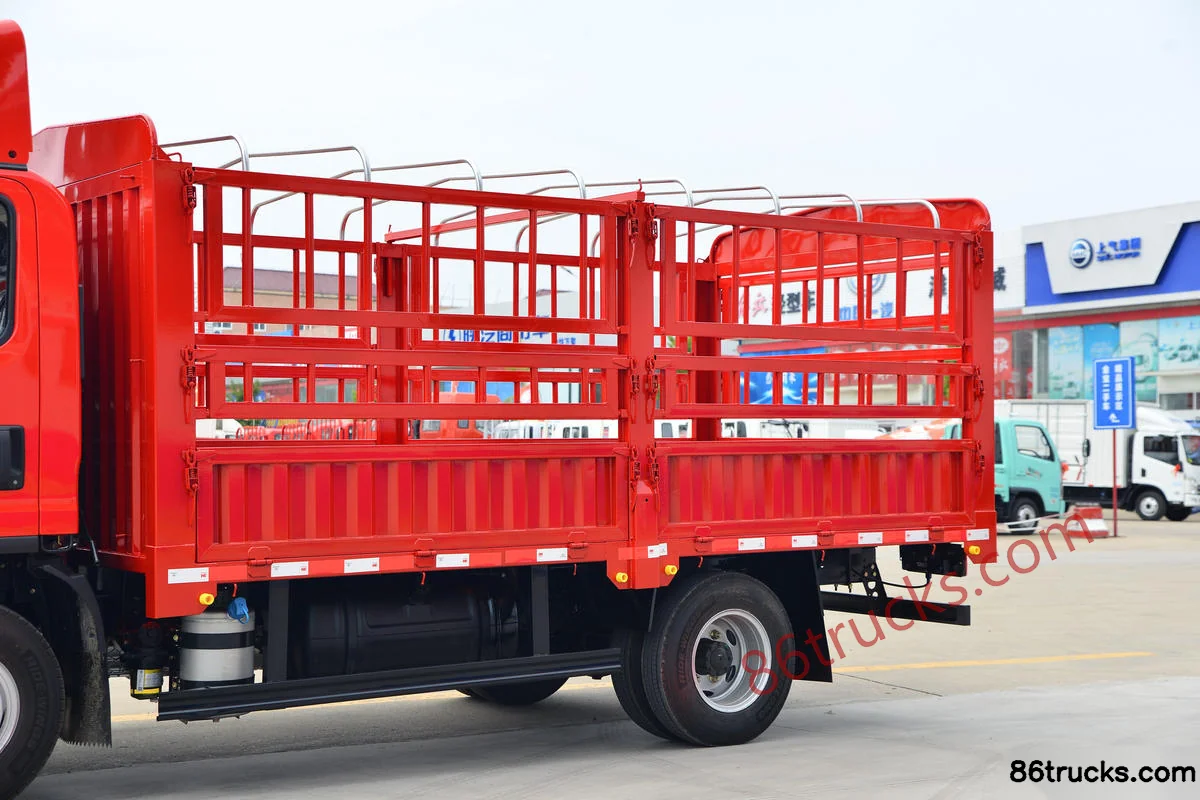

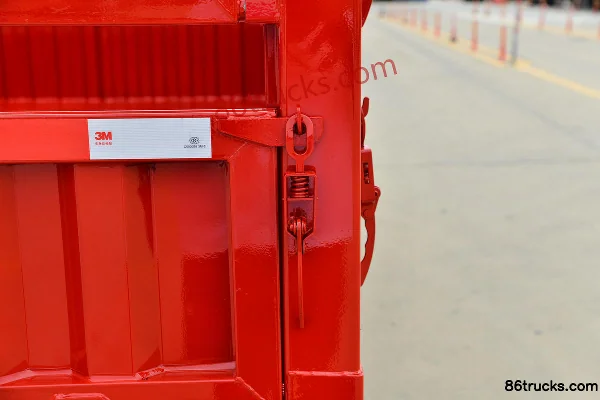

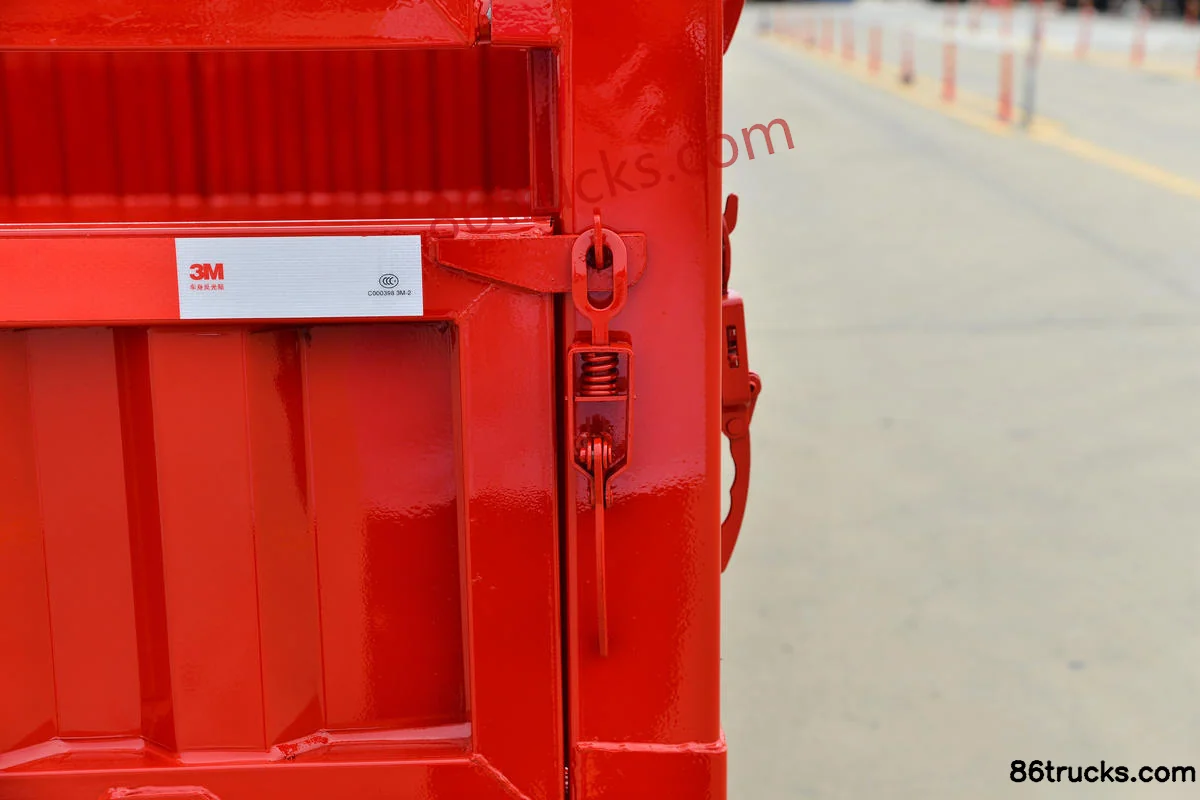

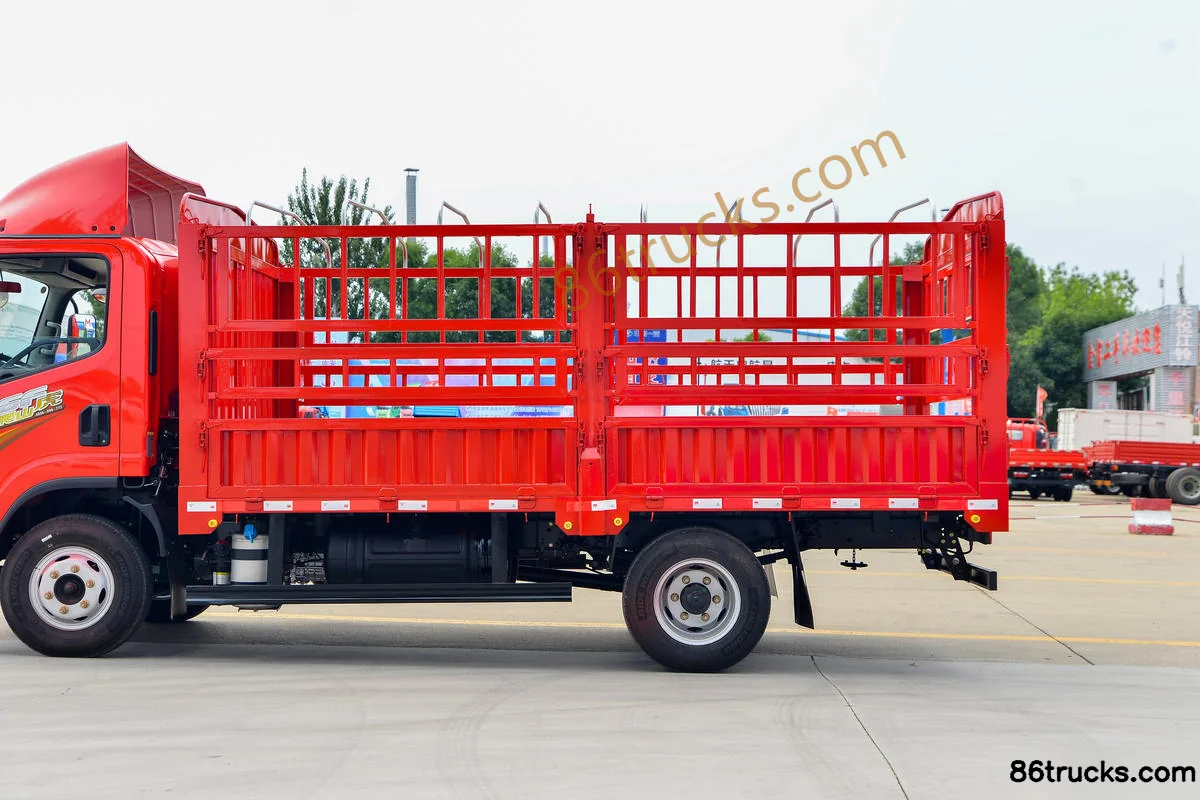

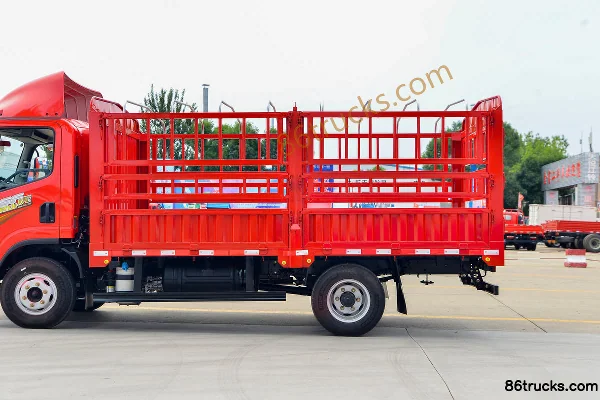

Body3

12 photos

FAQ

What is the export price of FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck, and what does it include?

FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck export reference is about From $18,194; MSRP is ¥13.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck?

Key specs of FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck: Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP2.3; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck suited for?

FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck differ from other variants in the same series?

FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck belongs to FAW Jiefang J6F Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6F 130 hp 4X2(6 wheels) 4.16m single-row stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
