Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh

Export reference
MSRP N/A
Wheelbase:: 3100mm
Cargo box volume:: 7.1
Model code (announced):: BJ5031XXYEVZA
Cab length:: 4.885m
GVWR:: 3.1ton
Max. speed:: 90km/h

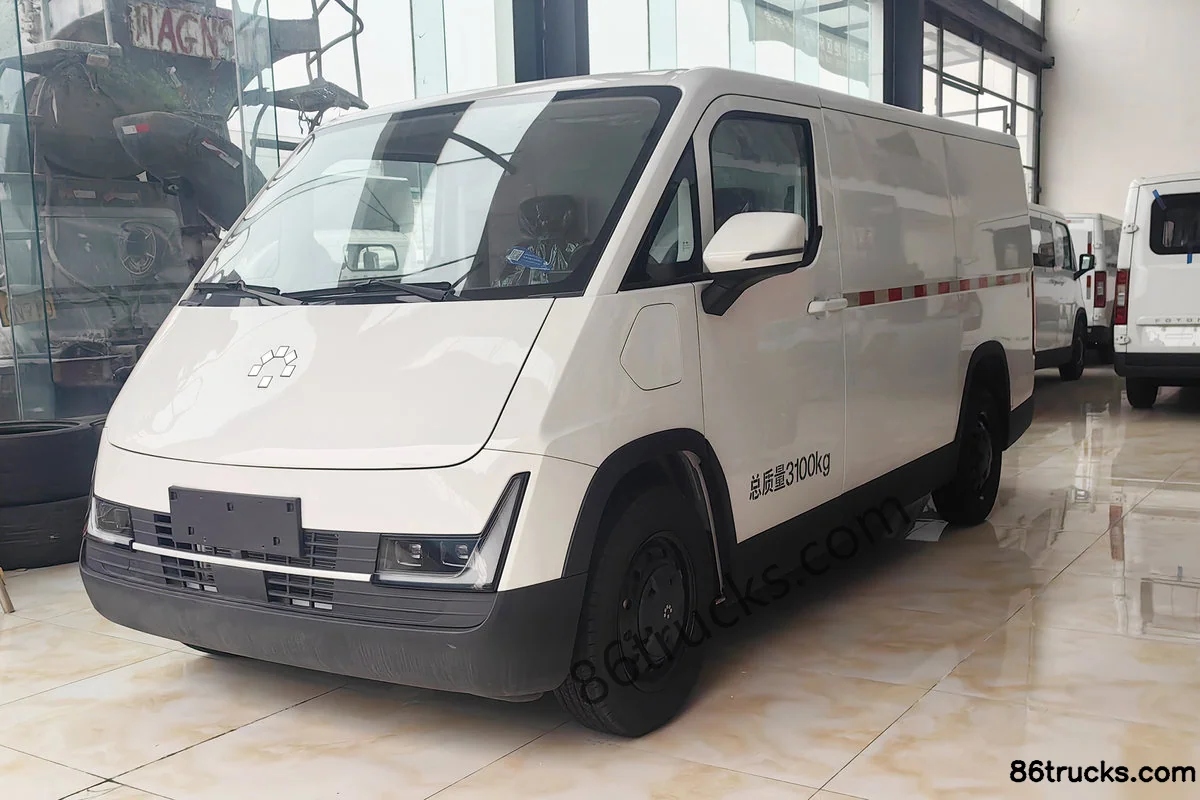

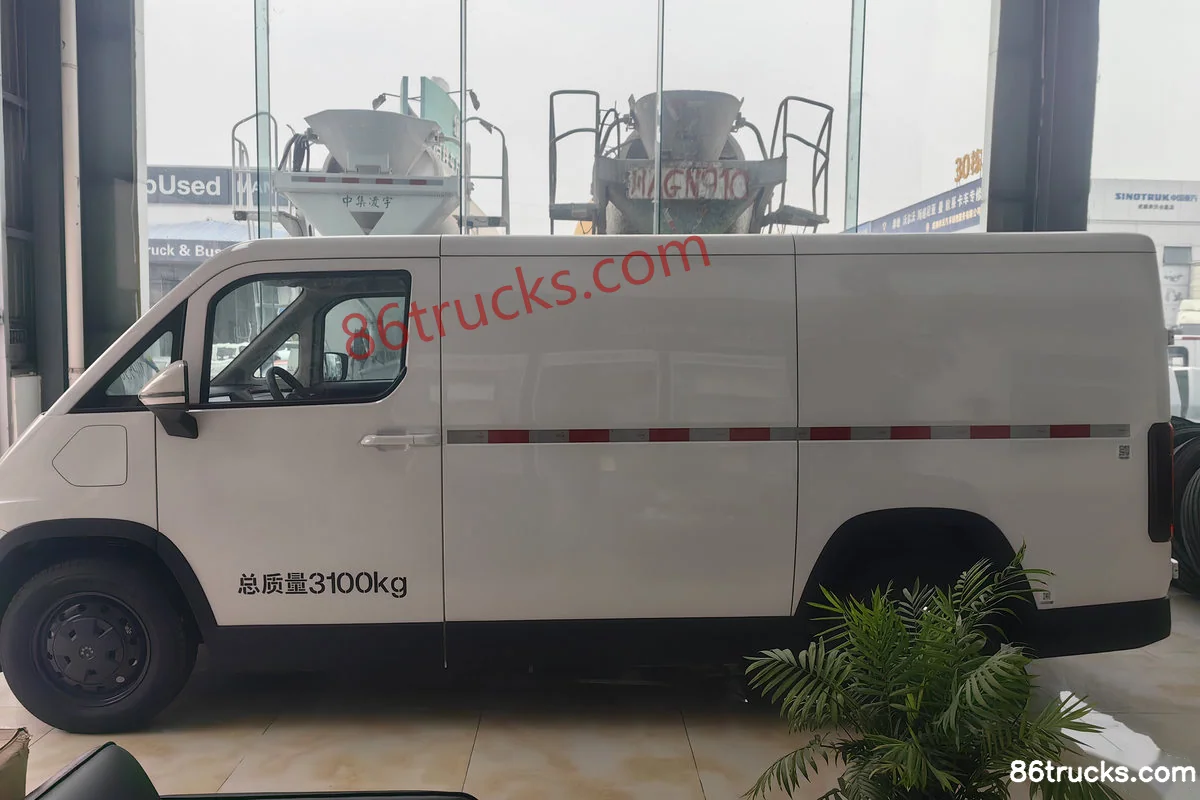

Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh exterior
View more photos (12)
CLTC range: 360km
Motor 1 Brand: Caven
Curb Weight: 1.6ton
Rated payload: 1.37ton

Overview

The Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh is a Electric Panel Van featuring 360km battery/range, Caven motor, 1.37t payload and 7.1 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5031XXYEVZA
Wheelbase: 3100mm
Cab length: 4.885m
Cab width: 1.81m
Cab height: 1.96m
CLTC range: 360km
Curb Weight: 1.6ton
Rated payload: 1.37ton
GVWR: 3.1ton
Max. speed: 90km/h
Front/rear suspension: 0.685/1.11m
Version: Yuexing Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Caven
Motor 1 Model: TZ180XSCV002
Motor Type: Permanent magnet synchronous motor
total rated power: 50kW
Peak power: 105kW
total peak torque: 210N·m
Battery/Charging
Battery Brand: CATL
Charging method: Fast/Slow Charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 50.23kWh
fast charge time: 0.33h
Body parameters
Cargo box volume: 7.1
Max body depth: 2.8
Max body width: 1.76
Cargo Box Height: 1.45
Chassis Specs
Front suspension type: MacPherson independent suspension
rear suspension type: Leaf Spring Non-independent Suspension
Body Parameters
Seat count: 2Seats
Door Parameters
Number of Doors: 5
side door type: Sliding side door
Wheel brake
Front brake type: Disc
rear brake type: Disc
Front tire specification: 195/75R16LT
Rear Wheel Specification: 195/75R16LT
Cab parameters
Seat rows:
Safety features
Tire Pressure Monitoring:
Seat belt reminder:
Remote key:
Control configuration
ABS:
Stability control (ESP/DSC/VSC etc.):
Brake assist (EBA/BAS/BA etc.):
interior configuration
Power-Adjustable Rearview Mirror:
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Headlight height adjustment:
smart configuration
Cruise control (CCS):

Photos

Exterior3

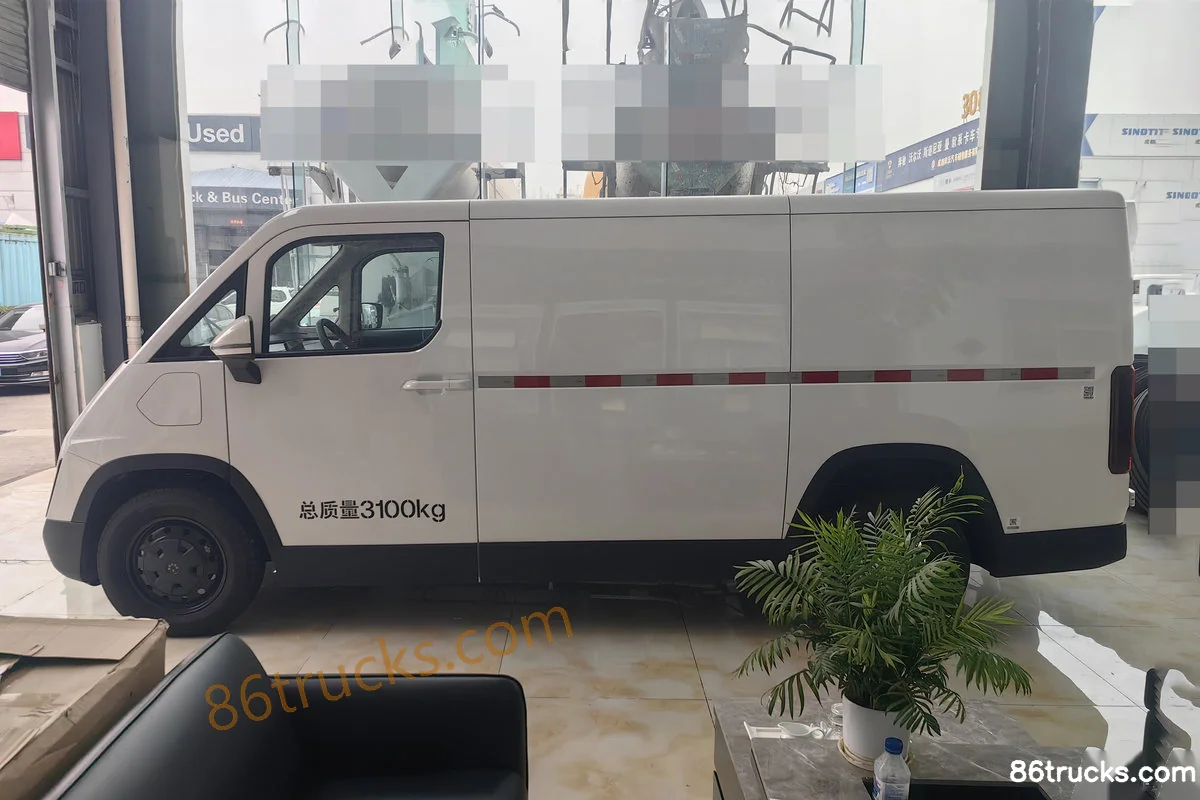

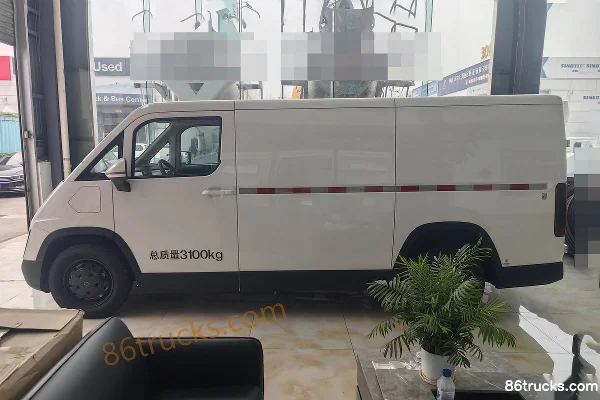

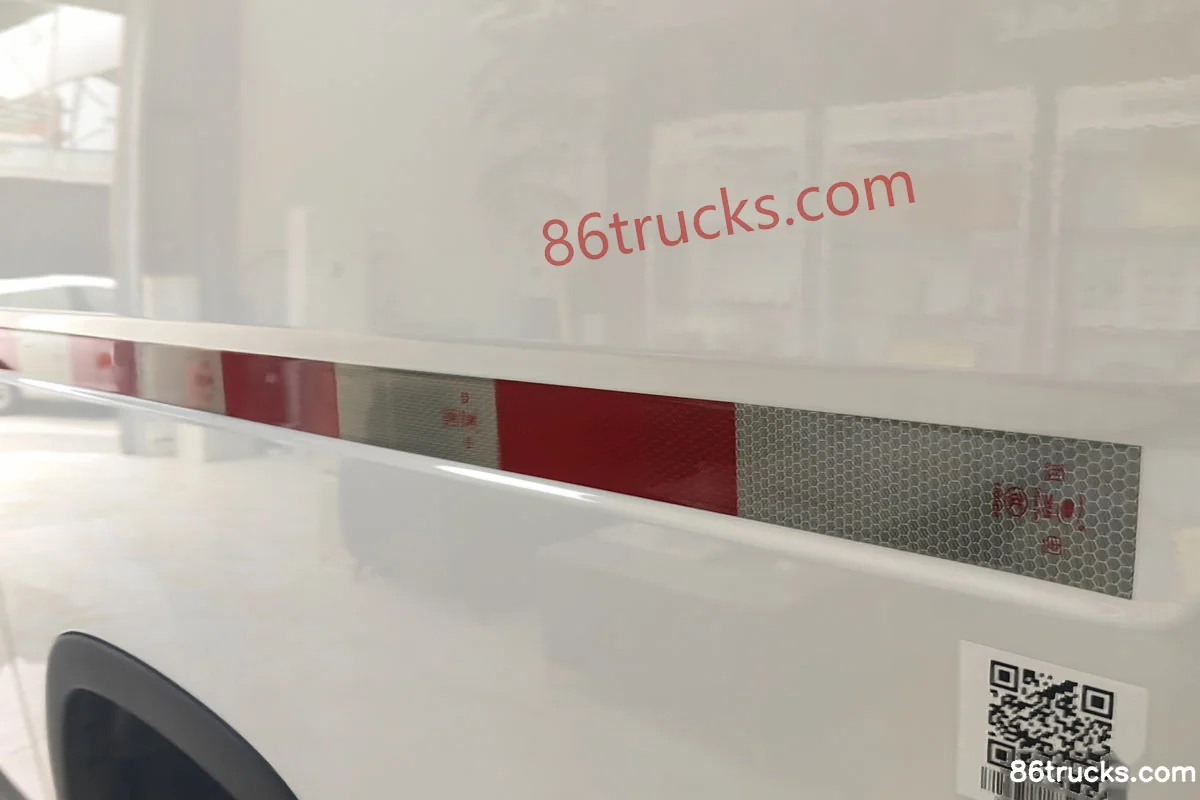

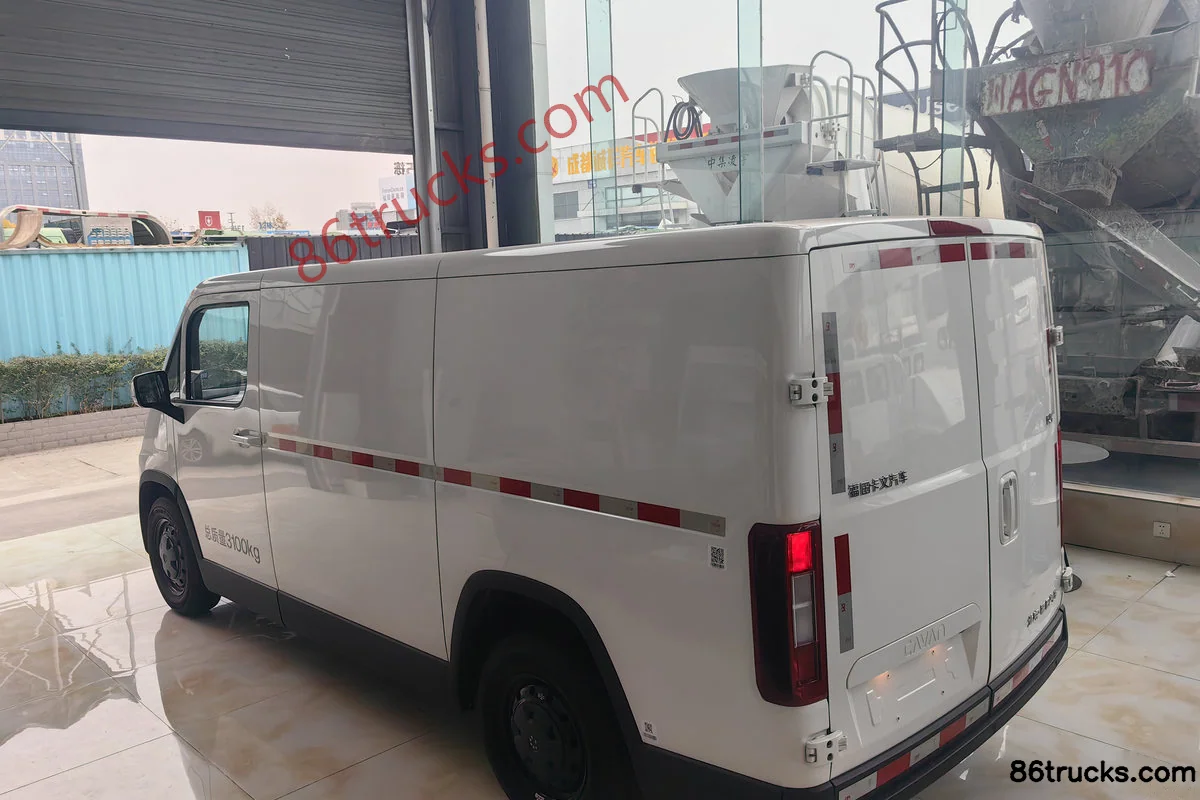

Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Exterior (1) | 86Trucks Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Exterior (2) | 86Trucks Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Exterior (3) | 86Trucks

Cab3

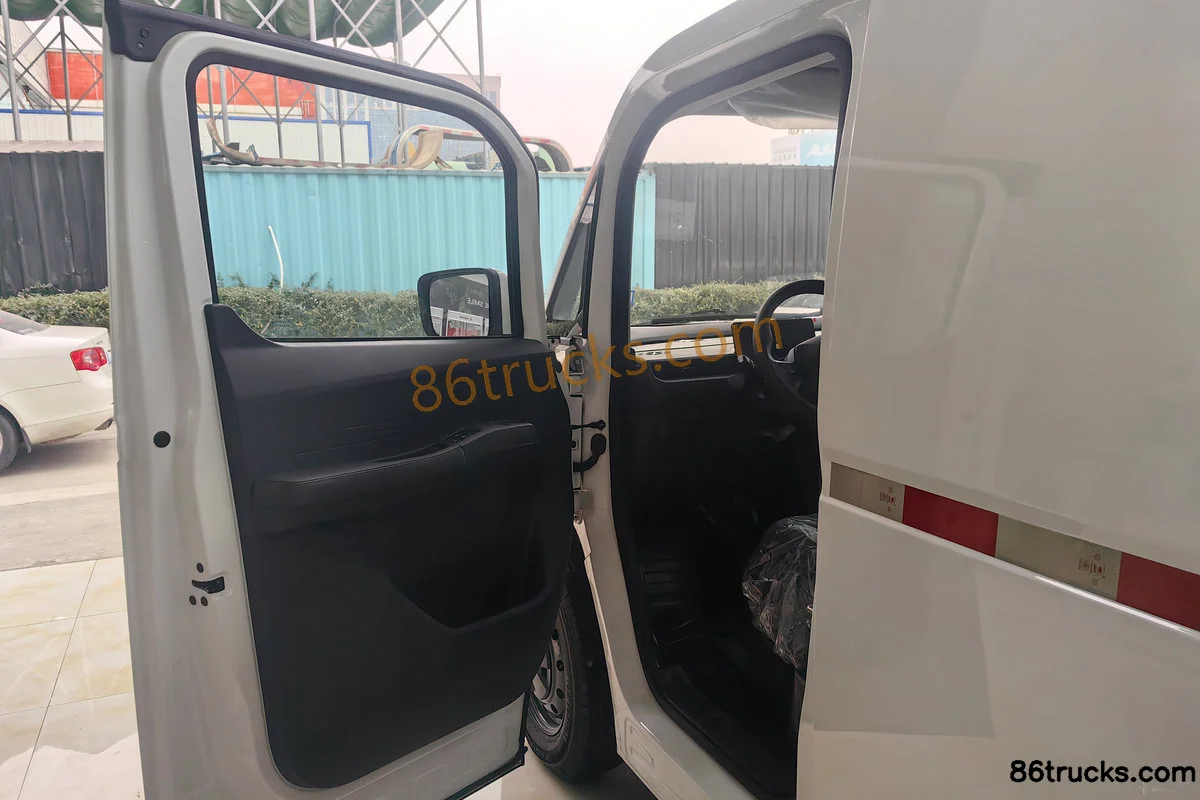

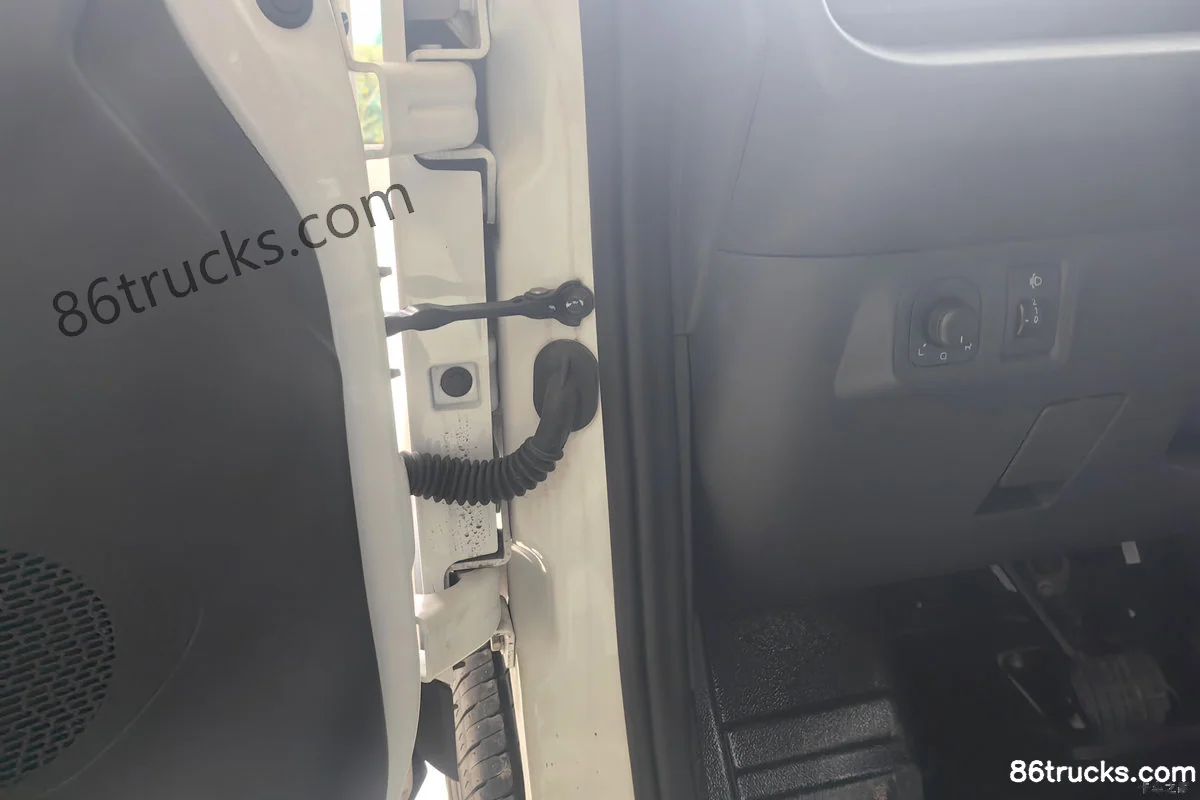

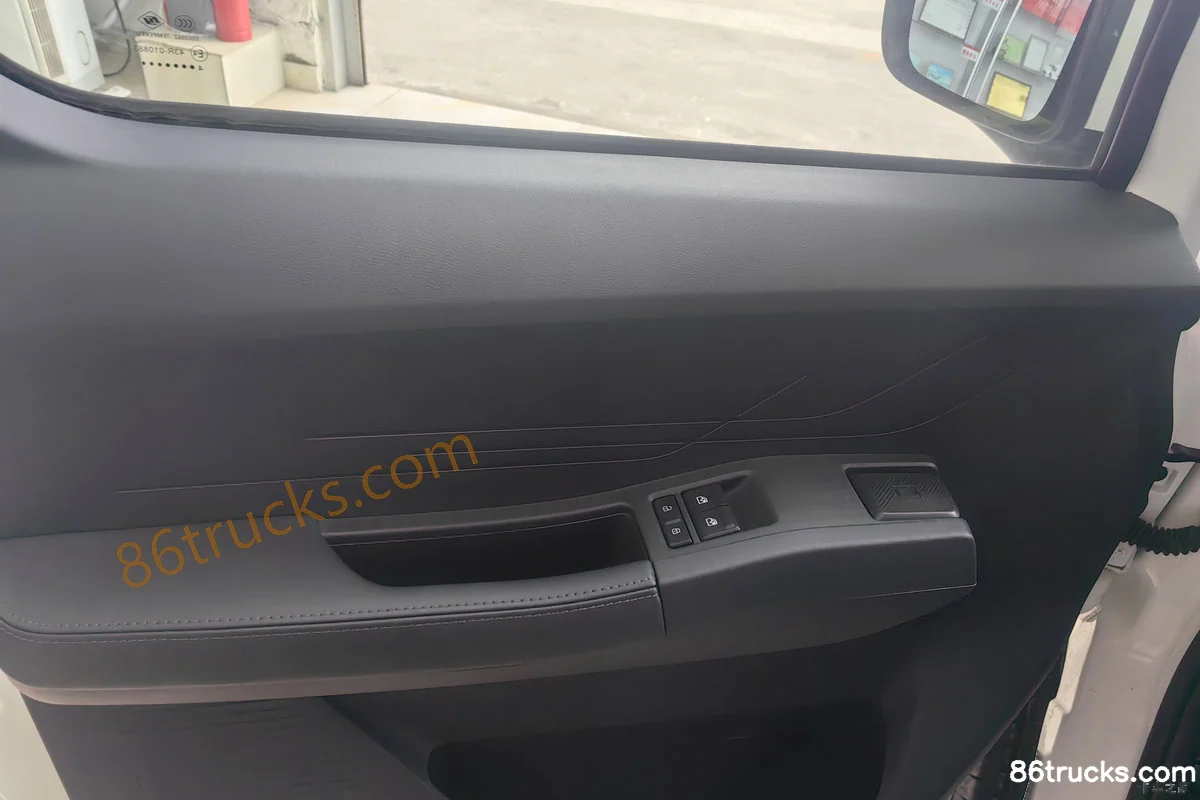

Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Cab (1) | 86Trucks Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Cab (2) | 86Trucks Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Cab (3) | 86Trucks

Chassis3

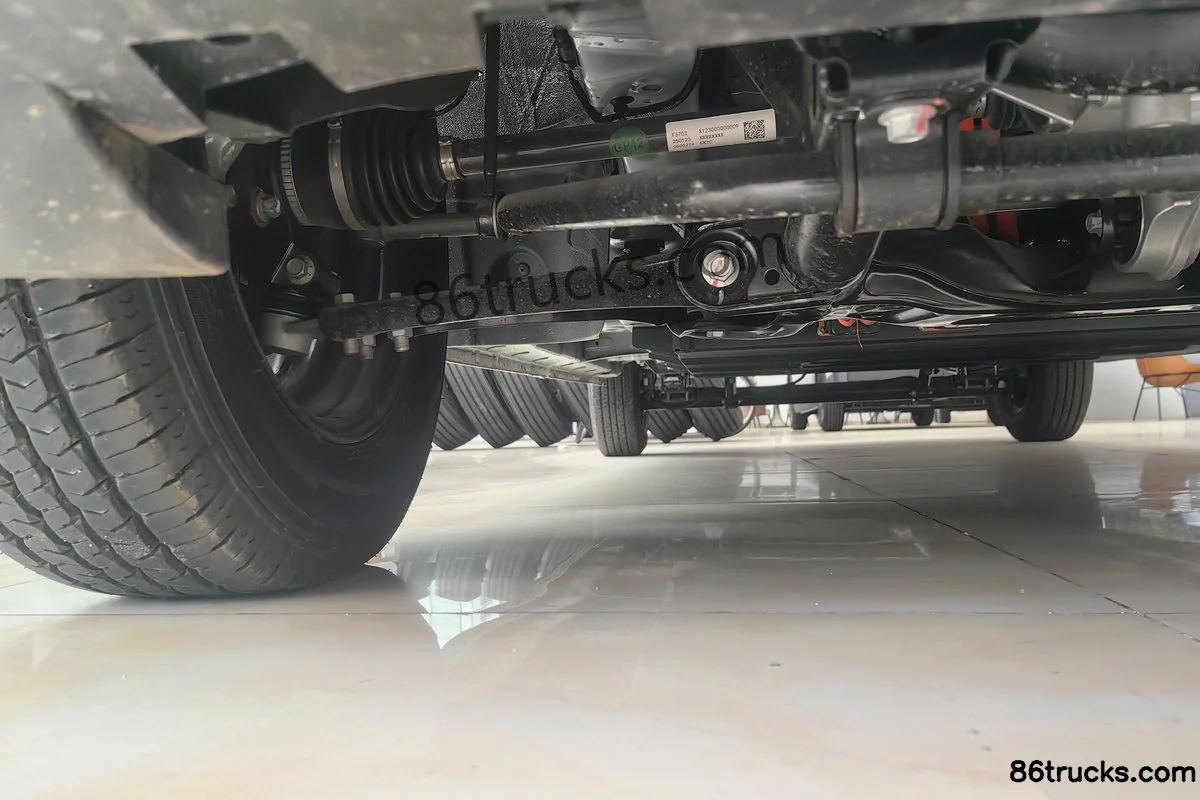

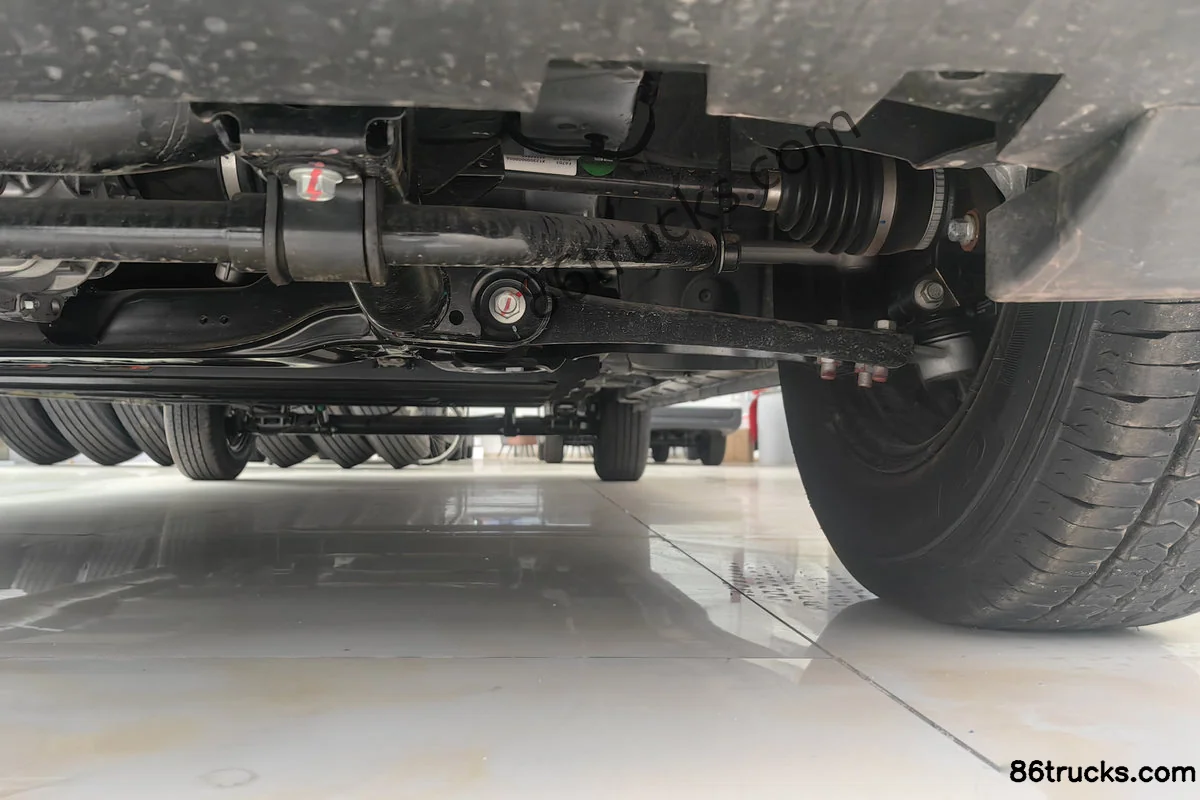

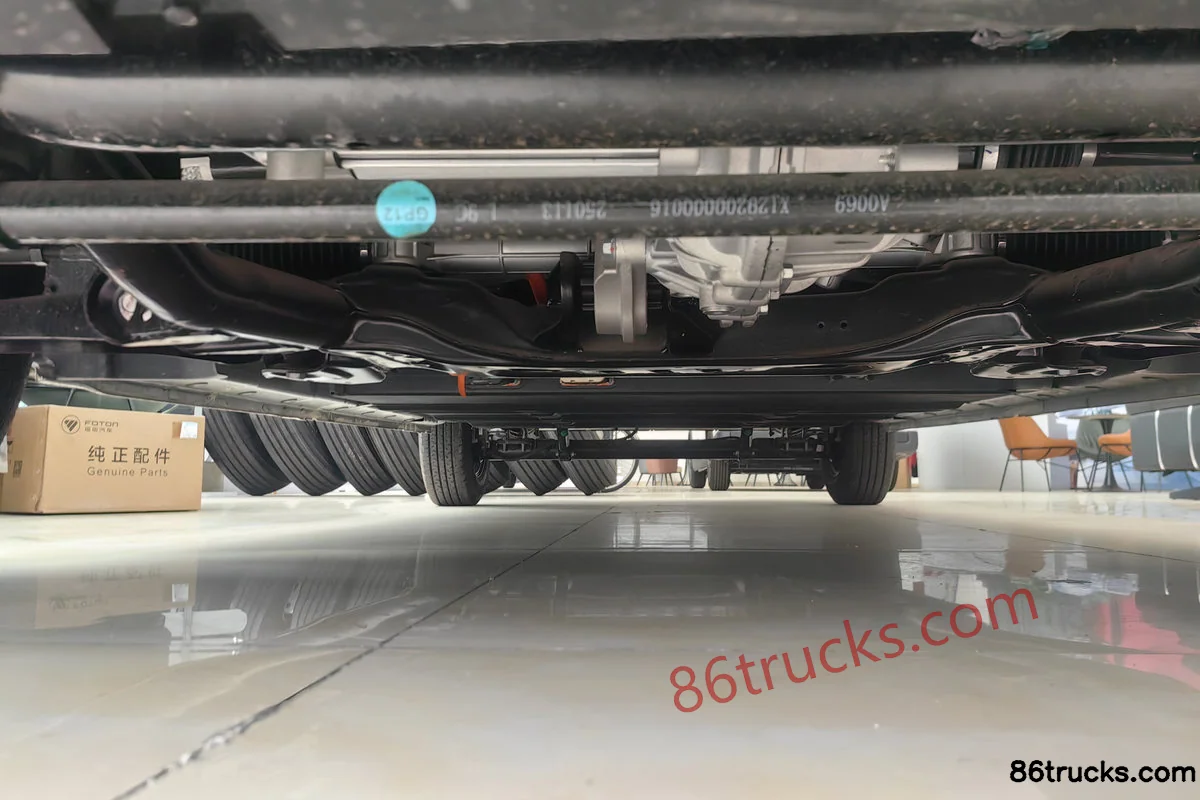

Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Chassis (1) | 86Trucks Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Chassis (2) | 86Trucks Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Chassis (3) | 86Trucks

Cargo Box3

Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Cargo Box (1) | 86Trucks Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Cargo Box (2) | 86Trucks Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What transport jobs is Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh suited for?

Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh differ from other variants in the same series?

Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh belongs to Foton Lefu (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Lefu 2025 Model Yuexing Edition 2-Seat Pure Electric Panel Van CATL 50.23kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
