Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI)

Export reference
From $60,389
MSRP ¥43.48M CNY
Fuel: Diesel
Gross Trailer Weight:: 35ton
Wheelbase:: 3800mm
Tire Size:: 295/80R22.5 (aluminum front, regular rear)
Front axle allowable load:: 6505kg
Displacement:: 13.48L
Drive 4X2 (6 wheels)
Horsepower 520
Emission China VI
Transmission Eaton

Overview

The Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI) is a Heavy truck featuring 4X2 (6 wheels) drive, 520 hp, 17.995t GVW and China VI emissions. Its segment focus covers Express & Freight, matching those duty cycles. On the powertrain side, it comes with a DongfengZ14NS6B520 engine, Eaton transmission and Diesel fuel.

China VI 520 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ4180H7AC1
Drive type: 4X2
Wheelbase: 3800mm
engine: DongfengZ14NS6B520
transmission: EatonECEO-26N112C
Rear Axle Ratio: 3.083
Cab length: 6m
Cab width: 2.525m
Cab height: 3.53m
Front track width: 2005mm
Gross Trailer Weight: 35ton
rear track: 1860mm
Curb Weight: 6.8ton
GVWR: 17.995ton
Max. speed: 100km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
market segment: Express & Freight
Remarks: Optional transmission: ECEO-26N112C-R + hydraulic retarder; [Speed ≥90 km/h, AMT] Laminated glass, cruise control, onboard terminal (tachograph + compatible with BeiDou/GPS), electric height adjustment for air suspension, inter-axle differential lock, painted frame, aluminum air tanks, automatic slack adjuster, 50# fifth wheel with corrugated fixed base plate, rear mudguard, extended oil change interval for engine/gearbox/axle, 360° panoramic view, Chenglong V+ telematics, LDWS, FCW, EBS, ESC, ASR, AEBS, TPMS (front wheels), tire burst emergency safety device, hill-start assist, with fairing mounting holes
Version: Version 3.0
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengZ14NS6B520
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 13.48L
Emission standard: China VI
Max output power: 388kW
Max hp: 520Horsepower
Max torque: 2500N·m
Max torque speed: 1000-1500rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: EatonECEO-26N112C
Transmission Brand: Eaton
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1050L
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 153 reinforced disc (ConMet)
Fifth wheel: 50#
Front axle allowable load: 6505kg
rear axle description: FS160(ConMet)
rear axle allowable load: 11490kg
Axle ratio: 3.083
Leaf spring count: 3/4+3
Aluminum wheels:
Tire
Tire Size: 295/80R22.5 (aluminum front, regular rear)
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
EBS electronic braking system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
lighting configuration
LED headlight:
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:
AEB automatic emergency braking system:

Photos

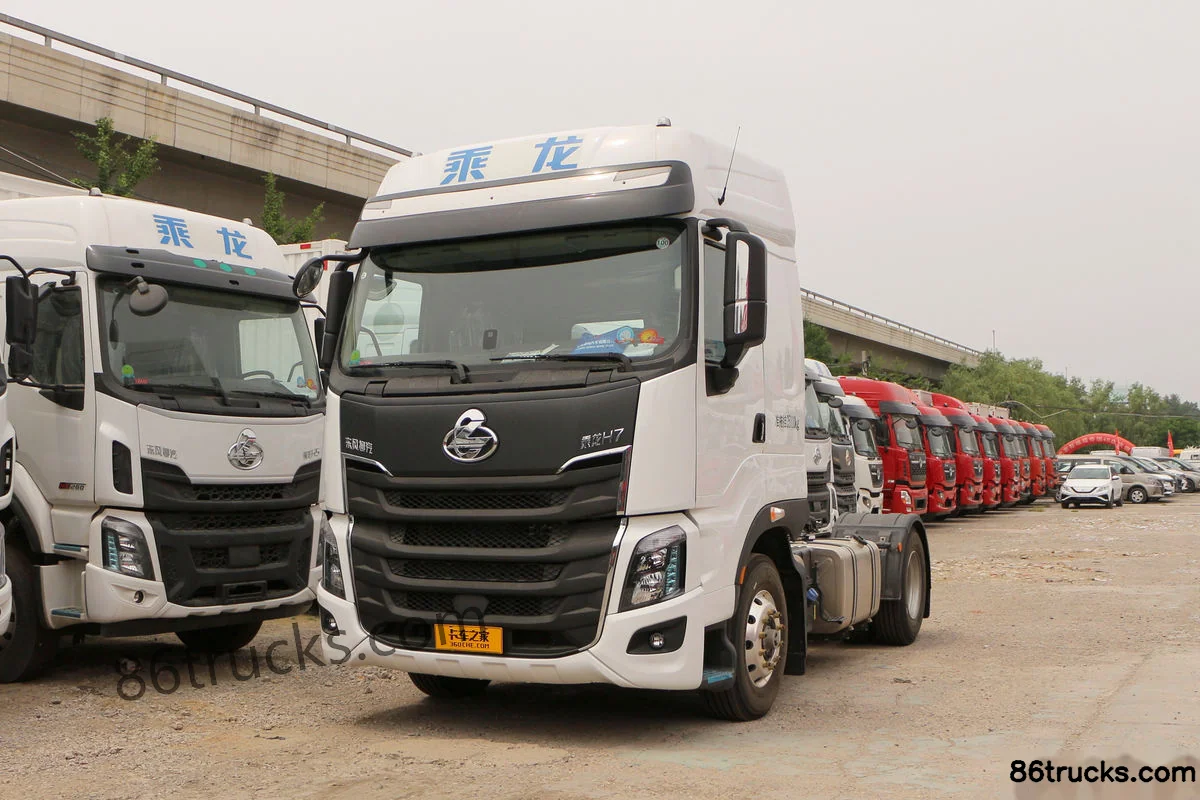

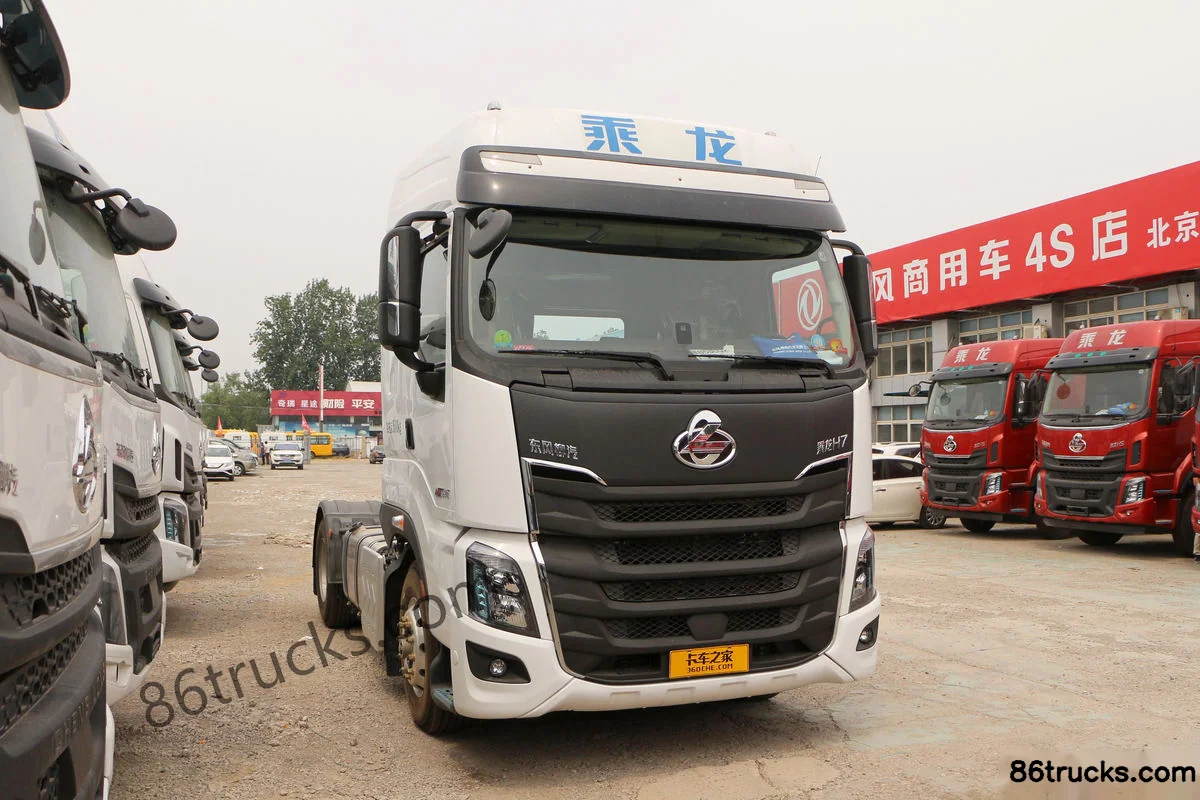

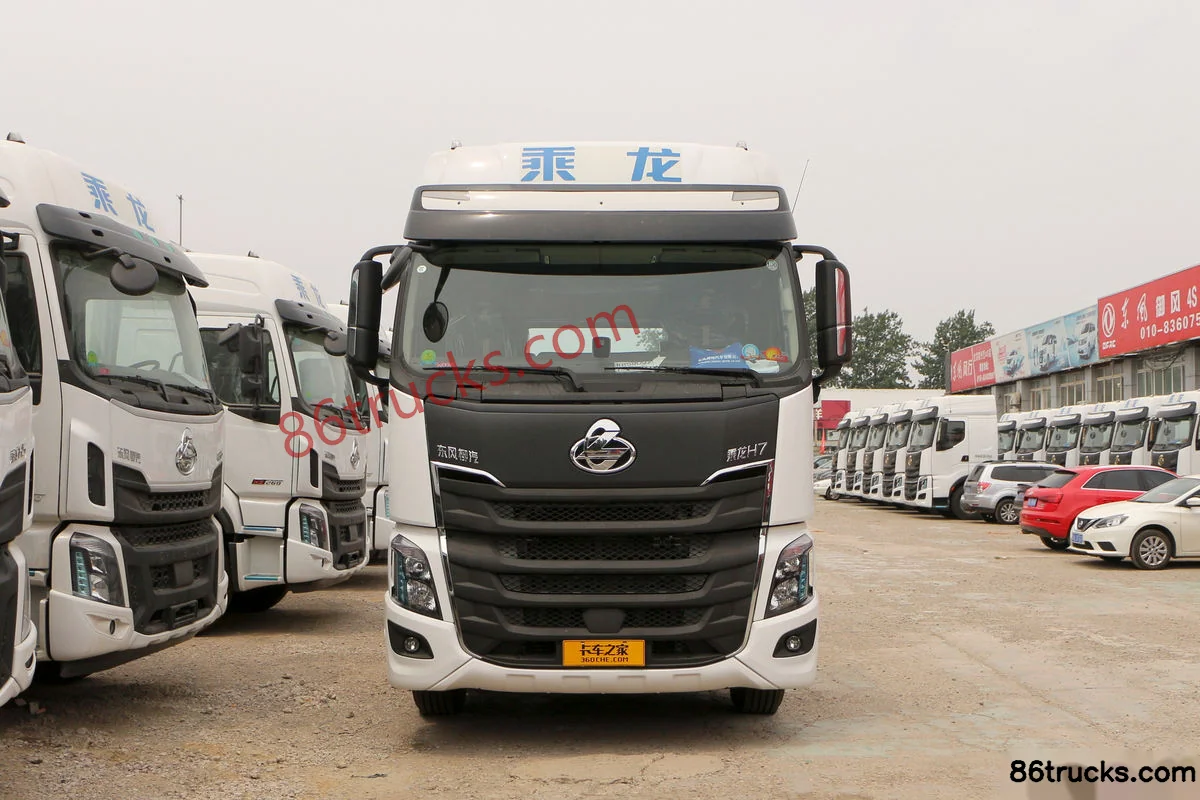

Exterior3

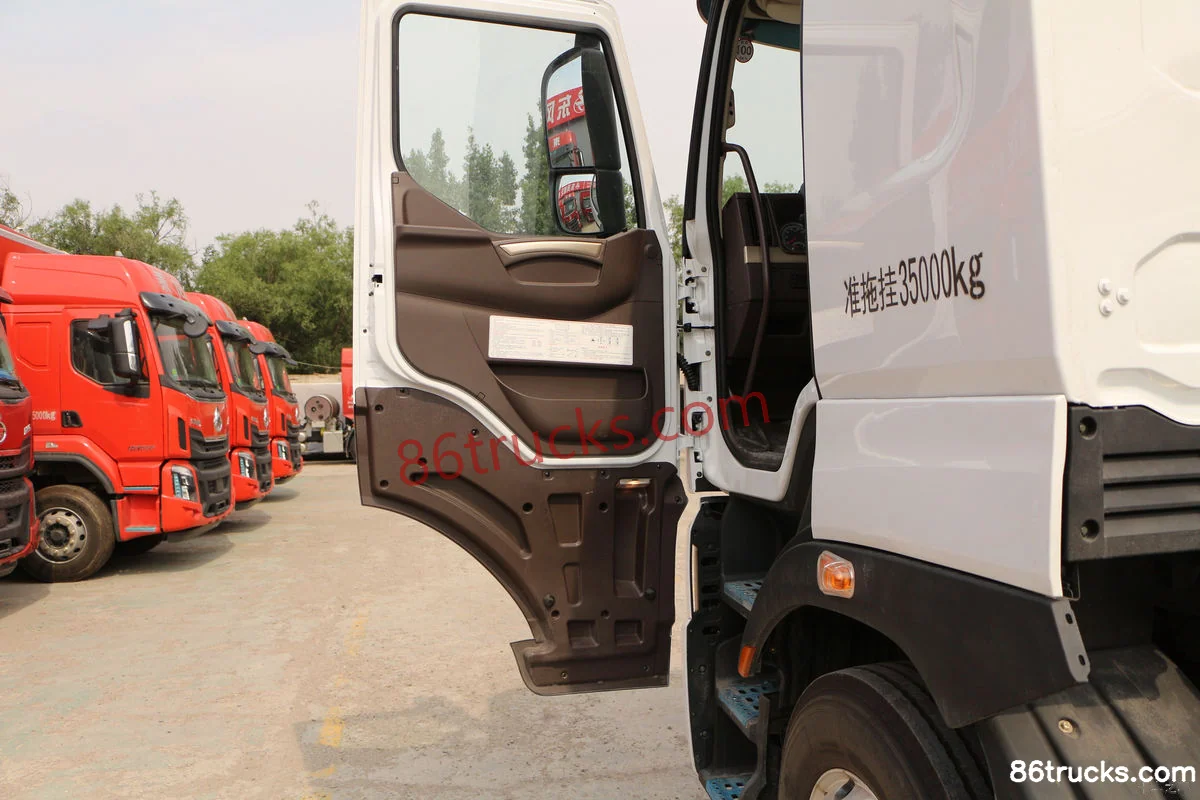

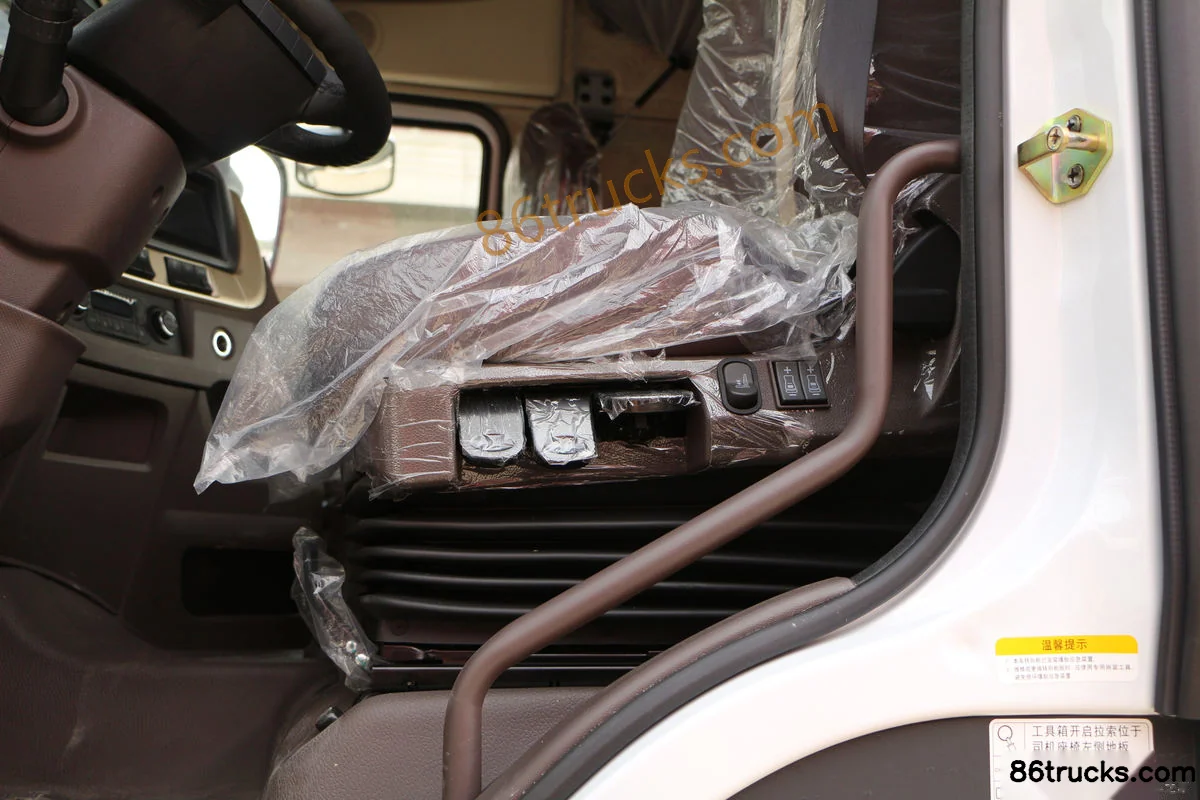

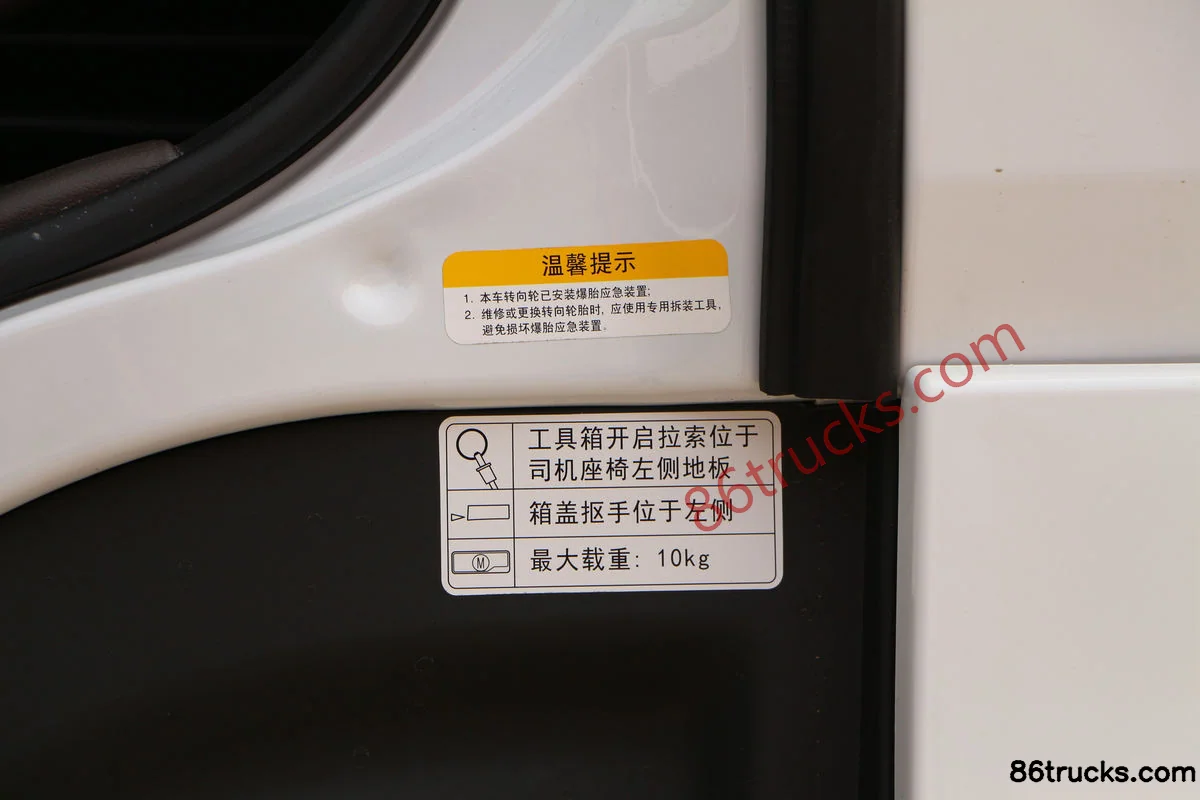

Cab3

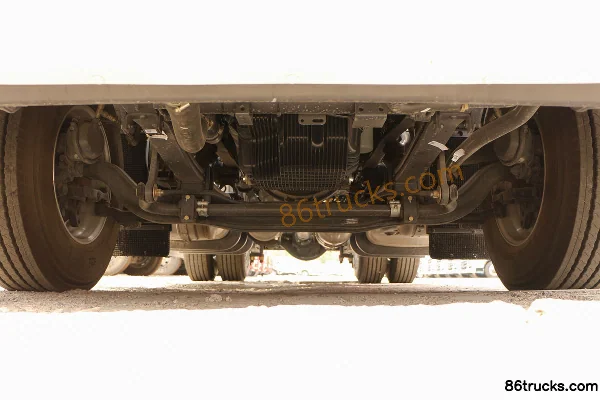

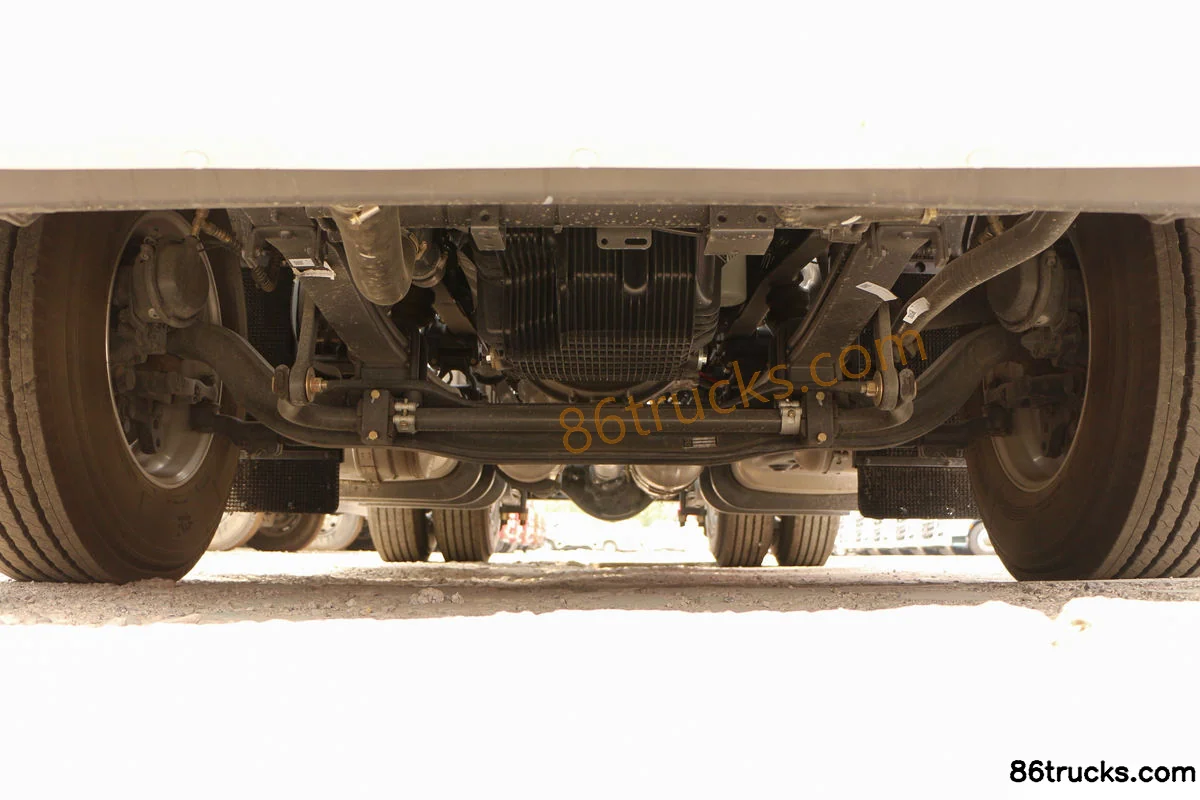

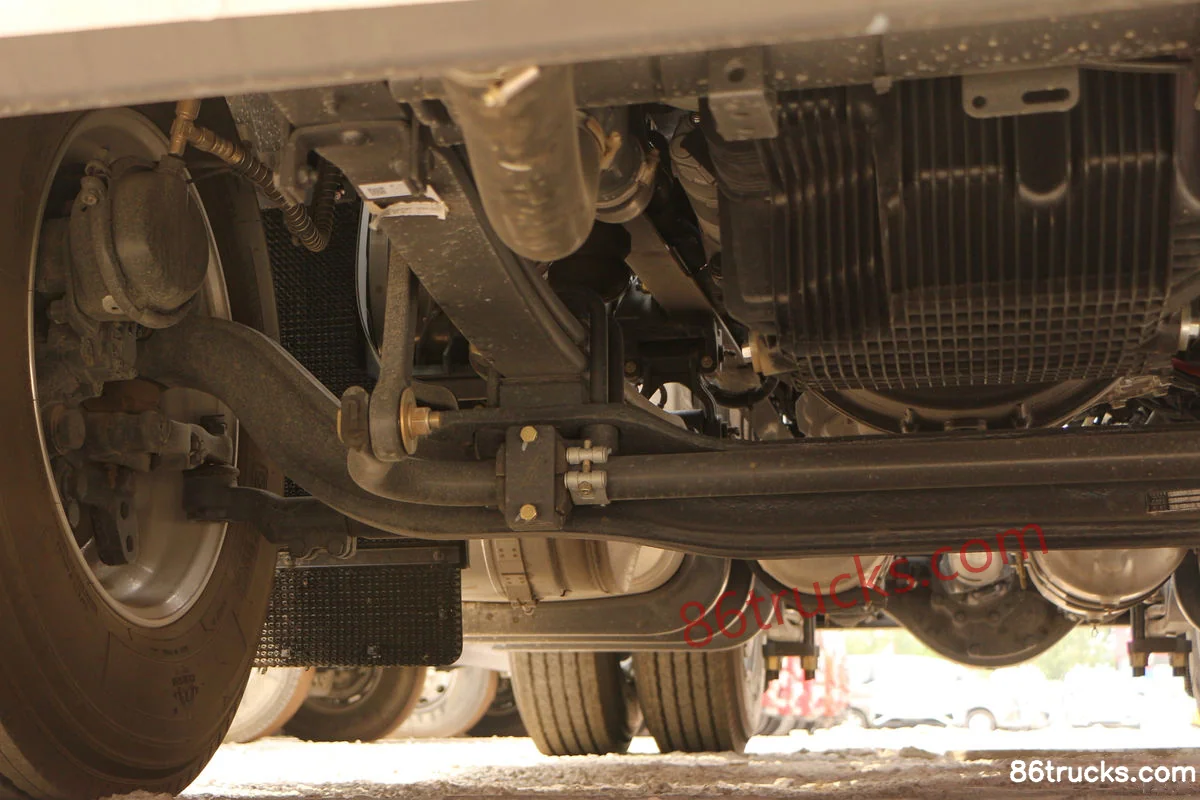

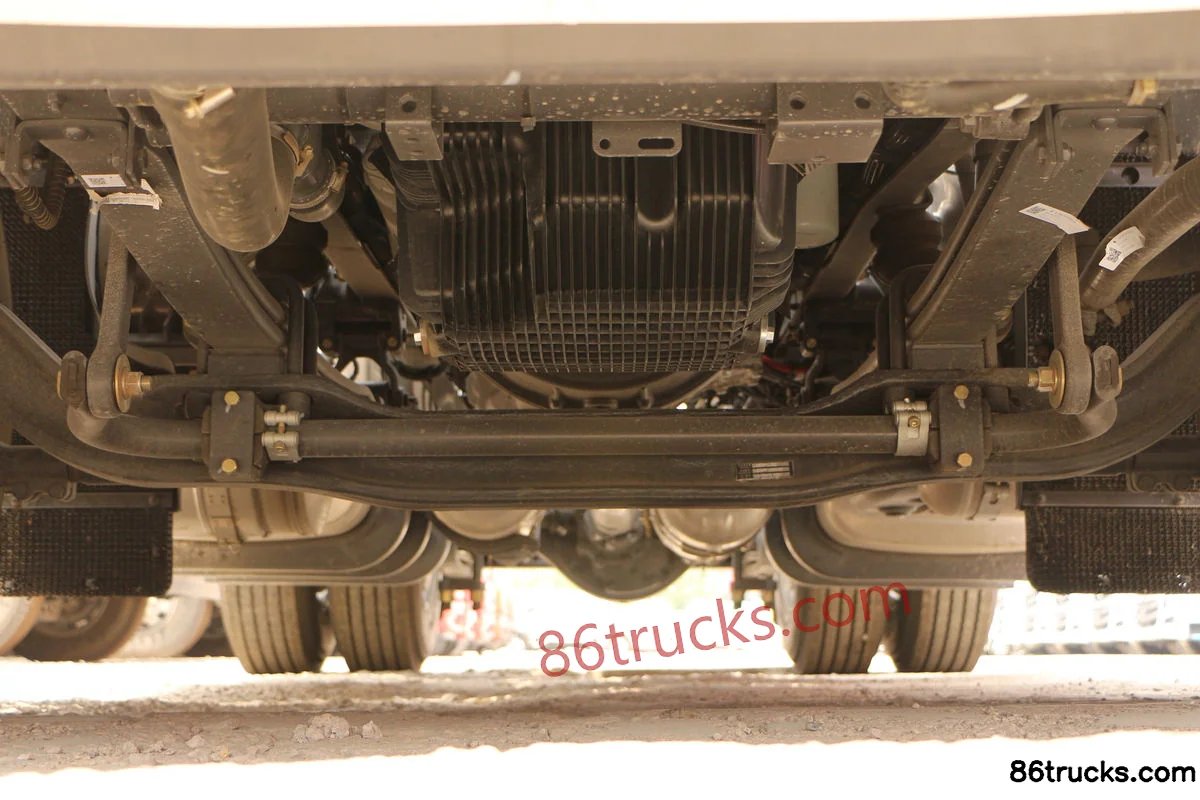

Chassis3

9 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI), and what does it include?

Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI) export reference is about From $60,389; MSRP is ¥43.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI)?

Key specs of Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI): Drive: 4x2; Horsepower: 520 hp; Emission: China VI; Fuel: Diesel; Transmission: Eaton. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI) suited for?

Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI) differ from other variants in the same series?

Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI) belongs to Dongfeng Chenglong H7 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H7 Heavy Truck 3.0 Version 520 hp 4X2(6 wheels) AMT Automatic Tractor Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
