Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck

Export reference
MSRP N/A
Horsepower: 124
Emission: China IV
Fuel: Diesel
Engine: Chaochai4102
Transmission: NAVECO
Curb Weight:: 2.45ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck is a Light Truck featuring 4.18m cargo length, Stake type cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Chaochai4102 engine, 124 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 124 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJ5041CCYHFCMZ
Type: stake truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: ChaochaiCY4102-CE4C
transmission: NAVECO17H6S350
Cab length: 5.995m
Cab width: 2.076m
Cab height: 3.02m
Front track width: 1610mm
rear track: 1485mm
Curb Weight: 2.45ton
Rated payload: 1.495ton
GVWR: 4.14ton
Max. speed: 95km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 25°
departure angle: 16°
market segment: Agricultural product transport, green channel
Remarks: expansion tank, tread plate floor
Front/rear suspension: 1.035/1.652m
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4102-CE4C
Engine info: Chaochai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China IV
Max output power: 91kW
Max hp: 124Horsepower
Max torque: 345N·m
Max torque speed: 1300-1500rpm
Rated speed: 2800rpm
Engine Type: Vertical in-line, 4-stroke, turbocharged & intercooled, electronic high-pressure common rail
Transmission Parameters
Transmission Model: NAVECO17H6S350
Transmission Brand: NAVECO
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.08m
Cargo box height: 0.45m
*Cargo box interior width: 2.0799999237061
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2520kg
Leaf spring count: 11/10+6,10/9+6,9/8+7,9/9+7
Tire
Tire Size: 7.50R16、7.50-16
Number of tires: 6pcs
Control configuration
Power steering:
clutch booster:
interior configuration
AC control type: Manual
Exterior features
Air deflector:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:

Photos

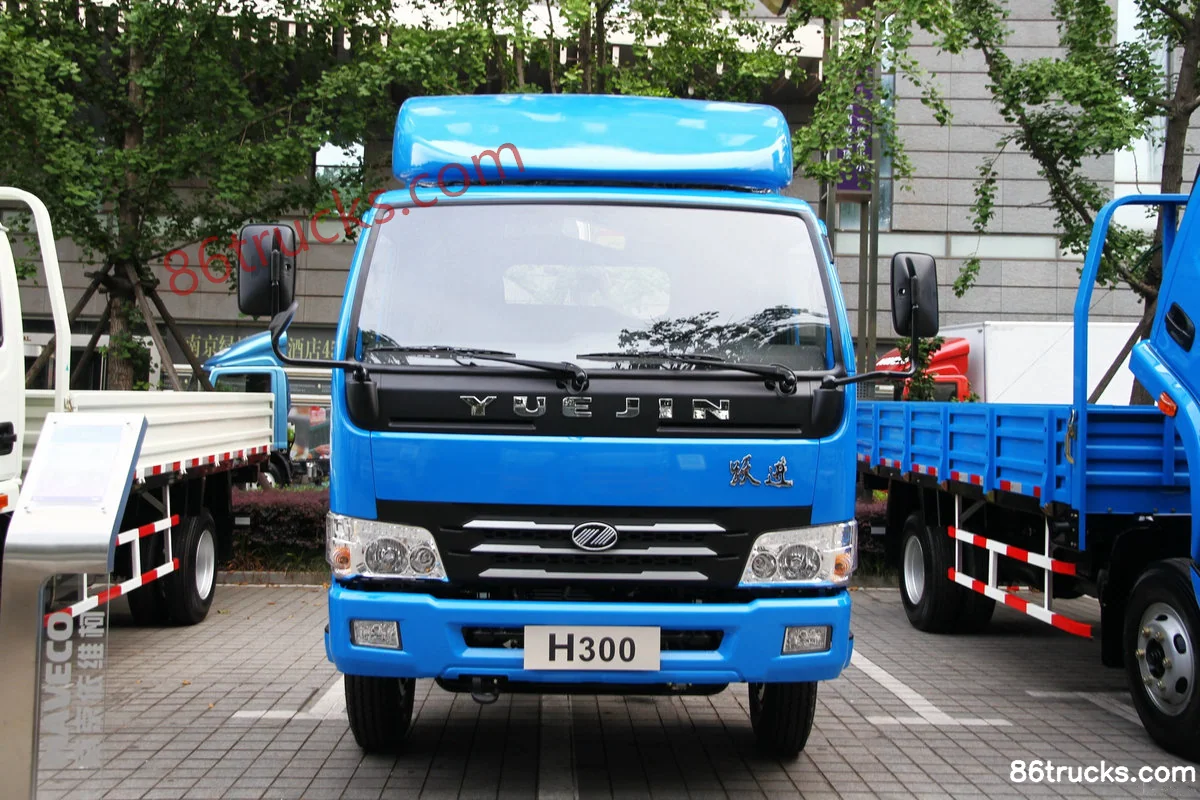

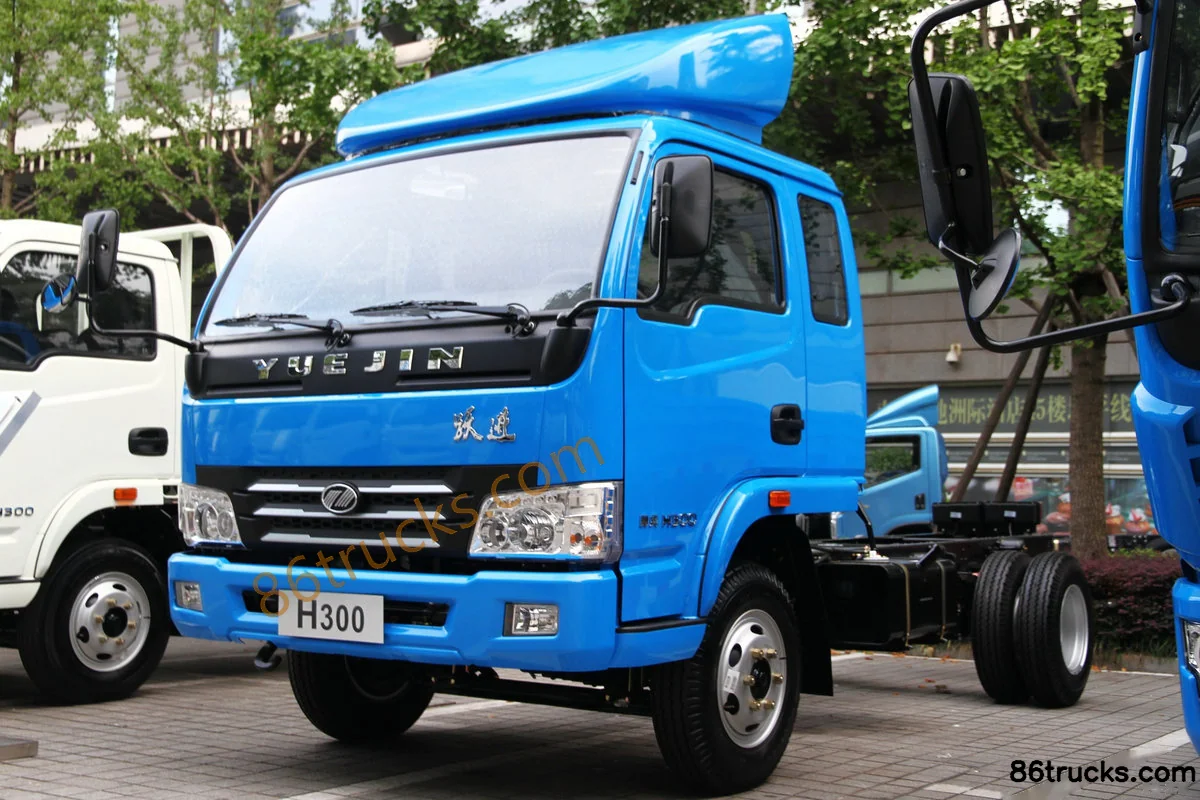

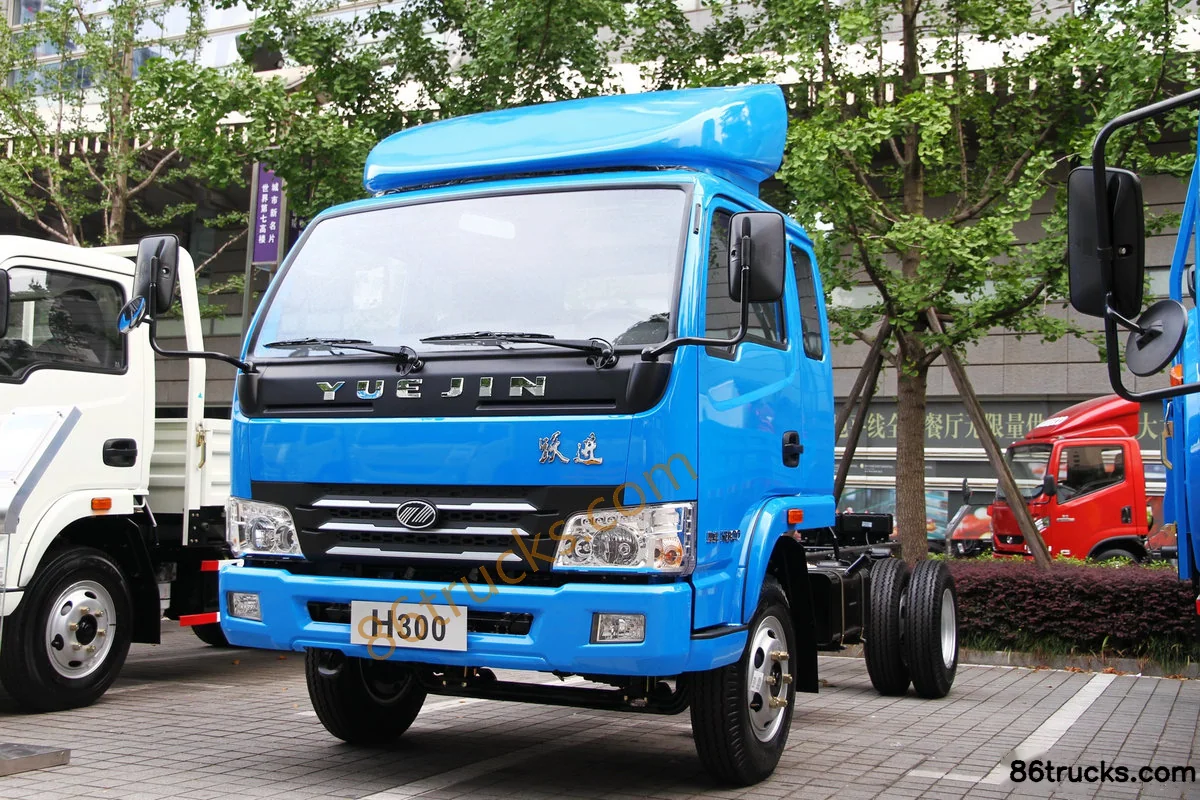

Exterior3

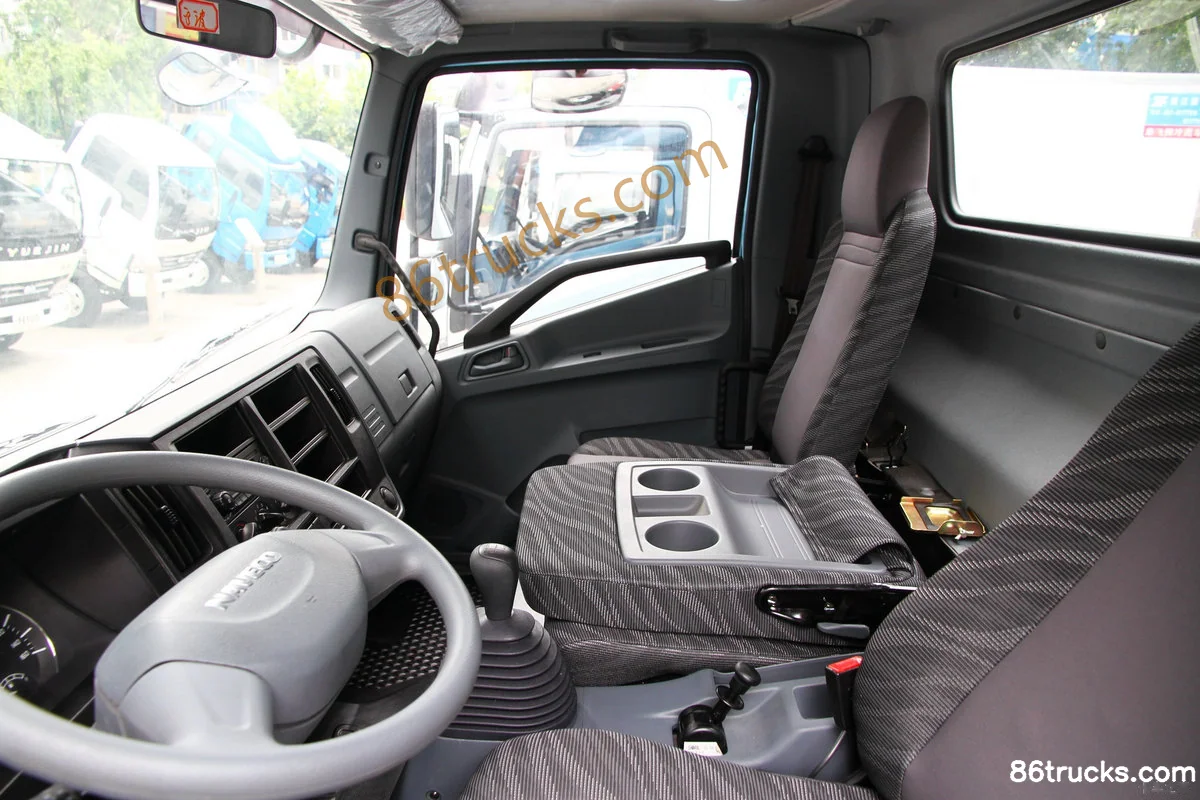

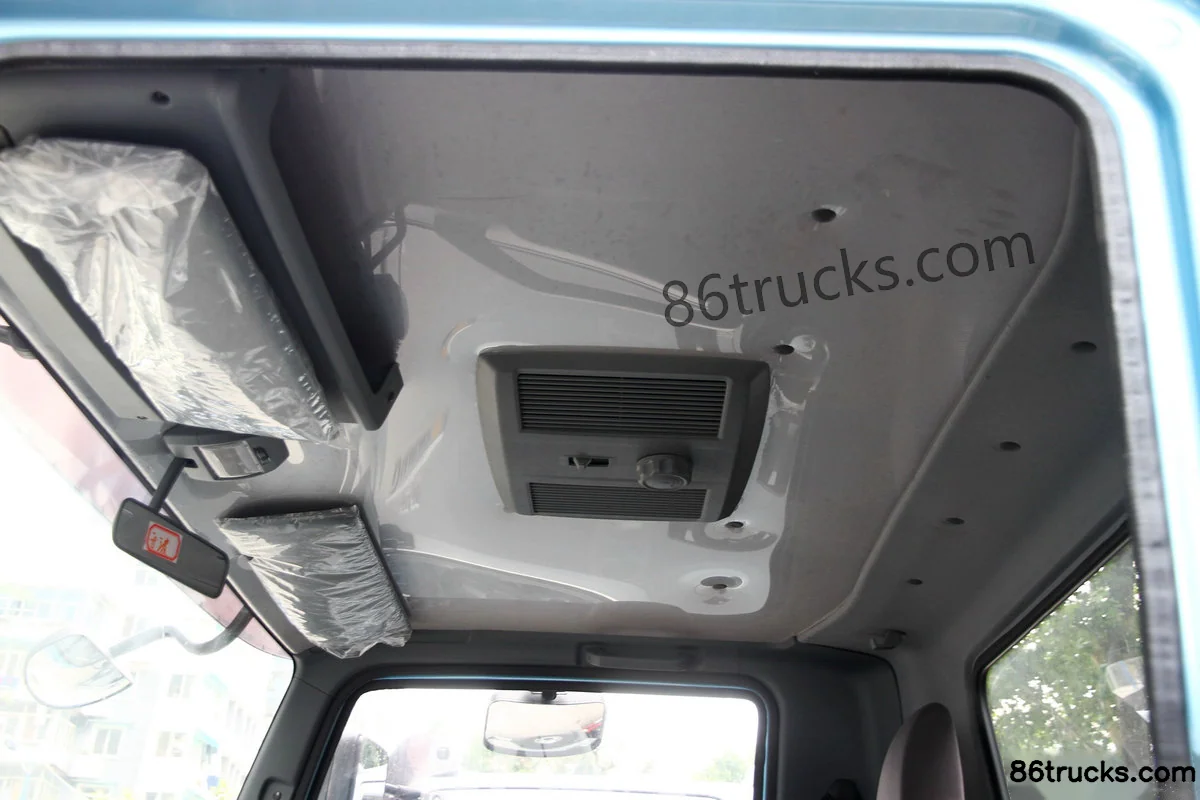

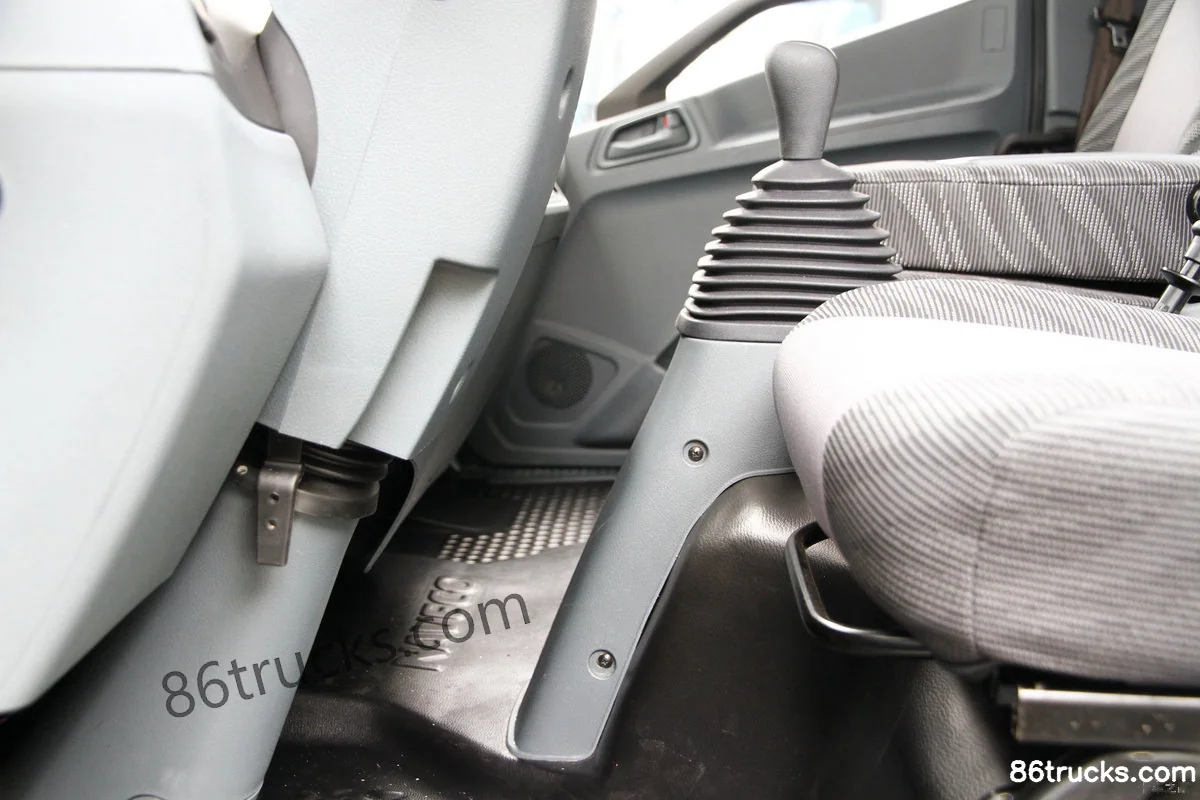

Cab3

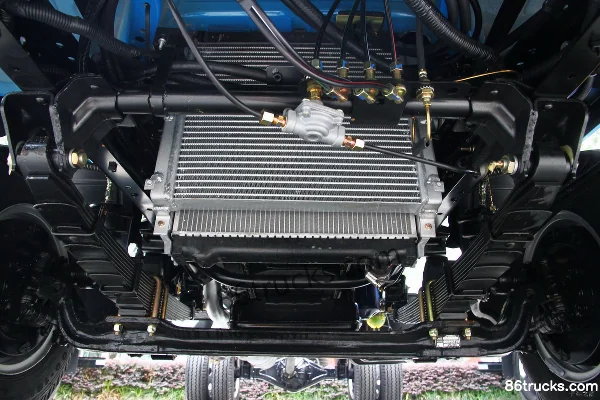

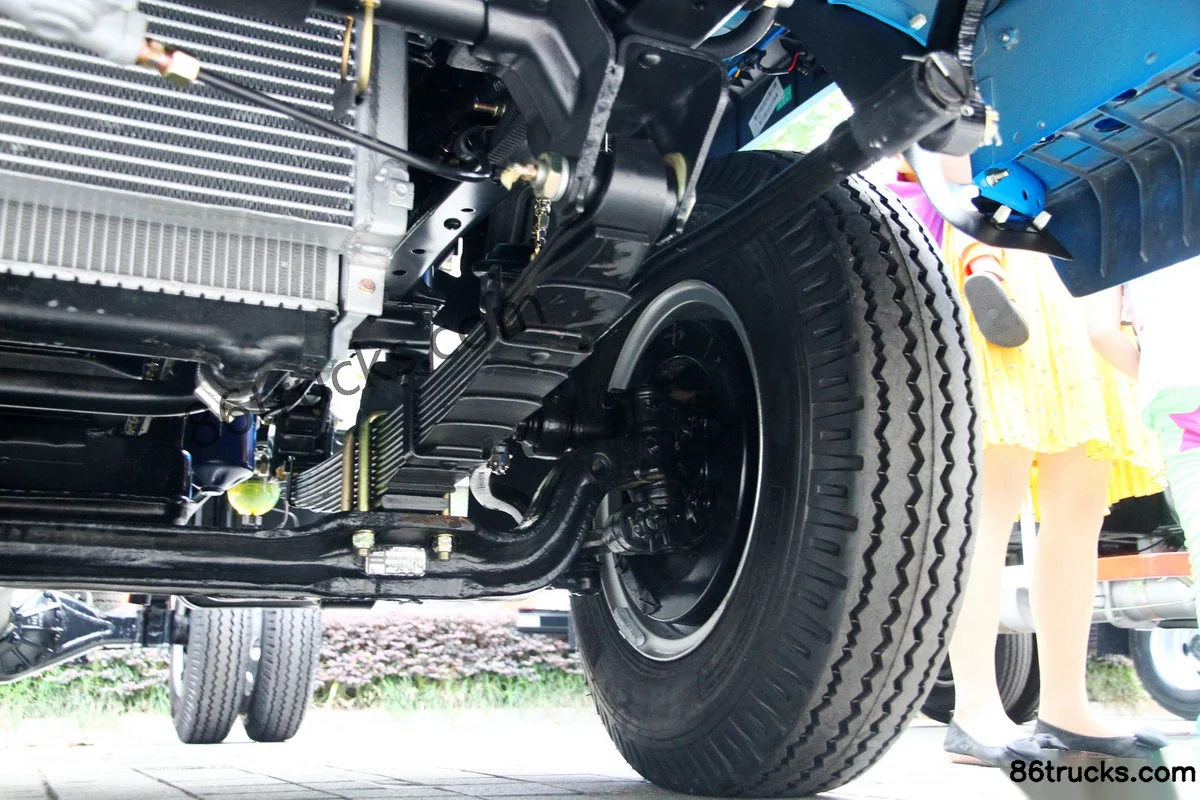

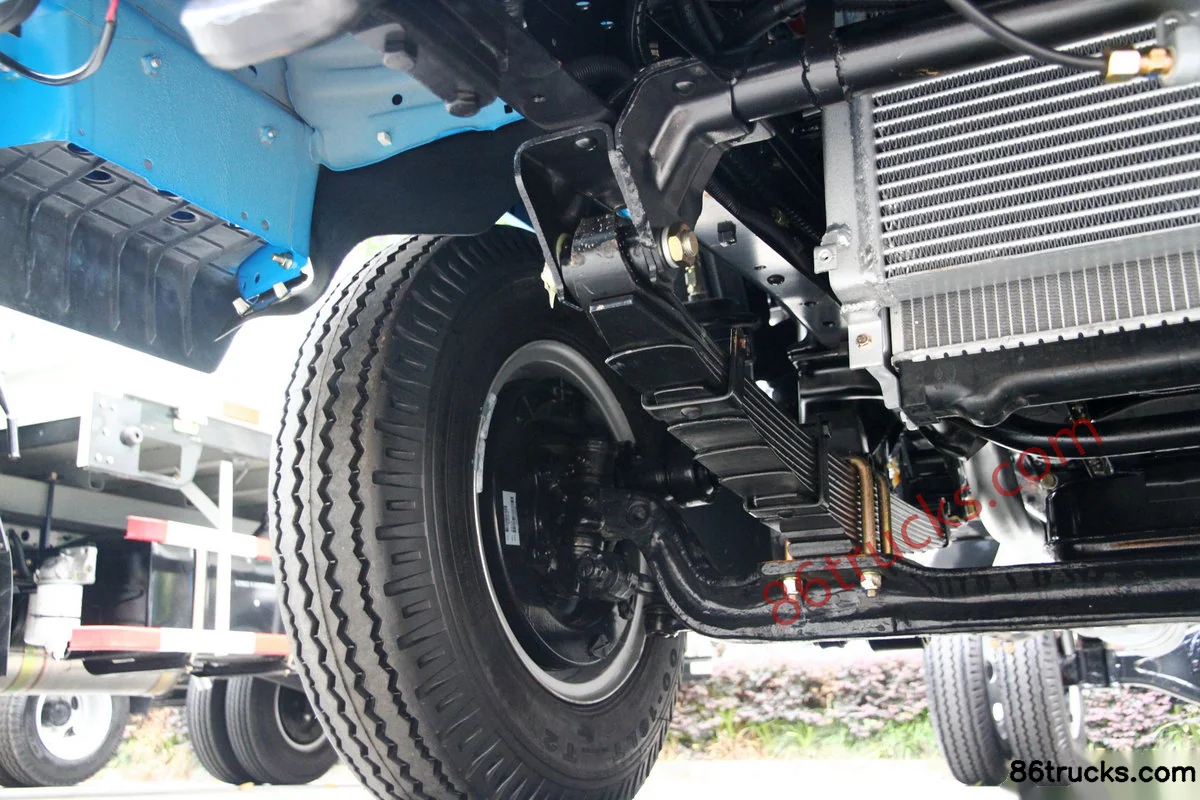

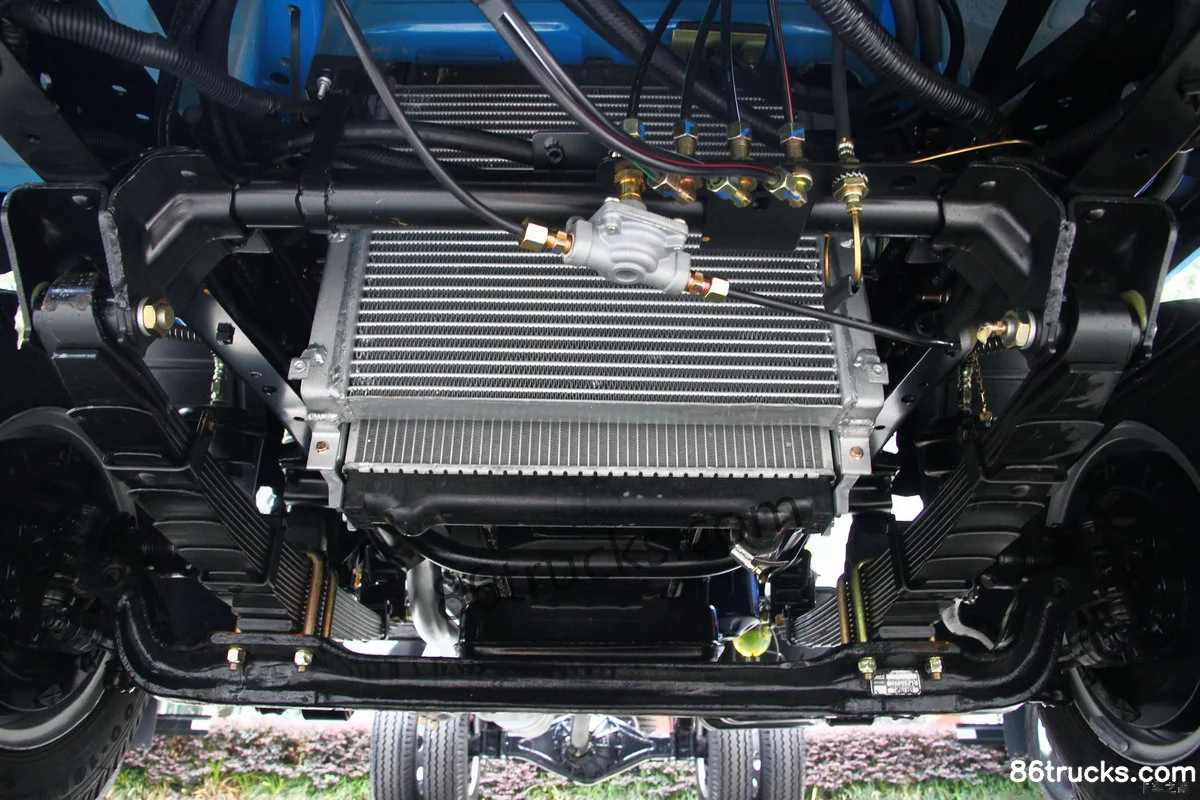

Chassis3

9 photos

FAQ

What emission standard does Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck?

Key specs of Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck: Drive: 4x2; Horsepower: 124 hp; Emission: China IV; Fuel: Diesel; Engine: Chaochai4102; Transmission: NAVECO. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck suited for?

Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck differ from other variants in the same series?

Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck belongs to Yuejin Shuaihu H Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Shuaihu H500-33 124 hp 4X2(6 wheels) 4.18m Single Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
