Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Engine: DongfengD28
Transmission: WLY
Curb Weight:: 2.2ton
Wheelbase:: 3308mm
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Chassis
Horsepower 116

Overview

The Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143) is a Light Truck featuring Chassis cargo body, 3Personnel volume and 3308mm wheelbase. On the powertrain side, it comes with a DongfengD28 engine, 116 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ1040SJ9BDD
Type: Chassis
Drive type: 4X2
Wheelbase: 3308mm
engine: DongfengD28D11-4DA
transmission: WLYWLY5A92
Rear Axle Ratio: 6.143
Cab length: 5.94m
Cab width: 1.882m
Cab height: 2.225m
Front track width: 1607mm
rear track: 1486mm
Curb Weight: 2.2ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 22°
departure angle: 19°
Front/rear suspension: 1.053/1.537m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengD28D11-4DA
Engine info: DongfengD28
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 260N·m
Max torque speed: 2000rpm
Rated speed: 3600rpm
Transmission Parameters
Transmission Model: WLYWLY5A92
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 90L
Chassis Specs
Axle ratio: 6.143
Leaf spring count: 6/5+5
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs

Photos

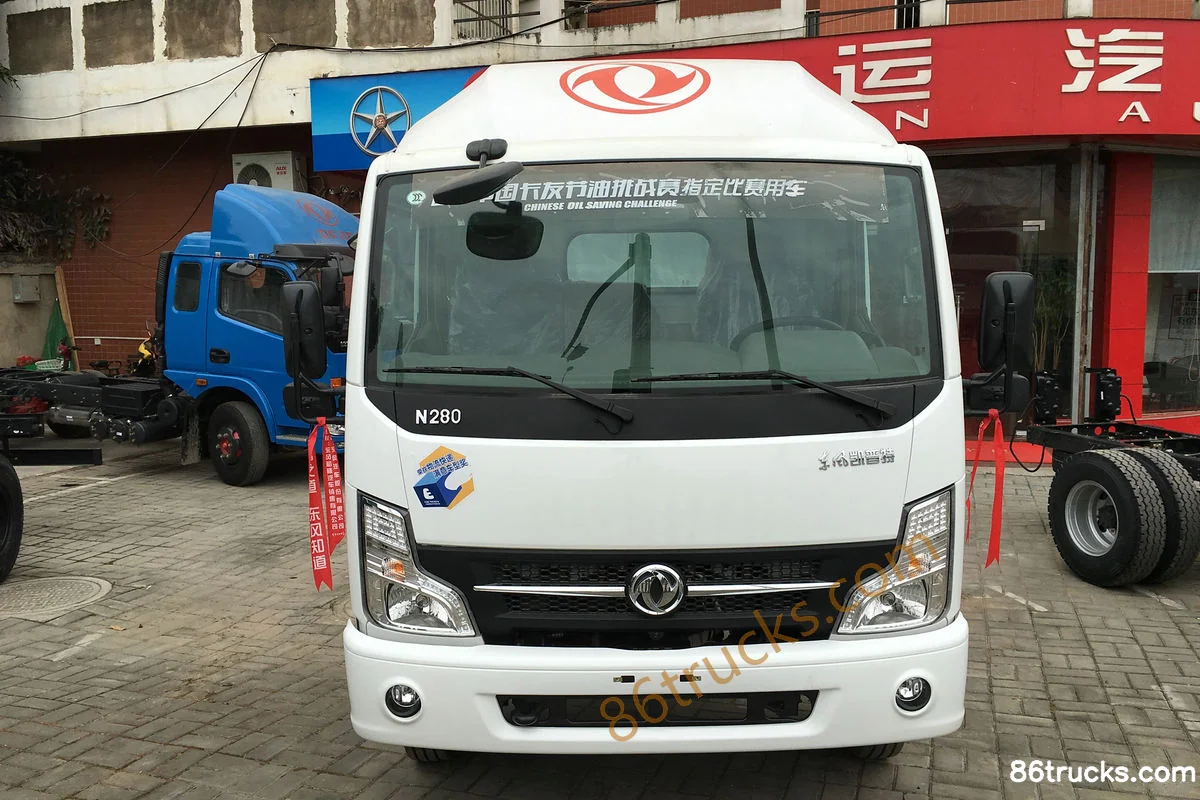

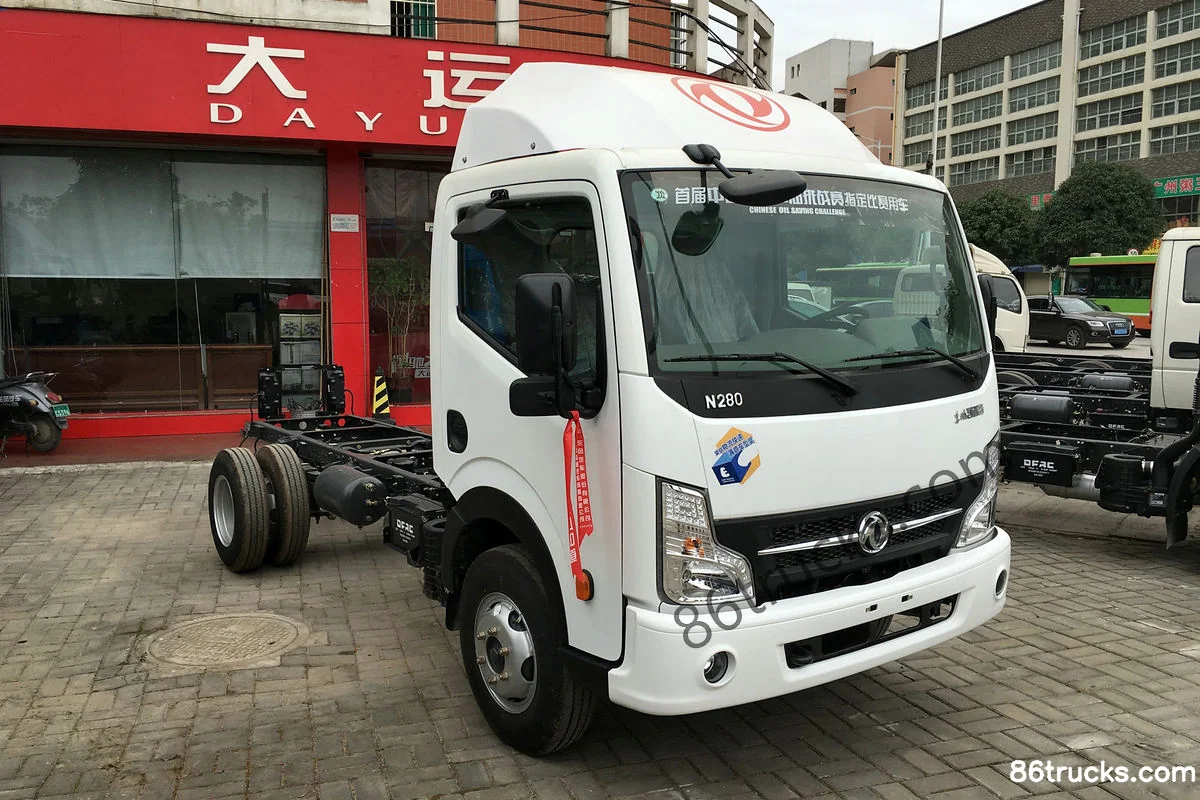

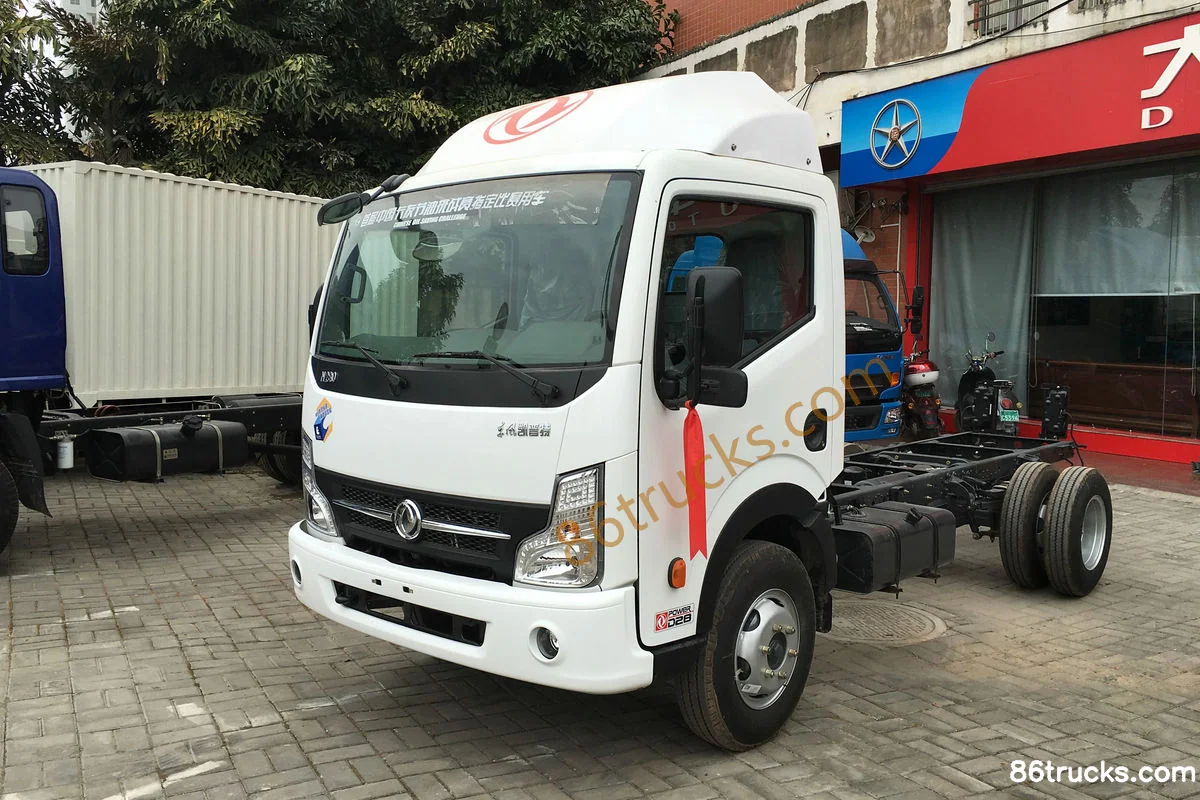

Exterior3

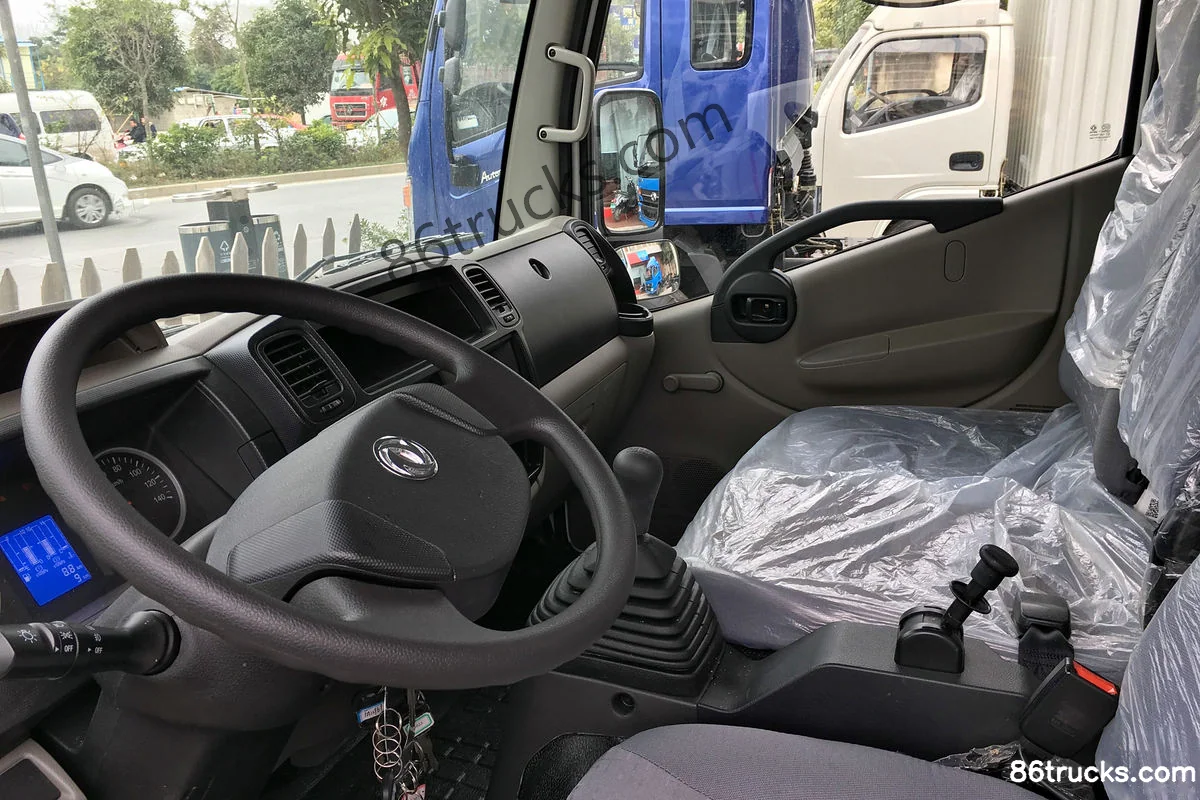

Cab1

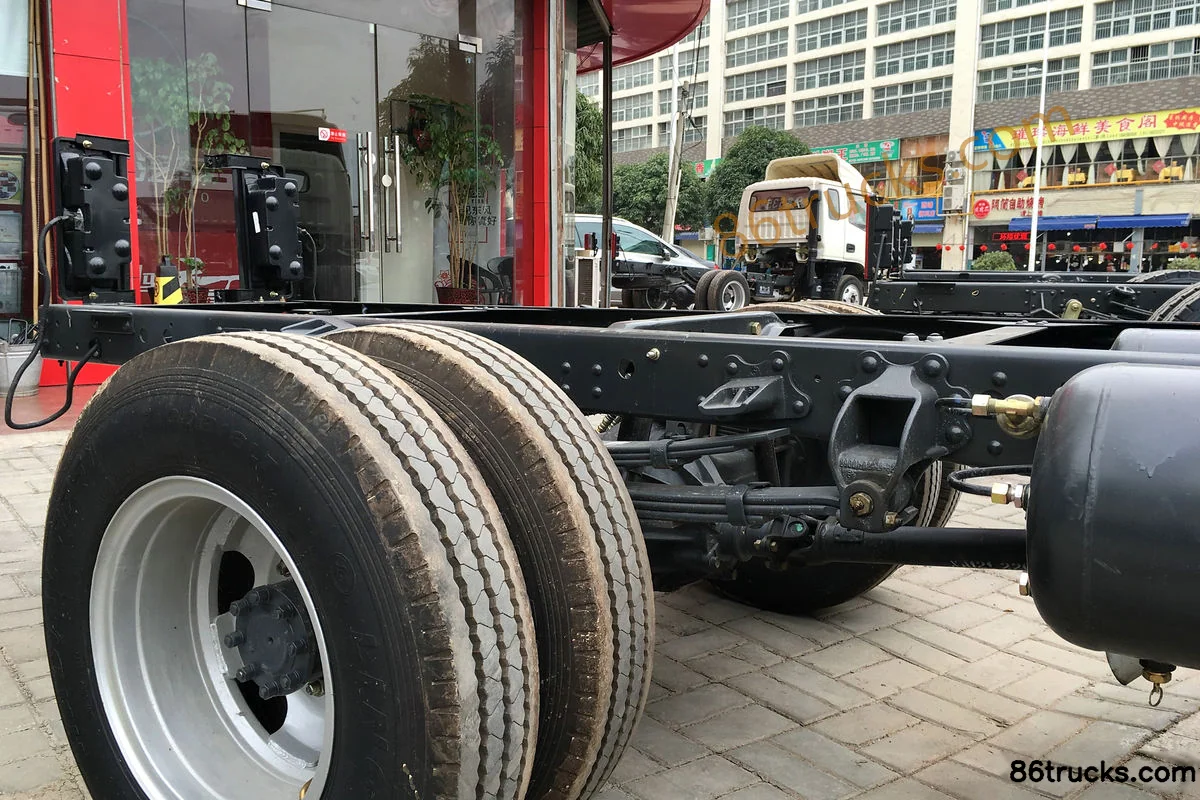

Chassis2

6 photos

FAQ

What emission standard does Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143)?

Key specs of Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143): Drive: 4x2; Horsepower: 116 hp; Emission: China IV; Fuel: Diesel; Engine: DongfengD28; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143) suited for?

Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143) differ from other variants in the same series?

Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143) belongs to Dongfeng N280 Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Captain N280 116hp 4X2(6 wheels) 3308mm Wheelbase Single Row Light Truck Chassis (Ratio: 6.143)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
