JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck

Export reference
From $14,278
MSRP ¥10.28M CNY
Horsepower: 136
Emission: China VI
Fuel: Diesel
Engine: JMC2.5L
Transmission: WLY
Curb Weight:: 2.425ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck is a Light Truck featuring 3.7m cargo length, Van body cargo body, 2Personnel volume and 1.495t payload. On the powertrain side, it comes with a JMC2.5L engine, 136 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 136 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5041XXYTCN26
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.7m
engine: JMCNB25D6H
transmission: WLYWLY5GS36
Rear Axle Ratio: 4.875
Cab length: 5.465m
Cab width: 1.97m
Cab height: 2.8m
Front track width: 1480mm
rear track: 1425mm
Curb Weight: 2.425ton
Rated payload: 1.495ton
GVWR: 4.05ton
Max. speed: 120km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 18°
departure angle: 17°
Front/rear suspension: 1.13/1.535m
Version: Standard model
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: NB25D6H
Engine info: JMC2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.498L
Emission standard: China VI
Max output power: 100kW
Max hp: 136Horsepower
Transmission Parameters
Transmission Model: WLY5GS36
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.7m
Cargo box width: 1.89m
Cargo box height: 1.81m
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 64L
Chassis Specs
Front axle allowable load: 1585kg
Frame Dimensions: 170*65*4.5mm
rear axle allowable load: 2465kg
Axle ratio: 4.875
Leaf spring count: 6/6+6
Tire

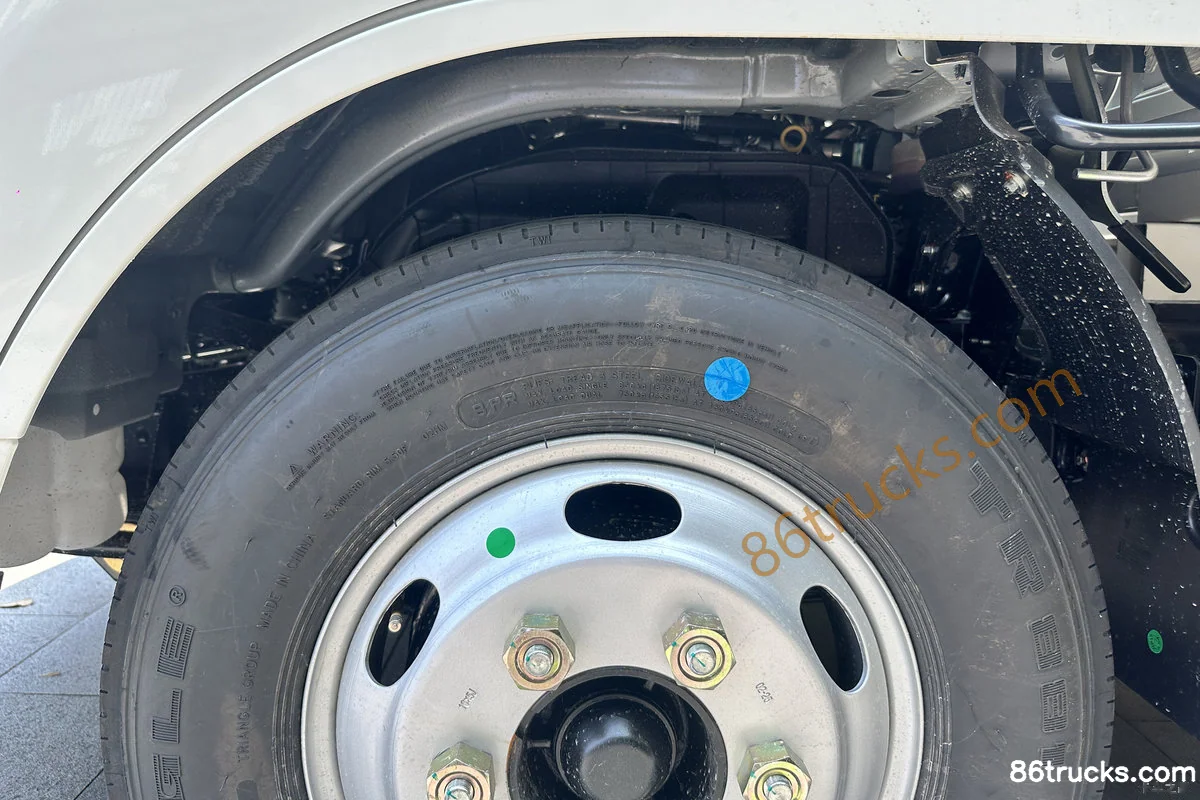

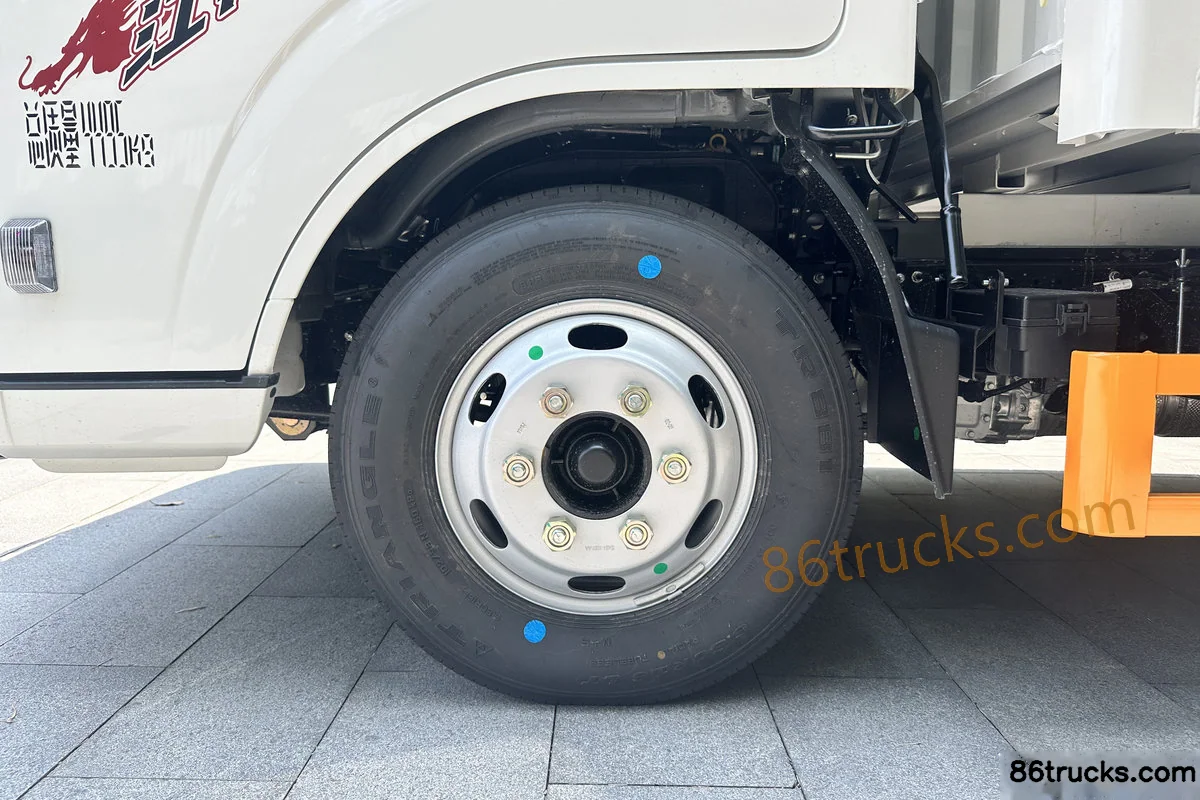

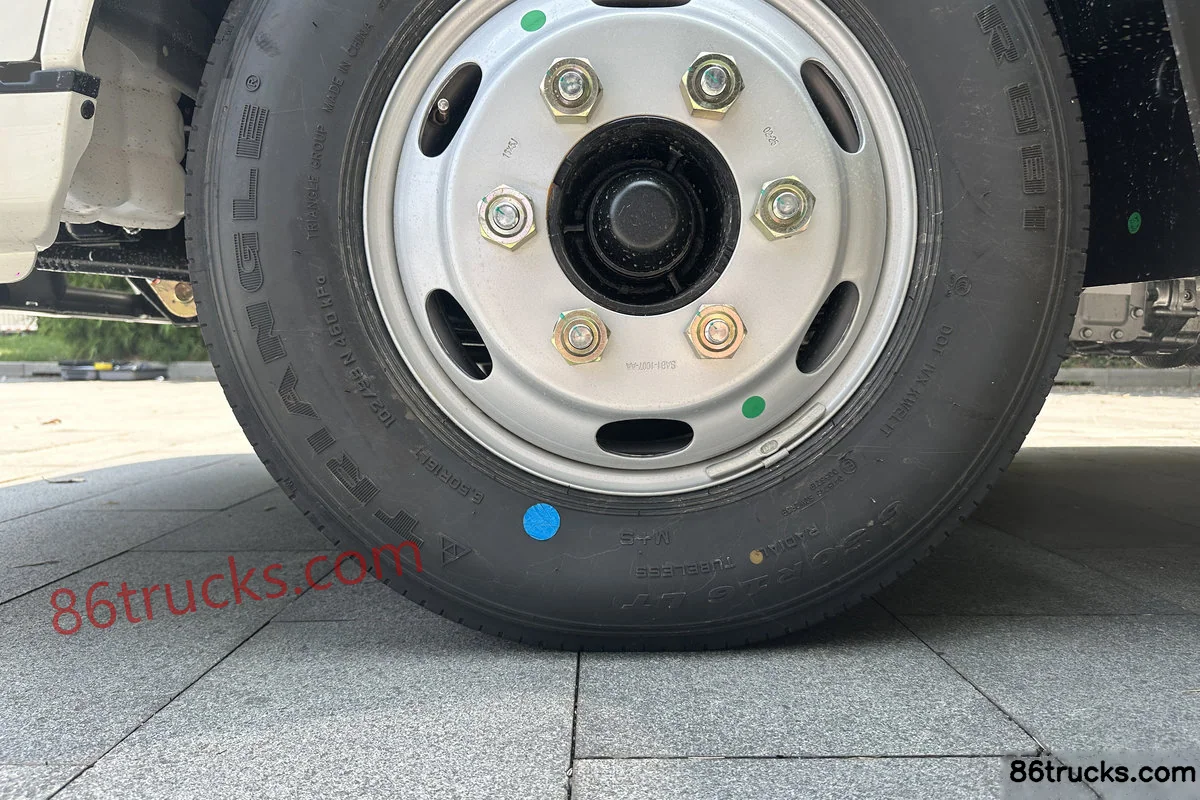

Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
Halogen Headlights:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake

Photos

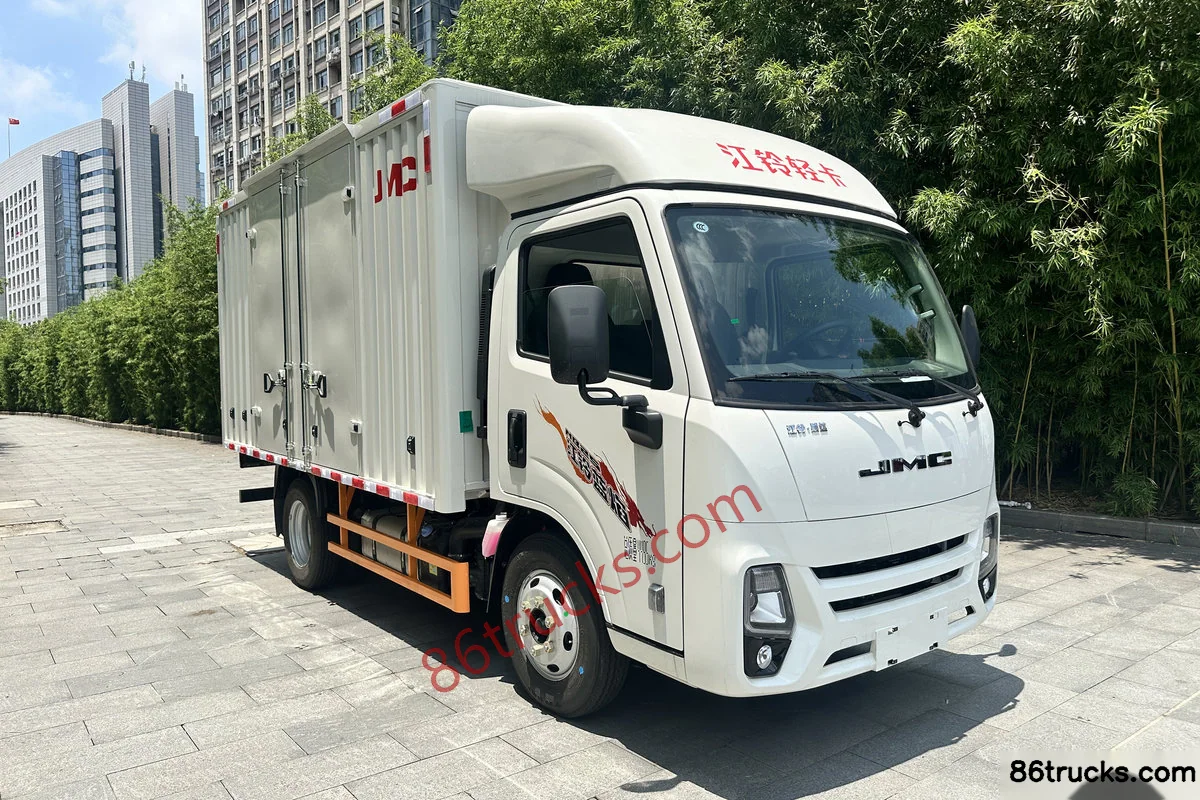

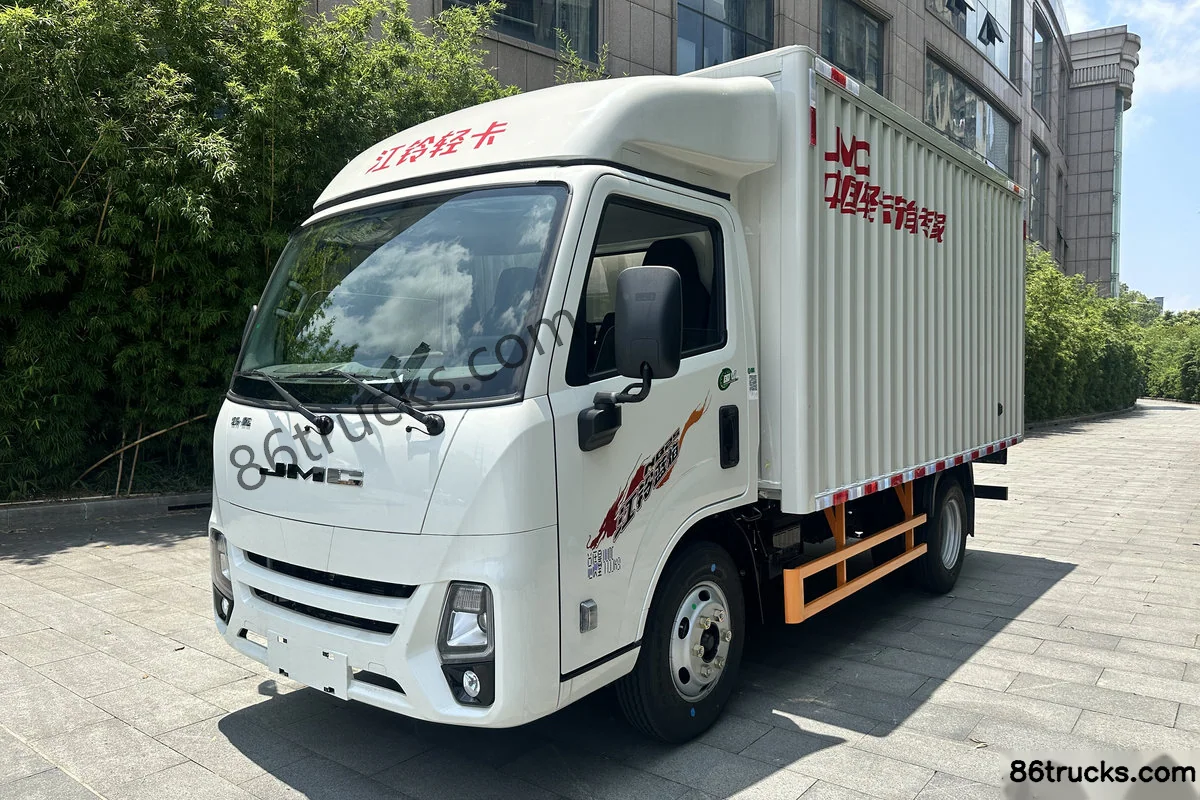

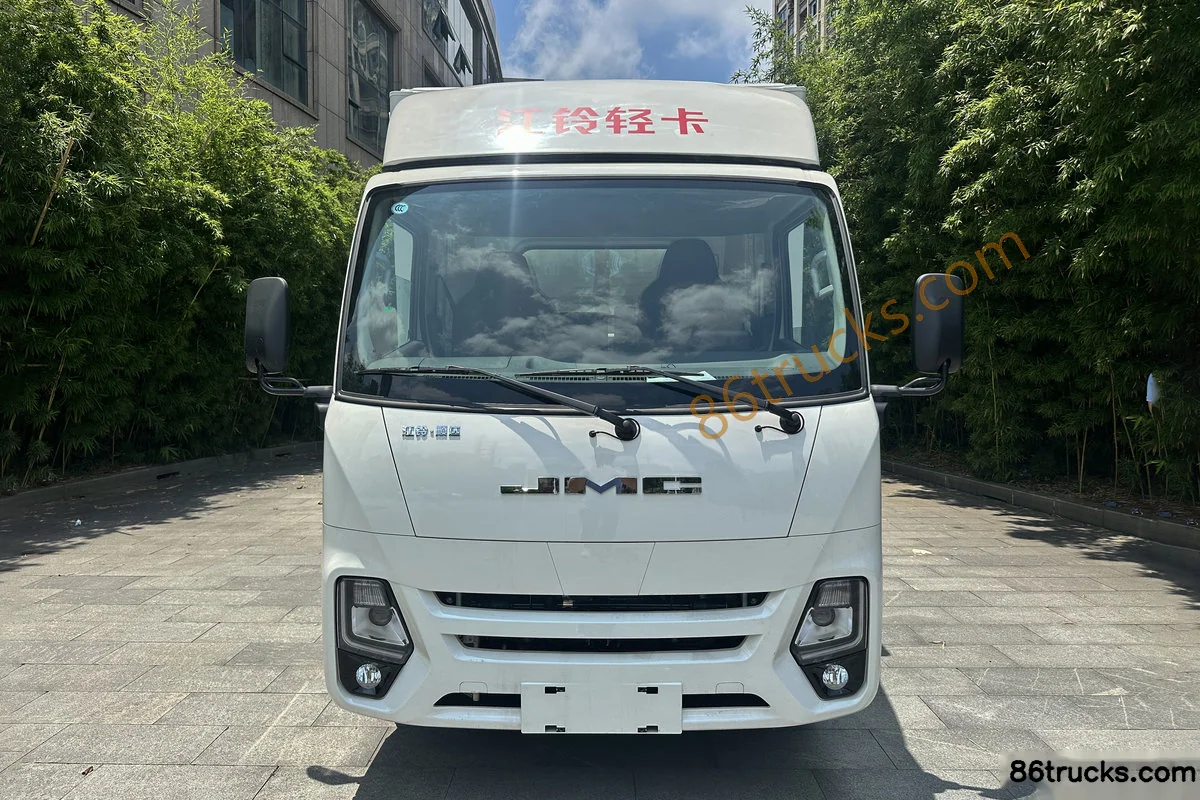

Exterior3

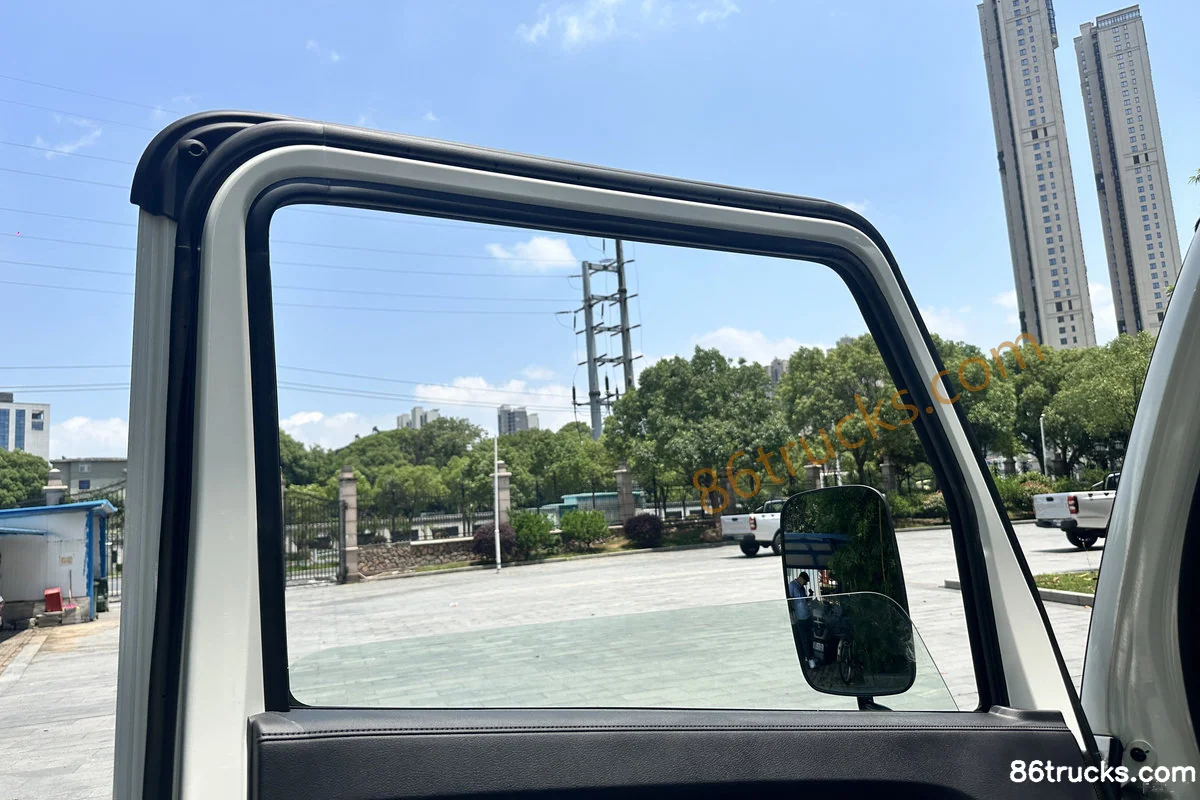

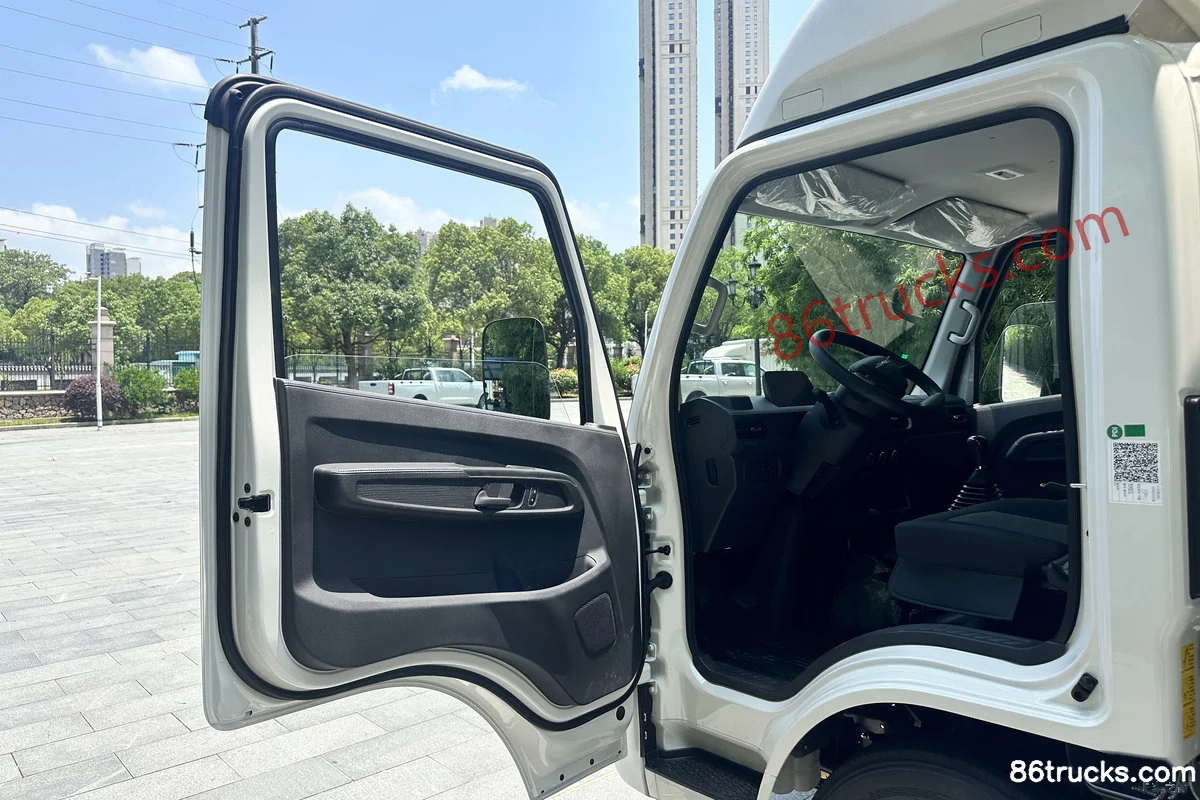

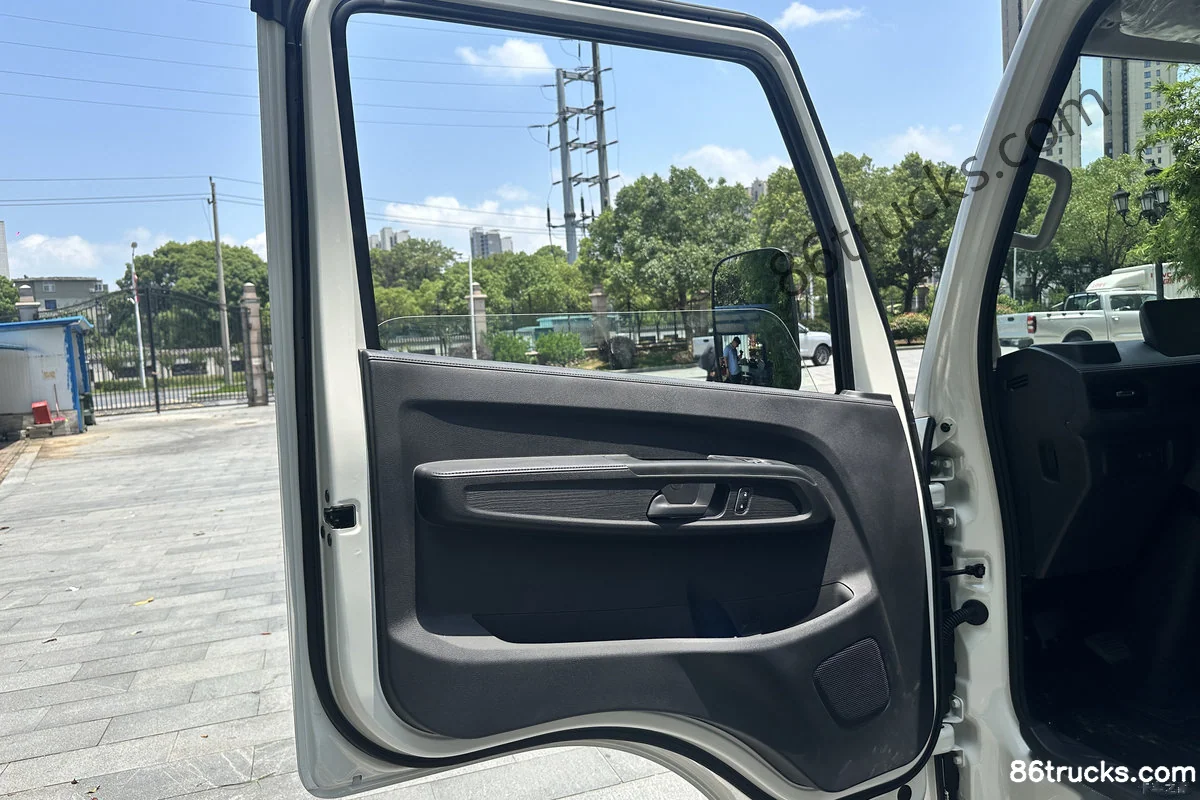

Cab3

Chassis3

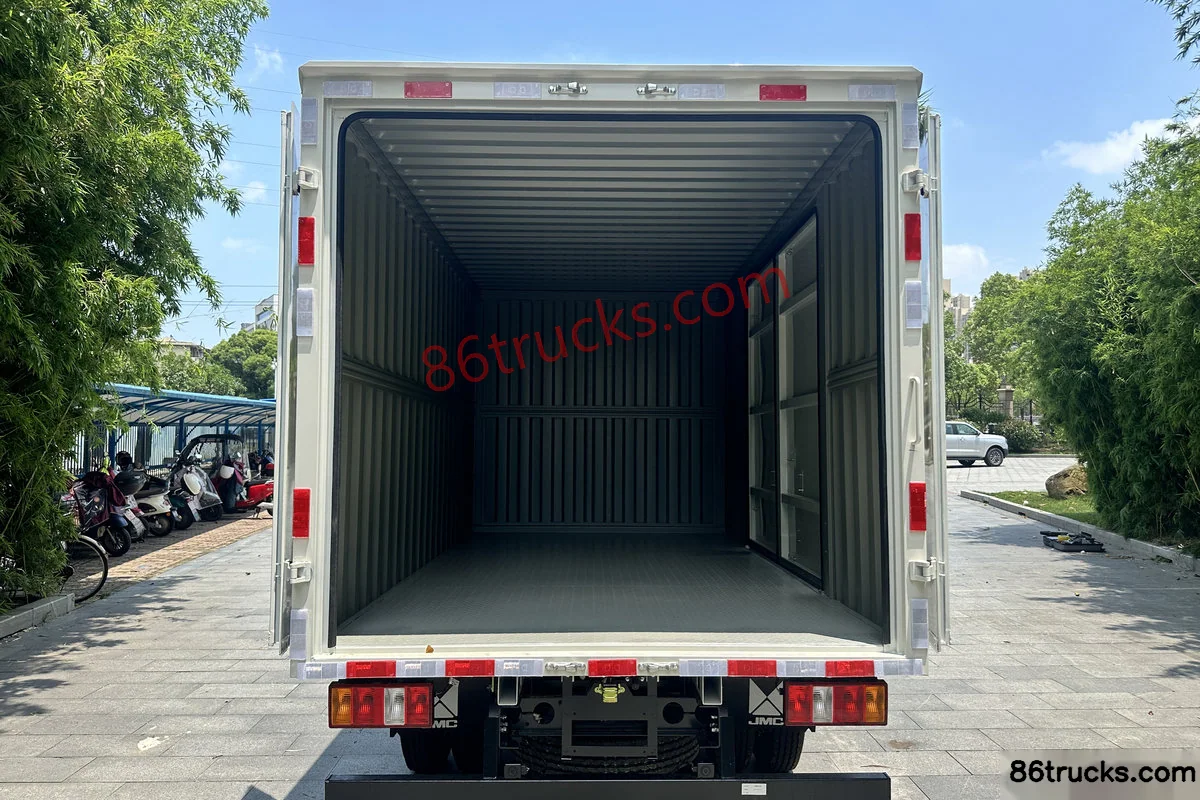

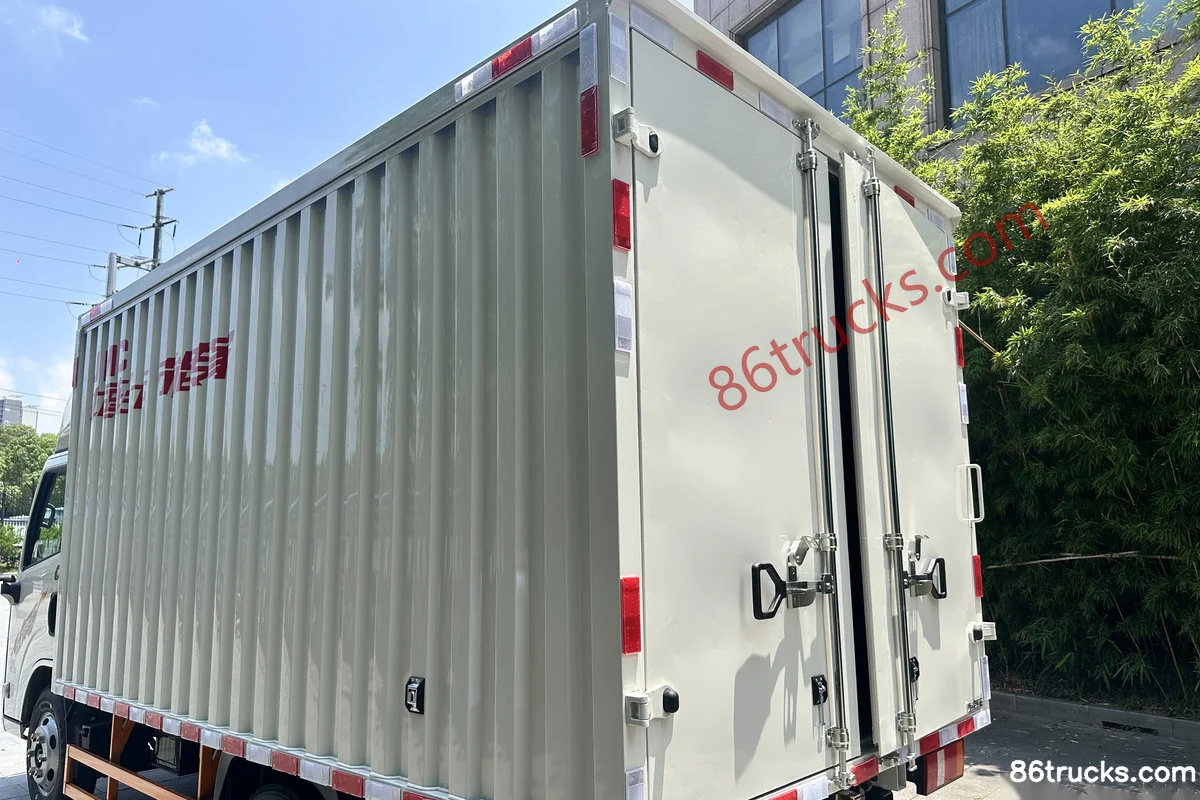

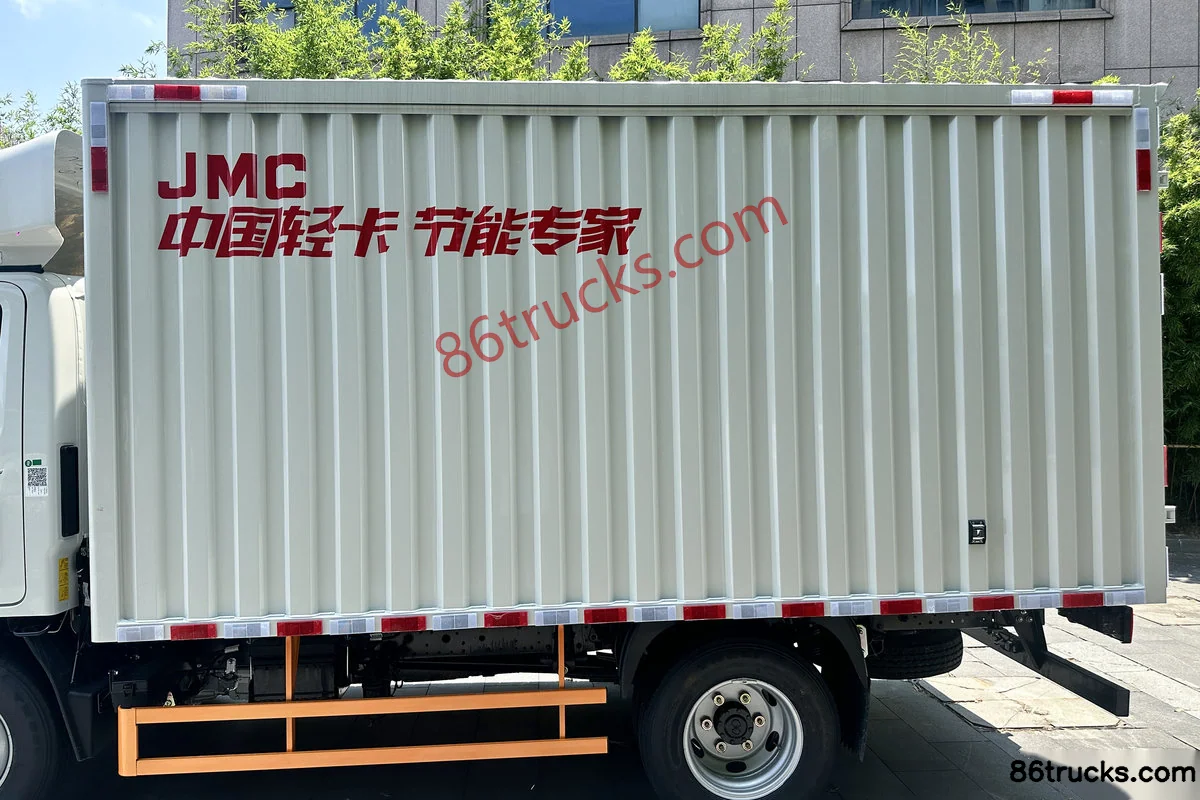

Body3

12 photos

FAQ

What is the export price of JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck, and what does it include?

JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck export reference is about From $14,278; MSRP is ¥10.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck?

Key specs of JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck: Drive: 4x2; Horsepower: 136 hp; Emission: China VI; Fuel: Diesel; Engine: JMC2.5L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck suited for?

JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck differ from other variants in the same series?

JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck belongs to JMC All-New Shunda Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Shunda Standard Edition 2.5L Diesel 136hp 4X2(6 wheels) WLY 5-Speed 3.7m Single Row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
