SRM Xinyuan Haoyun 4.5m pure electric postal truck 32.14kWh

Export reference
From $19,278
MSRP ¥13.88M CNY
Wheelbase:: 2925mm
Cargo box volume:: 5.28
Model code (announced):: JKC5035XYZA0X1BEV
Cab length:: 4.495m
GVWR:: 2.51ton
Max. speed:: 80km/h
Battery Brand: CATL
Motor 1 Brand: Sunlight
Curb Weight: 1.32ton
Rated payload: 1.06ton

Overview

The SRM Xinyuan Haoyun 4.5m pure electric postal truck 32.14kWh is a Electric Panel Van featuring CATL battery/range, Sunlight motor, 1.06t payload and 5.28 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5035XYZA0X1BEV
Wheelbase: 2925mm
Cab length: 4.495m
Cab width: 1.68m
Cab height: 1.99m
Curb Weight: 1.32ton
Rated payload: 1.06ton
GVWR: 2.51ton
Max. speed: 80km/h
Front/rear suspension: 0.66/0.91m
Energy Type: Electric
electric motor
Motor 1 Brand: Sunlight
Motor 1 Model: TZ185XS022XY
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
Battery/Charging
Charging method: Fast Charge, Slow Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 32.14kWh
Energy Density: 130.62
Body parameters
Cargo box volume: 5.28
Max body depth: 2.51
Max body width: 1.475
Cargo Box Height: 1.35
Chassis Specs
steering assist type: vacuum booster
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
Number of Doors: 5
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 175/70R14C
Rear Wheel Specification: 175/70R14C
Cab parameters
Seat rows: 3
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:

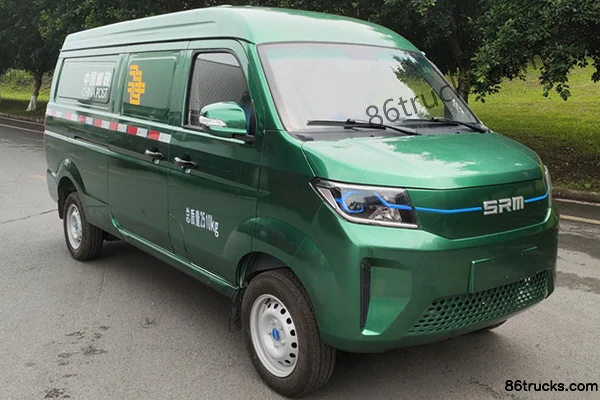

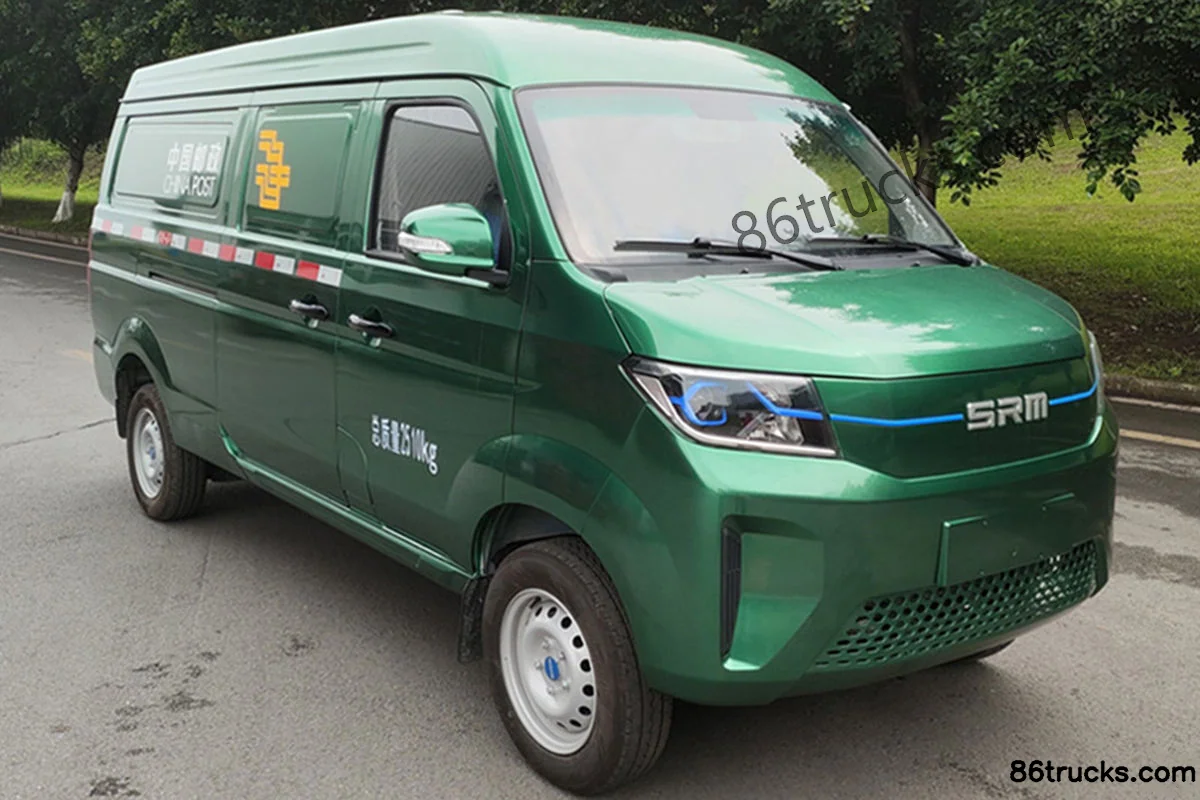

Photos

Exterior1

1 photos

FAQ

What is the export price of SRM Xinyuan Haoyun 4.5m pure electric postal truck 32.14kWh, and what does it include?

SRM Xinyuan Haoyun 4.5m pure electric postal truck 32.14kWh export reference is about From $19,278; MSRP is ¥13.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is SRM Xinyuan Haoyun 4.5m pure electric postal truck 32.14kWh suited for?

SRM Xinyuan Haoyun 4.5m pure electric postal truck 32.14kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan Haoyun 4.5m pure electric postal truck 32.14kWh differ from other variants in the same series?

SRM Xinyuan Haoyun 4.5m pure electric postal truck 32.14kWh belongs to SRM Xinyuan New Energy Haoyun (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan Haoyun 4.5m pure electric postal truck 32.14kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan Haoyun 4.5m pure electric postal truck 32.14kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
